- eigenstrain_nameMaterial property name for the eigenstrain tensor computed by this model. IMPORTANT: The name of this property must also be provided to the strain calculator.
C++ Type:std::string
Controllable:No
Description:Material property name for the eigenstrain tensor computed by this model. IMPORTANT: The name of this property must also be provided to the strain calculator.
- flux_conversion_factorConvert fast neutron flux E>0.10 to E>0.18 MeV
C++ Type:double
Unit:(no unit assumed)
Controllable:No
Description:Convert fast neutron flux E>0.10 to E>0.18 MeV
- temperatureCoupled temperature
C++ Type:std::vector<VariableName>
Unit:(no unit assumed)
Controllable:No
Description:Coupled temperature
PyCCEGAIrradiationEigenstrain
Computes irradiation-induced dimensional changes (IIDC) for PyC.
Description
The irradiation-induced dimensional change (IIDC) of the buffer is given by Miller et al. (2018) and Ho (1993). The strains, (%) for radial,tangential,isotropic are given by where (10 n/m, 0.18 MeV) is the fast neutron fluence, and through are BaconAnisotropyFactor- and temperature-dependent polynomial coefficients ( g/cm) at varied temperatures. These are tabulated below.
Table 1: Polynomial coefficients for isotropic strain components.
| T() | BAF | ||||
|---|---|---|---|---|---|
| 600 | 1.0000 | -1.24080 | 0.00175 | 0.08533 | -0.01253 |
| 1032 | 1.0000 | -1.52390 | 0.13048 | 0.06299 | -0.01072 |
| 1350 | 1.0000 | -1.42840 | -0.19563 | 0.18991 | -0.02591 |
Table 2: Polynomial coefficients for radial strain components.
| BAF= | 1.0000 | 1.0212 | 1.0488 | 1.0769 | 1.1746 | 1.2787 | |
|---|---|---|---|---|---|---|---|
| 600 | -1.24080 | -1.10640 | -0.94333 | -0.78045 | -0.15714 | 0.40265 | |
| 0.00175 | -0.03128 | -0.03589 | -0.02975 | -0.14889 | -0.16501 | ||
| 0.08533 | 0.09184 | 0.08184 | 0.06655 | 0.07546 | 0.03676 | ||
| -0.01253 | -0.01220 | -0.00958 | -0.00626 | -0.00293 | 0.00706 | ||
| 1032 | -1.52390 | -2.07520 | -2.00470 | -1.81690 | -1.18540 | -0.45900 | |
| 0.13048 | 1.37845 | 1.30380 | 1.10850 | 0.64995 | 0.51172 | ||
| 0.06299 | -0.48993 | -0.37280 | -0.23868 | 0.01380 | -0.03245 | ||
| -0.01072 | 0.06602 | 0.04538 | 0.02484 | -0.01284 | -0.00142 | ||
| 1350 | -1.42840 | -1.54330 | -1.49640 | -0.89522 | 1.20930 | 3.71620 | |
| -0.19563 | 0.59804 | 1.16621 | 0.80331 | -0.53861 | -2.70420 | ||
| 0.18991 | -0.09997 | -0.30106 | -0.09009 | 0.43114 | 1.17990 | ||
| -0.02591 | 0.00978 | 0.03475 | 0.00467 | -0.05590 | -0.13910 |
Table 3: Polynomial coefficients for tangential strain components.
| BAF= | 1.0000 | 1.0303 | 1.0769 | 1.1250 | 1.2258 | 1.3333 | |
|---|---|---|---|---|---|---|---|
| 600 | -1.24080 | -1.38550 | -1.46790 | -1.64660 | -1.84990 | -2.19190 | |
| 0.00175 | 0.05307 | -0.02836 | 0.03928 | -0.09358 | 0.02675 | ||
| 0.08533 | 0.07620 | 0.12139 | 0.10067 | 0.18119 | 0.15352 | ||
| -0.01253 | -0.01245 | -0.01948 | -0.01764 | -0.03036 | -0.02972 | ||
| 1032 | -1.52390 | -1.57590 | -1.32200 | -1.18700 | -0.96963 | -0.81239 | |
| 0.13048 | 0.09019 | -0.51928 | -0.90635 | -1.59110 | -2.20760 | ||
| 0.06299 | 0.05306 | 0.27603 | 0.41046 | 0.64689 | 0.88496 | ||
| -0.01072 | -0.00815 | -0.03465 | -0.05067 | -0.07682 | -0.10457 | ||
| 1350 | -1.42840 | -2.24680 | -2.82930 | -3.25550 | -4.44780 | -5.67140 | |
| -0.19563 | 0.48243 | 0.76088 | 0.90423 | 1.60320 | 2.41920 | ||
| 0.18991 | -0.07687 | -0.22314 | -0.33175 | -0.58683 | -0.86155 | ||
| -0.02591 | 0.00464 | 0.02431 | 0.04329 | 0.07458 | 0.10668 |
The polynomial coefficients at other BAF and temperatures are interpolated or extrapolated from these same tables. The isotropic strain (BAF = 1.0) is calculated at the temperature of the PyC and adjusted for density by applying an isotropic scaling factor, . The isotropic scaling factor—the ratio of the isotropic strain at a given density to the isotropic strain at —is computed as:
The isotropic scaling factor is calculated using the values in Table 4, which shows the relationship between the isotropic strain and density at an irradiation temperature and a fast fluence. Adjustments for density at other BAF values are made by applying an anisotropic scaling factor, . The anisotropic scaling factor—the ratio of the difference between the radial and tangential strain components at a given density to the difference between the radial and tangential strain components at —is computed as:
The anisotropic scaling factor is calculated using the values in Table 4, which shows the relationship between the difference between the radial and tangential strain components and density at an irradiation temperature and a fast fluence. Thus, the adjusted radial and tangential strains become
Table 4: Isotropic strain at irradiation temperature of 1100C and fast fluence of 3.7x10 n/m (0.18 MeV).
| (g/cm) | (%) | - (%) |
|---|---|---|
| 1.00 | -16.15 | 0.000 |
| 1.20 | -13.11 | 0.500 |
| 1.40 | -9.98 | 1.100 |
| 1.50 | -8.93 | 1.650 |
| 1.60 | -6.97 | 2.450 |
| 1.80 | -4.42 | 6.305 |
| 1.90 | -3.41 | 7.900 |
| 1.96 | -2.75 | 9.600 |
| 2.00 | -2.33 | 11.100 |
Note that the strains are then rotated based on the coordinates supplied by the user (see Ho (1993) and Miller et al. (2018)). The correlation uses fast fluence with neutron energy threshold 0.18 MeV. The model performs the fast fluence conversion from 0.10 MeV to 0.18 MeV using flux conversion factor.
Figure 1 and Figure 2 shows dimensional change of pyrocarbon as a function of fluence at various temperatures for BAF=1.036 and 1.063, respectively.

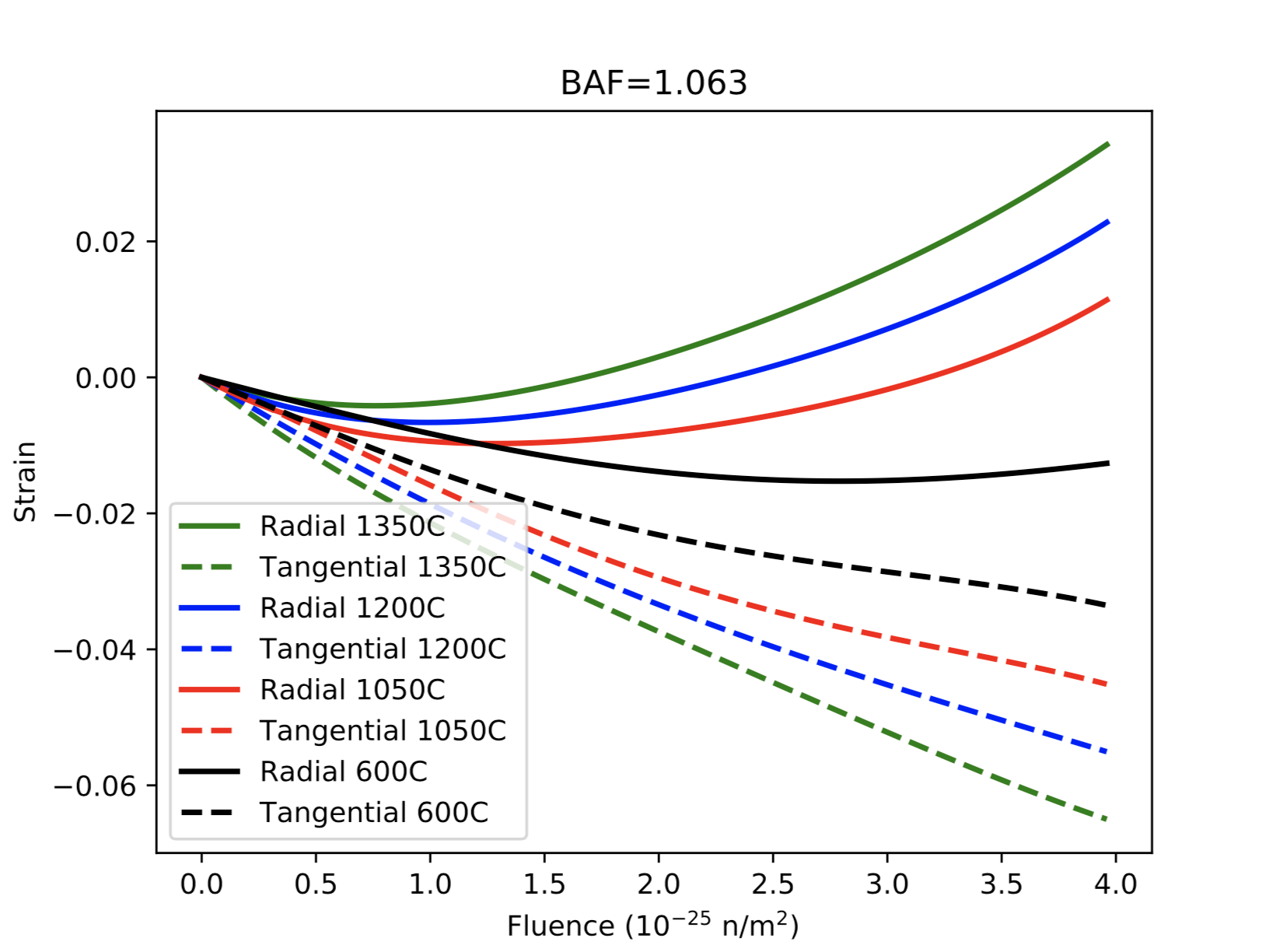

Figure 1: Dimensional change of pyrocarbon as a function of fluence at various temperatures, , BAF = 1.036
Figure 2: Dimensional change of pyrocarbon as a function of fluence at various temperatures, , BAF = 1.063
Validity Range
For temperatures outside of 600-1350^{\circ}C, coefficients are extrapolated.
BAF does not use extrapolation. For values exceed the maximum, the strain rates are set to the values calculated at the maximum BAF values.
Example Input Syntax
[Materials<<<{"href": "../../../syntax/Materials/index.html"}>>>]
[irradiation_strain]
type = PyCCEGAIrradiationEigenstrain<<<{"description": "Computes irradiation-induced dimensional changes (IIDC) for PyC.", "href": "PyCCEGAIrradiationEigenstrain.html"}>>>
eigenstrain_name<<<{"description": "Material property name for the eigenstrain tensor computed by this model. IMPORTANT: The name of this property must also be provided to the strain calculator."}>>> = IIDC_strain
temperature<<<{"description": "Coupled temperature"}>>> = temperature
[]
[]Input Parameters
- base_nameOptional parameter that allows the user to define multiple mechanics material systems on the same block, i.e. for multiple phases
C++ Type:std::string
Controllable:No
Description:Optional parameter that allows the user to define multiple mechanics material systems on the same block, i.e. for multiple phases
- blockThe list of blocks (ids or names) that this object will be applied
C++ Type:std::vector<SubdomainName>
Controllable:No
Description:The list of blocks (ids or names) that this object will be applied
- boundaryThe list of boundaries (ids or names) from the mesh where this object applies
C++ Type:std::vector<BoundaryName>
Controllable:No
Description:The list of boundaries (ids or names) from the mesh where this object applies
- computeTrueWhen false, MOOSE will not call compute methods on this material. The user must call computeProperties() after retrieving the MaterialBase via MaterialBasePropertyInterface::getMaterialBase(). Non-computed MaterialBases are not sorted for dependencies.
Default:True
C++ Type:bool
Controllable:No
Description:When false, MOOSE will not call compute methods on this material. The user must call computeProperties() after retrieving the MaterialBase via MaterialBasePropertyInterface::getMaterialBase(). Non-computed MaterialBases are not sorted for dependencies.
- constant_onNONEWhen ELEMENT, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps.When SUBDOMAIN, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps. Evaluations on element qps will be skipped
Default:NONE
C++ Type:MooseEnum
Options:NONE, ELEMENT, SUBDOMAIN
Controllable:No
Description:When ELEMENT, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps.When SUBDOMAIN, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps. Evaluations on element qps will be skipped
- declare_suffixAn optional suffix parameter that can be appended to any declared properties. The suffix will be prepended with a '_' character.
C++ Type:MaterialPropertyName
Unit:(no unit assumed)
Controllable:No
Description:An optional suffix parameter that can be appended to any declared properties. The suffix will be prepended with a '_' character.
- disp_ppX0The reporting postprocessor for particle displacement x-axis
Default:0
C++ Type:PostprocessorName
Unit:(no unit assumed)
Controllable:No
Description:The reporting postprocessor for particle displacement x-axis
- disp_ppY0The reporting postprocessor for particle displacement y-axis
Default:0
C++ Type:PostprocessorName
Unit:(no unit assumed)
Controllable:No
Description:The reporting postprocessor for particle displacement y-axis
- disp_ppZ0The reporting postprocessor for particle displacement z-axis
Default:0
C++ Type:PostprocessorName
Unit:(no unit assumed)
Controllable:No
Description:The reporting postprocessor for particle displacement z-axis
- fast_neutron_fluencefast_neutron_fluenceCoupled fast (E>0.10 MeV) neutron fluence (n/m^2)
Default:fast_neutron_fluence
C++ Type:MaterialPropertyName
Unit:(no unit assumed)
Controllable:No
Description:Coupled fast (E>0.10 MeV) neutron fluence (n/m^2)
- particle_center0 0 0Center of particle
Default:0 0 0
C++ Type:libMesh::Point
Controllable:No
Description:Center of particle
Optional Parameters
- control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector<std::string>
Controllable:No
Description:Adds user-defined labels for accessing object parameters via control logic.
- enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Controllable:Yes
Description:Set the enabled status of the MooseObject.
- implicitTrueDetermines whether this object is calculated using an implicit or explicit form
Default:True
C++ Type:bool
Controllable:No
Description:Determines whether this object is calculated using an implicit or explicit form
- seed0The seed for the master random number generator
Default:0
C++ Type:unsigned int
Controllable:No
Description:The seed for the master random number generator
- use_displaced_meshFalseWhether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.
Default:False
C++ Type:bool
Controllable:No
Description:Whether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.
Advanced Parameters
- irradiation_eigenstrain_scale_factor1Scale factor for PyC IIDC
Default:1
C++ Type:double
Unit:(no unit assumed)
Controllable:No
Description:Scale factor for PyC IIDC
Advanced: Scaling Factors Parameters
- output_propertiesList of material properties, from this material, to output (outputs must also be defined to an output type)
C++ Type:std::vector<std::string>
Controllable:No
Description:List of material properties, from this material, to output (outputs must also be defined to an output type)
- outputsnone Vector of output names where you would like to restrict the output of variables(s) associated with this object
Default:none
C++ Type:std::vector<OutputName>
Controllable:No
Description:Vector of output names where you would like to restrict the output of variables(s) associated with this object
Outputs Parameters
- prop_getter_suffixAn optional suffix parameter that can be appended to any attempt to retrieve/get material properties. The suffix will be prepended with a '_' character.
C++ Type:MaterialPropertyName
Unit:(no unit assumed)
Controllable:No
Description:An optional suffix parameter that can be appended to any attempt to retrieve/get material properties. The suffix will be prepended with a '_' character.
- use_interpolated_stateFalseFor the old and older state use projected material properties interpolated at the quadrature points. To set up projection use the ProjectedStatefulMaterialStorageAction.
Default:False
C++ Type:bool
Controllable:No
Description:For the old and older state use projected material properties interpolated at the quadrature points. To set up projection use the ProjectedStatefulMaterialStorageAction.
Material Property Retrieval Parameters
Input Files
- (examples/TRISO/failure_probability_direct_integration/asphericity.i)
- (examples/TRISO/failure_probability_direct_integration/ipyc_cracking.i)
- (test/tests/triso_failure/triso_failure_diffusivity.i)
- (test/tests/triso_failure/triso_1d_kernel_migration.i)
- (examples/TRISO/failure_probability_monte_carlo/triso_1d_constant.i)
- (examples/TRISO/correlation_function/h_asphericity/triso_1d.i)
- (examples/TRISO/correlation_function/h_ipyc_cracking/triso_cracking.i)
- (examples/TRISO/correlation_function/h_ipyc_sic_debonding/triso_debonding.i)
- (examples/TRISO/failure_probability_monte_carlo/triso_1d_function.i)
- (test/tests/triso_failure/higher_order_correlation.i)
- (examples/TRISO/parfume/parfume.i)
- (test/tests/triso/kernel_migration/kernel_migration_distance.i)
- (test/tests/triso/mesh/ipyc_crack.i)
- (test/tests/triso_failure/triso_1d_ipyc_weibull_probability.i)
- (examples/TRISO/correlation_function/h_asphericity/triso_asphericity_mortar.i)
- (test/tests/triso/pyc_eigenstrains/irradiation_strain/test_cega.i)
- (test/tests/triso_failure/ad_triso_1d_ipyc_weibull_probability.i)
- (examples/TRISO/correlation_function/h_asphericity/triso_asphericity.i)
- (examples/TRISO/parfume/parfume_un.i)
- (examples/TRISO/failure_probability_direct_integration/triso_1d.i)
References
- F. Ho.
NP-MHTGR: Material Models of Pyrocarbon and Pyrolytic Silicon Carbide.
Report CEGA-002820 Rev. 1, CEGA Corporation, July 1993.[BibTeX]
@techreport{CEGA1993, author = "Ho, F.", title = "{NP-MHTGR: Material Models of Pyrocarbon and Pyrolytic Silicon Carbide}", institution = "CEGA Corporation", year = "1993", month = "July", number = "CEGA-002820 Rev. 1", type = "Report" } - G.K. Miller, D.A. Petti, J.T. Maki, D.L. Knudson, and W.F. Skerjanc.
PARFUME Theory and Model Basis Report.
Report INL/EXT-08-14497 (Rev.1), Idaho National Laboratory, September 2018.[BibTeX]
@techreport{Miller2018, author = "Miller, G.K. and Petti, D.A. and Maki, J.T. and Knudson, D.L. and Skerjanc, W.F.", title = "{PARFUME Theory and Model Basis Report}", institution = "Idaho National Laboratory", year = "2018", month = "September", number = "INL/EXT-08-14497 (Rev.1)", type = "Report" }
(test/tests/triso/pyc_eigenstrains/irradiation_strain/test_cega.i)
# This test case is prepared to test PyCCEGAIrradiationEigenstrain
# using the approach provided in
#
# G. K. Miller, D. A. Petti, J. T. Maki, D. L. Knudson, and
# W. F. Skerjanc, "PARFUME Theory and Model Basis Report",
# Report INL/EXT-08-14497 Rev. 1, Idaho National Laboratory, September 2018
#
# In this test, a prism (1x2x2 mm) made of PyC material
# (initial density = 1.9 g/cm^3 / initial BAF = 1.05) subject to IIDC strain.
#
# The temperature is kept constant at 1305.15K.
#
# The fast neutron flux (E>0.10 MeV) is ramped linearly from 0
# to 7.5e18 n/m^2-s over 1e4 seconds and then remains constant.
#
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
order = FIRST
family = LAGRANGE
execute_on = 'initial timestep_end'
particle_center = '0 0 0'
flux_conversion_factor = 0.85
[]
[Mesh]
[cube]
type = GeneratedMeshGenerator
dim = 3
xmin = 0.499
xmax = 0.500
ymin = -0.001
ymax = 0.001
zmin = -0.001
zmax = 0.001
[]
[]
[Variables]
[disp_x]
[]
[disp_y]
[]
[disp_z]
[]
[]
[AuxVariables]
[temperature]
initial_condition = 1373.15
[]
[]
[Functions]
[fluence_function]
type = PiecewiseLinear
x = '0 1e2 1e6'
y = '0 1.5e23 7.5e25'
[]
[BAF_function]
type = PiecewiseLinear
x = ' 0 1e4'
y = '1.05 1.182'
[]
[]
[Physics/SolidMechanics/QuasiStatic]
[perm_PyC]
strain = FINITE
eigenstrain_names = 'IIDC_strain'
generate_output = 'vonmises_stress stress_xx stress_yy stress_zz'
[]
[]
[BCs]
[no_z_all]
type = DirichletBC
variable = disp_z
boundary = 'front'
value = 0
[]
[no_y_all]
type = DirichletBC
variable = disp_y
boundary = 'top'
value = 0
[]
[no_x_all]
type = DirichletBC
variable = disp_x
boundary = 'right'
value = 0
[]
[]
[Materials]
[fluence]
type = GenericFunctionMaterial
prop_values = fluence_function
prop_names = fast_neutron_fluence
[]
[BAF]
type = GenericFunctionMaterial
prop_values = BAF_function
prop_names = BAF
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
[]
[irradiation_strain]
type = PyCCEGAIrradiationEigenstrain
eigenstrain_name = IIDC_strain
temperature = temperature
[]
[thermal_expansion]
type = ComputeThermalExpansionEigenstrain
temperature = temperature
thermal_expansion_coeff = 10e-6
stress_free_temperature = 300.0
eigenstrain_name = thermal_eigenstrain
[]
[stress]
type = ComputeFiniteStrainElasticStress
[]
[elasticity_tensor]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 1e6
poissons_ratio = 0.3
[]
[thermal]
type = GenericConstantMaterial
# The recommended property values for PyC. See TRISO documentation page
prop_names = 'density specific_heat thermal_conductivity'
prop_values = '1900.0 720.0 4.0'
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package -ksp_gmres_restart'
petsc_options_value = 'lu superlu_dist 51'
line_search = 'none'
l_max_its = 50
l_tol = 1e-2
nl_max_its = 100
nl_rel_tol = 1e-4
nl_abs_tol = 1e-6
start_time = 0.0
end_time = 1e4
num_steps = 140
dt = 1e2
[]
[Postprocessors]
[temperature]
type = ElementExtremeValue
value_type = 'max'
variable = temperature
[]
[disp_x_max]
type = NodalExtremeValue
boundary = 'left'
value_type = 'max'
variable = disp_x
[]
[disp_y_max]
type = NodalExtremeValue
value_type = 'max'
variable = disp_y
[]
[disp_z_max]
type = NodalExtremeValue
value_type = 'max'
variable = disp_z
[]
[radial_IIDC_strain]
type = ElementAverageMaterialProperty
mat_prop = radial_IIDC_strain
execute_on = 'initial timestep_end'
[]
[tangential_IIDC_strain]
type = ElementAverageMaterialProperty
mat_prop = tangential_IIDC_strain
execute_on = 'initial timestep_end'
[]
[fast_neutron_fluence]
type = ElementAverageMaterialProperty
mat_prop = fast_neutron_fluence
execute_on = 'initial timestep_end'
[]
[]
[Outputs]
file_base = cega_test_923k
csv = true
[]
(examples/TRISO/failure_probability_direct_integration/asphericity.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
aspect_ratio = 1.04
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x disp_y'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RZ
[gen]
type = TRISO2DMeshGenerator
elem_type = quad4
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} '
'${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
num_sectors = 60
aspect_ratio = ${aspect_ratio}
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
mesh_generator = 'gen'
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz '
'max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
sphere_origin = '0 0 0'
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[no_disp_y]
type = DirichletBC
variable = disp_y
boundary = bottom
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[Pressure]
[exterior]
boundary = exterior
factor = 0.1e6
[]
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
triso_geometry = particle_geometry
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-8
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
# For testing, we only run 20 time steps
num_steps = 20
dtmin = 1e-4
dt = 6e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = max_principal_stress
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbability
block = SiC
weibull_modulus = 6
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_IPyC]
type = WeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = false
perf_graph = true
exodus = false
[]
(examples/TRISO/failure_probability_direct_integration/ipyc_cracking.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
aspect_ratio = 1.04
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x disp_y'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RZ
[gen]
type = TRISO2DMeshGenerator
elem_type = quad4
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} '
'${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
num_sectors = 60
aspect_ratio = ${aspect_ratio}
all_bottom_left = true
[]
[]
[XFEM]
qrule = volfrac
output_cut_plane = true
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[ipyc_crack]
type = LineSegmentCutUserObject
cut_data = '0.0000 0.0 0.001 0.0'
#cut_data = '0 0 0.00174 -0.00257'
time_start_cut = 0.0
time_end_cut = 0.0
block = IPyC
[]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
mesh_generator = 'gen'
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz '
'max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 5e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
sphere_origin = '0 0 0'
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[no_disp_y]
type = DirichletBC
variable = disp_y
boundary = '2001 2002 2004 2005'
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[Pressure]
[exterior]
boundary = exterior
factor = 0.1e6
[]
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
triso_geometry = particle_geometry
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 1e-11
nl_abs_tol = 1e-11
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
# For testing, we only run 20 time steps
num_steps = 20
dtmin = 1e-4
dt = 6e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = max_principal_stress
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[weibull_failure_probability_SiC_crackedIPyC]
type = WeibullFailureProbability
block = SiC
weibull_modulus = 6
characteristic_strength = characteristic_strength
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = false
perf_graph = true
exodus = false
[]
(test/tests/triso_failure/triso_failure_diffusivity.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[mesh]
type = TRISO1DMeshGenerator
elem_type = EDGE2
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '18 14 0 12 16 16'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
IPyC_thickness_mean = ${IPyC_thickness}
SiC_thickness_mean = ${SiC_thickness}
OPyC_thickness_mean = ${OPyC_thickness}
[]
[]
[Variables]
[temperature]
initial_condition = 873.15
[]
[conc_Ag]
initial_condition = 0.0
scaling = 1e12
[]
[]
[AuxVariables]
[bounds_dummy]
order = FIRST
family = LAGRANGE
[]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[fis_gas_produced]
order = CONSTANT
family = MONOMIAL
[]
[fis_gas_released]
order = CONSTANT
family = MONOMIAL
[]
[Ag_diff_coef]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[power_history]
type = PiecewiseLinear
x = '0 76e6'
y = '1 1'
[]
[fission_rate]
type = LinearCombinationFunction
functions = power_history
w = 7.78e19
[]
[high_fidelity_strength_crackedIPyC]
type = ConstantFunction
value = '1403604095.5707'
[]
[stress_correlation_crackedIPyC]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = -4.0
[]
[high_fidelity_strength_asphericity]
type = ConstantFunction
value = '1371700766.8875'
[]
[stress_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = 1.5191967987843993
[]
[stress_change_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = 1.391516859626456
[]
[d_gap]
type = PiecewiseLinear
x = '1500 2100'
y = '1e-14 1e-12'
[]
[ag_d1]
type = ParsedFunction
symbol_values = 'sic_failure_overall'
symbol_names = 'failure'
expression = 'if(failure > 0.5,1e-6,3.6e-9)'
[]
[ag_q1]
type = ParsedFunction
symbol_values = 'sic_failure_overall'
symbol_names = 'failure'
expression = 'if(failure > 0.5,0,215e3)'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[mass_Ag_dt]
type = TimeDerivative
variable = conc_Ag
[]
[mass_Ag]
type = ArrheniusDiffusion
variable = conc_Ag
arrhenius_prpty_name = arrhenius_diffusion_coef_Ag
extra_vector_tags = 'ref'
[]
[mass_source_Ag]
type = SpeciesSourceRate
variable = conc_Ag
property_name = Ag_generation
block = fuel
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[Ag_diff_coef]
type = MaterialRealAux
variable = Ag_diff_coef
property = arrhenius_diffusion_coef_Ag
execute_on = timestep_end
[]
[]
[BCs]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = 873.15
boundary = exterior
[]
[freesurf_conc_Ag]
type = DirichletBC
variable = conc_Ag
boundary = exterior
value = 0.0
[]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Controls]
[ag_d1]
type = RealFunctionControl
parameter = 'Materials/SiC_conc_Ag/d1'
function = 'ag_d1'
execute_on = 'INITIAL TIMESTEP_BEGIN'
[]
[ag_q1]
type = RealFunctionControl
parameter = 'Materials/SiC_conc_Ag/q1'
function = 'ag_q1'
execute_on = 'INITIAL TIMESTEP_BEGIN'
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
#block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
flux_function = power_history
factor = 1.16e18
[]
# Arrhenius diffusion coefficients for kernel, PyC, and SiC
# come from IAEA TECDOC-978, French parameters.
[fuel_conc_Ag]
type = ArrheniusDiffusionCoef
block = fuel
d1 = 6.7e-9 # m^2/s
q1 = 165e3 # J/mol
temperature = temperature
arrhenius_prpty_name = arrhenius_diffusion_coef_Ag
[]
[mass_source_Ag_property]
type = SpeciesSourceMaterial
property_name = Ag_generation
kind = Ag
block = fuel
[]
### Buffer Properties
[buffer_conc_Ag]
type = ArrheniusDiffusionCoef
block = buffer
d1 = 1e-8 # m^2/s
q1 = 0.0
temperature = temperature
arrhenius_prpty_name = arrhenius_diffusion_coef_Ag
[]
### IPyC properties
[IPyC_conc_Ag]
type = ArrheniusDiffusionCoef
block = IPyC
d1 = 5.3e-9 # m^2/s
q1 = 154e3 # J/mol
temperature = temperature
arrhenius_prpty_name = arrhenius_diffusion_coef_Ag
[]
### SiC properties
[SiC_conc_Ag]
type = ArrheniusDiffusionCoef
block = SiC
d1 = 3.6e-9 # m^2/s
q1 = 215e3 # J/mol
temperature = temperature
arrhenius_prpty_name = arrhenius_diffusion_coef_Ag
[]
### OPyC properties
[OPyC_conc_Ag]
type = ArrheniusDiffusionCoef
block = OPyC
d1 = 5.3e-9 # m^2/s
q1 = 154e3 # J/mol
temperature = temperature
arrhenius_prpty_name = arrhenius_diffusion_coef_Ag
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles # coupling to a postprocessor which supplies the initial plenum/gap gas mass
initial_gas_types = 'Kr Xe'
initial_fractions = '0.185 0.815'
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
roughness_primary = 0e-6
roughness_secondary = 0e-6
jumpdistance_primary = 0
jumpdistance_secondary = 0
quadrature = true
emissivity_secondary = 0.0
emissivity_primary = 0.0
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[conc_Ag]
type = GapHeatTransfer
variable = conc_Ag
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
tangential_tolerance = 1e-6
gap_conductivity_function = d_gap
gap_conductivity_function_variable = temperature
appended_property_name = _conc_Ag
quadrature = true
gap_geometry_type = sphere
emissivity_primary = 0.0
emissivity_secondary = 0.0
min_gap = 1e-7
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type'
petsc_options_value = 'lu'
line_search = 'none'
nl_rel_tol = 1e-7
nl_abs_tol = 1e-7
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
[TimeStepper]
type = IterationAdaptiveDT
dt = 20
growth_factor = 1.5
optimal_iterations = 8 #6
linear_iteration_ratio = 100
time_t = '0 76e6 76.001e6 84.641e6 84.6482e6'
time_dt = '20 20 20 20 20'
[]
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[release_heat_inc]
type = SideIntegralMassFlux
variable = temperature
boundary = exterior
arrhenius_prpty_name = thermal_conductivity
execute_on = 'initial timestep_end'
[]
[release_Ag_inc]
type = SideIntegralMassFlux
variable = conc_Ag
boundary = exterior
arrhenius_prpty_name = arrhenius_diffusion_coef_Ag
execute_on = 'initial timestep_end'
[]
[released_Ag]
type = TimeIntegratedPostprocessor # computes time integration of value
value = release_Ag_inc
execute_on = 'initial timestep_end'
[]
[total_Ag]
type = ElementIntegralMaterialProperty
mat_prop = Ag_generation_total
block = fuel
execute_on = 'initial timestep_end'
[]
[x_Ag_released]
type = FractionalRelease
released = released_Ag
total = total_Ag
[]
[retained_Ag]
type = ElementIntegralVariablePostprocessor
variable = conc_Ag
[]
[fis_gas_produced]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_produced
block = fuel
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
execute_on = 'initial linear timestep_end'
[]
### Postprocessors for CO production
[total_fission_rate]
type = ElementIntegralPower
variable = temperature
fission_rate = fission_rate
block = fuel
energy_per_fission = 1.0
execute_on = 'initial timestep_end'
[]
[total_fissions]
type = TimeIntegratedPostprocessor
value = total_fission_rate
execute_on = 'initial timestep_end'
[]
##### irradiation conditions
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[failure_indicator_SiC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_asphericity'
stress_correlation_function = 'stress_correlation_asphericity'
stress_change_correlation_function = 'stress_change_correlation_asphericity'
[]
[strength_IPyC]
type = WeibullEffectiveMeanStrength
block = IPyC
weibull_modulus = 9.5
[]
[failure_indicator_IPyC]
type = WeibullFailureOutputUsingCorrelation
block = IPyC
weibull_modulus = 9.5
stress_name = max_principal_stress
effective_mean_strength = strength_IPyC
[]
[failure_indicator_SiC_crackedIPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[sic_failure_overall]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
SiC_failure_pd_penetration = failure_indicator_pd_penetration
failure_type = SIC_FAILURE_OVERALL
[]
[ipyc_cracking]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = IPYC_CRACKING
[]
[sic_failure_due_to_pressure]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = SIC_FAILURE_DUE_TO_PRESSURE
[]
[sic_failure_due_to_ipyc_cracking]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = SIC_FAILURE_DUE_TO_IPYC_CRACKING
[]
[weibull_failure_probability_IPyC]
type = WeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbability
block = SiC
weibull_modulus = 6
characteristic_strength = characteristic_strength
[]
[pd_penetration]
type = PdPenetration
boundary = SiC_inner_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[failure_indicator_pd_penetration]
type = PdPenetrationFailureIndicator
triso_geometry = particle_geometry
pd_penetration = pd_penetration
[]
[]
[Outputs]
csv = true
[]
(test/tests/triso_failure/triso_1d_kernel_migration.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 1573 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[mesh]
type = TRISO1DMeshGenerator
elem_type = EDGE2
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} '
'${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
execute_on = 'INITIAL TIMESTEP_END'
[]
[]
[Variables]
[temperature]
initial_condition = 1573
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[high_fidelity_strength_crackedIPyC]
type = PiecewiseLinear
x = '0 1.0e11'
y = '1000000 1000000'
[]
[high_fidelity_strength_crackedOPyC]
type = PiecewiseLinear
x = '0 1.0e11'
y = '1000000 1000000'
[]
[stress_correlation_crackedOPyC]
type = PiecewiseLinear
x = '0 1.0e11'
y = '1 1'
[]
[stress_correlation_crackedIPyC]
type = PiecewiseLinear
x = '0 1.0e11'
y = '100 100'
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz '
'max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = DirichletBC
variable = temperature
value = 1573
boundary = exterior
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
num_steps = 10
dtmin = 1e-4
dt = 1e4
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress_max]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = stress_yy
[]
[SiC_stress_min]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[kernel_migration_distance]
type = KernelMigrationDistance
block = 'fuel buffer IPyC SiC OPyC'
variable = temperature
temperature_gradient = 15000
kernel_type = UO2
[]
[failure_indicator_kernel_migration]
type = KernelMigrationFailureIndicator
kernel_migration_distance = kernel_migration_distance
triso_geometry = particle_geometry
[]
[failure_indicator_SiC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = max_principal_stress
effective_mean_strength = strength_SiC
[]
[strength_IPyC]
type = WeibullEffectiveMeanStrength
block = IPyC
weibull_modulus = 6
[]
[failure_indicator_IPyC]
type = WeibullFailureOutputUsingCorrelation
block = IPyC
weibull_modulus = 6
stress_name = max_principal_stress
effective_mean_strength = strength_IPyC
[]
[strength_OPyC]
type = WeibullEffectiveMeanStrength
block = OPyC
weibull_modulus = 6
[]
[failure_indicator_OPyC]
type = WeibullFailureOutputUsingCorrelation
block = OPyC
weibull_modulus = 6
stress_name = max_principal_stress
effective_mean_strength = strength_OPyC
[]
[pd_penetration]
type = PdPenetration
boundary = SiC_inner_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[failure_indicator_pd_penetration]
type = PdPenetrationFailureIndicator
triso_geometry = particle_geometry
pd_penetration = pd_penetration
[]
[failure_indicator_SiC_crackedIPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = max_principal_stress
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[failure_indicator_SiC_crackedOPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = max_principal_stress
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedOPyC'
[]
[triso_failure]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
OPyC_failure = failure_indicator_OPyC
SiC_failure = failure_indicator_SiC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure_crackedOPyC = failure_indicator_SiC_crackedOPyC
SiC_failure_pd_penetration = failure_indicator_pd_penetration
SiC_failure_kernel_migration = failure_indicator_kernel_migration
[]
[]
[Outputs]
show = 'kernel_migration_distance failure_indicator_kernel_migration triso_failure '
print_linear_residuals = false
time_step_interval = 1
csv = true
perf_graph = true
[]
(examples/TRISO/failure_probability_monte_carlo/triso_1d_constant.i)
initial_fuel_density = 5
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DFiveLayerMeshGenerator
elem_type = EDGE3
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
kernel_mesh_density = ${initial_fuel_density}
buffer_mesh_density = 3
IPyC_mesh_density = 5
SiC_mesh_density = 3
OPyC_mesh_density = 4
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
IPyC_thickness_mean = 40.4e-6
SiC_thickness_mean = 35.2e-6
OPyC_thickness_mean = 43.4e-6
execute_on = 'INITIAL TIMESTEP_END'
[]
[sic_failure_terminator]
type = Terminator
expression = 'sic_failure_overall > 0'
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[high_fidelity_strength_crackedIPyC]
type = ConstantFunction
value = '1403604095.5707'
[]
[stress_correlation_crackedIPyC]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = -1.2447543103484047
[]
[high_fidelity_strength_debonding]
type = ConstantFunction
value = '1705800293.3578'
[]
[stress_correlation_debonding]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = -0.14916368684964607
[]
[high_fidelity_strength_asphericity]
type = ConstantFunction
value = '1371700766.8875'
[]
[stress_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = 1.5191967987843993
[]
[stress_change_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = 1.391516859626456
[]
[sic_crackedipyc_stress_strength]
type = ParsedFunction
expression = 'a-b'
symbol_names = 'a b'
symbol_values = 'stress_SiC_crackedIPyC actual_strength_SiC_crackedIPyC'
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[radial_stress]
type = RankTwoCylindricalComponent
rank_two_tensor = stress
cylindrical_axis_point1 = '0 0 0'
cylindrical_axis_point2 = '0 0 1'
cylindrical_component = RadialStress
property_name = radial_stress
outputs = all
[]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 5e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[failure_indicator_SiC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_asphericity'
stress_correlation_function = 'stress_correlation_asphericity'
stress_change_correlation_function = 'stress_change_correlation_asphericity'
[]
[strength_IPyC]
type = WeibullEffectiveMeanStrength
block = IPyC
weibull_modulus = 9.5
[]
[failure_indicator_IPyC]
type = WeibullFailureOutputUsingCorrelation
block = IPyC
weibull_modulus = 9.5
stress_name = max_principal_stress
effective_mean_strength = strength_IPyC
[]
[failure_indicator_SiC_crackedIPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[failure_indicator_debonding]
type = TRISODebondingFailureIndicator
boundary = IPyC_outer_boundary
bond_strength = 10e6
stress_name = radial_stress
[]
[failure_indicator_SiC_debonding]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_debonding'
stress_correlation_function = 'stress_correlation_debonding'
[]
[sic_failure_overall]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
SiC_failure_pd_penetration = failure_indicator_pd_penetration
SiC_failure_kernel_migration = failure_indicator_kernel_migration
failure_type = SIC_FAILURE_OVERALL
[]
[ipyc_cracking]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = IPYC_CRACKING
[]
[sic_failure_due_to_pressure]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = SIC_FAILURE_DUE_TO_PRESSURE
[]
[sic_failure_due_to_ipyc_cracking]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = SIC_FAILURE_DUE_TO_IPYC_CRACKING
[]
[stress_SiC_crackedIPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
output_type = 'stress'
[]
[actual_strength_SiC_crackedIPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
output_type = 'strength'
[]
[SiC_crackedIPyC_stressminusstrength]
type = FunctionValuePostprocessor
function = 'sic_crackedipyc_stress_strength'
[]
[debonding]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
IPyC_SiC_debonding = failure_indicator_debonding
SiC_failure_debonding = failure_indicator_SiC_debonding
failure_type = IPYC_SIC_DEBONDING
[]
[fluence_at_failure]
type = TRISOFailureOccurrenceStatus
failure_evaluation = ipyc_cracking
failure_information = max_fluence
[]
[weibull_failure_probability_IPyC]
type = WeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbability
block = SiC
weibull_modulus = 6
characteristic_strength = characteristic_strength
[]
[pd_penetration]
type = PdPenetration
boundary = SiC_inner_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[failure_indicator_pd_penetration]
type = PdPenetrationFailureIndicator
triso_geometry = particle_geometry
pd_penetration = pd_penetration
[]
[kernel_migration_distance]
type = KernelMigrationDistance
block = 'fuel buffer IPyC SiC OPyC'
variable = temperature
temperature_gradient = 15000
kernel_type = UCO
[]
[failure_indicator_kernel_migration]
type = KernelMigrationFailureIndicator
kernel_migration_distance = kernel_migration_distance
triso_geometry = particle_geometry
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = false
exodus = false
perf_graph = true
print_linear_converged_reason = false
print_nonlinear_converged_reason = false
[]
(examples/TRISO/correlation_function/h_asphericity/triso_1d.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[mesh]
type = TRISO1DMeshGenerator
elem_type = EDGE2
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 1e-8
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 6e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress_max]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = stress_yy
[]
[SiC_stress_min]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = true
perf_graph = true
exodus = true
[]
(examples/TRISO/correlation_function/h_ipyc_cracking/triso_cracking.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x disp_y'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RZ
[mesh]
type = TRISO2DMeshGenerator
elem_type = quad4
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
num_sectors = 60
all_bottom_left = True
[]
[]
[XFEM]
qrule = volfrac
output_cut_plane = true
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[ipyc_crack]
type = LineSegmentCutUserObject
cut_data = '0.0000 0 0.001 0'
time_start_cut = 0.0
time_end_cut = 0.0
block = IPyC
[]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
mesh_generator = mesh
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress min_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 5e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
sphere_origin = '0 0 0'
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[no_disp_y]
type = DirichletBC
variable = disp_y
boundary = '2001 2002 2004 2005'
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[Pressure]
[exterior]
boundary = exterior
factor = 0.1e6
[]
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
triso_geometry = particle_geometry
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = StrainAdjustedDensity
block = IPyC
strain_free_density = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = StrainAdjustedDensity
block = OPyC
strain_free_density = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = NEWTON
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 6e5
automatic_scaling = true
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = max_principal_stress
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbability
block = SiC
weibull_modulus = 6
characteristic_strength = characteristic_strength
[]
[]
[Outputs]
print_linear_residuals = true
time_step_interval = 1
csv = true
perf_graph = true
exodus = false
[]
(examples/TRISO/correlation_function/h_ipyc_sic_debonding/triso_debonding.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
aspect_ratio = 1.0
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x disp_y'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
anisotropy = false
[]
[Mesh]
coord_type = RZ
[gen]
type = TRISO2DMeshGenerator
elem_type = quad4
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} '
'${coordinates5}'
mesh_density = '20 8 0 8 8 8'
block_names = 'fuel buffer IPyC SiC OPyC'
num_sectors = 60
aspect_ratio = ${aspect_ratio}
all_bottom_left = true
[]
[breakmesh]
input = gen
type = BreakMeshByBlockGenerator
block_pairs = '3 4'
add_interface_on_two_sides = true
split_interface = true
[]
[opyc_node]
type = ExtraNodesetGenerator
input = breakmesh
new_boundary = 'opyc_node'
nodes = '4133'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[bounds_dummy]
order = FIRST
family = LAGRANGE
[]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
add_variables = true
temperature = temperature
strain = FINITE
incremental = true
decomposition_method = TaylorExpansion
volumetric_locking_correction = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Physics/SolidMechanics/CohesiveZone]
[czm]
boundary = 'IPyC_SiC'
displacements = 'disp_x disp_y'
strain = FINITE
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = true
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
sphere_origin = '0 0 0'
[]
[thermal_contact_ipyc_sic]
type = GapHeatTransfer
variable = temperature
primary = IPyC_SiC
secondary = SiC_IPyC
quadrature = true
tangential_tolerance = 1e-6
min_gap = 1e-7
max_gap = 50e-6
gap_conductivity = 100
gap_geometry_type = sphere
sphere_origin = '0 0 0'
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[no_disp_y]
type = DirichletBC
variable = disp_y
boundary = '2001 2002 opyc_node'
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[Pressure]
[exterior]
boundary = exterior
factor = 0.1e6
[]
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[tangential_stress]
type = RankTwoCylindricalComponent
rank_two_tensor = stress
cylindrical_axis_point1 = '0 0 0'
cylindrical_axis_point2 = '0 0 1'
cylindrical_component = HoopStress
property_name = tangential_stress
outputs = all
[]
[radial_stress]
type = RankTwoCylindricalComponent
rank_two_tensor = stress
cylindrical_axis_point1 = '0 0 0'
cylindrical_axis_point2 = '0 0 1'
cylindrical_component = RadialStress
property_name = radial_stress
outputs = all
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
triso_geometry = particle_geometry
[]
[normal_strength]
type = GenericFunctionMaterial
prop_names = 'N'
prop_values = 'if(y>345e-6,0.5,1.0)*3e7'
outputs = all
[]
[czm]
type = BiLinearMixedModeTraction
boundary = 'IPyC_SiC'
penalty_stiffness = 4e14
lag_mode_mixity = true
GI_c = 8
GII_c = 4
normal_strength = N
shear_strength = 1e7
displacements = 'disp_x disp_y'
eta = 2
viscosity = 1
alpha = 1e-10
mixed_mode_criterion = POWER_LAW
outputs = all
[]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Bounds]
[temperature_lower_bound]
type = ConstantBounds
variable = bounds_dummy
bounded_variable = temperature
bound_type = lower
bound_value = 1
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_shift_type -pc_factor_shift_amount -snes_type'
petsc_options_value = 'lu nonzero 1e-10 vinewtonrsls'
line_search = 'none'
nl_rel_tol = 1e-8
nl_abs_tol = 1e-8
nl_max_its = 15
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dt = 86400
dtmin = 1
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbability
block = SiC
weibull_modulus = 6
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_IPyC]
type = WeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[max_radial_sic]
type = ElementExtremeValue
variable = radial_stress
block = SiC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeValue
variable = tangential_stress
block = SiC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = true
perf_graph = true
exodus = true
[]
(examples/TRISO/failure_probability_monte_carlo/triso_1d_function.i)
initial_fuel_density = 5
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DFiveLayerMeshGenerator
elem_type = EDGE3
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
kernel_mesh_density = ${initial_fuel_density}
buffer_mesh_density = 3
IPyC_mesh_density = 5
SiC_mesh_density = 3
OPyC_mesh_density = 4
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
IPyC_thickness_mean = 40.4e-6
SiC_thickness_mean = 35.2e-6
OPyC_thickness_mean = 43.4e-6
execute_on = 'INITIAL TIMESTEP_END'
[]
[sic_failure_terminator]
type = Terminator
expression = 'sic_failure_overall > 0'
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[high_fidelity_strength_crackedIPyC]
type = ConstantFunction
value = '1403604095.0794'
[]
[stress_correlation_crackedIPyC]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 5.95176524e3 -2.25337303e8'
polynomial_coefficients_SiC = '1 1.43220859e4 -5.17689523e7'
polynomial_coefficients_OPyC = '1 -1.25870267e4 1.81620484e8'
correlation_factor = -1.2447543093270736
[]
[high_fidelity_strength_debonding]
type = ConstantFunction
value = '1705800293.3578'
[]
[stress_correlation_debonding]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 0 0'
polynomial_coefficients_SiC = '1 0 0'
polynomial_coefficients_OPyC = '1 0 0'
correlation_factor = -0.14916368684964607
[]
[high_fidelity_strength_asphericity]
type = ConstantFunction
value = '1371700806.9481'
[]
[stress_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 1.00595402e3 1.43530004e7'
polynomial_coefficients_SiC = '1 3.27925856e3 -2.02308753e8'
polynomial_coefficients_OPyC = '1 2.07404580e3 -6.12612615e6'
correlation_factor = 1.5191967993808713
[]
[stress_change_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -5.81891553e3 -2.81628655e7'
polynomial_coefficients_SiC = '1 1.00990700e4 -5.55290343e8'
polynomial_coefficients_OPyC = '1 -3.59151050e3 -2.65952373e7'
correlation_factor = 1.3915168526633837
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[radial_stress]
type = RankTwoCylindricalComponent
rank_two_tensor = stress
cylindrical_axis_point1 = '0 0 0'
cylindrical_axis_point2 = '0 0 1'
cylindrical_component = RadialStress
property_name = radial_stress
outputs = all
[]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 5e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[failure_indicator_SiC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_asphericity'
stress_correlation_function = 'stress_correlation_asphericity'
stress_change_correlation_function = 'stress_change_correlation_asphericity'
[]
[strength_IPyC]
type = WeibullEffectiveMeanStrength
block = IPyC
weibull_modulus = 9.5
[]
[failure_indicator_IPyC]
type = WeibullFailureOutputUsingCorrelation
block = IPyC
weibull_modulus = 9.5
stress_name = max_principal_stress
effective_mean_strength = strength_IPyC
[]
[failure_indicator_SiC_crackedIPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[failure_indicator_debonding]
type = TRISODebondingFailureIndicator
boundary = IPyC_outer_boundary
bond_strength = 10e6
stress_name = radial_stress
[]
[failure_indicator_SiC_debonding]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_debonding'
stress_correlation_function = 'stress_correlation_debonding'
[]
[sic_failure_overall]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
SiC_failure_pd_penetration = failure_indicator_pd_penetration
SiC_failure_kernel_migration = failure_indicator_kernel_migration
failure_type = SIC_FAILURE_OVERALL
[]
[ipyc_cracking]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = IPYC_CRACKING
[]
[sic_failure_due_to_pressure]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = SIC_FAILURE_DUE_TO_PRESSURE
[]
[sic_failure_due_to_ipyc_cracking]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
failure_type = SIC_FAILURE_DUE_TO_IPYC_CRACKING
[]
[debonding]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
IPyC_SiC_debonding = failure_indicator_debonding
SiC_failure_debonding = failure_indicator_SiC_debonding
failure_type = IPYC_SIC_DEBONDING
[]
[fluence_at_failure]
type = TRISOFailureOccurrenceStatus
failure_evaluation = ipyc_cracking
failure_information = max_fluence
[]
[weibull_failure_probability_IPyC]
type = WeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbability
block = SiC
weibull_modulus = 6
characteristic_strength = characteristic_strength
[]
[pd_penetration]
type = PdPenetration
boundary = SiC_inner_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[failure_indicator_pd_penetration]
type = PdPenetrationFailureIndicator
triso_geometry = particle_geometry
pd_penetration = pd_penetration
[]
[kernel_migration_distance]
type = KernelMigrationDistance
block = 'fuel buffer IPyC SiC OPyC'
variable = temperature
temperature_gradient = 15000
kernel_type = UCO
[]
[failure_indicator_kernel_migration]
type = KernelMigrationFailureIndicator
kernel_migration_distance = kernel_migration_distance
triso_geometry = particle_geometry
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = false
exodus = false
perf_graph = true
print_linear_converged_reason = false
print_nonlinear_converged_reason = false
[]
(test/tests/triso_failure/higher_order_correlation.i)
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.155 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 973.15 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.5 # Initial Oxygen to Uranium atom ratio
C_U = 0.4 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DFiveLayerMeshGenerator
elem_type = EDGE3
kernel_radius = 212.5e-6
buffer_thickness = 100e-6
IPyC_thickness = 41e-6
SiC_thickness = 34e-6
OPyC_thickness = 44e-6
kernel_mesh_density = 5
buffer_mesh_density = 3
IPyC_mesh_density = 5
SiC_mesh_density = 3
OPyC_mesh_density = 4
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
IPyC_thickness_mean = 40e-6
SiC_thickness_mean = 35e-6
OPyC_thickness_mean = 40e-6
[]
[triso_failure_terminator]
type = Terminator
expression = 'triso_failure > 0'
[]
[]
[Variables]
[temperature]
initial_condition = 973.15
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[power_history]
type = PiecewiseLinear
x = '0 76e6'
y = '1 1'
[]
[fission_rate]
type = LinearCombinationFunction
functions = power_history
w = 7.78e19
[]
[high_fidelity_strength_crackedIPyC]
type = PiecewiseLinear
x = '0 1.0e10'
y = '1.198892e9 1.198892e9'
[]
[stress_correlation_crackedIPyC]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 6922 -2.359e8'
polynomial_coefficients_SiC = '1 -1.257e4 1.82e8'
polynomial_coefficients_OPyC = '1 -1.257e4 1.82e8'
correlation_factor = -1.1932
[]
[high_fidelity_strength_asphericity]
type = PiecewiseLinear
x = '0 1.0e10'
y = '0.993212e9 0.993212e9'
[]
[stress_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -1.716e4 2.123e8'
polynomial_coefficients_SiC = '1 2.688e4 -1.414e7'
polynomial_coefficients_OPyC = '1 -1.716e4 2.123e8'
correlation_factor = 0.2923
[]
[stress_change_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -1.664e4 1.929e8'
polynomial_coefficients_SiC = '1 2.625e4 -1.112e7'
polynomial_coefficients_OPyC = '1 -1.664e4 1.929e8'
correlation_factor = 0.5241
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = 973.15
boundary = exterior
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[tangential_stress]
type = RankTwoCylindricalComponent
rank_two_tensor = stress
cylindrical_axis_point1 = '0 0 0'
cylindrical_axis_point2 = '0 0 1'
cylindrical_component = HoopStress
property_name = tangential_stress
outputs = all
[]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
flux_function = power_history
factor = 1.16e18
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 11000
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 11000.0
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF]
type = BaconAnisotropyFactor
initial_BAF = 1.05
block = 'buffer IPyC OPyC'
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1900
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 1e+06
dtmax = 2e5
dtmin = 1e-4
[TimeStepper]
type = IterationAdaptiveDT
dt = 1
optimal_iterations = 10
linear_iteration_ratio = 100
[]
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = tangential_stress
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
use_displaced_mesh = true
[]
[failure_indicator_SiC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_asphericity'
stress_correlation_function = 'stress_correlation_asphericity'
stress_change_correlation_function = 'stress_change_correlation_asphericity'
[]
[strength_IPyC]
type = WeibullEffectiveMeanStrength
block = IPyC
weibull_modulus = 9.5
use_displaced_mesh = true
[]
[failure_indicator_IPyC]
type = WeibullFailureOutputUsingCorrelation
block = IPyC
weibull_modulus = 9.5
stress_name = max_principal_stress
effective_mean_strength = strength_IPyC
[]
[failure_indicator_SiC_crackedIPyC]
type = WeibullFailureOutputUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[triso_failure]
type = TRISOFailureEvaluation
IPyC_failure = failure_indicator_IPyC
SiC_failure_crackedIPyC = failure_indicator_SiC_crackedIPyC
SiC_failure = failure_indicator_SiC
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = true
exodus = false
[]
(examples/TRISO/parfume/parfume.i)
# UCO TRISO particle using several PARFUME models
initial_fuel_density = 10400
[GlobalParams]
order = SECOND
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.1955 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 923.15 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.5 # Initial Oxygen to Uranium atom ratio
C_U = 0.4 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DMeshGenerator
elem_type = EDGE3
coordinates = '0 2.125e-4 3.125e-4 3.125e-4 3.525e-4 3.875e-4 4.275e-4'
mesh_density = '6 6 0 6 8 6'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
[]
[]
[Variables]
[temperature]
initial_condition = 923.15
[]
[conc]
initial_condition = 0.0
scaling = 1e18
[]
[]
[AuxVariables]
[disp_y]
[]
[disp_z]
[]
[fission_rate]
block = fuel
order = CONSTANT
family = MONOMIAL
[]
[burnup]
block = fuel
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[gap_condSlave]
order = CONSTANT
family = MONOMIAL
[]
[density]
order = CONSTANT
family = MONOMIAL
[]
[thermal_conductivity]
order = CONSTANT
family = MONOMIAL
[]
[swelling]
order = CONSTANT
family = MONOMIAL
[]
[specific_heat]
order = CONSTANT
family = MONOMIAL
[]
[volumetric_IIDC_strain]
order = CONSTANT
family = MONOMIAL
[]
[radial_IIDC_strain]
order = CONSTANT
family = MONOMIAL
[]
[tangential_IIDC_strain]
order = CONSTANT
family = MONOMIAL
[]
[BAF]
order = CONSTANT
family = MONOMIAL
[]
[fis_gas_produced]
order = CONSTANT
family = MONOMIAL
[]
[fis_gas_released]
order = CONSTANT
family = MONOMIAL
[]
[gap_HTC]
order = CONSTANT
family = MONOMIAL
[]
[gap_distance]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[power_history]
type = PiecewiseLinear
x = '0 76e6 76.001e6'
y = '1 1 0'
[]
[fission_rate]
type = LinearCombinationFunction
functions = power_history
w = 3.89e19
[]
[temp_bc]
type = PiecewiseLinear
x = '0 76e6 76.001e6 84.641e6 84.6482e6'
y = '1500 1500 300 300 2073'
[]
[k_function]
type = PiecewiseLinear
x = '0 200e6'
y = '4e-37 4e-37'
[]
[d1_function]
type = ParsedFunction
expression = 'exp(t/4.5e25)'
[]
[d_gap]
type = PiecewiseLinear
x = '1500 2100'
y = '1e-14 1e-12'
[]
[]
[Physics/SolidMechanics/QuasiStatic]
[fuel]
block = fuel
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_thermal_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'buffer_IIDC_strain buffer_thermal_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'IPyC_IIDC_strain IPyC_thermal_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'OPyC_IIDC_strain OPyC_thermal_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[mass_ie]
type = TimeDerivative
variable = conc
extra_vector_tags = 'ref'
[]
[mass]
type = ArrheniusDiffusion
variable = conc
extra_vector_tags = 'ref'
[]
[mass_source]
type = BodyForce
variable = conc
function = power_history
value = 1.22e-5 # units of mol/m**3-s
block = fuel
extra_vector_tags = 'ref'
[]
[mass_decay]
type = Decay
variable = conc
radioactive_decay_constant = 7.297e-10 # units:(1/sec) The constant for Cesium
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_begin
[]
[conductanceSlave]
type = MaterialRealAux
property = gap_conductance
variable = gap_condSlave
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
[]
[density]
type = MaterialRealAux
variable = density
property = density
block = 'fuel buffer IPyC SiC OPyC'
execute_on = 'initial linear'
[]
[thermal_conductivity]
type = MaterialRealAux
variable = thermal_conductivity
property = thermal_conductivity
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_end
[]
[specific_heat]
type = MaterialRealAux
variable = specific_heat
property = specific_heat
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_end
[]
[swelling]
type = MaterialRealAux
variable = swelling
property = swelling
block = fuel
execute_on = linear
[]
[volumetric_IIDC_strain]
type = MaterialRealAux
variable = volumetric_IIDC_strain
property = volumetric_IIDC_strain
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[radial_IIDC_strain]
type = MaterialRealAux
variable = radial_IIDC_strain
property = radial_IIDC_strain
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[tangential_IIDC_strain]
type = MaterialRealAux
variable = tangential_IIDC_strain
property = tangential_IIDC_strain
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[BAF]
type = MaterialRealAux
variable = BAF
property = BAF
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[fis_gas_produced]
type = MaterialRealAux
variable = fis_gas_produced
property = fis_gas_produced
block = fuel
execute_on = linear
[]
[fis_gas_released]
type = MaterialRealAux
variable = fis_gas_released
property = fis_gas_released
block = fuel
execute_on = linear
[]
[gap_HTC]
type = MaterialRealAux
property = gap_conductance
variable = gap_HTC
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
[]
[gap_distance]
type = PenetrationAux
variable = gap_distance
boundary = buffer_outer_boundary
paired_boundary = IPyC_inner_boundary
quantity = distance
tangential_tolerance = 1e-6
execute_on = 'initial timestep_end'
[]
[]
[Contact]
[mechanical]
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
penalty = 1e5
model = frictionless
formulation = kinematic
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles # coupling to a postprocessor which supplies the initial plenum/gap gas mass
initial_gas_types = 'Kr Xe'
initial_fractions = '0.185 0.815'
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
roughness_primary = 0e-6
roughness_secondary = 0e-6
jumpdistance_primary = 0
jumpdistance_secondary = 0
quadrature = true
emissivity_secondary = 0.0
emissivity_primary = 0.0
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[cesium_contact]
type = GapHeatTransfer
variable = conc
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
tangential_tolerance = 1e-6
gap_conductivity_function = d_gap
gap_conductivity_function_variable = temperature
appended_property_name = _conc
quadrature = true
gap_geometry_type = sphere
emissivity_primary = 0.0
emissivity_secondary = 0.0
min_gap = 1e-7
[]
[]
[BCs]
# pin particle along symmetry planes
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
# fix temperature on free surface
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
# fix concentration on free surface
[freesurf_conc]
type = DirichletBC
variable = conc
boundary = exterior
value = 0.0
[]
# exterior and internal pressures
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure] # apply gas pressure on buffer and IPyC boundaries
[plenumPressure]
boundary = buffer_IPyC_boundary
initial_pressure = 100.0
startup_time = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
flux_function = power_history
factor = 5e17
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
### UCO properties
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[UCO_thermal_strain]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10e-6 # check this value for UCO
eigenstrain_name = UCO_thermal_strain
temperature = temperature
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[fuel_conc]
type = ArrheniusDiffusionCoef
block = fuel
d1 = 5.6e-8 # m^2/s
q1 = 209.0e+3 # J/mol
d2 = 5.2e-4 # m^2/s
q2 = 362.0e+3 # J/mol
temperature = temperature
[]
### Buffer Properties
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_thermal_strain]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = buffer_thermal_strain
temperature = temperature
[]
[buffer_IIDC_strain]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = buffer_IIDC_strain
temperature = temperature
[]
[buffer_conc]
type = ArrheniusDiffusionCoef
block = buffer
d1 = 1.0e-12 # m^2/s
q1 = 0.0
d2 = 0.0
q2 = 0.0
temperature = temperature
[]
### IPyC properties
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
initial_BAF = 1.045
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1900.0
[]
[IPyC_IIDC_strain]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.045
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.045
block = OPyC
[]
[IPyC_thermal_strain]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_thermal_strain
temperature = temperature
[]
[IPyC_conc]
type = ArrheniusDiffusionCoef
block = IPyC
d1 = 6.3e-8 # m^2/s
q1 = 222.0e+3 # J/mol
d2 = 0.0
q2 = 0.0
temperature = temperature
[]
### SiC properties
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = GenericConstantMaterial
block = SiC
prop_names = 'density'
prop_values = 3200.0
[]
[SiC_thermal_strain]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[SiC_conc]
type = ArrheniusDiffusionCoef
block = SiC
d1 = 5.5e-14 # m^2/s
d1_function = d1_function
d1_function_variable = fast_neutron_fluence
q1 = 125.0e+3 # J/mol
d2 = 1.6e-2 # m^2/s
q2 = 514.0e+3 # J/mol
temperature = temperature
[]
### OPyC properties
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.045
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900.0
[]
[OPyC_IIDC_strain]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
[]
[OPyC_thermal_strain]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_thermal_strain
temperature = temperature
[]
[OPyC_conc]
type = ArrheniusDiffusionCoef
block = OPyC
d1 = 6.3e-8 # m^2/s
q1 = 222.0e+3 # J/mol
d2 = 0.0
q2 = 0.0
temperature = temperature
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 50
[]
[disp_x]
type = MaxIncrement
variable = disp_x
max_increment = 1e-6
[]
[]
[Debug]
show_var_residual_norms = true
show_var_residual = 'disp_x temperature conc'
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 1e-8
nl_abs_tol = 1e-7 #1e-12
nl_max_its = 15
l_tol = 1e-4 #1e-8
l_max_its = 50
start_time = 0.0
end_time = 85.3682e6 #5.0e7
num_steps = 1000
dtmax = 2e6
dtmin = 1
[TimeStepper]
type = IterationAdaptiveDT
dt = 20
growth_factor = 1.5
optimal_iterations = 8 #6
linear_iteration_ratio = 100
time_t = '0 76e6 76.001e6 84.641e6 84.6482e6'
time_dt = '20 20 20 20 20'
[]
[Quadrature]
order = THIRD
[]
[]
[Postprocessors]
[_dt]
type = TimestepSize
execute_on = timestep_end
[]
[cs_release]
type = SideIntegralMassFlux
variable = conc
boundary = exterior
[]
[int_cs_release]
type = TimeIntegratedPostprocessor
value = cs_release
[]
[cs_release_fuel]
type = SideIntegralMassFlux
variable = conc
boundary = fuel_outer_boundary
[]
[int_cs_release_fuel]
type = TimeIntegratedPostprocessor
value = cs_release_fuel
[]
[cs_release_PyCGapBndry]
type = SideIntegralMassFlux
variable = conc
boundary = IPyC_inner_boundary
[]
[int_cs_release_PyCGapBndry]
type = TimeIntegratedPostprocessor
value = cs_release_PyCGapBndry
[]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[ave_gap_temp]
type = SideAverageValue
boundary = buffer_IPyC_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_produced]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_produced
block = fuel
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[volumeTotal]
type = InternalVolume
boundary = exterior
execute_on = 'initial timestep_end'
scale_factor = -1
[]
[volumeFuel]
type = InternalVolume
boundary = fuel_outer_boundary
execute_on = 'initial timestep_end'
scale_factor = -1
[]
[volumeGas]
type = InternalVolume
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
scale_factor = -1
addition = 4.67e-11
[]
[volumeBufferShell]
type = InternalVolume
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
[]
[ave_temp_interior]
type = SideAverageValue
boundary = buffer_outer_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[gap_HTC]
type = ElementExtremeValue
variable = gap_HTC
block = buffer
value_type = 'max'
execute_on = 'initial timestep_end'
[]
### Postprocessors for CO production
[total_fission_rate]
type = ElementIntegralPower
variable = temperature
fission_rate = fission_rate
block = fuel
energy_per_fission = 1.0
outputs = exodus
execute_on = 'initial timestep_end'
[]
[total_fissions]
type = TimeIntegratedPostprocessor
value = total_fission_rate
outputs = exodus
execute_on = 'initial timestep_end'
[]
[avg_surface_temp]
type = SideAverageValue
variable = temperature
boundary = exterior
outputs = exodus
execute_on = 'initial timestep_end'
[]
[time_int_surf_temp]
type = TimeIntegratedPostprocessor
value = avg_surface_temp
outputs = exodus
execute_on = 'initial timestep_end'
[]
##### irradiation conditions
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
block = 'fuel buffer IPyC SiC OPyC'
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### II strain
[OPyC_radial_IIDC_strain]
type = ElementExtremeValue
variable = radial_IIDC_strain
block = OPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[OPyC_tangential_IIDC_strain]
type = ElementExtremeValue
variable = tangential_IIDC_strain
block = OPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[IPyC_radial_IIDC_strain]
type = ElementExtremeValue
variable = radial_IIDC_strain
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[IPyC_tangential_IIDC_strain]
type = ElementExtremeValue
variable = tangential_IIDC_strain
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### temperatures
[max_T_kernel]
type = NodalExtremeValue
variable = temperature
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_T_buffer]
type = NodalExtremeValue
variable = temperature
block = buffer
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[min_T_buffer]
type = NodalExtremeValue
variable = temperature
block = buffer
value_type = 'min'
execute_on = 'initial timestep_end'
[]
[max_T_IPyC]
type = NodalExtremeValue
variable = temperature
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_T_SiC]
type = NodalExtremeValue
variable = temperature
block = SiC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### displacement BCs
[max_disp_kernel]
type = NodalExtremeValue
variable = disp_x
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[min_disp_buffer]
type = NodalExtremeValue
variable = disp_x
block = buffer
value_type = 'min'
execute_on = 'initial timestep_end'
[]
[max_disp_IPyC]
type = NodalExtremeValue
variable = disp_x
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### hoop stresses
[hoop_opyc_max]
type = ElementExtremeValue
variable = stress_yy
block = OPyC
execute_on = 'initial timestep_end'
[]
[hoop_sic_max]
type = ElementExtremeValue
variable = stress_yy
block = SiC
execute_on = 'initial timestep_end'
[]
[hoop_ipyc_max]
type = ElementExtremeValue
variable = stress_yy
block = IPyC
execute_on = 'initial timestep_end'
[]
[hoop_buffer_max]
type = ElementExtremeValue
variable = stress_yy
block = buffer
execute_on = 'initial timestep_end'
[]
[hoop_opyc_min]
type = ElementExtremeValue
variable = stress_yy
block = OPyC
value_type = min
execute_on = 'initial timestep_end'
[]
[hoop_sic_min]
type = ElementExtremeValue
variable = stress_yy
block = SiC
value_type = min
execute_on = 'initial timestep_end'
[]
[hoop_ipyc_min]
type = ElementExtremeValue
variable = stress_yy
block = IPyC
value_type = min
execute_on = 'initial timestep_end'
[]
[hoop_buffer_min]
type = ElementExtremeValue
variable = stress_yy
block = buffer
value_type = min
execute_on = 'initial timestep_end'
[]
### Check warning for Density
[oPyC_density]
type = ElementExtremeValue
variable = density
block = OPyC
execute_on = 'initial timestep_end'
[]
[sic_density]
type = ElementExtremeValue
variable = density
block = SiC
execute_on = 'initial timestep_end'
[]
[IPyC_density]
type = ElementExtremeValue
variable = density
block = IPyC
execute_on = 'initial timestep_end'
[]
[buffer_density]
type = ElementExtremeValue
variable = density
block = buffer
execute_on = 'initial timestep_end'
[]
[kernel_density]
type = ElementExtremeValue
variable = density
block = fuel
execute_on = 'initial timestep_end'
[]
[pd_penetration]
type = PdPenetration
boundary = SiC_inner_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[]
[Outputs]
print_linear_residuals = true
time_step_interval = 1
exodus = true
csv = true
perf_graph = true
[]
(test/tests/triso/kernel_migration/kernel_migration_distance.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 1573 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[mesh]
type = TRISO1DMeshGenerator
elem_type = EDGE2
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
[]
[]
[Variables]
[temperature]
initial_condition = 1573
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = DirichletBC
variable = temperature
value = 1573
boundary = exterior
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 1e-10
nl_abs_tol = 1e-9
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
num_steps = 10
dtmin = 1e-4
dt = 1e4
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress_max]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = stress_yy
[]
[SiC_stress_min]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[kernel_migration_distance]
type = KernelMigrationDistance
block = 'fuel buffer IPyC SiC OPyC'
variable = temperature
temperature_gradient = 15000
kernel_type = UO2
[]
[]
[Outputs]
show = 'kernel_migration_distance'
print_linear_residuals = false
time_step_interval = 1
csv = true
perf_graph = true
[]
(test/tests/triso/mesh/ipyc_crack.i)
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x disp_y'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RZ
[gen]
type = TRISO2DMeshGenerator
elem_type = quad4
coordinates = '0 2.1335e-4 3.1225e-4 3.1225e-4 3.5265e-4 3.8785e-4 4.3415e-4'
mesh_density = '3 3 0 3 4 3'
block_names = 'fuel buffer IPyC SiC OPyC'
num_sectors = 20
aspect_ratio = 1.0
all_bottom_left = true
[]
[]
[XFEM]
qrule = volfrac
output_cut_plane = true
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[ipyc_crack]
type = LineSegmentCutUserObject
cut_data = '0.0000 0.0 0.001 0.0'
time_start_cut = 0.0
time_end_cut = 0.0
block = IPyC
[]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
mesh_generator = 'gen'
[]
[]
[Variables]
[temperature]
initial_condition = 650
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
temperature = temperature
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
sphere_origin = '0 0 0'
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[no_disp_y]
type = DirichletBC
variable = disp_y
boundary = '2001 2002 2004 2005'
value = 0.0
[]
[freesurf_temp]
type = DirichletBC
variable = temperature
value = 650
boundary = exterior
[]
[Pressure]
[exterior]
boundary = exterior
factor = 0.1e6
[]
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
triso_geometry = particle_geometry
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 1e-10
nl_abs_tol = 5e-11
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
num_steps = 2
dtmin = 1e-4
dt = 1e4
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = max
mat_prop = max_principal_stress
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = true
perf_graph = true
exodus = true
[]
(test/tests/triso_failure/triso_1d_ipyc_weibull_probability.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DMeshGenerator
elem_type = EDGE3
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '5 3 0 5 3 4'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
IPyC_thickness_mean = 40.4e-6
SiC_thickness_mean = 35.2e-6
OPyC_thickness_mean = 43.4e-6
[]
[]
[Variables]
[temperature]
initial_condition = 900
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[high_fidelity_strength_crackedIPyC]
type = ConstantFunction
value = '1363350801.3058'
[]
[stress_correlation_crackedIPyC]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 7017 -2.368e8'
polynomial_coefficients_SiC = '1 1.492e4 -3.802e7'
polynomial_coefficients_OPyC = '1 -1.273e4 1.849e8'
correlation_factor = -1.1824630660785265
[]
[high_fidelity_strength_asphericity]
type = ConstantFunction
value = '1086690814.283'
[]
[stress_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -2070 3.458e7'
polynomial_coefficients_SiC = '1 -868.9 -1.368e7'
polynomial_coefficients_OPyC = '1 1734 -1.988e7'
correlation_factor = 1.0626986695756293
[]
[stress_change_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -856 1.593e7'
polynomial_coefficients_SiC = '1 1774 -5.253e7'
polynomial_coefficients_OPyC = '1 456.4 -1.459e7'
correlation_factor = 1.0113764663823708
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = DirichletBC
variable = temperature
value = 900
boundary = exterior
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 5e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[weibull_failure_probability_IPyC]
type = WeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_SiC_crackedIPyC]
type = WeibullFailureProbabilityUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbabilityUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_asphericity'
stress_correlation_function = 'stress_correlation_asphericity'
stress_change_correlation_function = 'stress_change_correlation_asphericity'
[]
[]
[Outputs]
show = 'weibull_failure_probability_IPyC weibull_failure_probability_SiC weibull_failure_probability_SiC_crackedIPyC'
print_linear_residuals = false
time_step_interval = 1
csv = true
exodus = false
perf_graph = false
print_linear_converged_reason = false
print_nonlinear_converged_reason = false
[]
(examples/TRISO/correlation_function/h_asphericity/triso_asphericity_mortar.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
aspect_ratio = 1.04
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x disp_y'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RZ
[mesh]
type = TRISO2DMeshGenerator
elem_type = quad4
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
num_sectors = 60
aspect_ratio = ${aspect_ratio}
all_bottom_left = True
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
mesh_generator = mesh
block = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Variables]
[temperature]
initial_condition = 481
block = 'fuel buffer IPyC SiC OPyC'
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
block = 'fuel buffer IPyC SiC OPyC'
[]
[burnup]
order = CONSTANT
family = MONOMIAL
block = 'fuel buffer IPyC SiC OPyC'
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
block = 'fuel buffer IPyC SiC OPyC'
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
block = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
block = 'fuel buffer IPyC SiC OPyC'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
block = 'fuel buffer IPyC SiC OPyC'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
block = 'fuel buffer IPyC SiC OPyC'
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
block = 'fuel buffer IPyC SiC OPyC'
[]
[]
[ThermalContactMortar]
[thermal_contact]
secondary_variable = temperature
primary_boundary = IPyC_inner_boundary
secondary_boundary = buffer_outer_boundary
initial_moles = initial_moles # coupling to a postprocessor which supplies the initial plenum/gap gas mass
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
gap_geometry_type = sphere
sphere_origin = '0 0 0'
min_gap = 1e-7
max_gap = 50e-6
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[no_disp_y]
type = DirichletBC
variable = disp_y
boundary = bottom
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[Pressure]
[exterior]
boundary = exterior
factor = 0.1e6
[]
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
triso_geometry = particle_geometry
[]
[tangential_stress]
type = RankTwoCylindricalComponent
rank_two_tensor = stress
cylindrical_axis_point1 = '0 0 0'
cylindrical_axis_point2 = '0 0 1'
cylindrical_component = HoopStress
property_name = tangential_stress
outputs = all
block = 'fuel buffer IPyC SiC OPyC'
[]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 6e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
block = 'fuel buffer IPyC SiC OPyC'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementalVariableValue
elementid = 6300
variable = tangential_stress
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = true
perf_graph = true
exodus = true
[]
(test/tests/triso/pyc_eigenstrains/irradiation_strain/test_cega.i)
# This test case is prepared to test PyCCEGAIrradiationEigenstrain
# using the approach provided in
#
# G. K. Miller, D. A. Petti, J. T. Maki, D. L. Knudson, and
# W. F. Skerjanc, "PARFUME Theory and Model Basis Report",
# Report INL/EXT-08-14497 Rev. 1, Idaho National Laboratory, September 2018
#
# In this test, a prism (1x2x2 mm) made of PyC material
# (initial density = 1.9 g/cm^3 / initial BAF = 1.05) subject to IIDC strain.
#
# The temperature is kept constant at 1305.15K.
#
# The fast neutron flux (E>0.10 MeV) is ramped linearly from 0
# to 7.5e18 n/m^2-s over 1e4 seconds and then remains constant.
#
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
order = FIRST
family = LAGRANGE
execute_on = 'initial timestep_end'
particle_center = '0 0 0'
flux_conversion_factor = 0.85
[]
[Mesh]
[cube]
type = GeneratedMeshGenerator
dim = 3
xmin = 0.499
xmax = 0.500
ymin = -0.001
ymax = 0.001
zmin = -0.001
zmax = 0.001
[]
[]
[Variables]
[disp_x]
[]
[disp_y]
[]
[disp_z]
[]
[]
[AuxVariables]
[temperature]
initial_condition = 1373.15
[]
[]
[Functions]
[fluence_function]
type = PiecewiseLinear
x = '0 1e2 1e6'
y = '0 1.5e23 7.5e25'
[]
[BAF_function]
type = PiecewiseLinear
x = ' 0 1e4'
y = '1.05 1.182'
[]
[]
[Physics/SolidMechanics/QuasiStatic]
[perm_PyC]
strain = FINITE
eigenstrain_names = 'IIDC_strain'
generate_output = 'vonmises_stress stress_xx stress_yy stress_zz'
[]
[]
[BCs]
[no_z_all]
type = DirichletBC
variable = disp_z
boundary = 'front'
value = 0
[]
[no_y_all]
type = DirichletBC
variable = disp_y
boundary = 'top'
value = 0
[]
[no_x_all]
type = DirichletBC
variable = disp_x
boundary = 'right'
value = 0
[]
[]
[Materials]
[fluence]
type = GenericFunctionMaterial
prop_values = fluence_function
prop_names = fast_neutron_fluence
[]
[BAF]
type = GenericFunctionMaterial
prop_values = BAF_function
prop_names = BAF
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
[]
[irradiation_strain]
type = PyCCEGAIrradiationEigenstrain
eigenstrain_name = IIDC_strain
temperature = temperature
[]
[thermal_expansion]
type = ComputeThermalExpansionEigenstrain
temperature = temperature
thermal_expansion_coeff = 10e-6
stress_free_temperature = 300.0
eigenstrain_name = thermal_eigenstrain
[]
[stress]
type = ComputeFiniteStrainElasticStress
[]
[elasticity_tensor]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 1e6
poissons_ratio = 0.3
[]
[thermal]
type = GenericConstantMaterial
# The recommended property values for PyC. See TRISO documentation page
prop_names = 'density specific_heat thermal_conductivity'
prop_values = '1900.0 720.0 4.0'
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package -ksp_gmres_restart'
petsc_options_value = 'lu superlu_dist 51'
line_search = 'none'
l_max_its = 50
l_tol = 1e-2
nl_max_its = 100
nl_rel_tol = 1e-4
nl_abs_tol = 1e-6
start_time = 0.0
end_time = 1e4
num_steps = 140
dt = 1e2
[]
[Postprocessors]
[temperature]
type = ElementExtremeValue
value_type = 'max'
variable = temperature
[]
[disp_x_max]
type = NodalExtremeValue
boundary = 'left'
value_type = 'max'
variable = disp_x
[]
[disp_y_max]
type = NodalExtremeValue
value_type = 'max'
variable = disp_y
[]
[disp_z_max]
type = NodalExtremeValue
value_type = 'max'
variable = disp_z
[]
[radial_IIDC_strain]
type = ElementAverageMaterialProperty
mat_prop = radial_IIDC_strain
execute_on = 'initial timestep_end'
[]
[tangential_IIDC_strain]
type = ElementAverageMaterialProperty
mat_prop = tangential_IIDC_strain
execute_on = 'initial timestep_end'
[]
[fast_neutron_fluence]
type = ElementAverageMaterialProperty
mat_prop = fast_neutron_fluence
execute_on = 'initial timestep_end'
[]
[]
[Outputs]
file_base = cega_test_923k
csv = true
[]
(test/tests/triso_failure/ad_triso_1d_ipyc_weibull_probability.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DMeshGenerator
elem_type = EDGE3
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '5 3 0 5 3 4'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
IPyC_thickness_mean = 40.4e-6
SiC_thickness_mean = 35.2e-6
OPyC_thickness_mean = 43.4e-6
[]
[]
[Variables]
[temperature]
initial_condition = 900
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[high_fidelity_strength_crackedIPyC]
type = ConstantFunction
value = '1363350801.3058'
[]
[stress_correlation_crackedIPyC]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 7017 -2.368e8'
polynomial_coefficients_SiC = '1 1.492e4 -3.802e7'
polynomial_coefficients_OPyC = '1 -1.273e4 1.849e8'
correlation_factor = -1.1824630660785265
[]
[high_fidelity_strength_asphericity]
type = ConstantFunction
value = '1086690814.283'
[]
[stress_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -2070 3.458e7'
polynomial_coefficients_SiC = '1 -868.9 -1.368e7'
polynomial_coefficients_OPyC = '1 1734 -1.988e7'
correlation_factor = 1.0626986695756293
[]
[stress_change_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -856 1.593e7'
polynomial_coefficients_SiC = '1 1774 -5.253e7'
polynomial_coefficients_OPyC = '1 456.4 -1.459e7'
correlation_factor = 1.0113764663823708
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
use_automatic_differentiation = true
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
use_automatic_differentiation = true
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
use_automatic_differentiation = true
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
use_automatic_differentiation = true
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
use_automatic_differentiation = true
[]
[]
[Kernels]
[heat_ie]
type = ADHeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = ADHeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = ADNeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = ADMaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = ADMaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = ADMaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = ADMaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
use_automatic_differentiation = true
[]
[]
[BCs]
[no_disp_x]
type = ADDirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = ADDirichletBC
variable = temperature
value = 900
boundary = exterior
[]
[exterior_pressure_x]
type = ADPressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
use_automatic_differentiation = true
[]
[]
[]
[Materials]
[fission_rate]
type = ADGenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = ADFastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = ADTRISOBurnup
initial_density = 10966
block = fuel
[]
[UCO_thermal]
type = ADUCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = ADUCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ADComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = ADUCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ADComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = ADStrainAdjustedDensity
block = fuel
strain_free_density = 10966
[]
[fission_gas_release]
type = ADUCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = ADBaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = ADBaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = ADBufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = ADBufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = ADBufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = ADStrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = ADBufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = ADBufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = ADPyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = ADPyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = ADHeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = ADGenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[IPyC_IIDC]
type = ADPyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = ADPyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = ADMonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ADComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = ADMonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = ADStrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ADComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = ADPyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = ADPyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = ADHeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = ADGenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = ADPyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = ADPyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = ADGenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = ADPyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 5e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ADElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = ADVoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = ADVoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ADElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ADElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[weibull_failure_probability_IPyC]
type = ADWeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_SiC_crackedIPyC]
type = ADWeibullFailureProbabilityUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[weibull_failure_probability_SiC]
type = ADWeibullFailureProbabilityUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_asphericity'
stress_correlation_function = 'stress_correlation_asphericity'
stress_change_correlation_function = 'stress_change_correlation_asphericity'
[]
[]
[Outputs]
show = 'weibull_failure_probability_IPyC weibull_failure_probability_SiC weibull_failure_probability_SiC_crackedIPyC'
print_linear_residuals = false
time_step_interval = 1
csv = true
exodus = false
perf_graph = false
print_linear_converged_reason = false
print_nonlinear_converged_reason = false
[]
(examples/TRISO/correlation_function/h_asphericity/triso_asphericity.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
aspect_ratio = 1.04
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x disp_y'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RZ
[mesh]
type = TRISO2DMeshGenerator
elem_type = quad4
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '20 8 0 4 4 4'
block_names = 'fuel buffer IPyC SiC OPyC'
num_sectors = 60
aspect_ratio = ${aspect_ratio}
all_bottom_left = True
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
mesh_generator = mesh
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
sphere_origin = '0 0 0'
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[no_disp_y]
type = DirichletBC
variable = disp_y
boundary = bottom
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[Pressure]
[exterior]
boundary = exterior
factor = 0.1e6
[]
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[tangential_stress]
type = RankTwoCylindricalComponent
rank_two_tensor = stress
cylindrical_axis_point1 = '0 0 0'
cylindrical_axis_point2 = '0 0 1'
cylindrical_component = HoopStress
property_name = tangential_stress
outputs = all
[]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
triso_geometry = particle_geometry
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 6e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementalVariableValue
elementid = 6300
variable = tangential_stress
[]
[strength_SiC]
type = WeibullEffectiveMeanStrength
block = SiC
weibull_modulus = 6
[]
[]
[Outputs]
print_linear_residuals = false
time_step_interval = 1
csv = true
perf_graph = true
exodus = true
[]
(examples/TRISO/parfume/parfume_un.i)
# UN TRISO particle using several PARFUME models
[GlobalParams]
order = SECOND
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.1955 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 923.15 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.5 # Initial Oxygen to Uranium atom ratio
C_U = 0.4 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DMeshGenerator
elem_type = EDGE3
coordinates = '0 2.125e-4 3.125e-4 3.125e-4 3.525e-4 3.875e-4 4.275e-4'
mesh_density = '6 6 0 6 8 6'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
[]
[]
[Variables]
[temperature]
initial_condition = 923.15
[]
[conc]
initial_condition = 0.0
scaling = 1e18
[]
[]
[AuxVariables]
[disp_y]
[]
[disp_z]
[]
[fission_rate]
block = fuel
order = CONSTANT
family = MONOMIAL
[]
[burnup]
block = fuel
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[gap_condSlave]
order = CONSTANT
family = MONOMIAL
[]
[density]
order = CONSTANT
family = MONOMIAL
[]
[thermal_conductivity]
order = CONSTANT
family = MONOMIAL
[]
[swelling]
order = CONSTANT
family = MONOMIAL
[]
[specific_heat]
order = CONSTANT
family = MONOMIAL
[]
[volumetric_IIDC_strain]
order = CONSTANT
family = MONOMIAL
[]
[radial_IIDC_strain]
order = CONSTANT
family = MONOMIAL
[]
[tangential_IIDC_strain]
order = CONSTANT
family = MONOMIAL
[]
[BAF]
order = CONSTANT
family = MONOMIAL
[]
[fis_gas_produced]
order = CONSTANT
family = MONOMIAL
[]
[fis_gas_released]
order = CONSTANT
family = MONOMIAL
[]
[gap_HTC]
order = CONSTANT
family = MONOMIAL
[]
[gap_distance]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[power_history]
type = PiecewiseLinear
x = '0 76e6 76.001e6'
y = '1 1 0'
[]
[fission_rate]
type = LinearCombinationFunction
functions = power_history
w = 3.89e19
[]
[temp_bc]
type = PiecewiseLinear
# A final temperature ramp is not possible with the UNThermal model since
# its range of applicability ends at 1800 K
# To use the model beyond its limit but get a warning, add
# value_range_behavior = WARN in the GlobalParams block.
x = '0 76e6 76.001e6 84.641e6 84.6482e6'
y = '1500 1500 300 300 2073'
[]
[k_function]
type = PiecewiseLinear
x = '0 200e6'
y = '4e-37 4e-37'
[]
[d1_function]
type = ParsedFunction
expression = 'exp(t/4.5e25)'
[]
[d_gap]
type = PiecewiseLinear
x = '1500 2100'
y = '1e-14 1e-12'
[]
[]
[Physics/SolidMechanics/QuasiStatic]
[fuel]
block = fuel
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'UN_swelling_eigenstrain UN_thermal_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'buffer_IIDC_strain buffer_thermal_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'IPyC_IIDC_strain IPyC_thermal_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
add_variables = true
strain = FINITE
incremental = true
generate_output = 'hydrostatic_stress stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz'
eigenstrain_names = 'OPyC_IIDC_strain OPyC_thermal_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[mass_ie]
type = TimeDerivative
variable = conc
extra_vector_tags = 'ref'
[]
[mass]
type = ArrheniusDiffusion
variable = conc
extra_vector_tags = 'ref'
[]
[mass_source]
type = BodyForce
variable = conc
function = power_history
value = 1.22e-5 # units of mol/m**3-s
block = fuel
extra_vector_tags = 'ref'
[]
[mass_decay]
type = Decay
variable = conc
radioactive_decay_constant = 7.297e-10 # units:(1/sec) The constant for Cesium
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_begin
[]
[conductanceSlave]
type = MaterialRealAux
property = gap_conductance
variable = gap_condSlave
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
[]
[density]
type = MaterialRealAux
variable = density
property = density
block = 'fuel buffer IPyC SiC OPyC'
execute_on = 'initial linear'
[]
[thermal_conductivity]
type = MaterialRealAux
variable = thermal_conductivity
property = thermal_conductivity
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_end
[]
[specific_heat]
type = MaterialRealAux
variable = specific_heat
property = specific_heat
block = 'fuel buffer IPyC SiC OPyC'
execute_on = timestep_end
[]
[swelling]
type = MaterialRealAux
variable = swelling
property = swelling
block = fuel
execute_on = linear
[]
[volumetric_IIDC_strain]
type = MaterialRealAux
variable = volumetric_IIDC_strain
property = volumetric_IIDC_strain
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[radial_IIDC_strain]
type = MaterialRealAux
variable = radial_IIDC_strain
property = radial_IIDC_strain
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[tangential_IIDC_strain]
type = MaterialRealAux
variable = tangential_IIDC_strain
property = tangential_IIDC_strain
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[BAF]
type = MaterialRealAux
variable = BAF
property = BAF
block = 'IPyC OPyC'
execute_on = timestep_end
[]
[fis_gas_produced]
type = MaterialRealAux
variable = fis_gas_produced
property = fis_gas_produced
block = fuel
execute_on = linear
[]
[fis_gas_released]
type = MaterialRealAux
variable = fis_gas_released
property = fis_gas_released
block = fuel
execute_on = linear
[]
[gap_HTC]
type = MaterialRealAux
property = gap_conductance
variable = gap_HTC
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
[]
[gap_distance]
type = PenetrationAux
variable = gap_distance
boundary = buffer_outer_boundary
paired_boundary = IPyC_inner_boundary
quantity = distance
tangential_tolerance = 1e-6
execute_on = 'initial timestep_end'
[]
[]
[Contact]
[mechanical]
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
penalty = 1e5
model = frictionless
formulation = kinematic
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles # coupling to a postprocessor which supplies the initial plenum/gap gas mass
initial_gas_types = 'Kr Xe'
initial_fractions = '0.185 0.815'
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
roughness_primary = 0e-6
roughness_secondary = 0e-6
jumpdistance_primary = 0
jumpdistance_secondary = 0
quadrature = true
emissivity_secondary = 0.0
emissivity_primary = 0.0
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[cesium_contact]
type = GapHeatTransfer
variable = conc
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
tangential_tolerance = 1e-6
gap_conductivity_function = d_gap
gap_conductivity_function_variable = temperature
appended_property_name = _conc
quadrature = true
gap_geometry_type = sphere
emissivity_primary = 0.0
emissivity_secondary = 0.0
min_gap = 1e-7
[]
[]
[BCs]
# pin particle along symmetry planes
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
# fix temperature on free surface
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
# fix concentration on free surface
[freesurf_conc]
type = DirichletBC
variable = conc
boundary = exterior
value = 0.0
[]
# exterior and internal pressures
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure] # apply gas pressure on buffer and IPyC boundaries
[plenumPressure]
boundary = buffer_IPyC_boundary
initial_pressure = 100.0
startup_time = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
flux_function = power_history
factor = 5e17
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
### UN properties
[UN_burnup]
type = TRISOBurnup
initial_density = 13760.0
kernel_type = UN
[]
[UN_thermal]
type = MNThermal
block = fuel
temperature = temperature
formulation = COLLIN_BAUER
[]
[UN_elasticity_tensor]
type = UNElasticityTensor
block = fuel
temperature = temperature
[]
[UN_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UN_VolumetricSwellingEigenstrain]
type = BurnupDependentEigenstrain
block = fuel
swelling_name = swelling
eigenstrain_name = UN_swelling_eigenstrain
swelling_factor = 0.8
[]
[UN_thermal_strain]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10e-6 # check this value for UN
eigenstrain_name = UN_thermal_strain
temperature = temperature
[]
[UN_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = 13760.0
[]
[fission_gas_release]
type = UNFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
[]
[fuel_conc]
type = ArrheniusDiffusionCoef
block = fuel
d1 = 5.6e-8 # m^2/s
q1 = 209.0e+3 # J/mol
d2 = 5.2e-4 # m^2/s
q2 = 362.0e+3 # J/mol
temperature = temperature
[]
### Buffer Properties
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_thermal_strain]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = buffer_thermal_strain
temperature = temperature
[]
[buffer_IIDC_strain]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = buffer_IIDC_strain
temperature = temperature
[]
[buffer_conc]
type = ArrheniusDiffusionCoef
block = buffer
d1 = 1.0e-12 # m^2/s
q1 = 0.0
d2 = 0.0
q2 = 0.0
temperature = temperature
[]
### IPyC properties
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
initial_BAF = 1.045
poissons_ratio = 0.23
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1900.0
[]
[IPyC_IIDC_strain]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.045
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.045
block = OPyC
[]
[IPyC_thermal_strain]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_thermal_strain
temperature = temperature
[]
[IPyC_conc]
type = ArrheniusDiffusionCoef
block = IPyC
d1 = 6.3e-8 # m^2/s
q1 = 222.0e+3 # J/mol
d2 = 0.0
q2 = 0.0
temperature = temperature
[]
### SiC properties
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = GenericConstantMaterial
block = SiC
prop_names = 'density'
prop_values = 3200.0
[]
[SiC_thermal_strain]
type = MonolithicSiCThermalExpansionEigenstrain
block = SiC
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[SiC_conc]
type = ArrheniusDiffusionCoef
block = SiC
d1 = 5.5e-14 # m^2/s
d1_function = d1_function
d1_function_variable = fast_neutron_fluence
q1 = 125.0e+3 # J/mol
d2 = 1.6e-2 # m^2/s
q2 = 514.0e+3 # J/mol
temperature = temperature
[]
### OPyC properties
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.045
poissons_ratio = 0.23
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900.0
[]
[OPyC_IIDC_strain]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
[]
[OPyC_thermal_strain]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_thermal_strain
temperature = temperature
[]
[OPyC_conc]
type = ArrheniusDiffusionCoef
block = OPyC
d1 = 6.3e-8 # m^2/s
q1 = 222.0e+3 # J/mol
d2 = 0.0
q2 = 0.0
temperature = temperature
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 50
[]
[disp_x]
type = MaxIncrement
variable = disp_x
max_increment = 1e-6
[]
[]
[Debug]
show_var_residual_norms = true
show_var_residual = 'disp_x temperature conc'
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 1e-8
nl_abs_tol = 1e-7
nl_max_its = 15
l_tol = 1e-4
l_max_its = 50
start_time = 0.0
end_time = 84.641e6 #85.3682e6
num_steps = 1000
dtmax = 2e6
dtmin = 1
[TimeStepper]
type = IterationAdaptiveDT
dt = 20
growth_factor = 1.5
optimal_iterations = 8 #6
linear_iteration_ratio = 100
time_t = '0 76e6 76.001e6 84.641e6 84.6482e6'
time_dt = '20 20 20 20 20'
[]
[Quadrature]
order = THIRD
[]
[]
[Postprocessors]
[_dt]
type = TimestepSize
execute_on = timestep_end
[]
[cs_release]
type = SideIntegralMassFlux
variable = conc
boundary = exterior
[]
[int_cs_release]
type = TimeIntegratedPostprocessor
value = cs_release
[]
[cs_release_fuel]
type = SideIntegralMassFlux
variable = conc
boundary = fuel_outer_boundary
[]
[int_cs_release_fuel]
type = TimeIntegratedPostprocessor
value = cs_release_fuel
[]
[cs_release_PyCGapBndry]
type = SideIntegralMassFlux
variable = conc
boundary = IPyC_inner_boundary
[]
[int_cs_release_PyCGapBndry]
type = TimeIntegratedPostprocessor
value = cs_release_PyCGapBndry
[]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[ave_gap_temp]
type = SideAverageValue
boundary = buffer_IPyC_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_produced]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_produced
block = fuel
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = 14330
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[volumeTotal]
type = InternalVolume
boundary = exterior
execute_on = 'initial timestep_end'
scale_factor = -1
[]
[volumeFuel]
type = InternalVolume
boundary = fuel_outer_boundary
execute_on = 'initial timestep_end'
scale_factor = -1
[]
[volumeGas]
type = InternalVolume
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
scale_factor = -1
addition = 4.67e-11
[]
[volumeBufferShell]
type = InternalVolume
boundary = buffer_outer_boundary
execute_on = 'initial timestep_end'
[]
[ave_temp_interior]
type = SideAverageValue
boundary = buffer_outer_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[gap_HTC]
type = ElementExtremeValue
variable = gap_HTC
block = buffer
value_type = 'max'
execute_on = 'initial timestep_end'
[]
### Postprocessors for CO production
[total_fission_rate]
type = ElementIntegralPower
variable = temperature
fission_rate = fission_rate
block = fuel
energy_per_fission = 1.0
outputs = exodus
execute_on = 'initial timestep_end'
[]
[total_fissions]
type = TimeIntegratedPostprocessor
value = total_fission_rate
outputs = exodus
execute_on = 'initial timestep_end'
[]
[avg_surface_temp]
type = SideAverageValue
variable = temperature
boundary = exterior
outputs = exodus
execute_on = 'initial timestep_end'
[]
[time_int_surf_temp]
type = TimeIntegratedPostprocessor
value = avg_surface_temp
outputs = exodus
execute_on = 'initial timestep_end'
[]
##### irradiation conditions
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
block = 'fuel buffer IPyC SiC OPyC'
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### II strain
[OPyC_radial_IIDC_strain]
type = ElementExtremeValue
variable = radial_IIDC_strain
block = OPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[OPyC_tangential_IIDC_strain]
type = ElementExtremeValue
variable = tangential_IIDC_strain
block = OPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[IPyC_radial_IIDC_strain]
type = ElementExtremeValue
variable = radial_IIDC_strain
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[IPyC_tangential_IIDC_strain]
type = ElementExtremeValue
variable = tangential_IIDC_strain
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### temperatures
[max_T_kernel]
type = NodalExtremeValue
variable = temperature
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_T_buffer]
type = NodalExtremeValue
variable = temperature
block = buffer
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[min_T_buffer]
type = NodalExtremeValue
variable = temperature
block = buffer
value_type = 'min'
execute_on = 'initial timestep_end'
[]
[max_T_IPyC]
type = NodalExtremeValue
variable = temperature
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_T_SiC]
type = NodalExtremeValue
variable = temperature
block = SiC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### displacement BCs
[max_disp_kernel]
type = NodalExtremeValue
variable = disp_x
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[min_disp_buffer]
type = NodalExtremeValue
variable = disp_x
block = buffer
value_type = 'min'
execute_on = 'initial timestep_end'
[]
[max_disp_IPyC]
type = NodalExtremeValue
variable = disp_x
block = IPyC
value_type = 'max'
execute_on = 'initial timestep_end'
[]
#### hoop stresses
[hoop_opyc_max]
type = ElementExtremeValue
variable = stress_yy
block = OPyC
execute_on = 'initial timestep_end'
[]
[hoop_sic_max]
type = ElementExtremeValue
variable = stress_yy
block = SiC
execute_on = 'initial timestep_end'
[]
[hoop_ipyc_max]
type = ElementExtremeValue
variable = stress_yy
block = IPyC
execute_on = 'initial timestep_end'
[]
[hoop_buffer_max]
type = ElementExtremeValue
variable = stress_yy
block = buffer
execute_on = 'initial timestep_end'
[]
[hoop_opyc_min]
type = ElementExtremeValue
variable = stress_yy
block = OPyC
value_type = min
execute_on = 'initial timestep_end'
[]
[hoop_sic_min]
type = ElementExtremeValue
variable = stress_yy
block = SiC
value_type = min
execute_on = 'initial timestep_end'
[]
[hoop_ipyc_min]
type = ElementExtremeValue
variable = stress_yy
block = IPyC
value_type = min
execute_on = 'initial timestep_end'
[]
[hoop_buffer_min]
type = ElementExtremeValue
variable = stress_yy
block = buffer
value_type = min
execute_on = 'initial timestep_end'
[]
### Check warning for Density
[oPyC_density]
type = ElementExtremeValue
variable = density
block = OPyC
execute_on = 'initial timestep_end'
[]
[sic_density]
type = ElementExtremeValue
variable = density
block = SiC
execute_on = 'initial timestep_end'
[]
[IPyC_density]
type = ElementExtremeValue
variable = density
block = IPyC
execute_on = 'initial timestep_end'
[]
[buffer_density]
type = ElementExtremeValue
variable = density
block = buffer
execute_on = 'initial timestep_end'
[]
[kernel_density]
type = ElementExtremeValue
variable = density
block = fuel
execute_on = 'initial timestep_end'
[]
[pd_penetration]
type = PdPenetration
boundary = SiC_inner_boundary
variable = temperature
execute_on = 'initial timestep_end'
[]
[]
[Outputs]
print_linear_residuals = true
time_step_interval = 1
exodus = true
csv = true
perf_graph = true
[]
(examples/TRISO/failure_probability_direct_integration/triso_1d.i)
kernel_radius = 213.35e-6
buffer_thickness = 98.9e-6
IPyC_thickness = 40.4e-6
SiC_thickness = 35.2e-6
OPyC_thickness = 43.4e-6
coordinates1 = '${fparse kernel_radius}'
coordinates2 = '${fparse coordinates1+buffer_thickness}'
coordinates3 = '${fparse coordinates2+IPyC_thickness}'
coordinates4 = '${fparse coordinates3+SiC_thickness}'
coordinates5 = '${fparse coordinates4+OPyC_thickness}'
initial_fuel_density = 10966
[GlobalParams]
order = FIRST
family = LAGRANGE
displacements = 'disp_x'
initial_enrichment = 0.14029 # [wt-]
flux_conversion_factor = 1.0 # convert E>0.10 to E>0.18 MeV
stress_free_temperature = 481 # used for thermal expansion
energy_per_fission = 3.204e-11 # [J/fission]
O_U = 1.428 # Initial Oxygen to Uranium atom ratio
C_U = 0.392 # Initial Carbon to Uranium atom ratio
[]
[Mesh]
coord_type = RSPHERICAL
[gen]
type = TRISO1DMeshGenerator
elem_type = EDGE3
coordinates = '0 ${coordinates1} ${coordinates2} ${coordinates2} ${coordinates3} ${coordinates4} ${coordinates5}'
mesh_density = '5 3 0 5 3 4'
block_names = 'fuel buffer IPyC SiC OPyC'
[]
[]
[Problem]
type = ReferenceResidualProblem
reference_vector = 'ref'
extra_tag_vectors = 'ref'
[]
[UserObjects]
[particle_geometry]
type = TRISOGeometry
outer_OPyC = OPyC_outer_boundary
outer_SiC = SiC_outer_boundary
outer_IPyC = IPyC_outer_boundary
inner_IPyC = IPyC_inner_boundary
outer_buffer = buffer_outer_boundary
outer_kernel = fuel_outer_boundary
include_particle = true
include_pebble = false
IPyC_thickness_mean = 40.4e-6
SiC_thickness_mean = 35.2e-6
OPyC_thickness_mean = 43.4e-6
[]
[]
[Variables]
[temperature]
initial_condition = 481
[]
[]
[AuxVariables]
[fission_rate]
order = CONSTANT
family = MONOMIAL
[]
[burnup]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_flux]
order = CONSTANT
family = MONOMIAL
[]
[fast_neutron_fluence]
order = CONSTANT
family = MONOMIAL
[]
[]
[Functions]
[temp_bc]
type = PiecewiseLinear
data_file = outer_temp.csv
x_index_in_file = 0
y_index_in_file = 1
format = columns
[]
[fission_rate]
type = ConstantFunction
value = 5.75e19
[]
[high_fidelity_strength_crackedIPyC]
type = ConstantFunction
value = '1363350801.3058'
[]
[stress_correlation_crackedIPyC]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 7017 -2.368e8'
polynomial_coefficients_SiC = '1 1.492e4 -3.802e7'
polynomial_coefficients_OPyC = '1 -1.273e4 1.849e8'
correlation_factor = -1.1824630660785265
[]
[high_fidelity_strength_asphericity]
type = ConstantFunction
value = '1086690814.283'
[]
[stress_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -2070 3.458e7'
polynomial_coefficients_SiC = '1 -868.9 -1.368e7'
polynomial_coefficients_OPyC = '1 1734 -1.988e7'
correlation_factor = 1.0626986695756293
[]
[stress_change_correlation_asphericity]
type = TRISOStressCorrelationFunction
triso_geometry = particle_geometry
polynomial_coefficients_IPyC = '1 -856 1.593e7'
polynomial_coefficients_SiC = '1 1774 -5.253e7'
polynomial_coefficients_OPyC = '1 456.4 -1.459e7'
correlation_factor = 1.0113764663823708
[]
[]
[Physics/SolidMechanics/QuasiStatic]
generate_output = 'stress_xx stress_yy stress_zz strain_xx strain_yy strain_zz max_principal_stress'
add_variables = true
strain = FINITE
incremental = true
[fuel]
block = fuel
eigenstrain_names = 'UCO_swelling_eigenstrain UCO_TE_strain'
extra_vector_tags = 'ref'
[]
[buffer]
block = buffer
eigenstrain_names = 'Buffer_IIDC_strain Buffer_TE_strain'
extra_vector_tags = 'ref'
[]
[IPyC]
block = IPyC
eigenstrain_names = 'IPyC_IIDC_strain IPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[SiC]
block = SiC
eigenstrain_names = 'SiC_thermal_eigenstrain'
extra_vector_tags = 'ref'
[]
[OPyC]
block = OPyC
eigenstrain_names = 'OPyC_IIDC_strain OPyC_TE_strain'
extra_vector_tags = 'ref'
[]
[]
[Kernels]
[heat_ie]
type = HeatConductionTimeDerivative
variable = temperature
extra_vector_tags = 'ref'
[]
[heat]
type = HeatConduction
variable = temperature
extra_vector_tags = 'ref'
[]
[heat_source]
type = NeutronHeatSource
variable = temperature
block = fuel
fission_rate = fission_rate
extra_vector_tags = 'ref'
[]
[]
[AuxKernels]
[fissionrate]
type = MaterialRealAux
variable = fission_rate
property = fission_rate
block = fuel
execute_on = timestep_begin
[]
[burnup]
type = MaterialRealAux
variable = burnup
property = burnup
block = fuel
execute_on = timestep_begin
[]
[fast_neutron_flux]
type = MaterialRealAux
variable = fast_neutron_flux
property = fast_neutron_flux
execute_on = timestep_begin
[]
[fast_neutron_fluence]
type = MaterialRealAux
variable = fast_neutron_fluence
property = fast_neutron_fluence
execute_on = timestep_begin
[]
[]
[ThermalContact]
[thermal_contact]
type = GasGapHeatTransfer
variable = temperature
primary = IPyC_inner_boundary
secondary = buffer_outer_boundary
initial_moles = initial_moles
gas_released = 'fis_gas_released'
released_gas_types = 'Kr Xe'
released_fractions = '0.185 0.815'
tangential_tolerance = 1e-6
quadrature = false
min_gap = 1e-7
max_gap = 50e-6
gap_geometry_type = sphere
[]
[]
[BCs]
[no_disp_x]
type = DirichletBC
variable = disp_x
boundary = xzero
value = 0.0
[]
[freesurf_temp]
type = FunctionDirichletBC
variable = temperature
function = temp_bc
boundary = exterior
[]
[exterior_pressure_x]
type = Pressure
variable = disp_x
boundary = exterior
factor = 0.1e6
[]
[PlenumPressure]
[plenumPressure]
boundary = buffer_IPyC_boundary
startup_time = 1e4
initial_pressure = 0
R = 8.3145
output_initial_moles = initial_moles
temperature = ave_gas_temp
volume = 'gap_volume buffer_void_volume kernel_void_volume'
material_input = 'fis_gas_released'
output = gas_pressure
[]
[]
[]
[Materials]
[fission_rate]
type = GenericFunctionMaterial
prop_names = fission_rate
prop_values = fission_rate
block = fuel
[]
[fast_neutron_flux]
type = FastNeutronFlux
calculate_fluence = true
factor = 6.2425e+17
[]
[UCO_burnup]
type = TRISOBurnup
initial_density = ${initial_fuel_density}
block = fuel
[]
[UCO_thermal]
type = UCOThermal
block = fuel
temperature = temperature
[]
[UCO_elasticity_tensor]
type = UCOElasticityTensor
block = fuel
temperature = temperature
[]
[UCO_stress]
type = ComputeFiniteStrainElasticStress
block = fuel
[]
[UCO_VolumetricSwellingEigenstrain]
type = UCOVolumetricSwellingEigenstrain
block = fuel
eigenstrain_name = UCO_swelling_eigenstrain
[]
[fuel_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = fuel
thermal_expansion_coeff = 10.0e-6
temperature = temperature
eigenstrain_name = UCO_TE_strain
[]
[UCO_density]
type = StrainAdjustedDensity
block = fuel
strain_free_density = ${initial_fuel_density}
[]
[fission_gas_release]
type = UCOFGR
block = fuel
average_grain_radius = 10e-6
temperature = temperature
triso_geometry = particle_geometry
cutoff_neutron_flux = 0.0
[]
[normal_vectors_triso]
type = NormalVectorsTRISO
block = 'buffer IPyC OPyC'
[]
[BAF_IPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0465
block = IPyC
[]
[BAF_OPyC]
type = BaconAnisotropyFactor
initial_BAF = 1.0429
block = OPyC
[]
[buffer_elasticity_tensor]
type = BufferElasticityTensor
block = buffer
temperature = temperature
[]
[buffer_stress]
type = BufferCEGACreep
block = buffer
temperature = temperature
[]
[buffer_thermal]
type = BufferThermal
block = buffer
initial_density = 1050.0
[]
[buffer_density]
type = StrainAdjustedDensity
block = buffer
strain_free_density = 1050.0
[]
[buffer_TE]
type = BufferThermalExpansionEigenstrain
block = buffer
eigenstrain_name = Buffer_TE_strain
temperature = temperature
[]
[buffer_IIDC]
type = BufferCEGAIrradiationEigenstrain
block = buffer
eigenstrain_name = Buffer_IIDC_strain
temperature = temperature
[]
[IPyC_elasticity_tensor]
type = PyCElasticityTensor
block = IPyC
temperature = temperature
[]
[IPyC_stress]
type = PyCCEGACreep
block = IPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[IPyC_thermal]
type = HeatConductionMaterial
block = IPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[IPyC_density]
type = GenericConstantMaterial
block = IPyC
prop_names = 'density'
prop_values = 1890
[]
[IPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = IPyC
eigenstrain_name = IPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[IPyC_TE]
type = PyCThermalExpansionEigenstrain
block = IPyC
eigenstrain_name = IPyC_TE_strain
temperature = temperature
[]
[SiC_elasticity_tensor]
type = MonolithicSiCElasticityTensor
block = SiC
temperature = temperature
elastic_modulus_model = miller
[]
[SiC_stress]
type = ComputeFiniteStrainElasticStress
block = SiC
[]
[SiC_thermal]
type = MonolithicSiCThermal
block = SiC
temperature = temperature
thermal_conductivity_model = miller
[]
[SiC_density]
type = StrainAdjustedDensity
block = SiC
strain_free_density = 3200.0
[]
[SiC_thermal_expansion]
type = ComputeThermalExpansionEigenstrain
block = SiC
thermal_expansion_coeff = 4.9e-6
temperature = temperature
eigenstrain_name = SiC_thermal_eigenstrain
[]
[OPyC_elasticity_tensor]
type = PyCElasticityTensor
block = OPyC
temperature = temperature
initial_BAF = 1.0
[]
[OPyC_stress]
type = PyCCEGACreep
block = OPyC
creep_rate_scale_factor = 1
temperature = temperature
[]
[OPyC_thermal_conductivity]
type = HeatConductionMaterial
block = OPyC
thermal_conductivity = 4.0
specific_heat = 720.0
[]
[OPyC_density]
type = GenericConstantMaterial
block = OPyC
prop_names = 'density'
prop_values = 1900
[]
[OPyC_IIDC]
type = PyCCEGAIrradiationEigenstrain
block = OPyC
eigenstrain_name = OPyC_IIDC_strain
temperature = temperature
irradiation_eigenstrain_scale_factor = 1
[]
[OPyC_TE]
type = PyCThermalExpansionEigenstrain
block = OPyC
eigenstrain_name = OPyC_TE_strain
temperature = temperature
[]
[characteristic_strength_SiC]
type = GenericConstantMaterial
prop_values = '9640000'
block = SiC
prop_names = 'characteristic_strength'
[]
[characteristic_strength_PyC]
type = PyCCharacteristicStrength
temperature = temperature
X = 1.02
block = 'IPyC OPyC'
[]
[]
[Dampers]
[temp]
type = MaxIncrement
variable = temperature
max_increment = 100
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = 'lu superlu_dist'
line_search = 'none'
nl_rel_tol = 5e-6
nl_abs_tol = 1e-8
nl_max_its = 20
l_tol = 1e-4
l_max_its = 50
#num_steps = 1
start_time = 0.0
end_time = 4.831315e7
dtmin = 1e-4
dt = 5e5
[]
[Postprocessors]
[ave_gas_temp]
type = ElementAverageValue
block = buffer
variable = temperature
execute_on = 'initial timestep_end'
[]
[fis_gas_released]
type = ElementIntegralMaterialProperty
mat_prop = fis_gas_released
block = fuel
use_displaced_mesh = false
execute_on = 'initial timestep_end'
[]
[gap_volume]
type = InternalVolume
boundary = buffer_IPyC_boundary
execute_on = 'initial linear'
use_displaced_mesh = true
[]
[buffer_void_volume]
type = VoidVolume
block = buffer
theoretical_density = 2250
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[kernel_th_density]
type = UCOTheoreticalDensity
execute_on = initial
[]
[kernel_void_volume]
type = VoidVolume
block = fuel
theoretical_density = kernel_th_density
execute_on = 'initial timestep_end'
use_displaced_mesh = true
[]
[particle_power]
type = ElementIntegralPower
variable = temperature
use_material_fission_rate = true
fission_rate_material = fission_rate
block = fuel
execute_on = 'initial timestep_end'
[]
[max_fluence]
type = ElementExtremeValue
variable = fast_neutron_fluence
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[max_burnup]
type = ElementExtremeValue
variable = burnup
block = fuel
value_type = 'max'
execute_on = 'initial timestep_end'
[]
[SiC_stress]
type = ElementExtremeMaterialProperty
block = SiC
value_type = min
mat_prop = stress_yy
[]
[weibull_failure_probability_IPyC]
type = WeibullFailureProbability
block = IPyC
weibull_modulus = 9.5
characteristic_strength = characteristic_strength
[]
[weibull_failure_probability_SiC_crackedIPyC]
type = WeibullFailureProbabilityUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_crackedIPyC'
stress_correlation_function = 'stress_correlation_crackedIPyC'
[]
[weibull_failure_probability_SiC]
type = WeibullFailureProbabilityUsingCorrelation
block = SiC
weibull_modulus = 6
stress_name = stress_yy
high_fidelity_analysis_strength = 'high_fidelity_strength_asphericity'
stress_correlation_function = 'stress_correlation_asphericity'
stress_change_correlation_function = 'stress_change_correlation_asphericity'
[]
[]
[Outputs]
show = 'weibull_failure_probability_IPyC weibull_failure_probability_SiC weibull_failure_probability_SiC_crackedIPyC'
print_linear_residuals = false
time_step_interval = 1
csv = false
exodus = false
perf_graph = true
print_linear_converged_reason = false
print_nonlinear_converged_reason = false
[]
