Example: Heat Pipe-Cooled Micro Reactor (HP-MR)

This section covers the creation of a detailed 1/6 core Heat-Pipe Micro Reactor mesh using the following key steps:

  1. Create fuel/moderator/heat-pipe pin cells

  2. Combine pins into a fuel assembly

  3. Create control drum assembly

  4. Create additional assemblies (reflector, central hole, dummies)

  5. Combine assemblies into a full core

  6. Delete dummy assemblies

  7. Add a core periphery region

  8. Slice full core to 1/6 core

  9. Extrude 2D mesh to 3D

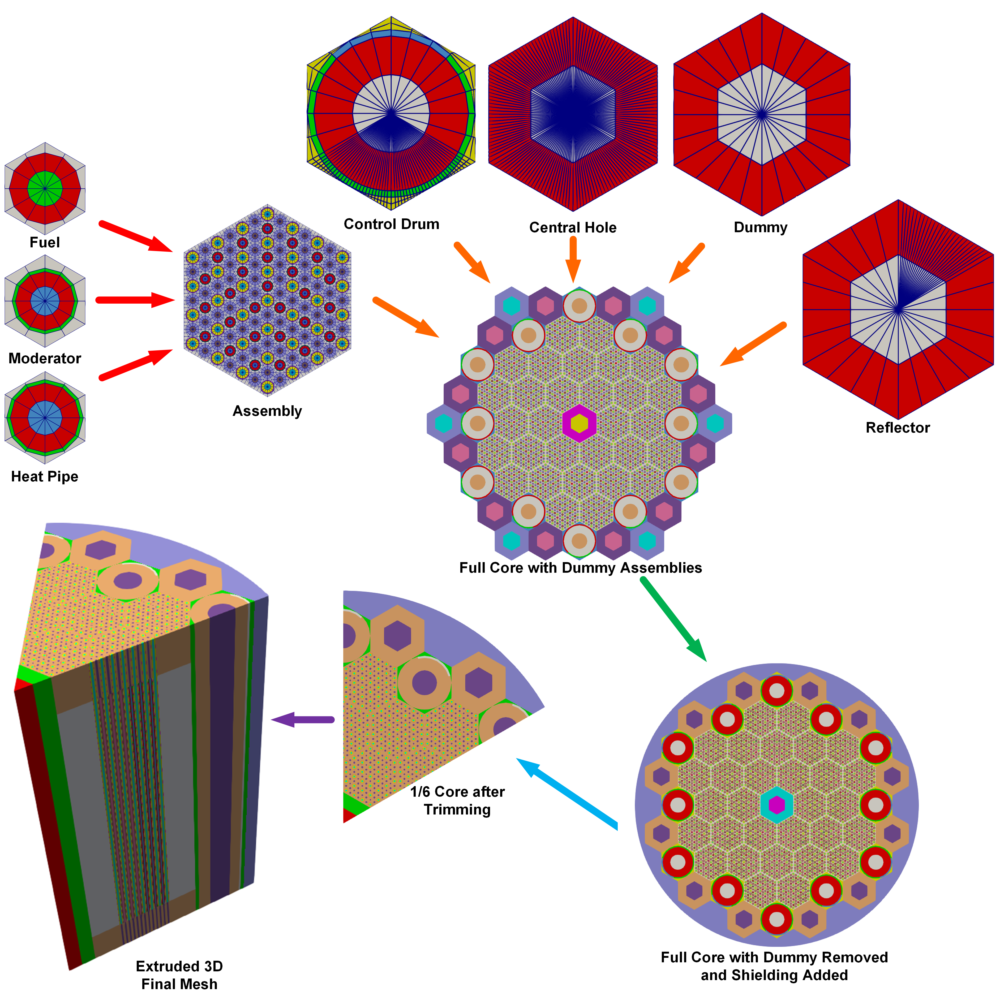

Figure 1: Full workflow of HP-MR example mesh.

Create Pin Unit Cell

The pin cell represents the most basic element in the hierarchical structure of a reactor core. In the case of a heat-pipe micro reactor, typical pin cells include fuel, heat pipe, and moderator. These components are all generated using the PolygonConcentricCircleMeshGenerator. Every pin cell mesh property (e.g., ring radii and intervals) can be tailored to specific needs. The following example shows construction of the moderator pin cell. The heat pipe and fuel pin cells are constructed similarly.

Object

Geometry Features

  • Center region

    • 0.825 unit radius

    • 2 intervals thick

  • Outer Ring

    • 0.92 unit radius

    • 1 interval

  • Hexagonal background

    • 1.15 units apothem

    • 1 interval

  • Volumes preserved ("preserve_volumes"=True)

  • TRI center elements ("quad_center_elements"=False)

Notes

  • Center of pin unit cell can be meshed by triangular or quadratic elements

  • Duct regions can also be added to the outer periphery (not used in this example)

  • Block IDs are assigned for each radial layer

Example

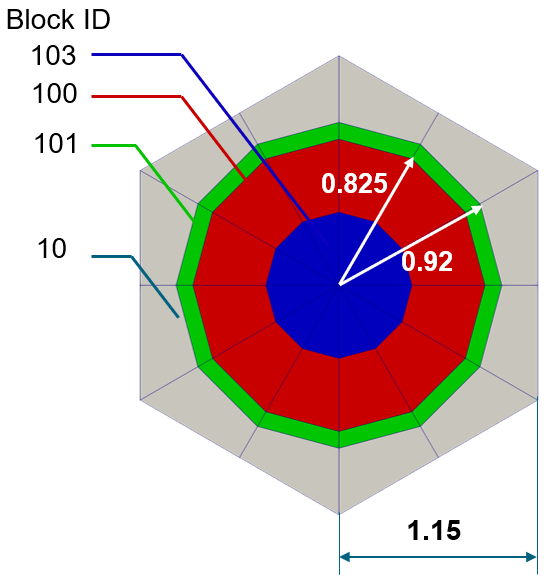

Figure 2: Moderator Pin Cell.

Listing 1: Moderator Pin Cell.

[Mesh]
  [moderator_pincell]
    type = PolygonConcentricCircleMeshGenerator
    num_sides = 6 # must be six to use hex pattern
    num_sectors_per_side = '2 2 2 2 2 2 '
    background_intervals = 1
    background_block_ids = '10'
    polygon_size = 1.15
    polygon_size_style = 'apothem'
    ring_radii = '0.825 0.92'
    ring_intervals = '2 1'
    ring_block_ids = '103 100 101' # 103 is tri mesh
    preserve_volumes = on
    quad_center_elements = false
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Create Patterned Hexagonal Fuel Assembly

Generated pin cell meshes (fuel, heat pipe, and moderator) are stitched into a fuel assembly using PatternedHexMeshGenerator.

Object

Geometry Features

  • Hexagonal grid

    • 13.376 units apothem

    • Note: requires hexagonal input pins

  • 3 input pin types

    • fuel_pincell

    • heatpipe_pincell

    • moderator_pincell (detailed in pervious section)

  • Background region out to hexagonal boundary

    • 1 interval

Notes

  • Pattern references input mesh list in order (0-indexed)

  • Duct regions can also be added to the outer periphery (not used in this example)

Example

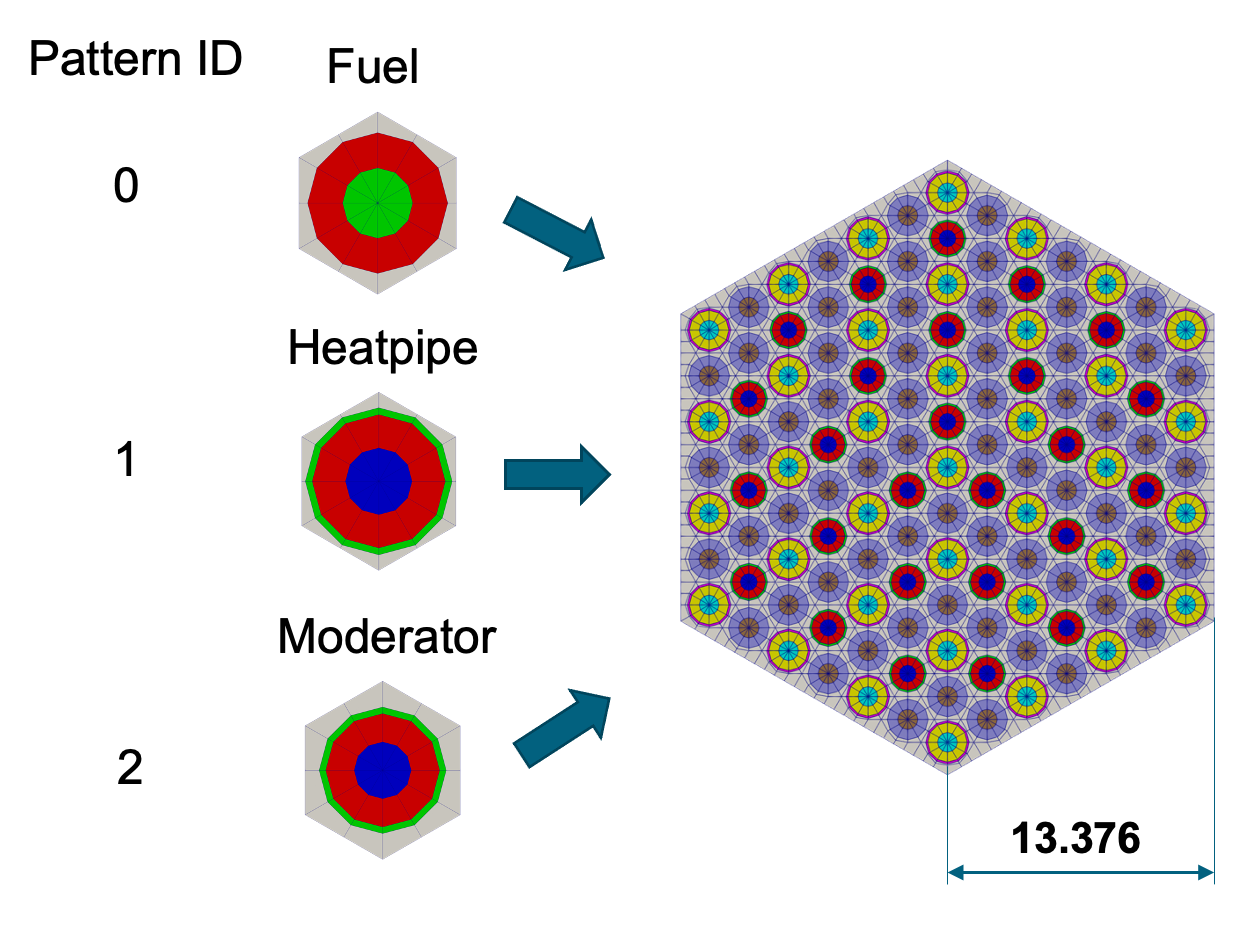

Figure 3: Fuel hex assembly.

Listing 2: Fuel hex assembly.

[Mesh]
  [fuel_assembly]
    type = PatternedHexMeshGenerator
    inputs = 'fuel_pincell heatpipe_pincell moderator_pincell'
    hexagon_size = 13.376
    background_block_id = 10
    background_intervals = 1
    pattern = '1 0 1 0 1 0 1;
              0 2 0 2 0 2 0 0;
             1 0 1 0 1 0 1 2 1;
            0 2 0 2 0 2 0 0 0 0;
           1 0 1 0 1 0 1 2 1 2 1;
          0 2 0 2 0 2 0 0 0 0 0 0;
         1 0 1 0 1 0 1 2 1 2 1 2 1;
          0 2 0 2 0 2 0 0 0 0 0 0;
           1 0 1 0 1 0 1 2 1 2 1;
            0 2 0 2 0 2 0 0 0 0;
             1 0 1 0 1 0 1 2 1;
              0 2 0 2 0 2 0 0;
               1 0 1 0 1 0 1'
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Fuel-Only Core

The HP-MR utilizes several different assembly types, but as simplified example, consider a core composed only of fuel assemblies.

Object

Geometry Features

  • 61 assembly core

  • Whole core rotated 60°

Notes

Example

Figure 4: Full fuel core assembly.

Listing 3: Full fuel core assembly.

[Mesh]
  [fuel_core]
    type = PatternedHexMeshGenerator
    inputs = 'fuel_assembly'
    # Pattern ID  0
    pattern_boundary = none
    generate_core_metadata = true
    pattern = '0 0 0 0 0;
              0 0 0 0 0 0;
             0 0 0 0 0 0 0;
            0 0 0 0 0 0 0 0;
           0 0 0 0 0 0 0 0 0;
            0 0 0 0 0 0 0 0;
             0 0 0 0 0 0 0;
              0 0 0 0 0 0;
               0 0 0 0 0'
    rotate_angle = 60
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Control Drum Assembly

Control drums are a type of control device used in some small reactor systems to regulate the reactor's power output and maintain a stable operating condition. The generation of control drum mesh involves two steps:

  1. Define control drum mesh with HexagonConcentricCircleAdaptiveBoundaryMeshGenerator

  2. Split outer ring into 2 separate block IDs using AzimuthalBlockSplitGenerator to account for control material zone.

Object

Geometry Features

  • Center region

    • 12.25 unit radius

    • 2 radial intervals

  • Absorber Ring

    • 13.25 unit radius

    • 1 radial interval

    • Outer ring block ID from 45° to 135° is changed to a different ID for this case using AzimuthalBlockSplitGenerator in a second step

  • Hexagonal background

    • 13.376 unit apothem (half-pitch)

    • 4 azimuthal sectors on each hexagon face, except for the two faces which require more azimuthal sectors to match neighboring fuel assemblies

    • 2 radial intervals

Notes

  • Circular volumes preserved regardless of meshing fidelity ("preserve_volumes"=true)

  • Side node adaptation performed for instances with neighboring fuel assemblies. The reference side number (sides_to_adapt) and assembly neighbor meshes (inputs) are taken as input so that the nodes can be placed correctly on the control drum mesh to match the neighbor meshes.

  • HexagonConcentricCircleAdaptiveBoundaryMeshGenerator is used in this case to create a "single pin" hexagonal assembly with sides matching another mesh. For example, in cases where the node counts on the edges of the control drum and fuel assembly differ, the HexagonConcentricCircleAdaptiveBoundaryMeshGenerator can automatically adjust the mesh density along the control drum's boundary to ensure compatibility.

  • This meshing method is intended for analyzing a static control drum position. For transient control drum rotation (and control rod insertion), this azimuthal block split is not needed as Griffin uses special material definitions to define the absorber location as a function of time.

Example (Step 1 - Generate Control Drum)

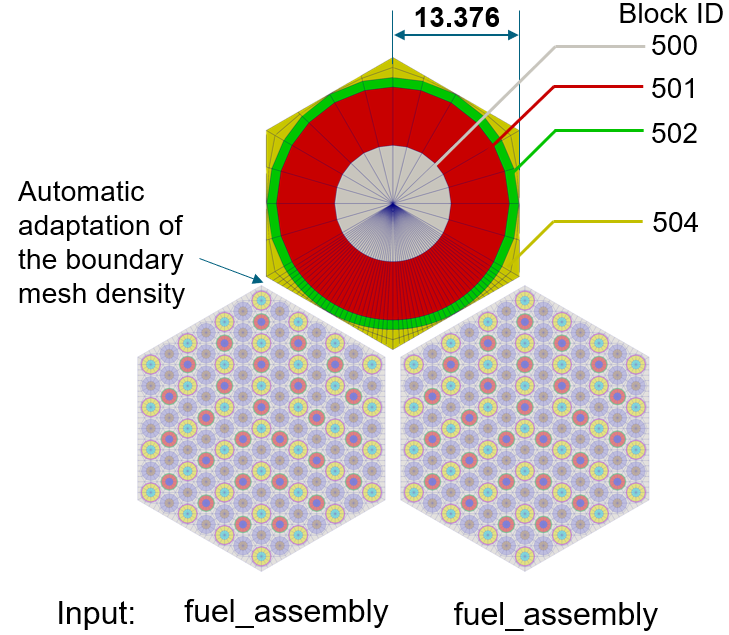

Figure 5: Control Drum Generation.

Listing 4: Control Drum Generation.

[Mesh]
  [cd1_step1]
    type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
    meshes_to_adapt_to = 'fuel_assembly fuel_assembly'
    sides_to_adapt = '3 4'
    num_sectors_per_side = '4 4 4 4 4 4'
    hexagon_size = 13.376
    background_intervals = 2
    background_block_ids = 504
    ring_radii = '12.25 13.25'
    ring_intervals = '2 1'
    ring_block_ids = '500 501 502'
    preserve_volumes = true
    is_control_drum = true
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Example (Step 2 - Block Splitting to Define Absorber Segment)

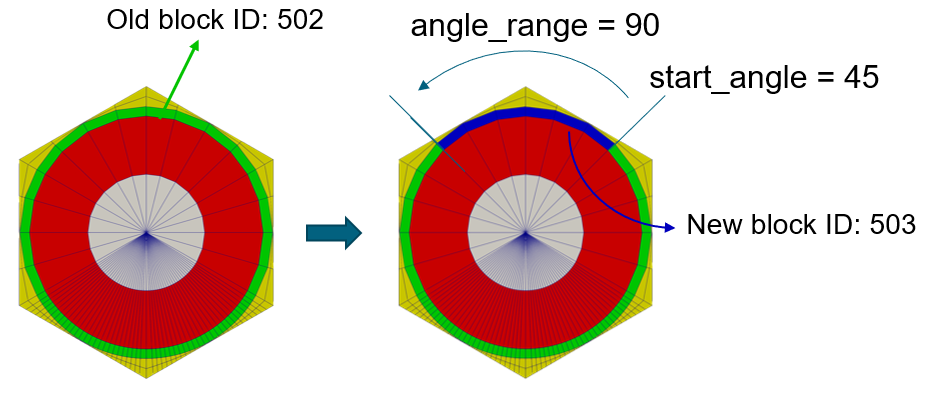

Figure 6: Block ID swaps.

Listing 5: Block ID swaps.

[Mesh]
  [cd1]
    type = AzimuthalBlockSplitGenerator
    input = cd1_step1
    start_angle = 45
    angle_range = 90
    old_blocks = 502
    new_block_ids = 503
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Create Additional Assemblies (Reflector, Air, Dummy)

Other components of the reactor, such as reflectors and air holes, can also be created using the HexagonConcentricCircleAdaptiveBoundaryMeshGenerator. Additionally, to achieve the necessary hexagonal shape for the PatternedHexMeshGenerator, dummy blocks are required. These dummy blocks will be eliminated once the reactor core is constructed.

Object

Geometry Features

  • 13.376 unit apothem

    • 4 azimuthal sectors on each hexagon side, except where more required for conformal meshing with neighbors (two sides of reflector, all sides of air hole)

    • 2 radial intervals

    • No concentric circles included (no pins)

  • Side node adaptation for case with neighboring fuel assemblies

    • Reflector assemblies along the core outer boundary (multiple reflector geometries needed based on location in the core)

  • Single central air hole assembly

  • Multiple "Dummy" assemblies needed for patterning (to be deleted later), all with identical boundary densities (only one geometry needed, with same block ID for easy deletion later).

Notes

  • The boundary nodes on two neighboring assemblies need to match up in order for the assemblies to be stitched together. Assemblies that neighbor several different assembly types (control drums, reflectors) are generally created last so that the boundaries can be specified based on the meshes these need to match.

Example

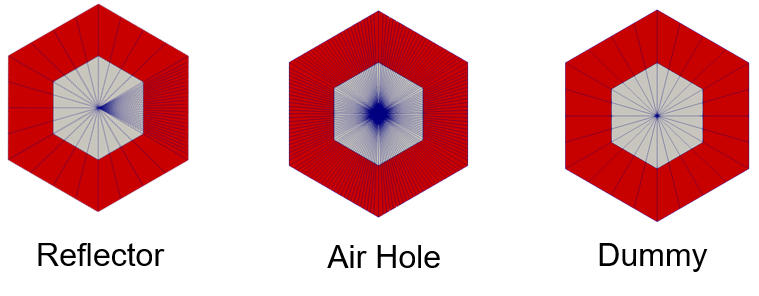

Figure 7: Additional assembly types.

Listing 6: Reflector assembly example.

[Mesh]
  [refl1]
    type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
    meshes_to_adapt_to = 'fuel_assembly'
    sides_to_adapt = '4'
    num_sectors_per_side = '4 4 4 4 4 4'
    hexagon_size = 13.376
    background_intervals = 2
    background_block_ids = '400 401'
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Listing 7: Air center assembly example.

[Mesh]
  [air_center]
    type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
    num_sectors_per_side = '4 4 4 4 4 4'
    meshes_to_adapt_to = 'fuel_assembly fuel_assembly fuel_assembly fuel_assembly fuel_assembly fuel_assembly'
    sides_to_adapt = '0 1 2 3 4 5'
    hexagon_size = 13.376
    background_intervals = 2
    background_block_ids = '600 601'
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Listing 8: Dummy assembly example.

[Mesh]
  [dummy]
    type = HexagonConcentricCircleAdaptiveBoundaryMeshGenerator
    num_sectors_per_side = '4 4 4 4 4 4'
    hexagon_size = 13.376
    background_intervals = 2
    background_block_ids = '700 701'
    # external_boundary_id = 9998
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Create Patterned Full Core

Generated reactor component meshes (fuel assembly, control drum, reflector, air hole and dummy) are stitched into a 2D hexagonal lattice (reactor core) using PatternedHexMeshGenerator.

Object

Geometry Features

  • Outer hex boundary disabled ("pattern_boundary"=none)

  • Whole core rotated 60°

  • 5 Input geometry types

    • Fuel assembly

    • Control drum (12 meshes created for different boundary arrangements)

    • Reflector (6 meshes created for different boundary arrangements)

    • Air hole center

    • Dummy assemblies

Notes

  • PatternedHexMeshGenerator requires a "perfect" hex pattern. "Empty" spots should be defined with dummy assemblies and later deleted.

Example

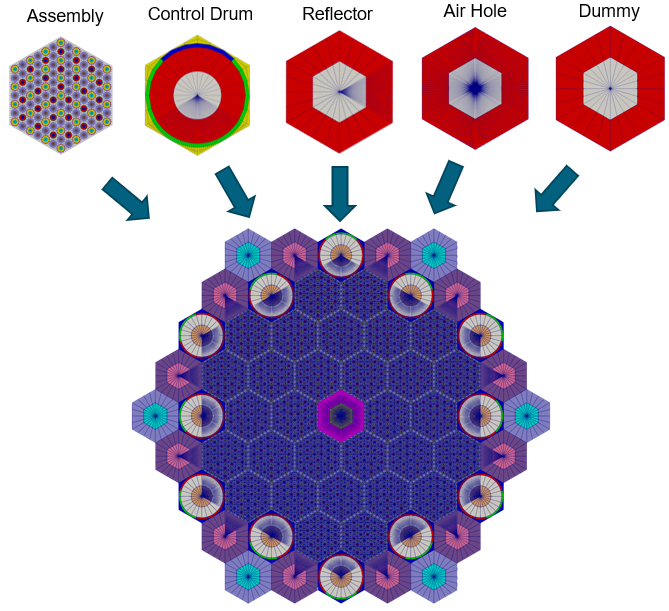

Figure 8: Full core assembly.

Listing 9: Full core assembly.

[Mesh]
  [core]
    type = PatternedHexMeshGenerator
    inputs = 'fuel_assembly cd1 cd2 cd3 cd4 cd5 cd6 cd7 cd8 cd9 cd10 cd11 cd12 refl1 refl2 refl3 refl4 refl5 refl6 dummy air_center'
    # Pattern ID  0           1   2   3   4   5   6   7   8   9   10   11   12    13    14    15    16    17    18   19  20
    pattern_boundary = none
    generate_core_metadata = true
    pattern = '19 13 1  18 19;
             13 12  0  0  2 18;
           11  0  0  0  0  0  3;
          14 0  0   0  0  0  0 17;
        19 10  0  0  20  0  0  4 19;
          14 0  0   0  0  0  0 17;
            9  0  0  0  0  0  5;
             15  8  0  0  6 16;
               19 15  7 16 19'
    rotate_angle = 60
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Delete Dummy Assemblies

Dummy blocks were used in the previous step to facilitate the core pattern but are not part of the final mesh. We now delete them.

Object

Geometry Features

  • Remove "dummy" assemblies which were added only for core hex patterning

Notes

  • The blocks IDs of the dummy assembly were defined by the user in the definition of the dummy assembly

  • Set the new outer boundaries that result from the deleted assemblies to have the same sideset ID as the existing outer boundary (this step is crucial to ensure the entire outer boundary can be referenced in Griffin for sideset assignment)

Example

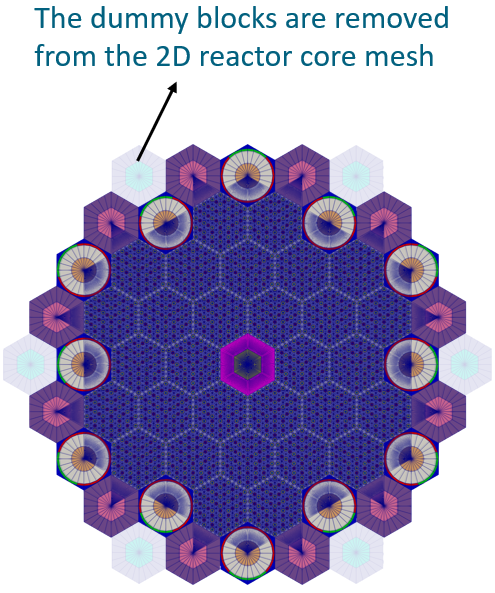

Figure 9: Full core assembly without dummies.

Listing 10: Full core assembly without dummies.

[Mesh]
  [del_dummy]
    type = BlockDeletionGenerator
    block = '700 701'
    input = core
    new_boundary = 10000
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Add Core Periphery

A peripheral ring (shield) can be incorporated into the 2D reactor core using either the PeripheralRingMeshGenerator or the PeripheralTriangleMeshGenerator. The former generates a quad mesh, while the latter generates a tri mesh. These two mesh generators also allow the user to control mesh density. Using the quadrilateral mesh option permits easier symmetry trimming options down the line.

Object

Geometry Features

  • 115.0 units vessel radius

    • 1 radial interval

Notes

  • Use existing core outer boundary ID as input boundary which describes which boundary the peripheral ring should start from

Example

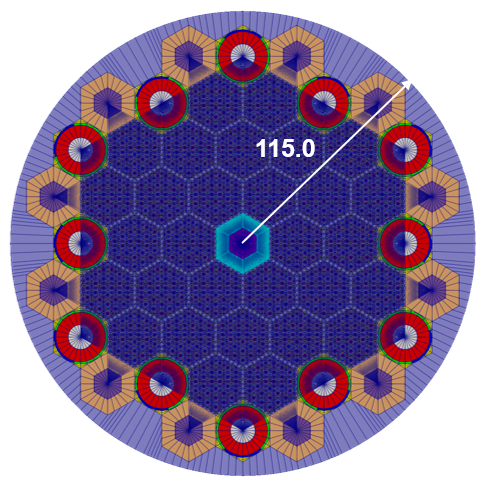

Figure 10: Core periphery.

Listing 11: Core periphery.

[Mesh]
  [outer_shield]
    type = PeripheralRingMeshGenerator
    input = del_dummy
    peripheral_layer_num = 1
    peripheral_ring_radius = 115.0
    input_mesh_external_boundary = 10000
    peripheral_ring_block_id = 250
    peripheral_ring_block_name = outer_shield
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Slice to 1/6 Core

To conserve computational resources, users may create a half core or 1/6 symmetric reactor core. The PlaneDeletionGenerator can be employed to trim the 2D full core mesh into the desired symmetrical configuration in this case because the desired cuts lie along existing element boundaries. Alternatively, HexagonMeshTrimmer could be used to perform this trimming.

Object

Geometry Features

  • Trimming plane defined by a point and a normal vector

  • Elements whose centroids lie "above" (in the direction of the normal vector) the plane will be deleted

  • Set new outer boundary ID on sliced lines to be referenced later

  • To slice the full core in half

    • Point = , normal = (60° from +)

  • To slice the half core into 1/3

    • Point = , normal = (-60° from +)

Notes

  • Advanced trimming options are available (see HexagonMeshTrimmer). Trimming should only be performed along lines of symmetry.

Example

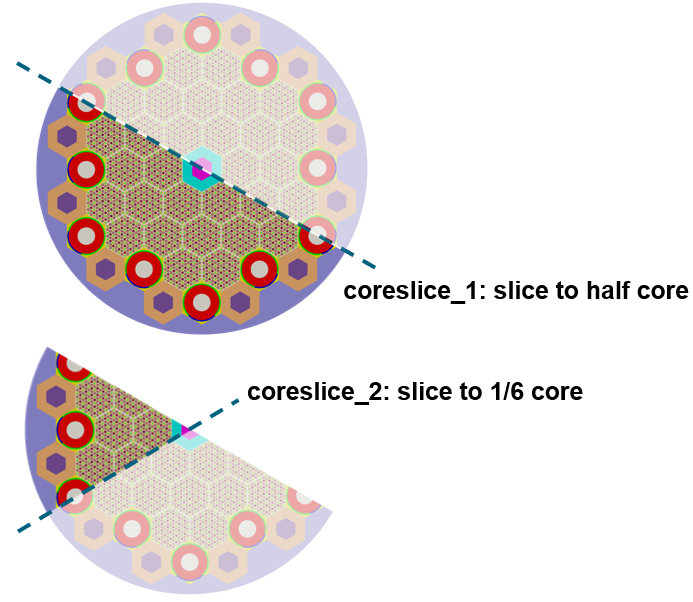

Figure 11: 1/6 core slice in two steps.

Listing 12: Slice full core in 1/2 example.

[Mesh]
  [coreslice_1]
    type = PlaneDeletionGenerator
    point = '0 0 0'
    normal = '10 17.32 0'
    input = outer_shield
    new_boundary = 147
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Listing 13: Slice 1/2 core in 1/3 example.

[Mesh]
  [coreslice_2]
    type = PlaneDeletionGenerator
    point = '0 0 0'
    normal = '10 -17.32 0'
    input = coreslice_1
    new_boundary = 147
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Extrude to 3D

The AdvancedExtruderGenerator performs 2D to 3D extrusion, and allows users to control elevations through variable extrusion (axial) lengths. This mesh generator also has features like assigning new subdomain IDs at different axial layers.

Object

Geometry Features

Extrude the 2D mesh in + direction

  • Split into 3 axial intervals

  • Heights for each interval: 20 units, 160 units, 20 units

    • Number of layers in each interval: 1, 8, 1

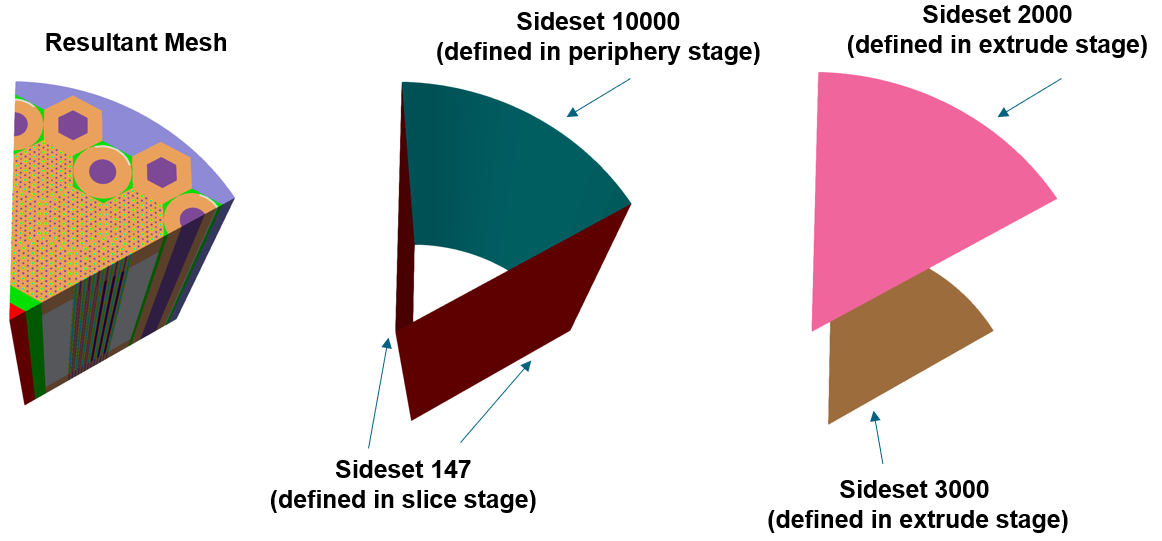

  • Set top/bottom boundary IDs to be referenced later

Notes

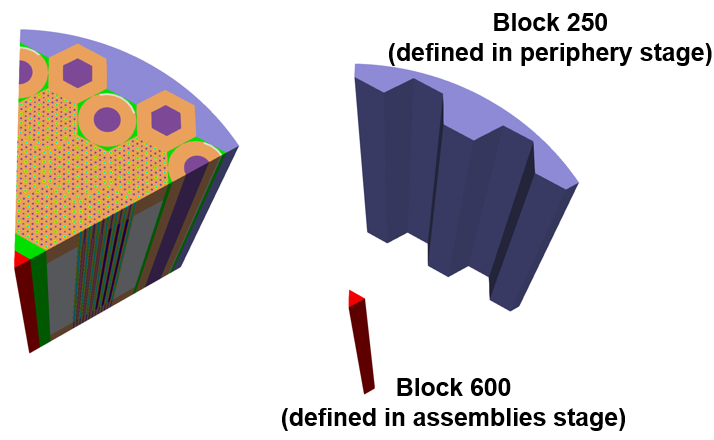

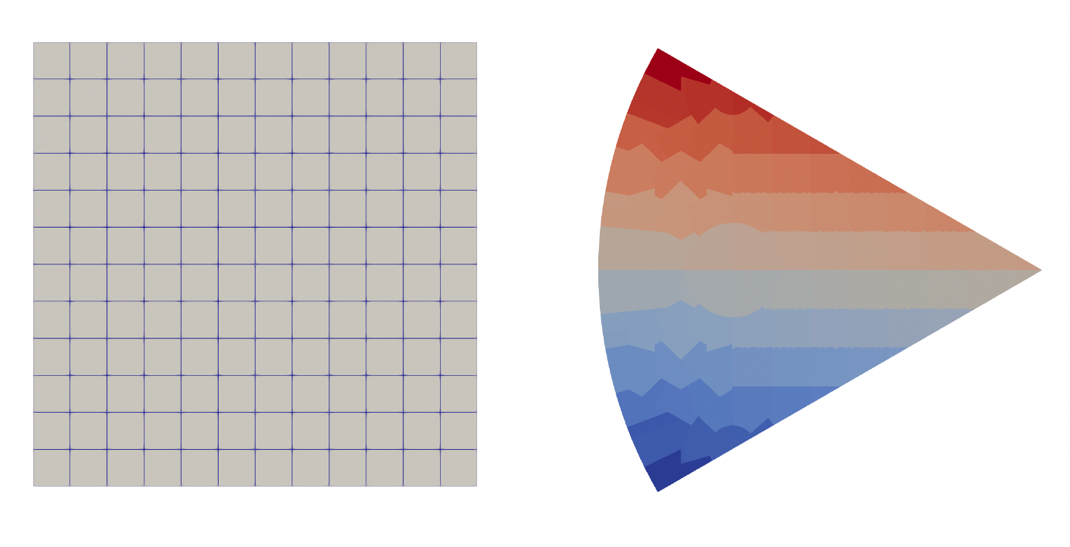

Here we explain the concept of subdomain swaps. By default, when 2D elements are extruded to 3D using AdvancedExtruderGenerator, they retain the same subdomain IDs as their original 2D elements. In the 3D HPMR, distinct subdomain IDs are required for the upper and lower reflector regions, as well as for the core center region. This can be achieved using the subdomain swap function in the AdvancedExtruderGenerator through the "subdomain_swaps" parameter. Each element of the "subdomain_swaps" vector contains subdomain remapping information for a specific elevation, with the first element representing the initial extruded elevation. For instance, a 2D moderator mesh with block ID 100 can be extruded to 3D using the following "subdomain_swaps": '100 1000; 100 100; 100 1000', where 1000 is the block ID of the reflector. The generated mesh will be defined to be three layers with the upper and bottom meshes of block ID 1000 and the center region maintain the block ID of 100. The resulting mesh will have three layers, with the top and bottom layers having a block ID of 1000 (reflector), while the central region retains the block ID of 100 (moderator).

Example

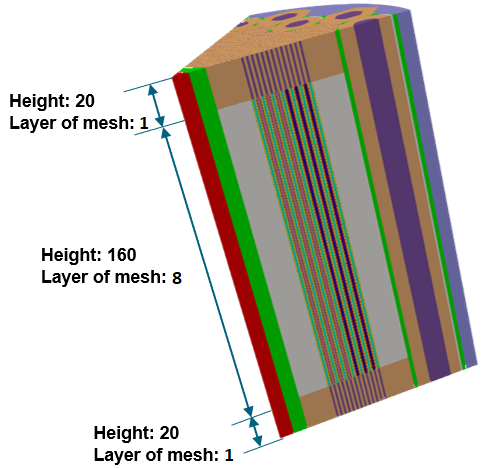

Figure 12: 1/6 2D core extruded to 3D.

Listing 14: 1/6 2D core extruded to 3D.

[Mesh]
  [extrude]
    type = AdvancedExtruderGenerator
    input = coreslice_2
    heights = '20 160 20'
    num_layers = '1 8 1'
    direction = '0 0 1'
    subdomain_swaps = '10 1000 100 1000 101 1000 103 1003 200 1000 201 1000 203 1003 301 1000 303 1003;
                        10 10   100 100  101 101  103 103  200 200  201 201  203 203  301 301  303 303;
                        10 1000 100 1000 101 1000 103 1003 200 200  201 201  203 203  301 1000 303 1003'
    top_boundary = 2000
    bottom_boundary = 3000
  []
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr.i)

Using the Mesh in Downstream Physics Applications (Griffin)

We briefly describe some key steps which are required to use the resulting mesh in Griffin. Namely, block IDs (subdomain_id) are referenced in Griffin to assign materials to elements. The external boundary sideset IDs are referenced in Griffin to assign boundary conditions.

Assignment of Material Properties to Blocks

All blocks in the mesh must be assigned to a material in Griffin. The blocks are depicted in Figure 13 (left) using different colors for each block. Figure 13 (right) highlights two specific blocks and their associated material IDs as an example of block IDs that must be referenced in Griffin.

Figure 13: Locations of blocks which are assigned to materials in the Griffin input file.

Listing 15: Material property assignment example.

[Materials]
  [mat1]
    type = CoupledFeedbackNeutronicsMaterial
    block = '250'
    material_id = 1
  []
  [mat2]
    type = CoupledFeedbackNeutronicsMaterial
    block = '600'
    material_id = 2
  []
  # Repeat for all other blocks in mesh
[]
(tutorials/tutorial04_meshing/app/test/tests/reactor_examples/hpmr/hpmr_griffin_snippet.i)

Assignment of Boundary Conditions to Sidesets

Figure 14: The key sidesets which are assigned boundary conditions in the Griffin input file.

Generation of Coarse Mesh in Griffin

We briefly touch on mesh generation for the Coarse Mesh Finite Difference acceleration option in Griffin. There are three options:

  • Option 1: Define "coarse" mesh that is identical to fine mesh

  • Option 2: Define coarse mesh covering the same geometry as the fine mesh but with a coarser mesh refinement

  • Option 3: Define a regular square grid covering the entire mesh domain (and beyond)

Examples of options 2 and 3 are provided in the following images.

Figure 15: Separately generated fine-mesh stencil used for coarse mesh generation of HPMR mesh (left), and HPMR mesh colored by coarse_element_id.

Figure 16: Cartesian stencil used for coarse mesh generation of HPMR mesh (left), and HPMR mesh colored by coarse_element_id.

Previousarrow_backNextarrow_forward
