Step 1: Flow Through a Channel

Simulation Parameters

We define inlet temperature T_in, inlet mass flow rate m_dot_in and pressure press parameters. These values will be used in the input file. It is a good practice to setup input files this way, because if a change is needed one can do it in a single location rather then hunting for all the right occurrences. This will become very important when input files get large.

T_in = 300.         # K
m_dot_in = 1e-4     # kg/s
press = 1e5         # Pa

It is a good habit to include the units we are assuming in case our input file will be used by other people.

Fluid Properties

In our model, we will be circulating helium in tubes, so we need to add a top-level [Modules/FluidProperties] block into the input file. In this block, we define all fluids that will be used by the flow components.

To model the helium gas, we will use the ideal gas equation of state. To do so, we will put the following block inside the [Modules/FluidProperties] block.

[he]
  type = IdealGasFluidProperties
  molar_mass = 4e-3
  gamma = 1.67
  k = 0.2556
  mu = 3.22639e-5
[]

Closures

Closure relations are provided through objects created in a [Closures] block. Here we create a simple set of closures, which will be used by our flow channel component:

[Closures]
  [simple_closures]
    type = Closures1PhaseSimple
  []
[]

Flow Channel

The heart of all input files is the top-level [Components] block. Components represent pieces of a model, including physical pieces such as pipes, turbo-machinery, etc., and intangible pieces that add physics, like boundary conditions or source terms. They are like LEGO bricks which when put together they build up the overall simulation.

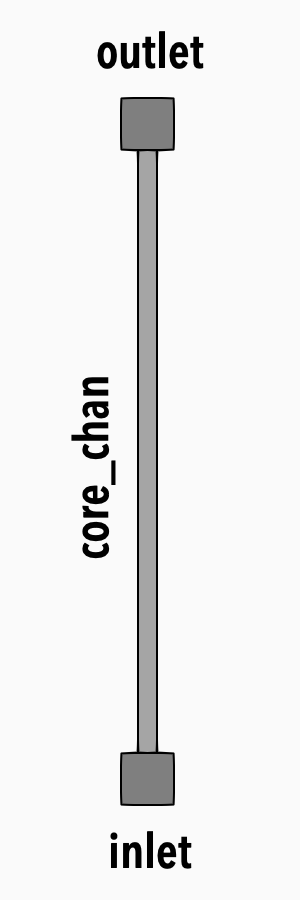

The first component we introduce is the FlowChannel1Phase component which represents a channel with single-phase flow.

[core_chan]
  type = FlowChannel1Phase
  position = '0 0 0'
  orientation = '0 0 1'
  length = 1
  n_elems = 10
  A = 7.2548e-3
  D_h = 7.0636e-2
  f = 1.6
[]

The position parameter is a location in 3D space where the flow channel starts. The orientation parameter is the directional vector (in 3 dimensions) of the channel relative to the position parameter. The length parameter is the length of the channel. The n_elems parameter describes the number of elements that will be created for the mesh that supports the channel. The A, D_h, and f are cross-sectional area, hydraulic diameter, and a wall friction factor, respectively.

Every flow channel defines a subdomain block with its name and two boundaries. They are named flow_channel_name:in and flow_channel_name:out and refer to the start and the end of the flow channel, respectively. This will be useful later for connecting components together and setting up other objects like postprocessors.

Boundary Conditions

Every flow channel has to be connected to either a boundary condition or a junction. If it is not, the code will detect it and report an error.

In this part of the tutorial we will look at connecting boundary conditions – junctions will be covered later. To connect a boundary condition to a flow channel we use the input parameter. The value we assign into it will be the name of the side of the flow channel (see the above note).

[inlet]
  type = InletMassFlowRateTemperature1Phase
  input = 'core_chan:in'
  m_dot = ${m_dot_in}
  T = ${T_in}
[]

[outlet]
  type = Outlet1Phase
  input = 'core_chan:out'
  p = ${press}
[]

Global Parameters

In [GlobalParams] block, we prescribe parameters that are global to the whole simulation.

The following parameter should be almost always included in your input file. It enables the full slope reconstruction in the underlying rDG scheme.

rdg_slope_reconstruction = full

If initial conditions are the same for the whole simulation, it is convenient to place them in this block. This is the case in this tutorial, so we will do so by including the following parameters in the [GlobalParams] block:

initial_p = ${press}
initial_vel = 0
initial_T = ${T_in}

The closures parameter is used to specify the name of a closures object, so we pass the name we gave to the closures object we created in the Closures block:

closures = simple_closures

Note that the corresponding closures class, Closures1PhaseSimple, requires users to specify wall friction factor f and wall heat transfer coefficient Hw (if heating is present) manually as a constant value.

Since we will be using helium gas in almost all flow components, we can place the following in the [GlobalParams] block as well:

fp = he

This will make sure that all flow components will pick the helium gas, unless they will be directed otherwise.

Executioner

This top-level block describes how the simulation will be executed.

[Executioner]
  type = Transient
  start_time = 0
  end_time = 2
  dt = 0.1

  line_search = basic
  solve_type = NEWTON

  nl_rel_tol = 1e-5
  nl_abs_tol = 1e-5
  nl_max_its = 5
[]

The Transient type says that we will be solving multiple time steps starting from start_time and running until end_time with time step size (dt) of 0.1.

The line_search = basic and solve_type = NEWTON should be always present in this block when running a THM-based code. Their exact explanation is beyond the scope of this tutorial.

The nl_rel_tol, nl_abs_tol, and nl_max_its are parameters to decide if the non-linear solver converged and their meaning is relative and absolute tolerance and maximum number of non-linear iterations, respectively.

Outputs

By default, MOOSE will only produce an output to terminal.

For visualizing the obtained solution, we need to enable an output to a file or files. The most useful output is stored in an ExodusII file format and can be enabled by:

[Outputs]
  exodus = true
[]

Notes

This is a typical input file structure of a THM-based code. All input files will be more or less similar to this.
