GPBR200 Thermal Hydraulics with Pronghorn

Input File Variables and Global Parameters

Due to the variety of block sets in the mesh, it is first useful to define input file variables so that object block restrictions are more interpretable.

# Blocks -----------------------------------------------------------------------
risers_blocks = '1 2 3 22'
fluid_only_blocks = '4'
heated_blocks = '5 6 7 8 9'
outchans_blocks = '10'
outplen_blocks = '11'
hotleg_blocks = '12'
ref_blocks = '13 14 15 16 17'
ref2barrel_gap = '18'
barrel_blocks = '19'
barrel2rpv_gap = '20'
rpv_blocks = '21'
outlet_blocks = '${outplen_blocks} ${hotleg_blocks} ${outchans_blocks}'
porous_blocks = '${risers_blocks} ${heated_blocks} ${outlet_blocks}'
fluid_blocks = '${fluid_only_blocks} ${porous_blocks}'
solid_only_blocks = '${ref_blocks} ${barrel_blocks} ${rpv_blocks}'
pbed_blocks = '${heated_blocks}'
no_pbed_porous_blocks = '${risers_blocks} ${outlet_blocks}'

Geometry and various reactor property definitions are also specified as input file variables.

# Geometry ---------------------------------------------------------------------
pbed_r = 1.200 # Pebble Bed radius (m).
pbed_top = 11.3354 # Absolute height of the core top in the model (m).
rpv_r = 2.307 # rpv radius (m)
cavity_thickness = 1.340 # Cavity thickness from pbmr400 (m)
pebble_diameter = 0.06 # Diameter of the pebbles (m).

# Properties -------------------------------------------------------------------
global_emissivity = 0.80 # All the materials have the same emissivity (//).
reactor_total_mfr = 64.3 # Total reactor He mass flow rate (kg/s).
reactor_inlet_T_fluid = 533.25 # He temperature  at the inlet of the lower inlet plenum (K).
reactor_inlet_rho = 5.364 # He density at the inlet of the lower inlet plenum (kg/m3).
reactor_outlet_pressure = 5.84e+6 # Pressure at the at the outlet of the outlet plenum (Pa).
top_bottom_cav_temperature = '${fparse 273.15 + 200.0}' # Top and Bottom cavities temperatures (K).
rccs_temperature = '${fparse 273.15 + 70.0}' # RCCS temperatures (K).
htc_cavities = 10.0 # Heat Exchange coefficient for natural circulation (W/m2K)
heat_capacity_multiplier = 1e-5
db_cnst = 0.023 # Dittus Boelter constant for area htc
pbed_porosity = 0.39 # Pebble bed porosity (//).

# Power ------------------------------------------------------------------------
total_power = 200.0e+6 # Total reactor Power (W)

The inlet velocity and initial pebble bed velocity are computed using fparse expressions relating cross-sectional area, mass flow rate, and fluid density.

# BCs --------------------------------------------------------------------------
inlet_free_area = '${fparse 2 * pi * 2.066 * 0.39}'
inlet_vel = '${fparse reactor_total_mfr/inlet_free_area/reactor_inlet_rho}'

# Initial values ---------------------------------------------------------------
pbed_free_flow_area = '${fparse pi * pbed_r * pbed_r}' # Core inlet free flow area (m2)
pbed_superficial_vel = '${fparse -reactor_total_mfr/pbed_free_flow_area/reactor_inlet_rho}' # m/s
initial_temp = 900.0 # K

Finally, the GlobalParams block specifies common parameters used mainly in material objects.

[GlobalParams]
  pebble_diameter = ${pebble_diameter}
  acceleration = ' 0.00 -9.81 0.00 ' # Gravity acceleration (m/s2).
  fp = fluid_properties_obj
[]

Mesh

The mesh is identical to the one in the neutronics model, the only difference is that the element IDs are not imported from the exodus.

[Mesh]
  [pebble_bed]
    type = FileMeshGenerator
    file = ../data/streamline_mesh_in.e
  []
  coord_type = RZ
  rz_coord_axis = Y
[]

Since the physics in this model do not cover the entire geometry provided by the mesh, two Problem parameters are defined to prevent errors regarding kernel and material definitions.

[Problem]
  kernel_coverage_check = false
  material_coverage_check = false
[]

Physics

This input uses MOOSE's Physics syntax to define the three different physics of the problem: fluid flow, fluid heat transfer, and solid heat transfer.

[Physics]
  [NavierStokes]
    [Flow]
      [flow]
        # Basic FVM settings
        block = '${fluid_blocks}'
        compressibility = 'weakly-compressible'
        gravity = '0.0 -9.81 0.0'

        # Porous treatment.
        porous_medium_treatment = true
        friction_types = 'darcy forchheimer'
        friction_coeffs = 'Darcy_coefficient Forchheimer_coefficient'
        porosity_interface_pressure_treatment = 'bernoulli'

        # Fluid properties.
        density = 'rho'
        dynamic_viscosity = 'mu'

        # Initial conditions.
        initial_velocity = '0 pbed_superficial_vel_func 0'
        velocity_variable = 'superficial_vel_x superficial_vel_y'
        initial_pressure = '${reactor_outlet_pressure}'

        # Fluid boundary conditions.
        inlet_boundaries = 'inlet'
        momentum_inlet_types = 'fixed-velocity'
        momentum_inlet_functors = '-${inlet_vel} 0'

        outlet_boundaries = 'outlet'
        momentum_outlet_types = 'fixed-pressure'
        pressure_functors = '${reactor_outlet_pressure}'

        wall_boundaries = 'wall inner'
        momentum_wall_types = 'slip  symmetry'
      []
    []
  []
[]

[Functions]
  [pbed_superficial_vel_func]
    type = ParsedFunction
    expression = 'if(x < pbed_r & y > 1.851 & y < pbed_top, vel, 0.0)'
    symbol_names = 'pbed_r pbed_top vel'
    symbol_values = '${pbed_r} ${pbed_top} ${pbed_superficial_vel}'
  []
[]

[Physics]
  [NavierStokes]
    [FluidHeatTransfer]
      [energy]
        block = '${fluid_blocks}'

        # Fluid properties.
        thermal_conductivity = 'kappa'
        specific_heat = 'cp'

        # Initial conditions
        fluid_temperature_variable = 'T_fluid'
        initial_temperature = '${initial_temp}'

        # Fluid boundary conditions
        energy_inlet_types = 'fixed-temperature'
        energy_inlet_functors = '${reactor_inlet_T_fluid}'
        energy_wall_types = 'heatflux  heatflux'
        energy_wall_functors = '0         0'

        # Convective heat transfer.
        ambient_convection_blocks = '${porous_blocks}'
        ambient_convection_alpha = 'alpha'
        ambient_temperature = 'T_solid'

        # Interpolation schemes.
        energy_advection_interpolation = average
      []
    []
  []
[]

[Physics]
  [NavierStokes]
    [SolidHeatTransfer]
      [solid]
        block = '${porous_blocks} ${solid_only_blocks} ${ref2barrel_gap} ${barrel2rpv_gap}'

        # Initial conditions.
        solid_temperature_variable = 'T_solid'
        initial_temperature = ${initial_temp}

        # Solid properties
        thermal_conductivity_solid = 'effective_thermal_conductivity'
        cp_solid = 'cp_s_mod'
        rho_solid = 'rho_s'

        # Convective heat transfer.
        ambient_convection_blocks = '${porous_blocks}'
        ambient_convection_alpha = 'alpha'
        ambient_convection_temperature = 'T_fluid'

        # Heat source
        external_heat_source_blocks = '${heated_blocks}'
        external_heat_source = 'power_density'
      []
    []
  []
[]

[FVBCs]
  [rpv_radial_radiation]
    type = FVInfiniteCylinderRadiativeBC
    variable = T_solid
    cylinder_emissivity = '${global_emissivity}'
    boundary_emissivity = '${global_emissivity}'
    boundary_radius = '${rpv_r}'
    cylinder_radius = '${fparse rpv_r + cavity_thickness}'
    Tinfinity = '${rccs_temperature}'
    boundary = 'rpv2rcav'
  []
  [rpv_radial_convection]
    type = FVFunctorConvectiveHeatFluxBC
    variable = T_solid
    T_solid = T_solid
    T_bulk = '${rccs_temperature}'
    boundary = 'rpv2rcav'
    heat_transfer_coefficient = '${htc_cavities}'
    is_solid = true
  []
  [rpv_bottom_top]
    type = FVFunctorConvectiveHeatFluxBC
    variable = T_solid
    T_solid = T_solid
    T_bulk = '${top_bottom_cav_temperature}'
    boundary = 'rtop rbottom'
    heat_transfer_coefficient = '${htc_cavities}'
    is_solid = true
  []
[]

Auxiliary Variables and Kernels

Three auxiliary variables are specified in the input: power density and the x and y components of the interstitial velocity. The power density will eventually come from the neutronics simulation, but for this stand-alone physics input, the total power is simply scaled by the volume of the pebble bed. The velocity variables represent the physical velocity of the system, used mainly for visualization, which are converted from the superficial velocities computed by the solver.

[AuxVariables]
  [power_density]
    family = MONOMIAL
    order = CONSTANT
    fv = true
    block = '${heated_blocks}'
  []

  [vel_x]
    family = MONOMIAL
    order = CONSTANT
    fv = true
    block = '${fluid_blocks}'
  []
  [vel_y]
    family = MONOMIAL
    order = CONSTANT
    fv = true
    block = '${fluid_blocks}'
  []
[]

[AuxKernels]
  [power_density]
    type = ParsedAux
    variable = power_density
    expression = '${total_power} / volume'
    functor_names = 'volume'
    execute_on = 'INITIAL'
  []
  [vel_x]
    type = InterstitialFunctorAux
    variable = vel_x
    superficial_variable = superficial_vel_x
    phase = fluid
    porosity = porosity
  []
  [vel_y]
    type = InterstitialFunctorAux
    variable = vel_y
    superficial_variable = superficial_vel_y
    phase = fluid
    porosity = porosity
  []
[]

In order to avoid manual calculation of the pebble-bed volume, a VolumePostprocessor is used. Note, in order to guarantee this postprocessor is executed before the ParsedAux, the force_preaux parameter is necessary.

[Postprocessors]
  [volume]
    type = VolumePostprocessor
    block = '${heated_blocks}'
    force_preaux = true
    execute_on = 'INITIAL'
    outputs = none
  []
[]

Materials

The input specifies various FunctorMaterials to define the material properties of the model. Most of the fluid properties are modifications considering geometry and porosity of the HeliumFluidProperties (Giudicelli et al., 2025). The solid thermal properties are assumed temperature independent.

[FluidProperties]
  [fluid_properties_obj]
    type = HeliumFluidProperties
  []
[]

[FunctorMaterials]
  # Fluid properties and non-dimensional numbers.
  [fluid_props_to_mat_props]
    type = GeneralFunctorFluidProps
    pressure = 'pressure'
    T_fluid = 'T_fluid'
    speed = 'speed'
    porosity = porosity
    characteristic_length = characteristic_length
    block = ${fluid_blocks}
  []

  # Porosity.
  [risers_blocks_porosity]
    type = ADGenericFunctorMaterial
    prop_names = 'porosity'
    prop_values = '0.22' # 18 channels and inlet structures (//).
    block = '${risers_blocks}'
  []
  [pbed_blocks_porosity]
    type = ADGenericFunctorMaterial
    prop_names = 'porosity'
    prop_values = '${pbed_porosity}'
    block = ' ${heated_blocks}'
  []
  [cavity_blocks_porosity]
    type = ADGenericFunctorMaterial
    prop_names = 'porosity'
    prop_values = '0.99' # Ideally 1.0 (//).
    block = '${fluid_only_blocks}'
  []
  [outchans_blocks_porosity]
    type = ADGenericFunctorMaterial
    prop_names = 'porosity'
    prop_values = '0.63' # Triangular lattice of 0.5cm radius channels and 1.7cm pitch (//).
    block = '${outchans_blocks}'
  []
  [outplen_blocks_porosity]
    type = ADGenericFunctorMaterial
    prop_names = 'porosity'
    prop_values = '0.40' # Triangular lattice of 4.75cm radius colums and 16.5cm pitch (//).
    block = '${outplen_blocks}'
  []
  [hotleg_blocks_porosity]
    type = ADGenericFunctorMaterial
    prop_names = 'porosity'
    prop_values = '0.07' # Cylindrical channel (//).
    block = '${hotleg_blocks}'
  []
  [all_other_porosity]
    type = ADGenericFunctorMaterial
    prop_names = 'porosity'
    prop_values = '-1' # Dummy value.
    block = '${solid_only_blocks} ${ref2barrel_gap} ${barrel2rpv_gap}'
  []

  # Characteristic Length.
  [pbed_hydraulic_diameter]
    type = GenericFunctorMaterial
    prop_names = 'characteristic_length'
    prop_values = '${pebble_diameter}'
    block = '${pbed_blocks}'
  []
  [risers_hydraulic_diameter]
    type = GenericFunctorMaterial
    prop_names = 'characteristic_length'
    prop_values = '0.17' # Diameter of the risers channels (m).
    block = '${risers_blocks} ${fluid_only_blocks}'
  []
  [outlet_chans_hydraulic_diameter]
    type = GenericFunctorMaterial
    prop_names = 'characteristic_length'
    prop_values = '0.01' # Diameter of the outlet channels (m).
    block = '${outchans_blocks}'
  []
  [outlet_plen_hydraulic_diameter]
    type = GenericFunctorMaterial
    prop_names = 'characteristic_length'
    prop_values = '0.25' # Hydraulic diameter of outlet plenum (m).
    block = '${outplen_blocks}'
  []
  [hotleg_hydraulic_diameter]
    type = GenericFunctorMaterial
    prop_names = 'characteristic_length'
    prop_values = '0.967' # Diameter of the hot leg (m).
    block = '${hotleg_blocks}'
  []

  # Solid properties.
  [full_density_graphite]
    type = ADGenericFunctorMaterial
    prop_names = 'rho_s cp_s k_s'
    prop_values = '1780 1697 26'
    block = '${ref_blocks} ${risers_blocks} ${outlet_blocks} ${heated_blocks}'
  []
  [core_barrel_steel]
    type = ADGenericFunctorMaterial
    prop_names = 'rho_s cp_s k_s'
    prop_values = '7800.0 540.0 17.0'
    block = '${barrel_blocks}'
  []
  [rpv_steel]
    type = ADGenericFunctorMaterial
    prop_names = 'rho_s cp_s k_s'
    prop_values = '7800.0 525.0 38.0'
    block = '${rpv_blocks}'
  []
  [he_rho_and_cp]
    type = ADGenericFunctorMaterial
    prop_names = 'rho_s  cp_s'
    prop_values = '6      5000'
    block = '${ref2barrel_gap} ${barrel2rpv_gap}'
  []
  [mod_cp_s]
    type = ADParsedFunctorMaterial
    expression = 'cp_s * ${heat_capacity_multiplier}'
    property_name = 'cp_s_mod'
    functor_symbols = 'cp_s'
    functor_names = 'cp_s'
    block = '${porous_blocks} ${solid_only_blocks} ${ref2barrel_gap} ${barrel2rpv_gap}'
  []

  # Drag coefficients.
  [pbed_drag_coefficient]
    type = FunctorKTADragCoefficients
    T_fluid = T_fluid
    T_solid = T_solid
    porosity = porosity
    block = '${pbed_blocks}'
  []
  [risers_drag_coefficients]
    type = FunctorChurchillDragCoefficients
    block = '${risers_blocks} ${fluid_only_blocks}'
  []
  [outchans_drag_coefficients]
    type = FunctorChurchillDragCoefficients
    multipliers = '1.0e+05 1.0 1.0e+05'
    block = '${outchans_blocks}'
  []
  [outlet_drag_coefficients]
    type = FunctorChurchillDragCoefficients
    block = '${outplen_blocks}'
  []
  [hotleg_drag_coefficients]
    type = FunctorChurchillDragCoefficients
    multipliers = '1.0 1.0e+05 1.0e+05'
    block = '${hotleg_blocks}'
  []

  # Heat transfer coefficients.
  [pbed_alpha]
    type = FunctorKTAPebbleBedHTC
    T_solid = T_solid
    T_fluid = T_fluid
    mu = mu
    porosity = porosity
    pressure = pressure
    block = '${pbed_blocks}'
  []
  [risers_blocks_alpha]
    type = FunctorDittusBoelterWallHTC
    C = '${fparse db_cnst * 23.5}'

    block = '${risers_blocks}'
  []
  [outchans_blocks_alpha]
    type = FunctorDittusBoelterWallHTC
    C = '${fparse db_cnst * 400}'
    block = '${outchans_blocks}'
  []
  [outplen_blocks_alpha]
    type = FunctorDittusBoelterWallHTC
    C = '${fparse db_cnst * 63.5}'
    block = '${outplen_blocks}'
  []
  [rename_wall_htc_to_alpha]
    type = ADGenericFunctorMaterial
    prop_values = 'wall_htc'
    prop_names = 'alpha'
    block = '${risers_blocks} ${outchans_blocks} ${outplen_blocks}'
  []
  [hotleg_blocks_alpha]
    type = ADGenericFunctorMaterial
    prop_names = 'alpha'
    prop_values = '0.0'
    block = '${hotleg_blocks}'
  []

  # Effective solid thermal conductivity.
  [pebble_effective_thermal_conductivity]
    type = FunctorPebbleBedKappaSolid
    T_solid = T_solid
    porosity = porosity
    solid_conduction = ZBS
    emissivity = 0.8
    infinite_porosity = '${pbed_porosity}'
    Youngs_modulus = 9e+9
    Poisson_ratio = 0.1360
    lattice_parameters = interpolation
    coordination_number = You
    wall_distance = bed_geometry # Requested by solid_conduction = ZBS
    block = '${pbed_blocks}'
  []
  [porous_blocks_solid_effective_conductivity]
    type = FunctorVolumeAverageKappaSolid
    porosity = porosity
    block = '${no_pbed_porous_blocks}'
  []
  [effective_solid_thermal_conductivity]
    type = ADGenericVectorFunctorMaterial
    prop_names = 'effective_thermal_conductivity'
    prop_values = 'kappa_s kappa_s kappa_s'
    block = '${pbed_blocks} ${no_pbed_porous_blocks}'
  []
  [effective_solid_thermal_conductivity_solid_only]
    type = ADGenericVectorFunctorMaterial
    prop_names = 'effective_thermal_conductivity'
    prop_values = 'k_s k_s k_s'
    block = '${solid_only_blocks}'
  []
  [effective_thermal_conductivity_refl_ref2barrel_gap]
    type = FunctorGapHeatTransferEffectiveThermalConductivity
    gap_direction = x
    temperature = T_solid
    gap_conductivity_function = he_conductivity_fn
    emissivity_primary = ${global_emissivity}
    emissivity_secondary = ${global_emissivity}
    radius_primary = 2.066
    radius_secondary = 2.098
    prop_name = effective_thermal_conductivity
    block = '${ref2barrel_gap}'
  []
  [effective_thermal_conductivity_barrel_rpv_gap]
    type = FunctorGapHeatTransferEffectiveThermalConductivity
    gap_direction = x
    temperature = T_solid
    gap_conductivity_function = he_conductivity_fn
    emissivity_primary = ${global_emissivity}
    emissivity_secondary = ${global_emissivity}
    radius_primary = 2.143
    radius_secondary = 2.215
    prop_name = effective_thermal_conductivity
    block = '${barrel2rpv_gap}'
  []

  # Effective fluid thermal conductivity.
  [pebble_bed_effective_fluid_thermal_conductivity]
    type = FunctorLinearPecletKappaFluid
    porosity = porosity
    block = '${pbed_blocks}'
  []
  [everywhere_else_effective_fluid_thermal_conductivity]
    type = ADGenericVectorFunctorMaterial
    prop_names = 'kappa'
    prop_values = 'k k k'
    block = '${no_pbed_porous_blocks} ${fluid_only_blocks}'
  []
[]

[UserObjects]
  [bed_geometry]
    type = WallDistanceCylindricalBed
    top = '${pbed_top}'
    inner_radius = 0.0
    outer_radius = '${pbed_r}'
  []
[]

Executioner

This steady-state model is solved using a pseudo-transient scheme, where a Transient executioner is used to progress in time until the solution does not change under a tolerance between timesteps. Since the fluid system is a saddle point problem, using iterative preconditioners requires great care, thus the input's specification of a lu preconditioner.

[Executioner]
  type = Transient
  solve_type = NEWTON
  petsc_options_iname = '-pc_type'
  petsc_options_value = 'lu'
  line_search = l2

  # Scaling.
  automatic_scaling = true
  off_diagonals_in_auto_scaling = false
  compute_scaling_once = false

  # Tolerances.
  nl_abs_tol = 1e-5
  nl_rel_tol = 1e-6
  nl_max_its = 15

  # Time step control.
  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 2.5e-3
    cutback_factor = 0.5
    growth_factor = 2.00
    optimal_iterations = 8
  []

  # Steady state detection.
  steady_state_detection = true
  steady_state_tolerance = 1e-13
[]

Results

The input can be run using a pronghorn-opt or blue_crab-opt executable:

mpiexec -n 8 blue_crab-opt -i gpbr200_ss_phth_reactor.i

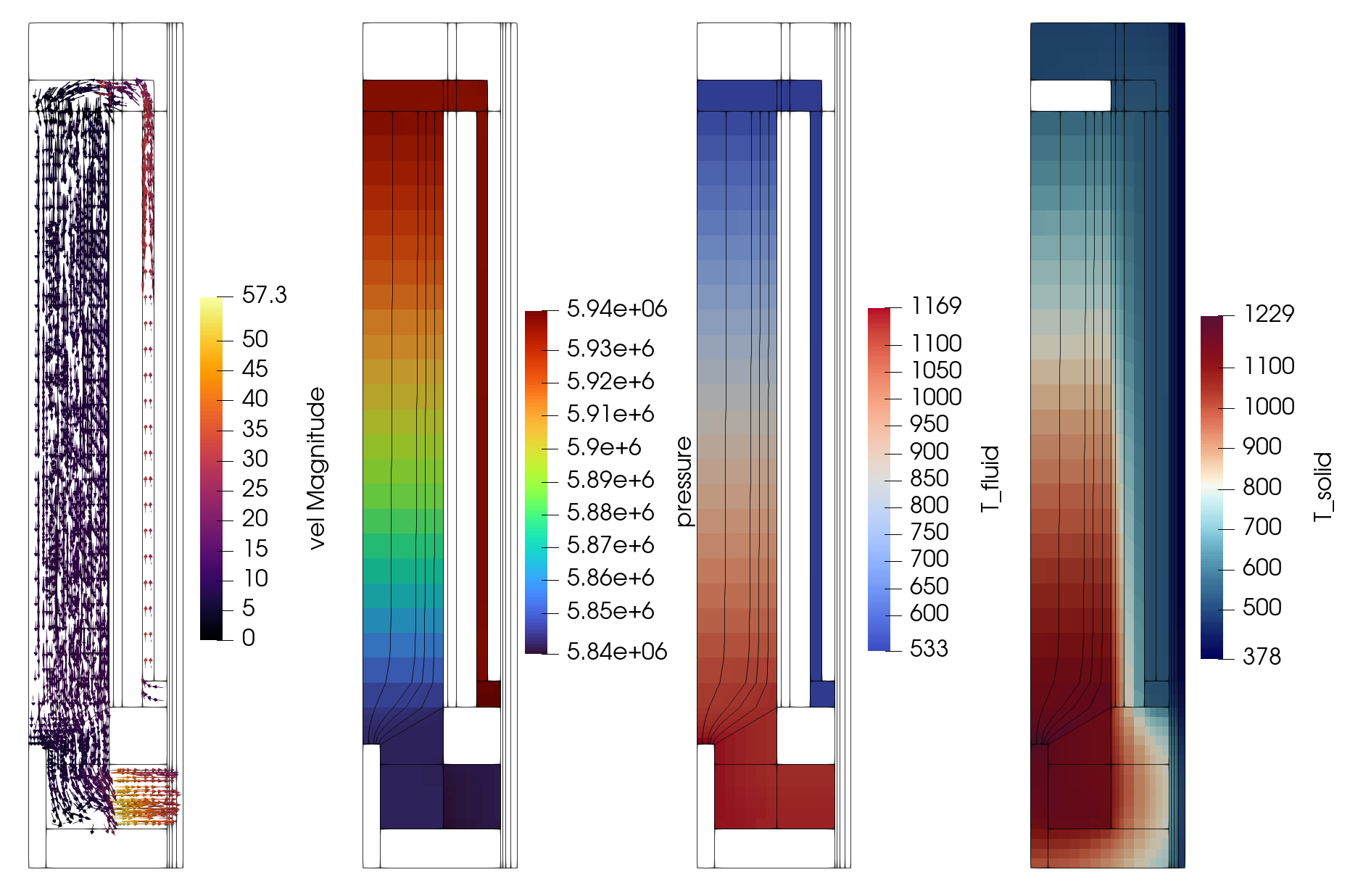

Figure 1 shows the resulting fluid velocity, pressure, temperature, and solid temperature.

Figure 1: GPBR200 fluid-only selected field variables

The use of 8 processors in the command listing is somewhat arbitrary, Table 1 shows the expected scaling performance.

References
