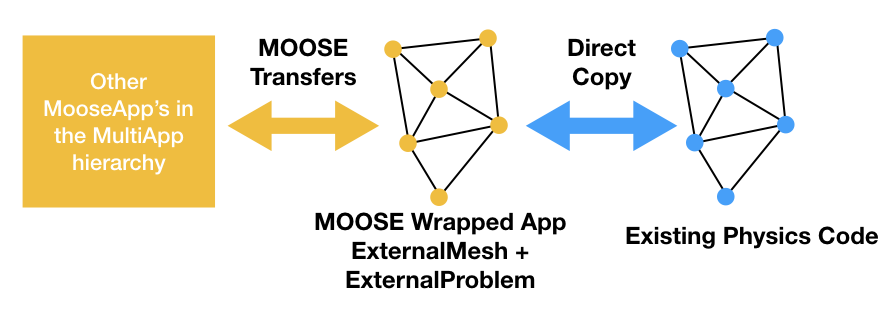

MOOSE-Wrapped Apps

External App

The External App is the normal MooseApp-derived object that gets created whenever a developer creates (or "storks") a new application. The App object is the container for every other object in your simulation and provides the necessary encapsulation, which makes the MultiApp system possible. For the most part the skeleton implementation generated by stork script is sufficient for many normal simulation runs. However, two important methods need to be implemented for complete "fully-coupled" Multiapp functionality. Namely the backup() and restore() methods.

The backup method should return a shared_ptr object containing a Backup object for the external application. This object is just a wrapper for one or more binary blobs containing the state data for the external application. Ideally, the application could restore it's complete internal state from the Backup blob if asked to do so.

  /**
   * Create a Backup from the current App. A Backup contains all the data necessary to be able to
   * restore the state of an App.
   *
   * This method should be overridden in external or MOOSE-wrapped applications.
   */
  virtual std::shared_ptr<Backup> backup();

// This file is part of the MOOSE framework
// https://www.mooseframework.org
//
// All rights reserved, see COPYRIGHT for full restrictions
// https://github.com/idaholab/moose/blob/master/COPYRIGHT
//
// Licensed under LGPL 2.1, please see LICENSE for details
// https://www.gnu.org/licenses/lgpl-2.1.html

#pragma once

// MOOSE includes
#include "Moose.h"
#include "Parser.h"
#include "ActionWarehouse.h"
#include "Factory.h"
#include "ActionFactory.h"
#include "OutputWarehouse.h"
#include "RestartableData.h"
#include "ConsoleStreamInterface.h"
#include "PerfGraph.h"
#include "TheWarehouse.h"
#include "RankMap.h"
#include "MemberTemplateMacros.h"

#include "libmesh/parallel_object.h"
#include "libmesh/mesh_base.h"
#include "libmesh/point.h"

// C++ includes
#include <list>
#include <map>
#include <set>
#include <unordered_set>

// Forward declarations
class Executioner;
class MooseApp;
class Backup;
class FEProblemBase;
class MeshModifier;
class MeshGenerator;
class InputParameterWarehouse;
class SystemInfo;
class CommandLine;
class RelationshipManager;

template <>
InputParameters validParams<MooseApp>();

/**
 * Base class for MOOSE-based applications
 *
 * This generic class for application provides:
 * - parsing command line arguments,
 * - parsing an input file,
 * - executing the simulation
 *
 * Each application should register its own objects and register its own special syntax
 */
class MooseApp : public ConsoleStreamInterface, public libMesh::ParallelObject
{
public:
  static InputParameters validParams();

  virtual ~MooseApp();

  TheWarehouse & theWarehouse() { return *_the_warehouse; }

  /**
   * Get the name of the object. In the case of MooseApp, the name of the object is *NOT* the name
   * of the application. It's the name of the created application which is usually "main". If you
   * have subapps, then each individual subapp will have a unique name which typically comes from
   * the input file (e.g. sub0, sub1, etc...).
   * @return The name of the object
   */
  const std::string & name() const { return _name; }

  virtual void checkRegistryLabels();

  /**
   * Get printable name of the application.
   */
  virtual std::string getPrintableName() const { return "Application"; }

  /**
   * Get the parameters of the object
   * @return The parameters of the object
   */
  InputParameters & parameters() { return _pars; }

  /**
   * Get the type of this object as a string. This is a string version of the class name (e.g.
   * MooseTestApp).
   * @return The the type of the object
   */
  const std::string & type() const { return _type; }

  /**
   * The RankMap is a useful object for determining how the processes
   * are laid out on the physical nodes of the cluster
   */
  const RankMap & rankMap() { return _rank_map; }

  /**
   * Get the PerfGraph for this app
   */
  PerfGraph & perfGraph() { return _perf_graph; }

  ///@{
  /**
   * Retrieve a parameter for the object
   * @param name The name of the parameter
   * @return The value of the parameter
   */
  template <typename T>
  const T & getParamTempl(const std::string & name);

  template <typename T>
  const T & getParamTempl(const std::string & name) const;
  ///@}

  inline bool isParamValid(const std::string & name) const { return _pars.isParamValid(name); }

  /**
   * Run the application
   */
  virtual void run();

  /**
   * Returns the framework version.
   */
  std::string getFrameworkVersion() const;

  /**
   * Returns the current version of the framework or application (default: framework version).
   */
  virtual std::string getVersion() const;

  /**
   * Non-virtual method for printing out the version string in a consistent format.
   */
  std::string getPrintableVersion() const;

  /**
   * Setup options based on InputParameters.
   */
  virtual void setupOptions();

  /**
   * Return a writable reference to the ActionWarehouse associated with this app
   */
  ActionWarehouse & actionWarehouse() { return _action_warehouse; }

  /**
   * Returns a writable reference to the parser
   */
  Parser & parser() { return _parser; }

  /**
   * Returns a writable reference to the syntax object.
   */
  Syntax & syntax() { return _syntax; }

  /**
   * Set the input file name.
   */
  void setInputFileName(const std::string & input_file_name);

  /**
   * Returns the input file name that was set with setInputFileName
   */
  std::string getInputFileName() const { return _input_filename; }

  /**
   * Override the selection of the output file base name.
   * Note: This method is supposed to be called by MultiApp only.
   */
  void setOutputFileBase(const std::string & output_file_base)
  {
    _output_file_base = output_file_base;
    _file_base_set_by_user = true;
  }

  /**
   * Get the output file base name.
   * @param for_non_moose_build_output True for getting the file base for outputs generated with
   *                                   Outputs/[outputname] input syntax.
   * @return The file base name used by output objects
   * Note: for_non_moose_build_output does not affect the returned value when this is a subapp.
   *       for_non_moose_build_output also does not affect the returned value when Outputs/file_base
   *       parameter is available. When for_non_moose_build_output does affect the returned value,
   *       i.e. master without Outputs/file_base, the suffix _out is removed.
   */
  std::string getOutputFileBase(bool for_non_moose_build_output = false) const;

  /**
   * Tell the app to output in a specific position.
   */
  void setOutputPosition(const Point & p);

  /**
   * Get all checkpoint directories
   * @return A Set of checkpoint directories
   */
  std::list<std::string> getCheckpointDirectories() const;

  /**
   * Extract all possible checkpoint file names
   * @return A Set of checkpoint filenames
   */
  std::list<std::string> getCheckpointFiles() const;

  /**
   * Whether or not an output position has been set.
   * @return True if it has
   */
  bool hasOutputPosition() const { return _output_position_set; }

  /**
   * Get the output position.
   * @return The position offset for the output.
   */
  Point getOutputPosition() const { return _output_position; }

  /**
   * Set the starting time for the simulation.  This will override any choice
   * made in the input file.
   *
   * @param time The start time for the simulation.
   */
  void setStartTime(Real time);

  /**
   * @return Whether or not a start time has been programmatically set using setStartTime()
   */
  bool hasStartTime() const { return _start_time_set; }

  /**
   * @return The start time
   */
  Real getStartTime() const { return _start_time; }

  /**
   * Each App has it's own local time.  The "global" time of the whole problem might be
   * different.  This offset is how far off the local App time is from the global time.
   */
  void setGlobalTimeOffset(Real offset) { _global_time_offset = offset; }

  /**
   * Each App has it's own local time.  The "global" time of the whole problem might be
   * different.  This offset is how far off the local App time is from the global time.
   */
  Real getGlobalTimeOffset() const { return _global_time_offset; }

  /**
   * Return the filename that was parsed
   * Note: When stripLeadingPath is false, this function returns the same name as
   *       getInputFileName() method when the input file is not a link.
   */
  std::string getFileName(bool stripLeadingPath = true) const;

  /**
   * Set a flag so that the parser will either warn or error when unused variables are seen after
   * parsing is complete.
   */
  void setCheckUnusedFlag(bool warn_is_error = false);

  /**
   * Set a flag so that the parser will throw an error if overridden parameters are detected
   */
  void setErrorOverridden();

  /**
   * Removes warnings and error checks for unrecognized variables in the input file
   */
  void disableCheckUnusedFlag();

  /**
   * Retrieve the Executioner for this App
   */
  Executioner * getExecutioner() const { return _executioner.get(); }

  /**
   * Set the Executioner for this App
   */
  void setExecutioner(std::shared_ptr<Executioner> && executioner) { _executioner = executioner; }

  /**
   * Returns a writable Boolean indicating whether this app will use a Nonlinear or Eigen System.
   */
  bool & useNonlinear() { return _use_nonlinear; }

  /**
   * Returns a writable Boolean indicating whether this app will use an eigenvalue executioner.
   */
  bool & useEigenvalue() { return _use_eigen_value; }

  /**
   * Retrieve a writable reference to the Factory associated with this App.
   */
  Factory & getFactory() { return _factory; }

  /**
   * Retrieve a writable reference to the ActionFactory associated with this App.
   */
  ActionFactory & getActionFactory() { return _action_factory; }

  /**
   * Returns the MPI processor ID of the current processor.
   */
  processor_id_type processor_id() const { return _comm->rank(); }

  /**
   * Get the command line
   * @return The reference to the command line object
   * Setup options based on InputParameters.
   */
  std::shared_ptr<CommandLine> commandLine() const { return _command_line; }

  /**
   * Returns a writable Boolean to determine whether or not we need to
   * use a separate reader to read the mesh BEFORE we create the mesh.
   */
  bool & setFileRestart() { return _initial_from_file; }

  /**
   * Actually build everything in the input file.
   */
  virtual void runInputFile();

  /**
   * Execute the Executioner that was built.
   */
  virtual void executeExecutioner();

  /**
   * Returns true if the user specified --distributed-mesh (or
   * --parallel-mesh, for backwards compatibility) on the command line
   * and false otherwise.
   */
  bool getDistributedMeshOnCommandLine() const { return _distributed_mesh_on_command_line; }

  /**
   * Whether or not this is a "recover" calculation.
   */
  bool isRecovering() const;

  /**
   * Whether or not this is a "restart" calculation.
   */
  bool isRestarting() const;

  /**
   * Whether or not this is a split mesh operation.
   */
  bool isSplitMesh() const;

  /**
   * Whether or not we are running with pre-split (distributed mesh)
   */
  bool isUseSplit() const;

  ///@{
  /**
   * Return true if the recovery file base is set
   */
  bool hasRestartRecoverFileBase() const;
  bool hasRecoverFileBase() const;
  ///@}

  ///@{
  /**
   * The file_base for the recovery file.
   */
  std::string getRestartRecoverFileBase() const { return _restart_recover_base; }
  std::string getRecoverFileBase() const
  {
    mooseDeprecated("MooseApp::getRecoverFileBase is deprecated, use "
                    "MooseApp::getRestartRecoverFileBase() instead.");
    return _restart_recover_base;
  }
  ///@}

  /**
   * mutator for recover_base (set by RecoverBaseAction)
   */
  void setRestartRecoverFileBase(const std::string & file_base)
  {
    if (file_base.empty())
      _restart_recover_base = MooseUtils::getLatestAppCheckpointFileBase(getCheckpointFiles());
    else
      _restart_recover_base = file_base;
  }

  /**
   * The suffix for the recovery file.
   */
  std::string getRestartRecoverFileSuffix() const { return _restart_recover_suffix; }

  /**
   * mutator for recover_suffix
   */
  void setRestartRecoverFileSuffix(const std::string & file_suffix)
  {
    _restart_recover_suffix = file_suffix;
  }

  /**
   *  Whether or not this simulation should only run half its transient (useful for testing
   * recovery)
   */
  bool halfTransient() const { return _half_transient; }

  /**
   * Store a map of outputter names and file numbers
   * The MultiApp system requires this to get the file numbering to propagate down through the
   * Multiapps.
   * @param numbers Map of outputter names and file numbers
   *
   * @see MultiApp TransientMultiApp OutputWarehouse
   */
  void setOutputFileNumbers(const std::map<std::string, unsigned int> & numbers)
  {
    _output_file_numbers = numbers;
  }

  /**
   * Store a map of outputter names and file numbers
   * The MultiApp system requires this to get the file numbering to propogate down through the
   * multiapps.
   *
   * @see MultiApp TransientMultiApp
   */
  const std::map<std::string, unsigned int> & getOutputFileNumbers() const
  {
    return _output_file_numbers;
  }

  /**
   * Get the OutputWarehouse objects
   */
  OutputWarehouse & getOutputWarehouse();

  /**
   * Get SystemInfo object
   * @return A pointer to the SystemInformation object
   */
  const SystemInfo * getSystemInfo() const { return _sys_info.get(); }

  ///@{
  /**
   * Thes methods are called to register applications or objects on demand. This method
   * attempts to load a dynamic library and register it when it is needed. Throws an error if
   * no suitable library is found that contains the app_name in question.
   */
  void dynamicAllRegistration(const std::string & app_name,
                              Factory * factory,
                              ActionFactory * action_factory,
                              Syntax * syntax,
                              std::string library_path,
                              const std::string & library_name);
  void dynamicAppRegistration(const std::string & app_name,
                              std::string library_path,
                              const std::string & library_name);
  ///@}

  /**
   * Converts an application name to a library name:
   * Examples:
   *   AnimalApp -> libanimal-oprof.la (assuming METHOD=oprof)
   *   ThreeWordAnimalApp -> libthree_word_animal-dbg.la (assuming METHOD=dbg)
   */
  std::string appNameToLibName(const std::string & app_name) const;

  /**
   * Converts a library name to an application name:
   */
  std::string libNameToAppName(const std::string & library_name) const;

  /**
   * Return the loaded library filenames in a std::set
   */
  std::set<std::string> getLoadedLibraryPaths() const;

  /**
   * Get the InputParameterWarehouse for MooseObjects
   */
  InputParameterWarehouse & getInputParameterWarehouse();

  /*
   * Register a piece of restartable data.  This is data that will get
   * written / read to / from a restart file.
   *
   * @param name The full (unique) name.
   * @param data The actual data object.
   * @param tid The thread id of the object.  Use 0 if the object is not threaded.
   */
  RestartableDataValue & registerRestartableData(const std::string & name,
                                                 std::unique_ptr<RestartableDataValue> data,
                                                 THREAD_ID tid,
                                                 bool mesh_meta_data,
                                                 bool read_only);

  /**
   * Return reference to the restartable data object
   * @return A const reference to the restartable data object
   */
  const RestartableDataMaps & getRestartableData() const { return _restartable_data; }

  /**
   * Return reference to the recoverable mesh meta data object.
   */
  const RestartableDataMap & getMeshMetaData() const { return _mesh_meta_data_map; }

  /**
   * Return a reference to the recoverable data object
   * @return A const reference to the recoverable data
   */
  const DataNames & getRecoverableData() const { return _recoverable_data_names; }

  /**
   * Create a Backup from the current App. A Backup contains all the data necessary to be able to
   * restore the state of an App.
   *
   * This method should be overridden in external or MOOSE-wrapped applications.
   */
  virtual std::shared_ptr<Backup> backup();

  /**
   * Restore a Backup. This sets the App's state.
   *
   * @param backup The Backup holding the data for the app
   * @param for_restart Whether this restoration is explicitly for the first restoration of restart
   * data.
   *
   * This method should be overridden in external or MOOSE-wrapped applications.
   */
  virtual void restore(std::shared_ptr<Backup> backup, bool for_restart = false);

  /**
   * Returns a string to be printed at the beginning of a simulation
   */
  virtual std::string header() const;

  /**
   * The MultiApp Level
   * @return The current number of levels from the master app
   */
  unsigned int multiAppLevel() const { return _multiapp_level; }

  /**
   * The MultiApp number
   * @return The numbering in all the sub-apps on the same level
   */
  unsigned int multiAppNumber() const { return _multiapp_number; }

  /**
   * Whether or not this app is the ultimate master app. (ie level == 0)
   */
  bool isUltimateMaster() { return !_multiapp_level; }

  /**
   * Returns a pointer to the master mesh
   */
  const MooseMesh * masterMesh() const { return _master_mesh; }

  /**
   * Returns a pointer to the master mesh
   */
  const MooseMesh * masterDisplacedMesh() const { return _master_displaced_mesh; }

  /**
   * Add a mesh modifier that will act on the meshes in the system
   */
  void addMeshModifier(const std::string & modifier_name,
                       const std::string & name,
                       InputParameters parameters);

  /**
   * Get a mesh modifier with its name
   */
  const MeshModifier & getMeshModifier(const std::string & name) const;

  /**
   * Get names of all mesh modifiers
   * Note: This function should be called after all mesh modifiers are added with the
   * 'add_mesh_modifier' task. The returned value will be undefined and depends on the ordering that
   * mesh modifiers are added by MOOSE if the function is called during the 'add_mesh_modifier'
   * task.
   */
  std::vector<std::string> getMeshModifierNames() const;

  /**
   * Clear all mesh modifers
   */
  void clearMeshModifiers();

  /**
   * Execute and clear the Mesh Modifiers data structure
   */
  void executeMeshModifiers();

  /**
   * Set final mesh generator name
   */
  void setFinalMeshGeneratorName(const std::string & generator_name);

  /**
   * Add a mesh generator that will act on the meshes in the system
   */
  void addMeshGenerator(const std::string & generator_name,
                        const std::string & name,
                        InputParameters parameters);

  /**
   * Get a mesh generator with its name
   */
  const MeshGenerator & getMeshGenerator(const std::string & name) const;

  /**
   * Get names of all mesh generators
   * Note: This function should be called after all mesh generators are added with the
   * 'add_mesh_generator' task. The returned value will be undefined and depends on the ordering
   * that mesh generators are added by MOOSE if the function is called during the
   * 'add_mesh_generator' task.
   */
  std::vector<std::string> getMeshGeneratorNames() const;

  /**
   * Get a refernce to a pointer that will be the output of the
   * MeshGenerator named name
   */
  std::unique_ptr<MeshBase> & getMeshGeneratorOutput(const std::string & name);

  /**
   * Clear all mesh modifers
   */
  void clearMeshGenerators();

  /**
   * Execute and clear the Mesh Generators data structure
   */
  void executeMeshGenerators();

  /**
   * Get the generated mesh generated by executeMeshGenerators();
   */
  std::unique_ptr<MeshBase> getMeshGeneratorMesh(bool check_unique = true);

  ///@{
  /**
   * Sets the restart/recover flags
   * @param state The state to set the flag to
   */
  void setRestart(bool value);
  void setRecover(bool value);
  ///@}

  /// Returns whether the Application is running in check input mode
  bool checkInput() const { return _check_input; }

  /// Returns whether FPE trapping is turned on (either because of debug or user requested)
  bool getFPTrapFlag() const { return _trap_fpe; }

  /**
   * WARNING: This is an internal method for MOOSE, if you need the add new ExecFlagTypes then
   * use the registerExecFlag macro as done in Moose.C/h.
   *
   * @param flag The flag to add as available to the app level ExecFlagEnum.
   */
  void addExecFlag(const ExecFlagType & flag);

  /**
   * Returns a Boolean indicating whether a RelationshipManater exists with the same name.
   */
  bool hasRelationshipManager(const std::string & name) const;

  /**
   * Transfers ownership of a RelationshipManager to the application for lifetime management.
   * The RelationshipManager will NOT be duplicately added if an equivalent RelationshipManager
   * is already active. In that case, it's possible that the object will be destroyed if the
   * reference count drops to zero.
   */
  bool addRelationshipManager(std::shared_ptr<RelationshipManager> relationship_manager);

  /**
   * Attach the relationship managers of the given type
   * Note: Geometric relationship managers that are supposed to be attached late
   * will be attached when Algebraic are attached.
   */
  void attachRelationshipManagers(Moose::RelationshipManagerType rm_type);

  /**
   * Retrieve the relationship managers
   */
  const std::vector<std::shared_ptr<RelationshipManager>> & getReleationshipManagers();

  /**
   * Returns the Relationship managers info suitable for printing.
   */
  std::vector<std::pair<std::string, std::string>> getRelationshipManagerInfo() const;

  /**
   * Return the app level ExecFlagEnum, this contains all the available flags for the app.
   */
  const ExecFlagEnum & getExecuteOnEnum() const { return _execute_flags; }

  /**
   * Method for setting the backup object to be restored at a later time. This method is called
   * during simulation restart or recover before the application is completely setup. The backup
   * object set here, will be restored when needed by a call to restoreCachedBackup().
   *
   * @param backup The Backup holding the data for the app.
   */
  void setBackupObject(std::shared_ptr<Backup> backup);

  /**
   * Whether to enable automatic scaling by default
   */
  bool defaultAutomaticScaling() const { return _automatic_automatic_scaling; }

  // Return the communicator for this application
  const std::shared_ptr<Parallel::Communicator> getCommunicator() const { return _comm; }

  /**
   * Return the container of relationship managers
   */
  const std::vector<std::shared_ptr<RelationshipManager>> & relationshipManagers() const
  {
    return _relationship_managers;
  }

  /**
   * Loop through RMs and call dofmap_reinit
   */
  void dofMapReinitForRMs();

  /**
   * Loop through RMs and call mesh_reinit
   */
  void meshReinitForRMs();

  /**
   * Function to check the integrity of the MeshMetaData data structure
   */
  void checkMeshMetaDataIntegrity() const;

protected:
  /**
   * Whether or not this MooseApp has cached a Backup to use for restart / recovery
   */
  bool hasCachedBackup() const { return _cached_backup.get(); }

  /**
   * Restore from a cached backup
   */
  void restoreCachedBackup();

  /**
   * Helper method for dynamic loading of objects
   */
  void dynamicRegistration(const Parameters & params);

  /**
   * Recursively loads libraries and dependencies in the proper order to fully register a
   * MOOSE application that may have several dependencies. REQUIRES: dynamic linking loader support.
   */
  void loadLibraryAndDependencies(const std::string & library_filename, const Parameters & params);

  /// Constructor is protected so that this object is constructed through the AppFactory object
  MooseApp(InputParameters parameters);

  /**
   * NOTE: This is an internal function meant for MOOSE use only!
   *
   * Register a piece of restartable data that will be used in a filter in/out during
   * deserialization. Note however that this data will always be written to the restart file.
   *
   * @param name The full (unique) name.
   * @param filter The filter name where to direct the name
   */
  void registerRestartableNameWithFilter(const std::string & name,
                                         Moose::RESTARTABLE_FILTER filter);

  /**
   * Runs post-initialization error checking that cannot be run correctly unless the simulation
   * has been fully set up and initialized.
   */
  void errorCheck();

  /// The name of this object
  const std::string _name;

  /// Parameters of this object
  InputParameters _pars;

  /// The string representation of the type of this object as registered (see registerApp(AppName))
  const std::string _type;

  /// The MPI communicator this App is going to use
  const std::shared_ptr<Parallel::Communicator> _comm;

  /// The PerfGraph object for this applciation
  PerfGraph _perf_graph;

  /// The RankMap is a useful object for determining how
  const RankMap _rank_map;

  /// Input file name used
  std::string _input_filename;

  /// The output file basename
  std::string _output_file_base;

  /// Whether or not file base is set through input or setOutputFileBase by MultiApp
  bool _file_base_set_by_user;

  /// Whether or not an output position has been set for this app
  bool _output_position_set;

  /// The output position
  Point _output_position;

  /// Whether or not an start time has been set
  bool _start_time_set;

  /// The time at which to start the simulation
  Real _start_time;

  /// Offset of the local App time to the "global" problem time
  Real _global_time_offset;

  /// Command line object
  std::shared_ptr<CommandLine> _command_line;

  /// Syntax of the input file
  Syntax _syntax;

  /// OutputWarehouse object for this App
  OutputWarehouse _output_warehouse;

  /// Input parameter storage structure (this is a raw pointer so the destruction time can be explicitly controlled)
  InputParameterWarehouse * _input_parameter_warehouse;

  /// The Factory responsible for building Actions
  ActionFactory _action_factory;

  /// Where built actions are stored
  ActionWarehouse _action_warehouse;

  /// Parser for parsing the input file
  Parser _parser;

  /// Pointer to the executioner of this run (typically build by actions)
  std::shared_ptr<Executioner> _executioner;

  /// Boolean to indicate whether to use a Nonlinear or EigenSystem (inspected by actions)
  bool _use_nonlinear;

  /// Boolean to indicate whether to use an eigenvalue executioner
  bool _use_eigen_value;

  /// System Information
  std::unique_ptr<SystemInfo> _sys_info;

  /// Indicates whether warnings, errors, or no output is displayed when unused parameters are detected
  enum UNUSED_CHECK
  {
    OFF,
    WARN_UNUSED,
    ERROR_UNUSED
  } _enable_unused_check;

  Factory _factory;

  /// Indicates whether warnings or errors are displayed when overridden parameters are detected
  bool _error_overridden;
  bool _ready_to_exit;

  /// This variable indicates when a request has been made to restart from an Exodus file
  bool _initial_from_file;

  /// This variable indicates that DistributedMesh should be used for the libMesh mesh underlying MooseMesh.
  bool _distributed_mesh_on_command_line;

  /// Whether or not this is a recovery run
  bool _recover;

  /// Whether or not this is a restart run
  bool _restart;

  /// Whether or not we are performing a split mesh operation (--split-mesh)
  bool _split_mesh;

  /// Whether or not we are using a (pre-)split mesh (automatically DistributedMesh)
  const bool _use_split;

  /// Whether or not FPE trapping should be turned on.
  bool _trap_fpe;

  /// The base name to restart/recover from.  If blank then we will find the newest checkpoint file.
  std::string _restart_recover_base;

  /// The file suffix to restart/recover from.  If blank then we will use the binary restart suffix.
  std::string _restart_recover_suffix;

  /// Whether or not this simulation should only run half its transient (useful for testing recovery)
  bool _half_transient;

  /// Map of outputer name and file number (used by MultiApps to propagate file numbers down through the multiapps)
  std::map<std::string, unsigned int> _output_file_numbers;

  /// true if we want to just check the input file
  bool _check_input;

  std::vector<std::shared_ptr<RelationshipManager>> _relationship_managers;

  /// The library, registration method and the handle to the method
  std::map<std::pair<std::string, std::string>, void *> _lib_handles;

private:
  /** Method for creating the minimum required actions for an application (no input file)
   *
   * Mimics the following input file:
   *
   * [Mesh]
   *   type = GeneratedMesh
   *   dim = 1
   *   nx = 1
   * []
   *
   * [Executioner]
   *   type = Transient
   *   num_steps = 1
   *   dt = 1
   * []
   *
   * [Problem]
   *   solve = false
   * []
   *
   * [Outputs]
   *   console = false
   * []
   */
  void createMinimalApp();

  /// Where the restartable data is held (indexed on tid)
  RestartableDataMaps _restartable_data;

  /**
   * Data specifically associated with the mesh (meta-data) that will read from the restart
   * file early during the simulation setup so that they are available to Actions and other objects
   * that need them during the setup process. Most of the restartable data isn't made available
   * until all objects have been created and all Actions have been executed (i.e. initialSetup).
   */
  RestartableDataMap _mesh_meta_data_map;

  /**
   * Data names that will only be read from the restart file during RECOVERY.
   * e.g. these names are _excluded_ during restart.
   */
  DataNames _recoverable_data_names;

  /// Enumeration for holding the valid types of dynamic registrations allowed
  enum RegistrationType
  {
    APPLICATION,
    REGALL
  };

  /// The combined warehouse for storing any MooseObject based object
  std::unique_ptr<TheWarehouse> _the_warehouse;

  /// Level of multiapp, the master is level 0. This used by the Console to indent output
  unsigned int _multiapp_level;

  /// Numbering in all the sub-apps on the same level
  unsigned int _multiapp_number;

  /// The mesh from master app
  const MooseMesh * _master_mesh;

  /// The displaced mesh from master app
  const MooseMesh * _master_displaced_mesh;

  /// Holds the mesh modifiers until they have completed, then this structure is cleared
  std::map<std::string, std::shared_ptr<MeshModifier>> _mesh_modifiers;

  /// Holds the mesh generators until they have completed, then this structure is cleared
  std::map<std::string, std::shared_ptr<MeshGenerator>> _mesh_generators;

  /// Holds the output for each mesh generator - including duplicates needed downstream
  std::map<std::string, std::list<std::unique_ptr<MeshBase>>> _mesh_generator_outputs;

  /// The final mesh generator name to use
  std::string _final_generator_name;

  /// The final Mesh that is generated by the generators
  std::list<std::unique_ptr<MeshBase> *> _final_generated_meshes;

  /// Cache for a Backup to use for restart / recovery
  std::shared_ptr<Backup> _cached_backup;

  /// Execution flags for this App
  ExecFlagEnum _execute_flags;

  /// Timers
  const PerfID _setup_timer;
  const PerfID _setup_options_timer;
  const PerfID _run_input_file_timer;
  const PerfID _execute_timer;
  const PerfID _execute_executioner_timer;
  const PerfID _restore_timer;
  const PerfID _run_timer;
  const PerfID _execute_mesh_modifiers_timer;
  const PerfID _execute_mesh_generators_timer;
  const PerfID _restore_cached_backup_timer;
  const PerfID _create_minimal_app_timer;

  /// Whether to turn on automatic scaling by default
  const bool _automatic_automatic_scaling;

  /// Whether the mesh generator MeshBase has been popped off its storage container and is no
  /// longer accessible
  bool _popped_final_mesh_generator;

  bool _profiling = false;

  // Allow FEProblemBase to set the recover/restart state, so make it a friend
  friend class FEProblemBase;
  friend class Restartable;
  friend class SubProblem;
};

template <typename T>
const T &
MooseApp::getParamTempl(const std::string & name)
{
  return InputParameters::getParamHelper(name, _pars, static_cast<T *>(0));
}

template <typename T>
const T &
MooseApp::getParamTempl(const std::string & name) const
{
  return InputParameters::getParamHelper(name, _pars, static_cast<T *>(0));
}

The restore method should is the complementary method to the backup method. The Application is called with a Backup object, which is then read and used to reconstruct the state of External Application. These two methods can be used by the MOOSE framework to resolve one or more steps so that Picard or fixed-point iterations may be taken to tightly converge a simulation step.

  /**
   * Restore a Backup. This sets the App's state.
   *
   * @param backup The Backup holding the data for the app
   * @param for_restart Whether this restoration is explicitly for the first restoration of restart
   * data.
   *
   * This method should be overridden in external or MOOSE-wrapped applications.
   */
  virtual void restore(std::shared_ptr<Backup> backup, bool for_restart = false);

// This file is part of the MOOSE framework
// https://www.mooseframework.org
//
// All rights reserved, see COPYRIGHT for full restrictions
// https://github.com/idaholab/moose/blob/master/COPYRIGHT
//
// Licensed under LGPL 2.1, please see LICENSE for details
// https://www.gnu.org/licenses/lgpl-2.1.html

#pragma once

// MOOSE includes
#include "Moose.h"
#include "Parser.h"
#include "ActionWarehouse.h"
#include "Factory.h"
#include "ActionFactory.h"
#include "OutputWarehouse.h"
#include "RestartableData.h"
#include "ConsoleStreamInterface.h"
#include "PerfGraph.h"
#include "TheWarehouse.h"
#include "RankMap.h"
#include "MemberTemplateMacros.h"

#include "libmesh/parallel_object.h"
#include "libmesh/mesh_base.h"
#include "libmesh/point.h"

// C++ includes
#include <list>
#include <map>
#include <set>
#include <unordered_set>

// Forward declarations
class Executioner;
class MooseApp;
class Backup;
class FEProblemBase;
class MeshModifier;
class MeshGenerator;
class InputParameterWarehouse;
class SystemInfo;
class CommandLine;
class RelationshipManager;

template <>
InputParameters validParams<MooseApp>();

/**
 * Base class for MOOSE-based applications
 *
 * This generic class for application provides:
 * - parsing command line arguments,
 * - parsing an input file,
 * - executing the simulation
 *
 * Each application should register its own objects and register its own special syntax
 */
class MooseApp : public ConsoleStreamInterface, public libMesh::ParallelObject
{
public:
  static InputParameters validParams();

  virtual ~MooseApp();

  TheWarehouse & theWarehouse() { return *_the_warehouse; }

  /**
   * Get the name of the object. In the case of MooseApp, the name of the object is *NOT* the name
   * of the application. It's the name of the created application which is usually "main". If you
   * have subapps, then each individual subapp will have a unique name which typically comes from
   * the input file (e.g. sub0, sub1, etc...).
   * @return The name of the object
   */
  const std::string & name() const { return _name; }

  virtual void checkRegistryLabels();

  /**
   * Get printable name of the application.
   */
  virtual std::string getPrintableName() const { return "Application"; }

  /**
   * Get the parameters of the object
   * @return The parameters of the object
   */
  InputParameters & parameters() { return _pars; }

  /**
   * Get the type of this object as a string. This is a string version of the class name (e.g.
   * MooseTestApp).
   * @return The the type of the object
   */
  const std::string & type() const { return _type; }

  /**
   * The RankMap is a useful object for determining how the processes
   * are laid out on the physical nodes of the cluster
   */
  const RankMap & rankMap() { return _rank_map; }

  /**
   * Get the PerfGraph for this app
   */
  PerfGraph & perfGraph() { return _perf_graph; }

  ///@{
  /**
   * Retrieve a parameter for the object
   * @param name The name of the parameter
   * @return The value of the parameter
   */
  template <typename T>
  const T & getParamTempl(const std::string & name);

  template <typename T>
  const T & getParamTempl(const std::string & name) const;
  ///@}

  inline bool isParamValid(const std::string & name) const { return _pars.isParamValid(name); }

  /**
   * Run the application
   */
  virtual void run();

  /**
   * Returns the framework version.
   */
  std::string getFrameworkVersion() const;

  /**
   * Returns the current version of the framework or application (default: framework version).
   */
  virtual std::string getVersion() const;

  /**
   * Non-virtual method for printing out the version string in a consistent format.
   */
  std::string getPrintableVersion() const;

  /**
   * Setup options based on InputParameters.
   */
  virtual void setupOptions();

  /**
   * Return a writable reference to the ActionWarehouse associated with this app
   */
  ActionWarehouse & actionWarehouse() { return _action_warehouse; }

  /**
   * Returns a writable reference to the parser
   */
  Parser & parser() { return _parser; }

  /**
   * Returns a writable reference to the syntax object.
   */
  Syntax & syntax() { return _syntax; }

  /**
   * Set the input file name.
   */
  void setInputFileName(const std::string & input_file_name);

  /**
   * Returns the input file name that was set with setInputFileName
   */
  std::string getInputFileName() const { return _input_filename; }

  /**
   * Override the selection of the output file base name.
   * Note: This method is supposed to be called by MultiApp only.
   */
  void setOutputFileBase(const std::string & output_file_base)
  {
    _output_file_base = output_file_base;
    _file_base_set_by_user = true;
  }

  /**
   * Get the output file base name.
   * @param for_non_moose_build_output True for getting the file base for outputs generated with
   *                                   Outputs/[outputname] input syntax.
   * @return The file base name used by output objects
   * Note: for_non_moose_build_output does not affect the returned value when this is a subapp.
   *       for_non_moose_build_output also does not affect the returned value when Outputs/file_base
   *       parameter is available. When for_non_moose_build_output does affect the returned value,
   *       i.e. master without Outputs/file_base, the suffix _out is removed.
   */
  std::string getOutputFileBase(bool for_non_moose_build_output = false) const;

  /**
   * Tell the app to output in a specific position.
   */
  void setOutputPosition(const Point & p);

  /**
   * Get all checkpoint directories
   * @return A Set of checkpoint directories
   */
  std::list<std::string> getCheckpointDirectories() const;

  /**
   * Extract all possible checkpoint file names
   * @return A Set of checkpoint filenames
   */
  std::list<std::string> getCheckpointFiles() const;

  /**
   * Whether or not an output position has been set.
   * @return True if it has
   */
  bool hasOutputPosition() const { return _output_position_set; }

  /**
   * Get the output position.
   * @return The position offset for the output.
   */
  Point getOutputPosition() const { return _output_position; }

  /**
   * Set the starting time for the simulation.  This will override any choice
   * made in the input file.
   *
   * @param time The start time for the simulation.
   */
  void setStartTime(Real time);

  /**
   * @return Whether or not a start time has been programmatically set using setStartTime()
   */
  bool hasStartTime() const { return _start_time_set; }

  /**
   * @return The start time
   */
  Real getStartTime() const { return _start_time; }

  /**
   * Each App has it's own local time.  The "global" time of the whole problem might be
   * different.  This offset is how far off the local App time is from the global time.
   */
  void setGlobalTimeOffset(Real offset) { _global_time_offset = offset; }

  /**
   * Each App has it's own local time.  The "global" time of the whole problem might be
   * different.  This offset is how far off the local App time is from the global time.
   */
  Real getGlobalTimeOffset() const { return _global_time_offset; }

  /**
   * Return the filename that was parsed
   * Note: When stripLeadingPath is false, this function returns the same name as
   *       getInputFileName() method when the input file is not a link.
   */
  std::string getFileName(bool stripLeadingPath = true) const;

  /**
   * Set a flag so that the parser will either warn or error when unused variables are seen after
   * parsing is complete.
   */
  void setCheckUnusedFlag(bool warn_is_error = false);

  /**
   * Set a flag so that the parser will throw an error if overridden parameters are detected
   */
  void setErrorOverridden();

  /**
   * Removes warnings and error checks for unrecognized variables in the input file
   */
  void disableCheckUnusedFlag();

  /**
   * Retrieve the Executioner for this App
   */
  Executioner * getExecutioner() const { return _executioner.get(); }

  /**
   * Set the Executioner for this App
   */
  void setExecutioner(std::shared_ptr<Executioner> && executioner) { _executioner = executioner; }

  /**
   * Returns a writable Boolean indicating whether this app will use a Nonlinear or Eigen System.
   */
  bool & useNonlinear() { return _use_nonlinear; }

  /**
   * Returns a writable Boolean indicating whether this app will use an eigenvalue executioner.
   */
  bool & useEigenvalue() { return _use_eigen_value; }

  /**
   * Retrieve a writable reference to the Factory associated with this App.
   */
  Factory & getFactory() { return _factory; }

  /**
   * Retrieve a writable reference to the ActionFactory associated with this App.
   */
  ActionFactory & getActionFactory() { return _action_factory; }

  /**
   * Returns the MPI processor ID of the current processor.
   */
  processor_id_type processor_id() const { return _comm->rank(); }

  /**
   * Get the command line
   * @return The reference to the command line object
   * Setup options based on InputParameters.
   */
  std::shared_ptr<CommandLine> commandLine() const { return _command_line; }

  /**
   * Returns a writable Boolean to determine whether or not we need to
   * use a separate reader to read the mesh BEFORE we create the mesh.
   */
  bool & setFileRestart() { return _initial_from_file; }

  /**
   * Actually build everything in the input file.
   */
  virtual void runInputFile();

  /**
   * Execute the Executioner that was built.
   */
  virtual void executeExecutioner();

  /**
   * Returns true if the user specified --distributed-mesh (or
   * --parallel-mesh, for backwards compatibility) on the command line
   * and false otherwise.
   */
  bool getDistributedMeshOnCommandLine() const { return _distributed_mesh_on_command_line; }

  /**
   * Whether or not this is a "recover" calculation.
   */
  bool isRecovering() const;

  /**
   * Whether or not this is a "restart" calculation.
   */
  bool isRestarting() const;

  /**
   * Whether or not this is a split mesh operation.
   */
  bool isSplitMesh() const;

  /**
   * Whether or not we are running with pre-split (distributed mesh)
   */
  bool isUseSplit() const;

  ///@{
  /**
   * Return true if the recovery file base is set
   */
  bool hasRestartRecoverFileBase() const;
  bool hasRecoverFileBase() const;
  ///@}

  ///@{
  /**
   * The file_base for the recovery file.
   */
  std::string getRestartRecoverFileBase() const { return _restart_recover_base; }
  std::string getRecoverFileBase() const
  {
    mooseDeprecated("MooseApp::getRecoverFileBase is deprecated, use "
                    "MooseApp::getRestartRecoverFileBase() instead.");
    return _restart_recover_base;
  }
  ///@}

  /**
   * mutator for recover_base (set by RecoverBaseAction)
   */
  void setRestartRecoverFileBase(const std::string & file_base)
  {
    if (file_base.empty())
      _restart_recover_base = MooseUtils::getLatestAppCheckpointFileBase(getCheckpointFiles());
    else
      _restart_recover_base = file_base;
  }

  /**
   * The suffix for the recovery file.
   */
  std::string getRestartRecoverFileSuffix() const { return _restart_recover_suffix; }

  /**
   * mutator for recover_suffix
   */
  void setRestartRecoverFileSuffix(const std::string & file_suffix)
  {
    _restart_recover_suffix = file_suffix;
  }

  /**
   *  Whether or not this simulation should only run half its transient (useful for testing
   * recovery)
   */
  bool halfTransient() const { return _half_transient; }

  /**
   * Store a map of outputter names and file numbers
   * The MultiApp system requires this to get the file numbering to propagate down through the
   * Multiapps.
   * @param numbers Map of outputter names and file numbers
   *
   * @see MultiApp TransientMultiApp OutputWarehouse
   */
  void setOutputFileNumbers(const std::map<std::string, unsigned int> & numbers)
  {
    _output_file_numbers = numbers;
  }

  /**
   * Store a map of outputter names and file numbers
   * The MultiApp system requires this to get the file numbering to propogate down through the
   * multiapps.
   *
   * @see MultiApp TransientMultiApp
   */
  const std::map<std::string, unsigned int> & getOutputFileNumbers() const
  {
    return _output_file_numbers;
  }

  /**
   * Get the OutputWarehouse objects
   */
  OutputWarehouse & getOutputWarehouse();

  /**
   * Get SystemInfo object
   * @return A pointer to the SystemInformation object
   */
  const SystemInfo * getSystemInfo() const { return _sys_info.get(); }

  ///@{
  /**
   * Thes methods are called to register applications or objects on demand. This method
   * attempts to load a dynamic library and register it when it is needed. Throws an error if
   * no suitable library is found that contains the app_name in question.
   */
  void dynamicAllRegistration(const std::string & app_name,
                              Factory * factory,
                              ActionFactory * action_factory,
                              Syntax * syntax,
                              std::string library_path,
                              const std::string & library_name);
  void dynamicAppRegistration(const std::string & app_name,
                              std::string library_path,
                              const std::string & library_name);
  ///@}

  /**
   * Converts an application name to a library name:
   * Examples:
   *   AnimalApp -> libanimal-oprof.la (assuming METHOD=oprof)
   *   ThreeWordAnimalApp -> libthree_word_animal-dbg.la (assuming METHOD=dbg)
   */
  std::string appNameToLibName(const std::string & app_name) const;

  /**
   * Converts a library name to an application name:
   */
  std::string libNameToAppName(const std::string & library_name) const;

  /**
   * Return the loaded library filenames in a std::set
   */
  std::set<std::string> getLoadedLibraryPaths() const;

  /**
   * Get the InputParameterWarehouse for MooseObjects
   */
  InputParameterWarehouse & getInputParameterWarehouse();

  /*
   * Register a piece of restartable data.  This is data that will get
   * written / read to / from a restart file.
   *
   * @param name The full (unique) name.
   * @param data The actual data object.
   * @param tid The thread id of the object.  Use 0 if the object is not threaded.
   */
  RestartableDataValue & registerRestartableData(const std::string & name,
                                                 std::unique_ptr<RestartableDataValue> data,
                                                 THREAD_ID tid,
                                                 bool mesh_meta_data,
                                                 bool read_only);

  /**
   * Return reference to the restartable data object
   * @return A const reference to the restartable data object
   */
  const RestartableDataMaps & getRestartableData() const { return _restartable_data; }

  /**
   * Return reference to the recoverable mesh meta data object.
   */
  const RestartableDataMap & getMeshMetaData() const { return _mesh_meta_data_map; }

  /**
   * Return a reference to the recoverable data object
   * @return A const reference to the recoverable data
   */
  const DataNames & getRecoverableData() const { return _recoverable_data_names; }

  /**
   * Create a Backup from the current App. A Backup contains all the data necessary to be able to
   * restore the state of an App.
   *
   * This method should be overridden in external or MOOSE-wrapped applications.
   */
  virtual std::shared_ptr<Backup> backup();

  /**
   * Restore a Backup. This sets the App's state.
   *
   * @param backup The Backup holding the data for the app
   * @param for_restart Whether this restoration is explicitly for the first restoration of restart
   * data.
   *
   * This method should be overridden in external or MOOSE-wrapped applications.
   */
  virtual void restore(std::shared_ptr<Backup> backup, bool for_restart = false);

  /**
   * Returns a string to be printed at the beginning of a simulation
   */
  virtual std::string header() const;

  /**
   * The MultiApp Level
   * @return The current number of levels from the master app
   */
  unsigned int multiAppLevel() const { return _multiapp_level; }

  /**
   * The MultiApp number
   * @return The numbering in all the sub-apps on the same level
   */
  unsigned int multiAppNumber() const { return _multiapp_number; }

  /**
   * Whether or not this app is the ultimate master app. (ie level == 0)
   */
  bool isUltimateMaster() { return !_multiapp_level; }

  /**
   * Returns a pointer to the master mesh
   */
  const MooseMesh * masterMesh() const { return _master_mesh; }

  /**
   * Returns a pointer to the master mesh
   */
  const MooseMesh * masterDisplacedMesh() const { return _master_displaced_mesh; }

  /**
   * Add a mesh modifier that will act on the meshes in the system
   */
  void addMeshModifier(const std::string & modifier_name,
                       const std::string & name,
                       InputParameters parameters);

  /**
   * Get a mesh modifier with its name
   */
  const MeshModifier & getMeshModifier(const std::string & name) const;

  /**
   * Get names of all mesh modifiers
   * Note: This function should be called after all mesh modifiers are added with the
   * 'add_mesh_modifier' task. The returned value will be undefined and depends on the ordering that
   * mesh modifiers are added by MOOSE if the function is called during the 'add_mesh_modifier'
   * task.
   */
  std::vector<std::string> getMeshModifierNames() const;

  /**
   * Clear all mesh modifers
   */
  void clearMeshModifiers();

  /**
   * Execute and clear the Mesh Modifiers data structure
   */
  void executeMeshModifiers();

  /**
   * Set final mesh generator name
   */
  void setFinalMeshGeneratorName(const std::string & generator_name);

  /**
   * Add a mesh generator that will act on the meshes in the system
   */
  void addMeshGenerator(const std::string & generator_name,
                        const std::string & name,
                        InputParameters parameters);

  /**
   * Get a mesh generator with its name
   */
  const MeshGenerator & getMeshGenerator(const std::string & name) const;

  /**
   * Get names of all mesh generators
   * Note: This function should be called after all mesh generators are added with the
   * 'add_mesh_generator' task. The returned value will be undefined and depends on the ordering
   * that mesh generators are added by MOOSE if the function is called during the
   * 'add_mesh_generator' task.
   */
  std::vector<std::string> getMeshGeneratorNames() const;

  /**
   * Get a refernce to a pointer that will be the output of the
   * MeshGenerator named name
   */
  std::unique_ptr<MeshBase> & getMeshGeneratorOutput(const std::string & name);

  /**
   * Clear all mesh modifers
   */
  void clearMeshGenerators();

  /**
   * Execute and clear the Mesh Generators data structure
   */
  void executeMeshGenerators();

  /**
   * Get the generated mesh generated by executeMeshGenerators();
   */
  std::unique_ptr<MeshBase> getMeshGeneratorMesh(bool check_unique = true);

  ///@{
  /**
   * Sets the restart/recover flags
   * @param state The state to set the flag to
   */
  void setRestart(bool value);
  void setRecover(bool value);
  ///@}

  /// Returns whether the Application is running in check input mode
  bool checkInput() const { return _check_input; }

  /// Returns whether FPE trapping is turned on (either because of debug or user requested)
  bool getFPTrapFlag() const { return _trap_fpe; }

  /**
   * WARNING: This is an internal method for MOOSE, if you need the add new ExecFlagTypes then
   * use the registerExecFlag macro as done in Moose.C/h.
   *
   * @param flag The flag to add as available to the app level ExecFlagEnum.
   */
  void addExecFlag(const ExecFlagType & flag);

  /**
   * Returns a Boolean indicating whether a RelationshipManater exists with the same name.
   */
  bool hasRelationshipManager(const std::string & name) const;

  /**
   * Transfers ownership of a RelationshipManager to the application for lifetime management.
   * The RelationshipManager will NOT be duplicately added if an equivalent RelationshipManager
   * is already active. In that case, it's possible that the object will be destroyed if the
   * reference count drops to zero.
   */
  bool addRelationshipManager(std::shared_ptr<RelationshipManager> relationship_manager);

  /**
   * Attach the relationship managers of the given type
   * Note: Geometric relationship managers that are supposed to be attached late
   * will be attached when Algebraic are attached.
   */
  void attachRelationshipManagers(Moose::RelationshipManagerType rm_type);

  /**
   * Retrieve the relationship managers
   */
  const std::vector<std::shared_ptr<RelationshipManager>> & getReleationshipManagers();

  /**
   * Returns the Relationship managers info suitable for printing.
   */
  std::vector<std::pair<std::string, std::string>> getRelationshipManagerInfo() const;

  /**
   * Return the app level ExecFlagEnum, this contains all the available flags for the app.
   */
  const ExecFlagEnum & getExecuteOnEnum() const { return _execute_flags; }

  /**
   * Method for setting the backup object to be restored at a later time. This method is called
   * during simulation restart or recover before the application is completely setup. The backup
   * object set here, will be restored when needed by a call to restoreCachedBackup().
   *
   * @param backup The Backup holding the data for the app.
   */
  void setBackupObject(std::shared_ptr<Backup> backup);

  /**
   * Whether to enable automatic scaling by default
   */
  bool defaultAutomaticScaling() const { return _automatic_automatic_scaling; }

  // Return the communicator for this application
  const std::shared_ptr<Parallel::Communicator> getCommunicator() const { return _comm; }

  /**
   * Return the container of relationship managers
   */
  const std::vector<std::shared_ptr<RelationshipManager>> & relationshipManagers() const
  {
    return _relationship_managers;
  }

  /**
   * Loop through RMs and call dofmap_reinit
   */
  void dofMapReinitForRMs();

  /**
   * Loop through RMs and call mesh_reinit
   */
  void meshReinitForRMs();

  /**
   * Function to check the integrity of the MeshMetaData data structure
   */
  void checkMeshMetaDataIntegrity() const;

protected:
  /**
   * Whether or not this MooseApp has cached a Backup to use for restart / recovery
   */
  bool hasCachedBackup() const { return _cached_backup.get(); }

  /**
   * Restore from a cached backup
   */
  void restoreCachedBackup();

  /**
   * Helper method for dynamic loading of objects
   */
  void dynamicRegistration(const Parameters & params);

  /**
   * Recursively loads libraries and dependencies in the proper order to fully register a
   * MOOSE application that may have several dependencies. REQUIRES: dynamic linking loader support.
   */
  void loadLibraryAndDependencies(const std::string & library_filename, const Parameters & params);

  /// Constructor is protected so that this object is constructed through the AppFactory object
  MooseApp(InputParameters parameters);

  /**
   * NOTE: This is an internal function meant for MOOSE use only!
   *
   * Register a piece of restartable data that will be used in a filter in/out during
   * deserialization. Note however that this data will always be written to the restart file.
   *
   * @param name The full (unique) name.
   * @param filter The filter name where to direct the name
   */
  void registerRestartableNameWithFilter(const std::string & name,
                                         Moose::RESTARTABLE_FILTER filter);

  /**
   * Runs post-initialization error checking that cannot be run correctly unless the simulation
   * has been fully set up and initialized.
   */
  void errorCheck();

  /// The name of this object
  const std::string _name;

  /// Parameters of this object
  InputParameters _pars;

  /// The string representation of the type of this object as registered (see registerApp(AppName))
  const std::string _type;

  /// The MPI communicator this App is going to use
  const std::shared_ptr<Parallel::Communicator> _comm;

  /// The PerfGraph object for this applciation
  PerfGraph _perf_graph;

  /// The RankMap is a useful object for determining how
  const RankMap _rank_map;

  /// Input file name used
  std::string _input_filename;

  /// The output file basename
  std::string _output_file_base;

  /// Whether or not file base is set through input or setOutputFileBase by MultiApp
  bool _file_base_set_by_user;

  /// Whether or not an output position has been set for this app
  bool _output_position_set;

  /// The output position
  Point _output_position;

  /// Whether or not an start time has been set
  bool _start_time_set;

  /// The time at which to start the simulation
  Real _start_time;

  /// Offset of the local App time to the "global" problem time
  Real _global_time_offset;

  /// Command line object
  std::shared_ptr<CommandLine> _command_line;

  /// Syntax of the input file
  Syntax _syntax;

  /// OutputWarehouse object for this App
  OutputWarehouse _output_warehouse;

  /// Input parameter storage structure (this is a raw pointer so the destruction time can be explicitly controlled)
  InputParameterWarehouse * _input_parameter_warehouse;

  /// The Factory responsible for building Actions
  ActionFactory _action_factory;

  /// Where built actions are stored
  ActionWarehouse _action_warehouse;

  /// Parser for parsing the input file
  Parser _parser;

  /// Pointer to the executioner of this run (typically build by actions)
  std::shared_ptr<Executioner> _executioner;

  /// Boolean to indicate whether to use a Nonlinear or EigenSystem (inspected by actions)
  bool _use_nonlinear;

  /// Boolean to indicate whether to use an eigenvalue executioner
  bool _use_eigen_value;

  /// System Information
  std::unique_ptr<SystemInfo> _sys_info;

  /// Indicates whether warnings, errors, or no output is displayed when unused parameters are detected
  enum UNUSED_CHECK
  {
    OFF,
    WARN_UNUSED,
    ERROR_UNUSED
  } _enable_unused_check;

  Factory _factory;

  /// Indicates whether warnings or errors are displayed when overridden parameters are detected
  bool _error_overridden;
  bool _ready_to_exit;

  /// This variable indicates when a request has been made to restart from an Exodus file
  bool _initial_from_file;

  /// This variable indicates that DistributedMesh should be used for the libMesh mesh underlying MooseMesh.
  bool _distributed_mesh_on_command_line;

  /// Whether or not this is a recovery run
  bool _recover;

  /// Whether or not this is a restart run
  bool _restart;

  /// Whether or not we are performing a split mesh operation (--split-mesh)
  bool _split_mesh;

  /// Whether or not we are using a (pre-)split mesh (automatically DistributedMesh)
  const bool _use_split;

  /// Whether or not FPE trapping should be turned on.
  bool _trap_fpe;

  /// The base name to restart/recover from.  If blank then we will find the newest checkpoint file.
  std::string _restart_recover_base;

  /// The file suffix to restart/recover from.  If blank then we will use the binary restart suffix.
  std::string _restart_recover_suffix;

  /// Whether or not this simulation should only run half its transient (useful for testing recovery)
  bool _half_transient;

  /// Map of outputer name and file number (used by MultiApps to propagate file numbers down through the multiapps)
  std::map<std::string, unsigned int> _output_file_numbers;

  /// true if we want to just check the input file
  bool _check_input;

  std::vector<std::shared_ptr<RelationshipManager>> _relationship_managers;

  /// The library, registration method and the handle to the method
  std::map<std::pair<std::string, std::string>, void *> _lib_handles;

private:
  /** Method for creating the minimum required actions for an application (no input file)
   *
   * Mimics the following input file:
   *
   * [Mesh]
   *   type = GeneratedMesh
   *   dim = 1
   *   nx = 1
   * []
   *
   * [Executioner]
   *   type = Transient
   *   num_steps = 1
   *   dt = 1
   * []
   *
   * [Problem]
   *   solve = false
   * []
   *
   * [Outputs]
   *   console = false
   * []
   */
  void createMinimalApp();

  /// Where the restartable data is held (indexed on tid)
  RestartableDataMaps _restartable_data;

  /**
   * Data specifically associated with the mesh (meta-data) that will read from the restart
   * file early during the simulation setup so that they are available to Actions and other objects
   * that need them during the setup process. Most of the restartable data isn't made available
   * until all objects have been created and all Actions have been executed (i.e. initialSetup).
   */
  RestartableDataMap _mesh_meta_data_map;

  /**
   * Data names that will only be read from the restart file during RECOVERY.
   * e.g. these names are _excluded_ during restart.
   */
  DataNames _recoverable_data_names;

  /// Enumeration for holding the valid types of dynamic registrations allowed
  enum RegistrationType
  {
    APPLICATION,
    REGALL
  };

  /// The combined warehouse for storing any MooseObject based object
  std::unique_ptr<TheWarehouse> _the_warehouse;

  /// Level of multiapp, the master is level 0. This used by the Console to indent output
  unsigned int _multiapp_level;

  /// Numbering in all the sub-apps on the same level
  unsigned int _multiapp_number;

  /// The mesh from master app
  const MooseMesh * _master_mesh;

  /// The displaced mesh from master app
  const MooseMesh * _master_displaced_mesh;

  /// Holds the mesh modifiers until they have completed, then this structure is cleared
  std::map<std::string, std::shared_ptr<MeshModifier>> _mesh_modifiers;

  /// Holds the mesh generators until they have completed, then this structure is cleared
  std::map<std::string, std::shared_ptr<MeshGenerator>> _mesh_generators;

  /// Holds the output for each mesh generator - including duplicates needed downstream
  std::map<std::string, std::list<std::unique_ptr<MeshBase>>> _mesh_generator_outputs;

  /// The final mesh generator name to use
  std::string _final_generator_name;

  /// The final Mesh that is generated by the generators
  std::list<std::unique_ptr<MeshBase> *> _final_generated_meshes;

  /// Cache for a Backup to use for restart / recovery
  std::shared_ptr<Backup> _cached_backup;

  /// Execution flags for this App
  ExecFlagEnum _execute_flags;

  /// Timers
  const PerfID _setup_timer;
  const PerfID _setup_options_timer;
  const PerfID _run_input_file_timer;
  const PerfID _execute_timer;
  const PerfID _execute_executioner_timer;
  const PerfID _restore_timer;
  const PerfID _run_timer;
  const PerfID _execute_mesh_modifiers_timer;
  const PerfID _execute_mesh_generators_timer;
  const PerfID _restore_cached_backup_timer;
  const PerfID _create_minimal_app_timer;

  /// Whether to turn on automatic scaling by default
  const bool _automatic_automatic_scaling;

  /// Whether the mesh generator MeshBase has been popped off its storage container and is no
  /// longer accessible
  bool _popped_final_mesh_generator;

  bool _profiling = false;

  // Allow FEProblemBase to set the recover/restart state, so make it a friend
  friend class FEProblemBase;
  friend class Restartable;
  friend class SubProblem;
};

template <typename T>
const T &
MooseApp::getParamTempl(const std::string & name)
{
  return InputParameters::getParamHelper(name, _pars, static_cast<T *>(0));
}

template <typename T>
const T &
MooseApp::getParamTempl(const std::string & name) const
{
  return InputParameters::getParamHelper(name, _pars, static_cast<T *>(0));
}

ExternalProblem-derived object

The ExternalProblem object contains the extra interface function necessary for creating and maintaining current solution information on an "external" Mesh object. Specifically, the ExternalProblem creates a final override for the solve() method that triggers three different callbacks:

syncSolutions(Direction::TO_EXTERNAL_APP);
externalSolve();
syncSolutions(Direction::FROM_EXTERNAL_APP);

This calling sequence ensures that update-to-date information on the Mesh can be pulled into the External Application and used for the solve. After the External solve has completed, another callback to send data back from the External Application to the Mesh is made. This allows MOOSE to either read from or write to the field variables on the ExternalMesh and ensure that they are accurate and update to date at all times. Additionally, the native representation of the external application's data in the ExternalMesh ensure that no additional code to transfer information among the active applications in a simulation needs to be written, tested, and verified. For example, a sampling or projection transfer can be used between two meshes with discretization without the need to write the projection operation in a custom made transfer, which would only be applicable to the specific external app being targeted.

In order for MOOSE to understand which variables should be maintained on the ExternalMesh, another overridable method was created that is called during the problem setup to assist the adding the necessary AuxVariables to the simulation. Generally, the list of which variables are needed for a specific coupling is relatively static. However, the developer may find it convenient to supply a varying list of available parameters through normal Problem construction.

  /**
   * Method called to add AuxVariables to the simulation. These variables would be the fields
   * that should either be saved out with the MOOSE-formatted solutions or available for
   * transfer to variables in Multiapp simulations.
   */
  virtual void addExternalVariables() {}

// This file is part of the MOOSE framework
// https://www.mooseframework.org
//
// All rights reserved, see COPYRIGHT for full restrictions
// https://github.com/idaholab/moose/blob/master/COPYRIGHT
//
// Licensed under LGPL 2.1, please see LICENSE for details
// https://www.gnu.org/licenses/lgpl-2.1.html

#pragma once

#include "FEProblemBase.h"

class ExternalProblem;

template <>
InputParameters validParams<ExternalProblem>();

class ExternalProblem : public FEProblemBase
{
public:
  static InputParameters validParams();

  ExternalProblem(const InputParameters & parameters);

  enum class Direction : unsigned char
  {
    TO_EXTERNAL_APP,
    FROM_EXTERNAL_APP
  };

  /**
   * Solve is implemented to providing syncing to/from the "transfer" mesh.
   */
  virtual void solve() override final;

  /**
   * External problems should provide an override for converged, not inherit the default from
   * FEProblem that provides a reasonable implementation.
   */
  virtual bool converged() override = 0;

  /**
   * New interface for solving an External problem. "solve()" is finalized here to provide
   * callbacks for solution syncing.
   */
  virtual void externalSolve() = 0;

  /**
   * Method to transfer data to/from the external application to the associated transfer mesh.
   */
  virtual void syncSolutions(Direction direction) = 0;

  /**
   * Method called to add AuxVariables to the simulation. These variables would be the fields
   * that should either be saved out with the MOOSE-formatted solutions or available for
   * transfer to variables in Multiapp simulations.
   */
  virtual void addExternalVariables() {}
};

"external" Mesh

The external mesh is the MOOSE-native mesh, which holds the geometry and field information for the external application. There is no "external mesh" object in the MOOSE framework. The external mesh is just a normal MooseMesh-derived object that must be created in the coupling application to hold the geometric information for the external code being coupled in. As with other MeshMesh-derived objects, the main method that must be implemented is the build() method. Normally a user must query their own application to reconstruct the geometry in the ExternalMesh.

Figure 1: ExternalMesh illustration

TimeStepper object

The TimeStepper system in MOOSE is designed to allow full control of time step selection without requiring the user to implement all of complex details of a "Transient" execution strategy. For many types of coupling, the developer should consider starting with a custom TimeStepper object to tie the external application and MOOSE together. The TimeStepper object works in concert with the ExternalProblem to execute the solver steps on the external application.

A simplified call sequence, looks like this:

TimeStepper::preStep();
TimeStepper::computeDT();
ExternalProblem::externalSolve();
TimeStepper::converged();
TimeStepper::postStep();

Each of these calls can be overridden with just the creation of two new derived objects with enough flexibility and functionality for coupling to many external applications.

"external" Executioner

If the coupling developer requires ultimate flexibility, the Transient executioner can be extended to override existing simulation execution behaviors. This would potentially allow the developer to replace almost every part of the execution control of coupled simulation. However a small number of APIs can be overridden with very little impact on MOOSE's behavior. See the Transient Executioner for details.
