Example 1a: Direct shear test using the Darandeli backbone curve formulation

This example demonstrates a single element direct simple shear test that utilizes I-soil with auto generated backbone curve using Darendeli (2001) modulus reduction curves. The relevant files for the example are:

# One element test to test the auto-generated Darendeli backbone curve.
# The back surface of the element (z=0) is fixed and the front surface (z=1)
# is moved by applying a cyclic preset displacement.

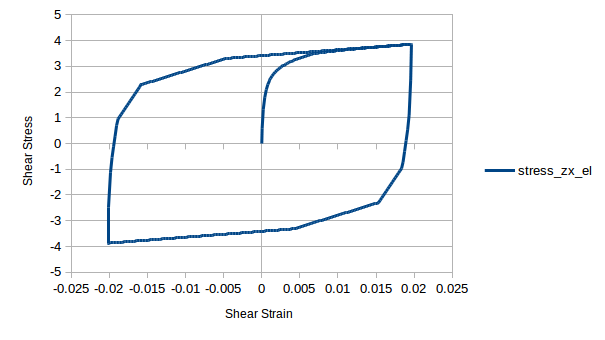

# The resulting shear stress vs shear strain curve was verified against that obtained
# from DEEPSOIL.

[Mesh<<<{"href": "../syntax/Mesh/index.html"}>>>]
  type = GeneratedMesh # Can generate simple lines, rectangles and rectangular prisms
  dim = 3 # Dimension of the mesh
  nx = 1 # Number of elements in the x direction
  ny = 1 # Number of elements in the y direction
  nz = 1 # Number of elements in the z direction
  xmin = 0.0
  xmax = 1
  ymin = 0.0
  ymax = 1
  zmin = 0.0
  zmax = 1
[]

[GlobalParams<<<{"href": "../syntax/GlobalParams/index.html"}>>>]
  displacements = 'disp_x disp_y disp_z'
  use_displaced_mesh = false
[]

[Variables<<<{"href": "../syntax/Variables/index.html"}>>>]
  [./disp_x]
  [../]
  [./disp_y]
  [../]
  [./disp_z]
  [../]
[]

[AuxVariables<<<{"href": "../syntax/AuxVariables/index.html"}>>>]
  [./vel_x]
  [../]
  [./accel_x]
  [../]
  [./vel_y]
  [../]
  [./accel_y]
  [../]
  [./vel_z]
  [../]
  [./accel_z]
  [../]
  [./stress_xy]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./stress_yz]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./stress_zx]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./strain_xy]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./strain_yz]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./strain_zx]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./stress_xx]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./stress_yy]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./stress_zz]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./strain_xx]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./strain_yy]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./strain_zz]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
  [./layer_id]
    order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
    family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
  [../]
[]

[Kernels<<<{"href": "../syntax/Kernels/index.html"}>>>]
  [./DynamicTensorMechanics<<<{"href": "../syntax/Kernels/DynamicTensorMechanics/index.html"}>>>]
    displacements<<<{"description": "The nonlinear displacement variables for the problem"}>>> = 'disp_x disp_y disp_z'
    stiffness_damping_coefficient<<<{"description": "Name of material property or a constant real number defining stiffness Rayleigh parameter (zeta)."}>>> = 0.00006366
  [../]
  [./inertia_x]
    type = InertialForce<<<{"description": "Calculates the residual for the inertial force ($M \\cdot acceleration$) and the contribution of mass dependent Rayleigh damping and HHT time  integration scheme ($\\eta \\cdot M \\cdot ((1+\\alpha)velq2-\\alpha \\cdot vel-old) $)", "href": "../source/kernels/InertialForce.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_x
    velocity<<<{"description": "velocity variable"}>>> = vel_x
    acceleration<<<{"description": "acceleration variable"}>>> = accel_x
    beta<<<{"description": "beta parameter for Newmark Time integration"}>>> = 0.25
    gamma<<<{"description": "gamma parameter for Newmark Time integration"}>>> = 0.5
    eta<<<{"description": "Name of material property or a constant real number defining the eta parameter for the Rayleigh damping."}>>> = 7.854
  [../]
  [./inertia_y]
    type = InertialForce<<<{"description": "Calculates the residual for the inertial force ($M \\cdot acceleration$) and the contribution of mass dependent Rayleigh damping and HHT time  integration scheme ($\\eta \\cdot M \\cdot ((1+\\alpha)velq2-\\alpha \\cdot vel-old) $)", "href": "../source/kernels/InertialForce.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_y
    velocity<<<{"description": "velocity variable"}>>> = vel_y
    acceleration<<<{"description": "acceleration variable"}>>> = accel_y
    beta<<<{"description": "beta parameter for Newmark Time integration"}>>> = 0.25
    gamma<<<{"description": "gamma parameter for Newmark Time integration"}>>> = 0.5
    eta<<<{"description": "Name of material property or a constant real number defining the eta parameter for the Rayleigh damping."}>>> = 7.854
  [../]
  [./inertia_z]
    type = InertialForce<<<{"description": "Calculates the residual for the inertial force ($M \\cdot acceleration$) and the contribution of mass dependent Rayleigh damping and HHT time  integration scheme ($\\eta \\cdot M \\cdot ((1+\\alpha)velq2-\\alpha \\cdot vel-old) $)", "href": "../source/kernels/InertialForce.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_z
    velocity<<<{"description": "velocity variable"}>>> = vel_z
    acceleration<<<{"description": "acceleration variable"}>>> = accel_z
    beta<<<{"description": "beta parameter for Newmark Time integration"}>>> = 0.25
    gamma<<<{"description": "gamma parameter for Newmark Time integration"}>>> = 0.5
    eta<<<{"description": "Name of material property or a constant real number defining the eta parameter for the Rayleigh damping."}>>> = 7.854
  [../]
  [./gravity]
    type = Gravity<<<{"description": "Apply gravity. Value is in units of acceleration.", "href": "../source/kernels/Gravity.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_z
    value<<<{"description": "Value multiplied against the residual, e.g. gravitational acceleration"}>>> = -9.81
  [../]
[]

[AuxKernels<<<{"href": "../syntax/AuxKernels/index.html"}>>>]
  [./accel_x]
    type = NewmarkAccelAux<<<{"description": "Computes the current acceleration using the Newmark method.", "href": "../source/auxkernels/NewmarkAccelAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = accel_x
    displacement<<<{"description": "displacement variable"}>>> = disp_x
    velocity<<<{"description": "velocity variable"}>>> = vel_x
    beta<<<{"description": "beta parameter for Newmark method"}>>> = 0.25
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
  [../]
  [./vel_x]
    type = NewmarkVelAux<<<{"description": "Calculates the current velocity using Newmark method.", "href": "../source/auxkernels/NewmarkVelAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = vel_x
    acceleration<<<{"description": "acceleration variable"}>>> = accel_x
    gamma<<<{"description": "gamma parameter for Newmark method"}>>> = 0.5
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
  [../]
  [./accel_y]
    type = NewmarkAccelAux<<<{"description": "Computes the current acceleration using the Newmark method.", "href": "../source/auxkernels/NewmarkAccelAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = accel_y
    displacement<<<{"description": "displacement variable"}>>> = disp_y
    velocity<<<{"description": "velocity variable"}>>> = vel_y
    beta<<<{"description": "beta parameter for Newmark method"}>>> = 0.25
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
  [../]
  [./vel_y]
    type = NewmarkVelAux<<<{"description": "Calculates the current velocity using Newmark method.", "href": "../source/auxkernels/NewmarkVelAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = vel_y
    acceleration<<<{"description": "acceleration variable"}>>> = accel_y
    gamma<<<{"description": "gamma parameter for Newmark method"}>>> = 0.5
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
  [../]
  [./accel_z]
    type = NewmarkAccelAux<<<{"description": "Computes the current acceleration using the Newmark method.", "href": "../source/auxkernels/NewmarkAccelAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = accel_z
    displacement<<<{"description": "displacement variable"}>>> = disp_z
    velocity<<<{"description": "velocity variable"}>>> = vel_z
    beta<<<{"description": "beta parameter for Newmark method"}>>> = 0.25
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
  [../]
  [./vel_z]
    type = NewmarkVelAux<<<{"description": "Calculates the current velocity using Newmark method.", "href": "../source/auxkernels/NewmarkVelAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = vel_z
    acceleration<<<{"description": "acceleration variable"}>>> = accel_z
    gamma<<<{"description": "gamma parameter for Newmark method"}>>> = 0.5
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
  [../]
  [./stress_xy]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = stress
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = stress_xy
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 1
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 0
  [../]
  [./stress_yz]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = stress
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = stress_yz
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 2
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 1
  [../]
  [./stress_zx]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = stress
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = stress_zx
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 0
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 2
  [../]
  [./strain_xy]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = total_strain
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = stress_xy
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 1
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 0
  [../]
  [./strain_yz]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = total_strain
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = strain_yz
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 2
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 1
  [../]
  [./strain_zx]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = total_strain
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = strain_zx
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 0
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 2
  [../]
  [./stress_xx]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = stress
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = stress_xx
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 0
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 0
  [../]
  [./stress_yy]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = stress
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = stress_yy
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 1
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 1
  [../]
  [./stress_zz]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = stress
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = stress_zz
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 2
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 2
  [../]
  [./strain_xx]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = total_strain
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = strain_xx
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 0
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 0
  [../]
  [./strain_yy]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> =total_strain
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = strain_yy
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 1
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 1
  [../]
  [./strain_zz]
    type = RankTwoAux<<<{"description": "Access a component of a RankTwoTensor", "href": "../source/auxkernels/RankTwoAux.html"}>>>
    rank_two_tensor<<<{"description": "The rank two material tensor name"}>>> = total_strain
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = strain_zz
    index_i<<<{"description": "The index i of ij for the tensor to output (0, 1, 2)"}>>> = 2
    index_j<<<{"description": "The index j of ij for the tensor to output (0, 1, 2)"}>>> = 2
  [../]
  [./layer]
    type = UniformLayerAuxKernel<<<{"description": "Computes an AuxVariable for representing a layered structure in an arbitrary direction.", "href": "../source/auxkernels/UniformLayerAuxKernel.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = layer_id
    interfaces<<<{"description": "A list of layer interface locations to apply across the domain in the specified direction."}>>> = '2.0'
    direction<<<{"description": "The direction to apply layering."}>>> = '0 0 1'
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = initial
  [../]
[]

[BCs<<<{"href": "../syntax/BCs/index.html"}>>>]
  [./x_bot]
    type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../source/bcs/DirichletBC.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_x
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 0
    value<<<{"description": "Value of the BC"}>>> = 0.0
  [../]
  [./y_bot]
    type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../source/bcs/DirichletBC.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_y
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 0
    value<<<{"description": "Value of the BC"}>>> = 0.0
  [../]
  [./z_bot]
    type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../source/bcs/DirichletBC.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_z
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 0
    value<<<{"description": "Value of the BC"}>>> = 0.0
  [../]
  [./Periodic<<<{"href": "../syntax/BCs/Periodic/index.html"}>>>]
    [./x_dir]
      variable<<<{"description": "Variable for the periodic boundary condition"}>>> = 'disp_x disp_y disp_z'
      primary<<<{"description": "Boundary ID associated with the primary boundary."}>>> = '4'
      secondary<<<{"description": "Boundary ID associated with the secondary boundary."}>>> = '2'
      translation<<<{"description": "Vector that translates coordinates on the primary boundary to coordinates on the secondary boundary."}>>> = '1.0 0.0 0.0'
    [../]
    [./y_dir]
      variable<<<{"description": "Variable for the periodic boundary condition"}>>> = 'disp_x disp_y disp_z'
      primary<<<{"description": "Boundary ID associated with the primary boundary."}>>> = '1'
      secondary<<<{"description": "Boundary ID associated with the secondary boundary."}>>> = '3'
      translation<<<{"description": "Vector that translates coordinates on the primary boundary to coordinates on the secondary boundary."}>>> = '0.0 1.0 0.0'
    [../]
  [../]
  [./top_x]
    type = PresetDisplacement<<<{"description": "Prescribe the displacement on a given boundary in a given direction.", "href": "../source/bcs/PresetDisplacement.html"}>>>
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 5
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_x
    beta<<<{"description": "beta parameter for Newmark time integration."}>>> = 0.25
    velocity<<<{"description": "The velocity variable."}>>> = vel_x
    acceleration<<<{"description": "The acceleration variable."}>>> = accel_x
    function<<<{"description": "Function describing the displacement."}>>> = top_disp
  [../]
[]

[Functions<<<{"href": "../syntax/Functions/index.html"}>>>]
  [./top_disp]
    type = PiecewiseLinear<<<{"description": "Linearly interpolates between pairs of x-y data", "href": "../source/functions/PiecewiseLinear.html"}>>>
    data_file<<<{"description": "File holding CSV data"}>>> = Displacement2.csv
    format<<<{"description": "Format of csv data file that is in either in columns or rows"}>>> = columns
  [../]
[]

[Materials<<<{"href": "../syntax/Materials/index.html"}>>>]
  [./I_Soil<<<{"href": "../syntax/Materials/I_Soil/index.html"}>>>]
    [./soil_1]
      soil_type<<<{"description": "This parameter determines the type of backbone curve used. Use 'user_defined' for a user defined backbone curve provided in a data file, 'darendeli' if the backbone curve is to be determined using Darandeli equations, 'gqh' if the backbone curve is determined using the GQ/H approach and 'thin_layer' if the soil is being used to simulate a thin-layer friction interface."}>>> = 'darendeli'
      layer_variable<<<{"description": "The auxvariable providing the soil layer identification."}>>> = layer_id
      layer_ids<<<{"description": "Vector of layer ids that map one-to-one to the rest of the soil layer parameters provided as input."}>>> = '0'
      over_consolidation_ratio<<<{"description": "The over consolidation ratio of the soil layers. Required for Darandeli backbone curve."}>>> = '1'
      plasticity_index<<<{"description": "The plasticity index of the soil layers. Required for Darandeli backbone curve."}>>> = '0'
      initial_shear_modulus<<<{"description": "The initial shear modulus of the soil layers."}>>> = '20000'
      number_of_points<<<{"description": "The total number of data points in which the backbone curve needs to be split for all soil layers (required for Darandeli or GQ/H type backbone curves)."}>>> = 10
      poissons_ratio<<<{"description": "Poissons's ratio for the soil layers. The size of the vector should be same as the size of layer_ids."}>>> = '0.3'
      block<<<{"description": "The blocks where this material model is applied."}>>> = 0
      initial_soil_stress<<<{"description": "The function values for the initial stress distribution. 9 function names have to be provided corresponding to stress_xx, stress_xy, stress_xz, stress_yx, stress_yy, stress_yz, stress_zx, stress_zy, stress_zz. Each function can be a function of space."}>>> = '-4.204286 0 0  0 -4.204286 0  0 0 -9.810'
      density<<<{"description": "Vector of density values that map one-to-one with the number 'layer_ids' parameter."}>>> = '2'
      p_ref<<<{"description": "The reference pressure at which the parameters are defined for each soil layer. If 'soil_type = darendeli', then the reference pressure must be input in kilopascals."}>>> = '6.07286'
    [../]
  [../]
[]

[Preconditioning<<<{"href": "../syntax/Preconditioning/index.html"}>>>]
  [./andy]
    type = SMP<<<{"description": "Single matrix preconditioner (SMP) builds a preconditioner using user defined off-diagonal parts of the Jacobian.", "href": "../source/preconditioners/SingleMatrixPreconditioner.html"}>>>
    full<<<{"description": "Set to true if you want the full set of couplings between variables simply for convenience so you don't have to set every off_diag_row and off_diag_column combination."}>>> = true
  [../]
[]

[Executioner<<<{"href": "../syntax/Executioner/index.html"}>>>]
  type = Transient
  solve_type = PJFNK
  nl_abs_tol = 1e-11
  nl_rel_tol = 1e-11
  start_time = 0
  end_time = 8
  dt = 0.01
  timestep_tolerance = 1e-6
  petsc_options = '-snes_ksp_ew'
  petsc_options_iname = '-ksp_gmres_restart -pc_type -pc_hypre_type -pc_hypre_boomeramg_max_iter'
  petsc_options_value = '201                hypre    boomeramg      4'
  line_search = 'none'
[]

[Postprocessors<<<{"href": "../syntax/Postprocessors/index.html"}>>>]
  [./_dt]
    type = TimestepSize<<<{"description": "Reports the timestep size", "href": "../source/postprocessors/TimestepSize.html"}>>>
  [../]
  [./disp_6x]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = disp_x
  [../]
  [./disp_6y]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = disp_y
  [../]
  [./disp_6z]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = disp_z
  [../]
  [./vel_6x]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = vel_x
  [../]
  [./vel_6y]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = vel_y
  [../]
  [./vel_6z]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = vel_z
  [../]
  [./accel_6x]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = accel_x
  [../]
  [./accel_6y]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = accel_y
  [../]
  [./accel_6z]
    type = NodalVariableValue<<<{"description": "Outputs values of a nodal variable at a particular location", "href": "../source/postprocessors/NodalVariableValue.html"}>>>
    nodeid<<<{"description": "The ID of the node where we monitor"}>>> = 6
    variable<<<{"description": "The variable to be monitored"}>>> = accel_z
  [../]
  [./stress_xy_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = stress_xy
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./stress_yz_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = stress_yz
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./stress_zx_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = stress_zx
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./strain_xy_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = strain_xy
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./strain_yz_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = strain_yz
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./strain_zx_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = strain_zx
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./stress_xx_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = stress_xx
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./stress_yy_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = stress_yy
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./stress_zz_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = stress_zz
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./strain_xx_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = strain_xx
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./strain_yy_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = strain_yy
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
  [./strain_zz_el]
    type = ElementalVariableValue<<<{"description": "Outputs an elemental variable value at a particular location", "href": "../source/postprocessors/ElementalVariableValue.html"}>>>
    variable<<<{"description": "The variable to be monitored"}>>> = strain_zz
    elementid<<<{"description": "The ID of the element where we monitor"}>>> = 0
  [../]
[]

[Outputs<<<{"href": "../syntax/Mastodon/Outputs/index.html"}>>>]
  exodus<<<{"description": "Output the results using the default settings for Exodus output."}>>> = true
  csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
  perf_graph<<<{"description": "Enable printing of the performance graph to the screen (Console)"}>>> = false
[]
(examples/ex01a/HYS_darendeli.i)

In above input file, all the input blocks except material definition are explained at Getting Started section of User's Manual.

For this particular example, the units defining the parameters are kN, ton, and meter (m), and the material definition is created using following input:

[Materials<<<{"href": "../syntax/Materials/index.html"}>>>]
  [./I_Soil<<<{"href": "../syntax/Materials/I_Soil/index.html"}>>>]
    [./soil_1]
      soil_type<<<{"description": "This parameter determines the type of backbone curve used. Use 'user_defined' for a user defined backbone curve provided in a data file, 'darendeli' if the backbone curve is to be determined using Darandeli equations, 'gqh' if the backbone curve is determined using the GQ/H approach and 'thin_layer' if the soil is being used to simulate a thin-layer friction interface."}>>> = 'darendeli'
      layer_variable<<<{"description": "The auxvariable providing the soil layer identification."}>>> = layer_id
      layer_ids<<<{"description": "Vector of layer ids that map one-to-one to the rest of the soil layer parameters provided as input."}>>> = '0'
      over_consolidation_ratio<<<{"description": "The over consolidation ratio of the soil layers. Required for Darandeli backbone curve."}>>> = '1'
      plasticity_index<<<{"description": "The plasticity index of the soil layers. Required for Darandeli backbone curve."}>>> = '0'
      initial_shear_modulus<<<{"description": "The initial shear modulus of the soil layers."}>>> = '20000'
      number_of_points<<<{"description": "The total number of data points in which the backbone curve needs to be split for all soil layers (required for Darandeli or GQ/H type backbone curves)."}>>> = 10
      poissons_ratio<<<{"description": "Poissons's ratio for the soil layers. The size of the vector should be same as the size of layer_ids."}>>> = '0.3'
      block<<<{"description": "The blocks where this material model is applied."}>>> = 0
      initial_soil_stress<<<{"description": "The function values for the initial stress distribution. 9 function names have to be provided corresponding to stress_xx, stress_xy, stress_xz, stress_yx, stress_yy, stress_yz, stress_zx, stress_zy, stress_zz. Each function can be a function of space."}>>> = '-4.204286 0 0  0 -4.204286 0  0 0 -9.810'
      density<<<{"description": "Vector of density values that map one-to-one with the number 'layer_ids' parameter."}>>> = '2'
      p_ref<<<{"description": "The reference pressure at which the parameters are defined for each soil layer. If 'soil_type = darendeli', then the reference pressure must be input in kilopascals."}>>> = '6.07286'
    [../]
  [../]
[]
(examples/ex01a/HYS_darendeli.i)

where;

  • soil type = 'darendeli' specifies that the backbone will be auto-generated by MASTODON using Darendeli (2001) correlations.

  • over_consolidation_ratio = '1' specifies that the over consolidation ratio for the soil material is 1 and it is normally consolidated. (see Terzaghi et al. (1996) for further information)

  • plasticity_index = '0' specifies that the plasticity index of the soil is 0. The plasticity index is the difference between liquid limit and plastic limit (PI = LL - PL). PI = 0 means the soil is nonplastic, i.e., there is very little or no fines.

  • initial_shear_modulus = '20000' specifies the small strain shear modulus (elastic property) of the soil.

  • number_of_points = '10' specifies that there will be total number of 10 nested components that are superposed to obtain backbone curve.

  • poissons_ratio = '0.3' specifies the Poisson's ratio (elastic property) for the soil.

  • block = 0 specifies that the material block will be assigned to element with block id = 0;

  • initial_stress = '-4.204286 0 0 0 -4.204286 0 0 0 -9.810' see Getting Started.

  • density = '2' specifies the density of the soil material.

  • p_ref = '6.07286' is the reference pressure at which the backbone curve is defined.

The material used in this example is pressure independent thus no further input is required. The BCs block given below shows that a shear displacement is applied at the upper surface in x direction and the bottom surface of the element is fixed. This leads to a 0.02 cyclic shear strain amplitude.

[BCs<<<{"href": "../syntax/BCs/index.html"}>>>]
  [./x_bot]
    type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../source/bcs/DirichletBC.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_x
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 0
    value<<<{"description": "Value of the BC"}>>> = 0.0
  [../]
  [./y_bot]
    type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../source/bcs/DirichletBC.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_y
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 0
    value<<<{"description": "Value of the BC"}>>> = 0.0
  [../]
  [./z_bot]
    type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../source/bcs/DirichletBC.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_z
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 0
    value<<<{"description": "Value of the BC"}>>> = 0.0
  [../]
  [./Periodic<<<{"href": "../syntax/BCs/Periodic/index.html"}>>>]
    [./x_dir]
      variable<<<{"description": "Variable for the periodic boundary condition"}>>> = 'disp_x disp_y disp_z'
      primary<<<{"description": "Boundary ID associated with the primary boundary."}>>> = '4'
      secondary<<<{"description": "Boundary ID associated with the secondary boundary."}>>> = '2'
      translation<<<{"description": "Vector that translates coordinates on the primary boundary to coordinates on the secondary boundary."}>>> = '1.0 0.0 0.0'
    [../]
    [./y_dir]
      variable<<<{"description": "Variable for the periodic boundary condition"}>>> = 'disp_x disp_y disp_z'
      primary<<<{"description": "Boundary ID associated with the primary boundary."}>>> = '1'
      secondary<<<{"description": "Boundary ID associated with the secondary boundary."}>>> = '3'
      translation<<<{"description": "Vector that translates coordinates on the primary boundary to coordinates on the secondary boundary."}>>> = '0.0 1.0 0.0'
    [../]
  [../]
  [./top_x]
    type = PresetDisplacement<<<{"description": "Prescribe the displacement on a given boundary in a given direction.", "href": "../source/bcs/PresetDisplacement.html"}>>>
    boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = 5
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = disp_x
    beta<<<{"description": "beta parameter for Newmark time integration."}>>> = 0.25
    velocity<<<{"description": "The velocity variable."}>>> = vel_x
    acceleration<<<{"description": "The acceleration variable."}>>> = accel_x
    function<<<{"description": "Function describing the displacement."}>>> = top_disp
  [../]
[]
(examples/ex01a/HYS_darendeli.i)

where Displacement2.csv is the .csv file containing the displacement time history.

This analysis will produce the hysteretic response plotted in Figure 1

Figure 1: Hysteretic response under 0.02 cyclic strian amplitude.

References

  1. M. B. Darendeli. Development of a new family of normalized modulus reduction and material damping curves. PhD dissertation, University of Texas at Austin, 2001.[BibTeX]
  2. K. Terzaghi, R. B. Pech, and G. Mesri. Soil Mechanics in Engineering Practice. John Wiley & Sons, 1996.[BibTeX]
