2. Important Terminology and Hierarchy Rules

MultiApp Hierarchy

The MultiApp system is designed for efficient parallel execution of hierarchical problems. The MultiApp hierarchy describes the sequence of execution of individual applications (which individually solve systems of fully coupled equations) and how data is transferred to couple them together. Nuclear reactor multiphysics problems can generally be mapped to such a hierarchical coupling scheme. The hierarchy is made up of a parent application and child(ren) (and potentially an arbitrary number of further generations of child(ren) applications). While an application solves its own system of fully coupled equations, dependent child (or sub) applications which receive data from the application above it in the hierarchy are unaware that they are dependent applications, nor are they aware of other child applications in the MultiApp hierarchy. Once an application completes its calculation, it may transfer information to its child(ren) applications or back up to its parent. Generally, data is transferred back and forth between physics which updates their initial conditions and provides a solution via tight coupling. An example MultiApp hierarchy is shown in Figure 1.

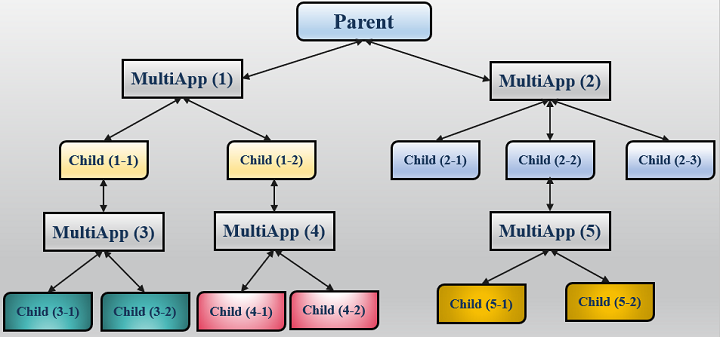

Figure 1: An example hierarchy describing the sequence of execution and information transfer of various applications, coordinated by MultiApp system in MOOSE.

Application

In the MOOSE environment, an application is an independent solver which solves a system of fully coupled equations. Applications make up units in the MultiApp hierarchy. Applications are further classified based on their roles in the hierarchy as either parent or child, and may contain MultiApp containers within them.

Parent Application

The application at the top level of the MultiApp hierarchy drives the coupled simulation. This application is termed the parent (or main) application. The parent application can have any number of MultiApp objects. Every MultiApp hierarchy must have a parent application.

MultiApp Objects

A MultiApp object may be added to any individual application to invoke one or more child applications. A MultiApp object may invoke thousands or even millions of child applications. A child application may solve completely different physics from the application above it, which may or may not be the parent application depending on its level in the hierarchy. The MultiApp system allows a tree of simulations to be constructed with large numbers of different applications potentially with different time and space scales.

Child Application

A child (or sub) application is an independent application invoked by a MultiApp object. Child applications transfer data back and forth to applications above it in the hierarchy. A child application may solve different physics than the parent application, or could solve the same physics with different boundary conditions, material property, mesh, timescale, etc. A child application can be a MOOSE-based application or a MOOSE-wrapped external application. A child application can itself contain a MultiApp object which then spurs grandchild applications and creates a multi-level solve. Recall that a child application is not aware of the other child applications under the same, or other, MultiApp object. It operates independently and uses the information it is passed by its parent app, using the Transfers system. For example, Figure 1 represents a MultiApp hierarchy in which the parent application has two MultiApp objects: the first and second MultiApp objects have two and three child applications, respectively. In addition, as demonstrated in Figure 1, child applications are given identification numbers on the form of x-y where x identifies the MultiApp object invoking the child application, and y identifies the child application itself. The child applications 1-1, 1-2, and 2-2 also contain MultiApp objects invoking additional child, or grand-child, applications. This creates a multi-level solve of the simulation. This example depicts a multi-level solve created by parent, child, and grand-child applications. The user may construct a very large tree of solves.

Transfer System

The Transfer System is responsible for transferring data between applications. In the MultiApp hierarchy, data may be transferred only in the up-down and left-right directions as illustrated in Figure 1. The transfer is performed by filling auxiliary field, scalar or vector postprocessors, userobjects, etc., with data. Then, the receiving application can obtain the transferred data. The user specifies parameters for the transfer such as the source and target (from_/to_)multiapp to transfer data to/from, the source_variable, the auxiliary variable field name that will receive the data, and the type of transfer. Transfers will be discussed in more detail in Chapter 4 of this tutorial.

Multi-Level structure

The MultiApp hierarchy has the following structure:

• A parent application can have any number of MultiApp objects.

• A MultiApp object can have any number of child applications.

• A child application can create a multi-level solve by defining any number of MultiApp objects.

• Creating thousands of MultiApps solves is possible in the MultiApp Hierarchy System, and these MultiApps may also have an arbitrary number of child apps

• The applications in the hierarchy can be MOOSE-based or external (MOOSE-wrapped) applications.

• Using multi-level solves can be advantageous for parallel execution and debugging.

Iteration

In MOOSE, Picard iterations are used to iterate back and forth between applications to reach an equilibrium/stationary point. Picard iterations are particularly important in coupled systems that have different time and spatial scales. For example, it is common practice in thermal reactor simulations to perform non-linear iterations between the neutronics application (which calculates the power distribution) and the thermal-hydraulic application (which calculates the coolant and fuel temperature). The temperatures affect the cross-sections in the neutronics solution. Data on power and temperature are passed back and forth in Picard iterations until the power and temperature both stabilize and do not change further in a meaningful way.

Parallel Execution

Unless the MultiApps are nested below two child application that are executed in parallel, only one MultiApp will be executed at any time in the system. This is designed so that transfers among the various MultiApps is done in a well-defined order. Thus, in Figure 2, MultiApps (1) and (4) will not be executed in parallel. If the user set MultiApps (1) and (4) to execute at the same time step, MOOSE will arbitrarily select one of them to be executed first. After the completion of the execution of the selected MultiApp and all its child and grandchild applications, the other MultiApp will be executed. Nevertheless, if the MultiApps are nested below child applications that are executed in parallel, such as MultiApps (2) and (3), these MultiApps will be also executed simultaneously in parallel.

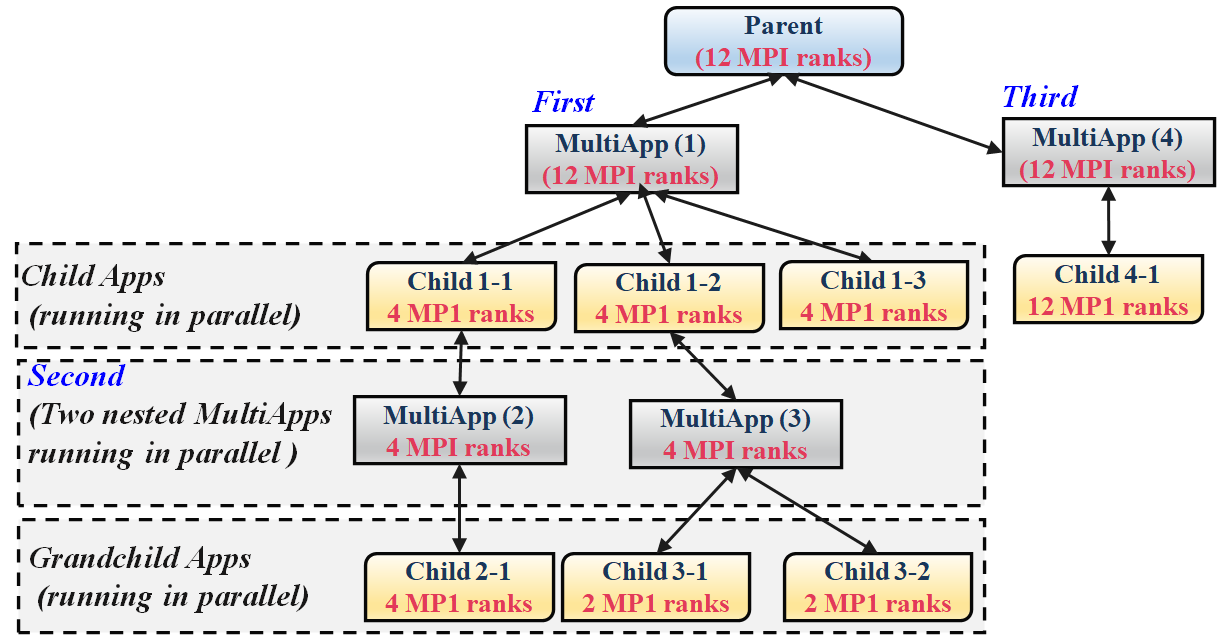

Figure 2: Example of parallel execution in the MultiApp hierarchy

When a MultiApp is executed, the number of parallel MPI ranks available for that MultiApp will be distributed across the number of its child applications, and these child applications will be executed simultaneously in parallel. For example, the child Apps (1-1), (1-2), and (1-3) in Figure 2 will be executed in parallel and the number of MPI ranks available to MultiApp (1) will be equally distributed among them (4 MPI ranks each).

It should be noted, in Figure 2, that the grandchild applications (2-1), (3-1), and (3-2) will also run simultaneously in parallel. Nevertheless, grandchild App (2-1) will run using 4 MPI ranks while the other grandchild Apps: (3-1) and (3-2) will run using 2 MPI ranks each. After the execution MultiApp (1), and all its child and grandchild applications are completed, MultiApp (4) will be executed, and it will have access to the full set of MPI ranks. The only child App for MultiApp (4), which is child App (4-1), will also have full access to the full 12 MPI ranks.
