SmoothMeshGenerator

Utilizes a simple Laplacian based smoother to attempt to improve mesh quality. Will not move boundary nodes or nodes along block/subdomain boundaries

Example

The iterations parameter controls the number of smoothing steps to do. Each smoothing step will iterate the mesh toward the "true" smoothed mesh (as measured by the Laplacian smoother). Note that the mesh should reach "steady state": after just a few iterations the mesh will stop moving by much.

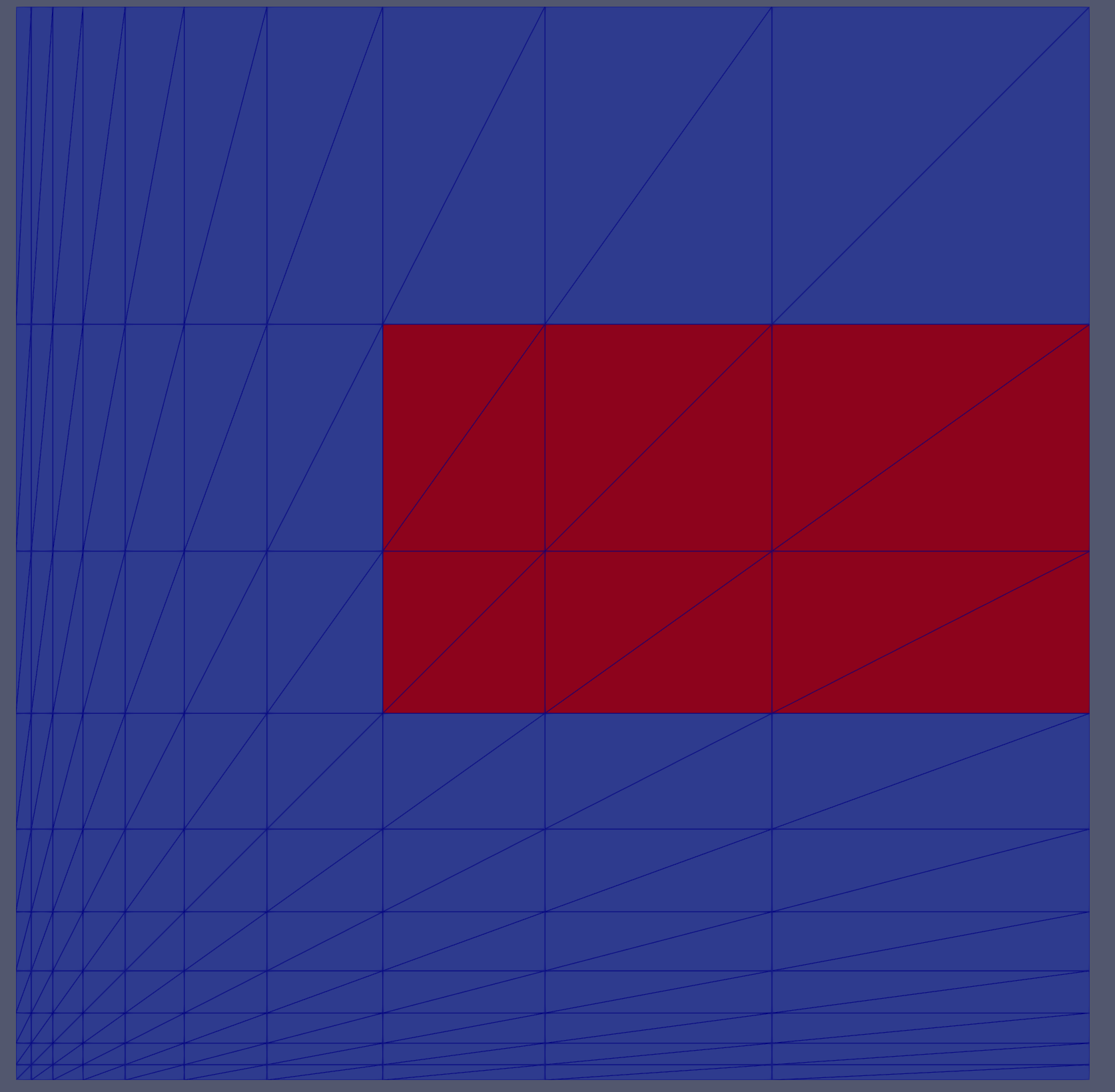

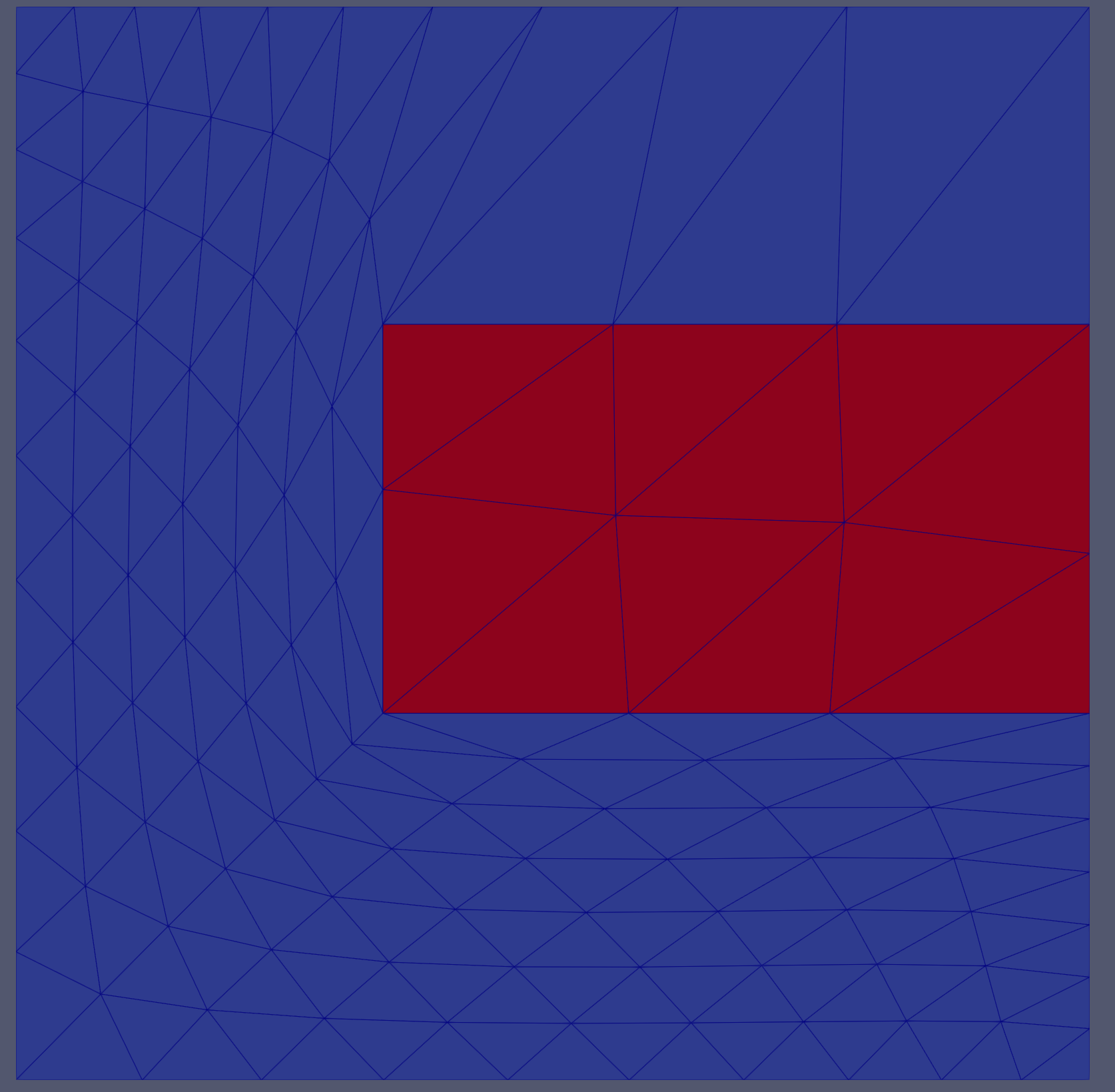

As an example here is an original mesh going through 12 iterations of this smoother:

Input Parameters

  • inputThe mesh we want to smooth.

    C++ Type:MeshGeneratorName

    Controllable:No

    Description:The mesh we want to smooth.

Required Parameters

  • iterations1The number of smoothing iterations to do.

    Default:1

    C++ Type:unsigned int

    Controllable:No

    Description:The number of smoothing iterations to do.

Optional Parameters

  • control_tagsAdds user-defined labels for accessing object parameters via control logic.

    C++ Type:std::vector<std::string>

    Controllable:No

    Description:Adds user-defined labels for accessing object parameters via control logic.

  • enableTrueSet the enabled status of the MooseObject.

    Default:True

    C++ Type:bool

    Controllable:No

    Description:Set the enabled status of the MooseObject.

  • save_with_nameKeep the mesh from this mesh generator in memory with the name specified

    C++ Type:std::string

    Controllable:No

    Description:Keep the mesh from this mesh generator in memory with the name specified

Advanced Parameters

  • nemesisFalseWhether or not to output the mesh file in the nemesisformat (only if output = true)

    Default:False

    C++ Type:bool

    Controllable:No

    Description:Whether or not to output the mesh file in the nemesisformat (only if output = true)

  • outputFalseWhether or not to output the mesh file after generating the mesh

    Default:False

    C++ Type:bool

    Controllable:No

    Description:Whether or not to output the mesh file after generating the mesh

  • show_infoFalseWhether or not to show mesh info after generating the mesh (bounding box, element types, sidesets, nodesets, subdomains, etc)

    Default:False

    C++ Type:bool

    Controllable:No

    Description:Whether or not to show mesh info after generating the mesh (bounding box, element types, sidesets, nodesets, subdomains, etc)

Debugging Parameters

Input Files
