- T_initial_guess400Temperature initial guess for Newton Method variable set conversion
Default:400
C++ Type:double
Unit:(no unit assumed)
Controllable:No
Description:Temperature initial guess for Newton Method variable set conversion
- max_newton_its100Maximum number of Newton iterations for variable set conversions
Default:100
C++ Type:unsigned int
Controllable:No
Description:Maximum number of Newton iterations for variable set conversions
- p_initial_guess200000Pressure initial guess for Newton Method variable set conversion
Default:200000
C++ Type:double
Unit:(no unit assumed)
Controllable:No
Description:Pressure initial guess for Newton Method variable set conversion
- tolerance1e-08Tolerance for 2D Newton variable set conversion
Default:1e-08
C++ Type:double
Unit:(no unit assumed)
Controllable:No
Description:Tolerance for 2D Newton variable set conversion
Water97FluidProperties
Fluid properties for water and steam (H2O) using IAPWS-IF97

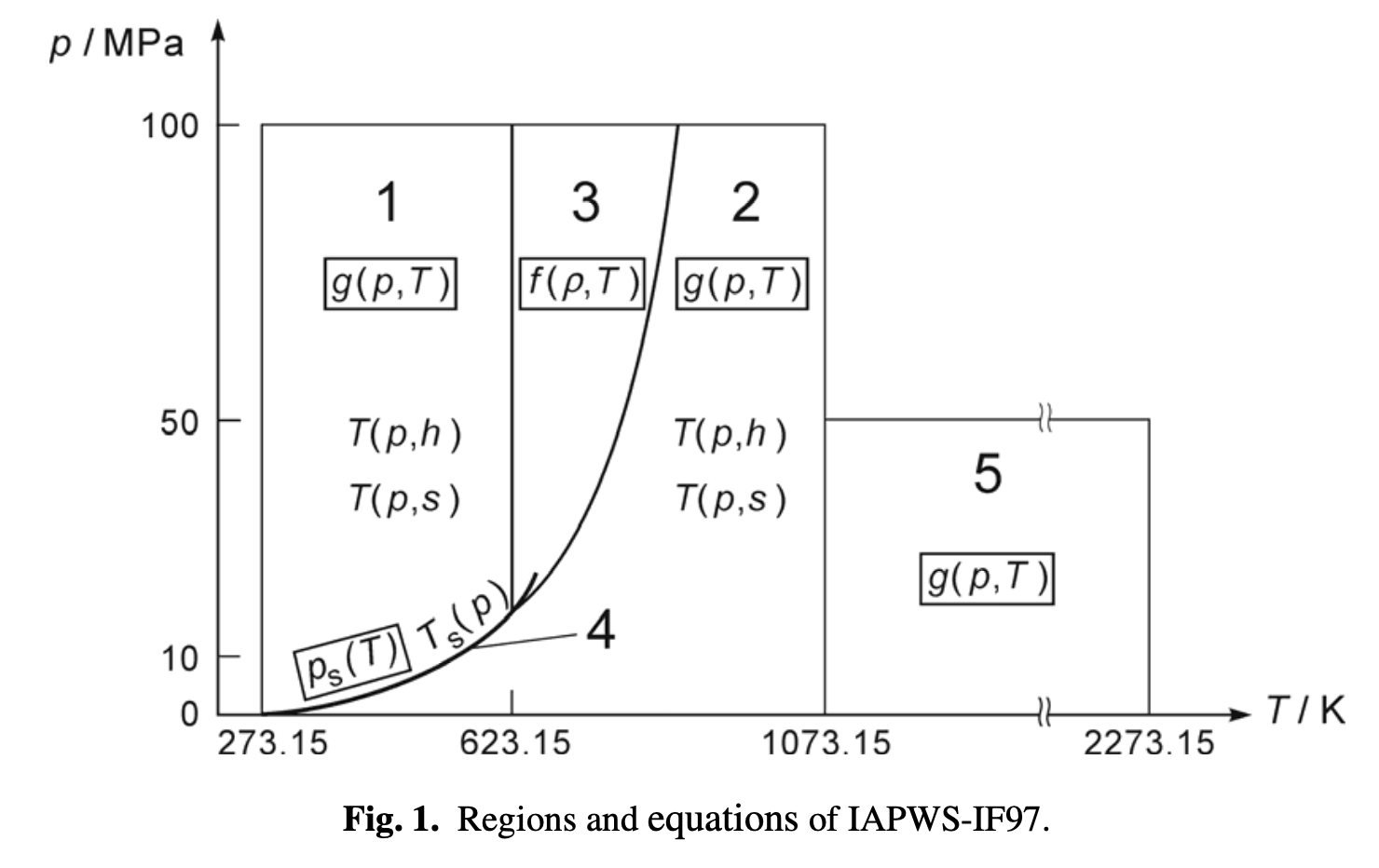

The water implementation in Fluid Properties is the IAPWS Industrial Formulation 1997 for the Thermodynamic Properties of Water and Steam. This formulation calculates properties of water and steam using pressure and temperature as inputs. The IAPWS-IF97 formulation is split into five different regions in the phase diagram.
All five regions are implemented in the Fluid Properties module. To avoid iteration in region 3 of the IAPWS-IF97 formulation, the backwards equations from IAPWS (2014) are implemented.
Viscosity is calculated using the IAPWS 2008 formulation (IAPWS, 2008). Note that the critical enhancement has not been implemented.
Thermal conductivity is calculated using the IAPS 1985 formulation (IAPS, 1985). Although there is a newer formulation available (IAPWS, 2011), it is significantly more complicated, so has not been implemented yet.
Dissolution of a dilute gas into water is calculated using Henry's law (IAPWS, 2004).
Properties of water
| Property | value |
|---|---|
| Molar mass | 0.018015 kg/mol |
| Critical temperature | 647.096 K |
| Critical pressure | 22.064 MPa |
| Critical density | 322.0 kg/m |
| Triple point temperature | 273.16 K |
| Triple point pressure | 611.657 Pa |
Range of validity
The Water97FluidProperties UserObject is valid for:
273.15 K T 1073.15 K for p 100 MPa
1073.15 K T 2273.15 K for p 50 MPa
Input Parameters
- allow_imperfect_jacobiansFalsetrue to allow unimplemented property derivative terms to be set to zero for the AD API
Default:False
C++ Type:bool
Controllable:No
Description:true to allow unimplemented property derivative terms to be set to zero for the AD API
- control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector<std::string>
Controllable:No
Description:Adds user-defined labels for accessing object parameters via control logic.
- enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Controllable:Yes
Description:Set the enabled status of the MooseObject.
- fp_typesingle-phase-fpType of the fluid property object
Default:single-phase-fp
C++ Type:FPType
Controllable:No
Description:Type of the fluid property object
Advanced Parameters
- prop_getter_suffixAn optional suffix parameter that can be appended to any attempt to retrieve/get material properties. The suffix will be prepended with a '_' character.
C++ Type:MaterialPropertyName
Unit:(no unit assumed)
Controllable:No
Description:An optional suffix parameter that can be appended to any attempt to retrieve/get material properties. The suffix will be prepended with a '_' character.
- use_interpolated_stateFalseFor the old and older state use projected material properties interpolated at the quadrature points. To set up projection use the ProjectedStatefulMaterialStorageAction.
Default:False
C++ Type:bool
Controllable:No
Description:For the old and older state use projected material properties interpolated at the quadrature points. To set up projection use the ProjectedStatefulMaterialStorageAction.
Material Property Retrieval Parameters
Input Files
- (modules/subchannel/test/tests/problems/psbt/psbt_implicit.i)
- (modules/porous_flow/test/tests/fluids/brine1_tabulated.i)
- (modules/porous_flow/examples/tutorial/05.i)
- (modules/porous_flow/test/tests/recover/theis.i)
- (modules/subchannel/verification/friction_model_verification/two_channel.i)
- (modules/subchannel/test/tests/problems/psbt/psbt_full_monolithic.i)
- (modules/porous_flow/examples/tutorial/11.i)
- (modules/subchannel/test/tests/problems/psbt/psbt_explicit_v2.i)
- (modules/thermal_hydraulics/test/tests/components/inlet_mass_flow_rate_1phase/jac.massflowrate_3eqn_water97.i)
- (modules/porous_flow/examples/multiapp_fracture_flow/3dFracture/fracture_only_aperture_changing.i)
- (modules/porous_flow/test/tests/fluidstate/waterncg_nonisothermal.i)
- (modules/porous_flow/test/tests/fluidstate/water_vapor_tab.i)
- (modules/subchannel/test/tests/problems/psbt/psbt_explicit_staggered.i)
- (modules/porous_flow/test/tests/fluidstate/coldwater_injection.i)
- (modules/subchannel/examples/coupling/thermo_mech/quad/one_pin_problem.i)
- (modules/porous_flow/test/tests/jacobian/waterncg_twophase_nonisothermal.i)
- (modules/subchannel/validation/psbt/psbt_ss/psbt.i)
- (modules/porous_flow/test/tests/fluidstate/water_vapor_phasechange.i)
- (modules/porous_flow/examples/natural_convection/natural_convection.i)
- (modules/porous_flow/test/tests/fluidstate/theis_nonisothermal.i)
- (modules/subchannel/test/tests/problems/psbt/psbt_explicit.i)
- (modules/subchannel/examples/heating_test/3X3_channel.i)
- (modules/subchannel/validation/PNNL_12_pin/transient/2X6_transient.i)
- (modules/porous_flow/test/tests/fluidstate/waterncg_ic.i)
- (modules/porous_flow/examples/fluidflower/fluidflower.i)
- (modules/porous_flow/examples/tutorial/11_2D.i)
- (modules/porous_flow/test/tests/sinks/injection_production_eg.i)
- (modules/subchannel/examples/mesh_generator/psbt_mesh_generator_test.i)
- (modules/porous_flow/test/tests/fluidstate/theis_tabulated.i)
- (modules/porous_flow/examples/solute_tracer_transport/solute_tracer_transport.i)
- (modules/subchannel/test/tests/SCMQuadPower/test.i)
- (modules/subchannel/validation/psbt/psbt_null_transient/psbt_ss.i)
- (modules/subchannel/test/tests/ics/FCTFdisplacementIC/test.i)
- (modules/porous_flow/examples/reservoir_model/field_model.i)
- (modules/subchannel/test/tests/problems/psbt/psbt_monolithic.i)
- (modules/subchannel/validation/Blockage/PNNL_7x7/7X7blockage90.i)
- (modules/porous_flow/test/tests/fluidstate/waterncg.i)
- (modules/porous_flow/test/tests/ics/fluidpropic.i)
- (modules/subchannel/test/tests/problems/psbt/psbt_full_monolithic_staggered.i)
- (modules/subchannel/test/tests/problems/coupling/main.i)
- (modules/subchannel/validation/PNNL_12_pin/steady_state/2X6_ss.i)
- (modules/subchannel/test/tests/restart/steady.i)
- (modules/subchannel/verification/friction_model_verification/two_channel2.i)
- (modules/porous_flow/examples/co2_intercomparison/1Dradial/1Dradial.i)
- (modules/subchannel/test/tests/gravity/one_pin_problem.i)
- (modules/porous_flow/examples/solute_tracer_transport/solute_tracer_transport_2D.i)
- (modules/porous_flow/test/tests/fluids/h2o.i)
- (modules/fluid_properties/test/tests/brine/brine_tabulated.i)
- (modules/porous_flow/test/tests/jacobian/brineco2_liquid.i)
- (modules/porous_flow/test/tests/fluidstate/theis_brineco2.i)
- (modules/porous_flow/test/tests/sinks/injection_production_eg_outflowBC.i)
- (modules/subchannel/verification/enthalpy_mixing_verification/two_channel.i)
- (modules/fluid_properties/test/tests/water/water.i)
- (modules/subchannel/validation/areva_FCTF/FCTF_non_deformed.i)
- (modules/subchannel/test/tests/restart/transient.i)
- (modules/porous_flow/test/tests/fluidstate/water_vapor.i)
- (modules/porous_flow/test/tests/jacobian/waterncg_gas.i)
- (modules/porous_flow/test/tests/ics/fluidpropic_celsius.i)
- (modules/porous_flow/examples/ates/ates.i)
- (modules/porous_flow/test/tests/fluidstate/coldwater_injection_radial.i)
- (modules/subchannel/test/tests/transfers/multiapp_detailed_solution_transfer/quad.i)
- (modules/subchannel/test/tests/SCMQuadPower/test_with_pins.i)
- (modules/subchannel/validation/areva_FCTF/FCTF_deformed.i)
- (modules/porous_flow/examples/tutorial/05_tabulated.i)
- (modules/subchannel/validation/Blockage/PNNL_7x7/7X7blockage70.i)
- (modules/porous_flow/test/tests/jacobian/waterncg_liquid.i)
- (modules/subchannel/validation/psbt/psbt_null_transient/psbt_transient.i)
- (modules/porous_flow/test/tests/jacobian/brineco2_gas.i)
- (modules/porous_flow/test/tests/jacobian/waterncg_twophase.i)
- (modules/porous_flow/test/tests/jacobian/brineco2_twophase.i)
- (modules/porous_flow/examples/reservoir_model/regular_grid.i)
- (modules/porous_flow/test/tests/fluidstate/theis.i)
References
- IAPS.
Revised Release on the IAPS Formulation 1985 for the Thermal Conductivity of Ordinary Water Substance.
Technical Report, IAPWS, 1985.[BibTeX]
@techreport{iaps1985, author = "IAPS", title = "{Revised Release on the IAPS Formulation 1985 for the Thermal Conductivity of Ordinary Water Substance}", institution = "IAPWS", year = "1985" } - IAPWS.
Guidelines on the Henry's constant and vapour liquid distribution constant for gases in H$_2$O and D$_2$O at high temperatures.
Technical Report, IAPWS, 2004.[BibTeX]
@techreport{iapws2004, author = "IAPWS", title = "{Guidelines on the Henry's constant and vapour liquid distribution constant for gases in H$\_2$O and D$\_2$O at high temperatures}", institution = "IAPWS", year = "2004" } - IAPWS.
Release on the IAPWS Formulation 2008 for the Viscosity of Ordinary Water Substance.
Technical Report, IAPWS, 2008.
URL: www.iapws.org/relguide/visc.pdf.[BibTeX]
@techreport{iapws2008, author = "IAPWS", title = "{Release on the IAPWS Formulation 2008 for the Viscosity of Ordinary Water Substance}", institution = "IAPWS", url = "www.iapws.org/relguide/visc.pdf", year = "2008" } - IAPWS.
Release on the IAPWS Formulation 2011 for the Thermal Conductivity of Ordinary Water Substance.
Technical Report, IAPWS, 2011.
URL: www.iapws.org/relguide/ThCond.pdf.[BibTeX]
@techreport{iapws2011, author = "IAPWS", title = "{Release on the IAPWS Formulation 2011 for the Thermal Conductivity of Ordinary Water Substance}", institution = "IAPWS", url = "www.iapws.org/relguide/ThCond.pdf", year = "2011" } - IAPWS.
Revised Supplementary Release on Backward Equations for Specific Volume as a Function of Pressure and Temperature v(p,T) for Region 3 of the IAPWS Industrial Formulation 1997 for the Thermodynamic Properties of Water and Steam.
Technical Report, IAPWS, 2014.
URL: www.iapws.org/relguide/Supp-VPT3-2016.pdf.[BibTeX]
@techreport{iapws1997region3, author = "IAPWS", title = "{Revised Supplementary Release on Backward Equations for Specific Volume as a Function of Pressure and Temperature v(p,T) for Region 3 of the IAPWS Industrial Formulation 1997 for the Thermodynamic Properties of Water and Steam}", institution = "IAPWS", url = "www.iapws.org/relguide/Supp-VPT3-2016.pdf", type = "", year = "2014" }
