MOOSE Introduction

Multi-physics Object Oriented Simulation Environment

Governing Equations

Conservation of Mass:

\nabla \cdot \vec{u} = 0

Conservation of Energy:

C\left( \frac{\partial T}{\partial t} + \epsilon \vec{u}\cdot\nabla T \right) - \nabla\cdot k \nabla T = 0

Darcy's Law:

\vec{u} = -\frac{\mathbf{K}}{\mu} (\nabla p - \rho \vec{g})

where $\vec{u}$ is the fluid velocity, $\epsilon$ is porosity, $\mathbf{K}$ is the permeability tensor, $\mu$ is fluid viscosity, $p$ is the pressure, $\rho$ is the density, $\vec{g}$ is the gravity vector, and $T$ is the temperature.

Assuming that $\vec{g}=0$ and imposing the divergence-free condition of Eq. (1) to Eq. (3) leads to the following system of two equations in the unknowns $p$ and $T$ :

-\nabla \cdot \frac{\mathbf{K}}{\mu} \nabla p = 0

C\left( \frac{\partial T}{\partial t} + \epsilon \vec{u}\cdot\nabla T \right) - \nabla \cdot k \nabla T = 0

The parameters $\rho$ , $C$ , and $k$ are the porosity-dependent density, heat capacity, and thermal conductivity of the combined fluid/solid medium, defined by:

\rho \equiv \epsilon \rho_f + (1-\epsilon) \rho_s \\ C \equiv \epsilon \rho_f {c_p}_f + (1-\epsilon) \rho_s {c_p}_s \\ k \equiv \epsilon k_f + (1-\epsilon) k_s

where $\epsilon$ is the porosity, $c_p$ is the specific heat, and the subscripts $f$ and $s$ refer to fluid and solid, respectively.

Material Properties

Property	Value	Units
Viscosity of water, $\mu_f$	$7.98\times10^{-4}$	$\textrm{P}\cdot\textrm{s}$
Density of water, $\rho_f$	995.7	$\textrm{kg}/\textrm{m}^3$
Density of steel, $\rho_s$	8000	$\textrm{kg}/\textrm{m}^3$
Thermal conductivity of water, $k_f$	0.6	$\textrm{W}/\textrm{m}\,\textrm{K}$
Thermal conductivity of steel, $k_s$	18	$\textrm{W}/\textrm{m}\,\textrm{K}$
Specific heat capacity of water, $c_p{_f}$	4181.3	$\textrm{J}/(\textrm{kg}\,\textrm{K})$
Specific heat capacity of steel, $c_p{_s}$	466	$\textrm{J}/(\textrm{kg}\,\textrm{K})$

Step 6: Equation Coupling

Solve the pressure and temperature in a coupled system of equations by adding the advection term to the heat equation.

-\nabla \cdot \frac{\mathbf{K}}{\mu} \nabla p = 0 \\ C\left( \frac{\partial T}{\partial t} + \epsilon \vec{u}\cdot\nabla T \right) - \nabla \cdot k \nabla T = 0

First, consider the steady-state diffusion equation on the domain $\Omega$ : find $u$ such that

-\nabla \cdot \nabla u = 0 \in \Omega,

where $u = 4000$ on the left, $u = 0$ on the right and with $\nabla u \cdot \hat{n} = 0$ on the remaining boundaries.

The weak form of this equation, in inner-product notation, is given by:

\left(\nabla \psi_i, \nabla u_h\right) = 0 \quad \forall \psi_i,

where $\psi_i$ are the test functions and $u_h$ is the finite element solution.

Input File(s)

All capabilities of MOOSE, modules, and your application are compiled into a single executable. An input file is used define which capabilities are used to perform a simulation.

MOOSE uses the "hierarchical input text" (hit) format.

[Kernels]
  [diffusion]
    type = ADDiffusion # Laplacian operator using automatic differentiation
    variable = pressure # Operate on the "pressure" variable from above
  []
[]Copy

(tutorials/darcy_thermo_mech/step01_diffusion/problems/step1.i)

Step 1: Input File

[Mesh]
  type = GeneratedMesh # Can generate simple lines, rectangles and rectangular prisms
  dim = 2              # Dimension of the mesh
  nx = 100             # Number of elements in the x direction
  ny = 10              # Number of elements in the y direction
  xmax = 0.304         # Length of test chamber
  ymax = 0.0257        # Test chamber radius
[]

[Variables]
  [pressure]
    # Adds a Linear Lagrange variable by default
  []
[]

[Kernels]
  [diffusion]
    type = ADDiffusion  # Laplacian operator using automatic differentiation
    variable = pressure # Operate on the "pressure" variable from above
  []
[]

[BCs]
  [inlet]
    type = DirichletBC  # Simple u=value BC
    variable = pressure # Variable to be set
    boundary = left     # Name of a sideset in the mesh
    value = 4000        # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0           # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
[]

[Problem]
  type = FEProblem  # This is the "normal" type of Finite Element Problem in MOOSE
  coord_type = RZ   # Axisymmetric RZ
  rz_coord_axis = X # Which axis the symmetry is around
[]

[Executioner]
  type = Steady       # Steady state problem
  solve_type = NEWTON # Perform a Newton solve, uses AD to compute Jacobian terms
  petsc_options_iname = '-pc_type -pc_hypre_type' # PETSc option pairs with values below
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true # Output Exodus format
[]Copy

(tutorials/darcy_thermo_mech/step01_diffusion/problems/step1.i)

Step 1: Run and Visualize with Peacock

cd ~/projects/moose/tutorials/darcy-thermo_mech/step01_diffusion
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step1.iCopy

Step 1: Run via Command-line

cd ~/projects/moose/tutorials/darcy-thermo_mech/step01_diffusion
make -j 12 # use number of processors for you system
cd problems
../darcy_thermo_mech-opt -i step1.iCopy

Step 1: Visualize Result

~/projects/moose/python/peacock/peacock -r step1_out.eCopy

Polynomial Fitting

To introduce the concept of FEM, consider a polynomial fitting exercise. When fitting a polynomial there is a known set of points as well as a set of coefficients that are unkown for a function that has the form:

f(x) = a + bx + cx^2 + \dots,

where $a$ , $b$ and $c$ are scalar coefficients and $1$ , $x$ , $x^2$ are "basis functions". Thus, the problem is to find $a$ , $b$ , $c$ , etc. such that $f(x)$ passes through the points given.

More generally,

f(x) = \sum_{i=0}^d c_i x^i,

where the $c_i$ are coefficients to be determined. $f(x)$ is unique and interpolary if $d+1$ is the same as the number of points needed to fit. This defines a linear system that must be solved to find the coefficients.

Polynomial Example

Define a set of points:

(x_1, y_1) = (1,4) \\ (x_2, y_2) = (3,1) \\ (x_3, y_3) = (4,2)

Substitute $(x_i, y_i)$ data into the model:

y_i = a + bx_i + cx_i^2, i=1,2,3.

This leads to the following linear system for $a$ , $b$ , and $c$ :

\begin{bmatrix} 1 & 1 & 1 \\ 1 & 3 & 9 \\ 1 & 4 & 16 \end{bmatrix} \begin{bmatrix} a \\ b \\ c \end{bmatrix} = \begin{bmatrix} 4 \\ 1 \\ 2 \end{bmatrix}

Solving for the coefficients results in:

\begin{bmatrix} a \\ b \\ c \end{bmatrix} = \begin{bmatrix} 8 \\ \frac{29}{6} \\ \frac{5}{6} \end{bmatrix}

These coefficients define the solution function:

f(x) = 8 - \frac{29}{6} x + \frac{5}{6} x^2

The solution is the function, not the coefficients.

The coefficients are meaningless, they are just numbers used to define a function.

The solution is not the coefficients, but rather the function created when they are multiplied by their respective basis functions and summed.

The function $f(x)$ does go through the points given, but it is also defined everywhere in between.

$f(x)$ can be evaluated at the point $x=2$ , for example, by computing:

f(2) = \sum_{i=0}^2 c_i 2^i = \sum_{i=0}^2 c_i g_i(2),

where the $c_i$ correspond to the coefficients in the solution vector, and the $g_i$ are the respective functions.

Weak Form

Using FEM to find the solution to a PDE starts with forming a "weighted residual" or "variational statement" or "weak form", this processes if referred to here as generating a weak form.

The weak form provides flexibility, both mathematically and numerically and it is needed by MOOSE to solve a problem.

Generating a weak form generally involves these steps:

Write down strong form of PDE.
Rearrange terms so that zero is on the right of the equals sign.
Multiply the whole equation by a "test" function $\psi$ .
Integrate the whole equation over the domain $\Omega$ .
Integrate by parts and use the divergence theorem to get the desired derivative order on your functions and simultaneously generate boundary integrals.

Integration by Parts and Divergence Theorem

Suppose $\varphi$ is a scalar function, $\vec{v}$ is a vector function, and both are continuously differentialable functions, then the product rule states:

\nabla\cdot(\varphi\vec{v}) = \varphi(\nabla\cdot\vec{v}) + \vec{v}\cdot(\nabla \varphi)

The function can be integrated over the volume $V$ and rearranged as:

\int \varphi(\nabla\cdot\vec{v})\,dV = \int \nabla\cdot(\varphi\vec{v})\,dV - \int \vec{v}\cdot(\nabla\varphi)\,dV

The divergence theorem transforms a volume integral into a surface integral on surface $s$ :

\int \nabla \cdot (\varphi\vec{v})\,\text{d}V = \int \varphi\vec{v}\cdot\hat{n}\,\text{d}s,

where $\hat{n}$ is the outward normal vector for surface $s$ . Combining Eq. (4) and Eq. (5) yield:

\boxed{\int \varphi (\nabla\cdot\vec{v})\,dV = \int \varphi\vec{v}\cdot\hat{n}\,ds - \int\vec{v}\cdot(\nabla\varphi)\,dV}

Example: Advection-Diffusion

(1) Write the strong form of the equation:

-\nabla\cdot k\nabla u + \vec{\beta} \cdot \nabla u = f

(2) Rearrange to get zero on the right-hand side:

-\nabla\cdot k\nabla u + \vec{\beta} \cdot \nabla u - f = 0

(3) Multiply by the test function $\psi$ :

-\psi \left(\nabla\cdot k\nabla u\right) + \psi\left(\vec{\beta} \cdot \nabla u\right) - \psi f = 0

(4) Integrate over the domain $\Omega$ :

{-\int_\Omega\psi \left(\nabla\cdot k\nabla u\right)} + \int_\Omega\psi\left(\vec{\beta} \cdot \nabla u\right) - \displaystyle\int_\Omega\psi f = 0

(5) Integrate by parts and apply the divergence theorem, by using Eq. (6) on the left-most term of the PDE:

\int_\Omega\nabla\psi\cdot k\nabla u - \int_{\partial\Omega} \psi \left(k\nabla u \cdot \hat{n}\right) + \int_\Omega\psi\left(\vec{\beta} \cdot \nabla u\right) - \int_\Omega\psi f = 0

Write in inner product notation. Each term of the equation will inherit from an existing MOOSE type as shown below.

\underbrace{\left(\nabla\psi, k\nabla u \right)}_{Kernel} - \underbrace{\langle\psi, k\nabla u\cdot \hat{n} \rangle}_{BoundaryCondition} + \underbrace{\left(\psi, \vec{\beta} \cdot \nabla u\right)}_{Kernel} - \underbrace{\left(\psi, f\right)}_{Kernel} = 0

Shape Functions

The discretized expansion of $u$ takes on the following form:

u \approx u_h = \sum_{j=1}^N u_j \phi_j,

where $\phi_j$ are the "basis functions", which form the basis for the the "trial function", $u_h$ . $N$ is the total number of functions for the discretized domain.

The gradient of $u$ can be expanded similarly:

\nabla u \approx \nabla u_h = \sum_{j=1}^N u_j \nabla \phi_j

In the Galerkin finite element method, the same basis functions are used for both the trial and test functions:

\psi = \{\phi_i\}_{i=1}^N

Substituting these expansions back into the example weak form (Eq. (7)) yields:

\left(\nabla\psi_i, k\nabla u_h \right) - \langle\psi_i, k\nabla u_h\cdot \hat{n} \rangle + \left(\psi_i, \vec{\beta} \cdot \nabla u_h\right) - \left(\psi_i, f\right) = 0, \quad i=1,\ldots,N

The left-hand side of the equation above is referred to as the $i^{th}$ component of the "residual vector," $\vec{R}_i(u_h)$ .

Shape Functions are the functions that get multiplied by coefficients and summed to form the solution.

Individual shape functions are restrictions of the global basis functions to individual elements.

They are analogous to the $x^n$ functions from polynomial fitting (in fact, you can use those as shape functions).

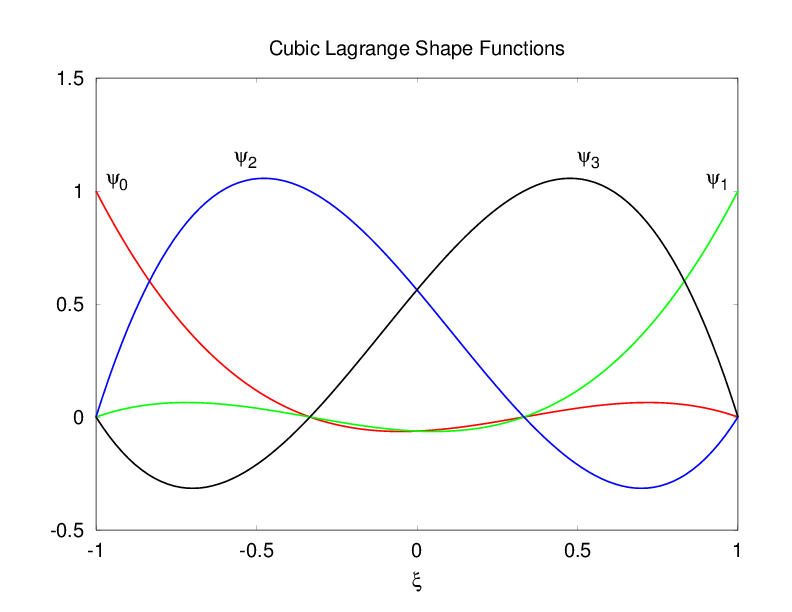

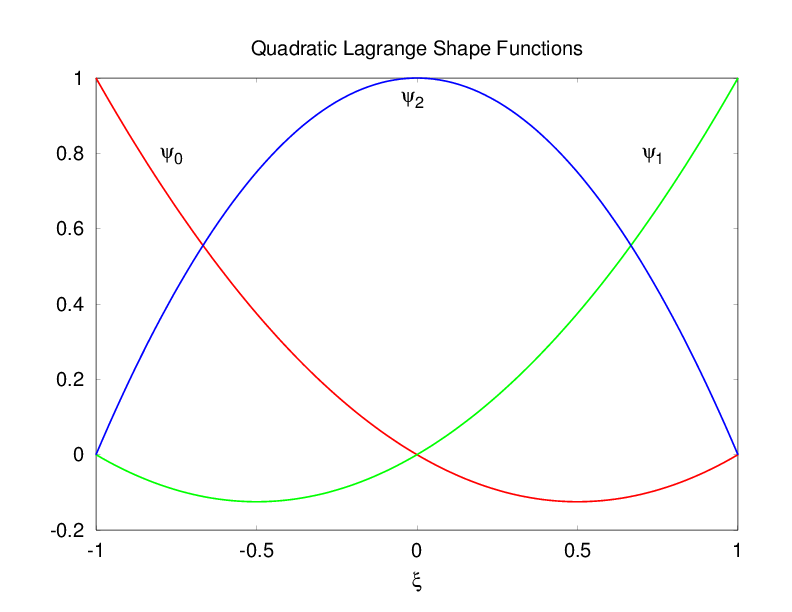

Typical shape function families: Lagrange, Hermite, Hierarchic, Monomial, Clough-Toucher

Lagrange shape functions are the most common, which are interpolary at the nodes, i.e., the coefficients correspond to the values of the functions at the nodes.

2D Lagrange Shape Functions

Example bi-quadratic basis functions defined on the Quad9 element:

$\psi_0$ is associated to a "corner" node, it is zero on the opposite edges.
$\psi_4$ is associated to a "mid-edge" node, it is zero on all other edges.
$\psi_8$ is associated to the "center" node, it is symmetric and $\geq 0$ on the element.

$\psi_0$

$\psi_4$

$\psi_8$

Numerical Integration

The only remaining non-discretized parts of the weak form are the integrals. First, split the domain integral into a sum of integrals over elements:

\int_{\Omega} f(\vec{x}) \;\text{d}\vec{x} = \sum_e \int_{\Omega_e} f(\vec{x}) \;\text{d}\vec{x}

Through a change of variables, the element integrals are mapped to integrals over the "reference" elements $\hat{\Omega}_e$ .

\sum_e \int_{\Omega_e} f(\vec{x}) \;\text{d}\vec{x} = \sum_e \int_{\hat{\Omega}_e} f(\vec{\xi}) \left|\mathcal{J}_e\right| \;\text{d}\vec{\xi},

where $\mathcal{J}_e$ is the Jacobian of the map from the physical element to the reference element.

Quadrature

Quadrature, typically "Gaussian quadrature", is used to approximate the reference element integrals numerically.

\int_{\Omega} f(\vec{x})\;d\vec{x} \approx \sum_q w_q f(\vec{x}_q),

where $w_q$ is the weight function at quadrature point $q$ .

Under certain common situations, the quadrature approximation is exact. For example, in 1 dimension, Gaussian Quadrature can exactly integrate polynomials of order $2n-1$ with $n$ quadrature points.

Quadrature applied to Eq. (9) yields an equation that can be analyzed numerically:

\sum_e \int_{\hat{\Omega}_e} f(\vec{\xi}) \left|\mathcal{J}_e\right| \;\text{d}\vec{\xi} \approx \sum_e \sum_{q} w_{q} f( \vec{x}_{q}) \left|\mathcal{J}_e(\vec{x}_{q})\right|,

where $\vec{x}_{q}$ is the spatial location of the $q^\textrm{th}$ quadrature point and $w_{q}$ is its associated weight.

MOOSE handles multiplication by the Jacobian ( $\mathcal{J}_e$ ) and the weight ( $w_{q}$ ) automatically, thus your Kernel object is only responsible for computing the $f(\vec{x}_{q})$ part of the integrand.

Sampling $u_h$ at the quadrature points yields:

\begin{aligned} u(\vec{x}_{q}) &\approx u_h(\vec{x}_{q}) = \sum u_j \phi_j(\vec{x}_{q}) \\ \nabla u (\vec{x}_{q}) &\approx \nabla u_h(\vec{x}_{q}) = \sum u_j \nabla \phi_j(\vec{x}_{q}) \end{aligned}

Thus, the weak form of Eq. (8) becomes:

\begin{aligned} \vec{R}_i(u_h) &= \sum_e \sum_{q} w_{q} \left|\mathcal{J}_e\right|\underbrace{\left[ \nabla\psi_i\cdot k \nabla u_h + \psi_i \left(\vec\beta\cdot \nabla u_h \right) - \psi_i f \right](\vec{x}_{q})}_{\textrm{Kernel Object(s)}} \\ &- \sum_f \sum_{q_{face}} w_{q_{face}} \left|\mathcal{J}_f\right|\underbrace{\left[\psi_i k \nabla u_h \cdot \vec{n} \right](\vec x_{q_{face}})}_{\textrm{BoundaryCondition Object(s)}} \end{aligned}

The second sum is over boundary faces, $f$ . MOOSE Kernel or BoundaryCondition objects provide each of the terms in square brackets (evaluated at $\vec{x}_{q}$ or $\vec x_{q_{face}}$ as necessary), respectively.

Newton's Method

Newton's method is a "root finding" method with good convergence properties, in "update form", for finding roots of a scalar equation it is defined as: $f(x)=0$ , $f(x): \mathbb{R} \rightarrow \mathbb{R}$ is given by

\begin{aligned} f'(x_n) \delta x_{n+1} &= -f(x_n) \\ x_{n+1} &= x_n + \delta x_{n+1} \end{aligned}

Newton's Method in MOOSE

The residual, $\vec{R}_i(u_h)$ , as defined by Eq. (10) is a nonlinear system of equations,

\vec{R}_i(u_h)=0, \qquad i=1,\ldots, N,

that is used to solve for the coefficients $u_j, j=1,\ldots,N$ .

For this system of nonlinear equations Newton's method is defined as:

\begin{aligned} \mathbf{J}(\vec{u}_n) \delta\vec{u}_{n+1} &= -\vec{R}(\vec{u}_n) \\ \vec{u}_{n+1} &= \vec{u}_n + \delta\vec{u}_{n+1} \end{aligned}

where $\mathbf{J}(\vec{u}_n)$ is the Jacobian matrix evaluated at the current iterate:

J_{ij}(\vec{u}_n) = \frac{\partial \vec{R}_i(\vec{u}_n)}{\partial u_j}

Jacobian Free Newton Krylov (JFNK)

$\mathbf{J}(\vec{u}_n)\delta \vec{u}_{n+1} = -\vec{R}(\vec{u}_n)$ is a linear system solved during each Newton step.

In MOOSE an iterative Krylov method is used to produce a sequence of iterates $(\delta \vec{u}_{n+1})_k \rightarrow \delta \vec{u}_{n+1}$ , $k=1,2,\ldots$

$\mathbf{J}(\vec{u}_n)$ and $-\vec{R}(\vec{u}_n)$ remain fixed during the iterative process.

The "linear residual" at step $k$ is defined as:

\vec{\rho}_k \equiv \mathbf{J}(\vec{u}_n)(\delta \vec{u}_{n+1})_k + \vec{R}(\vec{u}_n)

MOOSE prints the norm of this vector, $\|\vec{\rho}_k\|$ , at each linear iteration and the "nonlinear residual" printed by MOOSE is $\|\vec{R}(\vec{u}_n)\|$ .

Krylov methods construct a subspace ( $\mathcal{K}_k$ ) for the iterate $k$ :

\mathcal{K}_k = \text{span}\{ \vec{b}, \mathbf{A}\vec{b}, \mathbf{A}^2\vec{b}, \ldots, \mathbf{A}^{k-1}\vec{b}\},

where $\mathbf{A} \equiv \mathbf{J}(\vec{u}_n)$ and $\vec{b} \equiv -\vec{R}(\vec{u}_n)$ .

Different Krylov methods produce the $(\delta \vec{u}_{n+1})_k$ iterates in different ways:

Conjugate Gradients: $\vec{\rho}_k$ orthogonal to $\mathcal{K}_k$ .
GMRES/MINRES: $\vec{\rho}_k$ has minimum norm for $(\delta \vec{u}_{n+1})_k$ in $\mathcal{K}_k$ .
Biconjugate Gradients: $\vec{\rho}_k$ is orthogonal to $\mathcal{K}_k((\mathbf{J}(\vec{u}_n))^T)$

The important part is that $\mathbf{J}$ is never explicitly needed to construct the subspace, only the action of $\mathbf{J}$ on a vector is required.

When using right preconditioning:

\mathbf{J} (\vec{u}_i) \mathbf{M}^{-1} (\mathbf{M}\delta \vec{u}_{i+1}) = -\vec{R}(\vec{u}_i)

$\mathbf{M}$ symbolically represents the preconditioning matrix or process, and with GMRES only the action of $\mathbf{M}^{-1}$ on a vector is required.

When right-preconditioned, Eq. (12) becomes:

\vec{\rho}_k \equiv \mathbf{J} (\vec{u}_i) \mathbf{M}^{-1} (\mathbf{M}\delta \vec{u}_{i+1})_k + \vec{R}(\vec{u}_i),

and Eq. (13) becomes:

\mathbf{J} (\vec{u}_i) \mathbf{M}^{-1}\vec{v} \approx \frac{\vec{R}(\vec{u}_i + \epsilon \mathbf{M}^{-1}\vec{v}) - \vec{R}(\vec{u}_i)}{\epsilon}

MOOSE Solve Types

The solve type is specified in the [Executioner] block within the input file:

[Executioner]
  solve_type = PJFNKCopy

Available options include:

PJFNK: Preconditioned Jacobian Free Newton Krylov (default)
JFNK: Jacobian Free Newton Krylov
NEWTON: Performs solve using exact Jacobian for preconditioning
FD: PETSc computes terms using a finite difference method (debug)

PJFNK

The Kernel method computeQpResidual is called to compute $\vec{R}(\vec{u}_n)$ during the nonlinear step (Eq. (11)).

During each linear step of Eq. (14) the computeQpResidual method is called to compute $\mathbf{J} (\vec{u}_i) \mathbf{M}^{-1}\vec{v}$ using Eq. (15). The computeQpJacobian and computeQpOffDiagJacobian methods are used to compute values for the preconditioning matrix $\mathbf{M}$ .

NEWTON

The Kernel method computeQpResidual is called to compute $\vec{R}(\vec{u}_n)$ during the nonlinear step (Eq. (11)).

The computeQpJacobian and computeQpOffDiagJacobian methods are used to compute the preconditioning matrix $\mathbf{M}$ . It is assumed that $\mathbf{M} = \mathbf{J}$ , thus the approximation in Eq. (15) is not needed allowing for the residual and Jacobian calculations to remain constant during the linear iterations in Eq. (14).

FEM Derivative Identities

The following relationships are useful when computing Jacobian terms.

\frac{\partial u_h}{\partial u_j} = \sum_k\frac{\partial }{\partial u_j}\left(u_k \phi_k\right) = \phi_j

\frac{\partial \left(\nabla u_h\right)}{\partial u_j} = \sum_k \frac{\partial }{\partial u_j}\left(u_k \nabla \phi_k\right) = \nabla \phi_j

Newton for a Simple Equation

Again, consider the advection-diffusion equation with nonlinear $k$ , $\vec{\beta}$ , and $f$ :

\begin{aligned} - \nabla\cdot k\nabla u + \vec{\beta} \cdot \nabla u = f \end{aligned}

Thus, the $i^{th}$ component of the residual vector is:

\begin{aligned} \vec{R}_i(u_h) = \left(\nabla\psi_i, k\nabla u_h \right) - \langle\psi_i, k\nabla u_h\cdot \hat{n} \rangle + \left(\psi_i, \vec{\beta} \cdot \nabla u_h\right) - \left(\psi_i, f\right) \end{aligned}

Using the previously-defined rules in Eq. (16) and Eq. (17) for $\frac{\partial u_h}{\partial u_j}$ and $\frac{\partial \left(\nabla u_h\right)}{\partial u_j}$ , the $(i,j)$ entry of the Jacobian is then:

\begin{aligned} J_{ij}(u_h) &= \left(\nabla\psi_i, \frac{\partial k}{\partial u_j}\nabla u_h \right) + \left(\nabla\psi_i, k \nabla \phi_j \right) - \left \langle\psi_i, \frac{\partial k}{\partial u_j}\nabla u_h\cdot \hat{n} \right\rangle \\&- \left \langle\psi_i, k\nabla \phi_j\cdot \hat{n} \right\rangle + \left(\psi_i, \frac{\partial \vec{\beta}}{\partial u_j} \cdot\nabla u_h\right) + \left(\psi_i, \vec{\beta} \cdot \nabla \phi_j\right) - \left(\psi_i, \frac{\partial f}{\partial u_j}\right) \end{aligned}

That even for this "simple" equation, the Jacobian entries are nontrivial: they depend on the partial derivatives of $k$ , $\vec{\beta}$ , and $f$ , which may be difficult or time-consuming to compute analytically.

In a multiphysics setting with many coupled equations and complicated material properties, the Jacobian might be extremely difficult to determine.

#pragma once
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wunused-parameter"
#pragma clang diagnostic popCopy

Basic Type	Variant(s)
\|bool	\|
\|char	unsigned
int	unsigned, long, short
float	\|
double	long
void	\|

Purpose	Symbols
Math	`+ - * / % += -= /= %= ++ --`
Comparison	`< > <= >= != ==`
Logical Comparison	`&& \|\| !`
Memory	`* & new delete sizeof`
Assignment	`=`
Member Access	`-> .`
Name Resolution	`::`

Expressions

Composite mathematical expressions:

a = b * (c - 4) / d++;Copy

Composite boolean expressions:

if (a && b && f()) { e = a; }Copy

Note, Operators && and || use "short-circuiting," so "b" and "f()" in the example above may not get evaluated.

Scope resolution operator:

t = std::pow(r, 2);
b = std::sqrt(d);Copy

Dot and Pointer Operator:

t = my_obj.someFunction();
b = my_ptr->someFunction();Copy

Type Casting

float pi = 3.14;Copy

int approx_pi = static_cast<int>(pi);Copy

Limits to Type Casting

Does not work to change to fundamentally different types

float f = (float) "3.14";   // won't compileCopy

Be careful with your assumptions

unsigned int huge_value = 4294967295; // ok
int i = static_cast<int>(huge_value); // won't work!Copy

Control Statements

For, While, and Do-While Loops:

for (int i=0; i<10; ++i) { }
while (boolean-expression)  { }
do { } while (boolean-expression);Copy

If-Then-Else Tests:

if (boolean-expression) { }
else if (boolean-expression) { }
else { }Copy

In the previous examples, boolean-expression is any valid C++ statement which results in true or false, such as:

if (0) // Always false
while (a > 5)

Switch Statement

switch (expression)
{
case constant1:
  // commands to execute if
  // expression==constant1 ...
  break;
case constant2:
case constant3:
  // commands to execute if
  // expression==constant2 OR expression==constant3...
  break;
default:
  // commands to execute if no previous case matched
}Copy

Declaration Examples

Free functions:

returnType functionName(type1 name1, type2 name2);Copy

Object member functions (methods):

class ClassName
{
  returnType methodName(type1 name1, type2 name2);
};Copy

Definition Examples

Function definition:

returnType functionName(type1 name1, type2 name2)
{
  // statesments
}Copy

Class method definition:

returnType ClassName::methodName(type1 name1, type2 name2)
{
   // statements
}Copy

Function Example: Addition

#include <iostream>
int addition (int a, int b)
{
  return a + b;
}

int main ()
{
  int z = addition(5,3);
  std::cout << "The result is " << z << "\n";
  return 0;
}Copy

Forward Declaration

#include <iostream>
int addition (int a, int b);

int main ()
{
  int z = addition (5,3);
  std::cout << "The result is " << z << "\n";
  return 0;
}

int addition (int a, int b)
{
  return a + b;
}Copy

Make

A Makefile is a list of dependencies with rules to satisfy those dependencies All MOOSE-based applications are supplied with a complete Makefile To build a MOOSE-based application just type:

makeCopy

Compiling, Linking, Executing

Compile and Link

g++ -O3 -o myExample myExample.CCopy

Compile only

g++ -O3 -o myExample.o -c myExample.CCopy

Link only

g++ -O3 -o myExample myExample.oCopy

Compiler/Linker Flags

Libraries (-L) and Include (-I) path Library Names (-l)

Remove the leading "lib" and trailing file extension when linking
libutils.so would link as -lutils

g++ -I/home/permcj/include -L/home/permcj/lib -lutils -Wall -o myExec myExec.oCopy

Execution

Basic execution

./myExecCopy

Finding shared libraries at runtime

Linux: ldd and $LD_LIBRARY_PATH
MacOS: otool

Addition Example (continued)

Header File (add.h)

#pragma once
int addition (int a, int b); // Function declarationCopy

Headers typically contain declarations only

Source File (add.C)

#include "add.h"
int addition (int a, int b)
{
  return a + b;
}Copy

Driver Program (main.C)

#include "add.h"
#include <iostream>
int main ()
{
  int z = addition(5,3);
  std::cout << "The result is " << z;
  return 0;
}Copy

"Named" Scopes

class scope

class MyObject
{
public:
  void myMethod();
};Copy

namespace scope

namespace MyNamespace
{
  float a;
  void myMethod();
}Copy

Scope Resolution Operator

"double colon" :: is used to refer to members inside of a named scope

// definition of the "myMethod" function of "MyObject"
void MyObject::myMethod()
{
  std::cout << "Hello, World!\n";
}
MyNamespace::a = 2.718;
MyNamespace::myMethod();Copy

Namespaces permit data organization, but do not have all the features needed for full encapsulation

Assignment

(Prequel to Pointers and Refs)

Recall that assignment in C++ uses the "single equals" operator:

a = b; // AssignmentCopy

Assignments are one of the most common operations in programming

Two operands are required

An assignable location on the left hand side (memory location)
An expression on the right hand side

Pointer Syntax

Declare a pointer

int *p;Copy

Use the address-of operator to initialize a pointer

int a;
p = &a;Copy

Use the dereference operator to get or set values pointed-to by the pointer

*p = 5;                  // set value of "a" through "p"
std::cout << *p << "\n"; // prints 5
std::cout <<  a << "\n"; // prints 5Copy

Pointer Syntax (continued)

int a = 5;
int *p;       // declare a pointer
p = &a;       // set 'p' equal to address of 'a'
*p = *p + 2;  // get value pointed to by 'p', add 2,
              // store result in same location
std::cout <<  a << "\n";  // prints 7
std::cout << *p << "\n";  // prints 7
std::cout <<  p << "\n";  // prints an address (0x7fff5fbfe95c)Copy

Pointers are Powerful but Unsafe

On the previous slide we had this:

p = &a;Copy

But we can do almost anything we want with p!

p = p + 1000;Copy

Now what happens when we do this?

*p;    // Access memory at &a + 1000Copy

References to the Rescue

A reference is an alternative name for an object (Stroustrup), think of it as an alias for the original variable

int a = 5;
int &r = a;  // define and initialize a ref
r = r + 2;
std::cout <<  a << "\n";  // prints 7
std::cout <<  r << "\n";  // prints 7
std::cout << &r << "\n";  // prints address of aCopy

References are Safe

References cannot be modified

&r = &r + 1;   // won't compileCopy

References never start out un-initialized

int &r;     // won't compileCopy

Note, that class declarations may contain references
If so, initialization must occur in the constructor!

Summary: Pointers and References

A pointer is a variable that holds a memory address to another variable

int *iPtr;  // Declaration
iPtr = &c;
int a = b + *iPtr;Copy

A reference is an alternative name for an object (Stroustrup), so it must reference an existing object

int &iRef = c;    // Must initialize
int a = b + iRef;Copy

Calling Conventions

What happens when you make a function call?

result = someFunction(a, b, my_shape);Copy

If the function changes the values inside of a, b or myshape, are those changes reflected in my code?
Is this call expensive? (Are arguments copied around?)
C++ by default is "Pass by Value" (copy) but you can pass arguments by reference (alias) with additional syntax

Swap Example (Pass by Value)

void swap(int a, int b)
{
  int temp = a;
  a = b;
  b = temp;
}
int i = 1;
int j = 2;
swap (i, j);                  // i and j are arguments
std::cout << i << " " << j;   // prints 1 2
                              // i and j are not swappedCopy

Swap Example (Pass by Reference)

void swap(int &a, int &b)
{
  int temp = a;
  a = b;
  b = temp;
}
int i = 1;
int j = 2;
swap (i, j);                  // i and j are arguments
std::cout << i << " " << j;   // prints 2 1
                              // i and j are properly swappedCopy

Example: Dynamic Memory

int a;
int *b;
b = new int; // dynamic allocation, what is b's value?
a = 4;
*b = 5;
int c = a + *b;
std::cout << c;  // prints 9
delete b;Copy

Example: Dynamic Memory Using References

int a;
int *b = new int;    // dynamic allocation
int &r = *b;         // creating a reference to newly created variable
a = 4;
r = 5;
int c = a + r;
std::cout << c;  // prints 9
delete b;Copy

Const

The const keyword is used to mark a variable, parameter, method or other argument as constant

Typically used with references and pointers to share objects but guarantee that they will not be modified

{
  std::string name("myObject");
  print(name);
  ...
}
void print(const std::string & name)
{
  // Attempting to modify name here will
  // cause a compile time error
  ...
}Copy

Function Overloading

In C++ you may reuse function names as long as they have different parameter lists or types. A difference only in the return type is not enough to differentiate overloaded signatures.

int foo(int value);
int foo(float value);
int foo(float value, bool is_initialized);
...Copy

This is very useful when we get to object "constructors".

Templates

C++ implements the generic programming paradigm with "templates".

Many of the finer details of C++ template usage are beyond the scope of this short tutorial.

Fortunately, only a small amount of syntactic knowledge is required to make effective basic use of templates.

template <class T>
T getMax (T a, T b)
{
  if (a > b)
    return a;
  else
    return b;
}Copy

Templates (continued)

template <class T>
T getMax (T a, T b)
{
  return (a > b ? a : b); // "ternary" operator
}
int i = 5, j = 6, k;
float x = 3.142; y = 2.718, z;
k = getMax(i, j);       // uses int version
z = getMax(x, y);       // uses float version
k = getMax<int>(i, j);  // explicitly calls int versionCopy

Template Specialization

template<class T>
void print(T value)
{
  std::cout << value << std::endl;
}

template<>
void print<bool>(bool value)
{
  if (value)
    std::cout << "true\n";
  else
    std::cout << "false\n";
}Copy

Template Specialization (continued)

int main()
{
  int a = 5;
  bool b = true;
  print(a); // prints 5
  print(b); // prints true
}Copy

Using the C++ Vector Container

#include <vector>
int main()
{
  // start with 10 elements
  std::vector<int> v(10);
  for (unsigned int i=0; i<v.size(); ++i)
    v[i] = i;
}Copy

#include <vector>
int main()
{
  // start with 0 elements
  std::vector<int> v;
  for (unsigned int i=0; i<10; ++i)
    v.push_back(i);
}Copy

#include <vector>
int main()
{
  // start with 0 elements
  std::vector<int> v;
  v.resize(10);  // creates 10 elements
  for (unsigned int i=0; i<10; ++i)
    v[i] = i;
}Copy

Encapsulation (Point.h)

class Point
{
public:
  Point(float x, float y);   // Constructor

  // Accessors
  float getX();
  float getY();
  void setX(float x);
  void setY(float y);
private:
  float _x, _y;
};Copy

Point Class Definitions (Point.C)

#include "Point.h"

Point::Point(float x, float y): _x(x), _y(y) { }
float Point::getX() { return _x; }
float Point::getY() { return _y; }
void Point::setX(float x) { _x = x; }
void Point::setY(float y) { _y = y; }Copy

The data is safely encapsulated so we can change the implementation without affecting users of this type

Changing the Implementation (Point.h)

class Point
{
public:
  Point(float x, float y);
  float getX();
  float getY();
  void setX(float x);
  void setY(float y);
private:
  // Store a vector of values rather than separate scalars
  std::vector<float> _coords;
};Copy

New Point Class Body (Point.C)

#include "Point.h"
Point::Point(float x, float y)
{
  _coords.push_back(x);
  _coords.push_back(y);
}

float Point::getX() { return _coords[0]; }
float Point::getY() { return _coords[1]; }
void Point::setX(float x) { _coords[0] = x; }
void Point::setY(float y) { _coords[1] = y; }Copy

Using the Point Class (main.C)

#include "Point.h"
int main()
{
  Point p1(1, 2);
  Point p2 = Point(3, 4);
  Point p3; // compile error, no default constructor
  std::cout << p1.getX() << "," << p1.getY() << "\n"
            << p2.getX() << "," << p2.getY() << "\n";
}Copy

Operator Overloading

For some user-defined types (objects) it makes sense to use built-in operators to perform functions with those types

For example, without operator overloading, adding the coordinates of two points and assigning the result to a third object might be performed like this:

Point a(1,2), b(3,4), c(5,6);
// Assign c = a + b using accessors
c.setX(a.getX() + b.getX());
c.setY(a.getY() + b.getY());Copy

However the ability to reuse existing operators on new types makes the following possible:

c = a + b;Copy

Operator Overloading (continued)

Inside our Point class, we define new member functions with the special operator keyword:

Point Point::operator+(const Point & p)
{
  return Point(_x + p._x, _y + p._y);
}

Point & Point::operator=(const Point & p)
{
  _x = p._x;
  _y = p._y;
  return *this;
}Copy

Using "Point" with Operators

#include "Point.h"

int main()
{
  Point p1(0, 0), p2(1, 2), p3(3, 4);
  p1 = p2 + p3;
  std::cout << p1.getX() << "," << p1.getY() << "\n";
}Copy

A More Advanced Example (Shape.h)

class Shape {
public:
  Shape(int x=0, int y=0): _x(x), _y(y) {}  // Constructor
  virtual ~Shape() {} // Destructor
  virtual float area()=0;  // Pure Virtual Function
  void printPosition();    // Body appears elsewhere

protected:
  // Coordinates at the centroid of the shape
  int _x;
  int _y;
};Copy

The Derived Class: Rectangle.h

#include "Shape.h"
class Rectangle: public Shape
{
public:
  Rectangle(int width, int height, int x=0, int y=0) :
    Shape(x,y),
    _width(width),
    _height(height)
  {}

  virtual ~Rectangle() {}

  virtual float area() { return _width * _height; }

protected:
  int _width;
  int _height;
};Copy

A Derived Class: Circle.h

#include "Shape.h"
class Circle: public Shape
{
public:
  Circle(int radius, int x=0, int y=0) :
    Shape(x,y),
    _radius(radius)
  {}

  virtual ~Circle() {}

  virtual float area() { return PI * _radius * _radius; }
protected:
  int _radius;
  const double PI = 3.14159265359;
};Copy

Inheritance (Is a...)

When using inheritance, the derived class can be described in terms of the base class

A Rectangle "is a" Shape

Derived classes are "type" compatible with the base class (or any of its ancestors)

We can use a base class variable to point to or refer to an instance of a derived class

Rectangle rectangle(3, 4);
Shape & s_ref = rectangle;
Shape * s_ptr = &rectangle;Copy

Deciphering Long Declarations

Read the declaration from right to left

// mesh is a pointer to a Mesh object
Mesh * mesh;

// params is a reference to an InputParameters object
InputParameters & params;

// the following are identical
// value is a reference to a constant Real object
const Real & value;
Real const & value;Copy

Writing a Generic Algorithm

// create a couple of shapes
Rectangle r(3, 4);
Circle c(3, 10, 10);
printInformation(r);   // pass a Rectangle into a Shape reference
printInformation(c);   // pass a Circle into a Shape reference
...
void printInformation(const Shape & shape)
{
  shape.printPosition();
  std::cout << shape.area() << '\n';
}
// (0, 0)
// 12
// (10, 10)
// 28.274Copy

Clang Format

MOOSE uses "clang-format" to automatically format code:

git clang-format branch_name_hereCopy

Single spacing around all binary operators
No spacing around unary operators
No spacing on the inside of brackets or parenthesis in expressions
Avoid braces for single statement control statements (i.e for, if, while, etc.)
C++ constructor spacing is demonstrated in the bottom of the example below

Example Code

Below is a sample that covers many (not all) of our code style conventions.

namespace moose // lower case namespace names
{
// don't add indentation level for namespaces

int // return type should go on separate line
junkFunction()
{
  // indent two spaces!
  if (name == "moose") // space after the control keyword "if"
  {
    // Spaces on both sides of '&' and '*'
    SomeClass & a_ref;
    SomeClass * a_pointer;
  }

  // Omit curly braces for single statements following an if the statement must be on its own line
  if (name == "squirrel")
    doStuff();
  else
    doOtherStuff();

  // No curly braces for single statement branches and loops
  for (unsigned int i = 0; i < some_number; ++i) // space after control keyword "for"
    doSomething();

  // space around assignment operator
  Real foo = 5.0;

  switch (stuff) // space after the control keyword "switch"
  {
    // Indent case statements
    case 2:
      junk = 4;
      break;
    case 3:
    { // Only use curly braces if you have a declaration in your case statement
      int bar = 9;
      junk = bar;
      break;
    }
    default:
      junk = 8;
  }

  while (--foo) // space after the control keyword "while"
    std::cout << "Count down " << foo;
}

// (short) function definitions on a single line
SomeClass::SomeFunc() {}

// Constructor initialization lists can all be on the same line.
SomeClass::SomeClass() : member_a(2), member_b(3) { }

// Four-space indent and one item per line for long (i.e. won't fit on one line) initialization list.
SomeOtherClass::SomeOtherClass()
  : member_a(2),
    member_b(3),
    member_c(4),
    member_d(5),
    member_e(6),
    member_f(7),
    member_g(8),
    member_h(9)
{ // braces on separate lines since func def is already longer than 1 line
}

} // namespace mooseCopy

Using auto

Use auto for most new code unless it complicates readability. Make sure your variables have good names when using auto!

auto dof = elem->dof_number(0, 0, 0);
auto & obj = getSomeObject();
auto & elem_it = mesh.active_local_elements_begin();
auto & item_pair = map.find(some_item);

// Cannot use reference here
for (auto it = obj.begin(); it != obj.end(); ++it)
  doSomething();

// Use reference here
for (auto & obj : container)
  doSomething();Copy

Do not use auto in any kind of function or method declaration

Lambdas

// List captured variables (by value or reference) in the capture list explicitly where possible.
std::for_each(container.begin(), container.end(), [= local_var](Foo & foo) {
  foo.item = local_var;
  foo.item2 = local_var2;
});Copy

Variable Initialization

When creating a new variable use these patterns:

unsigned int i = 4;  // Built-in types
SomeObject junk(17); // Objects
SomeObject * stuff = new SomeObject(18); // PointersCopy

Trailing Whitespace and Tabs

MOOSE does not allow any trailing whitespace or tabs in the repository. Try running the following one-liner from the appropriate directory:

find . -name '*.[Chi]' -or -name '*.py' | xargs perl -pli -e 's/\s+$//'Copy

Includes

Firstly, only include things that are absolutely necessary in header files. Please use forward declarations when you can:

// Forward declarations
class Something;Copy

All non-system includes should use quotes and there is a space between include and the filename.

#include "LocalInclude.h"
#include "libmesh/libmesh_include.h"

#include <system_library>Copy

In-Code Documentation

Try to document as much as possible, using Doxygen style comments

/**
 * The Kernel class is responsible for calculating the residuals for various physics.
 */
class Kernel
{
public:
  /**
   * This constructor should be used most often.  It initializes all internal
   * references needed for residual computation.
   *
   * @param system The system this variable is in
   * @param var_name The variable this Kernel is going to compute a residual for.
   */
  Kernel(System * system, std::string var_name);

  /**
   * This function is used to get stuff based on junk.
   *
   * @param junk The index of the stuff you want to get
   * @return The stuff associated with the junk you passed in
   */
  int returnStuff(int junk);

protected:
  /// This is the stuff this class holds on to.
  std::vector<int> stuff;
};Copy

Python

Where possible, follow the above rules for Python. The only modifications are:

Four spaces are used for indenting and
Member variables should be named as follows:

class MyClass:
    def __init__(self):
        self.public_member
        self._protected_member
        self.__private_memberCopy

Kernel Object

To implement the Darcy pressure equation, a Kernel object is needed to add the coefficient to diffusion equation.

-\nabla \cdot \frac{\mathbf{K}}{\mu} \nabla p = 0,

where $\textbf{K}$ is the permeability tensor and $\mu$ is the fluid viscosity.

A Kernel is C++ class, which inherits from MooseObject that is used by MOOSE for coding volume integrals of a partial differential equation (PDE).

Basic Header: CustomObject.h

#pragma once

#include "BaseObject.h"

class CustomObject : public BaseObject
{
public:
  static InputParameters validParams();

  CustomObject(const InputParameters & parameters);

protected:

  virtual Real doSomething() override;

  const Real & _scale;
};Copy

Basic Source: CustomObject.C

#include "CustomObject.h"

registerMooseObject("CustomApp", CustomObject);

InputParameters
CustomObject::validParams()
{
  InputParameters params = BaseObject::validParams();
  params.addClassDescription("The CustomObject does something with a scale parameter.");
  params.addParam<Real>("scale", 1, "A scale factor for use when doing something.");
  return params;
}

CustomObject::CustomObject(const InputParameters & parameters) :
    BaseObject(parameters),
    _scale(getParam<Real>("scale"))
{
}

double
CustomObject::doSomething()
{
  // Do some sort of import calculation here that needs a scale factor
  return _scale;
}Copy

`validParams` Declaration

static InputParameters Convection::validParams();Copy

`validParams` Definition

InputParameters
Convection::validParams()
{
  InputParameters params = Kernel::validParams();  // Start with parent
  params.addRequiredParam<RealVectorValue>("velocity", "Velocity Vector");
  params.addParam<Real>("coefficient", "Diffusion coefficient");
  return params;
}Copy

Class Description

Class level documentation may be included within the source code using the addClassDescription method.

params.addClassDescription("Use this method to provide a summary of the class being created...");Copy

Optional Parameter(s)

Adds an input file parameter, of type int, that includes a default value of 1980.

params.addParam<int>("year", 1980, "Provide the year you were born.");Copy

[UserObjects]
  [date_object]
    type = Date
    year = 1990
  []
[]Copy

Required Parameter(s)

Adds an input file parameter, of type int, must be supplied in the input file.

params.addRequiredParam<int>("month", "Provide the month you were born.");Copy

[UserObjects]
  [date_object]
    type = Date
    month = 6
  []
[]Copy

Coupled Variable

Various types of objects in MOOSE support variable coupling, this is done using the addCoupledVar method.

params.addCoupledVar("temperature", "The temperature (C) of interest.");
params.addCoupledVar("pressure", 101.325, "The pressure (kPa) of the atomsphere.");Copy

[Variables]
  [P][]
  [T][]
[]

[UserObjects]
  [temp_pressure_check]
    type = CheckTemperatureAndPressue
    temperature = T
    pressure = P # if not provided a value of 101.325 would be used
  []
[]Copy

Within the input file it is possible to used a variable name, a constant value, a function, or a postprocessor name as a the right-hand side.

pressure = P
pressure = 42
pressure = 3*x     # more about this later
pressure = pp_name # more about this laterCopy

Range Checked Parameters

Input variables may be restricted to a range of values directly in the validParams function.

params.addRangeCheckedParam<Real>(
    "growth_factor",
    2,
    "growth_factor>=1",
    "Maximum ratio of new to previous timestep sizes following a step that required the time"
    " step to be cut due to a failed solve.");Copy

(framework/src/timesteppers/ConstantDT.C)

Syntax: warp.povusers.org/FunctionParser/fparser.html

MooseEnum

MOOSE includes a "smart" enum utility to overcome many of the deficiencies in the standard C++ enum type. It works in both integer and string contexts and is self-checked for consistency.

#include "MooseEnum.h"

// The valid options are specified in a space separated list.
// You can optionally supply the default value as a second argument.
// MooseEnums are case preserving but case-insensitive.
MooseEnum option_enum("first=1 second fourth=4", "second");

// Use in a string context
if (option_enum == "first")
  doSomething();

// Use in an integer context
switch (option_enum)
{
  case 1: ... break;
  case 2: ... break;
  case 4: ... break;
  default: ... ;
}Copy

MooseEnum with InputParameters

Objects that have a specific set of named options should use a MooseEnum so that parsing and error checking code can be omitted.

InputParameters MyObject::validParams()
{
  InputParameters params = ParentObject::validParams();
  MooseEnum component("X Y Z");  // No default supplied
  params.addRequiredParam<MooseEnum>("component", component,
                                     "The X, Y, or Z component");
  return params;
}Copy

Peacock will create a drop box when using MooseEnum and if an invalid value is supplied, an error message is provided.

Multiple Value MooseEnums (MultiMooseEnum)

Operates the same way as MooseEnum but supports multiple ordered options.

InputParameters MyObject::validParams()
{
  InputParameters params = ParentObject::validParams();
  MultiMooseEnum transforms("scale rotate translate");
  params.addRequiredParam<MultiMooseEnum>("transforms", transforms,
                                          "The transforms to perform");
  return params;
}Copy

Kernel Object Members

_u, _grad_u
Value and gradient of the variable this Kernel is operating on

_test, _grad_test
Value ( $\psi$ ) and gradient ( $\nabla \psi$ ) of the test functions at the quadrature points

_phi, _grad_phi
Value ( $\phi$ ) and gradient ( $\nabla \phi$ ) of the trial functions at the quadrature points

_q_point
Coordinates of the current quadrature point

_i, _j
Current index for test and trial functions, respectively

_qp
Current quadrature point index

Base	Override	Use
Kernel ADKernel	computeQpResidual	Use when the term in the PDE is multiplied by both the test function and the gradient of the test function (`_test` and `_grad_test` must be applied)
KernelValue ADKernelValue	precomputeQpResidual	Use when the term computed in the PDE is only multiplied by the test function (do not use `_test` in the override, it is applied automatically)
KernelGrad ADKernelGrad	precomputeQpResidual	Use when the term computed in the PDE is only multiplied by the gradient of the test function (do not use `_grad_test` in the override, it is applied automatically)

Diffusion

Recall the steady-state diffusion equation on the 3D domain $\Omega$ :

-\nabla \cdot \nabla u = 0 \in \Omega

The weak form of this equation includes a volume integral, which in inner-product notation, is given by:

\left(\nabla \psi_i, \nabla u_h\right) = 0 \quad\forall \psi_i,

where $\psi_i$ are the test functions and $u_h$ is the finite element solution.

ADDiffusion.h

#pragma once

#include "ADKernelGrad.h"

class ADDiffusion : public ADKernelGrad
{
public:
  static InputParameters validParams();

  ADDiffusion(const InputParameters & parameters);

protected:
  virtual ADRealVectorValue precomputeQpResidual() override;
};Copy

(framework/include/kernels/ADDiffusion.h)

ADDiffusion.C

#include "ADDiffusion.h"

registerMooseObject("MooseApp", ADDiffusion);

InputParameters
ADDiffusion::validParams()
{
  auto params = ADKernelGrad::validParams();
  params.addClassDescription("Same as `Diffusion` in terms of physics/residual, but the Jacobian "
                             "is computed using forward automatic differentiation");
  return params;
}

ADDiffusion::ADDiffusion(const InputParameters & parameters) : ADKernelGrad(parameters) {}

ADRealVectorValue
ADDiffusion::precomputeQpResidual()
{
  return _grad_u[_qp];
}Copy

(framework/src/kernels/ADDiffusion.C)

DarcyPressure.h

#pragma once

// Including the "ADKernel" Kernel here so we can extend it
#include "ADKernel.h"

/**
 * Computes the residual contribution: K / mu * grad_u * grad_phi.
 */
class DarcyPressure : public ADKernel
{
public:
  static InputParameters validParams();

  DarcyPressure(const InputParameters & parameters);

protected:
  /// ADKernel objects must override precomputeQpResidual
  virtual ADReal computeQpResidual() override;

  /// References to be set from input file
  const Real & _permeability;
  const Real & _viscosity;
};Copy

(tutorials/darcy_thermo_mech/step02_darcy_pressure/include/kernels/DarcyPressure.h)

DarcyPressure.C

#include "DarcyPressure.h"

registerMooseObject("DarcyThermoMechApp", DarcyPressure);

InputParameters
DarcyPressure::validParams()
{
  InputParameters params = ADKernel::validParams();
  params.addClassDescription("Compute the diffusion term for Darcy pressure ($p$) equation: "
                             "$-\\nabla \\cdot \\frac{\\mathbf{K}}{\\mu} \\nabla p = 0$");

  // Add a required parameter.  If this isn't provided in the input file MOOSE will error.
  params.addRequiredParam<Real>("permeability", "The permeability ($\\mathrm{K}$) of the fluid.");

  // Add a parameter with a default value; this value can be overridden in the input file.
  params.addParam<Real>(
      "viscosity",
      7.98e-4,
      "The viscosity ($\\mu$) of the fluid in Pa, the default is for water at 30 degrees C.");
  return params;
}

DarcyPressure::DarcyPressure(const InputParameters & parameters)
  : ADKernel(parameters),

    // Get the parameters from the input file
    _permeability(getParam<Real>("permeability")),
    _viscosity(getParam<Real>("viscosity"))
{
}

ADReal
DarcyPressure::computeQpResidual()
{
  return (_permeability / _viscosity) * _grad_test[_i][_qp] * _grad_u[_qp];
}Copy

(tutorials/darcy_thermo_mech/step02_darcy_pressure/src/kernels/DarcyPressure.C)

Step 2: Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 100
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables/pressure]
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
    permeability = 0.8451e-9 # (m^2) 1mm spheres.
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Steady
  solve_type = PJFNK
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step02_darcy_pressure/problems/step2.i)

Step 2: Run and Visualize with Peacock

cd ~/projects/moose/tutorials/darcy-thermo_mech/step02_darcy_pressure
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step2.iCopy

Step 2: Run via Command-line

cd ~/projects/moose/tutorials/darcy-thermo_mech/step02_darcy_pressure
make -j 12 # use number of processors for you system
cd problems
../darcy_thermo_mech-opt -i step2.iCopy

Step 2: Visualize Result

~/projects/moose/python/peacock/peacock -r step2_out.eCopy

Problem Statement

Given a domain $\Omega$ , find $u$ such that:

-\nabla \cdot \left( k(u) \nabla u \right) + \kappa u = 0 \in \Omega,

and

\quad k(u) \nabla u \cdot \hat{n} = \sigma \in \partial \Omega,

where

k(u) \equiv \frac{1}{\sqrt{1 + |\nabla u|^2}} \\ \kappa=1 \\ \sigma=0.2

FileMesh

FileMesh is the default type:

[Mesh]
  file = sample.msh
  dim = 3
[]Copy

(test/tests/mesh/gmsh/gmsh_test.i)

MOOSE supports reading and writing a large number of formats and could be extended to read more.

Extension	Description
.dat	Tecplot ASCII file
.e, .exd	Sandia's ExodusII format
.fro	ACDL's surface triangulation file
.gmv	LANL's GMV (General Mesh Viewer) format
.mat	Matlab triangular ASCII file (read only)
.msh	GMSH ASCII file
.n, .nem	Sandia's Nemesis format
.plt	Tecplot binary file (write only)
.node, .ele; .poly	TetGen ASCII file (read; write)
.inp	Abaqus .inp format (read only)
.ucd	AVS's ASCII UCD format
.unv	I-deas Universal format
.xda, .xdr	libMesh formats
.vtk, .pvtu	Visualization Toolkit

GeneratedMesh

Built-in mesh generation is implemented for lines, rectangles, and rectangular prisms

[Mesh]
  type = GeneratedMesh
  dim = 2
  xmin = -1
  xmax = 1
  ymin = -1
  ymax = 1
  nx = 2
  ny = 2
  elem_type = QUAD9
[]Copy

(test/tests/mesh/adapt/initial_adaptivity_test.i)

The sides are named in a logical way and are numbered:

1D: left = 0, right = 1
2D: bottom = 0, right = 1, top = 2, left = 3
3D: back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5

[Mesh]
  file = three_block.e

  # These names will be applied on the fly to the
  # mesh so that they can be used in the input file
  # In addition they will show up in the output file
  block_id = '1 2 3'
  block_name = 'wood steel copper'

  boundary_id = '1 2'
  boundary_name = 'left right'
[]

[BCs]
  active = 'left right'

  [./left]
    type = DirichletBC
    variable = u
    boundary = 'left'
    value = 0
  [../]

  [./right]
    type = DirichletBC
    variable = u
    boundary = 'right'
    value = 1
  [../]
[]

[Materials]
  active = empty

  [./empty]
    type = MTMaterial
    block = 'wood steel copper'
  [../]
[]Copy

(test/tests/mesh/named_entities/name_on_the_fly.i)

Replicated Mesh

When running in parallel the default mode for operation is to use a replicated mesh, which creates a complete copy of the mesh for each processor.

parallel_type = replicatedCopy

Distributed Mesh

Changing the type to distributed when running in parallel operates such that only the portion of the mesh owned by a processor is stored on that processor.

parallel_type = distributedCopy

If the mesh is too large to read in on a single processor, it can be split prior to the simulation.

Copy the mesh to a large memory machine
Use the --split-mesh option to split the mesh into $n$ pieces
Run the executable with --use-split

Displaced Mesh

Calculations can take place in either the initial mesh configuration or, when requested, the "displaced" configuration.

To enable displacements, provide a vector of displacement variable names for each spatial dimension in the Mesh block.

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 10
  ny = 10
  displacements = 'disp_x disp_y'
[]Copy

(test/tests/dgkernels/dg_displacement/dg_displacement.i)

Objects can enforce the use of the displaced mesh within the validParams function.

params.set<bool>("use_displaced_mesh") = true;Copy

(framework/src/auxkernels/PenetrationAux.C)

Short-cut Syntax

The following two methods for creating an Output object are equivalent within the internals of MOOSE.

[Outputs]
  exodus = true
[]Copy

[Outputs]
  [out]
    type = Exodus
  []
[]Copy

Common Parameters

[Outputs]
  interval = 10
  exodus = true
  [all]
    type = Exodus
    interval = 1 # overrides interval from top-level
  []
[]Copy

Output Names

The default naming scheme for output files utilizes the input file name (e.g., input.i) with a suffix that differs depending on how the output is defined: An "_out" suffix is used for Outputs created using the short-cut syntax. sub-blocks use the actual sub-block name as the suffix.

[Outputs]
  exodus = true    # creates input_out.e
  [other]          # creates input_other.e
     type = Exodus
     interval = 2
  []
  [base]
    type = Exodus
    file_base = out # creates out.e
  []
[]Copy

The use of 'file_base' anywhere in the [Outputs] block disables all default naming behavior.

Short-cut	Sub-block ("type=")	Description
console	Console	Writes to the screen and optionally a file
exodus	Exodus	The most common,well supported, and controllable output type
vtk	VTK	Visualization Toolkit format, requires `--enable-vtk` when building libMesh
gmv	GMV	General Mesh Viewer format
nemesis	Nemesis	Parallel ExodusII format
tecplot	Tecplot	Requires `--enable-tecplot` when building libMesh
xda	XDA	libMesh internal format (ascii)
xdr	XDR	libMesh internal format (binary)
csv	CSV	Comma separated scalar values
gnuplot	GNUPlot	Only support scalar outputs
checkpoint	Checkpoint	MOOSE internal format used for restart and recovery

Default Material Properties

Default values for material properties may be assigned within the validParams function.

addParam<MaterialPropertyName>("combination_property_name", 12345,
 "The name of the property providing the luggage combination");Copy

Only scalar (Real) values may have defaults.

When getMaterialProperty<Real>("combination_property_name") is called, the default will be returned if the value has not been computed via a delcareProperty call within a Material object.

Material Property Output

Output of Material properties is enabled by setting the "outputs" parameter.

The following example creates two additional variables called "mat1" and "mat2" that will show up in the output file.

[Materials]
  [block_1]
    type = OutputTestMaterial
    block = 1
    output_properties = 'real_property tensor_property'
    outputs = exodus
    variable = u
  []
  [block_2]
    type = OutputTestMaterial
    block = 2
    output_properties = 'vector_property tensor_property'
    outputs = exodus
    variable = u
  []
[]

[Outputs]
  exodus = true
[]Copy

(test/tests/materials/output/output_block.i)

Type	AuxKernel	Variable Name(s)
Real	`MaterialRealAux`	prop
RealVectorValue	`MaterialRealVectorValueAux`	prop_1, prop_2, and prop_3
RealTensorValue	`MaterialRealTensorValueAux`	prop_11, prop_12, prop_13, prop_21, etc.

Function System

A system for defining analytic expressions based on the spatial location ( $x$ , $y$ , $z$ ) and time, $t$ .

Parsed Function

A ParsedFunction allow functions to be defined by strings directly in the input file, e.g.:

[Functions]
  [sin_fn]
    type = ParsedFunction
    value = sin(x)
  []
  [cos_fn]
    type = ParsedFunction
    value = cos(x)
  []
  [fn]
    type = ParsedFunction
    value = 's/c'
    vars = 's c'
    vals = 'sin_fn cos_fn'
  []
[]Copy

(test/tests/functions/parsed/function.i)

It is possible to include other functions, as shown above, as well as scalar variables and postprocessor values with the function definition.

Default Functions

Whenever a Function object is added via addParam(), a default can be provided.

Both constant values and parsed function strings can be used as the default.

// Adding a Function with a default constant
params.addParam<FunctionName>("pressure_grad", "0.5", "The gradient of ...");

// Adding a Function with a default parsed function
params.addParam<FunctionName>("power_history", "t+100*sin(y)", "The power history of ...");Copy

A ParsedFunction or ConstantFunction object is automatically constructed based on the default value if a function name is not supplied in the input file.

PackedColumn.h

#pragma once

#include "Material.h"

// A helper class from MOOSE that linear interpolates x,y data
#include "LinearInterpolation.h"

/**
 * Material objects inherit from Material and override computeQpProperties.
 *
 * Their job is to declare properties for use by other objects in the
 * calculation such as Kernels and BoundaryConditions.
 */
class PackedColumn : public Material
{
public:
  static InputParameters validParams();

  PackedColumn(const InputParameters & parameters);

protected:
  /// Necessary override. This is where the values of the properties are computed.
  virtual void computeQpProperties() override;

  /// The radius of the spheres in the column
  const Function & _radius;

  /// Value of viscosity from the input file
  const Real & _input_viscosity;

  /// Compute permeability based on the radius (mm)
  LinearInterpolation _permeability_interpolation;

  /// The permeability (K)
  ADMaterialProperty<Real> & _permeability;

  /// The viscosity of the fluid (mu)
  ADMaterialProperty<Real> & _viscosity;
};Copy

(tutorials/darcy_thermo_mech/step03_darcy_material/include/materials/PackedColumn.h)

PackedColumn.C

#include "PackedColumn.h"
#include "Function.h"

registerMooseObject("DarcyThermoMechApp", PackedColumn);

InputParameters
PackedColumn::validParams()
{
  InputParameters params = Material::validParams();

  // Parameter for radius of the spheres used to interpolate permeability.
  params.addParam<FunctionName>("radius",
                                "1.0",
                                "The radius of the steel spheres (mm) that are packed in the "
                                "column for computing permeability.");
  params.addParam<Real>(
      "viscosity",
      7.98e-4,
      "The viscosity ($\\mu$) of the fluid in Pa, the default is for water at 30 degrees C.");

  return params;
}

PackedColumn::PackedColumn(const InputParameters & parameters)
  : Material(parameters),

    // Get the parameters from the input file
    _radius(getFunction("radius")),
    _input_viscosity(getParam<Real>("viscosity")),

    // Declare two material properties by getting a reference from the MOOSE Material system
    _permeability(declareADProperty<Real>("permeability")),
    _viscosity(declareADProperty<Real>("viscosity"))
{
  // From the paper: Table 1
  std::vector<Real> sphere_sizes = {1, 3};
  std::vector<Real> permeability = {0.8451e-9, 8.968e-9};

  // Set the x,y data on the LinearInterpolation object.
  _permeability_interpolation.setData(sphere_sizes, permeability);
}

void
PackedColumn::computeQpProperties()
{
  Real value = _radius.value(_t, _q_point[_qp]);
  mooseAssert(value >= 1 && value <= 3,
              "The radius range must be in the range [1, 3], but " << value << " provided.");

  _viscosity[_qp] = _input_viscosity;
  _permeability[_qp] = _permeability_interpolation.sample(value);
}Copy

(tutorials/darcy_thermo_mech/step03_darcy_material/src/materials/PackedColumn.C)

DarcyPressure.h

#pragma once

// Including the "ADKernel" Kernel here so we can extend it
#include "ADKernel.h"

/**
 * Computes the residual contribution: K / mu * grad_u * grad_phi.
 */
class DarcyPressure : public ADKernel
{
public:
  static InputParameters validParams();

  DarcyPressure(const InputParameters & parameters);

protected:
  /// ADKernel objects must override precomputeQpResidual
  virtual ADReal computeQpResidual() override;

  // References to be set from Material system

  /// The permeability. Note that this is declared as a \p MaterialProperty. This means that if
  /// calculation of this property in the producing \p Material depends on non-linear variables, the
  /// derivative information will be lost here in the consumer and the non-linear solve will suffer
  const ADMaterialProperty<Real> & _permeability;

  /// The viscosity. This is declared as an \p ADMaterialProperty, meaning any derivative
  /// information coming from the producing \p Material will be preserved and the integrity of the
  /// non-linear solve will be likewise preserved
  const ADMaterialProperty<Real> & _viscosity;
};Copy

(tutorials/darcy_thermo_mech/step03_darcy_material/include/kernels/DarcyPressure.h)

DarcyPressure.C

#include "DarcyPressure.h"

registerMooseObject("DarcyThermoMechApp", DarcyPressure);

InputParameters
DarcyPressure::validParams()
{
  InputParameters params = ADKernel::validParams();
  params.addClassDescription("Compute the diffusion term for Darcy pressure ($p$) equation: "
                             "$-\\nabla \\cdot \\frac{\\mathbf{K}}{\\mu} \\nabla p = 0$");
  return params;
}

DarcyPressure::DarcyPressure(const InputParameters & parameters)
  : ADKernel(parameters),
    _permeability(getADMaterialProperty<Real>("permeability")),
    _viscosity(getADMaterialProperty<Real>("viscosity"))
{
}

ADReal
DarcyPressure::computeQpResidual()
{
  return (_permeability[_qp] / _viscosity[_qp]) * _grad_test[_i][_qp] * _grad_u[_qp];
}Copy

(tutorials/darcy_thermo_mech/step03_darcy_material/src/kernels/DarcyPressure.C)

Step 3: Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 100
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables/pressure]
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
[]

[Materials]
  [column]
    type = PackedColumn
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Steady
  solve_type = PJFNK
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step03_darcy_material/problems/step3.i)

Step 3: Run and Visualize with Peacock

cd ~/projects/moose/tutorials/darcy-thermo_mech/step03_darcy_material
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step3.iCopy

Step 3: Run via Command-line

cd ~/projects/moose/tutorials/darcy-thermo_mech/step03_darcy_material
make -j 12 # use number of processors for you system
cd problems
../darcy_thermo_mech-opt -i step3.iCopy

Step 3: Visualize Result

~/projects/moose/python/peacock/peacock -r step3_out.eCopy

Step 3b: Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 100
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables/pressure]
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = '1 + 2/3.04*x'
    outputs = exodus
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Steady
  solve_type = PJFNK
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step03_darcy_material/problems/step3b.i)

Test Setup

Related tests should be grouped into an individual directory and have a consistent naming convention.

It is recommended to organize tests in a hierarchy similar to the application source (i.e., kernels, BCs, materials, etc).

Tests are found dynamically by matching patterns (highlighted below)

tests/
  kernels/
    my_kernel_test/
      my_kernel_test.e   [input mesh]
      my_kernel_test.i   [input file]
      tests              [test specification file]
      gold/              [gold standard folder for validated solution]
      out.e              [solution]Copy

Test Specification

Test specifications use the hit format, the same format as the standard MOOSE input file.

[Tests]
   [my_kernel_test]
     type    = Exodiff
     input   = my_kernel_test.i
     exodiff = my_kernel_test_out.e
   []

   [kernel_check_exception]
     type       = RunException
     input      = my_kernel_exception.i
     expect_err = 'Bad stuff happened with variable \w+'
   []
 []Copy

Running Tests

./run_tests -j 12Copy

For more information view the help:

./run_tests -hCopy

Test Object Options

./run_tests --dumpCopy

input: The name of the input file
exodiff: The list of output filenames to compare
abs_zero: Absolute zero tolerance for exodiff
rel_err: Relative error tolerance for exodiff
prereq: Name of the test that needs to complete before running this test
min_parallel: Minimum number of processors to use for a test (default: 1)
max_parallel: Maximum number of processors to use for a test

Elemental Auxiliary Variables

Element auxiliary variables compute average values per element (constant)

AuxKernel objects computing elemental values can couple to nonlinear variables and both element and nodal auxiliary variables

[AuxVariables]
  [aux]
    order = CONSTANT
    family = MONOMIAL
  []
[]Copy

Nodal Auxiliary Variables

Element auxiliary variables are computed at each node and are stored as linear Lagrange variables

AuxKernel objects computing nodal values can only couple to nonlinear variables and other nodal auxiliary variables

[AuxVariables]
  [aux]
    order = LAGRANGE
    family = FIRST
  []
[]Copy

VectorAuxKernel Objects

Directly compute a vector AuxVariable values by overriding computeValue(), with the difference being the return value of a RealVectorValue instead of Real.

[AuxVariables]
  [aux]
    order = FIRST
    family = LAGRANGE_VEC
  []
[]Copy

DarcyVelocity AuxKernel

The primary unknown ("nonlinear variable") is the pressure

Once the pressure is computed, the AuxiliarySystem can compute and output the velocity field using the coupled pressure variable and the permeability and viscosity properties.

Auxiliary variables come in two flavors: Nodal and Elemental.

Nodal auxiliary variables cannot couple to gradients of nonlinear variables since gradients of $C_0$ continuous variables are not well-defined at the nodes.

Elemental auxiliary variables can couple to gradients of nonlinear variables since evaluation occurs in the element interiors.

DarcyVelocity.h

#pragma once

#include "AuxKernel.h"

/**
 * Auxiliary kernel responsible for computing the Darcy velocity given
 * several fluid properties and the pressure gradient.
 */
class DarcyVelocity : public VectorAuxKernel
{
public:
  static InputParameters validParams();

  DarcyVelocity(const InputParameters & parameters);

protected:
  /**
   * AuxKernels MUST override computeValue.  computeValue() is called on
   * every quadrature point.  For Nodal Auxiliary variables those quadrature
   * points coincide with the nodes.
   */
  virtual RealVectorValue computeValue() override;

  /// The gradient of a coupled variable
  const VariableGradient & _pressure_gradient;

  /// Holds the permeability and viscosity from the material system
  const ADMaterialProperty<Real> & _permeability;
  const ADMaterialProperty<Real> & _viscosity;
};Copy

(tutorials/darcy_thermo_mech/step04_velocity_aux/include/auxkernels/DarcyVelocity.h)

DarcyVelocity.C

#include "DarcyVelocity.h"

#include "metaphysicl/raw_type.h"

registerMooseObject("DarcyThermoMechApp", DarcyVelocity);

InputParameters
DarcyVelocity::validParams()
{
  InputParameters params = VectorAuxKernel::validParams();

  // Add a "coupling paramater" to get a variable from the input file.
  params.addRequiredCoupledVar("pressure", "The pressure field.");

  return params;
}

DarcyVelocity::DarcyVelocity(const InputParameters & parameters)
  : VectorAuxKernel(parameters),

    // Get the gradient of the variable
    _pressure_gradient(coupledGradient("pressure")),

    // Set reference to the permeability MaterialProperty.
    // Only AuxKernels operating on Elemental Auxiliary Variables can do this
    _permeability(getADMaterialProperty<Real>("permeability")),

    // Set reference to the viscosity MaterialProperty.
    // Only AuxKernels operating on Elemental Auxiliary Variables can do this
    _viscosity(getADMaterialProperty<Real>("viscosity"))
{
}

RealVectorValue
DarcyVelocity::computeValue()
{
  // Access the gradient of the pressure at this quadrature point, then pull out the "component" of
  // it requested (x, y or z). Note, that getting a particular component of a gradient is done using
  // the parenthesis operator.
  return -MetaPhysicL::raw_value(_permeability[_qp] / _viscosity[_qp]) * _pressure_gradient[_qp];
}Copy

(tutorials/darcy_thermo_mech/step04_velocity_aux/src/auxkernels/DarcyVelocity.C)

Step 4: Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 100
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables/pressure]
[]

[AuxVariables]
  [velocity_x]
    order = CONSTANT
    family = MONOMIAL
  []
  [velocity_y]
    order = CONSTANT
    family = MONOMIAL
  []
  [velocity_z]
    order = CONSTANT
    family = MONOMIAL
  []
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
  [velocity_x]
    type = VectorVariableComponentAux
    variable = velocity_x
    component = x
    execute_on = timestep_end
    vector_variable = velocity
  []
  [velocity_y]
    type = VectorVariableComponentAux
    variable = velocity_y
    component = y
    execute_on = timestep_end
    vector_variable = velocity
  []
  [velocity_z]
    type = VectorVariableComponentAux
    variable = velocity_z
    component = z
    execute_on = timestep_end
    vector_variable = velocity
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = 1
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Steady
  solve_type = PJFNK
  #nl_rel_tol = 1e-12
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step04_velocity_aux/problems/step4.i)

Step 4: Run and Visualize with Peacock

cd ~/projects/moose/tutorials/darcy-thermo_mech/step04_velocity_aux
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step4.iCopy

Step 4: Run via Command-line

cd ~/projects/moose/tutorials/darcy-thermo_mech/step04_velocity_aux
make -j 12 # use number of processors for you system
cd problems
../darcy_thermo_mech-opt -i step3.iCopy

Step 4: Visualize Result

~/projects/moose/python/peacock/peacock -r step4_out.eCopy

Tighter Solve Tolerance

cd ~/projects/moose/tutorials/darcy-thermo_mech/step04_velocity_aux
make -j 12 # use number of processors for you system
cd problems
../darcy_thermo_mech-opt -i step4.i Executioner/nl_rel_tol=1e-12Copy

ADHeatConduction.h

#pragma once

#include "ADDiffusion.h"

class ADHeatConduction : public ADDiffusion
{
public:
  static InputParameters validParams();

  ADHeatConduction(const InputParameters & parameters);

protected:
  virtual ADRealVectorValue precomputeQpResidual() override;

  const ADMaterialProperty<Real> & _thermal_conductivity;
};Copy

(modules/heat_conduction/include/kernels/ADHeatConduction.h)

ADHeatConduction.C

#include "ADHeatConduction.h"

registerMooseObject("HeatConductionApp", ADHeatConduction);

InputParameters
ADHeatConduction::validParams()
{
  InputParameters params = ADDiffusion::validParams();
  params.addParam<MaterialPropertyName>("thermal_conductivity",
                                        "thermal_conductivity",
                                        "the name of the thermal conductivity material property");
  params.set<bool>("use_displaced_mesh") = true;
  return params;
}

ADHeatConduction::ADHeatConduction(const InputParameters & parameters)
  : ADDiffusion(parameters),
    _thermal_conductivity(getADMaterialProperty<Real>("thermal_conductivity"))
{
}

ADRealVectorValue
ADHeatConduction::precomputeQpResidual()
{
  return _thermal_conductivity[_qp] * ADDiffusion::precomputeQpResidual();
}Copy

(modules/heat_conduction/src/kernels/ADHeatConduction.C)

GenericConstantMaterial

GenericConstantMaterial is a simple way to define constant material properties.

Two input parameters are provided using "list" syntax common to MOOSE:

prop_names  = 'conductivity density'
prop_values = '0.01         200'Copy

Step 5a: Steady-State Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 100
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables]
  [temperature]
  []
[]

[Kernels]
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
[]

[BCs]
  [inlet_temperature]
    type = DirichletBC
    variable = temperature
    boundary = left
    value = 350 # (K)
  []
  [outlet_temperature]
    type = DirichletBC
    variable = temperature
    boundary = right
    value = 300 # (K)
  []
[]

[Materials]
  [steel]
    type = ADGenericConstantMaterial
    prop_names = thermal_conductivity
    prop_values = 18 # K: (W/m*K) from wikipedia @296K
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Steady
  solve_type = NEWTON
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step05_heat_conduction/problems/step5a_steady.i)

Step 5b: Running Input File

cd ~/projects/moose/tutorials/darcy-thermo_mech/step5_heat_conduction
make -j 12 # use number of processors for you system
cd problems
../darcy_thermo_mech-opt -i step5a_steady.iCopy

Steady-state Executioner

Steady-state executioners generally solve the nonlinear system just once.

[Executioner]
  type = Steady
[]Copy

(test/tests/executioners/steady_time/steady_time.i)

The Steady executioner can solve the nonlinear system multiple times while adaptively refining the mesh to improve the solution.

Transient Executioners

Transient executioners solve the nonlinear system at least once per time step.

Option	Definition
`dt`	Starting time step size
`num_steps`	Number of time steps
`start_time`	The start time of the simulation
`end_time`	The end time of the simulation
`scheme`	Time integration scheme (discussed next)

[Executioner]
  type = Transient
  scheme = 'implicit-euler'
  solve_type = 'PJFNK'
  start_time = 0.0
  num_steps = 5
  dt = 0.1
[]Copy

(test/tests/executioners/executioner/transient.i)

Option	Definition
`steady_state_detection`	Whether to try and detect achievement of steady-state (Default = `false`)
`steady_state_tolerance`	Used for determining a steady-state; Compared against the difference in solution vectors between current and old time steps (Default = `1e-8`)

Option	Definition
`l_tol`	Linear Tolerance (default: 1e-5)
`l_max_its`	Max Linear Iterations (default: 10000)
`nl_rel_tol`	Nonlinear Relative Tolerance (default: 1e-8)
`nl_abs_tol`	Nonlinear Absolute Tolerance (default: 1e-50)
`nl_max_its`	Max Nonlinear Iterations (default: 50)

Base	Override	Use
TimeKernel ADTimeKernel	computeQpResidual	Use when the time term in the PDE is multiplied by both the test function and the gradient of the test function (`_test` and `_grad_test` must be applied)
TimeKernelValue ADTimeKernelValue	precomputeQpResidual	Use when the time term computed in the PDE is only multiplied by the test function (do not use `_test` in the override, it is applied automatically)
TimeKernelGrad ADTimeKernelGrad	precomputeQpResidual	Use when the time term computed in the PDE is only multiplied by the gradient of the test function (do not use `_grad_test` in the override, it is applied automatically)

TimeIntegrator Block

It is also possible to specify a time integrator as a separate sub-block within the input file. This allows for additional types and parameters to be defined, including custom TimeIntegrator objects.

[Executioner]
  type = Transient
  start_time = 0.0
  num_steps = 6
  dt = 0.1
  [TimeIntegrator]
    type = NewmarkBeta
    beta = 0.4225
    gamma = 0.8
  []
[]Copy

(test/tests/time_integrators/newmark-beta/newmark_beta_prescribed_parameters.i)

Convergence Rates

Consider the test problem:

\begin{array}{rl} \frac{\partial u}{\partial t} - \nabla^2 u &= f \\ u(t=0)&= u_0 \\ \left. u \right|_{\partial \Omega} &= u_D \end{array}

for $t=(0,T]$ , and $\Omega=(-1,1)^2$ , $f$ is chosen so the exact solution is given by $u = t^3 (x^2 + y^2)$ and $u_0$ and $u_D$ are the initial and Dirichlet boundary conditions corresponding to this exact solution.

[Executioner]
  type = Transient
  solve_type = NEWTON
  start_time = 0.0
  end_time = 5.0
  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1.0
    optimal_iterations = 10
    time_t = '0.0 5.0'
    time_dt = '1.0 5.0'
  []
[]Copy

(test/tests/time_steppers/iteration_adaptive/adapt_tstep_grow_dtfunc.i)

Custom objects are created by inheriting from TimeStepper overriding computeDT().

IterationAdaptiveDT

IterationAdaptiveDT grows or shrinks the time step based on the number of iterations taken to obtain a converged solution in the last converged step.

[Executioner]
  type = Transient
  solve_type = NEWTON
  start_time = 0.0
  dtmin = 1.0
  end_time = 10.0
  [TimeStepper]
    type = IterationAdaptiveDT
    optimal_iterations = 1
    linear_iteration_ratio = 1
    dt = 5.0
  []
[]Copy

(test/tests/time_steppers/iteration_adaptive/adapt_tstep_shrink_init_dt.i)

DT2 Adaptive TimeStepper

Take one time step of size $\Delta t$ to get $\hat u_{n+1}$ from $u_n$
Take two time steps of size $\frac{\Delta t}{2}$ to get $u_{n+1}$ from $u_n$
Calculate local relative time discretization error estimate
$\hat e_n \equiv \frac{\|u_{n+1} - \hat u_{n+1}\|_2}{\max (\|u_{n+1}\|_2, \|\hat u_{n+1}\|_2)}$
Obtain global relative time discretization error estimate $e_n \equiv \frac{\hat e_n}{\Delta t}$
Adaptivity is based on target error tolerance $e_{TOL}$ and a maximum acceptable error tolerance $e_{MAX}$ .
- If $e_{n} < e_{MAX}$ , continue with a new time step size
  $\Delta t_{n+1} \equiv \Delta t_n \cdot \left(\frac{e_{TOL}}{e_n} \right)^{1/p}$
  where $p$ is the global convergence rate of the time stepping scheme.
- If $e_{n} \ge e_{MAX}$ , or if the solver fails, shrink $\Delta t$ .

Parameters $e_{TOL}$ and $e_{MAX}$ can be specified in the input file as e_tol and e_max (in the Executioner block).

TimeSequenceStepper

Provide a vector of time points using parameter time_sequence, the object simply moves through these time points.

The $t_{start}$ and $t_{end}$ parameters are automatically added to the sequence.

Only time points satisfying $t_{start} < t <t_{end}$ are considered.

If a solve fails at step $n$ an additional time point $t_{new} = \frac{1}{2}(t_{n+1}+t_n)$ is inserted and the step is resolved.

ADHeatConductionTimeDerivative.h

#pragma once

#include "ADTimeDerivative.h"

class ADHeatConductionTimeDerivative : public ADTimeDerivative
{
public:
  static InputParameters validParams();

  ADHeatConductionTimeDerivative(const InputParameters & parameters);

protected:
  virtual ADReal precomputeQpResidual() override;

  /// Specific heat material property
  const ADMaterialProperty<Real> & _specific_heat;

  /// Density material property
  const ADMaterialProperty<Real> & _density;
};Copy

(modules/heat_conduction/include/kernels/ADHeatConductionTimeDerivative.h)

ADHeatConductionTimeDerivative.C

#include "ADHeatConductionTimeDerivative.h"

registerMooseObject("HeatConductionApp", ADHeatConductionTimeDerivative);

InputParameters
ADHeatConductionTimeDerivative::validParams()
{
  InputParameters params = ADTimeDerivative::validParams();
  params.addClassDescription(
      "AD Time derivative term $\\rho c_p \\frac{\\partial T}{\\partial t}$ of "
      "the heat equation for quasi-constant specific heat $c_p$ and the density $\\rho$.");
  params.set<bool>("use_displaced_mesh") = true;
  params.addParam<MaterialPropertyName>(
      "specific_heat", "specific_heat", "Property name of the specific heat material property");
  params.addParam<MaterialPropertyName>(
      "density_name", "density", "Property name of the density material property");
  return params;
}

ADHeatConductionTimeDerivative::ADHeatConductionTimeDerivative(const InputParameters & parameters)
  : ADTimeDerivative(parameters),
    _specific_heat(getADMaterialProperty<Real>("specific_heat")),
    _density(getADMaterialProperty<Real>("density_name"))
{
}

ADReal
ADHeatConductionTimeDerivative::precomputeQpResidual()
{
  return _specific_heat[_qp] * _density[_qp] * ADTimeDerivative::precomputeQpResidual();
}Copy

(modules/heat_conduction/src/kernels/ADHeatConductionTimeDerivative.C)

Step 5b: Time-dependent Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 100
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables]
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[Kernels]
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
[]

[BCs]
  [inlet_temperature]
    type = DirichletBC
    variable = temperature
    boundary = left
    value = 350 # (K)
  []
  [outlet_temperature]
    type = DirichletBC
    variable = temperature
    boundary = right
    value = 300 # (K)
  []
[]

[Materials]
  [steel]
    type = ADGenericConstantMaterial
    prop_names = 'thermal_conductivity specific_heat density'
    prop_values = '18 0.466 8000' # W/m*K, J/kg-K, kg/m^3 @ 296K
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  num_steps = 10
  solve_type = NEWTON
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step05_heat_conduction/problems/step5b_transient.i)

Step 5b: Running Input File

cd ~/projects/moose/tutorials/darcy-thermo_mech/step5_heat_conduction
make -j 12 # use number of processors for you system
cd problems
../darcy_thermo_mech-opt -i step5b_transient.iCopy

ADIntegrtedBC Object Members

_u, _grad_u
Value and gradient of the variable this Kernel is operating on

_test, _grad_test
Value ( $\psi$ ) and gradient ( $\nabla \psi$ ) of the test functions at the quadrature points

_phi, _grad_phi
Value ( $\phi$ ) and gradient ( $\nabla \phi$ ) of the trial functions at the quadrature points

_i, _j, _qp
Current index for test function, trial functions, and quadrature point, respectively

_normals:
Outward normal vector for boundary element

_boundary_id
The boundary ID

_current_elem, _current_side
A pointer to the element and index to the current boundary side

DirichletBC.h

#pragma once

#include "DirichletBCBase.h"

class DirichletBC;

template <>
InputParameters validParams<DirichletBC>();

/**
 * Boundary condition of a Dirichlet type
 *
 * Sets the value in the node
 */
class DirichletBC : public DirichletBCBase
{
public:
  static InputParameters validParams();

  DirichletBC(const InputParameters & parameters);

protected:
  virtual Real computeQpValue() override;

  /// The value for this BC
  const Real & _value;
};Copy

(framework/include/bcs/DirichletBC.h)

DirichletBC.C

#include "DirichletBC.h"

registerMooseObject("MooseApp", DirichletBC);

defineLegacyParams(DirichletBC);

InputParameters
DirichletBC::validParams()
{
  InputParameters params = DirichletBCBase::validParams();
  params.addRequiredParam<Real>("value", "Value of the BC");
  params.declareControllable("value");
  params.addClassDescription("Imposes the essential boundary condition $u=g$, where $g$ "
                             "is a constant, controllable value.");
  return params;
}

DirichletBC::DirichletBC(const InputParameters & parameters)
  : DirichletBCBase(parameters), _value(getParam<Real>("value"))
{
}

Real
DirichletBC::computeQpValue()
{
  return _value;
}Copy

(framework/src/bcs/DirichletBC.C)

Integrated BCs

Integrated BCs (including Neumann BCs) are actually integrated over the external face of an element.

\left\{ \begin{array}{rl} (\nabla u, \nabla \psi_i) - (f, \psi_i) - \langle \nabla u\cdot \hat{\boldsymbol n}, \psi_i\rangle &= 0 \quad \forall i \\ \nabla u \cdot \hat{\boldsymbol n} &= g_1\quad \text{on} \quad\partial\Omega \end{array} \right.

becomes:

(\nabla u, \nabla \psi_i) - (f, \psi_i) - \langle g_1, \psi_i\rangle = 0 \quad \forall i

If $\nabla u \cdot \hat{\boldsymbol n} = 0$ , then the boundary integral is zero ("natural boundary condition").

NeumannBC.h

#pragma once

#include "GenericIntegratedBC.h"

/**
 * Implements a simple constant Neumann BC where grad(u)=value on the boundary.
 * Uses the term produced from integrating the diffusion operator by parts.
 */
template <bool is_ad>
class NeumannBCTempl : public GenericIntegratedBC<is_ad>
{
public:
  static InputParameters validParams();

  NeumannBCTempl(const InputParameters & parameters);

protected:
  virtual GenericReal<is_ad> computeQpResidual() override;

  /// Value of grad(u) on the boundary.
  const Real & _value;

  usingGenericIntegratedBCMembers;
};

typedef NeumannBCTempl<false> NeumannBC;
typedef NeumannBCTempl<true> ADNeumannBC;Copy

(framework/include/bcs/NeumannBC.h)

NeumannBC.C

#include "NeumannBC.h"

registerMooseObject("MooseApp", NeumannBC);
registerMooseObject("MooseApp", ADNeumannBC);

template <bool is_ad>
InputParameters
NeumannBCTempl<is_ad>::validParams()
{
  InputParameters params = GenericIntegratedBC<is_ad>::validParams();
  params.addParam<Real>("value", 0.0, "The value of the gradient on the boundary.");
  params.declareControllable("value");
  params.addClassDescription("Imposes the integrated boundary condition "
                             "$\\frac{\\partial u}{\\partial n}=h$, "
                             "where $h$ is a constant, controllable value.");
  return params;
}

template <bool is_ad>
NeumannBCTempl<is_ad>::NeumannBCTempl(const InputParameters & parameters)
  : GenericIntegratedBC<is_ad>(parameters), _value(this->template getParam<Real>("value"))
{
}

template <bool is_ad>
GenericReal<is_ad>
NeumannBCTempl<is_ad>::computeQpResidual()
{
  return -_test[_i][_qp] * _value;
}

template class NeumannBCTempl<false>;
template class NeumannBCTempl<true>;Copy

(framework/src/bcs/NeumannBC.C)

HeatConductionOutflow.h

#pragma once

// Include the base class so it can be extended
#include "ADIntegratedBC.h"

/**
 * An IntegratedBC representing the "No BC" boundary condition for
 * heat conduction.
 *
 * The residual is simply -test*k*grad_u*normal... the term you get
 * from integration by parts.  This is a standard technique for
 * truncating longer domains when solving the convection/diffusion
 * equation.
 *
 * See also: Griffiths, David F. "The 'no boundary condition' outflow
 * boundary condition.", International Journal for Numerical Methods
 * in Fluids, vol. 24, no. 4, 1997, pp. 393-411.
 */
class HeatConductionOutflow : public ADIntegratedBC
{
public:
  static InputParameters validParams();

  HeatConductionOutflow(const InputParameters & parameters);

protected:
  /**
   * This is called to integrate the residual across the boundary.
   */
  virtual ADReal computeQpResidual() override;

  /// Thermal conductivity of the material
  const ADMaterialProperty<Real> & _thermal_conductivity;
};Copy

(tutorials/darcy_thermo_mech/step05_heat_conduction/include/bcs/HeatConductionOutflow.h)

HeatConductionOutflow.C

#include "HeatConductionOutflow.h"

registerMooseObject("DarcyThermoMechApp", HeatConductionOutflow);

InputParameters
HeatConductionOutflow::validParams()
{
  InputParameters params = ADIntegratedBC::validParams();
  params.addClassDescription("Compute the outflow boundary condition.");
  return params;
}

HeatConductionOutflow::HeatConductionOutflow(const InputParameters & parameters)
  : ADIntegratedBC(parameters),
    _thermal_conductivity(getADMaterialProperty<Real>("thermal_conductivity"))
{
}

ADReal
HeatConductionOutflow::computeQpResidual()
{
  return -_test[_i][_qp] * _thermal_conductivity[_qp] * _grad_u[_qp] * _normals[_qp];
}Copy

(tutorials/darcy_thermo_mech/step05_heat_conduction/src/bcs/HeatConductionOutflow.C)

Step5c: Outflow Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 100
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables]
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[Kernels]
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
[]

[BCs]
  [inlet_temperature]
    type = DirichletBC
    variable = temperature
    boundary = left
    value = 350 # (K)
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [steel]
    type = ADGenericConstantMaterial
    prop_names = 'thermal_conductivity specific_heat density'
    prop_values = '18 466 8000' # W/m*K, J/kg-K, kg/m^3 @ 296K
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  num_steps = 10
  solve_type = NEWTON
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step05_heat_conduction/problems/step5c_outflow.i)

Step 5c: Run and Visualize with Peacock

cd ~/projects/moose/tutorials/darcy-thermo_mech/step05_heat_conduction
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step5b_transient.iCopy

The pressure and heat equations have been developed independently up to this point, in this step, they are coupled together.

-\nabla \cdot \frac{\mathbf{K}}{\mu} \nabla p = 0 \\ C\left( \frac{\partial T}{\partial t} + \underbrace{\epsilon \vec{u}\cdot\nabla T}_{\textrm{DarcyAdvection}} \right) - \nabla \cdot k \nabla T = 0

Objects have been created for everything except the $\vec{u}\cdot\nabla T$ term; a Kernel, DarcyAdvection, will be developed for this term.
A more sophisticated Material object will be created that includes temperature dependence

DarcyAdvection.h

#pragma once

#include "ADKernelValue.h"

/**
 * Kernel which implements the convective term in the transient heat
 * conduction equation, and provides coupling with the Darcy pressure
 * equation.
 */
class DarcyAdvection : public ADKernelValue
{
public:
  static InputParameters validParams();

  DarcyAdvection(const InputParameters & parameters);

protected:
  /// ADKernelValue objects must override precomputeQpResidual
  virtual ADReal precomputeQpResidual() override;

  /// The gradient of pressure
  const ADVariableGradient & _pressure_grad;

  /// These references will be set by the initialization list so that
  /// values can be pulled from the Material system.
  const ADMaterialProperty<Real> & _permeability;
  const ADMaterialProperty<Real> & _porosity;
  const ADMaterialProperty<Real> & _viscosity;
  const ADMaterialProperty<Real> & _density;
  const ADMaterialProperty<Real> & _specific_heat;
};Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/include/kernels/DarcyAdvection.h)

DarcyAdvection.C

#include "DarcyAdvection.h"

registerMooseObject("DarcyThermoMechApp", DarcyAdvection);

InputParameters
DarcyAdvection::validParams()
{
  InputParameters params = ADKernelValue::validParams();
  params.addRequiredCoupledVar("pressure", "The variable representing the pressure.");
  return params;
}

DarcyAdvection::DarcyAdvection(const InputParameters & parameters)
  : ADKernelValue(parameters),
    // Couple to the gradient of the pressure
    _pressure_grad(adCoupledGradient("pressure")),
    // Grab necessary material properties
    _permeability(getADMaterialProperty<Real>("permeability")),
    _porosity(getADMaterialProperty<Real>("porosity")),
    _viscosity(getADMaterialProperty<Real>("viscosity")),
    _density(getADMaterialProperty<Real>("density")),
    _specific_heat(getADMaterialProperty<Real>("specific_heat"))
{
}

ADReal
DarcyAdvection::precomputeQpResidual()
{
  // See also: E. Majchrzak and L. Turchan, "The Finite Difference
  // Method For Transient Convection Diffusion", Scientific Research
  // of the Institute of Mathematics and Computer Science, vol. 1,
  // no. 11, 2012, pp. 63-72.
  // http://srimcs.im.pcz.pl/2012_1/art_07.pdf

  // http://en.wikipedia.org/wiki/Superficial_velocity
  ADRealVectorValue superficial_velocity =
      _porosity[_qp] * -(_permeability[_qp] / _viscosity[_qp]) * _pressure_grad[_qp];

  return _density[_qp] * _specific_heat[_qp] * superficial_velocity * _grad_u[_qp];
}Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/src/kernels/DarcyAdvection.C)

PackedColumn.h

#pragma once

#include "ADMaterial.h"

// A helper class from MOOSE that linear interpolates x,y data
#include "LinearInterpolation.h"

/**
 * Material-derived objects override the computeQpProperties()
 * function.  They must declare and compute material properties for
 * use by other objects in the calculation such as Kernels and
 * BoundaryConditions.
 */
class PackedColumn : public ADMaterial
{
public:
  static InputParameters validParams();

  PackedColumn(const InputParameters & parameters);

protected:
  /**
   * Necessary override.  This is where the values of the properties
   * are computed.
   */
  virtual void computeQpProperties() override;

  /**
   * Helper function for reading CSV data for use in an interpolator object.
   */
  bool initInputData(const std::string & param_name, ADLinearInterpolation & interp);

  /// The radius of the spheres in the column
  const Function & _input_radius;

  /// The input porosity
  const Function & _input_porosity;

  /// Temperature
  const ADVariableValue & _temperature;

  /// Compute permeability based on the radius (mm)
  LinearInterpolation _permeability_interpolation;

  /// Fluid viscosity
  bool _use_fluid_mu_interp;
  const Real & _fluid_mu;
  ADLinearInterpolation _fluid_mu_interpolation;

  /// Fluid thermal conductivity
  bool _use_fluid_k_interp = false;
  const Real & _fluid_k;
  ADLinearInterpolation _fluid_k_interpolation;

  /// Fluid density
  bool _use_fluid_rho_interp = false;
  const Real & _fluid_rho;
  ADLinearInterpolation _fluid_rho_interpolation;

  /// Fluid specific heat
  bool _use_fluid_cp_interp;
  const Real & _fluid_cp;
  ADLinearInterpolation _fluid_cp_interpolation;

  /// Solid thermal conductivity
  bool _use_solid_k_interp = false;
  const Real & _solid_k;
  ADLinearInterpolation _solid_k_interpolation;

  /// Solid density
  bool _use_solid_rho_interp = false;
  const Real & _solid_rho;
  ADLinearInterpolation _solid_rho_interpolation;

  /// Fluid specific heat
  bool _use_solid_cp_interp;
  const Real & _solid_cp;
  ADLinearInterpolation _solid_cp_interpolation;

  /// The permeability (K)
  ADMaterialProperty<Real> & _permeability;

  /// The porosity (eps)
  ADMaterialProperty<Real> & _porosity;

  /// The viscosity of the fluid (mu)
  ADMaterialProperty<Real> & _viscosity;

  /// The bulk thermal conductivity
  ADMaterialProperty<Real> & _thermal_conductivity;

  /// The bulk heat capacity
  ADMaterialProperty<Real> & _specific_heat;

  /// The bulk density
  ADMaterialProperty<Real> & _density;
};Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/include/materials/PackedColumn.h)

PackedColumn.C

#include "PackedColumn.h"
#include "Function.h"
#include "DelimitedFileReader.h"

registerMooseObject("DarcyThermoMechApp", PackedColumn);

InputParameters
PackedColumn::validParams()
{
  InputParameters params = ADMaterial::validParams();
  params.addRequiredCoupledVar("temperature", "The temperature (C) of the fluid.");

  // Add a parameter to get the radius of the spheres in the column
  // (used later to interpolate permeability).
  params.addParam<FunctionName>("radius",
                                "1.0",
                                "The radius of the steel spheres (mm) that are packed in the "
                                "column for computing permeability.");

  // http://en.wikipedia.org/wiki/Close-packing_of_equal_spheres
  params.addParam<FunctionName>(
      "porosity", 0.25952, "Porosity of porous media, default is for closed packed spheres.");

  // Fluid properties
  params.addParam<Real>(
      "fluid_viscosity", 1.002e-3, "Fluid viscosity (Pa s); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_viscosity_file",
      "The name of a file containing the fluid viscosity (Pa-s) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  params.addParam<Real>("fluid_thermal_conductivity",
                        0.59803,
                        "Fluid thermal conductivity (W/(mK); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_thermal_conductivity_file",
      "The name of a file containing fluid thermal conductivity (W/(mK)) as a function of "
      "temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "fluid_density", 998.21, "Fluid density (kg/m^3); default is for water at 20C).");
  params.addParam<FileName>("fluid_density_file",
                            "The name of a file containing fluid density (kg/m^3) as a function "
                            "of temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "fluid_specific_heat", 4157.0, "Fluid specific heat (J/(kgK); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_specific_heat_file",
      "The name of a file containing fluid specific heat (J/(kgK) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  // Solid properties
  // https://en.wikipedia.org/wiki/Stainless_steel#Properties
  params.addParam<Real>("solid_thermal_conductivity",
                        15.0,
                        "Solid thermal conductivity (W/(mK); default is for AISI/ASTIM 304 "
                        "stainless steel at 20C).");
  params.addParam<FileName>(
      "solid_thermal_conductivity_file",
      "The name of a file containing solid thermal conductivity (W/(mK)) as a function of "
      "temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "solid_density",
      7900,
      "Solid density (kg/m^3); default is for AISI/ASTIM 304 stainless steel at 20C).");
  params.addParam<FileName>("solid_density_file",
                            "The name of a file containing solid density (kg/m^3) as a function "
                            "of temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "solid_specific_heat",
      500,
      "Solid specific heat (J/(kgK); default is for AISI/ASTIM 304 stainless steel at 20C).");
  params.addParam<FileName>(
      "solid_specific_heat_file",
      "The name of a file containing solid specific heat (J/(kgK) as a function of temperature "
      "(C); if provided the constant value is ignored.");
  return params;
}

PackedColumn::PackedColumn(const InputParameters & parameters)
  : ADMaterial(parameters),
    // Get the one parameter from the input file
    _input_radius(getFunction("radius")),
    _input_porosity(getFunction("porosity")),
    _temperature(adCoupledValue("temperature")),

    // Fluid
    _fluid_mu(getParam<Real>("fluid_viscosity")),
    _fluid_k(getParam<Real>("fluid_thermal_conductivity")),
    _fluid_rho(getParam<Real>("fluid_density")),
    _fluid_cp(getParam<Real>("fluid_specific_heat")),

    // Solid
    _solid_k(getParam<Real>("solid_thermal_conductivity")),
    _solid_rho(getParam<Real>("solid_density")),
    _solid_cp(getParam<Real>("solid_specific_heat")),

    // Material Properties being produced by this object
    _permeability(declareADProperty<Real>("permeability")),
    _porosity(declareADProperty<Real>("porosity")),
    _viscosity(declareADProperty<Real>("viscosity")),
    _thermal_conductivity(declareADProperty<Real>("thermal_conductivity")),
    _specific_heat(declareADProperty<Real>("specific_heat")),
    _density(declareADProperty<Real>("density"))
{
  // Set data for permeability interpolation
  std::vector<Real> sphere_sizes = {1, 3};
  std::vector<Real> permeability = {0.8451e-9, 8.968e-9};
  _permeability_interpolation.setData(sphere_sizes, permeability);

  // Fluid viscosity, thermal conductivity, density, and specific heat
  _use_fluid_mu_interp = initInputData("fluid_viscosity_file", _fluid_mu_interpolation);
  _use_fluid_k_interp = initInputData("fluid_thermal_conductivity_file", _fluid_k_interpolation);
  _use_fluid_rho_interp = initInputData("fluid_density_file", _fluid_rho_interpolation);
  _use_fluid_cp_interp = initInputData("fluid_specific_heat_file", _fluid_cp_interpolation);

  // Solid thermal conductivity, density, and specific heat
  _use_solid_k_interp = initInputData("solid_thermal_conductivity_file", _solid_k_interpolation);
  _use_solid_rho_interp = initInputData("solid_density_file", _solid_rho_interpolation);
  _use_solid_cp_interp = initInputData("solid_specific_heat_file", _solid_cp_interpolation);
}

void
PackedColumn::computeQpProperties()
{
  // Current temperature
  ADReal temp = _temperature[_qp] - 273.15;

  // Permeability
  Real radius_value = _input_radius.value(_t, _q_point[_qp]);
  mooseAssert(radius_value >= 1 && radius_value <= 3,
              "The radius range must be in the range [1, 3], but " << radius_value << " provided.");
  _permeability[_qp] = _permeability_interpolation.sample(radius_value);

  // Porosity
  Real porosity_value = _input_porosity.value(_t, _q_point[_qp]);
  mooseAssert(porosity_value > 0 && porosity_value <= 1,
              "The porosity range must be in the range (0, 1], but " << porosity_value
                                                                     << " provided.");
  _porosity[_qp] = porosity_value;

  // Fluid properties
  _viscosity[_qp] = _use_fluid_mu_interp ? _fluid_mu_interpolation.sample(temp) : _fluid_mu;
  ADReal fluid_k = _use_fluid_k_interp ? _fluid_k_interpolation.sample(temp) : _fluid_k;
  ADReal fluid_rho = _use_fluid_rho_interp ? _fluid_rho_interpolation.sample(temp) : _fluid_rho;
  ADReal fluid_cp = _use_fluid_cp_interp ? _fluid_cp_interpolation.sample(temp) : _fluid_cp;

  // Solid properties
  ADReal solid_k = _use_solid_k_interp ? _solid_k_interpolation.sample(temp) : _solid_k;
  ADReal solid_rho = _use_solid_rho_interp ? _solid_rho_interpolation.sample(temp) : _solid_rho;
  ADReal solid_cp = _use_solid_cp_interp ? _solid_cp_interpolation.sample(temp) : _solid_cp;

  // Compute the heat conduction material properties as a linear combination of
  // the material properties for fluid and steel.
  _thermal_conductivity[_qp] = _porosity[_qp] * fluid_k + (1.0 - _porosity[_qp]) * solid_k;
  _density[_qp] = _porosity[_qp] * fluid_rho + (1.0 - _porosity[_qp]) * solid_rho;
  _specific_heat[_qp] = _porosity[_qp] * fluid_cp + (1.0 - _porosity[_qp]) * solid_cp;
}

bool
PackedColumn::initInputData(const std::string & param_name, ADLinearInterpolation & interp)
{
  if (isParamValid(param_name))
  {
    const std::string & filename = getParam<FileName>(param_name);
    MooseUtils::DelimitedFileReader reader(filename, &_communicator);
    reader.setComment("#");
    reader.read();
    interp.setData(reader.getData(0), reader.getData(1));
    return true;
  }
  return false;
}Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/src/materials/PackedColumn.C)

HeatConductionOutflow.h

#pragma once

// Include the base class so it can be extended
#include "ADIntegratedBC.h"

/**
 * An IntegratedBC representing the "No BC" boundary condition for
 * heat conduction.
 *
 * The residual is simply -test*k*grad_u*normal... the term you get
 * from integration by parts.  This is a standard technique for
 * truncating longer domains when solving the convection/diffusion
 * equation.
 *
 * See also: Griffiths, David F. "The 'no boundary condition' outflow
 * boundary condition.", International Journal for Numerical Methods
 * in Fluids, vol. 24, no. 4, 1997, pp. 393-411.
 */
class HeatConductionOutflow : public ADIntegratedBC
{
public:
  static InputParameters validParams();

  HeatConductionOutflow(const InputParameters & parameters);

protected:
  /**
   * This is called to integrate the residual across the boundary.
   */
  virtual ADReal computeQpResidual() override;

  /// Thermal conductivity of the material
  const ADMaterialProperty<Real> & _thermal_conductivity;
};Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/include/bcs/HeatConductionOutflow.h)

HeatConductionOutflow.C

#include "HeatConductionOutflow.h"

registerMooseObject("DarcyThermoMechApp", HeatConductionOutflow);

InputParameters
HeatConductionOutflow::validParams()
{
  InputParameters params = ADIntegratedBC::validParams();
  params.addClassDescription("Compute the outflow boundary condition.");
  return params;
}

HeatConductionOutflow::HeatConductionOutflow(const InputParameters & parameters)
  : ADIntegratedBC(parameters),
    _thermal_conductivity(getADMaterialProperty<Real>("thermal_conductivity"))
{
}

ADReal
HeatConductionOutflow::computeQpResidual()
{
  return -_test[_i][_qp] * _thermal_conductivity[_qp] * _grad_u[_qp] * _normals[_qp];
}Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/src/bcs/HeatConductionOutflow.C)

Step 6a: Coupled Pressure and Heat Equations

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 200
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = left
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [column]
    type = PackedColumn
    temperature = temperature
    radius = 1
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  solve_type = NEWTON
  automatic_scaling = true

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'

  end_time = 100
  dt = 0.25
  start_time = -1

  steady_state_tolerance = 1e-5
  steady_state_detection = true

  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/problems/step6a_coupled.i)

Condition Number without Scaling

The condition number can be used to determine if variable scaling is required.

cd ~/projects/moose/tutorials/darcy-thermo_mech/step06_coupled_darcy_heat_conduction
make -j 12
../darcy_thermo_mech-opt -i step6a_coupled.i Mesh/nx=50 Mesh/ny=3 Executioner/num_steps=1 Executioner/automatic_scaling=0 -pc_type svd -pc_svd_monitor -ksp_view_pmatCopy

Time Step 1, time = 0.1, dt = 0.1

 0 Nonlinear |R| = 8.000625e+03
      SVD: condition number 2.835686200265e+15, 2 of 408 singular values are (nearly) zero
      SVD: smallest singular values: 1.434461194336e-13 5.583840793234e-13 1.222432395761e-12 2.076808734751e-12 3.047037450013e-12
      SVD: largest singular values : 4.006299266699e+02 4.029206639889e+02 4.047115548038e+02 4.059957077255e+02 4.067681813595e+02
      0 Linear |R| = 8.000625e+03
      1 Linear |R| = 8.101613e-09
Mat Object: () 1 MPI processes
  type: seqaij
row 0: (0, 1.)  (1, 0.)  (2, 0.)  (3, 0.)  (4, 0.)  (5, 0.)  (6, 0.)  (7, 0.)
row 1: (0, 0.)  (1, 1.)  (2, 0.)  (3, 0.)  (4, 0.)  (5, 0.)  (6, 0.)  (7, 0.)
row 2: (0, 1.32667e-12)  (1, 0.)  (2, -1.07325e-11)  (3, 0.)  (4, 3.97056e-14)  (5, 0.)  (6, 4.01973e-12)  (7, 0.)  (8, 1.32667e-12)  (9, 0.)  (10, 4.01973e-12)  (11, 0.)
row 3: (0, -2.81185e-20)  (1, 3.41152)  (2, -1.12474e-19)  (3, 14.0732)  (4, 1.12474e-19)  (5, 13.7863)  (6, 2.81185e-20)  (7, 3.33981)  (8, -2.81185e-20)  (9, 3.41152)  (10, 2.81185e-20)  (11, 3.33981)
row 4: (0, 4.01973e-12)  (1, 0.)  (2, 3.97056e-14)  (3, 0.)  (4, -6.43156e-11)  (5, 0.)  (6, 1.59995e-11)  (7, 0.)  (8, 4.01973e-12)  (9, 0.)  (10, 1.59995e-11)  (11, 0.)  (204, 1.19117e-13)  (205, 0.)  (206, 1.20592e-11)  (207, 0.)  (208, 1.20592e-11)  (209, 0.)Copy

Condition Number with Scaling

cd ~/projects/moose/tutorials/darcy-thermo_mech/step06_coupled_darcy_heat_conduction
make -j 12
../darcy_thermo_mech-opt -i step6a_coupled.i Mesh/nx=50 Mesh/ny=3 Executioner/num_steps=1 -pc_type svd -pc_svd_monitor -ksp_view_pmatCopy

Time Step 1, time = 0.1, dt = 0.1

 0 Nonlinear |R| = 8.000625e+03
      SVD: condition number 2.877175736279e+04, 0 of 408 singular values are (nearly) zero
      SVD: smallest singular values: 1.413775933915e-02 5.524422458767e-02 1.194077235260e-01 2.001521770346e-01 2.889664356969e-01
      SVD: largest singular values : 4.006299266699e+02 4.029206639889e+02 4.047115548038e+02 4.059957077255e+02 4.067681813595e+02
      0 Linear |R| = 8.000625e+03
      1 Linear |R| = 3.858046e-09
Mat Object: () 1 MPI processes
  type: seqaij
row 0: (0, 1.)  (1, 0.)  (2, 0.)  (3, 0.)  (4, 0.)  (5, 0.)  (6, 0.)  (7, 0.)
row 1: (0, 0.)  (1, 1.)  (2, 0.)  (3, 0.)  (4, 0.)  (5, 0.)  (6, 0.)  (7, 0.)
row 2: (0, 0.132667)  (1, 0.)  (2, -1.07325)  (3, 0.)  (4, 0.00397056)  (5, 0.)  (6, 0.401973)  (7, 0.)  (8, 0.132667)  (9, 0.)  (10, 0.401973)  (11, 0.)
row 3: (0, -2.81185e-20)  (1, 3.41152)  (2, -1.12474e-19)  (3, 14.0732)  (4, 1.12474e-19)  (5, 13.7863)  (6, 2.81185e-20)  (7, 3.33981)  (8, -2.81185e-20)  (9, 3.41152)  (10, 2.81185e-20)  (11, 3.33981)
row 4: (0, 0.401973)  (1, 0.)  (2, 0.00397056)  (3, 0.)  (4, -6.43156)  (5, 0.)  (6, 1.59995)  (7, 0.)  (8, 0.401973)  (9, 0.)  (10, 1.59995)  (11, 0.)  (204, 0.0119117)  (205, 0.)  (206, 1.20592)  (207, 0.)  (208, 1.20592)  (209, 0.)Copy

Step 6a: Run and Visualize with Peacock

cd ~/projects/moose/tutorials/darcy-thermo_mech/step06_coupled_darcy_heat_conduction
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step6a_coupled.iCopy

Step 6b: Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 200
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[Functions]
  [inlet_function]
    type = ParsedFunction
    value = 2000*sin(0.466*pi*t) # Inlet signal from Fig. 3
  []
  [outlet_function]
    type = ParsedFunction
    value = 2000*cos(0.466*pi*t) # Outlet signal from Fig. 3
  []
[]

[BCs]
  [inlet]
    type = FunctionDirichletBC
    variable = pressure
    boundary = left
    function = inlet_function
  []
  [outlet]
    type = FunctionDirichletBC
    variable = pressure
    boundary = right
    function = outlet_function
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = left
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = 1
    temperature = temperature
    fluid_viscosity_file = data/water_viscosity.csv
    fluid_density_file = data/water_density.csv
    fluid_thermal_conductivity_file = data/water_thermal_conductivity.csv
    fluid_specific_heat_file = data/water_specific_heat.csv
    outputs = exodus
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  solve_type = NEWTON
  automatic_scaling = true

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'

  end_time = 100
  dt = 0.25
  start_time = -1

  steady_state_tolerance = 1e-5
  steady_state_detection = true

  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,(2*pi/(0.466*pi))/16)' # dt to always hit the peaks of sine/cosine BC
  []
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/problems/step6b_transient_inflow.i)

Step 6b: Run and Visualize with Peacock

cd ~/projects/moose/tutorials/darcy-thermo_mech/step06_coupled_darcy_heat_conduction
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step6b_transient_inflow.iCopy

Decoupling Heat Equation

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 200
  ny = 10
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables]
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [pressure]
  []
[]

[AuxKernels]
  [pressure]
    type = FunctionAux
    variable = pressure
    function = 't*x*x*y'
    execute_on = timestep_end
  []
[]

[Kernels]
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[BCs]
  [inlet_temperature]
    type = DirichletBC
    variable = temperature
    boundary = left
    value = 350
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = 1
    temperature = 293.15 # 20C
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  num_steps = 300
  dt = 0.1
  solve_type = NEWTON
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step06_coupled_darcy_heat_conduction/problems/step6c_decoupled.i)

h-Adaptivity

$h$ -adaptivity is a method of automatically refining/coarsening the mesh in regions of high/low estimated solution error.

Concentrate degrees of freedom (DOFs) where the error is highest, while reducing DOFs where the solution is already well-captured.

Compute a measure of error using an Indicator object
Mark an element for refinement or coarsening based on the error using a Marker object

Mesh adaptivity can be employed in both Steady and Transient executioners.

Indicator Objects

Indicators report an amount of "error" for each element, built-in Indicators include:

GradientJumpIndicator
Jump in the gradient of a variable across element edges. A good "curvature" indicator that works well over a wide range of problems.

FluxJumpIndicator
Similar to GradientJump, except that a scalar coefficient (e.g. thermal conductivity) can be provided to produce a physical "flux" quantity.

LaplacianJumpIndicator
Jump in the second derivative of a variable. Only useful for $C^1$ shape functions.

AnalyticIndicator
Computes the difference between the finite element solution and a user-supplied Function representing the analytic solution to the problem.

Input Syntax

[Adaptivity]
  initial_steps = 2
  cycles_per_step = 2
  marker = marker
  initial_marker = marker
  max_h_level = 2
  [Indicators/indicator]
    [Indicators/indicator]
      [Indicators/indicator]
        [Indicators/indicator]
          type = GradientJumpIndicator
          variable = u
        []
      []
    []
  []
  [Markers/marker]
    [Markers/marker]
      [Markers/marker]
        [Markers/marker]
          type = ErrorFractionMarker
          indicator = indicator
          coarsen = 0.1
          refine = 0.7
        []
      []
    []
  []
[]Copy

(test/tests/adaptivity/cycles_per_step/cycles_per_step.i)

Step 7a: Coarse Solution

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 30
  ny = 3
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = left
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = 1
    temperature = temperature
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  solve_type = NEWTON
  automatic_scaling = true

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'

  end_time = 100
  dt = 0.25
  start_time = -1

  steady_state_tolerance = 1e-5
  steady_state_detection = true

  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step07_adaptivity/problems/step7a_coarse.i)

Step 7a: Run and Visualize

cd ~/projects/moose/tutorials/darcy-thermo_mech/step07_adaptivity
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step7a_coarse.iCopy

Step 7b: Fine Solution

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 30
  ny = 3
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
  uniform_refine = 3
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = left
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = 1
    temperature = temperature
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  solve_type = NEWTON
  automatic_scaling = true

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'

  end_time = 100
  dt = 0.25
  start_time = -1

  steady_state_tolerance = 1e-5
  steady_state_detection = true

  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Outputs]
  exodus = true
[]Copy

(tutorials/darcy_thermo_mech/step07_adaptivity/problems/step7b_fine.i)

Step 7b: Run and Visualize

cd ~/projects/moose/tutorials/darcy-thermo_mech/step07_adaptivity
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step7b_fine.iCopy

Step 7c: Adaptive Mesh Solution

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 30
  ny = 3
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
  uniform_refine = 3
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = left
    function = 'if(t<0,350+50*t,350)'
  []

  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = 1
    temperature = temperature
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  solve_type = NEWTON
  automatic_scaling = true

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'

  end_time = 100
  dt = 0.25
  start_time = -1

  steady_state_tolerance = 1e-5
  steady_state_detection = true

  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Outputs]
  exodus = true
[]

[Adaptivity]
  marker = error_frac
  max_h_level = 3
  [Indicators]
    [temperature_jump]
      type = GradientJumpIndicator
      variable = temperature
      scale_by_flux_faces = true
    []
  []
  [Markers]
    [error_frac]
      type = ErrorFractionMarker
      coarsen = 0.15
      indicator = temperature_jump
      refine = 0.7
    []
  []
[]Copy

(tutorials/darcy_thermo_mech/step07_adaptivity/problems/step7c_adapt.i)

Step 7c: Run and Visualize

cd ~/projects/moose/tutorials/darcy-thermo_mech/step07_adaptivity
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step7a_adapt.iCopy

Step 7d: Multiple Subdomains

[Mesh]
  uniform_refine = 3
  [generate]
    type = GeneratedMeshGenerator
    dim = 2
    nx = 40
    ny = 4
    xmax = 0.304 # Length of test chamber
    ymax = 0.0257 # Test chamber radius
  []
  [bottom]
    type = SubdomainBoundingBoxGenerator
    input = generate
    location = inside
    bottom_left = '0 0 0'
    top_right = '0.304 0.01285 0'
    block_id = 1
  []
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = left
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  viscosity_file = data/water_viscosity.csv
  density_file = data/water_density.csv
  thermal_conductivity_file = data/water_thermal_conductivity.csv
  specific_heat_file = data/water_specific_heat.csv

  [column_bottom]
    type = PackedColumn
    block = 1
    radius = 1.15
    temperature = temperature
    fluid_viscosity_file = ${viscosity_file}
    fluid_density_file = ${density_file}
    fluid_thermal_conductivity_file = ${thermal_conductivity_file}
    fluid_specific_heat_file = ${specific_heat_file}
  []
  [column_top]
    type = PackedColumn
    block = 0
    radius = 1
    temperature = temperature
    porosity = '0.25952 + 0.7*x/0.304'
    fluid_viscosity_file = ${viscosity_file}
    fluid_density_file = ${density_file}
    fluid_thermal_conductivity_file = ${thermal_conductivity_file}
    fluid_specific_heat_file = ${specific_heat_file}
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  solve_type = NEWTON
  automatic_scaling = true

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'

  end_time = 100
  dt = 0.25
  start_time = -1

  steady_state_tolerance = 1e-5
  steady_state_detection = true

  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Adaptivity]
  marker = error_frac
  max_h_level = 3
  [Indicators]
    [temperature_jump]
      type = GradientJumpIndicator
      variable = temperature
      scale_by_flux_faces = true
    []
  []
  [Markers]
    [error_frac]
      type = ErrorFractionMarker
      coarsen = 0.025
      indicator = temperature_jump
      refine = 0.9
    []
  []
[]

[Outputs]
  [out]
    type = Exodus
    output_material_properties = true
  []
[]Copy

(tutorials/darcy_thermo_mech/step07_adaptivity/problems/step7d_adapt_blocks.i)

User Defined Interface

A UserObject defines its own interface by defining const functions.

For example, if a UserObject is computing the average value of a variable on every block in the mesh, it might provide a function like:

Real averageValue(SubdomainID block) const;Copy

Another MooseObject needing this UserObject would then call averageValue() to get the result of the calculation.

Using a UserObject

Any MOOSE object can retrieve a UserObject in a manner similar to retrieving a Function.

Generally, it is a good idea to take the name of the UserObject to from the input file:

InputParameters
BlockAverageDiffusionMaterial::validParams()
{
  InputParameters params = Material::validParams();
  params.addRequiredParam<UserObjectName>("block_average_userobject", "Computes the ...");
  return params;
}Copy

A UserObject comes through as a const reference of the UserObject type. So, in your object:

const BlockAverageValue & _block_average_value;Copy

The reference is set in the initialization list of your object by calling the templated getUserObject() method:

BlockAverageDiffusionMaterial::BlockAverageDiffusionMaterial(const InputParameters & parameters) :
    Material(parameters),
    _block_average_value(getUserObject<BlockAverageValue>("block_average_userobject"))
{}Copy

Use the reference by calling some of the interface functions defined by the UserObject:

_diffusivity[_qp] = 0.5 * _block_average_value.averageValue(_current_elem->subdomain_id());Copy

Built-in Postprocessor Types

MOOSE includes a large number built-in Postprocessors: ElementAverageValue, SideAverageValue, ElementL2Error, ElementH1Error, and many more

By default, Postprocessors will output to a formatted table on the screen and optionally using the [Outputs] block be stored in CSV file.

[Output]
  csv = true
[]Copy

Using a Postprocessor

Postprocessor values are used within an object by creating a const reference to a PostprocessorValue and initializing the reference in the initialization list.

const PostprocessorValue & _pps_value;Copy

(framework/include/timesteppers/PostprocessorDT.h)

_pps_value(getPostprocessorValue("postprocessor")),Copy

(framework/src/timesteppers/PostprocessorDT.C)

Default Postprocessor Values

It is possible to set default values for Postprocessors to allow an object to operate without creating Postprocessor object.

params.addParam<PostprocessorName>("postprocessor", 1.2345, "Doc String");Copy

Additionally, a value may be supplied in the input file in lieu of a Postprocessor name.

VectorPostprocessor objects operate a bit like Material objects, each vector is declared and then within the "initialize", "execute", "threadJoin", and "finalize" methods the vectors are updated with the desired data.

Create a member variable, as a reference, for the vector data

VectorPostprocessorValue & _pid;Copy

(framework/include/vectorpostprocessors/WorkBalance.h)

Initialize the reference using the declareVector method with a name

_pid(declareVector("pid")),Copy

(framework/src/vectorpostprocessors/WorkBalance.C)

Built-in VectorPostprocessor Types

MOOSE includes a large number built-in VectorPostprocessors: NodalValueSampler, LineValueSampler, PointValueSampler, and many more.

VectorPostprocessors output is optionally enabled using the [Outputs] block. A CSV file for each vector and timestep will be created.

[Output]
  csv = true
[]Copy

Using a VectorPostprocessor

Postprocessor values are used within an object by creating a const reference to a VectorPostprocessorValue and initializing the reference in the initialization list.

const VectorPostprocessorValue & _x_values;Copy

(framework/include/vectorpostprocessors/LeastSquaresFit.h)

_x_values(getVectorPostprocessorValue("vectorpostprocessor", _x_name)),Copy

(framework/src/vectorpostprocessors/LeastSquaresFit.C)

Step 8: Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 30
  ny = 3
  xmax = 0.304 # Length of test chamber
  ymax = 0.0257 # Test chamber radius
  uniform_refine = 2
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = left
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = right
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = left
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = right
  []
[]

[Materials]
  [column]
    type = PackedColumn
    radius = 1
    temperature = temperature
    porosity = '0.25952 + 0.7*y/0.0257'
  []
[]

[Postprocessors]
  [average_temperature]
    type = ElementAverageValue
    variable = temperature
  []
  [outlet_heat_flux]
    type = ADSideDiffusiveFluxIntegral
    variable = temperature
    boundary = right
    diffusivity = thermal_conductivity
  []
[]

[VectorPostprocessors]
  [temperature_sample]
    type = LineValueSampler
    num_points = 500
    start_point = '0.1 0      0'
    end_point =   '0.1 0.0257 0'
    variable = temperature
    sort_by = y
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
  rz_coord_axis = X
[]

[Executioner]
  type = Transient
  solve_type = NEWTON
  automatic_scaling = true

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'

  end_time = 100
  dt = 0.25
  start_time = -1

  steady_state_tolerance = 1e-5
  steady_state_detection = true

  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Outputs]
  exodus = true
  csv = true
[]Copy

(tutorials/darcy_thermo_mech/step08_postprocessors/problems/step8.i)

Step 8: Run and Visualize

cd ~/projects/moose/tutorials/darcy-thermo_mech/step08_postprocessors
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step8.iCopy

Mechanics

Compute the elastic and thermal strain if the tube is only allowed to expand along the axial (y) direction.

\begin{aligned} \nabla \cdot (\boldsymbol{\sigma} + \boldsymbol{\sigma}_0) + \boldsymbol{b} =& \boldsymbol{0} \;\mathrm{in}\;\Omega \\ \boldsymbol{u} =& \boldsymbol{g}\;\mathrm{in}\;\Gamma_{ \boldsymbol{g}} \\ \boldsymbol{\sigma} \cdot \boldsymbol{n}=&\boldsymbol{t}\;\mathrm{in}\;\Gamma_{ \boldsymbol{t}} \end{aligned}

where $\boldsymbol{\sigma}$ is the Cauchy stress tensor, $\boldsymbol{\sigma}_0$ is an additional source of stress (such as pore pressure), $\boldsymbol{u}$ is the displacement vector, $\boldsymbol{b}$ is the body force, $\boldsymbol{n}$ is the unit normal to the boundary, $\boldsymbol{g}$ is the prescribed displacement on the boundary and $\boldsymbol{t}$ is the prescribed traction on the boundary.

PackedColumn.h

#pragma once

#include "ADMaterial.h"

// A helper class from MOOSE that linear interpolates x,y data
#include "LinearInterpolation.h"

/**
 * Material-derived objects override the computeQpProperties()
 * function.  They must declare and compute material properties for
 * use by other objects in the calculation such as Kernels and
 * BoundaryConditions.
 */
class PackedColumn : public ADMaterial
{
public:
  static InputParameters validParams();

  PackedColumn(const InputParameters & parameters);

protected:
  /**
   * Necessary override.  This is where the values of the properties
   * are computed.
   */
  virtual void computeQpProperties() override;

  /**
   * Helper function for reading CSV data for use in an interpolator object.
   */
  bool initInputData(const std::string & param_name, ADLinearInterpolation & interp);

  /// The radius of the spheres in the column
  const Function & _input_radius;

  /// The input porosity
  const Function & _input_porosity;

  /// Temperature
  const ADVariableValue & _temperature;

  /// Compute permeability based on the radius (mm)
  LinearInterpolation _permeability_interpolation;

  /// Fluid viscosity
  bool _use_fluid_mu_interp;
  const Real & _fluid_mu;
  ADLinearInterpolation _fluid_mu_interpolation;

  /// Fluid thermal conductivity
  bool _use_fluid_k_interp = false;
  const Real & _fluid_k;
  ADLinearInterpolation _fluid_k_interpolation;

  /// Fluid density
  bool _use_fluid_rho_interp = false;
  const Real & _fluid_rho;
  ADLinearInterpolation _fluid_rho_interpolation;

  /// Fluid specific heat
  bool _use_fluid_cp_interp;
  const Real & _fluid_cp;
  ADLinearInterpolation _fluid_cp_interpolation;

  /// Fluid thermal expansion coefficient
  bool _use_fluid_cte_interp;
  const Real & _fluid_cte;
  ADLinearInterpolation _fluid_cte_interpolation;

  /// Solid thermal conductivity
  bool _use_solid_k_interp = false;
  const Real & _solid_k;
  ADLinearInterpolation _solid_k_interpolation;

  /// Solid density
  bool _use_solid_rho_interp = false;
  const Real & _solid_rho;
  ADLinearInterpolation _solid_rho_interpolation;

  /// Solid specific heat
  bool _use_solid_cp_interp;
  const Real & _solid_cp;
  ADLinearInterpolation _solid_cp_interpolation;

  /// Solid thermal expansion coefficient
  bool _use_solid_cte_interp;
  const Real & _solid_cte;
  ADLinearInterpolation _solid_cte_interpolation;

  /// The permeability (K)
  ADMaterialProperty<Real> & _permeability;

  /// The porosity (eps)
  ADMaterialProperty<Real> & _porosity;

  /// The viscosity of the fluid (mu)
  ADMaterialProperty<Real> & _viscosity;

  /// The bulk thermal conductivity
  ADMaterialProperty<Real> & _thermal_conductivity;

  /// The bulk heat capacity
  ADMaterialProperty<Real> & _specific_heat;

  /// The bulk density
  ADMaterialProperty<Real> & _density;

  /// The bulk thermal expansion coefficient
  ADMaterialProperty<Real> & _thermal_expansion;
};Copy

(tutorials/darcy_thermo_mech/step09_mechanics/include/materials/PackedColumn.h)

PackedColumn.C

#include "PackedColumn.h"
#include "Function.h"
#include "DelimitedFileReader.h"

registerMooseObject("DarcyThermoMechApp", PackedColumn);

InputParameters
PackedColumn::validParams()
{
  InputParameters params = ADMaterial::validParams();
  params.addRequiredCoupledVar("temperature", "The temperature (C) of the fluid.");

  // Add a parameter to get the radius of the spheres in the column
  // (used later to interpolate permeability).
  params.addParam<FunctionName>("radius",
                                "1.0",
                                "The radius of the steel spheres (mm) that are packed in the "
                                "column for computing permeability.");

  // http://en.wikipedia.org/wiki/Close-packing_of_equal_spheres
  params.addParam<FunctionName>(
      "porosity", 0.25952, "Porosity of porous media, default is for closed packed spheres.");

  // Fluid properties
  params.addParam<Real>(
      "fluid_viscosity", 1.002e-3, "Fluid viscosity (Pa s); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_viscosity_file",
      "The name of a file containing the fluid viscosity (Pa-s) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  params.addParam<Real>("fluid_thermal_conductivity",
                        0.59803,
                        "Fluid thermal conductivity (W/(mK); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_thermal_conductivity_file",
      "The name of a file containing fluid thermal conductivity (W/(mK)) as a function of "
      "temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "fluid_density", 998.21, "Fluid density (kg/m^3); default is for water at 20C).");
  params.addParam<FileName>("fluid_density_file",
                            "The name of a file containing fluid density (kg/m^3) as a function "
                            "of temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "fluid_specific_heat", 4157.0, "Fluid specific heat (J/(kgK); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_specific_heat_file",
      "The name of a file containing fluid specific heat (J/(kgK) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  params.addParam<Real>("fluid_thermal_expansion",
                        2.07e-4,
                        "Fluid thermal expansion coefficient (1/K); default is for water at 20C).");
  params.addParam<FileName>("fluid_thermal_expansion_file",
                            "The name of a file containing fluid thermal expansion coefficient "
                            "(1/K) as a function of temperature "
                            "(C); if provided the constant value is ignored.");

  // Solid properties
  // https://en.wikipedia.org/wiki/Stainless_steel#Properties
  params.addParam<Real>("solid_thermal_conductivity",
                        15.0,
                        "Solid thermal conductivity (W/(mK); default is for AISI/ASTIM 304 "
                        "stainless steel at 20C).");
  params.addParam<FileName>(
      "solid_thermal_conductivity_file",
      "The name of a file containing solid thermal conductivity (W/(mK)) as a function of "
      "temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "solid_density",
      7900,
      "Solid density (kg/m^3); default is for AISI/ASTIM 304 stainless steel at 20C).");
  params.addParam<FileName>("solid_density_file",
                            "The name of a file containing solid density (kg/m^3) as a function "
                            "of temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "solid_specific_heat",
      500,
      "Solid specific heat (J/(kgK); default is for AISI/ASTIM 304 stainless steel at 20C).");
  params.addParam<FileName>(
      "solid_specific_heat_file",
      "The name of a file containing solid specific heat (J/(kgK) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  params.addParam<Real>("solid_thermal_expansion",
                        17.3e-6,
                        "Solid thermal expansion coefficient (1/K); default is for water at 20C).");
  params.addParam<FileName>("solid_thermal_expansion_file",
                            "The name of a file containing solid thermal expansion coefficient "
                            "(1/K) as a function of temperature "
                            "(C); if provided the constant value is ignored.");
  return params;
}

PackedColumn::PackedColumn(const InputParameters & parameters)
  : ADMaterial(parameters),
    // Get the one parameter from the input file
    _input_radius(getFunction("radius")),
    _input_porosity(getFunction("porosity")),
    _temperature(adCoupledValue("temperature")),

    // Fluid
    _fluid_mu(getParam<Real>("fluid_viscosity")),
    _fluid_k(getParam<Real>("fluid_thermal_conductivity")),
    _fluid_rho(getParam<Real>("fluid_density")),
    _fluid_cp(getParam<Real>("fluid_specific_heat")),
    _fluid_cte(getParam<Real>("fluid_thermal_expansion")),

    // Solid
    _solid_k(getParam<Real>("solid_thermal_conductivity")),
    _solid_rho(getParam<Real>("solid_density")),
    _solid_cp(getParam<Real>("solid_specific_heat")),
    _solid_cte(getParam<Real>("solid_thermal_expansion")),

    // Material Properties being produced by this object
    _permeability(declareADProperty<Real>("permeability")),
    _porosity(declareADProperty<Real>("porosity")),
    _viscosity(declareADProperty<Real>("viscosity")),
    _thermal_conductivity(declareADProperty<Real>("thermal_conductivity")),
    _specific_heat(declareADProperty<Real>("specific_heat")),
    _density(declareADProperty<Real>("density")),
    _thermal_expansion(declareADProperty<Real>("thermal_expansion"))
{
  // Set data for permeability interpolation
  std::vector<Real> sphere_sizes = {1, 3};
  std::vector<Real> permeability = {0.8451e-9, 8.968e-9};
  _permeability_interpolation.setData(sphere_sizes, permeability);

  // Fluid viscosity, thermal conductivity, density, and specific heat
  _use_fluid_mu_interp = initInputData("fluid_viscosity_file", _fluid_mu_interpolation);
  _use_fluid_k_interp = initInputData("fluid_thermal_conductivity_file", _fluid_k_interpolation);
  _use_fluid_rho_interp = initInputData("fluid_density_file", _fluid_rho_interpolation);
  _use_fluid_cp_interp = initInputData("fluid_specific_heat_file", _fluid_cp_interpolation);
  _use_fluid_cte_interp = initInputData("fluid_thermal_expansion_file", _fluid_cte_interpolation);

  // Solid thermal conductivity, density, and specific heat
  _use_solid_k_interp = initInputData("solid_thermal_conductivity_file", _solid_k_interpolation);
  _use_solid_rho_interp = initInputData("solid_density_file", _solid_rho_interpolation);
  _use_solid_cp_interp = initInputData("solid_specific_heat_file", _solid_cp_interpolation);
  _use_solid_cte_interp = initInputData("solid_thermal_expansion_file", _solid_cte_interpolation);
}

void
PackedColumn::computeQpProperties()
{
  // Current temperature
  ADReal temp = _temperature[_qp] - 273.15;

  // Permeability
  Real radius_value = _input_radius.value(_t, _q_point[_qp]);
  mooseAssert(radius_value >= 1 && radius_value <= 3,
              "The radius range must be in the range [1, 3], but " << radius_value << " provided.");
  _permeability[_qp] = _permeability_interpolation.sample(radius_value);

  // Porosity
  Real porosity_value = _input_porosity.value(_t, _q_point[_qp]);
  mooseAssert(porosity_value > 0 && porosity_value <= 1,
              "The porosity range must be in the range (0, 1], but " << porosity_value
                                                                     << " provided.");
  _porosity[_qp] = porosity_value;

  // Fluid properties
  _viscosity[_qp] =
      _use_fluid_mu_interp ? _fluid_mu_interpolation.sample(raw_value(temp)) : _fluid_mu;
  ADReal fluid_k = _use_fluid_k_interp ? _fluid_k_interpolation.sample(raw_value(temp)) : _fluid_k;
  ADReal fluid_rho =
      _use_fluid_rho_interp ? _fluid_rho_interpolation.sample(raw_value(temp)) : _fluid_rho;
  ADReal fluid_cp =
      _use_fluid_cp_interp ? _fluid_cp_interpolation.sample(raw_value(temp)) : _fluid_cp;
  ADReal fluid_cte =
      _use_fluid_cte_interp ? _fluid_cte_interpolation.sample(raw_value(temp)) : _fluid_cte;

  // Solid properties
  ADReal solid_k = _use_solid_k_interp ? _solid_k_interpolation.sample(raw_value(temp)) : _solid_k;
  ADReal solid_rho =
      _use_solid_rho_interp ? _solid_rho_interpolation.sample(raw_value(temp)) : _solid_rho;
  ADReal solid_cp =
      _use_solid_cp_interp ? _solid_cp_interpolation.sample(raw_value(temp)) : _solid_cp;
  ADReal solid_cte =
      _use_solid_cte_interp ? _solid_cte_interpolation.sample(raw_value(temp)) : _solid_cte;

  // Compute the heat conduction material properties as a linear combination of
  // the material properties for fluid and steel.
  _thermal_conductivity[_qp] = _porosity[_qp] * fluid_k + (1.0 - _porosity[_qp]) * solid_k;
  _density[_qp] = _porosity[_qp] * fluid_rho + (1.0 - _porosity[_qp]) * solid_rho;
  _specific_heat[_qp] = _porosity[_qp] * fluid_cp + (1.0 - _porosity[_qp]) * solid_cp;
  _thermal_expansion[_qp] = _porosity[_qp] * fluid_cte + (1.0 - _porosity[_qp]) * solid_cte;
}

bool
PackedColumn::initInputData(const std::string & param_name, ADLinearInterpolation & interp)
{
  if (isParamValid(param_name))
  {
    const std::string & filename = getParam<FileName>(param_name);
    MooseUtils::DelimitedFileReader reader(filename, &_communicator);
    reader.setComment("#");
    reader.read();
    interp.setData(reader.getData(0), reader.getData(1));
    return true;
  }
  return false;
}Copy

(tutorials/darcy_thermo_mech/step09_mechanics/src/materials/PackedColumn.C)

Step 9: Input File

[GlobalParams]
  displacements = 'disp_r disp_z'
[]

[Mesh]
  [generate]
    type = GeneratedMeshGenerator
    dim = 2
    ny = 200
    nx = 10
    ymax = 0.304 # Length of test chamber
    xmax = 0.0257 # Test chamber radius
  []
  [bottom]
    type = SubdomainBoundingBoxGenerator
    input = generate
    location = inside
    bottom_left = '0 0 0'
    top_right = '0.01285 0.304 0'
    block_id = 1
  []
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Modules/TensorMechanics/Master]
  [all]
    # This block adds all of the proper Kernels, strain calculators, and Variables
    # for TensorMechanics in the correct coordinate system (autodetected)
    add_variables = true
    strain = FINITE
    eigenstrain_names = eigenstrain
    use_automatic_differentiation = true
    generate_output = 'vonmises_stress elastic_strain_xx elastic_strain_yy strain_xx strain_yy'
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = bottom
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = top
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = bottom
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = top
  []
  [hold_inlet]
    type = DirichletBC
    variable = disp_z
    boundary = bottom
    value = 0
  []
  [hold_center]
    type = DirichletBC
    variable = disp_r
    boundary = left
    value = 0
  []
  [hold_outside]
    type = DirichletBC
    variable = disp_r
    boundary = right
    value = 0
  []
[]

[Materials]
  viscosity_file = data/water_viscosity.csv
  density_file = data/water_density.csv
  thermal_conductivity_file = data/water_thermal_conductivity.csv
  specific_heat_file = data/water_specific_heat.csv
  thermal_expansion_file = data/water_thermal_expansion.csv

  [column_top]
    type = PackedColumn
    block = 0
    temperature = temperature
    radius = 1.15
    fluid_viscosity_file = ${viscosity_file}
    fluid_density_file = ${density_file}
    fluid_thermal_conductivity_file = ${thermal_conductivity_file}
    fluid_specific_heat_file = ${specific_heat_file}
    fluid_thermal_expansion_file = ${thermal_expansion_file}
  []
  [column_bottom]
    type = PackedColumn
    block = 1
    temperature = temperature
    radius = 1
    fluid_viscosity_file = ${viscosity_file}
    fluid_density_file = ${density_file}
    fluid_thermal_conductivity_file = ${thermal_conductivity_file}
    fluid_specific_heat_file = ${specific_heat_file}
    fluid_thermal_expansion_file = ${thermal_expansion_file}
  []

  [elasticity_tensor]
    type = ADComputeIsotropicElasticityTensor
    youngs_modulus = 200e9 # (Pa) from wikipedia
    poissons_ratio = .3 # from wikipedia

  []
  [elastic_stress]
    type = ADComputeFiniteStrainElasticStress
  []
  [thermal_strain]
    type = ADComputeThermalExpansionEigenstrain
    stress_free_temperature = 300
    eigenstrain_name = eigenstrain
    temperature = temperature
    thermal_expansion_coeff = 1e-5 # TM modules doesn't support material property, but it will
  []
[]

[Postprocessors]
  [average_temperature]
    type = ElementAverageValue
    variable = temperature
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
[]

[Executioner]
  type = Transient
  start_time = -1
  end_time = 200
  steady_state_tolerance = 1e-7
  steady_state_detection = true
  dt = 0.25
  solve_type = PJFNK
  automatic_scaling = true
  compute_scaling_once = false
  petsc_options_iname = '-pc_type'
  petsc_options_value = 'lu'
  #petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart'
  #petsc_options_value = 'hypre boomeramg 500'
  line_search = none
  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Outputs]
  [out]
    type = Exodus
    elemental_as_nodal = true
  []
[]Copy

(tutorials/darcy_thermo_mech/step09_mechanics/problems/step9.i)

Step 9: Run and Visualize

cd ~/projects/moose/tutorials/darcy-thermo_mech/step09_mechanics
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step9.iCopy

[MultiApps]
  [micro]
    type = TransientMultiApp
    app_type = DarcyThermoMechApp
    positions = '0.01285 0.0    0
                 0.01285 0.0608 0
                 0.01285 0.1216 0
                 0.01285 0.1824 0
                 0.01285 0.2432 0
                 0.01285 0.304  0'
    input_files = step10_micro.i
    execute_on = 'timestep_end'
  []
[]Copy

(tutorials/darcy_thermo_mech/step10_multiapps/problems/step10.i)

Field Interpolation

An "interpolation" Transfer should be used when the domains have some overlapping geometry.
The source field is evaluated at the destination points (generally nodes or element centroids).
The evaluations are then put into the receiving AuxVariable field named variable.
All MultiAppTransfers take a direction parameter to specify the flow of information. Options are: from_multiapp or to_multiapp.

[Transfers]
  [from_sub]
    source_variable = sub_u
    direction = from_multiapp
    variable = transferred_u
    type = MultiAppMeshFunctionTransfer
    multi_app = sub
    execute_on = 'initial timestep_end'
  []
  [elemental_from_sub]
    source_variable = sub_u
    direction = from_multiapp
    variable = elemental_transferred_u
    type = MultiAppMeshFunctionTransfer
    multi_app = sub
  []
[]Copy

(test/tests/transfers/multiapp_mesh_function_transfer/exec_on_mismatch.i)

UserObject Interpolation

Many UserObjects compute spatially-varying data that is not associated directly with a mesh
Any UserObject can override Real spatialValue(Point &) to provide a value given a point in space
A UserObjectTransfer can sample this spatially-varying data from one app and put the values into an AuxVariable in another

[Transfers]
  [layered_transfer_to_sub_app]
    type = MultiAppUserObjectTransfer
    direction = to_multiapp
    user_object = master_uo
    variable = sub_app_var
    multi_app = sub_app
    displaced_target_mesh = true
  []
  [layered_transfer_from_sub_app]
    type = MultiAppUserObjectTransfer
    direction = from_multiapp
    user_object = sub_app_uo
    variable = from_sub_app_var
    multi_app = sub_app
    displaced_source_mesh = true
  []
[]Copy

(test/tests/transfers/multiapp_userobject_transfer/3d_1d_master.i)

Postprocessor Transfer

A Postprocessor transfer allows a transfer of scalar values between applications

When transferring to a MultiApp, the value can either be put into a Postprocessor value or can be put into a constant AuxVariable field
When transferring from a MultiApp to the master, the value can be interpolated from all the sub-apps into an auxiliary field

[Transfers]
  [pp_transfer]
    type = MultiAppPostprocessorTransfer
    direction = to_multiapp
    multi_app = pp_sub
    from_postprocessor = average
    to_postprocessor = from_master
  []
[]Copy

(test/tests/transfers/multiapp_postprocessor_transfer/master.i)

RandomCorrosion.h

#pragma once

// MOOSE includes
#include "AuxKernel.h"
#include "libmesh/bounding_box.h"

/**
 * Creates artificial, temperature driven corrosion.
 *
 * Consider a multi-phase system represented by a field-variable varying
 * from 0 to 1. This class randomly sets points within the field to have
 * a value of 0. Additionally, there is a contrived relationship with the
 * number of points where "corrosion" occurs, the greater the difference
 * between the supplied postprocessor and the reference the more points
 * that are used.
 */
class RandomCorrosion : public AuxKernel
{
public:
  static InputParameters validParams();

  /**
   * Class constructor
   * @param parameters The input parameters for the RandomCorrosion object.
   */
  RandomCorrosion(const InputParameters & parameters);

  /**
   * At each timestep randomly create a vector of points to apply "corrosion".
   */
  void timestepSetup() override;

protected:
  /**
   * Computes the "corrosion" for the supplied phase variable.
   * @return The compute "phase" variable
   */
  virtual Real computeValue() override;

  /**
   * A helper method for getting random points in the domiain.
   * @return A random point within the bounding box of the domain
   */
  Point getRandomPoint();

private:
  /// The vector of random points to apply "corrosion"
  std::vector<Point> _points;

  /// The bounding box of the domain, used for generating "corrosion" points
  BoundingBox _box;

  /// Nodal tolerance for determining if "corrosion" should occur at the current node
  const Real & _nodal_tol;

  /// Minimum  number of "corrosion" points to apply
  const unsigned int & _num_points;

  /// Reference temperature, used for creating a temperature dependence and corrosion
  const Real & _ref_temperature;

  /// System temperature, used for creating a temperature dependence and corrosion
  const PostprocessorValue & _temperature;
};Copy

(tutorials/darcy_thermo_mech/step10_multiapps/include/auxkernels/RandomCorrosion.h)

RandomCorrosion.C

// MOOSE includes
#include "RandomCorrosion.h"
#include "MooseMesh.h"

#include "libmesh/mesh_tools.h"

registerMooseObject("DarcyThermoMechApp", RandomCorrosion);

InputParameters
RandomCorrosion::validParams()
{
  InputParameters params = AuxKernel::validParams();
  params.addParam<Real>("tolerance",
                        1e-3,
                        "When acting as a nodal AuxKernel determine if the "
                        "random point to apply corrosion is located at the "
                        "current node.");
  params.addParam<unsigned int>("num_points",
                                10,
                                "The number of random points to apply artificial "
                                "corrosion. The number of points is increased by "
                                "a factor as the supplied temperatures diverge.");
  params.addParam<Real>("reference_temperature",
                        273.15,
                        "Temperature at which corrosion begins, "
                        "the greater the 'temperature' drifts "
                        "from this the greater the amount of "
                        "corrosion locations that occurs.");
  params.addParam<PostprocessorName>(
      "temperature",
      274.15,
      "The temperature value to used for computing the temperature "
      "multiplication factor for the number of corrosion locations.");
  return params;
}

RandomCorrosion::RandomCorrosion(const InputParameters & parameters)
  : AuxKernel(parameters),
    _box(MeshTools::create_bounding_box(_mesh)),
    _nodal_tol(getParam<Real>("tolerance")),
    _num_points(getParam<unsigned int>("num_points")),
    _ref_temperature(getParam<Real>("reference_temperature")),
    _temperature(getPostprocessorValue("temperature"))
{
  // This class only works with Nodal aux variables
  if (!isNodal())
    mooseError("RandomCorrosion only operates using nodal aux variables.");

  // Setup the random number generation
  setRandomResetFrequency(EXEC_TIMESTEP_BEGIN);
}

void
RandomCorrosion::timestepSetup()
{
  // Increase the number of points as the temperature differs from the reference
  Real factor = 1;
  if (_temperature > _ref_temperature)
    factor = 1 + (_temperature - _ref_temperature) * 0.1;

  // Generater the random points to apply "corrosion"
  _points.clear();
  for (unsigned int i = 0; i < _num_points * factor; ++i)
    _points.push_back(getRandomPoint());
}

Real
RandomCorrosion::computeValue()
{

  // If the current node is at a "corrosion" point, set the phase variable to zero
  for (const Point & pt : _points)
    if (_current_node->absolute_fuzzy_equals(pt, _nodal_tol))
      return 0.0;

  // Do nothing to the phase variable if not at a "corrosion" point
  return _u[_qp];
}

Point
RandomCorrosion::getRandomPoint()
{
  // Generates a random point within the domain
  const Point & min = _box.min();
  const Point & max = _box.max();

  Real x = getRandomReal() * (max(0) - min(0)) + min(0);
  Real y = getRandomReal() * (max(1) - min(1)) + min(1);
  Real z = getRandomReal() * (max(2) - min(2)) + min(2);

  return Point(x, y, z);
}Copy

(tutorials/darcy_thermo_mech/step10_multiapps/src/auxkernels/RandomCorrosion.C)

Step 10: Micro-scale Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 10
  ny = 10
  ymax = 0.1
  xmax = 0.1
  uniform_refine = 0
[]

[Adaptivity]
  max_h_level = 4
  initial_steps = 6
  initial_marker = error_marker
  cycles_per_step = 2
  marker = error_marker
  [Indicators]
    [phi_jump]
      type = GradientJumpIndicator
      variable = phi
    []
  []
  [Markers]
    [error_marker]
      type = ErrorFractionMarker
      indicator = phi_jump
      refine = 0.8
      coarsen = 0.1
    []
  []
[]

[Variables]
  [temperature]
    initial_condition = 300
  []
[]

[AuxVariables]
  [phi]
  []
  [por_var]
    family = MONOMIAL
    order = CONSTANT
  []
[]

[AuxKernels]
  [corrosion]
    type = RandomCorrosion
    variable = phi
    reference_temperature = 300
    temperature = temperature_in
    execute_on = 'INITIAL TIMESTEP_END'
  []
  [por_var]
    type = ADMaterialRealAux
    variable = por_var
    property = porosity
    execute_on = 'INITIAL TIMESTEP_END'
  []
[]

[Kernels]
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
[]

[BCs]
  [left]
    type = PostprocessorDirichletBC
    variable = temperature
    boundary = left
    postprocessor = temperature_in
  []
  [right]
    type = NeumannBC
    variable = temperature
    boundary = right
    value = 100 # prescribed flux
  []
[]

[Materials]
  [column]
    type = PackedColumn
    temperature = temperature
    radius = 1 # mm
    phase = phi
  []
[]

[Postprocessors]
  [temperature_in]
    type = Receiver
    default = 301
  []
  [k_eff]
    type = ThermalConductivity
    variable = temperature
    T_hot = temperature_in
    flux = 100
    dx = 0.1
    boundary = right
    length_scale = 1
    k0 = 12.05
    execute_on = 'INITIAL TIMESTEP_END'
  []
  [por_var]
    type = ElementAverageValue
    variable = por_var
    execute_on = 'INITIAL TIMESTEP_END'
  []
  [t_right]
    type = SideAverageValue
    boundary = right
    variable = temperature
    execute_on = 'INITIAL TIMESTEP_END'
  []
[]

[Executioner]
  type = Transient
  end_time = 1000
  dt = 1
  steady_state_tolerance = 1e-9
  steady_state_detection = true
  solve_type = NEWTON
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
  automatic_scaling = true
[]

[Outputs]
  execute_on = 'initial timestep_end'
  exodus = true
[]

[ICs]
  [close_pack]
    radius = 0.01 # meter
    outvalue = 0  # water
    variable = phi
    invalue = 1   # steel
    type = ClosePackIC
  []
[]Copy

(tutorials/darcy_thermo_mech/step10_multiapps/problems/step10_micro.i)

Step 10: Run and Visualize Micro-scale

cd ~/projects/moose/tutorials/darcy-thermo_mech/step10_multiapps
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step10_micro.iCopy

PackedColumn.h

#pragma once

#include "ADMaterial.h"

// A helper class from MOOSE that linear interpolates x,y data
#include "LinearInterpolation.h"

/**
 * Material-derived objects override the computeQpProperties()
 * function.  They must declare and compute material properties for
 * use by other objects in the calculation such as Kernels and
 * BoundaryConditions.
 */
class PackedColumn : public ADMaterial
{
public:
  static InputParameters validParams();

  PackedColumn(const InputParameters & parameters);

protected:
  /**
   * Necessary override.  This is where the values of the properties
   * are computed.
   */
  virtual void computeQpProperties() override;

  /**
   * Helper function for reading CSV data for use in an interpolator object.
   */
  bool initInputData(const std::string & param_name, ADLinearInterpolation & interp);

  /// The radius of the spheres in the column
  const Function & _input_radius;

  /// The input porosity
  const Function & _input_porosity;

  /// Temperature
  const ADVariableValue & _temperature;

  /// Compute permeability based on the radius (mm)
  LinearInterpolation _permeability_interpolation;

  /// Fluid viscosity
  bool _use_fluid_mu_interp;
  const Real & _fluid_mu;
  ADLinearInterpolation _fluid_mu_interpolation;

  /// Fluid thermal conductivity
  bool _use_fluid_k_interp = false;
  const Real & _fluid_k;
  ADLinearInterpolation _fluid_k_interpolation;

  /// Fluid density
  bool _use_fluid_rho_interp = false;
  const Real & _fluid_rho;
  ADLinearInterpolation _fluid_rho_interpolation;

  /// Fluid specific heat
  bool _use_fluid_cp_interp;
  const Real & _fluid_cp;
  ADLinearInterpolation _fluid_cp_interpolation;

  /// Fluid thermal expansion coefficient
  bool _use_fluid_cte_interp;
  const Real & _fluid_cte;
  ADLinearInterpolation _fluid_cte_interpolation;

  /// Solid thermal conductivity
  bool _use_solid_k_interp = false;
  const Real & _solid_k;
  ADLinearInterpolation _solid_k_interpolation;

  /// Solid density
  bool _use_solid_rho_interp = false;
  const Real & _solid_rho;
  ADLinearInterpolation _solid_rho_interpolation;

  /// Fluid specific heat
  bool _use_solid_cp_interp;
  const Real & _solid_cp;
  ADLinearInterpolation _solid_cp_interpolation;

  /// Solid thermal expansion coefficient
  bool _use_solid_cte_interp;
  const Real & _solid_cte;
  ADLinearInterpolation _solid_cte_interpolation;

  /// The permeability (K)
  ADMaterialProperty<Real> & _permeability;

  /// The porosity (eps)
  ADMaterialProperty<Real> & _porosity;

  /// The viscosity of the fluid (mu)
  ADMaterialProperty<Real> & _viscosity;

  /// The bulk thermal conductivity
  ADMaterialProperty<Real> & _thermal_conductivity;

  /// The bulk heat capacity
  ADMaterialProperty<Real> & _specific_heat;

  /// The bulk density
  ADMaterialProperty<Real> & _density;

  /// The bulk thermal expansion coefficient
  ADMaterialProperty<Real> & _thermal_expansion;

  /// Flag for using the phase for porosity
  bool _use_phase_variable;

  /// The coupled phase variable
  const VariableValue & _phase;

  /// Flag for using a variable for thermal conductivity
  bool _use_variable_conductivity;

  /// The coupled thermal conductivity
  const VariableValue & _conductivity_variable;
};Copy

(tutorials/darcy_thermo_mech/step10_multiapps/include/materials/PackedColumn.h)

PackedColumn.C

#include "PackedColumn.h"
#include "Function.h"
#include "DelimitedFileReader.h"

registerMooseObject("DarcyThermoMechApp", PackedColumn);

InputParameters
PackedColumn::validParams()
{
  InputParameters params = ADMaterial::validParams();
  params.addRequiredCoupledVar("temperature", "The temperature (C) of the fluid.");

  // Add a parameter to get the radius of the spheres in the column
  // (used later to interpolate permeability).
  params.addParam<FunctionName>("radius",
                                "1.0",
                                "The radius of the steel spheres (mm) that are packed in the "
                                "column for computing permeability.");

  // http://en.wikipedia.org/wiki/Close-packing_of_equal_spheres
  params.addParam<FunctionName>(
      "porosity", 0.25952, "Porosity of porous media, default is for closed packed spheres.");

  // Fluid properties
  params.addParam<Real>(
      "fluid_viscosity", 1.002e-3, "Fluid viscosity (Pa s); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_viscosity_file",
      "The name of a file containing the fluid viscosity (Pa-s) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  params.addParam<Real>("fluid_thermal_conductivity",
                        0.59803,
                        "Fluid thermal conductivity (W/(mK); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_thermal_conductivity_file",
      "The name of a file containing fluid thermal conductivity (W/(mK)) as a function of "
      "temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "fluid_density", 998.21, "Fluid density (kg/m^3); default is for water at 20C).");
  params.addParam<FileName>("fluid_density_file",
                            "The name of a file containing fluid density (kg/m^3) as a function "
                            "of temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "fluid_specific_heat", 4157.0, "Fluid specific heat (J/(kgK); default is for water at 20C).");
  params.addParam<FileName>(
      "fluid_specific_heat_file",
      "The name of a file containing fluid specific heat (J/(kgK) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  params.addParam<Real>("fluid_thermal_expansion",
                        2.07e-4,
                        "Fluid thermal expansion coefficient (1/K); default is for water at 20C).");
  params.addParam<FileName>("fluid_thermal_expansion_file",
                            "The name of a file containing fluid thermal expansion coefficient "
                            "(1/K) as a function of temperature "
                            "(C); if provided the constant value is ignored.");

  // Solid properties
  // https://en.wikipedia.org/wiki/Stainless_steel#Properties
  params.addParam<Real>("solid_thermal_conductivity",
                        15.0,
                        "Solid thermal conductivity (W/(mK); default is for AISI/ASTIM 304 "
                        "stainless steel at 20C).");
  params.addParam<FileName>(
      "solid_thermal_conductivity_file",
      "The name of a file containing solid thermal conductivity (W/(mK)) as a function of "
      "temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "solid_density",
      7900,
      "Solid density (kg/m^3); default is for AISI/ASTIM 304 stainless steel at 20C).");
  params.addParam<FileName>("solid_density_file",
                            "The name of a file containing solid density (kg/m^3) as a function "
                            "of temperature (C); if provided the constant value is ignored.");

  params.addParam<Real>(
      "solid_specific_heat",
      500,
      "Solid specific heat (J/(kgK); default is for AISI/ASTIM 304 stainless steel at 20C).");
  params.addParam<FileName>(
      "solid_specific_heat_file",
      "The name of a file containing solid specific heat (J/(kgK) as a function of temperature "
      "(C); if provided the constant value is ignored.");

  params.addParam<Real>("solid_thermal_expansion",
                        17.3e-6,
                        "Solid thermal expansion coefficient (1/K); default is for water at 20C).");
  params.addParam<FileName>("solid_thermal_expansion_file",
                            "The name of a file containing solid thermal expansion coefficient "
                            "(1/K) as a function of temperature "
                            "(C); if provided the constant value is ignored.");

  // Optional phase variable
  params.addCoupledVar("phase",
                       "The variable indicating the phase (steel=1 or water=0). If "
                       "supplied this is used to compute the porosity instead of the "
                       "supplied value.");

  // Optional thermal conductivity variable
  params.addCoupledVar("thermal_conductivity",
                       "When supplied the variable be will be used for "
                       "thermal conductivity rather than being computed.");
  return params;
}

PackedColumn::PackedColumn(const InputParameters & parameters)
  : ADMaterial(parameters),
    // Get the one parameter from the input file
    _input_radius(getFunction("radius")),
    _input_porosity(getFunction("porosity")),
    _temperature(adCoupledValue("temperature")),

    // Fluid
    _fluid_mu(getParam<Real>("fluid_viscosity")),
    _fluid_k(getParam<Real>("fluid_thermal_conductivity")),
    _fluid_rho(getParam<Real>("fluid_density")),
    _fluid_cp(getParam<Real>("fluid_specific_heat")),
    _fluid_cte(getParam<Real>("fluid_thermal_expansion")),

    // Solid
    _solid_k(getParam<Real>("solid_thermal_conductivity")),
    _solid_rho(getParam<Real>("solid_density")),
    _solid_cp(getParam<Real>("solid_specific_heat")),
    _solid_cte(getParam<Real>("solid_thermal_expansion")),

    // Material Properties being produced by this object
    _permeability(declareADProperty<Real>("permeability")),
    _porosity(declareADProperty<Real>("porosity")),
    _viscosity(declareADProperty<Real>("viscosity")),
    _thermal_conductivity(declareADProperty<Real>("thermal_conductivity")),
    _specific_heat(declareADProperty<Real>("specific_heat")),
    _density(declareADProperty<Real>("density")),
    _thermal_expansion(declareADProperty<Real>("thermal_expansion")),

    // Optional phase variable
    _use_phase_variable(isParamValid("phase")),
    _phase(_use_phase_variable ? coupledValue("phase") : _zero),

    // Optional thermal conductivity variable
    _use_variable_conductivity(isParamValid("thermal_conductivity")),
    _conductivity_variable(_use_variable_conductivity ? coupledValue("thermal_conductivity")
                                                      : _zero)
{
  // Set data for permeability interpolation
  std::vector<Real> sphere_sizes = {1, 3};
  std::vector<Real> permeability = {0.8451e-9, 8.968e-9};
  _permeability_interpolation.setData(sphere_sizes, permeability);

  // Fluid viscosity, thermal conductivity, density, and specific heat
  _use_fluid_mu_interp = initInputData("fluid_viscosity_file", _fluid_mu_interpolation);
  _use_fluid_k_interp = initInputData("fluid_thermal_conductivity_file", _fluid_k_interpolation);
  _use_fluid_rho_interp = initInputData("fluid_density_file", _fluid_rho_interpolation);
  _use_fluid_cp_interp = initInputData("fluid_specific_heat_file", _fluid_cp_interpolation);
  _use_fluid_cte_interp = initInputData("fluid_thermal_expansion_file", _fluid_cte_interpolation);

  // Solid thermal conductivity, density, and specific heat
  _use_solid_k_interp = initInputData("solid_thermal_conductivity_file", _solid_k_interpolation);
  _use_solid_rho_interp = initInputData("solid_density_file", _solid_rho_interpolation);
  _use_solid_cp_interp = initInputData("solid_specific_heat_file", _solid_cp_interpolation);
  _use_solid_cte_interp = initInputData("solid_thermal_expansion_file", _solid_cte_interpolation);
}

void
PackedColumn::computeQpProperties()
{
  // Current temperature
  ADReal temp = _temperature[_qp] - 273.15;

  // Permeability
  Real radius_value = _input_radius.value(_t, _q_point[_qp]);
  mooseAssert(radius_value >= 1 && radius_value <= 3,
              "The radius range must be in the range [1, 3], but " << radius_value << " provided.");
  _permeability[_qp] = _permeability_interpolation.sample(radius_value);

  // Porosity
  if (_use_phase_variable)
    _porosity[_qp] = 1 - _phase[_qp];
  else
  {
    Real porosity_value = _input_porosity.value(_t, _q_point[_qp]);
    mooseAssert(porosity_value > 0 && porosity_value <= 1,
                "The porosity range must be in the range (0, 1], but " << porosity_value
                                                                       << " provided.");
    _porosity[_qp] = porosity_value;
  }

  // Fluid properties
  _viscosity[_qp] = _use_fluid_mu_interp ? _fluid_mu_interpolation.sample(temp) : _fluid_mu;
  ADReal fluid_rho = _use_fluid_rho_interp ? _fluid_rho_interpolation.sample(temp) : _fluid_rho;
  ADReal fluid_cp = _use_fluid_cp_interp ? _fluid_cp_interpolation.sample(temp) : _fluid_cp;
  ADReal fluid_cte = _use_fluid_cte_interp ? _fluid_cte_interpolation.sample(temp) : _fluid_cte;

  // Solid properties
  ADReal solid_rho = _use_solid_rho_interp ? _solid_rho_interpolation.sample(temp) : _solid_rho;
  ADReal solid_cp = _use_solid_cp_interp ? _solid_cp_interpolation.sample(temp) : _solid_cp;
  ADReal solid_cte = _use_solid_cte_interp ? _solid_cte_interpolation.sample(temp) : _solid_cte;

  // Compute the heat conduction material properties as a linear combination of
  // the material properties for fluid and steel.
  if (_use_variable_conductivity)
    _thermal_conductivity[_qp] = _conductivity_variable[_qp];
  else
  {
    ADReal fluid_k = _use_fluid_k_interp ? _fluid_k_interpolation.sample(temp) : _fluid_k;
    ADReal solid_k = _use_solid_k_interp ? _solid_k_interpolation.sample(temp) : _solid_k;
    _thermal_conductivity[_qp] = _porosity[_qp] * fluid_k + (1.0 - _porosity[_qp]) * solid_k;
  }

  _density[_qp] = _porosity[_qp] * fluid_rho + (1.0 - _porosity[_qp]) * solid_rho;
  _specific_heat[_qp] = _porosity[_qp] * fluid_cp + (1.0 - _porosity[_qp]) * solid_cp;
  _thermal_expansion[_qp] = _porosity[_qp] * fluid_cte + (1.0 - _porosity[_qp]) * solid_cte;
}

bool
PackedColumn::initInputData(const std::string & param_name, ADLinearInterpolation & interp)
{
  if (isParamValid(param_name))
  {
    const std::string & filename = getParam<FileName>(param_name);
    MooseUtils::DelimitedFileReader reader(filename, &_communicator);
    reader.setComment("#");
    reader.read();
    interp.setData(reader.getData(0), reader.getData(1));
    return true;
  }
  return false;
}Copy

(tutorials/darcy_thermo_mech/step10_multiapps/src/materials/PackedColumn.C)

Step 10: Multi-scale Input File

[GlobalParams]
  displacements = 'disp_r disp_z'
[]

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 10
  ny = 100
  ymax = 0.304 # Length of test chamber
  xmax = 0.0257 # Test chamber radius
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[AuxVariables]
  [k_eff]
    initial_condition = 15.0 # water at 20C
  []
  [velocity]
    order = CONSTANT
    family = MONOMIAL_VEC
  []
[]

[Modules/TensorMechanics/Master]
  [all]
    # This block adds all of the proper Kernels, strain calculators, and Variables
    # for TensorMechanics in the correct coordinate system (autodetected)
    add_variables = true
    strain = FINITE
    eigenstrain_names = eigenstrain
    use_automatic_differentiation = true
    generate_output = 'vonmises_stress elastic_strain_xx elastic_strain_yy strain_xx strain_yy'
  []
[]

[Kernels]
  [darcy_pressure]
    type = DarcyPressure
    variable = pressure
  []
  [heat_conduction]
    type = ADHeatConduction
    variable = temperature
  []
  [heat_conduction_time_derivative]
    type = ADHeatConductionTimeDerivative
    variable = temperature
  []
  [heat_convection]
    type = DarcyAdvection
    variable = temperature
    pressure = pressure
  []
[]

[AuxKernels]
  [velocity]
    type = DarcyVelocity
    variable = velocity
    execute_on = timestep_end
    pressure = pressure
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = bottom
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = top
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = bottom
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = top
  []
  [hold_inlet]
    type = DirichletBC
    variable = disp_z
    boundary = bottom
    value = 0
  []
  [hold_center]
    type = DirichletBC
    variable = disp_r
    boundary = left
    value = 0
  []
  [hold_outside]
    type = DirichletBC
    variable = disp_r
    boundary = right
    value = 0
  []
[]

[Materials]
  viscosity_file = data/water_viscosity.csv
  density_file = data/water_density.csv
  specific_heat_file = data/water_specific_heat.csv
  thermal_expansion_file = data/water_thermal_expansion.csv
  [column]
    type = PackedColumn
    temperature = temperature
    radius = 1
    thermal_conductivity = k_eff # Use the AuxVariable instead of calculating
    fluid_viscosity_file = ${viscosity_file}
    fluid_density_file = ${density_file}
    fluid_specific_heat_file = ${specific_heat_file}
    fluid_thermal_expansion_file = ${thermal_expansion_file}
  []

  [elasticity_tensor]
    type = ADComputeIsotropicElasticityTensor
    youngs_modulus = 200e9 # (Pa) from wikipedia
    poissons_ratio = .3 # from wikipedia
  []
  [elastic_stress]
    type = ADComputeFiniteStrainElasticStress
  []
  [thermal_strain]
    type = ADComputeThermalExpansionEigenstrain
    stress_free_temperature = 300
    thermal_expansion_coeff = 1e-6
    eigenstrain_name = eigenstrain
    temperature = temperature
  []
[]

[Postprocessors]
  [average_temperature]
    type = ElementAverageValue
    variable = temperature
  []
[]

[Executioner]
  type = Transient
  start_time = -1
  end_time = 200
  steady_state_tolerance = 1e-7
  steady_state_detection = true
  dt = 0.25
  solve_type = PJFNK
  automatic_scaling = true
  compute_scaling_once = false
  petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart'
  petsc_options_value = 'hypre boomeramg 500'
  line_search = none
  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[MultiApps]
  [micro]
    type = TransientMultiApp
    app_type = DarcyThermoMechApp
    positions = '0.01285 0.0    0
                 0.01285 0.0608 0
                 0.01285 0.1216 0
                 0.01285 0.1824 0
                 0.01285 0.2432 0
                 0.01285 0.304  0'
    input_files = step10_micro.i
    execute_on = 'timestep_end'
  []
[]

[Transfers]
  [keff_from_sub]
    type = MultiAppPostprocessorInterpolationTransfer
    direction = from_multiapp
    multi_app = micro
    variable = k_eff
    power = 1
    postprocessor = k_eff
    execute_on = 'timestep_end'
  []
  [temperature_to_sub]
    type = MultiAppVariableValueSamplePostprocessorTransfer
    direction = to_multiapp
    multi_app = micro
    source_variable = temperature
    postprocessor = temperature_in
    execute_on = 'timestep_end'
  []
[]

[Controls]
  [multiapp]
    type = TimePeriod
    disable_objects = 'MultiApps::micro Transfers::keff_from_sub Transfers::temperature_to_sub'
    start_time = '0'
    execute_on = 'initial'
  []
[]

[Outputs]
  [out]
    type = Exodus
    elemental_as_nodal = true
  []
[]Copy

(tutorials/darcy_thermo_mech/step10_multiapps/problems/step10.i)

Step 10: Run and Visualize Multi-scale

cd ~/projects/moose/tutorials/darcy-thermo_mech/step10_multiapps
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step10.iCopy

Action Object

An action design to build specific objects, such as the case in Step 9: Mechanics for tensor mechanics.

[Modules/TensorMechanics/Master]
  [Modules/TensorMechanics/Master]
    [Modules/TensorMechanics/Master]
      [all]
        # This block adds all of the proper Kernels, strain calculators, and Variables
        # for TensorMechanics in the correct coordinate system (autodetected)
        add_variables = true
        strain = FINITE
        eigenstrain_names = eigenstrain
        use_automatic_differentiation = true
        generate_output = 'vonmises_stress elastic_strain_xx elastic_strain_yy strain_xx strain_yy'
      []
    []
  []
[]Copy

(tutorials/darcy_thermo_mech/step09_mechanics/problems/step9.i)

AddDamperAction.h

#pragma once

#include "MooseObjectAction.h"

class AddDamperAction;

template <>
InputParameters validParams<AddDamperAction>();

class AddDamperAction : public MooseObjectAction
{
public:
  static InputParameters validParams();

  AddDamperAction(InputParameters params);

  virtual void act() override;
};Copy

(framework/include/actions/AddDamperAction.h)

AddDamperAction.C

#include "AddDamperAction.h"
#include "FEProblem.h"

registerMooseAction("MooseApp", AddDamperAction, "add_damper");

defineLegacyParams(AddDamperAction);

InputParameters
AddDamperAction::validParams()
{
  InputParameters params = MooseObjectAction::validParams();
  params.addClassDescription("Add a Damper object to the simulation.");
  return params;
}

AddDamperAction::AddDamperAction(InputParameters params) : MooseObjectAction(params) {}

void
AddDamperAction::act()
{
  _problem->addDamper(_type, _name, _moose_object_pars);
}Copy

(framework/src/actions/AddDamperAction.C)

Moose.C

registerSyntax("AddDamperAction", "Dampers/*");Copy

(framework/src/base/Moose.C)

SetupDarcySimulation.h

#pragma once

// MOOSE includes
#include "Action.h"

/**
 * An action for creating the necessary objects to perform a thermal mechanics problem using
 * Darcy's equation.
 * */
class SetupDarcySimulation : public Action
{
public:
  static InputParameters validParams();

  SetupDarcySimulation(InputParameters params);
  virtual void act() override;

protected:
  const bool _compute_velocity;
  const bool _compute_pressure;
  const bool _compute_temperature;
};Copy

(tutorials/darcy_thermo_mech/step11_action/include/actions/SetupDarcySimulation.h)

SetupDarcySimulation.C

#include "SetupDarcySimulation.h"

// MOOSE includes
#include "FEProblem.h"
#include "AuxiliarySystem.h"

// libMesh includes
#include "libmesh/fe.h"

registerMooseAction("DarcyThermoMechApp", SetupDarcySimulation, "setup_darcy");

InputParameters
SetupDarcySimulation::validParams()
{
  InputParameters params = Action::validParams();
  params.addParam<VariableName>("pressure", "pressure", "The pressure variable.");
  params.addParam<VariableName>("temperature", "temperature", "The temperature variable.");
  params.addParam<bool>(
      "compute_velocity", true, "Enable the auxiliary calculation of velocity from pressure.");
  params.addParam<bool>("compute_pressure", true, "Enable the computation of pressure.");
  params.addParam<bool>("compute_temperature", true, "Enable the computation of temperature.");
  return params;
}

SetupDarcySimulation::SetupDarcySimulation(InputParameters parameters)
  : Action(parameters),
    _compute_velocity(getParam<bool>("compute_velocity")),
    _compute_pressure(getParam<bool>("compute_pressure")),
    _compute_temperature(getParam<bool>("compute_temperature"))
{
}

void
SetupDarcySimulation::act()
{
  // Actual names of input variables
  const std::string pressure = getParam<VariableName>("pressure");
  const std::string temperature = getParam<VariableName>("temperature");

  // Velocity AuxVariables
  if (_compute_velocity && _current_task == "add_aux_variable")
  {
    InputParameters var_params = _factory.getValidParams("VectorMooseVariable");
    var_params.set<MooseEnum>("family") = "MONOMIAL_VEC";
    var_params.set<MooseEnum>("order") = "CONSTANT";

    _problem->addAuxVariable("VectorMooseVariable", "velocity", var_params);
  }

  // Velocity AuxKernels
  else if (_compute_velocity && _current_task == "add_aux_kernel")
  {
    InputParameters params = _factory.getValidParams("DarcyVelocity");
    params.set<ExecFlagEnum>("execute_on") = EXEC_TIMESTEP_END;
    params.set<std::vector<VariableName>>("pressure") = {pressure};

    params.set<AuxVariableName>("variable") = "velocity";
    _problem->addAuxKernel("DarcyVelocity", "velocity", params);
  }

  // Kernels
  else if (_current_task == "add_kernel")
  {
    // Flags for aux variables
    const bool is_pressure_aux = _problem->getAuxiliarySystem().hasVariable(pressure);
    const bool is_temperature_aux = _problem->getAuxiliarySystem().hasVariable(temperature);

    // Pressure
    if (_compute_pressure && !is_pressure_aux)
    {
      InputParameters params = _factory.getValidParams("DarcyPressure");
      params.set<NonlinearVariableName>("variable") = pressure;
      _problem->addKernel("DarcyPressure", "darcy_pressure", params);
    }

    // Temperature
    if (_compute_temperature && !is_temperature_aux)
    {
      {
        InputParameters params = _factory.getValidParams("ADHeatConduction");
        params.set<NonlinearVariableName>("variable") = temperature;
        _problem->addKernel("ADHeatConduction", "heat_conduction", params);
      }

      {
        InputParameters params = _factory.getValidParams("ADHeatConductionTimeDerivative");
        params.set<NonlinearVariableName>("variable") = temperature;
        _problem->addKernel("ADHeatConductionTimeDerivative", "heat_conduction_time", params);
      }

      {
        InputParameters params = _factory.getValidParams("DarcyAdvection");
        params.set<NonlinearVariableName>("variable") = temperature;
        params.set<std::vector<VariableName>>("pressure") = {pressure};
        _problem->addKernel("DarcyAdvection", "heat_advection", params);
      }
    }
  }
}Copy

(tutorials/darcy_thermo_mech/step11_action/src/actions/SetupDarcySimulation.C)

DarcyThermoMechApp.h

#pragma once

#include "MooseApp.h"

class DarcyThermoMechApp : public MooseApp
{
public:
  static InputParameters validParams();

  DarcyThermoMechApp(InputParameters parameters);

  static void registerApps();
  static void registerAll(Factory & factory, ActionFactory & action_factory, Syntax & syntax);
};Copy

(tutorials/darcy_thermo_mech/step11_action/include/base/DarcyThermoMechApp.h)

DarcyThermoMechApp.C

// Tutorial Includes
#include "DarcyThermoMechApp.h"

// MOOSE Includes
#include "AppFactory.h"
#include "MooseSyntax.h"
#include "ModulesApp.h"

template <>
InputParameters
validParams<DarcyThermoMechApp>()
{
  InputParameters params = validParams<MooseApp>();

  params.set<bool>("automatic_automatic_scaling") = false;

  return params;
}

DarcyThermoMechApp::DarcyThermoMechApp(InputParameters parameters) : MooseApp(parameters)
{
  DarcyThermoMechApp::registerAll(_factory, _action_factory, _syntax);
}

void
DarcyThermoMechApp::registerApps()
{
  registerApp(DarcyThermoMechApp);
}

void
DarcyThermoMechApp::registerAll(Factory & factory, ActionFactory & action_factory, Syntax & syntax)
{

  Registry::registerObjectsTo(factory, {"DarcyThermoMechApp"});
  Registry::registerActionsTo(action_factory, {"DarcyThermoMechApp"});
  ModulesApp::registerAll(factory, action_factory, syntax);

  registerSyntaxTask("SetupDarcySimulation", "DarcyThermoMech", "add_aux_variable");
  registerSyntaxTask("SetupDarcySimulation", "DarcyThermoMech", "add_aux_kernel");
  registerSyntaxTask("SetupDarcySimulation", "DarcyThermoMech", "add_kernel");
}Copy

(tutorials/darcy_thermo_mech/step11_action/src/base/DarcyThermoMechApp.C)

Step 11: Input File

[GlobalParams]
  displacements = 'disp_r disp_z'
[]

[Mesh]
  type = GeneratedMesh
  dim = 2
  ny = 200
  nx = 10
  ymax = 0.304 # Length of test chamber
  xmax = 0.0257 # Test chamber radius
[]

[Variables]
  [pressure]
  []
  [temperature]
    initial_condition = 300 # Start at room temperature
  []
[]

[DarcyThermoMech]
[]

[Modules/TensorMechanics/Master]
  [all]
    # This block adds all of the proper Kernels, strain calculators, and Variables
    # for TensorMechanics in the correct coordinate system (autodetected)
    add_variables = true
    strain = FINITE
    eigenstrain_names = eigenstrain
    use_automatic_differentiation = true
    generate_output = 'vonmises_stress elastic_strain_xx elastic_strain_yy strain_xx strain_yy'
  []
[]

[BCs]
  [inlet]
    type = DirichletBC
    variable = pressure
    boundary = bottom
    value = 4000 # (Pa) From Figure 2 from paper.  First data point for 1mm spheres.
  []
  [outlet]
    type = DirichletBC
    variable = pressure
    boundary = top
    value = 0 # (Pa) Gives the correct pressure drop from Figure 2 for 1mm spheres
  []
  [inlet_temperature]
    type = FunctionDirichletBC
    variable = temperature
    boundary = bottom
    function = 'if(t<0,350+50*t,350)'
  []
  [outlet_temperature]
    type = HeatConductionOutflow
    variable = temperature
    boundary = top
  []
  [hold_inlet]
    type = DirichletBC
    variable = disp_z
    boundary = bottom
    value = 0
  []
  [hold_center]
    type = DirichletBC
    variable = disp_r
    boundary = left
    value = 0
  []
  [hold_outside]
    type = DirichletBC
    variable = disp_r
    boundary = right
    value = 0
  []
[]

[Materials]
  viscosity_file = data/water_viscosity.csv
  density_file = data/water_density.csv
  thermal_conductivity_file = data/water_thermal_conductivity.csv
  specific_heat_file = data/water_specific_heat.csv
  thermal_expansion_file = data/water_thermal_expansion.csv

  [column]
    type = PackedColumn
    block = 0
    temperature = temperature
    radius = 1.15
    fluid_viscosity_file = ${viscosity_file}
    fluid_density_file = ${density_file}
    fluid_thermal_conductivity_file = ${thermal_conductivity_file}
    fluid_specific_heat_file = ${specific_heat_file}
    fluid_thermal_expansion_file = ${thermal_expansion_file}
  []

  [elasticity_tensor]
    type = ADComputeIsotropicElasticityTensor
    youngs_modulus = 200e9 # (Pa) from wikipedia
    poissons_ratio = .3 # from wikipedia

  []
  [elastic_stress]
    type = ADComputeFiniteStrainElasticStress
  []
  [thermal_strain]
    type = ADComputeThermalExpansionEigenstrain
    stress_free_temperature = 300
    eigenstrain_name = eigenstrain
    temperature = temperature
    thermal_expansion_coeff = 1e-5
  []
[]

[Postprocessors]
  [average_temperature]
    type = ElementAverageValue
    variable = temperature
  []
[]

[Problem]
  type = FEProblem
  coord_type = RZ
[]

[Executioner]
  type = Transient
  start_time = -1
  end_time = 200
  steady_state_tolerance = 1e-7
  steady_state_detection = true
  dt = 0.25
  solve_type = PJFNK
  automatic_scaling = true
  compute_scaling_once = false
  petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart'
  petsc_options_value = 'hypre boomeramg 500'
  line_search = none
  [TimeStepper]
    type = FunctionDT
    function = 'if(t<0,0.1,0.25)'
  []
[]

[Outputs]
  [out]
    type = Exodus
    elemental_as_nodal = true
  []
[]Copy

(tutorials/darcy_thermo_mech/step11_action/problems/step11.i)

Step 11: Run and Visualize

cd ~/projects/moose/tutorials/darcy-thermo_mech/step11_action
make -j 12 # use number of processors for you system
cd problems
~/projects/moose/python/peacock/peacock -i step11.iCopy

Example 14: Input File

[Mesh]
  type = GeneratedMesh
  dim = 2
  nx = 32
  ny = 32
  xmin = 0.0
  xmax = 1.0
  ymin = 0.0
  ymax = 1.0
[]

[Variables]
  [forced]
    order = FIRST
    family = LAGRANGE
  []
[]

[Functions]
  # A ParsedFunction allows us to supply analytic expressions directly in the input file
  [exact]
    type = ParsedFunction
    value = sin(alpha*pi*x)
    vars = alpha
    vals = 16
  []

  # This function is an actual compiled function
  [force]
    type = ExampleFunction
    alpha = 16
  []
[]

[Kernels]
  [diff]
    type = ADDiffusion
    variable = forced
  []

  # This Kernel can take a function name to use
  [forcing]
    type = ADBodyForce
    variable = forced
    function = force
  []
[]

[BCs]
  # The BC can take a function name to use
  [all]
    type = FunctionDirichletBC
    variable = forced
    boundary = 'bottom right top left'
    function = exact
  []
[]

[Executioner]
  type = Steady
  solve_type = NEWTON
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Postprocessors]
  [h]
    type = AverageElementSize
  []
  [error]
    type = ElementL2Error
    variable = forced
    function = exact
  []
[]

[Outputs]
  execute_on = 'timestep_end'
  exodus = true
  csv = true
[]Copy

(examples/ex14_pps/ex14.i)

Example 14: Run via Command-line

cd ~/projects/moose/examples/ex14_pps
make -j 12 # use number of processors for you system
./ex14-opt -i ex14.iCopy

MMS Python Package

export PYTHONPATH=$PYTHONPATH:~/projects/moose/pythonCopy

Example 14: Exact Solution

mms_exact.py

#!/usr/bin/env python3

import mms
fs,ss = mms.evaluate('-div(grad(u))', 'sin(a*pi*x)', scalars=['a'])
mms.print_fparser(fs)
mms.print_hit(fs, 'force')
mms.print_hit(ss, 'exact')Copy

(examples/ex14_pps/mms_exact.py)

cd ~/projects/moose/examples/ex14_pps
./mms_exact.pyCopy

pi^2*a^2*sin(x*pi*a)
[force]
  type = ParsedFunction
  value = 'pi^2*a^2*sin(x*pi*a)'
  vars = 'a'
  vals = '1.0'
[]
[exact]
  type = ParsedFunction
  value = 'sin(x*pi*a)'
  vars = 'a'
  vals = '1.0'
[]Copy

Error Analysis

To compare two solutions (or a solution and an analytical solution) $f_1$ and $f_2$ , the following expressions are frequently used:

||f_1-f_2||^2_{L_2(\Omega)} = \int_{\Omega} (f_1-f_2)^2 \;\text{d}\Omega \\ ||f_1-f_2||^2_{H_{1,\text{semi}}(\Omega)} = \int_{\Omega} \left|\nabla \left(f_1-f_2\right)\right|^2 \;\text{d}\Omega

From finite element theory, the convergence rates are known for these quantities on successively refined grids. These two calculations are computed in MOOSE by utilizing the ElementL2Error or ElementH1SemiError postprocessor objects, respectively.

Example 14: Convergence Study

mms_spatial.py

#!/usr/bin/env python3

import mms
df1 = mms.run_spatial('ex14.i', 4, executable='./ex14-opt')
df2 = mms.run_spatial('ex14.i', 4, 'Mesh/second_order=true', 'Variables/forced/order=SECOND', executable='./ex14-opt')

fig = mms.ConvergencePlot(xlabel='Element Size ($h$)', ylabel='$L_2$ Error')
fig.plot(df1, label='1st Order', marker='o', markersize=8)
fig.plot(df2, label='2nd Order', marker='o', markersize=8)
fig.save('ex14_mms.png')Copy

(examples/ex14_pps/mms_spatial.py)

Example 14: Convergence Results

cd ~/projects/moose/examples/ex14_pps
./mms_spatial.pyCopy

Segmentation Fault

A "Segmentation fault," "Segfault," or "Signal 11" error denotes a memory bug (often array access out of bounds).

Segmentation fault: 11Copy

A segfault is a "good" error to have, because a debugger can easily pinpoint the problem.

Example 21: Input File

[Mesh]
  file = reactor.e
  #Let's assign human friendly names to the blocks on the fly
  block_id = '1 2'
  block_name = 'fuel deflector'

  boundary_id = '4 5'
  boundary_name = 'bottom top'
[]

[Variables]
  #Use active lists to help debug problems. Switching on and off
  #different Kernels or Variables is extremely useful!
  active = 'diffused convected'
  [diffused]
    order = FIRST
    family = LAGRANGE
    initial_condition = 0.5
  []

  [convected]
    order = FIRST
    family = LAGRANGE
    initial_condition = 0.0
  []
[]

[Kernels]
  #This Kernel consumes a real-gradient material property from the active material
  active = 'convection diff_convected example_diff time_deriv_diffused time_deriv_convected'
  [convection]
    type = ExampleConvection
    variable = convected
  []

  [diff_convected]
    type = Diffusion
    variable = convected
  []

  [example_diff]
    type = ExampleDiffusion
    variable = diffused
    coupled_coef = convected
  []

  [time_deriv_diffused]
    type = TimeDerivative
    variable = diffused
  []

  [time_deriv_convected]
    type = TimeDerivative
    variable = convected
  []
[]

[BCs]
  [bottom_diffused]
    type = DirichletBC
    variable = diffused
    boundary = 'bottom'
    value = 0
  []

  [top_diffused]
    type = DirichletBC
    variable = diffused
    boundary = 'top'
    value = 5
  []

  [bottom_convected]
    type = DirichletBC
    variable = convected
    boundary = 'bottom'
    value = 0
  []

  [top_convected]
    type = NeumannBC
    variable = convected
    boundary = 'top'
    value = 1
  []
[]

[Materials]
  [example]
    type = ExampleMaterial
    block = 'fuel'
    diffusion_gradient = 'diffused'

    #Approximate Parabolic Diffusivity
    independent_vals = '0 0.25 0.5 0.75 1.0'
    dependent_vals = '1e-2 5e-3 1e-3 5e-3 1e-2'
  []

  [example1]
    type = ExampleMaterial
    block = 'deflector'
    diffusion_gradient = 'diffused'

    # Constant Diffusivity
    independent_vals = '0 1.0'
    dependent_vals = '1e-1 1e-1'
  []
[]

[Executioner]
  type = Transient
  solve_type = 'PJFNK'
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
  dt = 0.1
  num_steps = 10
[]

[Outputs]
  execute_on = 'timestep_end'
  exodus = true
[]Copy

(examples/ex21_debugging/ex21.i)

Example 21: Run Input File

cd ~/projects/moose/examples/ex21_debugging
make -j12
./ex21-opt -i ex21.i

Time Step  0, time = 0
                dt = 0

Time Step  1, time = 0.1
                dt = 0.1
Segmentation fault: 11Copy

Debug Compile

To use a debugger with a MOOSE-based application, it must be compiled in something other than optimized mode (opt); debug (dbg) mode is recommended because it will produce full line number information in stack traces:

cd ~/projects/moose/examples/ex21_debugging
METHOD=dbg make -j12Copy

This will create a "debug version" of and application: ex21-dbg

Running Debugger

The compiled debug application can be executed using either GDB (gcc) or LLDB (clang):

gdb --args ./ex21-dbg -i ex21.iCopy

lldb -- ./ex21-dbg -i ex21.iCopy

These commands will start debugger, load the executable, and open the debugger command prompt

The backtrace shows that in ExampleDiffusion::computeQpResidual() an attempt was made to access entry 0 of a MooseArray with 0 entries.

return _coupled_coef[_qp] * Diffusion::computeQpResidual();Copy

There is only one item being indexed on that line: _coupled_coef; therefore, consider how _coupled_coef was declared

Bug

In ExampleDiffusion.h, the member variable _coupled_coef is a VariableValue that should be declared as a reference:

const VariableValue _coupled_coef;Copy

Not storing this as a reference will cause a copy of the VariableValue to be made during construction. This copy will never be resized, nor will it ever have values written to it.

ExampleDiffusion.h

#pragma once

#include "Diffusion.h"

// Forward Declarations
class ExampleDiffusion;

/**
 * validParams returns the parameters that this Kernel accepts / needs
 * The actual body of the function MUST be in the .C file.
 */
template <>
InputParameters validParams<ExampleDiffusion>();

class ExampleDiffusion : public Diffusion
{
public:
  ExampleDiffusion(const InputParameters & parameters);

protected:
  virtual Real computeQpResidual() override;
  virtual Real computeQpJacobian() override;

  /**
   * THIS IS AN ERROR ON PURPOSE!
   *
   * The "&" is missing here!
   *
   * Do NOT copy this line of code!
   */

  const VariableValue _coupled_coef;
};Copy

(examples/ex21_debugging/include/kernels/ExampleDiffusion.h)

ExampleDiffusion.C

#include "ExampleDiffusion.h"

/**
 * This function defines the valid parameters for
 * this Kernel and their default values
 */
registerMooseObject("ExampleApp", ExampleDiffusion);

template <>
InputParameters
validParams<ExampleDiffusion>()
{
  InputParameters params = validParams<Diffusion>();
  params.addRequiredCoupledVar(
      "coupled_coef", "The value of this variable will be used as the diffusion coefficient.");

  return params;
}

ExampleDiffusion::ExampleDiffusion(const InputParameters & parameters)
  : Diffusion(parameters), _coupled_coef(coupledValue("coupled_coef"))
{
}

Real
ExampleDiffusion::computeQpResidual()
{
  return _coupled_coef[_qp] * Diffusion::computeQpResidual();
}

Real
ExampleDiffusion::computeQpJacobian()
{
  return _coupled_coef[_qp] * Diffusion::computeQpJacobian();
}Copy

(examples/ex21_debugging/src/kernels/ExampleDiffusion.C)

[Mesh]
  # MOOSE supports reading field data from ExodusII, XDA/XDR, and mesh checkpoint files (.e, .xda, .xdr, .cp)
  file = previous.e
  # This method of restart is only supported on serial meshes
  distribution = serial
[]

[Variables/nodal]
  family = LAGRANGE
  order = FIRST
  initial_from_file_var = nodal
  initial_from_file_timestep = 10
[]

[AuxVariables/elemental]
  family = MONOMIAL
  order = CONSTANT
  initial_from_file_var = elemental
  initial_from_file_timestep = 10
[]Copy

Checkpoints

Advanced restart and recovery in MOOSE require checkpoint files

To enable automatic checkpoints using the default options (every time step, and keep last two) in a simulation simply add the following flag to your input file:

[Outputs]
  checkpoint = true
[]Copy

Advanced Restart

This method is best suited for situations when the mesh from the previous simulation and the current simulation match and the variables and stateful data should be loaded from the pervious simulation.

Support for modifying some variables is supported such as dt and time_step. By default, MOOSE will automatically use the last values found in the checkpoint files
Only N to N restarts are supported using this method

[Mesh]
  # Serial number should match corresponding Executioner parameter
  file = out_cp/0010_mesh.cpr
  # This method of restart is only supported on serial meshes
  distribution = serial
[]

[Problem]
  # Note that the suffix is left off in the parameter below.
  restart_file_base = out_cp/LATEST  # You may also use a specific number here
[]Copy

Recover

A simulation that has terminated due to a fault can be recovered simply by using the --recover command-line flag, but it requires a checkpoint file.

./frog-opt -i input.i --recoverCopy

MOOSE Workshop
