Effect of Partial Blockages in Simulated LMFBR Fuel Assemblies

Information on the THORS facility and experiments can be found in the following sources: Fontana et al. (1973),Han (1977), Jeong et al. (2005).

Central blockage of 6 channels in a 19-pin sodium-cooled bundle

THORS bundle 3A simulates the Fast Flux Test Facility and Clinch River Breeder Reactor configurations. Nineteen electrically heated pins are contained inside a round duct, which has unheated dummy pins along the duct wall. The central six channels () are blocked by a non-heat-generating 35-mm-thick stainless-steel plate. The bundle cross section is shown in Figure 1. The circles with the crosses indicate the position of thermocouples at the assembly exit. SCM modeled the THORS bundle 3A blockage with a % area reduction on the affected subchannels and a local form loss coefficient of . The SCM model's geometry and subchannel/pin index notation is shown in Figure 2. The experimental parameters are presented in Table 1.

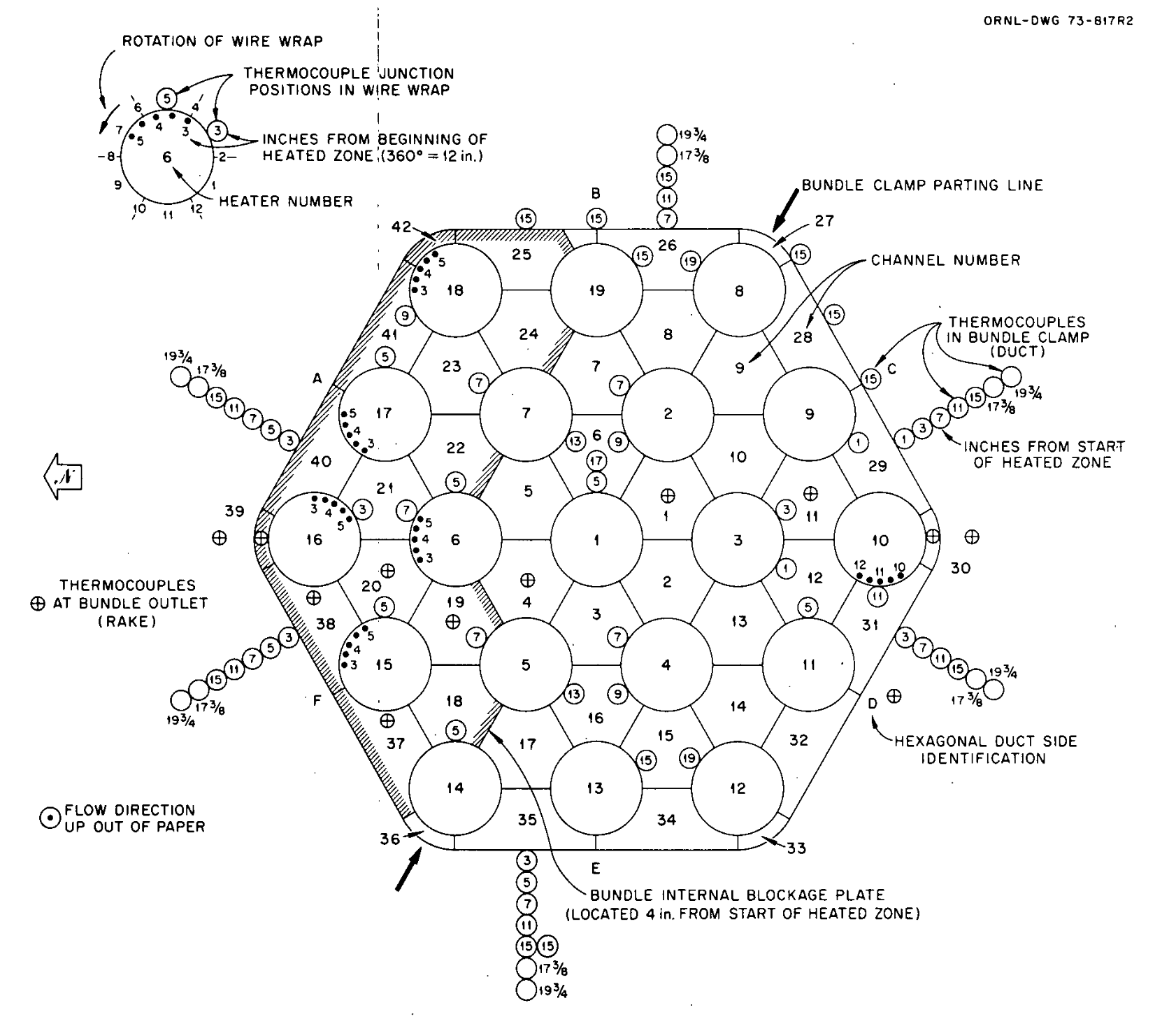

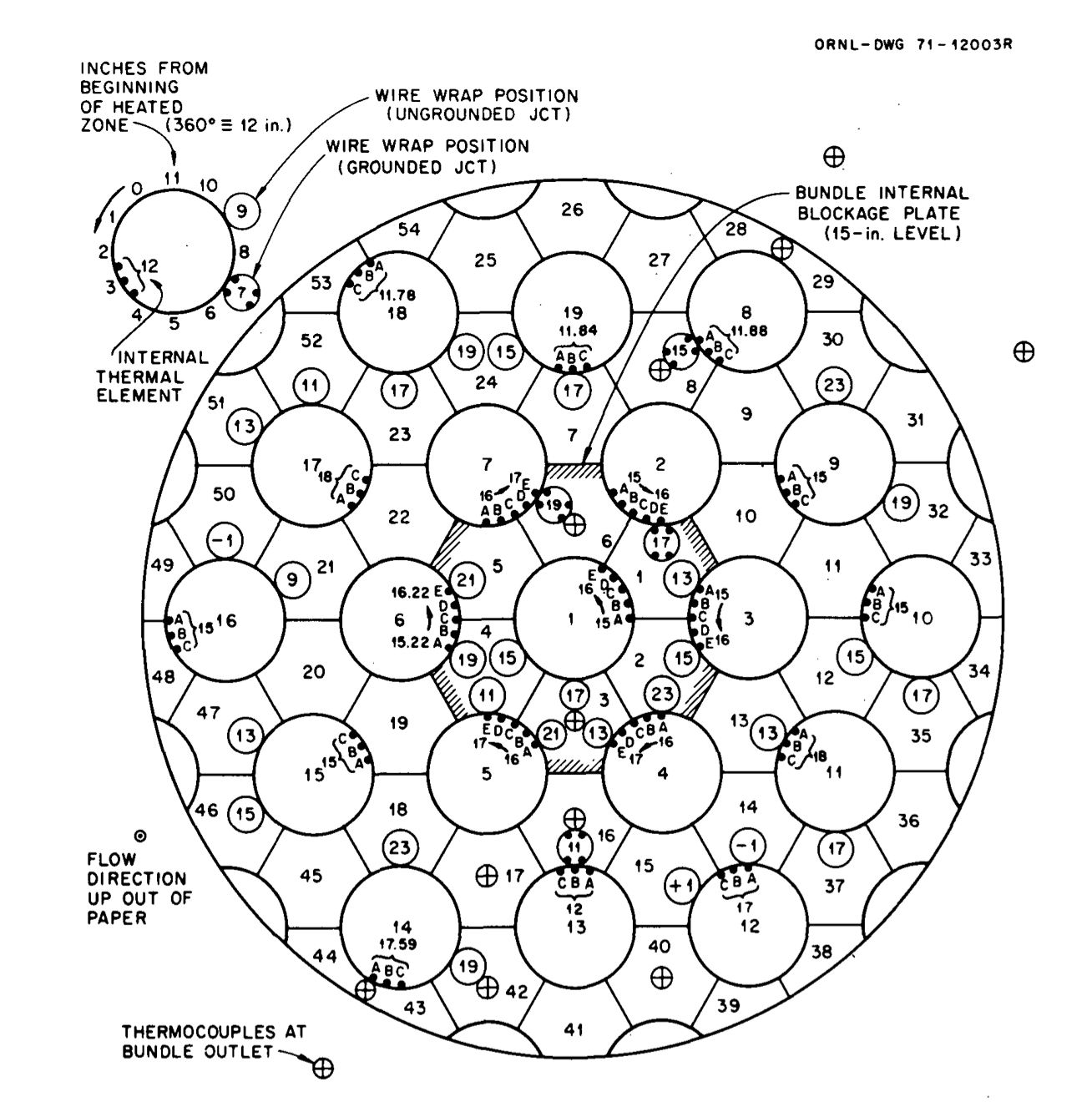

Figure 1: THORS bundle 3A cross section.

Figure 2: SubChannel model cross-section of THORS bundle and index notation
(white: fuel pin index; black: subchannel index; red: gap index).

Table 1: Design and operational parameters for THORS six-channel blockage benchmark.

Experiment Parameter (unit)Value
Number of pins (—)
Rod pitch (cm)
Rod diameter (cm)
Wire wrap diameter (cm)
Wire wrap axial pitch (cm)
Flat-to-flat duct distance (cm)
Inlet length (cm)
Heated length (cm)
Outlet length (cm)
Blockage location (cm)
Outlet pressure (Pa)
Inlet temperature (K)
Inlet flow rate (m/s)
Power profile (—)Uniform
Pin power (kW/m)

Run~ was chosen to validate SCM performance. The THORS experiment measured the temperatures at the exit of selected subchannels. There is a subchannel index correspondence between the experiment and the model, as follows: 43(37), 42(36), 17(20), 16(10), 3(4), 6(1), 8(14) and 28(28). Where the number outside the parentheses refers to the SCM model and the number inside the parentheses refers to the experimental convention. SCM has currently no capablility to model triangular assemblies within circular ducts. Hence, the experimental circular duct is approximated with a hexagonal duct.

Results for central blockage

Figure Figure 3 presents the exit temperature distribution, expressed as along with the SCM calculation. For this case power was at per pin and % flow at . Predicted subchannel average temperatures agreed relatively well, with a bigger error in Subchannel 17(20). It should be noted that SCM calculates surface averages while the experimental results are measured at the subchannel centers. As such, it is expected that SCM results will be a bit higher than the experimental values, since the location of the measurements is away from the heated pin walls. The discrepancy in Subchannel 17(20) might very well be attributed to the location of the thermocouples and the approximate relationship between the model and actual experiment geometry. For the center subchannels where the SCM model geometry is more representative, the agreement is better. The poorer agreement in the exterior subchannels may be due to steeper temperature gradients in that region since SCM calculates average channel temperatures, whereas the thermocouples might be in a subchannel temperature gradient.

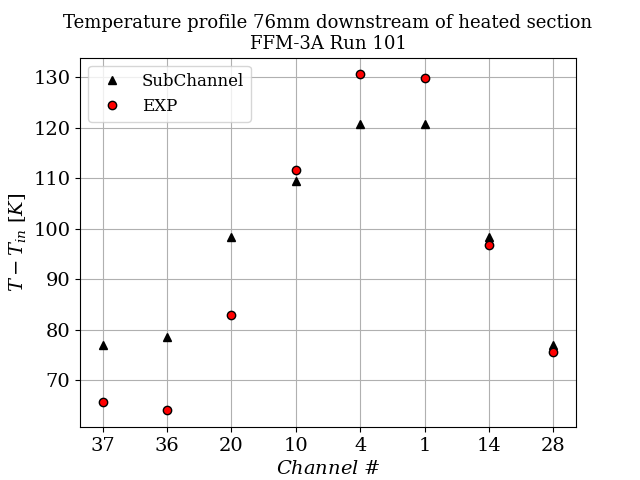

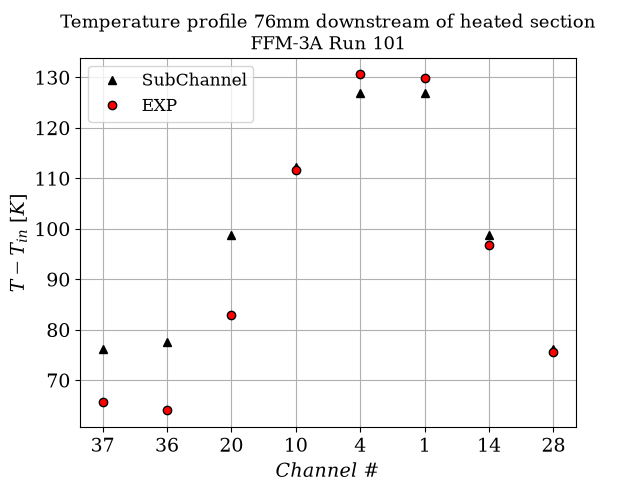

Figure 3: Exit temperature profile ().

Thus far, the turbulent modeling parameter has been calibrated only for square lattice, bare fuel pin assemblies. As such, in the above example was arbitarily set to be equal to . As a reminder is a tuning parameter that affect turbulent momentum mixing. Higher means more turbulent momentum mixing and flatter velocity profiles. For the code calculation is presented in Figure Figure 4. This calculation presents a better agreement with the experimental results, which suggests that the presence of a blockage induces mixing.

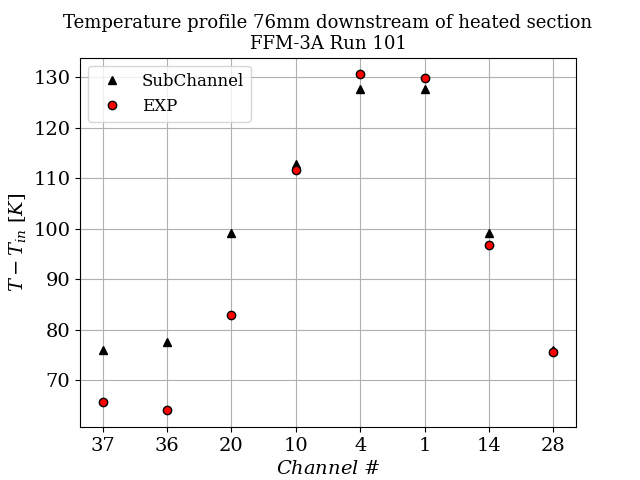

Figure 4: Exit temperature profile ().

A CFD model was developed to use as a reference solution and to further evaluate SCM's performance. The CFD model had about 1 million cells and utilized an implicit unsteady transient solver. Segregated fluid and energy solvers, turbulence modeling and the default polyhedral STAR-CCM+ mesher were used. Figure 5,Figure 6 and Figure 7 present the CFD simulation results on a 2D plane around the blockage location.

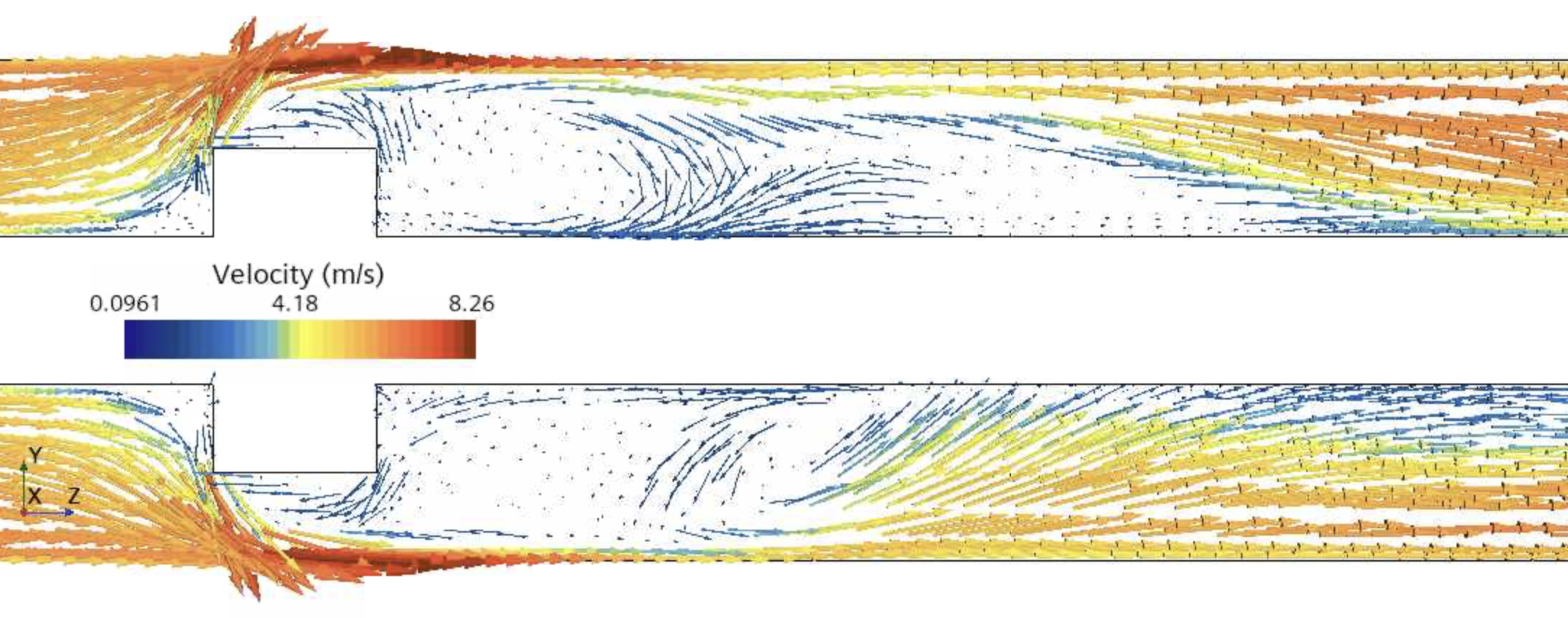

Figure 5: CFD velocity vector field.

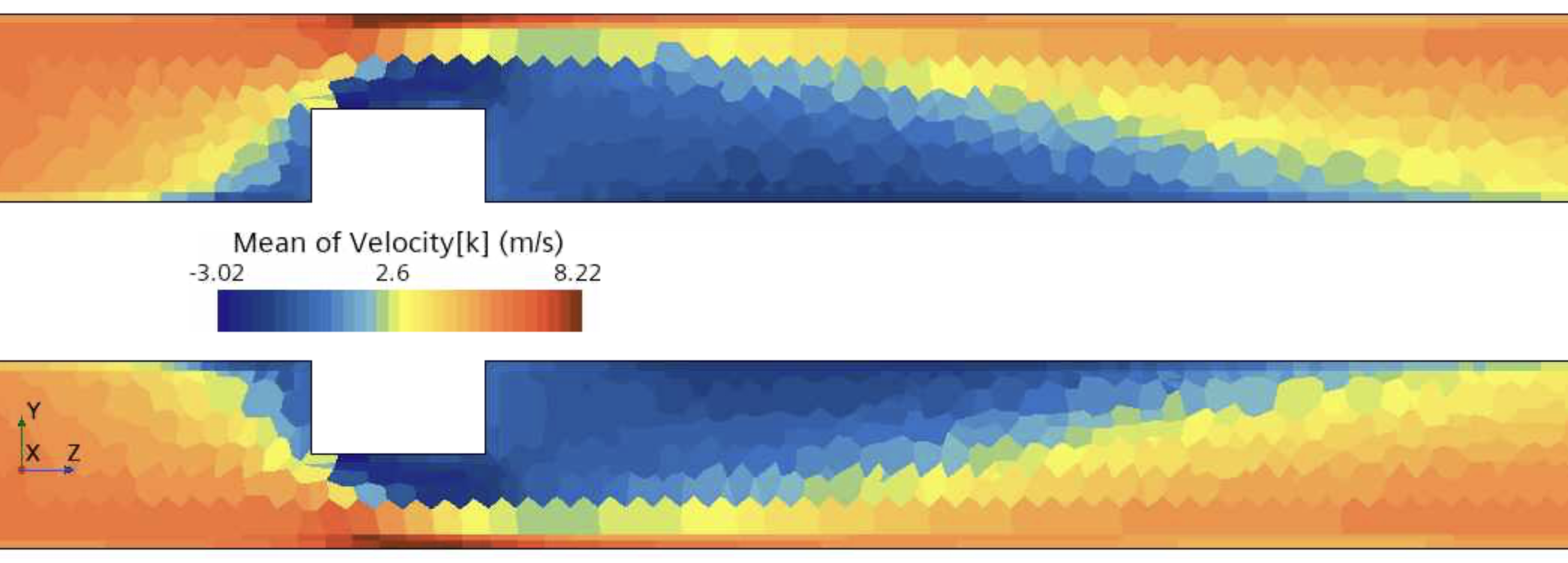

Figure 6: CFD average axial velocity field.

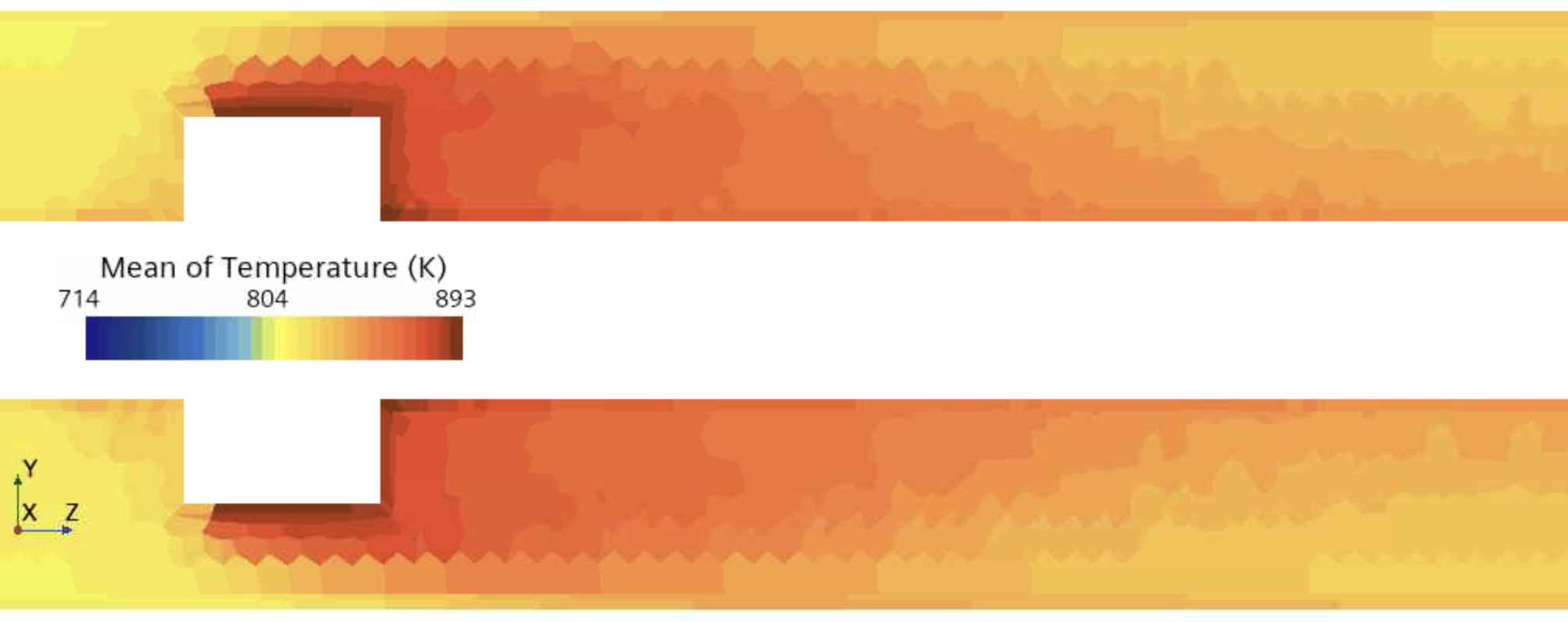

Figure 7: CFD average temperature field.

Furthermore, the axial profiles of massflow and temperature are plotted for a center subchannel along the stream-wise direction in Figure 8 and Figure 9, respectively. Massflow is forced around the blockage, which causes flow to be reduced in the axial direction. The blockage causes a recirculation region to be formed downstream, which can been seen in CFD results. Due to the axial flow being reduced around the area of the blockage, a temperature peak is observed. On the other hand, downstream of the blockage, recirculation causes a cooling effect, as massflow rushes back in the central region from the outer cooler subchannels, causing the temperature to drop back down. The axial profile of the average temperature of the center subchannel agrees well with the CFD calculation of the center-line temperature. Before the blockage, the average value is a bit higher than the center value. After the blockage, enhanced mixing causes the values to overlap. Using the SCM temperature profile, a broad estimation of the recirculation length can be made by measuring the distance between the end of the heating pick and the end of the blockage. The result is 1.765 inches, which is consistent with the experimentally reported 2 inches Fontana et al. (1973).

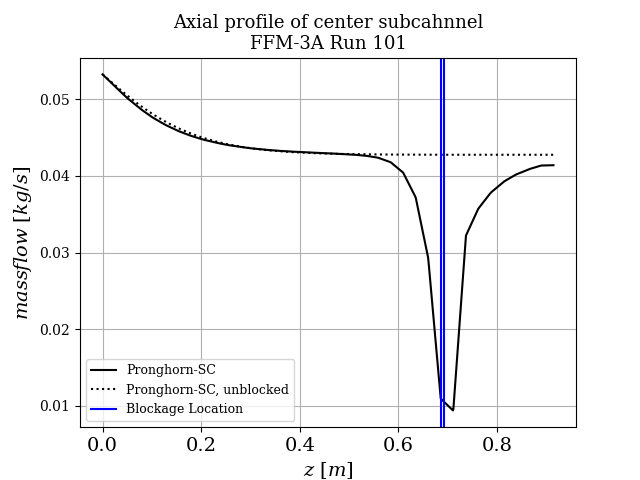

Figure 8: Axial profile of mass flow in center subchannel.

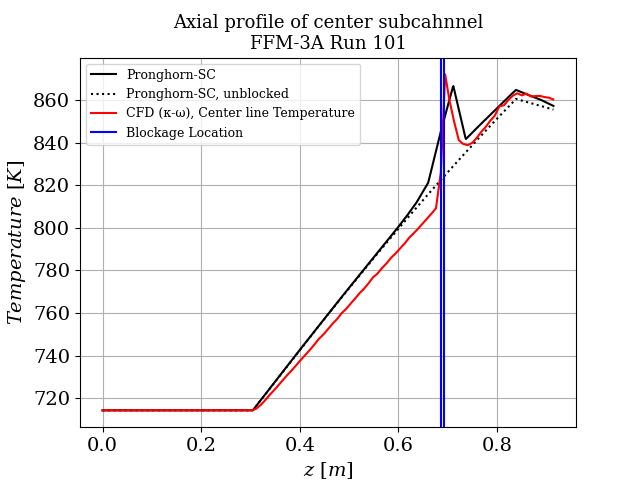

Figure 9: Axial profile of temperature in center subchannel.

It should be noted that the effect of the simulated blockage, depends on the axial discretization, flow area reduction and user-defined local form loss coefficient, along with the turbulent modeling parameters. Due to the nonlinear nature of the friction pressure drop calculation, the effect of these parameters is not straightforward and special care must be taken by the user to properly simulate the blockage effects and produce consistent results.

SCM Inputs

The input file to run the central blockage case is presented below:

################################################################################
## THORS bundle 3A central blockage benchmark                                 ##
## SCM simulation                                                             ##
## POC : Vasileios Kyriakopoulos, [email protected]             ##
################################################################################
# Details on the experimental facility modeled can be found at:
# Han, J. T. "Blockages in LMFBR fuel assemblies: A review of experimental and theoretical studies." (1977).
# The affected subchannels get an area reduction and a form loss coefficient
T_in = 714.261
A12 = 1.00423e3
A13 = -0.21390
A14 = -1.1046e-5
rho = '${fparse A12 + A13 * T_in + A14 * T_in * T_in}'
Total_surface_area = 0.000452826 #m2
Blocked_surface_area = 0.0 #m2
Flow_area = '${fparse Total_surface_area - Blocked_surface_area}'
vol_flow = 3.4E-03 #m3/s
mass_flux_in = '${fparse rho *  vol_flow / Flow_area}'
P_out = 2.0e5 # Pa
[TriSubChannelMesh]
  [subchannel]
    type = SCMTriSubChannelMeshGenerator
    nrings = 3
    n_cells = 36
    flat_to_flat = 0.0338514
    heated_length = 0.5334
    unheated_length_entry = 0.3048
    unheated_length_exit = 0.0762
    pin_diameter = 0.005842
    pitch = 7.2644e-3
    dwire = 0.0014224
    hwire = 0.3048
    spacer_z = '0.0'
    spacer_k = '0.0'
    z_blockage = '0.6858 0.69215'
    index_blockage = '0 1 2 3 4 5'
    reduction_blockage = '0.08 0.08 0.08 0.08 0.08 0.08'
    k_blockage = '2.0 2.0 2.0 2.0 2.0 2.0'
  []
[]

[AuxVariables<<<{"href": "../../../syntax/AuxVariables/index.html"}>>>]
  [mdot]
  []
  [SumWij]
  []
  [P]
  []
  [DP]
  []
  [h]
  []
  [T]
  []
  [rho]
  []
  [S]
  []
  [w_perim]
  []
  [q_prime]
  []
  [mu]
  []
  [displacement]
  []
[]

[FluidProperties<<<{"href": "../../../syntax/FluidProperties/index.html"}>>>]
  [sodium]
    type = PBSodiumFluidProperties<<<{"description": "Class that provides the methods that realize the equations of state for Liquid Sodium", "href": "../../../source/fluidproperties/PBSodiumFluidProperties.html"}>>>
  []
[]

[Problem<<<{"href": "../../../syntax/Problem/index.html"}>>>]
  type = TriSubChannel1PhaseProblem
  fp = sodium
  n_blocks = 1
  P_out = 2.0e5
  CT = 2
  compute_density = true
  compute_viscosity = true
  compute_power = true
  P_tol = 1.0e-4
  T_tol = 1.0e-4
  implicit = true
  segregated = false
  verbose_subchannel = true
  interpolation_scheme = exponential
[]

[ICs<<<{"href": "../../../syntax/ICs/index.html"}>>>]
  [S_IC]
    type = SCMTriFlowAreaIC<<<{"description": "Computes flow area of subchannels in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriFlowAreaIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = S
  []

  [w_perim_IC]
    type = SCMTriWettedPerimIC<<<{"description": "Computes wetted perimeter of subchannels in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriWettedPerimIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = w_perim
  []

  [q_prime_IC]
    type = SCMTriPowerIC<<<{"description": "Computes axial power rate (W/m) that goes into the subchannel cells or is assigned to the fuel pins, in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriPowerIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = q_prime
    power<<<{"description": "The postprocessor or Real to use for the total power of the subassembly [W]"}>>> = 332500.0 #W
    filename<<<{"description": "name of radial power profile .txt file (should be a single column) [UnitLess]."}>>> = "pin_power_profile_19.txt"
  []

  [T_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = T
    value<<<{"description": "The value to be set in IC"}>>> = ${T_in}
  []

  [P_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = P
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []

  [DP_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = DP
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []
  [Viscosity_ic]
    type = ViscosityIC<<<{"description": "Computes viscosity from specified pressure and temperature", "href": "../../../source/ics/ViscosityIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = mu
    p<<<{"description": "Pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "Temperature [K]"}>>> = T
    fp<<<{"description": "Fluid properties user object name"}>>> = sodium
  []

  [rho_ic]
    type = RhoFromPressureTemperatureIC<<<{"description": "Computes the density from pressure and temperature.", "href": "../../../source/ics/RhoFromPressureTemperatureIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = rho
    p<<<{"description": "The pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "The temperature [K]"}>>> = T
    fp<<<{"description": "The name of fluid properties user object."}>>> = sodium
  []

  [h_ic]
    type = SpecificEnthalpyFromPressureTemperatureIC<<<{"description": "Computes the specific enthalpy from pressure and temperature.", "href": "../../../source/ics/SpecificEnthalpyFromPressureTemperatureIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = h
    p<<<{"description": "The pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "The temperature [K]"}>>> = T
    fp<<<{"description": "The name of fluid properties user object."}>>> = sodium
  []

  [mdot_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = mdot
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []
[]

[AuxKernels<<<{"href": "../../../syntax/AuxKernels/index.html"}>>>]
  [T_in_bc]
    type = ConstantAux<<<{"description": "Creates a constant field in the domain.", "href": "../../../source/auxkernels/ConstantAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = T
    boundary<<<{"description": "The list of boundaries (ids or names) from the mesh where this object applies"}>>> = inlet
    value<<<{"description": "Some constant value that can be read from the input file"}>>> = ${T_in}
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'timestep_begin'
  []
  [mdot_in_bc]
    type = SCMMassFlowRateAux<<<{"description": "Computes mass flow rate from specified mass flux and subchannel cross-sectional area. Can read either PostprocessorValue or Real", "href": "../../../source/auxkernels/SCMMassFlowRateAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = mdot
    boundary<<<{"description": "The list of boundaries (ids or names) from the mesh where this object applies"}>>> = inlet
    area<<<{"description": "Cross sectional area [m^2]"}>>> = S
    mass_flux<<<{"description": "The postprocessor or Real to use for the value of mass_flux"}>>> = ${mass_flux_in}
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'timestep_begin'
  []
[]

[Outputs<<<{"href": "../../../syntax/Outputs/index.html"}>>>]
  exodus<<<{"description": "Output the results using the default settings for Exodus output."}>>> = true
  csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
[]

[Executioner<<<{"href": "../../../syntax/Executioner/index.html"}>>>]
  type = Steady
  nl_rel_tol = 0.9
  l_tol = 0.9
[]

[Postprocessors<<<{"href": "../../../syntax/Postprocessors/index.html"}>>>]
  [1]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 37
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
  [2]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 36
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
  [3]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 20
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
  [4]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 10
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
  [5]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 4
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
  [6]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 1
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
  [7]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 14
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
  [8]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 28
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'TIMESTEP_END'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.9144
  []
[]
(modules/subchannel/validation/Blockage/THORS/FFM-3A.i)

The file that creates the detailed mesh that subchannel solution gets projected on is presented below:

[Mesh<<<{"href": "../../../syntax/Mesh/index.html"}>>>]
  [subchannel]
    type = SCMDetailedTriSubChannelMeshGenerator<<<{"description": "Creates a detailed mesh of subchannels in a triangular lattice arrangement", "href": "../../../source/meshgenerators/SCMDetailedTriSubChannelMeshGenerator.html"}>>>
    nrings<<<{"description": "Number of fuel Pin rings per assembly [-]"}>>> = 3
    n_cells<<<{"description": "The number of cells in the axial direction"}>>> = 36
    flat_to_flat<<<{"description": "Flat to flat distance for the hexagonal assembly [m]"}>>> = 3.41e-2
    heated_length<<<{"description": "Heated length [m]"}>>> = 0.5334
    unheated_length_entry<<<{"description": "Unheated length at entry [m]"}>>> = 0.3048
    unheated_length_exit<<<{"description": "Unheated length at exit [m]"}>>> = 0.0762
    pin_diameter<<<{"description": "Rod diameter [m]"}>>> = 5.84e-3
    pitch<<<{"description": "Pitch [m]"}>>> = 7.26e-3
  []
[]

[AuxVariables<<<{"href": "../../../syntax/AuxVariables/index.html"}>>>]
  [mdot]
  []
  [SumWij]
  []
  [P]
  []
  [DP]
  []
  [h]
  []
  [T]
  []
  [rho]
  []
  [mu]
  []
  [S]
  []
  [w_perim]
  []
  [q_prime]
  []
[]

[Problem<<<{"href": "../../../syntax/Problem/index.html"}>>>]
  type = NoSolveProblem
[]

[Outputs<<<{"href": "../../../syntax/Outputs/index.html"}>>>]
  exodus<<<{"description": "Output the results using the default settings for Exodus output."}>>> = true
[]

[Executioner<<<{"href": "../../../syntax/Executioner/index.html"}>>>]
  type = Steady
[]
(modules/subchannel/validation/Blockage/THORS/FFM-3Adetailed.i)

Edge blockage of 14 channels in 19-pin sodium-cooled bundles

THORS bundle 5B has the same fuel configuration as bundle 2B, except that 0.0711-cm-diam wire-wrap spacers are used to separate the peripheral pins from the duct wall. The half-size spacers are used to reduce the flow in the peripheral flow channels and to cause a flatter radial temperature profile across the bundle. It also means that the flat-to-flat distance is reduced appropiately. The pins have a heated length of . A 3175-cm-thick stainless steel blockage plate is located above the start of the heated zone to block edge and internal channels along the duct wall. The test section layout is shown in Fig Figure 10. The experimental parameters for the chosen case are presented in Table 2. SCM modeled the THORS bundle 5B blockage with a % area reduction on the affected subchannels and a local form loss coefficient of . was set to as in the previous case. The SCM model's geometry and subchannel/pin index notation is shown in Figure 2.

Figure 10: THORS bundle 5B cross section.

Table 2: Design and operational parameters for THORS 14-channel edge blockage benchmark.

Experiment Parameter (unit)Value
Number of pins (—)
Rod pitch (cm)
Rod diameter (cm)
Wire wrap diameter (cm)
Wire wrap axial pitch (cm)
Flat-to-flat duct distance (cm)
Inlet length (cm)
Heated length (cm)
Outlet length (cm)
Blockage location (cm)
Outlet pressure (Pa)
Inlet temperature (K)
Inlet velocity (m/s)
Power profile (—)Uniform
Power (kW)

Results for edge blockage

The case presented here is the high flow case (FFM Series 6, Test 12, Run 101). The thermocouples are located at the middle of the exit region. There is a subchannel index correspondence between the Figure Figure 10 and the Pronhorn-SC model shown in FigureFigure 2 as follows: 34(39), 33(38), 18(20), 9(19), 3(4), 0(1), 12(11) and 25(30). Where the number outside the parentheses refers to the SCM model and the number inside the parentheses, refers to the experimental convention. SCM calculation along with the experimental measurements is shown in Figure Figure 11. The code calculations exhibits generally good agreement with the experimental measurements. The least agreement occurs at the edge subchannels () which is likely due to the model not accurately replicating the flow area there. SCM uses an assembly-wide constant wire diameter, while in the experimental assembly the wires at the edge subchannels had half the diameter.

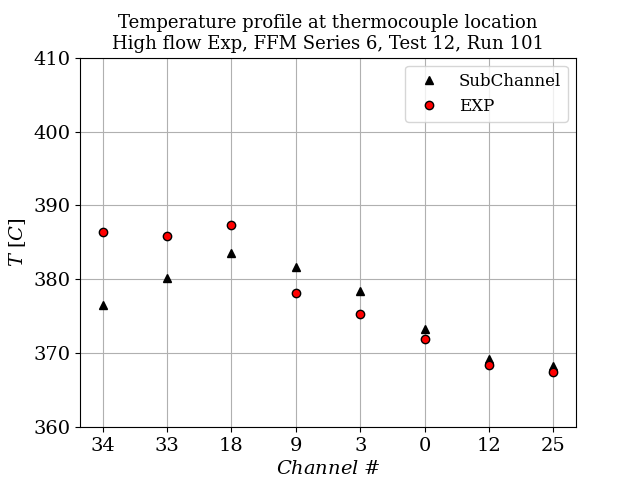

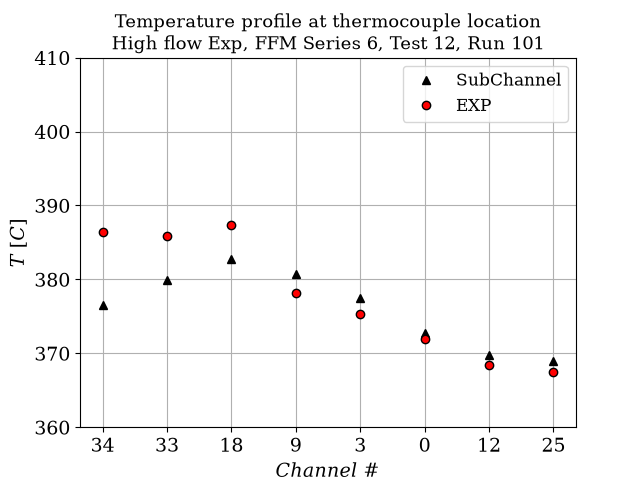

Figure 11: Exit temperature profile for high flow case ().

The second case presented here is the low flow case (FFM Series 6, Test 12, Run 109). The thermocouples are located at the middle of the exit region, same as before. SCM calculation along with the experimental measurements is shown in Figure Figure 12. The code calculations exhibits good agreement with the experimental measurements.

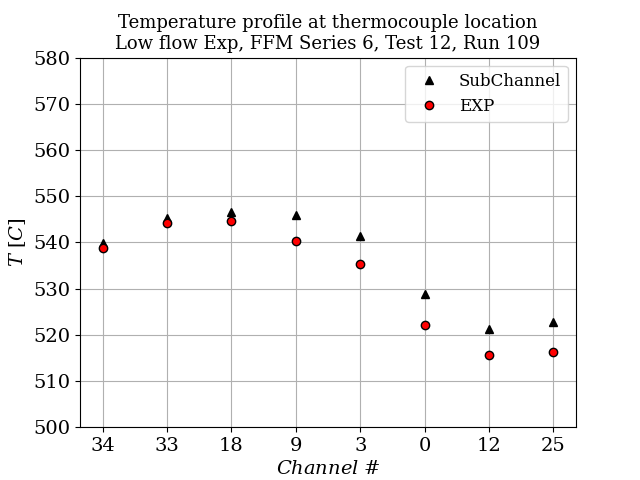

Figure 12: Exit temperature profile for low flow case ().

SCM Input

The input files to run the edge blockage case is presented below:

################################################################################
## THORS bundle 5B partial edge blockage benchmark                            ##
## SCM simulation, high flow case                                             ##
## POC : Vasileios Kyriakopoulos, [email protected]             ##
################################################################################
# Details on the experimental facility modeled can be found at:
# Han, J. T. "Blockages in LMFBR fuel assemblies: A review of experimental and theoretical studies." (1977).
# This input file models a block next to the duct of  the of the assembly
# 102 mm above the start of the heated section.

# Boundary conditions
T_in = 596.75 # K, high flow case
A12 = 1.00423e3
A13 = -0.21390
A14 = -1.1046e-5
rho = '${fparse A12 + A13 * T_in + A14 * T_in * T_in}'
inlet_vel = 6.93 #m/sec, high flow case
mass_flux_in = '${fparse rho *  inlet_vel}'
P_out = 2.0e5 # Pa
[TriSubChannelMesh]
  [subchannel]
    type = SCMTriSubChannelMeshGenerator
    nrings = 3
    n_cells = 50
    flat_to_flat = 0.0324290
    heated_length = 0.4572
    unheated_length_entry = 0.4064
    unheated_length_exit = 0.1524
    pin_diameter = 0.005842
    pitch = 7.2644e-3
    dwire = 0.0014224
    hwire = 0.3048
    z_blockage = '0.49 0.52'
    index_blockage = '29 31 30 32 34 33 35 15 16 8 17 18 9 19'
    reduction_blockage = '0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1'
    k_blockage = '5 5 5 5 5 5 5 5 5 5 5 5 5 5 '
  []
[]

[AuxVariables<<<{"href": "../../../syntax/AuxVariables/index.html"}>>>]
  [mdot]
    block = subchannel
  []
  [SumWij]
    block = subchannel
  []
  [P]
    block = subchannel
  []
  [DP]
    block = subchannel
  []
  [h]
    block = subchannel
  []
  [T]
    block = subchannel
  []
  [rho]
    block = subchannel
  []
  [S]
    block = subchannel
  []
  [w_perim]
    block = subchannel
  []
  [mu]
    block = subchannel
  []
  [q_prime]
    block = subchannel
  []
  [displacement]
    block = subchannel
  []
[]

[FluidProperties<<<{"href": "../../../syntax/FluidProperties/index.html"}>>>]
  [sodium]
    type = PBSodiumFluidProperties<<<{"description": "Class that provides the methods that realize the equations of state for Liquid Sodium", "href": "../../../source/fluidproperties/PBSodiumFluidProperties.html"}>>>
  []
[]

[Problem<<<{"href": "../../../syntax/Problem/index.html"}>>>]
  type = TriSubChannel1PhaseProblem
  fp = sodium
  n_blocks = 1
  P_out = 2.0e5
  CT = 2
  compute_density = true
  compute_viscosity = true
  compute_power = true
  P_tol = 1.0e-4
  T_tol = 1.0e-4
  implicit = true
  segregated = false
  verbose_subchannel = true
  interpolation_scheme = exponential
[]

[ICs<<<{"href": "../../../syntax/ICs/index.html"}>>>]
  [S_IC]
    type = SCMTriFlowAreaIC<<<{"description": "Computes flow area of subchannels in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriFlowAreaIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = S
  []

  [w_perim_IC]
    type = SCMTriWettedPerimIC<<<{"description": "Computes wetted perimeter of subchannels in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriWettedPerimIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = w_perim
  []

  [q_prime_IC]
    type = SCMTriPowerIC<<<{"description": "Computes axial power rate (W/m) that goes into the subchannel cells or is assigned to the fuel pins, in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriPowerIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = q_prime
    power<<<{"description": "The postprocessor or Real to use for the total power of the subassembly [W]"}>>> = 145000  #W, high flow case
    filename<<<{"description": "name of radial power profile .txt file (should be a single column) [UnitLess]."}>>> = "pin_power_profile_19.txt"
  []

  [T_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = T
    value<<<{"description": "The value to be set in IC"}>>> = ${T_in}
  []

  [P_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = P
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []

  [DP_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = DP
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []

  [Viscosity_ic]
    type = ViscosityIC<<<{"description": "Computes viscosity from specified pressure and temperature", "href": "../../../source/ics/ViscosityIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = mu
    p<<<{"description": "Pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "Temperature [K]"}>>> = T
    fp<<<{"description": "Fluid properties user object name"}>>> = sodium
  []

  [rho_ic]
    type = RhoFromPressureTemperatureIC<<<{"description": "Computes the density from pressure and temperature.", "href": "../../../source/ics/RhoFromPressureTemperatureIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = rho
    p<<<{"description": "The pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "The temperature [K]"}>>> = T
    fp<<<{"description": "The name of fluid properties user object."}>>> = sodium
  []

  [h_ic]
    type = SpecificEnthalpyFromPressureTemperatureIC<<<{"description": "Computes the specific enthalpy from pressure and temperature.", "href": "../../../source/ics/SpecificEnthalpyFromPressureTemperatureIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = h
    p<<<{"description": "The pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "The temperature [K]"}>>> = T
    fp<<<{"description": "The name of fluid properties user object."}>>> = sodium
  []

  [mdot_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = mdot
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []
[]

[AuxKernels<<<{"href": "../../../syntax/AuxKernels/index.html"}>>>]
  [T_in_bc]
    type = ConstantAux<<<{"description": "Creates a constant field in the domain.", "href": "../../../source/auxkernels/ConstantAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = T
    boundary<<<{"description": "The list of boundaries (ids or names) from the mesh where this object applies"}>>> = inlet
    value<<<{"description": "Some constant value that can be read from the input file"}>>> = ${T_in}
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'timestep_begin'
  []
  [mdot_in_bc]
    type = SCMMassFlowRateAux<<<{"description": "Computes mass flow rate from specified mass flux and subchannel cross-sectional area. Can read either PostprocessorValue or Real", "href": "../../../source/auxkernels/SCMMassFlowRateAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = mdot
    boundary<<<{"description": "The list of boundaries (ids or names) from the mesh where this object applies"}>>> = inlet
    area<<<{"description": "Cross sectional area [m^2]"}>>> = S
    mass_flux<<<{"description": "The postprocessor or Real to use for the value of mass_flux"}>>> = ${mass_flux_in}
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'timestep_begin'
  []
[]

[Outputs<<<{"href": "../../../syntax/Outputs/index.html"}>>>]
  exodus<<<{"description": "Output the results using the default settings for Exodus output."}>>> = true
  csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
[]

[Postprocessors<<<{"href": "../../../syntax/Postprocessors/index.html"}>>>]
  [1]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 34
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [2]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 33
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [3]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 18
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [4]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 9
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [5]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 3
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [6]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 0
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [7]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 12
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [8]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 25
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
[]

[Executioner<<<{"href": "../../../syntax/Executioner/index.html"}>>>]
  type = Steady
[]

################################################################################
# A multiapp that projects data to a detailed mesh
################################################################################

[MultiApps<<<{"href": "../../../syntax/MultiApps/index.html"}>>>]
  [viz]
    type = FullSolveMultiApp<<<{"description": "Performs a complete simulation during each execution.", "href": "../../../source/multiapps/FullSolveMultiApp.html"}>>>
    input_files<<<{"description": "The input file for each App.  If this parameter only contains one input file it will be used for all of the Apps.  When using 'positions_from_file' it is also admissable to provide one input_file per file."}>>> = "FFM-5B_viz.i"
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = "timestep_end"
  []
[]

[Transfers<<<{"href": "../../../syntax/Transfers/index.html"}>>>]
  [xfer]
    type = SCMSolutionTransfer<<<{"description": "Transfers subchannel solution from computational mesh onto visualization mesh", "href": "../../../source/transfers/SCMSolutionTransfer.html"}>>>
    to_multi_app<<<{"description": "The name of the MultiApp to transfer the data to"}>>> = viz
    variable<<<{"description": "The auxiliary variables to transfer."}>>> = 'mdot SumWij P DP h T rho mu q_prime S displacement w_perim'
  []
[]
(modules/subchannel/validation/Blockage/THORS/FFM-5B_high.i)
################################################################################
## THORS bundle 5B partial edge blockage benchmark                            ##
## SCM simulation, low flow casenn                                            ##
## POC : Vasileios Kyriakopoulos, [email protected]             ##
################################################################################
# Details on the experimental facility modeled can be found at:
# Han, J. T. "Blockages in LMFBR fuel assemblies: A review of experimental and theoretical studies." (1977).
# This input file models a block next to the duct of  the of the assembly
# 102 mm above the start of the heated section.

# Boundary conditions
T_in = 541.55 #K, low flow case
A12 = 1.00423e3
A13 = -0.21390
A14 = -1.1046e-5
rho = '${fparse A12 + A13 * T_in + A14 * T_in * T_in}'
inlet_vel = 0.48 #m/sec, low flow case
mass_flux_in = '${fparse rho *  inlet_vel}'
P_out = 2.0e5 # Pa
[TriSubChannelMesh]
  [subchannel]
    type = SCMTriSubChannelMeshGenerator
    nrings = 3
    n_cells = 50
    flat_to_flat = 0.0324290
    heated_length = 0.4572
    unheated_length_entry = 0.4064
    unheated_length_exit = 0.1524
    pin_diameter = 0.005842
    pitch = 7.2644e-3
    dwire = 0.0014224
    hwire = 0.3048
    z_blockage = '0.49 0.52'
    index_blockage = '29 31 30 32 34 33 35 15 16 8 17 18 9 19'
    reduction_blockage = '0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1'
    k_blockage = '5 5 5 5 5 5 5 5 5 5 5 5 5 5 '
  []
[]

[AuxVariables<<<{"href": "../../../syntax/AuxVariables/index.html"}>>>]
  [mdot]
    block = subchannel
  []
  [SumWij]
    block = subchannel
  []
  [P]
    block = subchannel
  []
  [DP]
    block = subchannel
  []
  [h]
    block = subchannel
  []
  [T]
    block = subchannel
  []
  [rho]
    block = subchannel
  []
  [S]
    block = subchannel
  []
  [w_perim]
    block = subchannel
  []
  [mu]
    block = subchannel
  []
  [q_prime]
    block = subchannel
  []
  [displacement]
    block = subchannel
  []
[]

[FluidProperties<<<{"href": "../../../syntax/FluidProperties/index.html"}>>>]
  [sodium]
    type = PBSodiumFluidProperties<<<{"description": "Class that provides the methods that realize the equations of state for Liquid Sodium", "href": "../../../source/fluidproperties/PBSodiumFluidProperties.html"}>>>
  []
[]

[Problem<<<{"href": "../../../syntax/Problem/index.html"}>>>]
  type = TriSubChannel1PhaseProblem
  fp = sodium
  n_blocks = 1
  P_out = 2.0e5
  CT = 2
  compute_density = true
  compute_viscosity = true
  compute_power = true
  P_tol = 1.0e-4
  T_tol = 1.0e-4
  implicit = true
  segregated = false
  verbose_subchannel = true
  interpolation_scheme = exponential
[]

[ICs<<<{"href": "../../../syntax/ICs/index.html"}>>>]
  [S_IC]
    type = SCMTriFlowAreaIC<<<{"description": "Computes flow area of subchannels in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriFlowAreaIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = S
  []

  [w_perim_IC]
    type = SCMTriWettedPerimIC<<<{"description": "Computes wetted perimeter of subchannels in a triangular lattice arrangement", "href": "../../../source/ics/SCMTriWettedPerimIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = w_perim
  []

  [T_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = T
    value<<<{"description": "The value to be set in IC"}>>> = ${T_in}
  []

  [P_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = P
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []

  [DP_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = DP
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []

  [Viscosity_ic]
    type = ViscosityIC<<<{"description": "Computes viscosity from specified pressure and temperature", "href": "../../../source/ics/ViscosityIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = mu
    p<<<{"description": "Pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "Temperature [K]"}>>> = T
    fp<<<{"description": "Fluid properties user object name"}>>> = sodium
  []

  [rho_ic]
    type = RhoFromPressureTemperatureIC<<<{"description": "Computes the density from pressure and temperature.", "href": "../../../source/ics/RhoFromPressureTemperatureIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = rho
    p<<<{"description": "The pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "The temperature [K]"}>>> = T
    fp<<<{"description": "The name of fluid properties user object."}>>> = sodium
  []

  [h_ic]
    type = SpecificEnthalpyFromPressureTemperatureIC<<<{"description": "Computes the specific enthalpy from pressure and temperature.", "href": "../../../source/ics/SpecificEnthalpyFromPressureTemperatureIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = h
    p<<<{"description": "The pressure [Pa]"}>>> = ${P_out}
    T<<<{"description": "The temperature [K]"}>>> = T
    fp<<<{"description": "The name of fluid properties user object."}>>> = sodium
  []

  [mdot_ic]
    type = ConstantIC<<<{"description": "Sets a constant field value.", "href": "../../../source/ics/ConstantIC.html"}>>>
    variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = mdot
    value<<<{"description": "The value to be set in IC"}>>> = 0.0
  []
[]

[AuxKernels<<<{"href": "../../../syntax/AuxKernels/index.html"}>>>]
  [T_in_bc]
    type = ConstantAux<<<{"description": "Creates a constant field in the domain.", "href": "../../../source/auxkernels/ConstantAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = T
    boundary<<<{"description": "The list of boundaries (ids or names) from the mesh where this object applies"}>>> = inlet
    value<<<{"description": "Some constant value that can be read from the input file"}>>> = ${T_in}
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'timestep_begin'
  []
  [mdot_in_bc]
    type = SCMMassFlowRateAux<<<{"description": "Computes mass flow rate from specified mass flux and subchannel cross-sectional area. Can read either PostprocessorValue or Real", "href": "../../../source/auxkernels/SCMMassFlowRateAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = mdot
    boundary<<<{"description": "The list of boundaries (ids or names) from the mesh where this object applies"}>>> = inlet
    area<<<{"description": "Cross sectional area [m^2]"}>>> = S
    mass_flux<<<{"description": "The postprocessor or Real to use for the value of mass_flux"}>>> = ${mass_flux_in}
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'timestep_begin'
  []
  [q_prime_Aux]
    type = SCMTriPowerAux<<<{"description": "Computes axial power rate (W/m) that goes into the subchannel cells or is assigned to the fuel pins, in a triangular lattice arrangement", "href": "../../../source/auxkernels/SCMTriPowerAux.html"}>>>
    variable<<<{"description": "The name of the variable that this object applies to"}>>> = q_prime
    power<<<{"description": "The postprocessor or Real to use for the total power of the subassembly [W]"}>>> = 52800 #W, low flow case
    filename<<<{"description": "name of radial power profile .txt file (should be a single column) [UnitLess]."}>>> = "pin_power_profile_19.txt"
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_begin'
  []
[]

[Outputs<<<{"href": "../../../syntax/Outputs/index.html"}>>>]
  exodus<<<{"description": "Output the results using the default settings for Exodus output."}>>> = true
  csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
[]

[Postprocessors<<<{"href": "../../../syntax/Postprocessors/index.html"}>>>]
  [1]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 34
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [2]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 33
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [3]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 18
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [4]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 9
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [5]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 3
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [6]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 0
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [7]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 12
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
  [8]
    type = SubChannelPointValue<<<{"description": "Prints out a user selected value of a specified subchannel at a user selected axial height", "href": "../../../source/postprocessors/SubChannelPointValue.html"}>>>
    variable<<<{"description": "Variable you want the value of"}>>> = T
    index<<<{"description": "Index of subchannel"}>>> = 25
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = 'initial timestep_end'
    height<<<{"description": "Axial location of point [m]"}>>> = 0.94
  []
[]

[Executioner<<<{"href": "../../../syntax/Executioner/index.html"}>>>]
  type = Steady
[]

################################################################################
# A multiapp that projects data to a detailed mesh
################################################################################

[MultiApps<<<{"href": "../../../syntax/MultiApps/index.html"}>>>]
  [viz]
    type = FullSolveMultiApp<<<{"description": "Performs a complete simulation during each execution.", "href": "../../../source/multiapps/FullSolveMultiApp.html"}>>>
    input_files<<<{"description": "The input file for each App.  If this parameter only contains one input file it will be used for all of the Apps.  When using 'positions_from_file' it is also admissable to provide one input_file per file."}>>> = "FFM-5B_viz.i"
    execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = "timestep_end"
  []
[]

[Transfers<<<{"href": "../../../syntax/Transfers/index.html"}>>>]
  [xfer]
    type = SCMSolutionTransfer<<<{"description": "Transfers subchannel solution from computational mesh onto visualization mesh", "href": "../../../source/transfers/SCMSolutionTransfer.html"}>>>
    to_multi_app<<<{"description": "The name of the MultiApp to transfer the data to"}>>> = viz
    variable<<<{"description": "The auxiliary variables to transfer."}>>> = 'mdot SumWij P DP h T rho mu q_prime S displacement w_perim'
  []
[]
(modules/subchannel/validation/Blockage/THORS/FFM-5B_low.i)

Caveat

There is still no formal way or procedure to model the effect of the blockage by adapting the relevant parameters (area reduction, form loss coefficient, axial discretization). It is up to the user engineering judgement to develop the combination appropriate for the specific geometry.

References

  1. MH Fontana, TS Kress, TS Parsly, DG Thomas, and JL Wantland. Effect of partial blockages in simulated lmfbr fuel assemblies. Technical Report, Oak Ridge National Lab.(ORNL), Oak Ridge, TN (United States), 1973.[BibTeX]
  2. JT Han. Blockages in lmfbr fuel assemblies: a review of experimental and theoretical studies. Technical Report, Oak Ridge National Lab.(ORNL), Oak Ridge, TN (United States), 1977.[BibTeX]
  3. Hae-Yong Jeong, Kwi-Seok Ha, Won-Pyo Chang, Young-Min Kwon, and Yong-Bum Lee. Modeling of flow blockage in a liquid metal-cooled reactor subassembly with a subchannel analysis code. Nuclear technology, 149(1):71–87, 2005.[BibTeX]
