Heat advection in a 1D bar

Consider the case of a single-phase fluid in 1 dimension, , with the porepressure fixed at the boundaries: (1) With zero gravity, and high fluid bulk modulus, the Darcy equation implies that the solution is , with (2) being the constant "Darcy velocity" from to . (The velocity of the individual fluid particles, this is divided by the porosity.). Here is the porous medium's permeability, and is the fluid dynamic viscosity.

Suppose that the fluid internal energy is given by , where is the specific heat capacity and is its temperature. Assuming that , then the fluid's enthalpy is also . In this case, the energy equation reads (3) This is the wave equation with velocity (4) Recall that the "Darcy velocity" is .

Let the initial condition for be . Apply the boundary conditions (5) At this creates a front at . Choose the parameters , , , , , , (all in consistent units), so that is the front's velocity.

The input file:

# 1phase, heat advecting with a moving fluid
[Mesh]
  type = GeneratedMesh
  dim = 1
  nx = 50
  xmin = 0
  xmax = 1
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 0 0'
[]

[Variables]
  [./temp]
    initial_condition = 200
  [../]
  [./pp]
  [../]
[]

[ICs]
  [./pp]
    type = FunctionIC
    variable = pp
    function = '1-x'
  [../]
[]

[BCs]
  [./pp0]
    type = PresetBC
    variable = pp
    boundary = left
    value = 1
  [../]
  [./pp1]
    type = PresetBC
    variable = pp
    boundary = right
    value = 0
  [../]
  [./spit_heat]
    type = PresetBC
    variable = temp
    boundary = left
    value = 300
  [../]
  [./suck_heat]
    type = PresetBC
    variable = temp
    boundary = right
    value = 200
  [../]
[]

[Kernels]
  [./mass_dot]
    type = PorousFlowMassTimeDerivative
    fluid_component = 0
    variable = pp
  [../]
  [./advection]
    type = PorousFlowAdvectiveFlux
    fluid_component = 0
    variable = pp
  [../]
  [./energy_dot]
    type = PorousFlowEnergyTimeDerivative
    variable = temp
  [../]
  [./heat_advection]
    type = PorousFlowHeatAdvection
    variable = temp
  [../]
[]

[UserObjects]
  [./dictator]
    type = PorousFlowDictator
    porous_flow_vars = 'temp pp'
    number_fluid_phases = 1
    number_fluid_components = 1
  [../]
  [./pc]
    type = PorousFlowCapillaryPressureVG
    m = 0.6
    alpha = 1.3
  [../]
[]

[Modules]
  [./FluidProperties]
    [./simple_fluid]
      type = SimpleFluidProperties
      bulk_modulus = 100
      density0 = 1000
      viscosity = 4.4
      thermal_expansion = 0
      cv = 2
    [../]
  [../]
[]

[Materials]
  [./temperature]
    type = PorousFlowTemperature
    temperature = temp
  [../]
  [./porosity]
    type = PorousFlowPorosityConst
    porosity = 0.2
  [../]
  [./rock_heat]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 1.0
    density = 125
  [../]
  [./simple_fluid]
    type = PorousFlowSingleComponentFluid
    fp = simple_fluid
    phase = 0
  [../]
  [./permeability]
    type = PorousFlowPermeabilityConst
    permeability = '1.1 0 0 0 2 0 0 0 3'
  [../]
  [./relperm]
    type = PorousFlowRelativePermeabilityCorey
    n = 2
    phase = 0
  [../]
  [./massfrac]
    type = PorousFlowMassFraction
  [../]
  [./PS]
    type = PorousFlow1PhaseP
    porepressure = pp
    capillary_pressure = pc
  [../]
[]

[Preconditioning]
  [./andy]
    type = SMP
    full = true
    petsc_options_iname = '-ksp_type -pc_type -snes_atol -snes_rtol -snes_max_it'
    petsc_options_value = 'gmres bjacobi 1E-15 1E-10 10000'
  [../]
[]

[Executioner]
  type = Transient
  solve_type = Newton
  dt = 0.01
  end_time = 0.6
[]

[VectorPostprocessors]
  [./T]
    type = LineValueSampler
    start_point = '0 0 0'
    end_point = '1 0 0'
    num_points = 51
    sort_by = x
    variable = temp
  [../]
[]

[Outputs]
  [./csv]
    type = CSV
    sync_times = '0.1 0.6'
    sync_only = true
  [../]
[]
(modules/porous_flow/test/tests/heat_advection/heat_advection_1d.i)

The sharp front is not maintained by MOOSE. This is due to numerical diffusion, which is particularly strong when full upwinding is used. This is explained in great detail in the pages on numerical stabilization. Nevertheless, MOOSE advects the smooth front with the correct velocity, as shown in Figure 1.

The sharp front is not maintained by MOOSE even when no upwinding is used. In the case at hand, which uses a fully-saturated single-phase fluid, the FullySaturatedHeatAdvection Kernel may be used in order to compare with the standard fully-upwinded Kernels. The input file using the fully-saturated approach:

# 1phase, heat advecting with a moving fluid
# Using the FullySaturated Kernel
[Mesh]
  type = GeneratedMesh
  dim = 1
  nx = 50
  xmin = 0
  xmax = 1
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 0 0'
[]

[Variables]
  [./temp]
    initial_condition = 200
  [../]
  [./pp]
  [../]
[]

[ICs]
  [./pp]
    type = FunctionIC
    variable = pp
    function = '1-x'
  [../]
[]

[BCs]
  [./pp0]
    type = PresetBC
    variable = pp
    boundary = left
    value = 1
  [../]
  [./pp1]
    type = PresetBC
    variable = pp
    boundary = right
    value = 0
  [../]
  [./spit_heat]
    type = PresetBC
    variable = temp
    boundary = left
    value = 300
  [../]
  [./suck_heat]
    type = PresetBC
    variable = temp
    boundary = right
    value = 200
  [../]
[]

[Kernels]
  [./mass_dot]
    type = PorousFlowMassTimeDerivative
    fluid_component = 0
    variable = pp
  [../]
  [./advection]
    type = PorousFlowFullySaturatedDarcyBase
    variable = pp
  [../]
  [./energy_dot]
    type = PorousFlowEnergyTimeDerivative
    variable = temp
  [../]
  [./convection]
    type = PorousFlowFullySaturatedHeatAdvection
    variable = temp
  [../]
[]

[UserObjects]
  [./dictator]
    type = PorousFlowDictator
    porous_flow_vars = 'temp pp'
    number_fluid_phases = 1
    number_fluid_components = 1
  [../]
[]

[Modules]
  [./FluidProperties]
    [./simple_fluid]
      type = SimpleFluidProperties
      bulk_modulus = 100
      density0 = 1000
      viscosity = 4.4
      thermal_expansion = 0
      cv = 2
    [../]
  [../]
[]

[Materials]
  [./temperature]
    type = PorousFlowTemperature
    temperature = temp
  [../]
  [./porosity]
    type = PorousFlowPorosityConst
    porosity = 0.2
  [../]
  [./rock_heat]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 1.0
    density = 125
  [../]
  [./simple_fluid]
    type = PorousFlowSingleComponentFluid
    fp = simple_fluid
    phase = 0
  [../]
  [./permeability]
    type = PorousFlowPermeabilityConst
    permeability = '1.1 0 0 0 2 0 0 0 3'
  [../]
  [./massfrac]
    type = PorousFlowMassFraction
  [../]
  [./PS]
    type = PorousFlow1PhaseFullySaturated
    porepressure = pp
  [../]
[]

[Preconditioning]
  [./andy]
    type = SMP
    full = true
    petsc_options_iname = '-ksp_type -pc_type -snes_atol -snes_rtol -snes_max_it'
    petsc_options_value = 'gmres bjacobi 1E-15 1E-10 10000'
  [../]
[]

[Executioner]
  type = Transient
  solve_type = Newton
  dt = 0.01
  end_time = 0.6
[]

[VectorPostprocessors]
  [./T]
    type = LineValueSampler
    start_point = '0 0 0'
    end_point = '1 0 0'
    num_points = 51
    sort_by = x
    variable = temp
  [../]
[]

[Outputs]
  file_base = heat_advection_1d_fully_saturated
  [./csv]
    type = CSV
    sync_times = '0.1 0.6'
    sync_only = true
  [../]
[]

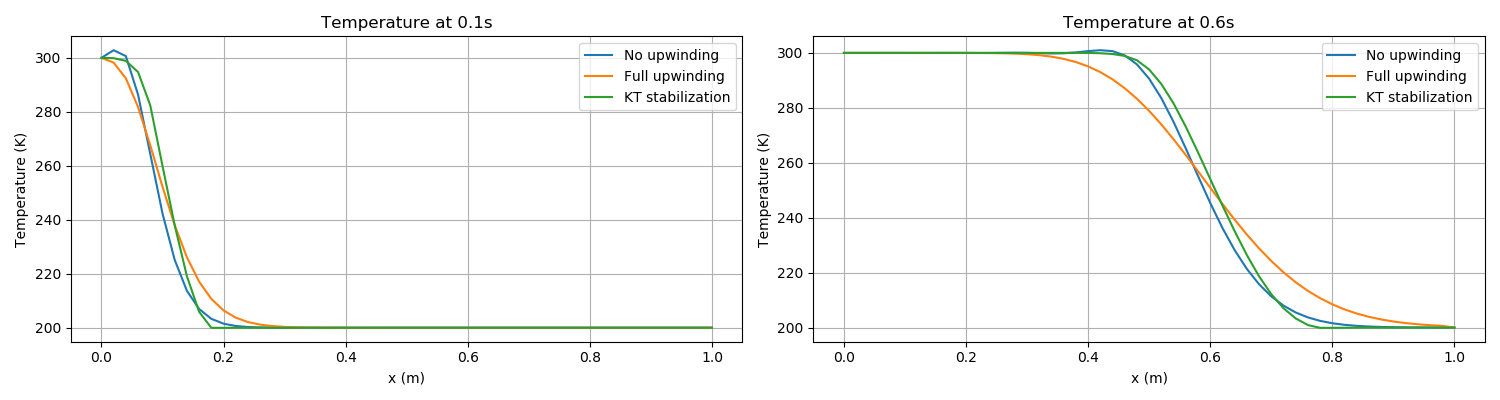

(modules/porous_flow/test/tests/heat_advection/heat_advection_1d_fully_saturated.i)
