1D heat and mass transport
Description
An analytical solution to the problem of 1D coupled heat and mass transport was initially developed by Avdonin (1964), and later by Ross et al. (1982).
The problem consists of a 1D model where cold water is injected into a warm semi-infinite reservoir at a constant rate. The top and bottom surfaces of the reservoir are bounded by caprock which is neglected in the modelling to simplify the problem. Instead, these boundaries are treated as no-flow and adiabatic boundary conditions.
For the simple case of a 1D Cartesian model bounded on the upper and lower surfaces by no-flow and adiabatic boundaries, a simplified solution for the temperature profile can be obtained (Updegraff, 1989)
(1)
where is the initial temperature in the reservoir, is the temperature of the injected water,
and
where is the Darcy velocity of the water, is the density of water, is the specific heat capacity of water, is the density of the fully saturated medium ( where is porosity and is the density of the dry rock), is the specific heat capacity of the fully saturated porous medium, and is the thermal conductivity of the fully saturated reservoir.
Model
This problem was considered in a code comparison by Updegraff (1989), so we use identical parameters in this verification problem, see Table 1.
Property | Value |
---|---|
Length | 50 m |
Pressure | 5 MPa |
Temperature | 170 C |
Permeability | m |
Porosity | 0.2 |
Saturate density | 2,500 kg m |
Saturated thermal conductivity | 25 W m K |
Saturated specific heat capacity | 1,000 J kg K |
Following Updegraff (1989), a constant fluid flow through the left boundary is obtained by applying a constant pressure gradient over the model by fixing porepressure at the boundaries. The temperature of the water entering the model is fixed at 160 C by fixing enthalpy at the left boundary.
Input file
The input file used to run this problem is
# Cold water injection into 1D hot reservoir (Avdonin, 1964)
#
# To generate results presented in documentation for this problem,
# set xmax = 50 and nx = 250 in the Mesh block, and dtmax = 100 and
# end_time = 1.3e5 in the Executioner block.
[Mesh]
type = GeneratedMesh
dim = 1
nx = 25
xmax = 20
[]
[GlobalParams]
PorousFlowDictator = dictator
gravity = '0 0 0'
[]
[AuxVariables]
[temperature]
order = CONSTANT
family = MONOMIAL
[]
[]
[AuxKernels]
[temperature]
type = PorousFlowPropertyAux
variable = temperature
property = temperature
execute_on = 'initial timestep_end'
[]
[]
[Variables]
[pliquid]
initial_condition = 5e6
[]
[h]
scaling = 1e-6
[]
[]
[ICs]
[hic]
type = PorousFlowFluidPropertyIC
variable = h
porepressure = pliquid
property = enthalpy
temperature = 170
temperature_unit = Celsius
fp = water
[]
[]
[BCs]
[pleft]
type = DirichletBC
variable = pliquid
value = 5.05e6
boundary = left
[]
[pright]
type = DirichletBC
variable = pliquid
value = 5e6
boundary = right
[]
[hleft]
type = DirichletBC
variable = h
value = 678.52e3
boundary = left
[]
[hright]
type = DirichletBC
variable = h
value = 721.4e3
boundary = right
[]
[]
[Kernels]
[mass]
type = PorousFlowMassTimeDerivative
variable = pliquid
[]
[massflux]
type = PorousFlowAdvectiveFlux
variable = pliquid
[]
[heat]
type = PorousFlowEnergyTimeDerivative
variable = h
[]
[heatflux]
type = PorousFlowHeatAdvection
variable = h
[]
[heatcond]
type = PorousFlowHeatConduction
variable = h
[]
[]
[UserObjects]
[dictator]
type = PorousFlowDictator
porous_flow_vars = 'pliquid h'
number_fluid_phases = 2
number_fluid_components = 1
[]
[pc]
type = PorousFlowCapillaryPressureVG
pc_max = 1e6
sat_lr = 0.1
m = 0.5
alpha = 1e-5
[]
[fs]
type = PorousFlowWaterVapor
water_fp = water
capillary_pressure = pc
[]
[]
[FluidProperties]
[water]
type = Water97FluidProperties
[]
[]
[Materials]
[watervapor]
type = PorousFlowFluidStateSingleComponent
porepressure = pliquid
enthalpy = h
temperature_unit = Celsius
capillary_pressure = pc
fluid_state = fs
[]
[porosity]
type = PorousFlowPorosityConst
porosity = 0.2
[]
[permeability]
type = PorousFlowPermeabilityConst
permeability = '1.8e-11 0 0 0 1.8e-11 0 0 0 1.8e-11'
[]
[relperm_water]
type = PorousFlowRelativePermeabilityCorey
n = 2
phase = 0
s_res = 0.1
sum_s_res = 0.1
[]
[relperm_gas]
type = PorousFlowRelativePermeabilityCorey
n = 2
phase = 1
sum_s_res = 0.1
[]
[internal_energy]
type = PorousFlowMatrixInternalEnergy
density = 2900
specific_heat_capacity = 740
[]
[rock_thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '20 0 0 0 20 0 0 0 20'
[]
[]
[Preconditioning]
[smp]
type = SMP
full = true
[]
[]
[Executioner]
type = Transient
solve_type = NEWTON
end_time = 5e3
nl_abs_tol = 1e-10
[TimeStepper]
type = IterationAdaptiveDT
dt = 100
[]
[]
[VectorPostprocessors]
[line]
type = ElementValueSampler
sort_by = x
variable = temperature
execute_on = 'initial timestep_end'
[]
[]
[Outputs]
perf_graph = true
[csv]
type = CSV
execute_on = final
[]
[]
(modules/porous_flow/test/tests/fluidstate/coldwater_injection.i)Note that the test file is a reduced version of this problem. To recreate these results, follow the instructions at the top of the input file.
Results

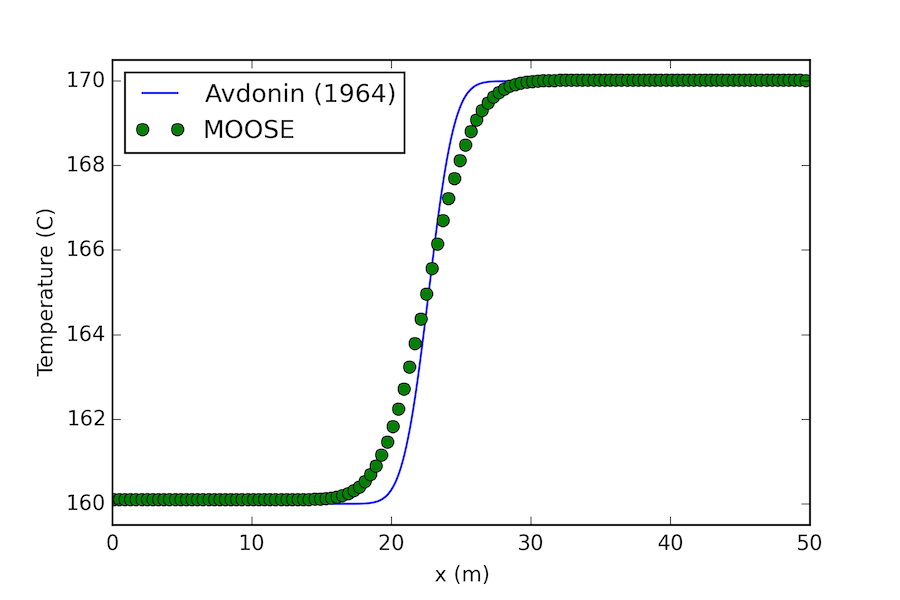

The results for the temperature profile after 13,000 seconds are shown in Figure 1. Good agreement is shown, however some numerical diffusion is observed. Similar results are obtained using TOUGH2 for upstream weighting, see Moridis and Pruess (1992).
References
- NA Avdonin.
Some formulas for calculating the temperature field of a stratum subject to thermal injection.
Neft'i Gaz, 3:37–41, 1964.[BibTeX]
- GJ Moridis and K Pruess.
Tough simulations of updegraff's set of fluid and heat flow problems.
LBL-32611, Lawrence Berkeley Lab, 1992.[BibTeX]
- B Ross, JW Mercer, SD Thomas, and BH Lester.
Benchmark problems for repository siting models.
Technical Report, GeoTrans, 1982.[BibTeX]
- C David Updegraff.
Comparison of strongly heat-driven flow codes for unsaturated media.
Technical Report, Nuclear Regulatory Commission, 1989.[BibTeX]
