Effective Permeability and Thermal Conductivity Calibration Example using the Utah FORGE Native State Model

This example is prepared for the Year 1 Milestone 3.4.3 from the Utah FORGE project titled "Role of Fluid and Temperature in Fracture Mechanics and Coupled THMC Processes for Enhanced Geothermal Systems" (project number Purdue_5-2557).

Problem Statement

This example uses the synthetic data set generated from the FORGE site model to infer the hydrogeological and geomechanical properties. In this initial study, the effective permeability and thermal conductivity values for pressure and temperature data are identified. Spatially distributed heterogeneous fields will be tested in the next updates. The details for the scalable site characterization can be found in Lee et al. (2018) and Kadeethum et al. (2021).

For the joint inversion example, 17,010 pressure, temperature, and displacement data points were created at the wells of 16A-32, 56-32, 58-32, 78-32, and 78B-32 from the native state model (Phase 3 updated in July 2022)Liu et al. (2022). A summary of the FALCON FORGE native statement model is available here with input and mesh available for down load from the GDR website. A Gauss-Newton solver with a line search is used to find the effective parameters.

Input File

The FORGE native state model assumes a two layer domain of isotropic and homogenous materials. For testing purposes, the native state model was modified in this example to create a coarser 1000 element mesh using the following MOOSE MeshGenerator

MeshGenerator used for creating coarse FORGE native state model.

[Mesh<<<{"href": "../syntax/Mesh/index.html"}>>>]
  [generate]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 3
    nx<<<{"description": "Number of elements in the X direction"}>>> = 10
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = -40
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = 4040
    ny<<<{"description": "Number of elements in the Y direction"}>>> = 10
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -40
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = 4040
    nz<<<{"description": "Number of elements in the Z direction"}>>> = 10
    zmin<<<{"description": "Lower Z Coordinate of the generated mesh"}>>> = -2360
    zmax<<<{"description": "Upper Z Coordinate of the generated mesh"}>>> = 1804
  []
  #ALL OF THESE SIDESET NAMES ARE MIXED UP WITH THE DEFAULT SIDESET NAMES
  [bottom_40m_granitoid_40m]
    type = RenameBlockGenerator<<<{"description": "Changes the block IDs and/or block names for a given set of blocks defined by either block ID or block name. The changes are independent of ordering. The merging of blocks is supported.", "href": "../source/meshgenerators/RenameBlockGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = generate
    old_block<<<{"description": "Elements with these block ID(s)/name(s) will be given the new block information specified in 'new_block'"}>>> = '0'
    new_block<<<{"description": "The new block ID(s)/name(s) to be given by the elements defined in 'old_block'."}>>> = 'bottom_40m_granitoid_40m'
  []
  [granitoid_40m_surface_40m]
    type = ParsedSubdomainMeshGenerator<<<{"description": "Uses a parsed expression (`combinatorial_geometry`) to determine if an element (via its centroid) is inside the region defined by the expression and assigns a new block ID.", "href": "../source/meshgenerators/ParsedSubdomainMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = bottom_40m_granitoid_40m
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z > 1000'
    block_id<<<{"description": "Subdomain id to set for inside of the combinatorial"}>>> = 1
    block_name<<<{"description": "Subdomain name to set for inside of the combinatorial"}>>> = granitoid_40m_surface_40m
  []
  [bottom_40m_granitoid_40m_right]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = granitoid_40m_surface_40m
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = bottom
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z < 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'bottom_40m_granitoid_40m_right'
  []
  [granitoid_40m_surface_40m_right]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = bottom_40m_granitoid_40m_right
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = bottom
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z > 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'granitoid_40m_surface_40m_right'
  []
  [bottom_40m_granitoid_40m_left]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = granitoid_40m_surface_40m_right
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = top
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z < 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'bottom_40m_granitoid_40m_left'
  []
  [granitoid_40m_surface_40m_left]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = bottom_40m_granitoid_40m_left
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = top
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z > 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'granitoid_40m_surface_40m_left'
  []
  [bottom_40m_granitoid_40m_front]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = granitoid_40m_surface_40m_left
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = left
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z < 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'bottom_40m_granitoid_40m_front'
  []
  [granitoid_40m_surface_40m_front]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = bottom_40m_granitoid_40m_front
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = left
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z > 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'granitoid_40m_surface_40m_front'
  []
  [bottom_40m_granitoid_40m_back]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = granitoid_40m_surface_40m_front
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = right
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z < 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'bottom_40m_granitoid_40m_back'
  []
  [granitoid_40m_surface_40m_back]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = bottom_40m_granitoid_40m_back
    included_boundaries<<<{"description": "A set of boundary names or ids whose sides will be included in the new sidesets.  A side is only added if it also belongs to one of these boundaries."}>>> = right
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'z > 1000'
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'granitoid_40m_surface_40m_back'
  []

  [rename]
    type = RenameBoundaryGenerator<<<{"description": "Changes the boundary IDs and/or boundary names for a given set of boundaries defined by either boundary ID or boundary name. The changes are independent of ordering. The merging of boundaries is supported.", "href": "../source/meshgenerators/RenameBoundaryGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = granitoid_40m_surface_40m_back
    old_boundary<<<{"description": "Elements with these boundary ID(s)/name(s) will be given the new boundary information specified in 'new_boundary'"}>>> = 'front back'
    new_boundary<<<{"description": "The new boundary ID(s)/name(s) to be given by the boundary elements defined in 'old_boundary'."}>>> = 'surface_40m bottom_40m'
  []

  [add_internal_sideset]
    type = SideSetsBetweenSubdomainsGenerator<<<{"description": "MeshGenerator that creates a sideset composed of the nodes located between two or more subdomains.", "href": "../source/meshgenerators/SideSetsBetweenSubdomainsGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = rename
    primary_block<<<{"description": "The primary set of blocks for which to draw a sideset between"}>>> = 0
    paired_block<<<{"description": "The paired set of blocks for which to draw a sideset between"}>>> = 1
    new_boundary<<<{"description": "The list of boundary names to create on the supplied subdomain"}>>> = granitoid_40m
  []

  use_displaced_mesh<<<{"description": "Create the displaced mesh if the 'displacements' parameter is set. If this is 'false', a displaced mesh will not be created, regardless of whether 'displacements' is set."}>>> = false
[]

In order to increase the sensitity of the measurement data to changes in material parameters, the mesh was locally refined around the toe of well 78-32 using the following Adaptivity block

Mesh refinement around the toe of well 78-32.

[Adaptivity<<<{"href": "../syntax/Adaptivity/index.html"}>>>]
  #refine around DiracKernels sources
  # should refine more than one level but this should run fast
  initial_steps<<<{"description": "The number of adaptive steps to do based on the initial condition."}>>> = 2
  max_h_level<<<{"description": "Maximum number of times a single element can be refined. If 0 then infinite."}>>> = 1
  marker<<<{"description": "The name of the Marker to use to actually adapt the mesh."}>>> = box
  [Markers<<<{"href": "../syntax/Adaptivity/Markers/index.html"}>>>]
    [box]
      type = BoxMarker<<<{"description": "Marks the region inside and outside of a 'box' domain for refinement or coarsening.", "href": "../source/markers/BoxMarker.html"}>>>
      bottom_left<<<{"description": "The bottom left point (in x,y,z with spaces in-between)."}>>> = '2027 1495 379'
      top_right<<<{"description": "The bottom left point (in x,y,z with spaces in-between)."}>>> = '2527 2095 879'
      inside<<<{"description": "How to mark elements inside the box."}>>> = refine
      outside<<<{"description": "How to mark elements outside the box."}>>> = do_nothing
    []
  []
[]

Material properties for the granitoid and sedimentary layers given in Utah FORGE Native State Model, Table 1. The thermal conductivity and permeability being calibrated for the granitoid layer are shown in the below material section of the input file:

Listing 1: Materials being calibrated.

[Materials<<<{"href": "../syntax/Materials/index.html"}>>>]
  [permeability_granite]
    type = PorousFlowPermeabilityConst<<<{"description": "This Material calculates the permeability tensor assuming it is constant", "href": "../source/materials/PorousFlowPermeabilityConst.html"}>>>
    permeability<<<{"description": "The permeability tensor (usually in m^2), which is assumed constant for this material"}>>> = '1e-18 0 0  0 1e-18 0  0 0 1e-18'
    block<<<{"description": "The list of blocks (ids or names) that this object will be applied"}>>> = bottom_40m_granitoid_40m
  []

  [thermal_conductivity_granitoid]
    type = PorousFlowThermalConductivityIdeal<<<{"description": "This Material calculates rock-fluid combined thermal conductivity by using a weighted sum.  Thermal conductivity = dry_thermal_conductivity + S^exponent * (wet_thermal_conductivity - dry_thermal_conductivity), where S is the aqueous saturation", "href": "../source/materials/PorousFlowThermalConductivityIdeal.html"}>>>
    dry_thermal_conductivity<<<{"description": "The thermal conductivity of the rock matrix when the aqueous saturation is zero"}>>> = '3.05 0 0  0 3.05 0  0 0 3.05'
    block<<<{"description": "The list of blocks (ids or names) that this object will be applied"}>>> = bottom_40m_granitoid_40m
  []
[]

Transient Simulation

Material calibration was performed using a transient simulation with a point source at the toe of well 78-32 ([2327.3, 1795.9, 679.59] in the native state model mesh coordinate). The injection rate was increased from 0 $var element = document.getElementById("moose-equation-317583bf-0aee-4400-a9c8-da4bf7e9083f");katex.render("kg/s", element, {displayMode:false,throwOnError:false});$ to 0.1 $var element = document.getElementById("moose-equation-2b4717c6-2ec4-453d-8ca6-d85926946a2b");katex.render("kg/s", element, {displayMode:false,throwOnError:false});$ for the first 50 seconds and maintained at the same rate of 0.1 $var element = document.getElementById("moose-equation-036147ab-7d8c-4887-8bca-f8437a5441d2");katex.render("kg/s", element, {displayMode:false,throwOnError:false});$ until $var element = document.getElementById("moose-equation-986f1279-2146-4810-bb6c-79439c8adae5");katex.render("t", element, {displayMode:false,throwOnError:false});$ = 100 s. The injection temperature was constant at 323.15 $var element = document.getElementById("moose-equation-26054a40-650d-40af-ae3e-e0a5ceb6fffd");katex.render("K", element, {displayMode:false,throwOnError:false});$ .

Point source at the toe of well 78-32

[DiracKernels<<<{"href": "../syntax/DiracKernels/index.html"}>>>]
  [source]
    #placed at the bottom of well 78_32
    type = PorousFlowPointSourceFromPostprocessor<<<{"description": "Point source (or sink) that adds (or removes) fluid at a mass flux rate specified by a postprocessor.", "href": "../source/dirackernels/PorousFlowPointSourceFromPostprocessor.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = pressure
    mass_flux<<<{"description": "The postprocessor name holding the mass flux at this point in kg/s (positive is flux in, negative is flux out)"}>>> = mass_flux_in
    point<<<{"description": "The x,y,z coordinates of the point source (or sink)"}>>> = '2327.3 1795.9 679.59'
  []
  [source_h]
    #placed at the bottom of well 78_32
    type = PorousFlowPointEnthalpySourceFromPostprocessor<<<{"description": "Point source that adds heat energy corresponding to injection of a fluid with specified mass flux rate (specified by a postprocessor) at given temperature (specified by a postprocessor)", "href": "../source/dirackernels/PorousFlowPointEnthalpySourceFromPostprocessor.html"}>>>
    variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = temperature
    mass_flux<<<{"description": "The postprocessor name holding the mass flux of injected fluid at this point in kg/s (please ensure this is positive so that this object acts like a source)"}>>> = mass_flux_in
    point<<<{"description": "The x,y,z coordinates of the point source"}>>> = '2327.3 1795.9 679.59'
    T_in<<<{"description": "The postprocessor name holding the temperature of injected fluid (measured in K)"}>>> = T_in
    pressure<<<{"description": "Pressure used to calculate the injected fluid enthalpy (measured in Pa)"}>>> = pressure
    fp<<<{"description": "The name of the user object used to calculate the fluid properties of the injected fluid"}>>> = true_water
  []
[]

Pressure, temperature, and displacement data were extracted every 10s from well 16A-32, 56-32, 58-32, 78-32, and 78B-32. The simulation reached steady state at 70s.

Results

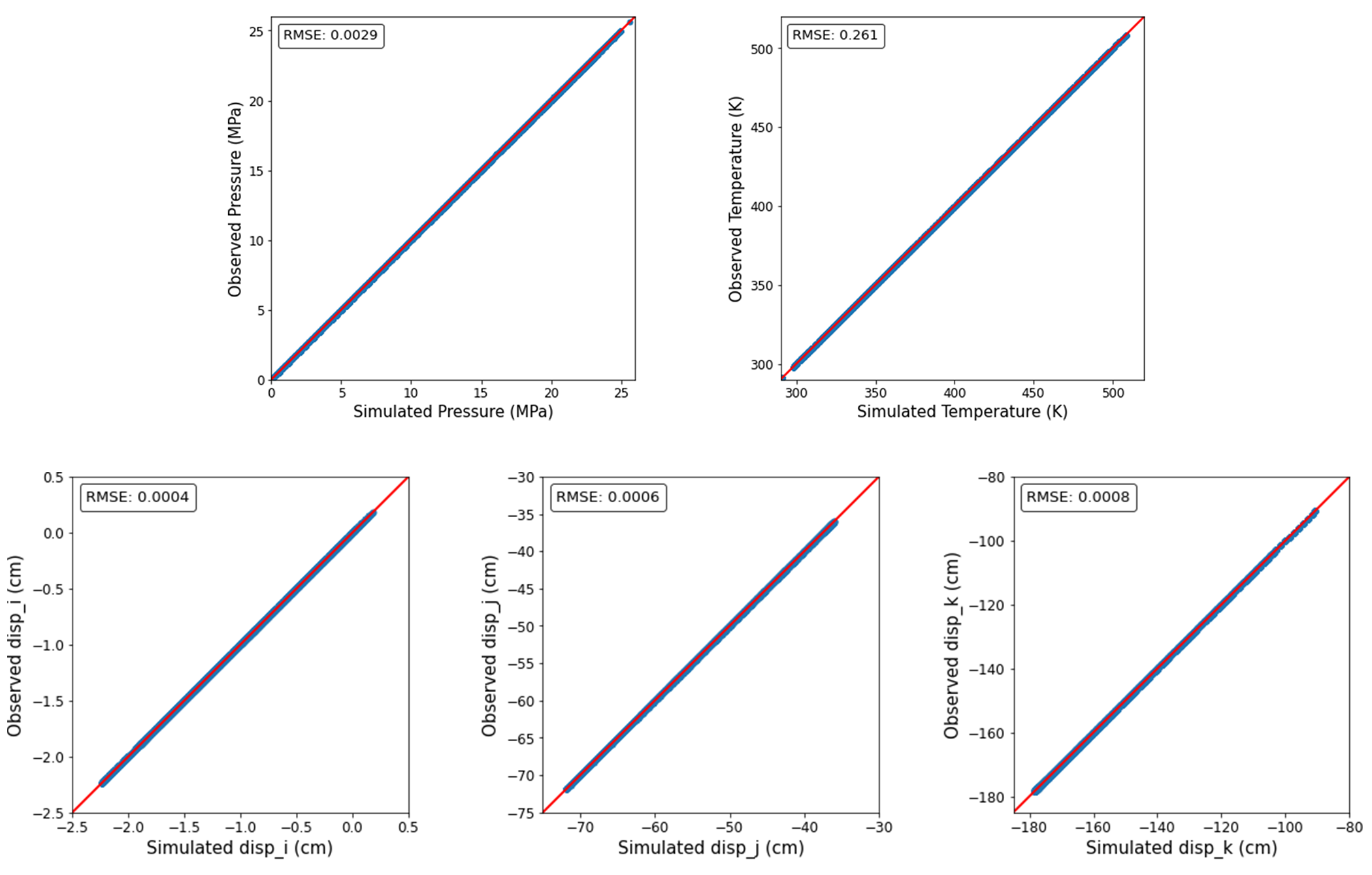

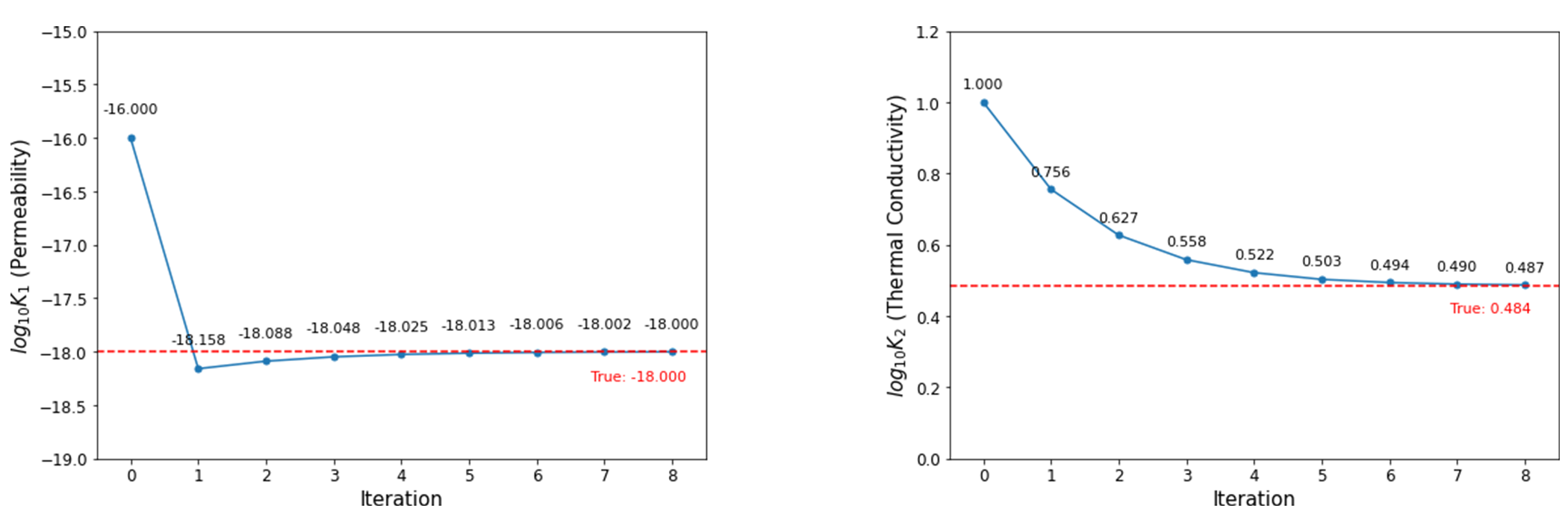

The permeability and thermal conductivity of the granitoid layer were estimated in this case study. The initial log-permeability and log-conductivity were set to -16 and 1, respectively. With the Gauss-Newton solver, log-permeability and log-conductivity were optimized as follows:

$var element = document.getElementById("moose-equation-b82bb256-a34f-4db1-8086-4ada9282d0fb");katex.render("K^{i+1}=K^{i}+\\alpha \\left( \\sigma^{-1} + J^{T}_i R^{-1} J_i \\right)^{-1} \\left(\\sigma^{-1}K^{i}+J^{T}_i R^{-1} \\left[ y-g(K^{i}) \\right] \\right)", element, {displayMode:true,throwOnError:false});$

where $var element = document.getElementById("moose-equation-1c6f0e77-30a7-4b59-b9b2-2c2ebbecacb0");katex.render("K_{i}", element, {displayMode:false,throwOnError:false});$ is the unknown variable log-permeabilty or log-conductivity at $var element = document.getElementById("moose-equation-6fda15ff-3c70-4ea3-aa20-26e7df863d7f");katex.render("i", element, {displayMode:false,throwOnError:false});$ -th iteration, $var element = document.getElementById("moose-equation-bb1f4ada-08d2-435b-bb02-01c370bafb6e");katex.render("\\sigma", element, {displayMode:false,throwOnError:false});$ is the parameter error matrix, $var element = document.getElementById("moose-equation-3ce0e439-af6f-4294-815c-381b8f423546");katex.render("R", element, {displayMode:false,throwOnError:false});$ is the observation error matrix, $var element = document.getElementById("moose-equation-4d5c310d-9c2c-4606-b757-248640291867");katex.render("J_{i}", element, {displayMode:false,throwOnError:false});$ is the Jacobian matrix, $var element = document.getElementById("moose-equation-c01df4cb-2e3b-41e4-b774-424c8f0c9791");katex.render("y", element, {displayMode:false,throwOnError:false});$ is the observed data, and $var element = document.getElementById("moose-equation-a583a55b-5e6e-4810-b12b-38bf9cfe2b5b");katex.render("g(K^i)", element, {displayMode:false,throwOnError:false});$ is the simulated data. $var element = document.getElementById("moose-equation-7c2bec56-3381-4634-bda0-b576f308cf5f");katex.render("\\alpha", element, {displayMode:false,throwOnError:false});$ is the step length set to $var element = document.getElementById("moose-equation-72b5496b-21b2-4c8c-9395-0dc73fb84943");katex.render("0.5", element, {displayMode:false,throwOnError:false});$ in this example.

Listing 2: Script for effective parameter inversion.

import os
import time
import argparse
import pandas as pd
import numpy as np

parser = argparse.ArgumentParser()
parser.add_argument(
    "--falcon_input",
    default="FORGE_NS_Ph3_coarse.i",
    help="input file of the native state model",
)
parser.add_argument(
    "--falcon_run", default="~/projects/falcon/falcon-opt", help="path to falcon"
)
parser.add_argument("--n_cores", type=int, default=2, help="cpu cores")
parser.add_argument("--max_iter", type=int, default=1, help="max iterations")
parser.add_argument("--nK", type=int, default=2, help="number of parameters")
parser.add_argument("--precision", type=float, default=1.0e-5, help="precision")
parser.add_argument("--alpha", type=float, default=0.01, help="line search step length")
parser.add_argument("--K_Perm", type=float, default=-16.0, help="initial permeability")
parser.add_argument(
    "--K_Cond", type=float, default=1.0, help="initial thermal conductivity"
)
parser.add_argument("--folder_ref", default="./Ref/", help="path to reference data")
parser.add_argument("--outf", default="./Results", help="output folder")
par = parser.parse_args()

outf = par.outf
data_f = outf + "/data"  # output data
try:
    os.makedirs(data_f)
except OSError:
    pass

falcon_input = par.falcon_input
falcon_run = par.falcon_run
n_cores = par.n_cores
max_iter = int(par.max_iter)
nK = par.nK
folder_ref = par.folder_ref  # reference data
folder_simul = "./"  # simulated data
num_file = 7  # number of simulation time steps

## Define a function to read data
def Read_data(folder, num_file):
    # data comes from GDR repository https://gdr.openei.org/submissions/1397
    well_16A = "FORGE_NS_Ph3_coarse_point_data_16A_"
    well_56 = "FORGE_NS_Ph3_coarse_point_data_56_32_"
    well_58 = "FORGE_NS_Ph3_coarse_point_data_58_32_"
    well_78 = "FORGE_NS_Ph3_coarse_point_data_78_32_"
    well_78B = "FORGE_NS_Ph3_coarse_point_data_78B_32_"

    (
        data_pressure_16A,
        data_temper_16A,
        data_dispi_16A,
        data_dispj_16A,
        data_dispk_16A,
    ) = ([], [], [], [], [])
    data_pressure_56, data_temper_56, data_dispi_56, data_dispj_56, data_dispk_56 = (
        [],
        [],
        [],
        [],
        [],
    )
    data_pressure_58, data_temper_58, data_dispi_58, data_dispj_58, data_dispk_58 = (
        [],
        [],
        [],
        [],
        [],
    )
    data_pressure_78, data_temper_78, data_dispi_78, data_dispj_78, data_dispk_78 = (
        [],
        [],
        [],
        [],
        [],
    )
    (
        data_pressure_78B,
        data_temper_78B,
        data_dispi_78B,
        data_dispj_78B,
        data_dispk_78B,
    ) = ([], [], [], [], [])

    for i in range(1, num_file + 1):
        string = str(i)
        str_16A = well_16A + string.zfill(4) + ".csv"
        str_56 = well_56 + string.zfill(4) + ".csv"
        str_58 = well_58 + string.zfill(4) + ".csv"
        str_78 = well_78 + string.zfill(4) + ".csv"
        str_78B = well_78B + string.zfill(4) + ".csv"

        pressure_16A = np.array(pd.read_csv(folder + str_16A, usecols=["pressure"]))
        temper_16A = np.array(pd.read_csv(folder + str_16A, usecols=["temperature"]))
        dispi_16A = np.array(pd.read_csv(folder + str_16A, usecols=["disp_i"]))
        dispj_16A = np.array(pd.read_csv(folder + str_16A, usecols=["disp_j"]))
        dispk_16A = np.array(pd.read_csv(folder + str_16A, usecols=["disp_k"]))

        pressure_56 = np.array(pd.read_csv(folder + str_56, usecols=["pressure"]))
        temper_56 = np.array(pd.read_csv(folder + str_56, usecols=["temperature"]))
        dispi_56 = np.array(pd.read_csv(folder + str_56, usecols=["disp_i"]))
        dispj_56 = np.array(pd.read_csv(folder + str_56, usecols=["disp_j"]))
        dispk_56 = np.array(pd.read_csv(folder + str_56, usecols=["disp_k"]))

        pressure_58 = np.array(pd.read_csv(folder + str_58, usecols=["pressure"]))
        temper_58 = np.array(pd.read_csv(folder + str_58, usecols=["temperature"]))
        dispi_58 = np.array(pd.read_csv(folder + str_58, usecols=["disp_i"]))
        dispj_58 = np.array(pd.read_csv(folder + str_58, usecols=["disp_j"]))
        dispk_58 = np.array(pd.read_csv(folder + str_58, usecols=["disp_k"]))

        pressure_78 = np.array(pd.read_csv(folder + str_78, usecols=["pressure"]))
        temper_78 = np.array(pd.read_csv(folder + str_78, usecols=["temperature"]))
        dispi_78 = np.array(pd.read_csv(folder + str_78, usecols=["disp_i"]))
        dispj_78 = np.array(pd.read_csv(folder + str_78, usecols=["disp_j"]))
        dispk_78 = np.array(pd.read_csv(folder + str_78, usecols=["disp_k"]))

        pressure_78B = np.array(pd.read_csv(folder + str_78B, usecols=["pressure"]))
        temper_78B = np.array(pd.read_csv(folder + str_78B, usecols=["temperature"]))
        dispi_78B = np.array(pd.read_csv(folder + str_78B, usecols=["disp_i"]))
        dispj_78B = np.array(pd.read_csv(folder + str_78B, usecols=["disp_j"]))
        dispk_78B = np.array(pd.read_csv(folder + str_78B, usecols=["disp_k"]))

        data_pressure_16A.append(pressure_16A), data_temper_16A.append(temper_16A)
        data_dispi_16A.append(dispi_16A), data_dispj_16A.append(
            dispj_16A
        ), data_dispk_16A.append(dispk_16A)

        data_pressure_56.append(pressure_56), data_temper_56.append(temper_56)
        data_dispi_56.append(dispi_56), data_dispj_56.append(
            dispj_56
        ), data_dispk_56.append(dispk_56)

        data_pressure_58.append(pressure_58), data_temper_58.append(temper_58)
        data_dispi_58.append(dispi_58), data_dispj_58.append(
            dispj_58
        ), data_dispk_58.append(dispk_58)

        data_pressure_78.append(pressure_78), data_temper_78.append(temper_78)
        data_dispi_78.append(dispi_78), data_dispj_78.append(
            dispj_78
        ), data_dispk_78.append(dispk_78)

        data_pressure_78B.append(pressure_78B), data_temper_78B.append(temper_78B)
        data_dispi_78B.append(dispi_78B), data_dispj_78B.append(
            dispj_78B
        ), data_dispk_78B.append(dispk_78B)

    data_pressure_16A = np.array(data_pressure_16A).reshape(-1, 1)
    data_temper_16A = np.array(data_temper_16A).reshape(-1, 1)
    data_dispi_16A = np.array(data_dispi_16A).reshape(-1, 1)
    data_dispj_16A = np.array(data_dispj_16A).reshape(-1, 1)
    data_dispk_16A = np.array(data_dispk_16A).reshape(-1, 1)

    data_pressure_56 = np.array(data_pressure_56).reshape(-1, 1)
    data_temper_56 = np.array(data_temper_56).reshape(-1, 1)
    data_dispi_56 = np.array(data_dispi_56).reshape(-1, 1)
    data_dispj_56 = np.array(data_dispj_56).reshape(-1, 1)
    data_dispk_56 = np.array(data_dispk_56).reshape(-1, 1)

    data_pressure_58 = np.array(data_pressure_58).reshape(-1, 1)
    data_temper_58 = np.array(data_temper_58).reshape(-1, 1)
    data_dispi_58 = np.array(data_dispi_58).reshape(-1, 1)
    data_dispj_58 = np.array(data_dispj_58).reshape(-1, 1)
    data_dispk_58 = np.array(data_dispk_58).reshape(-1, 1)

    data_pressure_78 = np.array(data_pressure_78).reshape(-1, 1)
    data_temper_78 = np.array(data_temper_78).reshape(-1, 1)
    data_dispi_78 = np.array(data_dispi_78).reshape(-1, 1)
    data_dispj_78 = np.array(data_dispj_78).reshape(-1, 1)
    data_dispk_78 = np.array(data_dispk_78).reshape(-1, 1)

    data_pressure_78B = np.array(data_pressure_78B).reshape(-1, 1)
    data_temper_78B = np.array(data_temper_78B).reshape(-1, 1)
    data_dispi_78B = np.array(data_dispi_78B).reshape(-1, 1)
    data_dispj_78B = np.array(data_dispj_78B).reshape(-1, 1)
    data_dispk_78B = np.array(data_dispk_78B).reshape(-1, 1)

    pressure = np.concatenate(
        (
            data_pressure_16A,
            data_pressure_56,
            data_pressure_58,
            data_pressure_78,
            data_pressure_78B,
        ),
        axis=0,
    )
    temper = np.concatenate(
        (
            data_temper_16A,
            data_temper_56,
            data_temper_58,
            data_temper_78,
            data_temper_78B,
        ),
        axis=0,
    )
    dispi = np.concatenate(
        (data_dispi_16A, data_dispi_56, data_dispi_58, data_dispi_78, data_dispi_78B),
        axis=0,
    )
    dispj = np.concatenate(
        (data_dispj_16A, data_dispj_56, data_dispj_58, data_dispj_78, data_dispj_78B),
        axis=0,
    )
    dispk = np.concatenate(
        (data_dispk_16A, data_dispk_56, data_dispk_58, data_dispk_78, data_dispk_78B),
        axis=0,
    )
    data = np.concatenate((pressure, temper, dispi, dispj, dispk), axis=0)

    return data

## Forward modeling function
def Forward(K_log):
    K_Perm = K_log[0]
    K_Cond = K_log[1]

    K_Perm = np.power(10, K_Perm)
    K_Cond = np.power(10, K_Cond)

    K_Perm = np.format_float_scientific(K_Perm)
    K_Cond = float(K_Cond)

    K_Perm_str = (
        "Materials/permeability_granite/permeability='"
        + str(K_Perm)
        + " 0 0  0 "
        + str(K_Perm)
        + " 0  0 0 "
        + str(K_Perm)
        + "'"
    )

    K_Cond_str = (
        "Materials/thermal_conductivity_granitoid/dry_thermal_conductivity='"
        + str(K_Cond)
        + " 0 0  0 "
        + str(K_Cond)
        + " 0  0 0 "
        + str(K_Cond)
        + "'"
    )

    cli_arg = K_Perm_str + " " + K_Cond_str

    # run simulations
    run_command = (
        "mpiexec -n"
        + " "
        + str(n_cores)
        + " "
        + falcon_run
        + " "
        + "-i"
        + " "
        + falcon_input
        + " "
        + cli_arg
        + " "
        + "--n-threads=2 --timing"
    )
    os.system(run_command)
    simul = Read_data(folder=folder_simul, num_file=num_file)

    return simul

## Delete data produced by previous simulations
def remove_data(folder):
    filePath = folder
    name = os.listdir(filePath)
    for i in name:
        path = "./{}".format(i)
        if "point_data" in i:
            os.remove(path)

## Assume known error matrix R
obs_true = Read_data(folder=folder_ref, num_file=num_file)
np.save(data_f + "/Ref_Data.npy", obs_true)
nobs = len(obs_true)
std_pressure = obs_true[0] * 0.01  # 1% std error
std_temper = obs_true[int(nobs / 5)] * 0.01  # 1% std error
std_dispi = obs_true[int(2 * nobs / 5)] * 0.01  # 1% std error
std_dispj = obs_true[int(3 * nobs / 5)] * 0.01  # 1% std error
std_dispk = obs_true[int(4 * nobs / 5)] * 0.01  # 1% std error
std_pressure = np.abs(std_pressure)
std_temper = np.abs(std_temper)
std_dispi = np.abs(std_dispi)
std_dispj = np.abs(std_dispj)
std_dispk = np.abs(std_dispk)

err_pressure = std_pressure * np.random.randn(int(nobs / 5), 1)
err_temper = std_temper * np.random.randn(int(nobs / 5), 1)
err_dispi = std_dispi * np.random.randn(int(nobs / 5), 1)
err_dispj = std_dispj * np.random.randn(int(nobs / 5), 1)
err_dispk = std_dispk * np.random.randn(int(nobs / 5), 1)
err = np.concatenate(
    (err_pressure, err_temper, err_dispi, err_dispj, err_dispk), axis=0
)
obs = obs_true + err

invR = np.eye(nobs)
for p in range(int(nobs / 5)):
    invR[p, p] = 1 / (std_pressure**2)
for t in range(int(nobs / 5), int(2 * nobs / 5)):
    invR[t, t] = 1 / (std_temper**2)
for i in range(int(2 * nobs / 5), int(3 * nobs / 5)):
    invR[i, i] = 1 / (std_dispi**2)
for j in range(int(3 * nobs / 5), int(4 * nobs / 5)):
    invR[j, j] = 1 / (std_dispj**2)
for k in range(int(4 * nobs / 5), nobs):
    invR[k, k] = 1 / (std_dispk**2)

## Initialization
K_Perm = par.K_Perm
K_Cond = par.K_Cond
K_init = np.vstack((K_Perm, K_Cond))  # initial parameters

std_Perm = 2
std_Cond = 0.05
std_Par = np.vstack((std_Perm, std_Cond))
Sigma = np.eye(nK)
invSigma = np.eye(nK)
for i in range(nK):
    Sigma[i, i] = std_Par[i] ** 2
    invSigma[i, i] = 1 / Sigma[i, i]

precision = par.precision
alpha = par.alpha
K_cur = np.copy(K_init)
Para = np.zeros([max_iter + 1, nK])

## Run inversion
Time_start = time.time()
for i in range(max_iter):
    print("###### Iteration %d ######" % (i + 1))
    remove_data(folder="./")
    simul_K_cur = Forward(K_cur)

    Para[i, 0] = K_cur[0][0]
    Para[i, 1:nK] = K_cur[1:nK].squeeze()
    np.save(data_f + "/Simul_Data_Iter_" + str(i) + ".npy", simul_K_cur)
    np.save(data_f + "/Parameters.npy", Para)

    J_cur = np.zeros([nobs, nK])
    for j in range(nK):
        zerovec = np.zeros([nK, 1])
        zerovec[j] = 1.0
        mag = np.dot(K_cur.T, zerovec)
        absmag = np.dot(abs(K_cur.T), abs(zerovec))
        if mag >= 0:
            signmag = 1.0
        else:
            signmag = -1.0

        delta = (
            signmag
            * np.sqrt(precision)
            * (max(abs(mag), absmag))
            / ((np.linalg.norm(zerovec) + np.finfo(float).eps) ** 2)
        )
        if delta == 0:
            delta = np.sqrt(precision)

        remove_data(folder="./")
        simul_K_delta = Forward(K_cur + zerovec * delta)
        J_cur[:, j : j + 1] = (simul_K_delta - simul_K_cur) / delta

    Jk_cur = np.dot(J_cur, K_cur)
    solve_a = np.dot(np.dot(J_cur.T, invR), J_cur) + invSigma
    solve_b = -np.dot(invSigma, K_cur) + np.dot(
        np.dot(J_cur.T, invR), (obs - simul_K_cur)
    )
    dk = np.linalg.solve(solve_a, solve_b)
    K_cur = np.copy(K_cur + alpha * dk)

## Final results
remove_data(folder="./")
simul_K_cur = Forward(K_cur)

Para[max_iter, 0] = K_cur[0][0]
Para[max_iter, 1:nK] = K_cur[1:nK].squeeze()
np.save(data_f + "/Simul_Data_Iter_" + str(max_iter) + ".npy", simul_K_cur)
np.save(data_f + "/Parameters.npy", Para)

Time_end = time.time()
time_elapsed = Time_end - Time_start
print(
    "Time elapsed {:.0f}hr {:.0f}m {:.0f}s".format(
        (time_elapsed // 60) // 60, (time_elapsed // 60) % 60, time_elapsed % 60
    )
)

The input parameters in the python optimization script shown in Listing 2 include the MOOSE input file line numbers for permeability and thermal conductivity shown Listing 1 which use zero based line numbers.

Figure 1 shows the estimation results of permeability and thermal conductivity for 8 iterations. Figure 2 presents the pressure, temperature, and displacement fits, with the fitting error shown as root mean square error (RMSE).

Figure 1: Estimation of permeability and thermal conductivity at each iteration

Figure 2: Pressure, temperature and displacement fitting at the last iteration

References

Teeratorn Kadeethum, Daniel O’Malley, Jan Niklas Fuhg, Youngsoo Choi, Jonghyun Lee, Hari S Viswanathan, and Nikolaos Bouklas. A framework for data-driven solution and parameter estimation of pdes using conditional generative adversarial networks. Nature Computational Science, 1(12):819–829, 2021.

@article{kadeethum2021framework,
    author = "Kadeethum, Teeratorn and O’Malley, Daniel and Fuhg, Jan Niklas and Choi, Youngsoo and Lee, Jonghyun and Viswanathan, Hari S and Bouklas, Nikolaos",
    title = "A framework for data-driven solution and parameter estimation of PDEs using conditional generative adversarial networks",
    journal = "Nature Computational Science",
    volume = "1",
    number = "12",
    pages = "819--829",
    year = "2021",
    publisher = "Nature Publishing Group US New York"
}

Jonghyun Lee, Amalia Kokkinaki, and Peter K Kitanidis. Fast large-scale joint inversion for deep aquifer characterization using pressure and heat tracer measurements. Transport in Porous Media, 123:533–543, 2018.

@article{lee2018fast,
    author = "Lee, Jonghyun and Kokkinaki, Amalia and Kitanidis, Peter K",
    title = "Fast large-scale joint inversion for deep aquifer characterization using pressure and heat tracer measurements",
    journal = "Transport in Porous Media",
    volume = "123",
    pages = "533--543",
    year = "2018",
    publisher = "Springer"
}

Ruijie Liu, Rob Podgorney, Aleta Finnila, Pengju Xing, John McLennan, and Joe Moore. Development of a coupled multi-field utah forge native state model: phase 3 update. In GRC Transactions, volume 46. 2022.

@inproceedings{liu2022forge,
    author = "Liu, Ruijie and Podgorney, Rob and Finnila, Aleta and Xing, Pengju and McLennan, John and Moore, Joe",
    title = "Development of a Coupled Multi-Field Utah FORGE Native State Model: Phase 3 Update",
    booktitle = "GRC Transactions",
    year = "2022",
    volume = "46"
}

(examples/forge_native_state_parameter_calibration/FORGE_NS_Ph3_coarse.i)

#Revisions made to the original FORGE native state model
# NS mesh replaced with mesh generator to create a coarser mesh
# Transient simulation to reach equilibration with sources.
# Dirac kernel source for temperature and mass injection at the bottom of well 78
# 3 levels of mesh refinement around sources to increase sensitivity
# vectorpostprocessor Output along wells includes displacment and does not include stress

# original FORGE native state model can downloaded from the GDR website:
# https://gdr.openei.org/submissions/1397

#parameters being inverted for
K_Cond = 2.8
K_Perm = 1e-14

[Mesh]
  [generate]
    type = GeneratedMeshGenerator
    dim = 3
    nx = 10
    xmin = -40
    xmax = 4040
    ny = 10
    ymin = -40
    ymax = 4040
    nz = 10
    zmin = -2360
    zmax = 1804
  []
  #ALL OF THESE SIDESET NAMES ARE MIXED UP WITH THE DEFAULT SIDESET NAMES
  [bottom_40m_granitoid_40m]
    type = RenameBlockGenerator
    input = generate
    old_block = '0'
    new_block = 'bottom_40m_granitoid_40m'
  []
  [granitoid_40m_surface_40m]
    type = ParsedSubdomainMeshGenerator
    input = bottom_40m_granitoid_40m
    combinatorial_geometry = 'z > 1000'
    block_id = 1
    block_name = granitoid_40m_surface_40m
  []
  [bottom_40m_granitoid_40m_right]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m
    included_boundaries = bottom
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_right'
  []
  [granitoid_40m_surface_40m_right]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_right
    included_boundaries = bottom
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_right'
  []
  [bottom_40m_granitoid_40m_left]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_right
    included_boundaries = top
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_left'
  []
  [granitoid_40m_surface_40m_left]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_left
    included_boundaries = top
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_left'
  []
  [bottom_40m_granitoid_40m_front]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_left
    included_boundaries = left
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_front'
  []
  [granitoid_40m_surface_40m_front]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_front
    included_boundaries = left
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_front'
  []
  [bottom_40m_granitoid_40m_back]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_front
    included_boundaries = right
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_back'
  []
  [granitoid_40m_surface_40m_back]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_back
    included_boundaries = right
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_back'
  []

  [rename]
    type = RenameBoundaryGenerator
    input = granitoid_40m_surface_40m_back
    old_boundary = 'front back'
    new_boundary = 'surface_40m bottom_40m'
  []

  [add_internal_sideset]
    type = SideSetsBetweenSubdomainsGenerator
    input = rename
    primary_block = 0
    paired_block = 1
    new_boundary = granitoid_40m
  []

  use_displaced_mesh = false
[]

[Postprocessors]
  [mass_flux_in]
    type = FunctionValuePostprocessor
    function = mass_flux_in_fn
    execute_on = 'initial timestep_end'
  []
  [T_in]
    type = FunctionValuePostprocessor
    function = T_in_fn
    execute_on = 'initial timestep_end'
  []
[]

[Functions]
  [mass_flux_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   0.0
      50  0.1
      100  0.1'
  []
  [T_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   323.15
      50   323.15
      100  323.15'
  []
[]

[DiracKernels]
  [source]
    #placed at the bottom of well 78_32
    type = PorousFlowPointSourceFromPostprocessor
    variable = pressure
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
  []
  [source_h]
    #placed at the bottom of well 78_32
    type = PorousFlowPointEnthalpySourceFromPostprocessor
    variable = temperature
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
    T_in = T_in
    pressure = pressure
    fp = true_water
  []
[]

[Adaptivity]
  #refine around DiracKernels sources
  # should refine more than one level but this should run fast
  initial_steps = 2
  max_h_level = 1
  marker = box
  [Markers]
    [box]
      type = BoxMarker
      bottom_left = '2027 1495 379'
      top_right = '2527 2095 879'
      inside = refine
      outside = do_nothing
    []
  []
[]

[Executioner]
  line_search = None
  type = Transient
  solve_type = NEWTON
  steady_state_detection = true
  steady_state_tolerance = 1e-8
  dt = 10
  end_time = 100
  start_time = 0
  l_max_its = 1000
  nl_max_its = 100
  l_tol = 1e-6
  nl_abs_tol = 1e-7
  nl_rel_tol = 1e-6
  reuse_preconditioner = true
[]

#############################################################
[GlobalParams]
  PorousFlowDictator = dictator
  displacements = 'disp_i disp_j disp_k'
[]
############################################################
[Variables]
  [pressure]
  []

  [temperature]
    scaling = 1E-8
  []

  [disp_i]
    scaling = 1E-10
  []

  [disp_j]
    scaling = 1E-10
  []

  [disp_k]
    scaling = 1E-10
  []
[]

############################################################
[ICs]
  [temperature]
    type = FunctionIC
    variable = temperature
    function = '616 - ((2360+z)*7.615e-2)'
  []

  [pressure]
    type = FunctionIC
    variable = pressure
    function = '3.5317e7 - ((2360+z)*8455)'
  []
[]

############################################################
[Kernels]
  [Darcy_flow]
    type = PorousFlowAdvectiveFlux
    fluid_component = 0
    variable = pressure
    gravity = '0 0 -9.8'
  []

  [heat_conduction]
    type = PorousFlowHeatConduction
    variable = temperature
  []

  [grad_stress_i]
    type = StressDivergenceTensors
    variable = disp_i
    temperature = temperature
    component = 0
  []

  [grad_stress_j]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_j
    component = 1
  []

  [grad_stress_k]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_k
    component = 2
  []

  [poro_i]
    type = PoroMechanicsCoupling
    variable = disp_i
    porepressure = pressure
    component = 0
  []

  [poro_j]
    type = PoroMechanicsCoupling
    variable = disp_j
    porepressure = pressure
    component = 1
  []

  [poro_k]
    type = PoroMechanicsCoupling
    variable = disp_k
    porepressure = pressure
    component = 2
  []

  [weight]
    type = Gravity
    variable = disp_k
    value = -9.8
  []
[]

###########################################################
[AuxVariables]
  [stress_ii]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ij]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ik]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ji]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jk]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ki]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kk]
    order = CONSTANT
    family = MONOMIAL
  []

  [vonmises]
    order = CONSTANT
    family = MONOMIAL
  []

  [hydrostatic]
    order = CONSTANT
    family = MONOMIAL
  []

  [density]
    order = CONSTANT
    family = MONOMIAL
  []

  [viscosity]
    order = CONSTANT
    family = MONOMIAL
  []
[]

#********************************************************
[Functions]
  [T_on_face_Z_Minus]
    type = PiecewiseBilinear
    data_file = FORGE_bottom_2021.11.10_plus_50.csv
    xaxis = 1
    yaxis = 0
  []
[]

##############################################################
[AuxKernels]
  [stress_ii]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ii
    index_i = 0
    index_j = 0
  []

  [stress_ij]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ij
    index_i = 0
    index_j = 1
  []

  [stress_ik]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ik
    index_i = 0
    index_j = 2
  []

  [stress_ji]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ji
    index_i = 1
    index_j = 0
  []

  [stress_jj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jj
    index_i = 1
    index_j = 1
  []

  [stress_jk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jk
    index_i = 1
    index_j = 2
  []

  [stress_ki]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ki
    index_i = 2
    index_j = 0
  []

  [stress_kj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kj
    index_i = 2
    index_j = 1
  []

  [stress_kk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kk
    index_i = 2
    index_j = 2
  []

  [density]
    type = MaterialRealAux
    variable = density
    property = PorousFlow_fluid_phase_density_qp0
    execute_on = TIMESTEP_END
  []

  [viscosity]
    type = MaterialRealAux
    variable = viscosity
    property = PorousFlow_viscosity_qp0
    execute_on = TIMESTEP_END
  []

  [vonmises]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = vonmises
    scalar_type = VonMisesStress
  []

  [hydrostatic]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = hydrostatic
    scalar_type = Hydrostatic
  []
[]
############################################################
[UserObjects]
  [dictator]
    type = PorousFlowDictator
    porous_flow_vars = 'pressure temperature disp_i disp_j disp_k'
    number_fluid_phases = 1
    number_fluid_components = 1
  []

  [pc]
    type = PorousFlowCapillaryPressureVG
    alpha = 1
    m = 0.5
  []

[]
############################################################
[BCs]
  # B.C. for solid field
  # Prescribed displacements at three boundary surfaces
  [roller_sigma_h_min_x_minus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_front granitoid_40m_surface_40m_front'
  []

  [roller_sigma_h_min_x_plus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_back granitoid_40m_surface_40m_back'
  []

  [roller_sigma_h_max_minus]
    type = DirichletBC
    preset = true
    variable = disp_j
    value = 0
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
  []

  [bottom_z]
    type = DirichletBC
    preset = true
    variable = disp_k
    value = 0
    boundary = 'bottom_40m'
  []

  # Prescribed traction
  [S_h_max_normal_righ]
    type = FunctionNeumannBC
    variable = disp_j
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '-19889*(1785-z)'
  []

  [S_h_max_shear_right]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '929*(1785-z)'
  []

  [S_h_max_shear_left]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
    function = '-929*(1785-z)'
  []

  [Side_Z_minus_traction_Z]
    type = NeumannBC
    variable = disp_j
    boundary = 'bottom_40m'
    value = -3.85e+6
  []

  [Side_Z_Plus_traction_Z]
    type = NeumannBC
    variable = disp_k
    boundary = 'surface_40m'
    value = -101325
  []

  #B.C. for Darcy's flow field
  # Apply zero pore pressure on top surface
  # and no flow side surfaces
  [pore_pressure_top]
    type = DirichletBC
    variable = pressure
    boundary = 'surface_40m'
    value = 101325 #atmospheric pressure in Pa-assumes water level at ground surface
  []

  [pore_pressure_bottom]
    type = DirichletBC
    variable = pressure
    boundary = 'bottom_40m'
    value = 34000000
  []

  #B.C. Temperature field
  # Apply prescibed temperature on top and bottom surfaces
  # and no heat flux on the side surfaces

  [Side_Z_Minus_T]
    type = FunctionDirichletBC
    #type = DirichletBC
    variable = temperature
    boundary = 'bottom_40m'
    function = T_on_face_Z_Minus
  []

  [Side_Z_Plus_T]
    type = DirichletBC
    variable = temperature
    boundary = 'surface_40m'
    value = 299
  []
[]

############################################################

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedBicubicFluidProperties
    fp = true_water
    fluid_property_file = tabulated_fluid_properties_v2.csv
  []
[]

############################################################
[Materials]
  #fluid properties and flow
  [permeability_sediment]
    type = PorousFlowPermeabilityConst
    permeability = '${K_Perm} 0 0  0 ${K_Perm} 0  0 0 ${K_Perm}'
    block = granitoid_40m_surface_40m
  []

  [permeability_granite]
    type = PorousFlowPermeabilityConst
    permeability = '1e-18 0 0  0 1e-18 0  0 0 1e-18'
    block = bottom_40m_granitoid_40m
  []

  [fluid_props]
    type = PorousFlowSingleComponentFluid
    fp = tabulated_water
    phase = 0
    at_nodes = true
  []

  [fluid_props_qp]
    type = PorousFlowSingleComponentFluid
    phase = 0
    fp = tabulated_water
  []

  [porosity_sediment]
    type = PorousFlowPorosityConst
    porosity = 0.12
    block = granitoid_40m_surface_40m
  []

  [porosity_granite]
    type = PorousFlowPorosityConst
    porosity = 0.001
    block = bottom_40m_granitoid_40m
  []

  [ppss]
    type = PorousFlow1PhaseP
    at_nodes = true
    porepressure = pressure
    capillary_pressure = pc
  []

  [ppss_qp]
    type = PorousFlow1PhaseP
    porepressure = pressure
    capillary_pressure = pc
  []

  [massfrac]
    type = PorousFlowMassFraction
    at_nodes = true
  []

  [eff_fluid_pressure]
    type = PorousFlowEffectiveFluidPressure
    at_nodes = true
  []

  [eff_fluid_pressure_qp]
    type = PorousFlowEffectiveFluidPressure
  []

  [relperm]
    type = PorousFlowRelativePermeabilityCorey
    at_nodes = true
    n = 1
    phase = 0
  []

  #energy transport
  [temperature]
    type = PorousFlowTemperature
    temperature = temperature
  []

  [temperature_nodal]
    type = PorousFlowTemperature
    at_nodes = true
    temperature = temperature
  []

  [rock_heat_sediments]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 830.0
    density = 2500
    block = granitoid_40m_surface_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [rock_heat_granitoid]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 790.0
    density = 2750
    block = bottom_40m_granitoid_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [thermal_conductivity_sediments]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '${K_Cond} 0 0  0 ${K_Cond} 0  0 0 ${K_Cond}'
    block = granitoid_40m_surface_40m
  []

  [thermal_conductivity_granitoid]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '3.05 0 0  0 3.05 0  0 0 3.05'
    block = bottom_40m_granitoid_40m
  []

  #mechanics
  [density_sediment]
    type = GenericConstantMaterial
    prop_names = density
    block = granitoid_40m_surface_40m
    prop_values = 2500.0
  []

  [density_granitoid]
    type = GenericConstantMaterial
    prop_names = density
    block = bottom_40m_granitoid_40m
    prop_values = 2750.0
  []

  [biot]
    type = GenericConstantMaterial
    prop_names = biot_coefficient
    prop_values = 0.47
  []

  [elasticity_sediment]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 3.0e+10
    poissons_ratio = 0.30
    block = granitoid_40m_surface_40m
  []

  [elasticity_granitoid]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 6.2e+10
    poissons_ratio = 0.3
    block = bottom_40m_granitoid_40m
  []

  [thermal_expansion_strain]
    type = ComputeThermalExpansionEigenstrain
    stress_free_temperature = 293
    thermal_expansion_coeff = 6.0E-6
    temperature = temperature
    eigenstrain_name = eigenstrain
  []

  [strain]
    type = ComputeSmallStrain
  []

  [stress]
    type = ComputeLinearElasticStress
  []
[]

############################################################
[Preconditioning]
  active = 'preferred'

  [ilu_may_use_less_mem]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -sub_pc_type -sub_pc_factor_shift_type'
    petsc_options_value = 'gmres asm ilu NONZERO'
  []

  [superlu]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -pc_factor_mat_solver_package'
    petsc_options_value = 'gmres lu superlu_dist'
  []

  [preferred]
    type = SMP
    full = true
    petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
    petsc_options_value = ' lu       mumps'
  []
[]

[VectorPostprocessors]
  [16A]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1102.5 1818.6    1625.19
  1102.3 1818.7    1600.19
  1102.2    1818.8    1575.19
  1102.1    1818.8    1550.19
  1102    1818.8    1525.19
  1102.1    1818.8    1500.19
  1102.2    1818.6    1475.19
  1102.3    1818.4    1450.19
  1102.3    1818.2    1425.19
  1102.4    1817.8    1400.19
  1102.5    1817.4    1375.2
  1102.6    1816.7    1350.21
  1102.8    1816    1325.22
  1103.1    1815.2    1300.23
  1103.4    1814.4    1275.25
  1103.8    1813.8    1250.26
  1104    1813.3    1225.26
  1104.3    1813    1200.27
  1104.6    1812.9    1175.27
  1104.9    1812.8    1150.27
  1105.2    1812.8    1125.27
  1105.6    1813    1100.28
  1105.8    1813.2    1075.28
  1105.9    1813.6    1050.28
  1105.6    1814    1025.29
  1105.2    1814    1000.29
  1104.9    1813.9    975.29
  1104.8    1813.6    950.29
  1104.9    1813.5    925.3
  1105.2    1813.5    900.3
  1105.3    1813.7    875.3
  1105.2    1814.1    850.3
  1104.9    1814.4    825.31
  1104.5    1814.3    800.31
  1104.3    1814.2    775.31
  1104.4    1814    750.31
  1104.8    1813.9    725.32
  1105.3    1814.2    700.32
  1105.4    1814.8    675.33
  1105.3    1815.3    650.34
  1104.9    1815.5    625.34
  1104.5    1815.5    600.34
  1104.4    1815.3    575.34
  1104.5    1815.1    550.34
  1104.8    1815.3    525.35
  1105.1    1815.7    500.35
  1105.3    1816.3    475.36
  1105.2    1817    450.37
  1104.9    1817.5    425.38
  1104.5    1817.7    400.38
  1104.1    1817.6    375.39
  1104    1817.3    350.39
  1104.1    1816.9    325.39
  1104.4    1816.9    300.39
  1104.6    1817.3    275.4
  1104.4    1817.8    250.4
  1103.9    1818    225.41
  1103.4    1817.9    200.42
  1103.2    1817.5    175.42
  1103.4    1817    150.43
  1104    1816.7    125.43
  1104.6    1816.7    100.44
  1105.2    1816.9    75.45
  1105.7    1817.3    50.46
  1106.1    1817.8    25.47
  1106.2    1818.3    0.47
  1106.2    1818.5    -24.53
  1106.4    1818.5    -49.53
  1107    1818.3    -74.52
  1107.8    1818.3    -99.51
  1108.7    1818.2    -124.49
  1110.1    1818.4    -149.45
  1113    1819.3    -174.25
  1117.9    1820.8    -198.71
  1124.6    1822.2    -222.77
  1132.2    1822.9    -246.57
  1139.9    1823.2    -270.33
  1148.1    1823    -293.96
  1157.4    1822.4    -317.16
  1168.3    1821.5    -339.62
  1181.1    1820.8    -361.05
  1195.8    1821.2    -381.25
  1211.8    1823.4    -400.34
  1229.3    1826.3    -417.94
  1248.3    1829.5    -433.88
  1268.6    1832.5    -448.14
  1289.9    1835.4    -460.88
  1311.9    1838.4    -472.44
  1334.3    1841.8    -482.88
  1356.9    1845    -493.1
  1379.5    1847.8    -503.42
  1402.1    1849.9    -513.86
  1424.6    1851.2    -524.79
  1446.3    1851.7    -537.2
  1467.3    1851.8    -550.66
  1488.2    1851.8    -564.37
  1509.5    1851.9    -577.52
  1531.4    1852.1    -589.56
  1553.9    1852.2    -600.42
  1576.6    1852.2    -610.87
  1599.5    1852.3    -621.07
  1622.3    1852.9    -631.11
  1645.2    1853.7    -641.19
  1668.1    1854.5    -651.3
  1691    1856.3    -661.09
  1714    1859.3    -670.49
  1737    1862.9    -679.51
  1759.9    1866.9    -688.68
  1782.6    1870.9    -698.32
  1805.2    1875    -708.33
  1827.8    1878.8    -718.33
  1850.4    1882    -728.33
  1873.1    1884.6    -738.49
  1895.7    1886.8    -749.04
  1918.1    1888.5    -760.07
  1940.3    1890    -771.38
  1962.5    1891.6    -782.84
  1984.6    1893.1    -794.3
  2007    1894.5    -805.42
  2029.6    1896.2    -815.88
  2052.5    1898.2    -825.72
  2075.4    1900.1    -835.6
  2098.2    1901.5    -845.77
  2120.9    1902.5    -856.23
  2143.4    1903.2    -867
  2165.9    1904.2    -877.91
  2188.4    1905.7    -888.63
  2211    1907.6    -899.21
  2233.9    1910.2    -908.97
  2257    1913.6    -917.94
  2280    1917.6    -926.72
  2303    1921.8    -935.78
  2325.9    1926.2    -944.74
  2330.4    1927.1    -946.48'
    sort_by = z
  []

  [58_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2002    1723.2    1659.78
  2002    1723.2    1634.78
  2002    1723.3    1609.78
  2002    1723.4    1584.78
  2002    1723.5    1559.78
  2002    1723.5    1534.78
  2002    1723.4    1509.78
  2001.9    1723.3    1484.78
  2001.9    1723.3    1459.79
  2001.9    1723.4    1434.79
  2001.8    1723.5    1409.79
  2001.7    1723.7    1384.79
  2001.6    1724    1359.79
  2001.4    1724.3    1334.79
  2001.1    1724.7    1309.8
  2000.9    1725    1284.8
  2000.6    1725.4    1259.8
  2000.4    1725.7    1234.81
  2000.1    1726.1    1209.81
  1999.8    1726.5    1184.82
  1999.5    1726.9    1159.82
  1999.1    1727.3    1134.83
  1998.8    1727.7    1109.83
  1998.5    1728.3    1084.84
  1998.4    1729    1059.85
  1998.4    1729.7    1034.86
  1998.5    1730.5    1009.87
  1998.8    1731    984.88
  1999.2    1731.4    959.89
  1999.6    1731.7    934.89
  1999.9    1731.9    909.89
  2000.1    1732.2    884.9
  2000.2    1732.4    859.9
  2000.2    1732.7    834.9
  2000    1733    809.9
  1999.8    1733.3    784.91
  1999.4    1733.5    759.91
  1999    1733.7    734.91
  1998.7    1733.8    709.92
  1998.8    1733.8    684.92
  1999.1    1733.8    659.92
  1999.5    1733.6    634.92
  1999.8    1733.3    609.93
  1999.8    1732.8    584.93
  1999.7    1732.2    559.94
  1999.3    1731.5    534.95
  1998.6    1730.7    509.98
  1997.6    1729.8    485.01
  1996.2    1728.8    460.07
  1994.6    1727.7    435.14
  1992.8    1726.4    410.24
  1990.7    1725    385.37
  1988.5    1723.4    360.52
  1986.2    1721.8    335.68
  1983.8    1720.1    310.85
  1981.4    1718.5    286.02
  1978.4    1717.6    261.22
  1975.5    1716.7    236.4
  1972.5    1715.8    211.6
  1969.9    1715.2    186.75
  1968    1714.6    161.82
  1967.1    1714    136.85
  1966.4    1713.8    111.86
  1965.8    1713.8    86.87
  1965.4    1713.4    61.87
  1965.1    1713    36.88
  1965.2    1712.8    11.88
  1965.3    1712.6    -13.12
  1965.5    1712.4    -38.12
  1965.7    1712.3    -63.12
  1965.5    1712.4    -88.12
  1965    1712.7    -113.11
  1964.4    1713.1    -138.1
  1964    1713.7    -163.09
  1963.5    1714.4    -188.07
  1963.1    1715.2    -213.06
  1962.5    1716    -238.04
  1962    1716.9    -263.02
  1961.3    1717.7    -287.99
  1960.4    1718.2    -312.97
  1959.3    1718.2    -337.95
  1957.8    1717.9    -362.9
  1956.2    1717.5    -387.84
  1954.8    1717.3    -412.8
  1954.1    1717    -437.79
  1953.7    1716.9    -462.79
  1953.2    1716.8    -487.78
  1952.6    1716.7    -512.78
  1952    1716.5    -537.77
  1951.2    1716.3    -562.75
  1950.5    1716    -587.74
  1949.8    1715.9    -609.63'
    sort_by = z
  []

  [78_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2327.3    1795.9    1679.29
  2327.3    1795.9    1654.29
  2327.3    1795.9    1629.29
  2327.3    1795.9    1604.29
  2327.3    1795.9    1579.29
  2327.3    1795.9    1554.29
  2327.3    1795.9    1529.29
  2327.3    1795.9    1504.29
  2327.3    1795.9    1479.29
  2327.3    1795.9    1454.29
  2327.3    1795.9    1429.29
  2327.3    1795.9    1404.29
  2327.3    1795.9    1379.29
  2327.3    1795.9    1354.29
  2327.3    1795.9    1329.29
  2327.3    1795.9    1304.29
  2327.3    1795.9    1279.29
  2327.3    1795.9    1254.29
  2327.3    1795.9    1229.29
  2327.3    1795.9    1204.29
  2327.3    1795.9    1179.29
  2327.3    1795.9    1154.29
  2327.3    1795.9    1129.29
  2327.3    1795.9    1104.29
  2327.3    1795.9    1079.29
  2327.3    1795.9    1054.29
  2327.3    1795.9    1029.29
  2327.3    1795.9    1004.29
  2327.3    1795.9    979.29
  2327.3    1795.9    954.29
  2327.3    1795.9    929.29
  2327.3    1795.9    904.29
  2327.3    1795.9    879.29
  2327.3    1795.9    854.29
  2327.3    1795.9    829.29
  2327.3    1795.9    804.29
  2327.3    1795.9    779.29
  2327.3    1795.9    754.29
  2327.3    1795.9    729.29
  2327.3    1795.9    704.29
  2327.3    1795.9    679.59'
    sort_by = z
  []

  [78B_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2410    1822.8    1687.37
  2410    1822.8    1662.37
  2410    1822.8    1637.37
  2410    1822.8    1612.37
  2410    1822.8    1587.37
  2410    1822.8    1562.37
  2410    1822.8    1537.37
  2410    1822.8    1512.37
  2410    1822.8    1487.37
  2410    1822.8    1462.37
  2410    1822.8    1437.37
  2410    1822.8    1412.37
  2410    1822.8    1387.37
  2410    1822.8    1362.37
  2410    1822.8    1337.37
  2410    1822.8    1312.37
  2410    1822.8    1287.37
  2410    1822.8    1262.37
  2410    1822.8    1237.37
  2410    1822.8    1212.37
  2410    1822.8    1187.37
  2410    1822.8    1162.37
  2410    1822.8    1137.37
  2410    1822.8    1112.37
  2410    1822.8    1087.37
  2410    1822.8    1062.37
  2410    1822.8    1037.37
  2410    1822.8    1012.37
  2410    1822.8    987.37
  2410    1822.8    962.37
  2410    1822.8    937.37
  2410    1822.8    912.37
  2410    1822.8    887.37
  2410    1822.8    862.37
  2410    1822.8    837.37
  2410    1822.8    812.37
  2410    1822.8    787.37
  2410    1822.8    762.37
  2410    1822.8    737.37
  2410    1822.8    712.37
  2410    1822.8    687.37
  2410    1822.8    662.37
  2410    1822.8    637.37
  2410    1822.8    612.37
  2410    1822.8    587.37
  2410    1822.8    562.37
  2410    1822.8    537.37
  2410    1822.8    512.37
  2410    1822.8    487.37
  2410    1822.8    462.37
  2410    1822.8    437.37
  2410    1822.8    412.37
  2410    1822.8    387.37
  2410    1822.8    362.37
  2410    1822.8    337.37
  2410    1822.8    312.37
  2410    1822.8    287.37
  2410    1822.8    262.37
  2410    1822.8    237.37
  2410    1822.8    212.37
  2410    1822.8    187.37
  2410    1822.8    162.37
  2410    1822.8    137.37
  2410    1822.8    112.37
  2410    1822.8    87.37
  2410    1822.8    62.37
  2410    1822.8    37.37
  2410    1822.8    12.37
  2410    1822.8    -12.63
  2410    1822.8    -37.63
  2410    1822.8    -62.63
  2410    1822.8    -87.63
  2410    1822.8    -112.63
  2410    1822.8    -137.63
  2410    1822.8    -162.63
  2410    1822.8    -187.63
  2410    1822.8    -212.63
  2410    1822.8    -237.63
  2410    1822.8    -262.63
  2410    1822.8    -287.63
  2410    1822.8    -312.63
  2410    1822.8    -337.63
  2410    1822.8    -362.63
  2410    1822.8    -387.63
  2410    1822.8    -412.63
  2410    1822.8    -437.63
  2410    1822.8    -462.63
  2410    1822.8    -487.63
  2410    1822.8    -512.63
  2410    1822.8    -537.63
  2410    1822.8    -562.63
  2410    1822.8    -587.63
  2410    1822.8    -612.63
  2410    1822.8    -637.63
  2410    1822.8    -662.63
  2410    1822.8    -687.63
  2410    1822.8    -712.63
  2410    1822.8    -737.63
  2410    1822.8    -762.63
  2410    1822.8    -787.63
  2410    1822.8    -812.63
  2410    1822.8    -837.63
  2410    1822.8    -862.63
  2410    1822.8    -887.63
  2410    1822.8    -912.63
  2410    1822.8    -915.62'
    sort_by = z
  []

  [56_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1746.9    2137.1    1656.14
  1746.9    2137.2    1631.14
  1747    2137.2    1606.14
  1747    2137.3    1581.14
  1747.1    2137.4    1556.14
  1747.2    2137.7    1531.14
  1747.1    2138    1506.14
  1747    2138.3    1481.15
  1746.7    2138.6    1456.15
  1746.4    2138.5    1431.15
  1746.1    2139.1    1406.16
  1746    2139.7    1381.17
  1745.8    2140.3    1356.18
  1745.7    2141    1331.19
  1745.5    2141.7    1306.2
  1745.4    2142.4    1281.21
  1745.3    2143.2    1256.22
  1745.3    2144.1    1231.23
  1745.3    2144.9    1206.25
  1745.4    2145.5    1181.26
  1745.6    2146.1    1156.26
  1745.8    2146.8    1131.28
  1746.2    2147.5    1106.29
  1746.6    2148.2    1081.3
  1747    2148.6    1056.31
  1747.4    2149    1031.31
  1747.8    2149.4    1006.32
  1748.3    2149.8    981.33
  1748.7    2150.2    956.33
  1749.2    2150.6    931.34
  1749.6    2151    906.35
  1750.1    2151.3    881.36
  1750.8    2151.8    856.37
  1751.5    2152.2    831.38
  1752.3    2152.6    806.4
  1752.9    2153    781.41
  1753.3    2153.4    756.42
  1753.8    2153.9    731.43
  1754.3    2154.3    706.43
  1754.6    2154.3    681.44
  1755    2154.4    656.44
  1755.6    2154.4    631.45
  1756.2    2154.3    606.45
  1756.8    2154.2    581.46
  1757    2154.2    556.46
  1756.6    2154.1    531.46
  1756.2    2153.9    506.47
  1755.7    2153.6    481.48
  1755.1    2153.1    456.49
  1754.5    2152.5    431.5
  1754.4    2152.7    406.5
  1754.5    2153    381.51
  1754.4    2152.8    356.51
  1753.9    2152.4    331.52
  1753.3    2152.2    306.52
  1752.7    2152.6    281.54
  1751.5    2153    256.57
  1750.8    2152.6    231.58
  1750.8    2152.9    206.58
  1750.8    2153.3    181.59
  1750.7    2153.6    156.59
  1750.5    2153.8    131.59
  1750.2    2153.6    106.59
  1750.1    2153.2    81.6
  1750    2153.9    56.61
  1749.1    2153.9    31.63
  1748.2    2153.8    6.65
  1746.9    2153.4    -18.32
  1744.9    2152.4    -43.22
  1742.5    2151.1    -68.07
  1740.6    2149.7    -92.95
  1739.2    2148.6    -117.89
  1737.8    2147.5    -142.83
  1736.9    2146.1    -167.77
  1736.8    2144.6    -192.72
  1737    2143.3    -217.69
  1737.1    2142.5    -242.68
  1737    2142.1    -267.67
  1736.6    2141.5    -292.66
  1735.8    2140.7    -317.63
  1735.1    2139.8    -342.61
  1734.4    2139.3    -367.59
  1734    2139    -392.59
  1733.7    2138.5    -417.58
  1733.4    2137.8    -442.57
  1733    2136.9    -467.55
  1732.6    2136.1    -492.54
  1732.3    2135.5    -517.53
  1732.1    2135    -542.52
  1731.9    2134.5    -567.51
  1731.7    2133.8    -592.51
  1731.7    2133.1    -617.49
  1731.8    2132.2    -642.48
  1731.7    2131.1    -667.45
  1731.5    2129.6    -692.41
  1731.3    2128.2    -717.37
  1731.4    2127.1    -742.34
  1731.4    2125.9    -767.31
  1731    2124.7    -792.28
  1730.5    2124    -817.27
  1730.2    2123.8    -842.26
  1729.7    2123.8    -867.26
  1728.7    2123.8    -892.24
  1727.9    2124    -917.22
  1726.5    2124.2    -942.18
  1724.3    2124.2    -967.08
  1721.9    2124    -991.97
  1720.3    2123.6    -1016.91
  1720.5    2123    -1041.9
  1720.1    2122.5    -1066.88
  1719.5    2121.8    -1091.87
  1718.9    2121    -1116.84
  1718.5    2120.5    -1129.23'
    sort_by = z
  []
[]

############################################################
[Outputs]
  execute_on = 'timestep_end'
  csv = true
  file_base = FORGE_NS_Ph3_coarse_point_data
[]
############################################################

(examples/forge_native_state_parameter_calibration/FORGE_NS_Ph3_coarse.i)

#Revisions made to the original FORGE native state model
# NS mesh replaced with mesh generator to create a coarser mesh
# Transient simulation to reach equilibration with sources.
# Dirac kernel source for temperature and mass injection at the bottom of well 78
# 3 levels of mesh refinement around sources to increase sensitivity
# vectorpostprocessor Output along wells includes displacment and does not include stress

# original FORGE native state model can downloaded from the GDR website:
# https://gdr.openei.org/submissions/1397

#parameters being inverted for
K_Cond = 2.8
K_Perm = 1e-14

[Mesh]
  [generate]
    type = GeneratedMeshGenerator
    dim = 3
    nx = 10
    xmin = -40
    xmax = 4040
    ny = 10
    ymin = -40
    ymax = 4040
    nz = 10
    zmin = -2360
    zmax = 1804
  []
  #ALL OF THESE SIDESET NAMES ARE MIXED UP WITH THE DEFAULT SIDESET NAMES
  [bottom_40m_granitoid_40m]
    type = RenameBlockGenerator
    input = generate
    old_block = '0'
    new_block = 'bottom_40m_granitoid_40m'
  []
  [granitoid_40m_surface_40m]
    type = ParsedSubdomainMeshGenerator
    input = bottom_40m_granitoid_40m
    combinatorial_geometry = 'z > 1000'
    block_id = 1
    block_name = granitoid_40m_surface_40m
  []
  [bottom_40m_granitoid_40m_right]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m
    included_boundaries = bottom
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_right'
  []
  [granitoid_40m_surface_40m_right]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_right
    included_boundaries = bottom
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_right'
  []
  [bottom_40m_granitoid_40m_left]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_right
    included_boundaries = top
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_left'
  []
  [granitoid_40m_surface_40m_left]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_left
    included_boundaries = top
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_left'
  []
  [bottom_40m_granitoid_40m_front]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_left
    included_boundaries = left
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_front'
  []
  [granitoid_40m_surface_40m_front]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_front
    included_boundaries = left
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_front'
  []
  [bottom_40m_granitoid_40m_back]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_front
    included_boundaries = right
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_back'
  []
  [granitoid_40m_surface_40m_back]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_back
    included_boundaries = right
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_back'
  []

  [rename]
    type = RenameBoundaryGenerator
    input = granitoid_40m_surface_40m_back
    old_boundary = 'front back'
    new_boundary = 'surface_40m bottom_40m'
  []

  [add_internal_sideset]
    type = SideSetsBetweenSubdomainsGenerator
    input = rename
    primary_block = 0
    paired_block = 1
    new_boundary = granitoid_40m
  []

  use_displaced_mesh = false
[]

[Postprocessors]
  [mass_flux_in]
    type = FunctionValuePostprocessor
    function = mass_flux_in_fn
    execute_on = 'initial timestep_end'
  []
  [T_in]
    type = FunctionValuePostprocessor
    function = T_in_fn
    execute_on = 'initial timestep_end'
  []
[]

[Functions]
  [mass_flux_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   0.0
      50  0.1
      100  0.1'
  []
  [T_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   323.15
      50   323.15
      100  323.15'
  []
[]

[DiracKernels]
  [source]
    #placed at the bottom of well 78_32
    type = PorousFlowPointSourceFromPostprocessor
    variable = pressure
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
  []
  [source_h]
    #placed at the bottom of well 78_32
    type = PorousFlowPointEnthalpySourceFromPostprocessor
    variable = temperature
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
    T_in = T_in
    pressure = pressure
    fp = true_water
  []
[]

[Adaptivity]
  #refine around DiracKernels sources
  # should refine more than one level but this should run fast
  initial_steps = 2
  max_h_level = 1
  marker = box
  [Markers]
    [box]
      type = BoxMarker
      bottom_left = '2027 1495 379'
      top_right = '2527 2095 879'
      inside = refine
      outside = do_nothing
    []
  []
[]

[Executioner]
  line_search = None
  type = Transient
  solve_type = NEWTON
  steady_state_detection = true
  steady_state_tolerance = 1e-8
  dt = 10
  end_time = 100
  start_time = 0
  l_max_its = 1000
  nl_max_its = 100
  l_tol = 1e-6
  nl_abs_tol = 1e-7
  nl_rel_tol = 1e-6
  reuse_preconditioner = true
[]

#############################################################
[GlobalParams]
  PorousFlowDictator = dictator
  displacements = 'disp_i disp_j disp_k'
[]
############################################################
[Variables]
  [pressure]
  []

  [temperature]
    scaling = 1E-8
  []

  [disp_i]
    scaling = 1E-10
  []

  [disp_j]
    scaling = 1E-10
  []

  [disp_k]
    scaling = 1E-10
  []
[]

############################################################
[ICs]
  [temperature]
    type = FunctionIC
    variable = temperature
    function = '616 - ((2360+z)*7.615e-2)'
  []

  [pressure]
    type = FunctionIC
    variable = pressure
    function = '3.5317e7 - ((2360+z)*8455)'
  []
[]

############################################################
[Kernels]
  [Darcy_flow]
    type = PorousFlowAdvectiveFlux
    fluid_component = 0
    variable = pressure
    gravity = '0 0 -9.8'
  []

  [heat_conduction]
    type = PorousFlowHeatConduction
    variable = temperature
  []

  [grad_stress_i]
    type = StressDivergenceTensors
    variable = disp_i
    temperature = temperature
    component = 0
  []

  [grad_stress_j]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_j
    component = 1
  []

  [grad_stress_k]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_k
    component = 2
  []

  [poro_i]
    type = PoroMechanicsCoupling
    variable = disp_i
    porepressure = pressure
    component = 0
  []

  [poro_j]
    type = PoroMechanicsCoupling
    variable = disp_j
    porepressure = pressure
    component = 1
  []

  [poro_k]
    type = PoroMechanicsCoupling
    variable = disp_k
    porepressure = pressure
    component = 2
  []

  [weight]
    type = Gravity
    variable = disp_k
    value = -9.8
  []
[]

###########################################################
[AuxVariables]
  [stress_ii]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ij]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ik]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ji]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jk]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ki]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kk]
    order = CONSTANT
    family = MONOMIAL
  []

  [vonmises]
    order = CONSTANT
    family = MONOMIAL
  []

  [hydrostatic]
    order = CONSTANT
    family = MONOMIAL
  []

  [density]
    order = CONSTANT
    family = MONOMIAL
  []

  [viscosity]
    order = CONSTANT
    family = MONOMIAL
  []
[]

#********************************************************
[Functions]
  [T_on_face_Z_Minus]
    type = PiecewiseBilinear
    data_file = FORGE_bottom_2021.11.10_plus_50.csv
    xaxis = 1
    yaxis = 0
  []
[]

##############################################################
[AuxKernels]
  [stress_ii]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ii
    index_i = 0
    index_j = 0
  []

  [stress_ij]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ij
    index_i = 0
    index_j = 1
  []

  [stress_ik]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ik
    index_i = 0
    index_j = 2
  []

  [stress_ji]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ji
    index_i = 1
    index_j = 0
  []

  [stress_jj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jj
    index_i = 1
    index_j = 1
  []

  [stress_jk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jk
    index_i = 1
    index_j = 2
  []

  [stress_ki]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ki
    index_i = 2
    index_j = 0
  []

  [stress_kj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kj
    index_i = 2
    index_j = 1
  []

  [stress_kk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kk
    index_i = 2
    index_j = 2
  []

  [density]
    type = MaterialRealAux
    variable = density
    property = PorousFlow_fluid_phase_density_qp0
    execute_on = TIMESTEP_END
  []

  [viscosity]
    type = MaterialRealAux
    variable = viscosity
    property = PorousFlow_viscosity_qp0
    execute_on = TIMESTEP_END
  []

  [vonmises]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = vonmises
    scalar_type = VonMisesStress
  []

  [hydrostatic]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = hydrostatic
    scalar_type = Hydrostatic
  []
[]
############################################################
[UserObjects]
  [dictator]
    type = PorousFlowDictator
    porous_flow_vars = 'pressure temperature disp_i disp_j disp_k'
    number_fluid_phases = 1
    number_fluid_components = 1
  []

  [pc]
    type = PorousFlowCapillaryPressureVG
    alpha = 1
    m = 0.5
  []

[]
############################################################
[BCs]
  # B.C. for solid field
  # Prescribed displacements at three boundary surfaces
  [roller_sigma_h_min_x_minus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_front granitoid_40m_surface_40m_front'
  []

  [roller_sigma_h_min_x_plus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_back granitoid_40m_surface_40m_back'
  []

  [roller_sigma_h_max_minus]
    type = DirichletBC
    preset = true
    variable = disp_j
    value = 0
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
  []

  [bottom_z]
    type = DirichletBC
    preset = true
    variable = disp_k
    value = 0
    boundary = 'bottom_40m'
  []

  # Prescribed traction
  [S_h_max_normal_righ]
    type = FunctionNeumannBC
    variable = disp_j
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '-19889*(1785-z)'
  []

  [S_h_max_shear_right]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '929*(1785-z)'
  []

  [S_h_max_shear_left]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
    function = '-929*(1785-z)'
  []

  [Side_Z_minus_traction_Z]
    type = NeumannBC
    variable = disp_j
    boundary = 'bottom_40m'
    value = -3.85e+6
  []

  [Side_Z_Plus_traction_Z]
    type = NeumannBC
    variable = disp_k
    boundary = 'surface_40m'
    value = -101325
  []

  #B.C. for Darcy's flow field
  # Apply zero pore pressure on top surface
  # and no flow side surfaces
  [pore_pressure_top]
    type = DirichletBC
    variable = pressure
    boundary = 'surface_40m'
    value = 101325 #atmospheric pressure in Pa-assumes water level at ground surface
  []

  [pore_pressure_bottom]
    type = DirichletBC
    variable = pressure
    boundary = 'bottom_40m'
    value = 34000000
  []

  #B.C. Temperature field
  # Apply prescibed temperature on top and bottom surfaces
  # and no heat flux on the side surfaces

  [Side_Z_Minus_T]
    type = FunctionDirichletBC
    #type = DirichletBC
    variable = temperature
    boundary = 'bottom_40m'
    function = T_on_face_Z_Minus
  []

  [Side_Z_Plus_T]
    type = DirichletBC
    variable = temperature
    boundary = 'surface_40m'
    value = 299
  []
[]

############################################################

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedBicubicFluidProperties
    fp = true_water
    fluid_property_file = tabulated_fluid_properties_v2.csv
  []
[]

############################################################
[Materials]
  #fluid properties and flow
  [permeability_sediment]
    type = PorousFlowPermeabilityConst
    permeability = '${K_Perm} 0 0  0 ${K_Perm} 0  0 0 ${K_Perm}'
    block = granitoid_40m_surface_40m
  []

  [permeability_granite]
    type = PorousFlowPermeabilityConst
    permeability = '1e-18 0 0  0 1e-18 0  0 0 1e-18'
    block = bottom_40m_granitoid_40m
  []

  [fluid_props]
    type = PorousFlowSingleComponentFluid
    fp = tabulated_water
    phase = 0
    at_nodes = true
  []

  [fluid_props_qp]
    type = PorousFlowSingleComponentFluid
    phase = 0
    fp = tabulated_water
  []

  [porosity_sediment]
    type = PorousFlowPorosityConst
    porosity = 0.12
    block = granitoid_40m_surface_40m
  []

  [porosity_granite]
    type = PorousFlowPorosityConst
    porosity = 0.001
    block = bottom_40m_granitoid_40m
  []

  [ppss]
    type = PorousFlow1PhaseP
    at_nodes = true
    porepressure = pressure
    capillary_pressure = pc
  []

  [ppss_qp]
    type = PorousFlow1PhaseP
    porepressure = pressure
    capillary_pressure = pc
  []

  [massfrac]
    type = PorousFlowMassFraction
    at_nodes = true
  []

  [eff_fluid_pressure]
    type = PorousFlowEffectiveFluidPressure
    at_nodes = true
  []

  [eff_fluid_pressure_qp]
    type = PorousFlowEffectiveFluidPressure
  []

  [relperm]
    type = PorousFlowRelativePermeabilityCorey
    at_nodes = true
    n = 1
    phase = 0
  []

  #energy transport
  [temperature]
    type = PorousFlowTemperature
    temperature = temperature
  []

  [temperature_nodal]
    type = PorousFlowTemperature
    at_nodes = true
    temperature = temperature
  []

  [rock_heat_sediments]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 830.0
    density = 2500
    block = granitoid_40m_surface_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [rock_heat_granitoid]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 790.0
    density = 2750
    block = bottom_40m_granitoid_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [thermal_conductivity_sediments]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '${K_Cond} 0 0  0 ${K_Cond} 0  0 0 ${K_Cond}'
    block = granitoid_40m_surface_40m
  []

  [thermal_conductivity_granitoid]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '3.05 0 0  0 3.05 0  0 0 3.05'
    block = bottom_40m_granitoid_40m
  []

  #mechanics
  [density_sediment]
    type = GenericConstantMaterial
    prop_names = density
    block = granitoid_40m_surface_40m
    prop_values = 2500.0
  []

  [density_granitoid]
    type = GenericConstantMaterial
    prop_names = density
    block = bottom_40m_granitoid_40m
    prop_values = 2750.0
  []

  [biot]
    type = GenericConstantMaterial
    prop_names = biot_coefficient
    prop_values = 0.47
  []

  [elasticity_sediment]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 3.0e+10
    poissons_ratio = 0.30
    block = granitoid_40m_surface_40m
  []

  [elasticity_granitoid]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 6.2e+10
    poissons_ratio = 0.3
    block = bottom_40m_granitoid_40m
  []

  [thermal_expansion_strain]
    type = ComputeThermalExpansionEigenstrain
    stress_free_temperature = 293
    thermal_expansion_coeff = 6.0E-6
    temperature = temperature
    eigenstrain_name = eigenstrain
  []

  [strain]
    type = ComputeSmallStrain
  []

  [stress]
    type = ComputeLinearElasticStress
  []
[]

############################################################
[Preconditioning]
  active = 'preferred'

  [ilu_may_use_less_mem]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -sub_pc_type -sub_pc_factor_shift_type'
    petsc_options_value = 'gmres asm ilu NONZERO'
  []

  [superlu]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -pc_factor_mat_solver_package'
    petsc_options_value = 'gmres lu superlu_dist'
  []

  [preferred]
    type = SMP
    full = true
    petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
    petsc_options_value = ' lu       mumps'
  []
[]

[VectorPostprocessors]
  [16A]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1102.5 1818.6    1625.19
  1102.3 1818.7    1600.19
  1102.2    1818.8    1575.19
  1102.1    1818.8    1550.19
  1102    1818.8    1525.19
  1102.1    1818.8    1500.19
  1102.2    1818.6    1475.19
  1102.3    1818.4    1450.19
  1102.3    1818.2    1425.19
  1102.4    1817.8    1400.19
  1102.5    1817.4    1375.2
  1102.6    1816.7    1350.21
  1102.8    1816    1325.22
  1103.1    1815.2    1300.23
  1103.4    1814.4    1275.25
  1103.8    1813.8    1250.26
  1104    1813.3    1225.26
  1104.3    1813    1200.27
  1104.6    1812.9    1175.27
  1104.9    1812.8    1150.27
  1105.2    1812.8    1125.27
  1105.6    1813    1100.28
  1105.8    1813.2    1075.28
  1105.9    1813.6    1050.28
  1105.6    1814    1025.29
  1105.2    1814    1000.29
  1104.9    1813.9    975.29
  1104.8    1813.6    950.29
  1104.9    1813.5    925.3
  1105.2    1813.5    900.3
  1105.3    1813.7    875.3
  1105.2    1814.1    850.3
  1104.9    1814.4    825.31
  1104.5    1814.3    800.31
  1104.3    1814.2    775.31
  1104.4    1814    750.31
  1104.8    1813.9    725.32
  1105.3    1814.2    700.32
  1105.4    1814.8    675.33
  1105.3    1815.3    650.34
  1104.9    1815.5    625.34
  1104.5    1815.5    600.34
  1104.4    1815.3    575.34
  1104.5    1815.1    550.34
  1104.8    1815.3    525.35
  1105.1    1815.7    500.35
  1105.3    1816.3    475.36
  1105.2    1817    450.37
  1104.9    1817.5    425.38
  1104.5    1817.7    400.38
  1104.1    1817.6    375.39
  1104    1817.3    350.39
  1104.1    1816.9    325.39
  1104.4    1816.9    300.39
  1104.6    1817.3    275.4
  1104.4    1817.8    250.4
  1103.9    1818    225.41
  1103.4    1817.9    200.42
  1103.2    1817.5    175.42
  1103.4    1817    150.43
  1104    1816.7    125.43
  1104.6    1816.7    100.44
  1105.2    1816.9    75.45
  1105.7    1817.3    50.46
  1106.1    1817.8    25.47
  1106.2    1818.3    0.47
  1106.2    1818.5    -24.53
  1106.4    1818.5    -49.53
  1107    1818.3    -74.52
  1107.8    1818.3    -99.51
  1108.7    1818.2    -124.49
  1110.1    1818.4    -149.45
  1113    1819.3    -174.25
  1117.9    1820.8    -198.71
  1124.6    1822.2    -222.77
  1132.2    1822.9    -246.57
  1139.9    1823.2    -270.33
  1148.1    1823    -293.96
  1157.4    1822.4    -317.16
  1168.3    1821.5    -339.62
  1181.1    1820.8    -361.05
  1195.8    1821.2    -381.25
  1211.8    1823.4    -400.34
  1229.3    1826.3    -417.94
  1248.3    1829.5    -433.88
  1268.6    1832.5    -448.14
  1289.9    1835.4    -460.88
  1311.9    1838.4    -472.44
  1334.3    1841.8    -482.88
  1356.9    1845    -493.1
  1379.5    1847.8    -503.42
  1402.1    1849.9    -513.86
  1424.6    1851.2    -524.79
  1446.3    1851.7    -537.2
  1467.3    1851.8    -550.66
  1488.2    1851.8    -564.37
  1509.5    1851.9    -577.52
  1531.4    1852.1    -589.56
  1553.9    1852.2    -600.42
  1576.6    1852.2    -610.87
  1599.5    1852.3    -621.07
  1622.3    1852.9    -631.11
  1645.2    1853.7    -641.19
  1668.1    1854.5    -651.3
  1691    1856.3    -661.09
  1714    1859.3    -670.49
  1737    1862.9    -679.51
  1759.9    1866.9    -688.68
  1782.6    1870.9    -698.32
  1805.2    1875    -708.33
  1827.8    1878.8    -718.33
  1850.4    1882    -728.33
  1873.1    1884.6    -738.49
  1895.7    1886.8    -749.04
  1918.1    1888.5    -760.07
  1940.3    1890    -771.38
  1962.5    1891.6    -782.84
  1984.6    1893.1    -794.3
  2007    1894.5    -805.42
  2029.6    1896.2    -815.88
  2052.5    1898.2    -825.72
  2075.4    1900.1    -835.6
  2098.2    1901.5    -845.77
  2120.9    1902.5    -856.23
  2143.4    1903.2    -867
  2165.9    1904.2    -877.91
  2188.4    1905.7    -888.63
  2211    1907.6    -899.21
  2233.9    1910.2    -908.97
  2257    1913.6    -917.94
  2280    1917.6    -926.72
  2303    1921.8    -935.78
  2325.9    1926.2    -944.74
  2330.4    1927.1    -946.48'
    sort_by = z
  []

  [58_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2002    1723.2    1659.78
  2002    1723.2    1634.78
  2002    1723.3    1609.78
  2002    1723.4    1584.78
  2002    1723.5    1559.78
  2002    1723.5    1534.78
  2002    1723.4    1509.78
  2001.9    1723.3    1484.78
  2001.9    1723.3    1459.79
  2001.9    1723.4    1434.79
  2001.8    1723.5    1409.79
  2001.7    1723.7    1384.79
  2001.6    1724    1359.79
  2001.4    1724.3    1334.79
  2001.1    1724.7    1309.8
  2000.9    1725    1284.8
  2000.6    1725.4    1259.8
  2000.4    1725.7    1234.81
  2000.1    1726.1    1209.81
  1999.8    1726.5    1184.82
  1999.5    1726.9    1159.82
  1999.1    1727.3    1134.83
  1998.8    1727.7    1109.83
  1998.5    1728.3    1084.84
  1998.4    1729    1059.85
  1998.4    1729.7    1034.86
  1998.5    1730.5    1009.87
  1998.8    1731    984.88
  1999.2    1731.4    959.89
  1999.6    1731.7    934.89
  1999.9    1731.9    909.89
  2000.1    1732.2    884.9
  2000.2    1732.4    859.9
  2000.2    1732.7    834.9
  2000    1733    809.9
  1999.8    1733.3    784.91
  1999.4    1733.5    759.91
  1999    1733.7    734.91
  1998.7    1733.8    709.92
  1998.8    1733.8    684.92
  1999.1    1733.8    659.92
  1999.5    1733.6    634.92
  1999.8    1733.3    609.93
  1999.8    1732.8    584.93
  1999.7    1732.2    559.94
  1999.3    1731.5    534.95
  1998.6    1730.7    509.98
  1997.6    1729.8    485.01
  1996.2    1728.8    460.07
  1994.6    1727.7    435.14
  1992.8    1726.4    410.24
  1990.7    1725    385.37
  1988.5    1723.4    360.52
  1986.2    1721.8    335.68
  1983.8    1720.1    310.85
  1981.4    1718.5    286.02
  1978.4    1717.6    261.22
  1975.5    1716.7    236.4
  1972.5    1715.8    211.6
  1969.9    1715.2    186.75
  1968    1714.6    161.82
  1967.1    1714    136.85
  1966.4    1713.8    111.86
  1965.8    1713.8    86.87
  1965.4    1713.4    61.87
  1965.1    1713    36.88
  1965.2    1712.8    11.88
  1965.3    1712.6    -13.12
  1965.5    1712.4    -38.12
  1965.7    1712.3    -63.12
  1965.5    1712.4    -88.12
  1965    1712.7    -113.11
  1964.4    1713.1    -138.1
  1964    1713.7    -163.09
  1963.5    1714.4    -188.07
  1963.1    1715.2    -213.06
  1962.5    1716    -238.04
  1962    1716.9    -263.02
  1961.3    1717.7    -287.99
  1960.4    1718.2    -312.97
  1959.3    1718.2    -337.95
  1957.8    1717.9    -362.9
  1956.2    1717.5    -387.84
  1954.8    1717.3    -412.8
  1954.1    1717    -437.79
  1953.7    1716.9    -462.79
  1953.2    1716.8    -487.78
  1952.6    1716.7    -512.78
  1952    1716.5    -537.77
  1951.2    1716.3    -562.75
  1950.5    1716    -587.74
  1949.8    1715.9    -609.63'
    sort_by = z
  []

  [78_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2327.3    1795.9    1679.29
  2327.3    1795.9    1654.29
  2327.3    1795.9    1629.29
  2327.3    1795.9    1604.29
  2327.3    1795.9    1579.29
  2327.3    1795.9    1554.29
  2327.3    1795.9    1529.29
  2327.3    1795.9    1504.29
  2327.3    1795.9    1479.29
  2327.3    1795.9    1454.29
  2327.3    1795.9    1429.29
  2327.3    1795.9    1404.29
  2327.3    1795.9    1379.29
  2327.3    1795.9    1354.29
  2327.3    1795.9    1329.29
  2327.3    1795.9    1304.29
  2327.3    1795.9    1279.29
  2327.3    1795.9    1254.29
  2327.3    1795.9    1229.29
  2327.3    1795.9    1204.29
  2327.3    1795.9    1179.29
  2327.3    1795.9    1154.29
  2327.3    1795.9    1129.29
  2327.3    1795.9    1104.29
  2327.3    1795.9    1079.29
  2327.3    1795.9    1054.29
  2327.3    1795.9    1029.29
  2327.3    1795.9    1004.29
  2327.3    1795.9    979.29
  2327.3    1795.9    954.29
  2327.3    1795.9    929.29
  2327.3    1795.9    904.29
  2327.3    1795.9    879.29
  2327.3    1795.9    854.29
  2327.3    1795.9    829.29
  2327.3    1795.9    804.29
  2327.3    1795.9    779.29
  2327.3    1795.9    754.29
  2327.3    1795.9    729.29
  2327.3    1795.9    704.29
  2327.3    1795.9    679.59'
    sort_by = z
  []

  [78B_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2410    1822.8    1687.37
  2410    1822.8    1662.37
  2410    1822.8    1637.37
  2410    1822.8    1612.37
  2410    1822.8    1587.37
  2410    1822.8    1562.37
  2410    1822.8    1537.37
  2410    1822.8    1512.37
  2410    1822.8    1487.37
  2410    1822.8    1462.37
  2410    1822.8    1437.37
  2410    1822.8    1412.37
  2410    1822.8    1387.37
  2410    1822.8    1362.37
  2410    1822.8    1337.37
  2410    1822.8    1312.37
  2410    1822.8    1287.37
  2410    1822.8    1262.37
  2410    1822.8    1237.37
  2410    1822.8    1212.37
  2410    1822.8    1187.37
  2410    1822.8    1162.37
  2410    1822.8    1137.37
  2410    1822.8    1112.37
  2410    1822.8    1087.37
  2410    1822.8    1062.37
  2410    1822.8    1037.37
  2410    1822.8    1012.37
  2410    1822.8    987.37
  2410    1822.8    962.37
  2410    1822.8    937.37
  2410    1822.8    912.37
  2410    1822.8    887.37
  2410    1822.8    862.37
  2410    1822.8    837.37
  2410    1822.8    812.37
  2410    1822.8    787.37
  2410    1822.8    762.37
  2410    1822.8    737.37
  2410    1822.8    712.37
  2410    1822.8    687.37
  2410    1822.8    662.37
  2410    1822.8    637.37
  2410    1822.8    612.37
  2410    1822.8    587.37
  2410    1822.8    562.37
  2410    1822.8    537.37
  2410    1822.8    512.37
  2410    1822.8    487.37
  2410    1822.8    462.37
  2410    1822.8    437.37
  2410    1822.8    412.37
  2410    1822.8    387.37
  2410    1822.8    362.37
  2410    1822.8    337.37
  2410    1822.8    312.37
  2410    1822.8    287.37
  2410    1822.8    262.37
  2410    1822.8    237.37
  2410    1822.8    212.37
  2410    1822.8    187.37
  2410    1822.8    162.37
  2410    1822.8    137.37
  2410    1822.8    112.37
  2410    1822.8    87.37
  2410    1822.8    62.37
  2410    1822.8    37.37
  2410    1822.8    12.37
  2410    1822.8    -12.63
  2410    1822.8    -37.63
  2410    1822.8    -62.63
  2410    1822.8    -87.63
  2410    1822.8    -112.63
  2410    1822.8    -137.63
  2410    1822.8    -162.63
  2410    1822.8    -187.63
  2410    1822.8    -212.63
  2410    1822.8    -237.63
  2410    1822.8    -262.63
  2410    1822.8    -287.63
  2410    1822.8    -312.63
  2410    1822.8    -337.63
  2410    1822.8    -362.63
  2410    1822.8    -387.63
  2410    1822.8    -412.63
  2410    1822.8    -437.63
  2410    1822.8    -462.63
  2410    1822.8    -487.63
  2410    1822.8    -512.63
  2410    1822.8    -537.63
  2410    1822.8    -562.63
  2410    1822.8    -587.63
  2410    1822.8    -612.63
  2410    1822.8    -637.63
  2410    1822.8    -662.63
  2410    1822.8    -687.63
  2410    1822.8    -712.63
  2410    1822.8    -737.63
  2410    1822.8    -762.63
  2410    1822.8    -787.63
  2410    1822.8    -812.63
  2410    1822.8    -837.63
  2410    1822.8    -862.63
  2410    1822.8    -887.63
  2410    1822.8    -912.63
  2410    1822.8    -915.62'
    sort_by = z
  []

  [56_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1746.9    2137.1    1656.14
  1746.9    2137.2    1631.14
  1747    2137.2    1606.14
  1747    2137.3    1581.14
  1747.1    2137.4    1556.14
  1747.2    2137.7    1531.14
  1747.1    2138    1506.14
  1747    2138.3    1481.15
  1746.7    2138.6    1456.15
  1746.4    2138.5    1431.15
  1746.1    2139.1    1406.16
  1746    2139.7    1381.17
  1745.8    2140.3    1356.18
  1745.7    2141    1331.19
  1745.5    2141.7    1306.2
  1745.4    2142.4    1281.21
  1745.3    2143.2    1256.22
  1745.3    2144.1    1231.23
  1745.3    2144.9    1206.25
  1745.4    2145.5    1181.26
  1745.6    2146.1    1156.26
  1745.8    2146.8    1131.28
  1746.2    2147.5    1106.29
  1746.6    2148.2    1081.3
  1747    2148.6    1056.31
  1747.4    2149    1031.31
  1747.8    2149.4    1006.32
  1748.3    2149.8    981.33
  1748.7    2150.2    956.33
  1749.2    2150.6    931.34
  1749.6    2151    906.35
  1750.1    2151.3    881.36
  1750.8    2151.8    856.37
  1751.5    2152.2    831.38
  1752.3    2152.6    806.4
  1752.9    2153    781.41
  1753.3    2153.4    756.42
  1753.8    2153.9    731.43
  1754.3    2154.3    706.43
  1754.6    2154.3    681.44
  1755    2154.4    656.44
  1755.6    2154.4    631.45
  1756.2    2154.3    606.45
  1756.8    2154.2    581.46
  1757    2154.2    556.46
  1756.6    2154.1    531.46
  1756.2    2153.9    506.47
  1755.7    2153.6    481.48
  1755.1    2153.1    456.49
  1754.5    2152.5    431.5
  1754.4    2152.7    406.5
  1754.5    2153    381.51
  1754.4    2152.8    356.51
  1753.9    2152.4    331.52
  1753.3    2152.2    306.52
  1752.7    2152.6    281.54
  1751.5    2153    256.57
  1750.8    2152.6    231.58
  1750.8    2152.9    206.58
  1750.8    2153.3    181.59
  1750.7    2153.6    156.59
  1750.5    2153.8    131.59
  1750.2    2153.6    106.59
  1750.1    2153.2    81.6
  1750    2153.9    56.61
  1749.1    2153.9    31.63
  1748.2    2153.8    6.65
  1746.9    2153.4    -18.32
  1744.9    2152.4    -43.22
  1742.5    2151.1    -68.07
  1740.6    2149.7    -92.95
  1739.2    2148.6    -117.89
  1737.8    2147.5    -142.83
  1736.9    2146.1    -167.77
  1736.8    2144.6    -192.72
  1737    2143.3    -217.69
  1737.1    2142.5    -242.68
  1737    2142.1    -267.67
  1736.6    2141.5    -292.66
  1735.8    2140.7    -317.63
  1735.1    2139.8    -342.61
  1734.4    2139.3    -367.59
  1734    2139    -392.59
  1733.7    2138.5    -417.58
  1733.4    2137.8    -442.57
  1733    2136.9    -467.55
  1732.6    2136.1    -492.54
  1732.3    2135.5    -517.53
  1732.1    2135    -542.52
  1731.9    2134.5    -567.51
  1731.7    2133.8    -592.51
  1731.7    2133.1    -617.49
  1731.8    2132.2    -642.48
  1731.7    2131.1    -667.45
  1731.5    2129.6    -692.41
  1731.3    2128.2    -717.37
  1731.4    2127.1    -742.34
  1731.4    2125.9    -767.31
  1731    2124.7    -792.28
  1730.5    2124    -817.27
  1730.2    2123.8    -842.26
  1729.7    2123.8    -867.26
  1728.7    2123.8    -892.24
  1727.9    2124    -917.22
  1726.5    2124.2    -942.18
  1724.3    2124.2    -967.08
  1721.9    2124    -991.97
  1720.3    2123.6    -1016.91
  1720.5    2123    -1041.9
  1720.1    2122.5    -1066.88
  1719.5    2121.8    -1091.87
  1718.9    2121    -1116.84
  1718.5    2120.5    -1129.23'
    sort_by = z
  []
[]

############################################################
[Outputs]
  execute_on = 'timestep_end'
  csv = true
  file_base = FORGE_NS_Ph3_coarse_point_data
[]
############################################################

(examples/forge_native_state_parameter_calibration/FORGE_NS_Ph3_coarse.i)

#Revisions made to the original FORGE native state model
# NS mesh replaced with mesh generator to create a coarser mesh
# Transient simulation to reach equilibration with sources.
# Dirac kernel source for temperature and mass injection at the bottom of well 78
# 3 levels of mesh refinement around sources to increase sensitivity
# vectorpostprocessor Output along wells includes displacment and does not include stress

# original FORGE native state model can downloaded from the GDR website:
# https://gdr.openei.org/submissions/1397

#parameters being inverted for
K_Cond = 2.8
K_Perm = 1e-14

[Mesh]
  [generate]
    type = GeneratedMeshGenerator
    dim = 3
    nx = 10
    xmin = -40
    xmax = 4040
    ny = 10
    ymin = -40
    ymax = 4040
    nz = 10
    zmin = -2360
    zmax = 1804
  []
  #ALL OF THESE SIDESET NAMES ARE MIXED UP WITH THE DEFAULT SIDESET NAMES
  [bottom_40m_granitoid_40m]
    type = RenameBlockGenerator
    input = generate
    old_block = '0'
    new_block = 'bottom_40m_granitoid_40m'
  []
  [granitoid_40m_surface_40m]
    type = ParsedSubdomainMeshGenerator
    input = bottom_40m_granitoid_40m
    combinatorial_geometry = 'z > 1000'
    block_id = 1
    block_name = granitoid_40m_surface_40m
  []
  [bottom_40m_granitoid_40m_right]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m
    included_boundaries = bottom
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_right'
  []
  [granitoid_40m_surface_40m_right]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_right
    included_boundaries = bottom
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_right'
  []
  [bottom_40m_granitoid_40m_left]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_right
    included_boundaries = top
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_left'
  []
  [granitoid_40m_surface_40m_left]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_left
    included_boundaries = top
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_left'
  []
  [bottom_40m_granitoid_40m_front]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_left
    included_boundaries = left
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_front'
  []
  [granitoid_40m_surface_40m_front]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_front
    included_boundaries = left
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_front'
  []
  [bottom_40m_granitoid_40m_back]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_front
    included_boundaries = right
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_back'
  []
  [granitoid_40m_surface_40m_back]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_back
    included_boundaries = right
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_back'
  []

  [rename]
    type = RenameBoundaryGenerator
    input = granitoid_40m_surface_40m_back
    old_boundary = 'front back'
    new_boundary = 'surface_40m bottom_40m'
  []

  [add_internal_sideset]
    type = SideSetsBetweenSubdomainsGenerator
    input = rename
    primary_block = 0
    paired_block = 1
    new_boundary = granitoid_40m
  []

  use_displaced_mesh = false
[]

[Postprocessors]
  [mass_flux_in]
    type = FunctionValuePostprocessor
    function = mass_flux_in_fn
    execute_on = 'initial timestep_end'
  []
  [T_in]
    type = FunctionValuePostprocessor
    function = T_in_fn
    execute_on = 'initial timestep_end'
  []
[]

[Functions]
  [mass_flux_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   0.0
      50  0.1
      100  0.1'
  []
  [T_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   323.15
      50   323.15
      100  323.15'
  []
[]

[DiracKernels]
  [source]
    #placed at the bottom of well 78_32
    type = PorousFlowPointSourceFromPostprocessor
    variable = pressure
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
  []
  [source_h]
    #placed at the bottom of well 78_32
    type = PorousFlowPointEnthalpySourceFromPostprocessor
    variable = temperature
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
    T_in = T_in
    pressure = pressure
    fp = true_water
  []
[]

[Adaptivity]
  #refine around DiracKernels sources
  # should refine more than one level but this should run fast
  initial_steps = 2
  max_h_level = 1
  marker = box
  [Markers]
    [box]
      type = BoxMarker
      bottom_left = '2027 1495 379'
      top_right = '2527 2095 879'
      inside = refine
      outside = do_nothing
    []
  []
[]

[Executioner]
  line_search = None
  type = Transient
  solve_type = NEWTON
  steady_state_detection = true
  steady_state_tolerance = 1e-8
  dt = 10
  end_time = 100
  start_time = 0
  l_max_its = 1000
  nl_max_its = 100
  l_tol = 1e-6
  nl_abs_tol = 1e-7
  nl_rel_tol = 1e-6
  reuse_preconditioner = true
[]

#############################################################
[GlobalParams]
  PorousFlowDictator = dictator
  displacements = 'disp_i disp_j disp_k'
[]
############################################################
[Variables]
  [pressure]
  []

  [temperature]
    scaling = 1E-8
  []

  [disp_i]
    scaling = 1E-10
  []

  [disp_j]
    scaling = 1E-10
  []

  [disp_k]
    scaling = 1E-10
  []
[]

############################################################
[ICs]
  [temperature]
    type = FunctionIC
    variable = temperature
    function = '616 - ((2360+z)*7.615e-2)'
  []

  [pressure]
    type = FunctionIC
    variable = pressure
    function = '3.5317e7 - ((2360+z)*8455)'
  []
[]

############################################################
[Kernels]
  [Darcy_flow]
    type = PorousFlowAdvectiveFlux
    fluid_component = 0
    variable = pressure
    gravity = '0 0 -9.8'
  []

  [heat_conduction]
    type = PorousFlowHeatConduction
    variable = temperature
  []

  [grad_stress_i]
    type = StressDivergenceTensors
    variable = disp_i
    temperature = temperature
    component = 0
  []

  [grad_stress_j]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_j
    component = 1
  []

  [grad_stress_k]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_k
    component = 2
  []

  [poro_i]
    type = PoroMechanicsCoupling
    variable = disp_i
    porepressure = pressure
    component = 0
  []

  [poro_j]
    type = PoroMechanicsCoupling
    variable = disp_j
    porepressure = pressure
    component = 1
  []

  [poro_k]
    type = PoroMechanicsCoupling
    variable = disp_k
    porepressure = pressure
    component = 2
  []

  [weight]
    type = Gravity
    variable = disp_k
    value = -9.8
  []
[]

###########################################################
[AuxVariables]
  [stress_ii]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ij]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ik]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ji]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jk]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ki]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kk]
    order = CONSTANT
    family = MONOMIAL
  []

  [vonmises]
    order = CONSTANT
    family = MONOMIAL
  []

  [hydrostatic]
    order = CONSTANT
    family = MONOMIAL
  []

  [density]
    order = CONSTANT
    family = MONOMIAL
  []

  [viscosity]
    order = CONSTANT
    family = MONOMIAL
  []
[]

#********************************************************
[Functions]
  [T_on_face_Z_Minus]
    type = PiecewiseBilinear
    data_file = FORGE_bottom_2021.11.10_plus_50.csv
    xaxis = 1
    yaxis = 0
  []
[]

##############################################################
[AuxKernels]
  [stress_ii]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ii
    index_i = 0
    index_j = 0
  []

  [stress_ij]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ij
    index_i = 0
    index_j = 1
  []

  [stress_ik]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ik
    index_i = 0
    index_j = 2
  []

  [stress_ji]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ji
    index_i = 1
    index_j = 0
  []

  [stress_jj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jj
    index_i = 1
    index_j = 1
  []

  [stress_jk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jk
    index_i = 1
    index_j = 2
  []

  [stress_ki]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ki
    index_i = 2
    index_j = 0
  []

  [stress_kj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kj
    index_i = 2
    index_j = 1
  []

  [stress_kk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kk
    index_i = 2
    index_j = 2
  []

  [density]
    type = MaterialRealAux
    variable = density
    property = PorousFlow_fluid_phase_density_qp0
    execute_on = TIMESTEP_END
  []

  [viscosity]
    type = MaterialRealAux
    variable = viscosity
    property = PorousFlow_viscosity_qp0
    execute_on = TIMESTEP_END
  []

  [vonmises]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = vonmises
    scalar_type = VonMisesStress
  []

  [hydrostatic]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = hydrostatic
    scalar_type = Hydrostatic
  []
[]
############################################################
[UserObjects]
  [dictator]
    type = PorousFlowDictator
    porous_flow_vars = 'pressure temperature disp_i disp_j disp_k'
    number_fluid_phases = 1
    number_fluid_components = 1
  []

  [pc]
    type = PorousFlowCapillaryPressureVG
    alpha = 1
    m = 0.5
  []

[]
############################################################
[BCs]
  # B.C. for solid field
  # Prescribed displacements at three boundary surfaces
  [roller_sigma_h_min_x_minus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_front granitoid_40m_surface_40m_front'
  []

  [roller_sigma_h_min_x_plus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_back granitoid_40m_surface_40m_back'
  []

  [roller_sigma_h_max_minus]
    type = DirichletBC
    preset = true
    variable = disp_j
    value = 0
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
  []

  [bottom_z]
    type = DirichletBC
    preset = true
    variable = disp_k
    value = 0
    boundary = 'bottom_40m'
  []

  # Prescribed traction
  [S_h_max_normal_righ]
    type = FunctionNeumannBC
    variable = disp_j
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '-19889*(1785-z)'
  []

  [S_h_max_shear_right]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '929*(1785-z)'
  []

  [S_h_max_shear_left]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
    function = '-929*(1785-z)'
  []

  [Side_Z_minus_traction_Z]
    type = NeumannBC
    variable = disp_j
    boundary = 'bottom_40m'
    value = -3.85e+6
  []

  [Side_Z_Plus_traction_Z]
    type = NeumannBC
    variable = disp_k
    boundary = 'surface_40m'
    value = -101325
  []

  #B.C. for Darcy's flow field
  # Apply zero pore pressure on top surface
  # and no flow side surfaces
  [pore_pressure_top]
    type = DirichletBC
    variable = pressure
    boundary = 'surface_40m'
    value = 101325 #atmospheric pressure in Pa-assumes water level at ground surface
  []

  [pore_pressure_bottom]
    type = DirichletBC
    variable = pressure
    boundary = 'bottom_40m'
    value = 34000000
  []

  #B.C. Temperature field
  # Apply prescibed temperature on top and bottom surfaces
  # and no heat flux on the side surfaces

  [Side_Z_Minus_T]
    type = FunctionDirichletBC
    #type = DirichletBC
    variable = temperature
    boundary = 'bottom_40m'
    function = T_on_face_Z_Minus
  []

  [Side_Z_Plus_T]
    type = DirichletBC
    variable = temperature
    boundary = 'surface_40m'
    value = 299
  []
[]

############################################################

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedBicubicFluidProperties
    fp = true_water
    fluid_property_file = tabulated_fluid_properties_v2.csv
  []
[]

############################################################
[Materials]
  #fluid properties and flow
  [permeability_sediment]
    type = PorousFlowPermeabilityConst
    permeability = '${K_Perm} 0 0  0 ${K_Perm} 0  0 0 ${K_Perm}'
    block = granitoid_40m_surface_40m
  []

  [permeability_granite]
    type = PorousFlowPermeabilityConst
    permeability = '1e-18 0 0  0 1e-18 0  0 0 1e-18'
    block = bottom_40m_granitoid_40m
  []

  [fluid_props]
    type = PorousFlowSingleComponentFluid
    fp = tabulated_water
    phase = 0
    at_nodes = true
  []

  [fluid_props_qp]
    type = PorousFlowSingleComponentFluid
    phase = 0
    fp = tabulated_water
  []

  [porosity_sediment]
    type = PorousFlowPorosityConst
    porosity = 0.12
    block = granitoid_40m_surface_40m
  []

  [porosity_granite]
    type = PorousFlowPorosityConst
    porosity = 0.001
    block = bottom_40m_granitoid_40m
  []

  [ppss]
    type = PorousFlow1PhaseP
    at_nodes = true
    porepressure = pressure
    capillary_pressure = pc
  []

  [ppss_qp]
    type = PorousFlow1PhaseP
    porepressure = pressure
    capillary_pressure = pc
  []

  [massfrac]
    type = PorousFlowMassFraction
    at_nodes = true
  []

  [eff_fluid_pressure]
    type = PorousFlowEffectiveFluidPressure
    at_nodes = true
  []

  [eff_fluid_pressure_qp]
    type = PorousFlowEffectiveFluidPressure
  []

  [relperm]
    type = PorousFlowRelativePermeabilityCorey
    at_nodes = true
    n = 1
    phase = 0
  []

  #energy transport
  [temperature]
    type = PorousFlowTemperature
    temperature = temperature
  []

  [temperature_nodal]
    type = PorousFlowTemperature
    at_nodes = true
    temperature = temperature
  []

  [rock_heat_sediments]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 830.0
    density = 2500
    block = granitoid_40m_surface_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [rock_heat_granitoid]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 790.0
    density = 2750
    block = bottom_40m_granitoid_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [thermal_conductivity_sediments]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '${K_Cond} 0 0  0 ${K_Cond} 0  0 0 ${K_Cond}'
    block = granitoid_40m_surface_40m
  []

  [thermal_conductivity_granitoid]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '3.05 0 0  0 3.05 0  0 0 3.05'
    block = bottom_40m_granitoid_40m
  []

  #mechanics
  [density_sediment]
    type = GenericConstantMaterial
    prop_names = density
    block = granitoid_40m_surface_40m
    prop_values = 2500.0
  []

  [density_granitoid]
    type = GenericConstantMaterial
    prop_names = density
    block = bottom_40m_granitoid_40m
    prop_values = 2750.0
  []

  [biot]
    type = GenericConstantMaterial
    prop_names = biot_coefficient
    prop_values = 0.47
  []

  [elasticity_sediment]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 3.0e+10
    poissons_ratio = 0.30
    block = granitoid_40m_surface_40m
  []

  [elasticity_granitoid]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 6.2e+10
    poissons_ratio = 0.3
    block = bottom_40m_granitoid_40m
  []

  [thermal_expansion_strain]
    type = ComputeThermalExpansionEigenstrain
    stress_free_temperature = 293
    thermal_expansion_coeff = 6.0E-6
    temperature = temperature
    eigenstrain_name = eigenstrain
  []

  [strain]
    type = ComputeSmallStrain
  []

  [stress]
    type = ComputeLinearElasticStress
  []
[]

############################################################
[Preconditioning]
  active = 'preferred'

  [ilu_may_use_less_mem]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -sub_pc_type -sub_pc_factor_shift_type'
    petsc_options_value = 'gmres asm ilu NONZERO'
  []

  [superlu]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -pc_factor_mat_solver_package'
    petsc_options_value = 'gmres lu superlu_dist'
  []

  [preferred]
    type = SMP
    full = true
    petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
    petsc_options_value = ' lu       mumps'
  []
[]

[VectorPostprocessors]
  [16A]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1102.5 1818.6    1625.19
  1102.3 1818.7    1600.19
  1102.2    1818.8    1575.19
  1102.1    1818.8    1550.19
  1102    1818.8    1525.19
  1102.1    1818.8    1500.19
  1102.2    1818.6    1475.19
  1102.3    1818.4    1450.19
  1102.3    1818.2    1425.19
  1102.4    1817.8    1400.19
  1102.5    1817.4    1375.2
  1102.6    1816.7    1350.21
  1102.8    1816    1325.22
  1103.1    1815.2    1300.23
  1103.4    1814.4    1275.25
  1103.8    1813.8    1250.26
  1104    1813.3    1225.26
  1104.3    1813    1200.27
  1104.6    1812.9    1175.27
  1104.9    1812.8    1150.27
  1105.2    1812.8    1125.27
  1105.6    1813    1100.28
  1105.8    1813.2    1075.28
  1105.9    1813.6    1050.28
  1105.6    1814    1025.29
  1105.2    1814    1000.29
  1104.9    1813.9    975.29
  1104.8    1813.6    950.29
  1104.9    1813.5    925.3
  1105.2    1813.5    900.3
  1105.3    1813.7    875.3
  1105.2    1814.1    850.3
  1104.9    1814.4    825.31
  1104.5    1814.3    800.31
  1104.3    1814.2    775.31
  1104.4    1814    750.31
  1104.8    1813.9    725.32
  1105.3    1814.2    700.32
  1105.4    1814.8    675.33
  1105.3    1815.3    650.34
  1104.9    1815.5    625.34
  1104.5    1815.5    600.34
  1104.4    1815.3    575.34
  1104.5    1815.1    550.34
  1104.8    1815.3    525.35
  1105.1    1815.7    500.35
  1105.3    1816.3    475.36
  1105.2    1817    450.37
  1104.9    1817.5    425.38
  1104.5    1817.7    400.38
  1104.1    1817.6    375.39
  1104    1817.3    350.39
  1104.1    1816.9    325.39
  1104.4    1816.9    300.39
  1104.6    1817.3    275.4
  1104.4    1817.8    250.4
  1103.9    1818    225.41
  1103.4    1817.9    200.42
  1103.2    1817.5    175.42
  1103.4    1817    150.43
  1104    1816.7    125.43
  1104.6    1816.7    100.44
  1105.2    1816.9    75.45
  1105.7    1817.3    50.46
  1106.1    1817.8    25.47
  1106.2    1818.3    0.47
  1106.2    1818.5    -24.53
  1106.4    1818.5    -49.53
  1107    1818.3    -74.52
  1107.8    1818.3    -99.51
  1108.7    1818.2    -124.49
  1110.1    1818.4    -149.45
  1113    1819.3    -174.25
  1117.9    1820.8    -198.71
  1124.6    1822.2    -222.77
  1132.2    1822.9    -246.57
  1139.9    1823.2    -270.33
  1148.1    1823    -293.96
  1157.4    1822.4    -317.16
  1168.3    1821.5    -339.62
  1181.1    1820.8    -361.05
  1195.8    1821.2    -381.25
  1211.8    1823.4    -400.34
  1229.3    1826.3    -417.94
  1248.3    1829.5    -433.88
  1268.6    1832.5    -448.14
  1289.9    1835.4    -460.88
  1311.9    1838.4    -472.44
  1334.3    1841.8    -482.88
  1356.9    1845    -493.1
  1379.5    1847.8    -503.42
  1402.1    1849.9    -513.86
  1424.6    1851.2    -524.79
  1446.3    1851.7    -537.2
  1467.3    1851.8    -550.66
  1488.2    1851.8    -564.37
  1509.5    1851.9    -577.52
  1531.4    1852.1    -589.56
  1553.9    1852.2    -600.42
  1576.6    1852.2    -610.87
  1599.5    1852.3    -621.07
  1622.3    1852.9    -631.11
  1645.2    1853.7    -641.19
  1668.1    1854.5    -651.3
  1691    1856.3    -661.09
  1714    1859.3    -670.49
  1737    1862.9    -679.51
  1759.9    1866.9    -688.68
  1782.6    1870.9    -698.32
  1805.2    1875    -708.33
  1827.8    1878.8    -718.33
  1850.4    1882    -728.33
  1873.1    1884.6    -738.49
  1895.7    1886.8    -749.04
  1918.1    1888.5    -760.07
  1940.3    1890    -771.38
  1962.5    1891.6    -782.84
  1984.6    1893.1    -794.3
  2007    1894.5    -805.42
  2029.6    1896.2    -815.88
  2052.5    1898.2    -825.72
  2075.4    1900.1    -835.6
  2098.2    1901.5    -845.77
  2120.9    1902.5    -856.23
  2143.4    1903.2    -867
  2165.9    1904.2    -877.91
  2188.4    1905.7    -888.63
  2211    1907.6    -899.21
  2233.9    1910.2    -908.97
  2257    1913.6    -917.94
  2280    1917.6    -926.72
  2303    1921.8    -935.78
  2325.9    1926.2    -944.74
  2330.4    1927.1    -946.48'
    sort_by = z
  []

  [58_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2002    1723.2    1659.78
  2002    1723.2    1634.78
  2002    1723.3    1609.78
  2002    1723.4    1584.78
  2002    1723.5    1559.78
  2002    1723.5    1534.78
  2002    1723.4    1509.78
  2001.9    1723.3    1484.78
  2001.9    1723.3    1459.79
  2001.9    1723.4    1434.79
  2001.8    1723.5    1409.79
  2001.7    1723.7    1384.79
  2001.6    1724    1359.79
  2001.4    1724.3    1334.79
  2001.1    1724.7    1309.8
  2000.9    1725    1284.8
  2000.6    1725.4    1259.8
  2000.4    1725.7    1234.81
  2000.1    1726.1    1209.81
  1999.8    1726.5    1184.82
  1999.5    1726.9    1159.82
  1999.1    1727.3    1134.83
  1998.8    1727.7    1109.83
  1998.5    1728.3    1084.84
  1998.4    1729    1059.85
  1998.4    1729.7    1034.86
  1998.5    1730.5    1009.87
  1998.8    1731    984.88
  1999.2    1731.4    959.89
  1999.6    1731.7    934.89
  1999.9    1731.9    909.89
  2000.1    1732.2    884.9
  2000.2    1732.4    859.9
  2000.2    1732.7    834.9
  2000    1733    809.9
  1999.8    1733.3    784.91
  1999.4    1733.5    759.91
  1999    1733.7    734.91
  1998.7    1733.8    709.92
  1998.8    1733.8    684.92
  1999.1    1733.8    659.92
  1999.5    1733.6    634.92
  1999.8    1733.3    609.93
  1999.8    1732.8    584.93
  1999.7    1732.2    559.94
  1999.3    1731.5    534.95
  1998.6    1730.7    509.98
  1997.6    1729.8    485.01
  1996.2    1728.8    460.07
  1994.6    1727.7    435.14
  1992.8    1726.4    410.24
  1990.7    1725    385.37
  1988.5    1723.4    360.52
  1986.2    1721.8    335.68
  1983.8    1720.1    310.85
  1981.4    1718.5    286.02
  1978.4    1717.6    261.22
  1975.5    1716.7    236.4
  1972.5    1715.8    211.6
  1969.9    1715.2    186.75
  1968    1714.6    161.82
  1967.1    1714    136.85
  1966.4    1713.8    111.86
  1965.8    1713.8    86.87
  1965.4    1713.4    61.87
  1965.1    1713    36.88
  1965.2    1712.8    11.88
  1965.3    1712.6    -13.12
  1965.5    1712.4    -38.12
  1965.7    1712.3    -63.12
  1965.5    1712.4    -88.12
  1965    1712.7    -113.11
  1964.4    1713.1    -138.1
  1964    1713.7    -163.09
  1963.5    1714.4    -188.07
  1963.1    1715.2    -213.06
  1962.5    1716    -238.04
  1962    1716.9    -263.02
  1961.3    1717.7    -287.99
  1960.4    1718.2    -312.97
  1959.3    1718.2    -337.95
  1957.8    1717.9    -362.9
  1956.2    1717.5    -387.84
  1954.8    1717.3    -412.8
  1954.1    1717    -437.79
  1953.7    1716.9    -462.79
  1953.2    1716.8    -487.78
  1952.6    1716.7    -512.78
  1952    1716.5    -537.77
  1951.2    1716.3    -562.75
  1950.5    1716    -587.74
  1949.8    1715.9    -609.63'
    sort_by = z
  []

  [78_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2327.3    1795.9    1679.29
  2327.3    1795.9    1654.29
  2327.3    1795.9    1629.29
  2327.3    1795.9    1604.29
  2327.3    1795.9    1579.29
  2327.3    1795.9    1554.29
  2327.3    1795.9    1529.29
  2327.3    1795.9    1504.29
  2327.3    1795.9    1479.29
  2327.3    1795.9    1454.29
  2327.3    1795.9    1429.29
  2327.3    1795.9    1404.29
  2327.3    1795.9    1379.29
  2327.3    1795.9    1354.29
  2327.3    1795.9    1329.29
  2327.3    1795.9    1304.29
  2327.3    1795.9    1279.29
  2327.3    1795.9    1254.29
  2327.3    1795.9    1229.29
  2327.3    1795.9    1204.29
  2327.3    1795.9    1179.29
  2327.3    1795.9    1154.29
  2327.3    1795.9    1129.29
  2327.3    1795.9    1104.29
  2327.3    1795.9    1079.29
  2327.3    1795.9    1054.29
  2327.3    1795.9    1029.29
  2327.3    1795.9    1004.29
  2327.3    1795.9    979.29
  2327.3    1795.9    954.29
  2327.3    1795.9    929.29
  2327.3    1795.9    904.29
  2327.3    1795.9    879.29
  2327.3    1795.9    854.29
  2327.3    1795.9    829.29
  2327.3    1795.9    804.29
  2327.3    1795.9    779.29
  2327.3    1795.9    754.29
  2327.3    1795.9    729.29
  2327.3    1795.9    704.29
  2327.3    1795.9    679.59'
    sort_by = z
  []

  [78B_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2410    1822.8    1687.37
  2410    1822.8    1662.37
  2410    1822.8    1637.37
  2410    1822.8    1612.37
  2410    1822.8    1587.37
  2410    1822.8    1562.37
  2410    1822.8    1537.37
  2410    1822.8    1512.37
  2410    1822.8    1487.37
  2410    1822.8    1462.37
  2410    1822.8    1437.37
  2410    1822.8    1412.37
  2410    1822.8    1387.37
  2410    1822.8    1362.37
  2410    1822.8    1337.37
  2410    1822.8    1312.37
  2410    1822.8    1287.37
  2410    1822.8    1262.37
  2410    1822.8    1237.37
  2410    1822.8    1212.37
  2410    1822.8    1187.37
  2410    1822.8    1162.37
  2410    1822.8    1137.37
  2410    1822.8    1112.37
  2410    1822.8    1087.37
  2410    1822.8    1062.37
  2410    1822.8    1037.37
  2410    1822.8    1012.37
  2410    1822.8    987.37
  2410    1822.8    962.37
  2410    1822.8    937.37
  2410    1822.8    912.37
  2410    1822.8    887.37
  2410    1822.8    862.37
  2410    1822.8    837.37
  2410    1822.8    812.37
  2410    1822.8    787.37
  2410    1822.8    762.37
  2410    1822.8    737.37
  2410    1822.8    712.37
  2410    1822.8    687.37
  2410    1822.8    662.37
  2410    1822.8    637.37
  2410    1822.8    612.37
  2410    1822.8    587.37
  2410    1822.8    562.37
  2410    1822.8    537.37
  2410    1822.8    512.37
  2410    1822.8    487.37
  2410    1822.8    462.37
  2410    1822.8    437.37
  2410    1822.8    412.37
  2410    1822.8    387.37
  2410    1822.8    362.37
  2410    1822.8    337.37
  2410    1822.8    312.37
  2410    1822.8    287.37
  2410    1822.8    262.37
  2410    1822.8    237.37
  2410    1822.8    212.37
  2410    1822.8    187.37
  2410    1822.8    162.37
  2410    1822.8    137.37
  2410    1822.8    112.37
  2410    1822.8    87.37
  2410    1822.8    62.37
  2410    1822.8    37.37
  2410    1822.8    12.37
  2410    1822.8    -12.63
  2410    1822.8    -37.63
  2410    1822.8    -62.63
  2410    1822.8    -87.63
  2410    1822.8    -112.63
  2410    1822.8    -137.63
  2410    1822.8    -162.63
  2410    1822.8    -187.63
  2410    1822.8    -212.63
  2410    1822.8    -237.63
  2410    1822.8    -262.63
  2410    1822.8    -287.63
  2410    1822.8    -312.63
  2410    1822.8    -337.63
  2410    1822.8    -362.63
  2410    1822.8    -387.63
  2410    1822.8    -412.63
  2410    1822.8    -437.63
  2410    1822.8    -462.63
  2410    1822.8    -487.63
  2410    1822.8    -512.63
  2410    1822.8    -537.63
  2410    1822.8    -562.63
  2410    1822.8    -587.63
  2410    1822.8    -612.63
  2410    1822.8    -637.63
  2410    1822.8    -662.63
  2410    1822.8    -687.63
  2410    1822.8    -712.63
  2410    1822.8    -737.63
  2410    1822.8    -762.63
  2410    1822.8    -787.63
  2410    1822.8    -812.63
  2410    1822.8    -837.63
  2410    1822.8    -862.63
  2410    1822.8    -887.63
  2410    1822.8    -912.63
  2410    1822.8    -915.62'
    sort_by = z
  []

  [56_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1746.9    2137.1    1656.14
  1746.9    2137.2    1631.14
  1747    2137.2    1606.14
  1747    2137.3    1581.14
  1747.1    2137.4    1556.14
  1747.2    2137.7    1531.14
  1747.1    2138    1506.14
  1747    2138.3    1481.15
  1746.7    2138.6    1456.15
  1746.4    2138.5    1431.15
  1746.1    2139.1    1406.16
  1746    2139.7    1381.17
  1745.8    2140.3    1356.18
  1745.7    2141    1331.19
  1745.5    2141.7    1306.2
  1745.4    2142.4    1281.21
  1745.3    2143.2    1256.22
  1745.3    2144.1    1231.23
  1745.3    2144.9    1206.25
  1745.4    2145.5    1181.26
  1745.6    2146.1    1156.26
  1745.8    2146.8    1131.28
  1746.2    2147.5    1106.29
  1746.6    2148.2    1081.3
  1747    2148.6    1056.31
  1747.4    2149    1031.31
  1747.8    2149.4    1006.32
  1748.3    2149.8    981.33
  1748.7    2150.2    956.33
  1749.2    2150.6    931.34
  1749.6    2151    906.35
  1750.1    2151.3    881.36
  1750.8    2151.8    856.37
  1751.5    2152.2    831.38
  1752.3    2152.6    806.4
  1752.9    2153    781.41
  1753.3    2153.4    756.42
  1753.8    2153.9    731.43
  1754.3    2154.3    706.43
  1754.6    2154.3    681.44
  1755    2154.4    656.44
  1755.6    2154.4    631.45
  1756.2    2154.3    606.45
  1756.8    2154.2    581.46
  1757    2154.2    556.46
  1756.6    2154.1    531.46
  1756.2    2153.9    506.47
  1755.7    2153.6    481.48
  1755.1    2153.1    456.49
  1754.5    2152.5    431.5
  1754.4    2152.7    406.5
  1754.5    2153    381.51
  1754.4    2152.8    356.51
  1753.9    2152.4    331.52
  1753.3    2152.2    306.52
  1752.7    2152.6    281.54
  1751.5    2153    256.57
  1750.8    2152.6    231.58
  1750.8    2152.9    206.58
  1750.8    2153.3    181.59
  1750.7    2153.6    156.59
  1750.5    2153.8    131.59
  1750.2    2153.6    106.59
  1750.1    2153.2    81.6
  1750    2153.9    56.61
  1749.1    2153.9    31.63
  1748.2    2153.8    6.65
  1746.9    2153.4    -18.32
  1744.9    2152.4    -43.22
  1742.5    2151.1    -68.07
  1740.6    2149.7    -92.95
  1739.2    2148.6    -117.89
  1737.8    2147.5    -142.83
  1736.9    2146.1    -167.77
  1736.8    2144.6    -192.72
  1737    2143.3    -217.69
  1737.1    2142.5    -242.68
  1737    2142.1    -267.67
  1736.6    2141.5    -292.66
  1735.8    2140.7    -317.63
  1735.1    2139.8    -342.61
  1734.4    2139.3    -367.59
  1734    2139    -392.59
  1733.7    2138.5    -417.58
  1733.4    2137.8    -442.57
  1733    2136.9    -467.55
  1732.6    2136.1    -492.54
  1732.3    2135.5    -517.53
  1732.1    2135    -542.52
  1731.9    2134.5    -567.51
  1731.7    2133.8    -592.51
  1731.7    2133.1    -617.49
  1731.8    2132.2    -642.48
  1731.7    2131.1    -667.45
  1731.5    2129.6    -692.41
  1731.3    2128.2    -717.37
  1731.4    2127.1    -742.34
  1731.4    2125.9    -767.31
  1731    2124.7    -792.28
  1730.5    2124    -817.27
  1730.2    2123.8    -842.26
  1729.7    2123.8    -867.26
  1728.7    2123.8    -892.24
  1727.9    2124    -917.22
  1726.5    2124.2    -942.18
  1724.3    2124.2    -967.08
  1721.9    2124    -991.97
  1720.3    2123.6    -1016.91
  1720.5    2123    -1041.9
  1720.1    2122.5    -1066.88
  1719.5    2121.8    -1091.87
  1718.9    2121    -1116.84
  1718.5    2120.5    -1129.23'
    sort_by = z
  []
[]

############################################################
[Outputs]
  execute_on = 'timestep_end'
  csv = true
  file_base = FORGE_NS_Ph3_coarse_point_data
[]
############################################################

(examples/forge_native_state_parameter_calibration/FORGE_NS_Ph3_coarse.i)

#Revisions made to the original FORGE native state model
# NS mesh replaced with mesh generator to create a coarser mesh
# Transient simulation to reach equilibration with sources.
# Dirac kernel source for temperature and mass injection at the bottom of well 78
# 3 levels of mesh refinement around sources to increase sensitivity
# vectorpostprocessor Output along wells includes displacment and does not include stress

# original FORGE native state model can downloaded from the GDR website:
# https://gdr.openei.org/submissions/1397

#parameters being inverted for
K_Cond = 2.8
K_Perm = 1e-14

[Mesh]
  [generate]
    type = GeneratedMeshGenerator
    dim = 3
    nx = 10
    xmin = -40
    xmax = 4040
    ny = 10
    ymin = -40
    ymax = 4040
    nz = 10
    zmin = -2360
    zmax = 1804
  []
  #ALL OF THESE SIDESET NAMES ARE MIXED UP WITH THE DEFAULT SIDESET NAMES
  [bottom_40m_granitoid_40m]
    type = RenameBlockGenerator
    input = generate
    old_block = '0'
    new_block = 'bottom_40m_granitoid_40m'
  []
  [granitoid_40m_surface_40m]
    type = ParsedSubdomainMeshGenerator
    input = bottom_40m_granitoid_40m
    combinatorial_geometry = 'z > 1000'
    block_id = 1
    block_name = granitoid_40m_surface_40m
  []
  [bottom_40m_granitoid_40m_right]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m
    included_boundaries = bottom
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_right'
  []
  [granitoid_40m_surface_40m_right]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_right
    included_boundaries = bottom
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_right'
  []
  [bottom_40m_granitoid_40m_left]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_right
    included_boundaries = top
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_left'
  []
  [granitoid_40m_surface_40m_left]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_left
    included_boundaries = top
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_left'
  []
  [bottom_40m_granitoid_40m_front]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_left
    included_boundaries = left
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_front'
  []
  [granitoid_40m_surface_40m_front]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_front
    included_boundaries = left
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_front'
  []
  [bottom_40m_granitoid_40m_back]
    type = ParsedGenerateSideset
    input = granitoid_40m_surface_40m_front
    included_boundaries = right
    combinatorial_geometry = 'z < 1000'
    new_sideset_name = 'bottom_40m_granitoid_40m_back'
  []
  [granitoid_40m_surface_40m_back]
    type = ParsedGenerateSideset
    input = bottom_40m_granitoid_40m_back
    included_boundaries = right
    combinatorial_geometry = 'z > 1000'
    new_sideset_name = 'granitoid_40m_surface_40m_back'
  []

  [rename]
    type = RenameBoundaryGenerator
    input = granitoid_40m_surface_40m_back
    old_boundary = 'front back'
    new_boundary = 'surface_40m bottom_40m'
  []

  [add_internal_sideset]
    type = SideSetsBetweenSubdomainsGenerator
    input = rename
    primary_block = 0
    paired_block = 1
    new_boundary = granitoid_40m
  []

  use_displaced_mesh = false
[]

[Postprocessors]
  [mass_flux_in]
    type = FunctionValuePostprocessor
    function = mass_flux_in_fn
    execute_on = 'initial timestep_end'
  []
  [T_in]
    type = FunctionValuePostprocessor
    function = T_in_fn
    execute_on = 'initial timestep_end'
  []
[]

[Functions]
  [mass_flux_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   0.0
      50  0.1
      100  0.1'
  []
  [T_in_fn]
    type = PiecewiseLinear
    xy_data = '
      0   323.15
      50   323.15
      100  323.15'
  []
[]

[DiracKernels]
  [source]
    #placed at the bottom of well 78_32
    type = PorousFlowPointSourceFromPostprocessor
    variable = pressure
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
  []
  [source_h]
    #placed at the bottom of well 78_32
    type = PorousFlowPointEnthalpySourceFromPostprocessor
    variable = temperature
    mass_flux = mass_flux_in
    point = '2327.3 1795.9 679.59'
    T_in = T_in
    pressure = pressure
    fp = true_water
  []
[]

[Adaptivity]
  #refine around DiracKernels sources
  # should refine more than one level but this should run fast
  initial_steps = 2
  max_h_level = 1
  marker = box
  [Markers]
    [box]
      type = BoxMarker
      bottom_left = '2027 1495 379'
      top_right = '2527 2095 879'
      inside = refine
      outside = do_nothing
    []
  []
[]

[Executioner]
  line_search = None
  type = Transient
  solve_type = NEWTON
  steady_state_detection = true
  steady_state_tolerance = 1e-8
  dt = 10
  end_time = 100
  start_time = 0
  l_max_its = 1000
  nl_max_its = 100
  l_tol = 1e-6
  nl_abs_tol = 1e-7
  nl_rel_tol = 1e-6
  reuse_preconditioner = true
[]

#############################################################
[GlobalParams]
  PorousFlowDictator = dictator
  displacements = 'disp_i disp_j disp_k'
[]
############################################################
[Variables]
  [pressure]
  []

  [temperature]
    scaling = 1E-8
  []

  [disp_i]
    scaling = 1E-10
  []

  [disp_j]
    scaling = 1E-10
  []

  [disp_k]
    scaling = 1E-10
  []
[]

############################################################
[ICs]
  [temperature]
    type = FunctionIC
    variable = temperature
    function = '616 - ((2360+z)*7.615e-2)'
  []

  [pressure]
    type = FunctionIC
    variable = pressure
    function = '3.5317e7 - ((2360+z)*8455)'
  []
[]

############################################################
[Kernels]
  [Darcy_flow]
    type = PorousFlowAdvectiveFlux
    fluid_component = 0
    variable = pressure
    gravity = '0 0 -9.8'
  []

  [heat_conduction]
    type = PorousFlowHeatConduction
    variable = temperature
  []

  [grad_stress_i]
    type = StressDivergenceTensors
    variable = disp_i
    temperature = temperature
    component = 0
  []

  [grad_stress_j]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_j
    component = 1
  []

  [grad_stress_k]
    type = StressDivergenceTensors
    temperature = temperature
    variable = disp_k
    component = 2
  []

  [poro_i]
    type = PoroMechanicsCoupling
    variable = disp_i
    porepressure = pressure
    component = 0
  []

  [poro_j]
    type = PoroMechanicsCoupling
    variable = disp_j
    porepressure = pressure
    component = 1
  []

  [poro_k]
    type = PoroMechanicsCoupling
    variable = disp_k
    porepressure = pressure
    component = 2
  []

  [weight]
    type = Gravity
    variable = disp_k
    value = -9.8
  []
[]

###########################################################
[AuxVariables]
  [stress_ii]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ij]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ik]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ji]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_jk]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_ki]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kj]
    order = CONSTANT
    family = MONOMIAL
  []

  [stress_kk]
    order = CONSTANT
    family = MONOMIAL
  []

  [vonmises]
    order = CONSTANT
    family = MONOMIAL
  []

  [hydrostatic]
    order = CONSTANT
    family = MONOMIAL
  []

  [density]
    order = CONSTANT
    family = MONOMIAL
  []

  [viscosity]
    order = CONSTANT
    family = MONOMIAL
  []
[]

#********************************************************
[Functions]
  [T_on_face_Z_Minus]
    type = PiecewiseBilinear
    data_file = FORGE_bottom_2021.11.10_plus_50.csv
    xaxis = 1
    yaxis = 0
  []
[]

##############################################################
[AuxKernels]
  [stress_ii]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ii
    index_i = 0
    index_j = 0
  []

  [stress_ij]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ij
    index_i = 0
    index_j = 1
  []

  [stress_ik]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ik
    index_i = 0
    index_j = 2
  []

  [stress_ji]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ji
    index_i = 1
    index_j = 0
  []

  [stress_jj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jj
    index_i = 1
    index_j = 1
  []

  [stress_jk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_jk
    index_i = 1
    index_j = 2
  []

  [stress_ki]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_ki
    index_i = 2
    index_j = 0
  []

  [stress_kj]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kj
    index_i = 2
    index_j = 1
  []

  [stress_kk]
    type = RankTwoAux
    rank_two_tensor = stress
    variable = stress_kk
    index_i = 2
    index_j = 2
  []

  [density]
    type = MaterialRealAux
    variable = density
    property = PorousFlow_fluid_phase_density_qp0
    execute_on = TIMESTEP_END
  []

  [viscosity]
    type = MaterialRealAux
    variable = viscosity
    property = PorousFlow_viscosity_qp0
    execute_on = TIMESTEP_END
  []

  [vonmises]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = vonmises
    scalar_type = VonMisesStress
  []

  [hydrostatic]
    type = RankTwoScalarAux
    rank_two_tensor = stress
    variable = hydrostatic
    scalar_type = Hydrostatic
  []
[]
############################################################
[UserObjects]
  [dictator]
    type = PorousFlowDictator
    porous_flow_vars = 'pressure temperature disp_i disp_j disp_k'
    number_fluid_phases = 1
    number_fluid_components = 1
  []

  [pc]
    type = PorousFlowCapillaryPressureVG
    alpha = 1
    m = 0.5
  []

[]
############################################################
[BCs]
  # B.C. for solid field
  # Prescribed displacements at three boundary surfaces
  [roller_sigma_h_min_x_minus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_front granitoid_40m_surface_40m_front'
  []

  [roller_sigma_h_min_x_plus]
    type = DirichletBC
    preset = true
    variable = disp_i
    value = 0
    boundary = 'bottom_40m_granitoid_40m_back granitoid_40m_surface_40m_back'
  []

  [roller_sigma_h_max_minus]
    type = DirichletBC
    preset = true
    variable = disp_j
    value = 0
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
  []

  [bottom_z]
    type = DirichletBC
    preset = true
    variable = disp_k
    value = 0
    boundary = 'bottom_40m'
  []

  # Prescribed traction
  [S_h_max_normal_righ]
    type = FunctionNeumannBC
    variable = disp_j
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '-19889*(1785-z)'
  []

  [S_h_max_shear_right]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_left granitoid_40m_surface_40m_left'
    function = '929*(1785-z)'
  []

  [S_h_max_shear_left]
    type = FunctionNeumannBC
    variable = disp_k
    boundary = 'bottom_40m_granitoid_40m_right granitoid_40m_surface_40m_right'
    function = '-929*(1785-z)'
  []

  [Side_Z_minus_traction_Z]
    type = NeumannBC
    variable = disp_j
    boundary = 'bottom_40m'
    value = -3.85e+6
  []

  [Side_Z_Plus_traction_Z]
    type = NeumannBC
    variable = disp_k
    boundary = 'surface_40m'
    value = -101325
  []

  #B.C. for Darcy's flow field
  # Apply zero pore pressure on top surface
  # and no flow side surfaces
  [pore_pressure_top]
    type = DirichletBC
    variable = pressure
    boundary = 'surface_40m'
    value = 101325 #atmospheric pressure in Pa-assumes water level at ground surface
  []

  [pore_pressure_bottom]
    type = DirichletBC
    variable = pressure
    boundary = 'bottom_40m'
    value = 34000000
  []

  #B.C. Temperature field
  # Apply prescibed temperature on top and bottom surfaces
  # and no heat flux on the side surfaces

  [Side_Z_Minus_T]
    type = FunctionDirichletBC
    #type = DirichletBC
    variable = temperature
    boundary = 'bottom_40m'
    function = T_on_face_Z_Minus
  []

  [Side_Z_Plus_T]
    type = DirichletBC
    variable = temperature
    boundary = 'surface_40m'
    value = 299
  []
[]

############################################################

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedBicubicFluidProperties
    fp = true_water
    fluid_property_file = tabulated_fluid_properties_v2.csv
  []
[]

############################################################
[Materials]
  #fluid properties and flow
  [permeability_sediment]
    type = PorousFlowPermeabilityConst
    permeability = '${K_Perm} 0 0  0 ${K_Perm} 0  0 0 ${K_Perm}'
    block = granitoid_40m_surface_40m
  []

  [permeability_granite]
    type = PorousFlowPermeabilityConst
    permeability = '1e-18 0 0  0 1e-18 0  0 0 1e-18'
    block = bottom_40m_granitoid_40m
  []

  [fluid_props]
    type = PorousFlowSingleComponentFluid
    fp = tabulated_water
    phase = 0
    at_nodes = true
  []

  [fluid_props_qp]
    type = PorousFlowSingleComponentFluid
    phase = 0
    fp = tabulated_water
  []

  [porosity_sediment]
    type = PorousFlowPorosityConst
    porosity = 0.12
    block = granitoid_40m_surface_40m
  []

  [porosity_granite]
    type = PorousFlowPorosityConst
    porosity = 0.001
    block = bottom_40m_granitoid_40m
  []

  [ppss]
    type = PorousFlow1PhaseP
    at_nodes = true
    porepressure = pressure
    capillary_pressure = pc
  []

  [ppss_qp]
    type = PorousFlow1PhaseP
    porepressure = pressure
    capillary_pressure = pc
  []

  [massfrac]
    type = PorousFlowMassFraction
    at_nodes = true
  []

  [eff_fluid_pressure]
    type = PorousFlowEffectiveFluidPressure
    at_nodes = true
  []

  [eff_fluid_pressure_qp]
    type = PorousFlowEffectiveFluidPressure
  []

  [relperm]
    type = PorousFlowRelativePermeabilityCorey
    at_nodes = true
    n = 1
    phase = 0
  []

  #energy transport
  [temperature]
    type = PorousFlowTemperature
    temperature = temperature
  []

  [temperature_nodal]
    type = PorousFlowTemperature
    at_nodes = true
    temperature = temperature
  []

  [rock_heat_sediments]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 830.0
    density = 2500
    block = granitoid_40m_surface_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [rock_heat_granitoid]
    type = PorousFlowMatrixInternalEnergy
    specific_heat_capacity = 790.0
    density = 2750
    block = bottom_40m_granitoid_40m
    #density from Rick allis analysis, specific heat per tabulated values
  []

  [thermal_conductivity_sediments]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '${K_Cond} 0 0  0 ${K_Cond} 0  0 0 ${K_Cond}'
    block = granitoid_40m_surface_40m
  []

  [thermal_conductivity_granitoid]
    type = PorousFlowThermalConductivityIdeal
    dry_thermal_conductivity = '3.05 0 0  0 3.05 0  0 0 3.05'
    block = bottom_40m_granitoid_40m
  []

  #mechanics
  [density_sediment]
    type = GenericConstantMaterial
    prop_names = density
    block = granitoid_40m_surface_40m
    prop_values = 2500.0
  []

  [density_granitoid]
    type = GenericConstantMaterial
    prop_names = density
    block = bottom_40m_granitoid_40m
    prop_values = 2750.0
  []

  [biot]
    type = GenericConstantMaterial
    prop_names = biot_coefficient
    prop_values = 0.47
  []

  [elasticity_sediment]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 3.0e+10
    poissons_ratio = 0.30
    block = granitoid_40m_surface_40m
  []

  [elasticity_granitoid]
    type = ComputeIsotropicElasticityTensor
    youngs_modulus = 6.2e+10
    poissons_ratio = 0.3
    block = bottom_40m_granitoid_40m
  []

  [thermal_expansion_strain]
    type = ComputeThermalExpansionEigenstrain
    stress_free_temperature = 293
    thermal_expansion_coeff = 6.0E-6
    temperature = temperature
    eigenstrain_name = eigenstrain
  []

  [strain]
    type = ComputeSmallStrain
  []

  [stress]
    type = ComputeLinearElasticStress
  []
[]

############################################################
[Preconditioning]
  active = 'preferred'

  [ilu_may_use_less_mem]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -sub_pc_type -sub_pc_factor_shift_type'
    petsc_options_value = 'gmres asm ilu NONZERO'
  []

  [superlu]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-ksp_type -pc_type -pc_factor_mat_solver_package'
    petsc_options_value = 'gmres lu superlu_dist'
  []

  [preferred]
    type = SMP
    full = true
    petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
    petsc_options_value = ' lu       mumps'
  []
[]

[VectorPostprocessors]
  [16A]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1102.5 1818.6    1625.19
  1102.3 1818.7    1600.19
  1102.2    1818.8    1575.19
  1102.1    1818.8    1550.19
  1102    1818.8    1525.19
  1102.1    1818.8    1500.19
  1102.2    1818.6    1475.19
  1102.3    1818.4    1450.19
  1102.3    1818.2    1425.19
  1102.4    1817.8    1400.19
  1102.5    1817.4    1375.2
  1102.6    1816.7    1350.21
  1102.8    1816    1325.22
  1103.1    1815.2    1300.23
  1103.4    1814.4    1275.25
  1103.8    1813.8    1250.26
  1104    1813.3    1225.26
  1104.3    1813    1200.27
  1104.6    1812.9    1175.27
  1104.9    1812.8    1150.27
  1105.2    1812.8    1125.27
  1105.6    1813    1100.28
  1105.8    1813.2    1075.28
  1105.9    1813.6    1050.28
  1105.6    1814    1025.29
  1105.2    1814    1000.29
  1104.9    1813.9    975.29
  1104.8    1813.6    950.29
  1104.9    1813.5    925.3
  1105.2    1813.5    900.3
  1105.3    1813.7    875.3
  1105.2    1814.1    850.3
  1104.9    1814.4    825.31
  1104.5    1814.3    800.31
  1104.3    1814.2    775.31
  1104.4    1814    750.31
  1104.8    1813.9    725.32
  1105.3    1814.2    700.32
  1105.4    1814.8    675.33
  1105.3    1815.3    650.34
  1104.9    1815.5    625.34
  1104.5    1815.5    600.34
  1104.4    1815.3    575.34
  1104.5    1815.1    550.34
  1104.8    1815.3    525.35
  1105.1    1815.7    500.35
  1105.3    1816.3    475.36
  1105.2    1817    450.37
  1104.9    1817.5    425.38
  1104.5    1817.7    400.38
  1104.1    1817.6    375.39
  1104    1817.3    350.39
  1104.1    1816.9    325.39
  1104.4    1816.9    300.39
  1104.6    1817.3    275.4
  1104.4    1817.8    250.4
  1103.9    1818    225.41
  1103.4    1817.9    200.42
  1103.2    1817.5    175.42
  1103.4    1817    150.43
  1104    1816.7    125.43
  1104.6    1816.7    100.44
  1105.2    1816.9    75.45
  1105.7    1817.3    50.46
  1106.1    1817.8    25.47
  1106.2    1818.3    0.47
  1106.2    1818.5    -24.53
  1106.4    1818.5    -49.53
  1107    1818.3    -74.52
  1107.8    1818.3    -99.51
  1108.7    1818.2    -124.49
  1110.1    1818.4    -149.45
  1113    1819.3    -174.25
  1117.9    1820.8    -198.71
  1124.6    1822.2    -222.77
  1132.2    1822.9    -246.57
  1139.9    1823.2    -270.33
  1148.1    1823    -293.96
  1157.4    1822.4    -317.16
  1168.3    1821.5    -339.62
  1181.1    1820.8    -361.05
  1195.8    1821.2    -381.25
  1211.8    1823.4    -400.34
  1229.3    1826.3    -417.94
  1248.3    1829.5    -433.88
  1268.6    1832.5    -448.14
  1289.9    1835.4    -460.88
  1311.9    1838.4    -472.44
  1334.3    1841.8    -482.88
  1356.9    1845    -493.1
  1379.5    1847.8    -503.42
  1402.1    1849.9    -513.86
  1424.6    1851.2    -524.79
  1446.3    1851.7    -537.2
  1467.3    1851.8    -550.66
  1488.2    1851.8    -564.37
  1509.5    1851.9    -577.52
  1531.4    1852.1    -589.56
  1553.9    1852.2    -600.42
  1576.6    1852.2    -610.87
  1599.5    1852.3    -621.07
  1622.3    1852.9    -631.11
  1645.2    1853.7    -641.19
  1668.1    1854.5    -651.3
  1691    1856.3    -661.09
  1714    1859.3    -670.49
  1737    1862.9    -679.51
  1759.9    1866.9    -688.68
  1782.6    1870.9    -698.32
  1805.2    1875    -708.33
  1827.8    1878.8    -718.33
  1850.4    1882    -728.33
  1873.1    1884.6    -738.49
  1895.7    1886.8    -749.04
  1918.1    1888.5    -760.07
  1940.3    1890    -771.38
  1962.5    1891.6    -782.84
  1984.6    1893.1    -794.3
  2007    1894.5    -805.42
  2029.6    1896.2    -815.88
  2052.5    1898.2    -825.72
  2075.4    1900.1    -835.6
  2098.2    1901.5    -845.77
  2120.9    1902.5    -856.23
  2143.4    1903.2    -867
  2165.9    1904.2    -877.91
  2188.4    1905.7    -888.63
  2211    1907.6    -899.21
  2233.9    1910.2    -908.97
  2257    1913.6    -917.94
  2280    1917.6    -926.72
  2303    1921.8    -935.78
  2325.9    1926.2    -944.74
  2330.4    1927.1    -946.48'
    sort_by = z
  []

  [58_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2002    1723.2    1659.78
  2002    1723.2    1634.78
  2002    1723.3    1609.78
  2002    1723.4    1584.78
  2002    1723.5    1559.78
  2002    1723.5    1534.78
  2002    1723.4    1509.78
  2001.9    1723.3    1484.78
  2001.9    1723.3    1459.79
  2001.9    1723.4    1434.79
  2001.8    1723.5    1409.79
  2001.7    1723.7    1384.79
  2001.6    1724    1359.79
  2001.4    1724.3    1334.79
  2001.1    1724.7    1309.8
  2000.9    1725    1284.8
  2000.6    1725.4    1259.8
  2000.4    1725.7    1234.81
  2000.1    1726.1    1209.81
  1999.8    1726.5    1184.82
  1999.5    1726.9    1159.82
  1999.1    1727.3    1134.83
  1998.8    1727.7    1109.83
  1998.5    1728.3    1084.84
  1998.4    1729    1059.85
  1998.4    1729.7    1034.86
  1998.5    1730.5    1009.87
  1998.8    1731    984.88
  1999.2    1731.4    959.89
  1999.6    1731.7    934.89
  1999.9    1731.9    909.89
  2000.1    1732.2    884.9
  2000.2    1732.4    859.9
  2000.2    1732.7    834.9
  2000    1733    809.9
  1999.8    1733.3    784.91
  1999.4    1733.5    759.91
  1999    1733.7    734.91
  1998.7    1733.8    709.92
  1998.8    1733.8    684.92
  1999.1    1733.8    659.92
  1999.5    1733.6    634.92
  1999.8    1733.3    609.93
  1999.8    1732.8    584.93
  1999.7    1732.2    559.94
  1999.3    1731.5    534.95
  1998.6    1730.7    509.98
  1997.6    1729.8    485.01
  1996.2    1728.8    460.07
  1994.6    1727.7    435.14
  1992.8    1726.4    410.24
  1990.7    1725    385.37
  1988.5    1723.4    360.52
  1986.2    1721.8    335.68
  1983.8    1720.1    310.85
  1981.4    1718.5    286.02
  1978.4    1717.6    261.22
  1975.5    1716.7    236.4
  1972.5    1715.8    211.6
  1969.9    1715.2    186.75
  1968    1714.6    161.82
  1967.1    1714    136.85
  1966.4    1713.8    111.86
  1965.8    1713.8    86.87
  1965.4    1713.4    61.87
  1965.1    1713    36.88
  1965.2    1712.8    11.88
  1965.3    1712.6    -13.12
  1965.5    1712.4    -38.12
  1965.7    1712.3    -63.12
  1965.5    1712.4    -88.12
  1965    1712.7    -113.11
  1964.4    1713.1    -138.1
  1964    1713.7    -163.09
  1963.5    1714.4    -188.07
  1963.1    1715.2    -213.06
  1962.5    1716    -238.04
  1962    1716.9    -263.02
  1961.3    1717.7    -287.99
  1960.4    1718.2    -312.97
  1959.3    1718.2    -337.95
  1957.8    1717.9    -362.9
  1956.2    1717.5    -387.84
  1954.8    1717.3    -412.8
  1954.1    1717    -437.79
  1953.7    1716.9    -462.79
  1953.2    1716.8    -487.78
  1952.6    1716.7    -512.78
  1952    1716.5    -537.77
  1951.2    1716.3    -562.75
  1950.5    1716    -587.74
  1949.8    1715.9    -609.63'
    sort_by = z
  []

  [78_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2327.3    1795.9    1679.29
  2327.3    1795.9    1654.29
  2327.3    1795.9    1629.29
  2327.3    1795.9    1604.29
  2327.3    1795.9    1579.29
  2327.3    1795.9    1554.29
  2327.3    1795.9    1529.29
  2327.3    1795.9    1504.29
  2327.3    1795.9    1479.29
  2327.3    1795.9    1454.29
  2327.3    1795.9    1429.29
  2327.3    1795.9    1404.29
  2327.3    1795.9    1379.29
  2327.3    1795.9    1354.29
  2327.3    1795.9    1329.29
  2327.3    1795.9    1304.29
  2327.3    1795.9    1279.29
  2327.3    1795.9    1254.29
  2327.3    1795.9    1229.29
  2327.3    1795.9    1204.29
  2327.3    1795.9    1179.29
  2327.3    1795.9    1154.29
  2327.3    1795.9    1129.29
  2327.3    1795.9    1104.29
  2327.3    1795.9    1079.29
  2327.3    1795.9    1054.29
  2327.3    1795.9    1029.29
  2327.3    1795.9    1004.29
  2327.3    1795.9    979.29
  2327.3    1795.9    954.29
  2327.3    1795.9    929.29
  2327.3    1795.9    904.29
  2327.3    1795.9    879.29
  2327.3    1795.9    854.29
  2327.3    1795.9    829.29
  2327.3    1795.9    804.29
  2327.3    1795.9    779.29
  2327.3    1795.9    754.29
  2327.3    1795.9    729.29
  2327.3    1795.9    704.29
  2327.3    1795.9    679.59'
    sort_by = z
  []

  [78B_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '2410    1822.8    1687.37
  2410    1822.8    1662.37
  2410    1822.8    1637.37
  2410    1822.8    1612.37
  2410    1822.8    1587.37
  2410    1822.8    1562.37
  2410    1822.8    1537.37
  2410    1822.8    1512.37
  2410    1822.8    1487.37
  2410    1822.8    1462.37
  2410    1822.8    1437.37
  2410    1822.8    1412.37
  2410    1822.8    1387.37
  2410    1822.8    1362.37
  2410    1822.8    1337.37
  2410    1822.8    1312.37
  2410    1822.8    1287.37
  2410    1822.8    1262.37
  2410    1822.8    1237.37
  2410    1822.8    1212.37
  2410    1822.8    1187.37
  2410    1822.8    1162.37
  2410    1822.8    1137.37
  2410    1822.8    1112.37
  2410    1822.8    1087.37
  2410    1822.8    1062.37
  2410    1822.8    1037.37
  2410    1822.8    1012.37
  2410    1822.8    987.37
  2410    1822.8    962.37
  2410    1822.8    937.37
  2410    1822.8    912.37
  2410    1822.8    887.37
  2410    1822.8    862.37
  2410    1822.8    837.37
  2410    1822.8    812.37
  2410    1822.8    787.37
  2410    1822.8    762.37
  2410    1822.8    737.37
  2410    1822.8    712.37
  2410    1822.8    687.37
  2410    1822.8    662.37
  2410    1822.8    637.37
  2410    1822.8    612.37
  2410    1822.8    587.37
  2410    1822.8    562.37
  2410    1822.8    537.37
  2410    1822.8    512.37
  2410    1822.8    487.37
  2410    1822.8    462.37
  2410    1822.8    437.37
  2410    1822.8    412.37
  2410    1822.8    387.37
  2410    1822.8    362.37
  2410    1822.8    337.37
  2410    1822.8    312.37
  2410    1822.8    287.37
  2410    1822.8    262.37
  2410    1822.8    237.37
  2410    1822.8    212.37
  2410    1822.8    187.37
  2410    1822.8    162.37
  2410    1822.8    137.37
  2410    1822.8    112.37
  2410    1822.8    87.37
  2410    1822.8    62.37
  2410    1822.8    37.37
  2410    1822.8    12.37
  2410    1822.8    -12.63
  2410    1822.8    -37.63
  2410    1822.8    -62.63
  2410    1822.8    -87.63
  2410    1822.8    -112.63
  2410    1822.8    -137.63
  2410    1822.8    -162.63
  2410    1822.8    -187.63
  2410    1822.8    -212.63
  2410    1822.8    -237.63
  2410    1822.8    -262.63
  2410    1822.8    -287.63
  2410    1822.8    -312.63
  2410    1822.8    -337.63
  2410    1822.8    -362.63
  2410    1822.8    -387.63
  2410    1822.8    -412.63
  2410    1822.8    -437.63
  2410    1822.8    -462.63
  2410    1822.8    -487.63
  2410    1822.8    -512.63
  2410    1822.8    -537.63
  2410    1822.8    -562.63
  2410    1822.8    -587.63
  2410    1822.8    -612.63
  2410    1822.8    -637.63
  2410    1822.8    -662.63
  2410    1822.8    -687.63
  2410    1822.8    -712.63
  2410    1822.8    -737.63
  2410    1822.8    -762.63
  2410    1822.8    -787.63
  2410    1822.8    -812.63
  2410    1822.8    -837.63
  2410    1822.8    -862.63
  2410    1822.8    -887.63
  2410    1822.8    -912.63
  2410    1822.8    -915.62'
    sort_by = z
  []

  [56_32]
    type = PointValueSampler
    variable = 'temperature pressure disp_i disp_j disp_k'
    points = '1746.9    2137.1    1656.14
  1746.9    2137.2    1631.14
  1747    2137.2    1606.14
  1747    2137.3    1581.14
  1747.1    2137.4    1556.14
  1747.2    2137.7    1531.14
  1747.1    2138    1506.14
  1747    2138.3    1481.15
  1746.7    2138.6    1456.15
  1746.4    2138.5    1431.15
  1746.1    2139.1    1406.16
  1746    2139.7    1381.17
  1745.8    2140.3    1356.18
  1745.7    2141    1331.19
  1745.5    2141.7    1306.2
  1745.4    2142.4    1281.21
  1745.3    2143.2    1256.22
  1745.3    2144.1    1231.23
  1745.3    2144.9    1206.25
  1745.4    2145.5    1181.26
  1745.6    2146.1    1156.26
  1745.8    2146.8    1131.28
  1746.2    2147.5    1106.29
  1746.6    2148.2    1081.3
  1747    2148.6    1056.31
  1747.4    2149    1031.31
  1747.8    2149.4    1006.32
  1748.3    2149.8    981.33
  1748.7    2150.2    956.33
  1749.2    2150.6    931.34
  1749.6    2151    906.35
  1750.1    2151.3    881.36
  1750.8    2151.8    856.37
  1751.5    2152.2    831.38
  1752.3    2152.6    806.4
  1752.9    2153    781.41
  1753.3    2153.4    756.42
  1753.8    2153.9    731.43
  1754.3    2154.3    706.43
  1754.6    2154.3    681.44
  1755    2154.4    656.44
  1755.6    2154.4    631.45
  1756.2    2154.3    606.45
  1756.8    2154.2    581.46
  1757    2154.2    556.46
  1756.6    2154.1    531.46
  1756.2    2153.9    506.47
  1755.7    2153.6    481.48
  1755.1    2153.1    456.49
  1754.5    2152.5    431.5
  1754.4    2152.7    406.5
  1754.5    2153    381.51
  1754.4    2152.8    356.51
  1753.9    2152.4    331.52
  1753.3    2152.2    306.52
  1752.7    2152.6    281.54
  1751.5    2153    256.57
  1750.8    2152.6    231.58
  1750.8    2152.9    206.58
  1750.8    2153.3    181.59
  1750.7    2153.6    156.59
  1750.5    2153.8    131.59
  1750.2    2153.6    106.59
  1750.1    2153.2    81.6
  1750    2153.9    56.61
  1749.1    2153.9    31.63
  1748.2    2153.8    6.65
  1746.9    2153.4    -18.32
  1744.9    2152.4    -43.22
  1742.5    2151.1    -68.07
  1740.6    2149.7    -92.95
  1739.2    2148.6    -117.89
  1737.8    2147.5    -142.83
  1736.9    2146.1    -167.77
  1736.8    2144.6    -192.72
  1737    2143.3    -217.69
  1737.1    2142.5    -242.68
  1737    2142.1    -267.67
  1736.6    2141.5    -292.66
  1735.8    2140.7    -317.63
  1735.1    2139.8    -342.61
  1734.4    2139.3    -367.59
  1734    2139    -392.59
  1733.7    2138.5    -417.58
  1733.4    2137.8    -442.57
  1733    2136.9    -467.55
  1732.6    2136.1    -492.54
  1732.3    2135.5    -517.53
  1732.1    2135    -542.52
  1731.9    2134.5    -567.51
  1731.7    2133.8    -592.51
  1731.7    2133.1    -617.49
  1731.8    2132.2    -642.48
  1731.7    2131.1    -667.45
  1731.5    2129.6    -692.41
  1731.3    2128.2    -717.37
  1731.4    2127.1    -742.34
  1731.4    2125.9    -767.31
  1731    2124.7    -792.28
  1730.5    2124    -817.27
  1730.2    2123.8    -842.26
  1729.7    2123.8    -867.26
  1728.7    2123.8    -892.24
  1727.9    2124    -917.22
  1726.5    2124.2    -942.18
  1724.3    2124.2    -967.08
  1721.9    2124    -991.97
  1720.3    2123.6    -1016.91
  1720.5    2123    -1041.9
  1720.1    2122.5    -1066.88
  1719.5    2121.8    -1091.87
  1718.9    2121    -1116.84
  1718.5    2120.5    -1129.23'
    sort_by = z
  []
[]

############################################################
[Outputs]
  execute_on = 'timestep_end'
  csv = true
  file_base = FORGE_NS_Ph3_coarse_point_data
[]
############################################################

(examples/forge_native_state_parameter_calibration/optimization_script.py)

import os
import time
import argparse
import pandas as pd
import numpy as np

parser = argparse.ArgumentParser()
parser.add_argument(
    "--falcon_input",
    default="FORGE_NS_Ph3_coarse.i",
    help="input file of the native state model",
)
parser.add_argument(
    "--falcon_run", default="~/projects/falcon/falcon-opt", help="path to falcon"
)
parser.add_argument("--n_cores", type=int, default=2, help="cpu cores")
parser.add_argument("--max_iter", type=int, default=1, help="max iterations")
parser.add_argument("--nK", type=int, default=2, help="number of parameters")
parser.add_argument("--precision", type=float, default=1.0e-5, help="precision")
parser.add_argument("--alpha", type=float, default=0.01, help="line search step length")
parser.add_argument("--K_Perm", type=float, default=-16.0, help="initial permeability")
parser.add_argument(
    "--K_Cond", type=float, default=1.0, help="initial thermal conductivity"
)
parser.add_argument("--folder_ref", default="./Ref/", help="path to reference data")
parser.add_argument("--outf", default="./Results", help="output folder")
par = parser.parse_args()

outf = par.outf
data_f = outf + "/data"  # output data
try:
    os.makedirs(data_f)
except OSError:
    pass

falcon_input = par.falcon_input
falcon_run = par.falcon_run
n_cores = par.n_cores
max_iter = int(par.max_iter)
nK = par.nK
folder_ref = par.folder_ref  # reference data
folder_simul = "./"  # simulated data
num_file = 7  # number of simulation time steps


## Define a function to read data
def Read_data(folder, num_file):
    # data comes from GDR repository https://gdr.openei.org/submissions/1397
    well_16A = "FORGE_NS_Ph3_coarse_point_data_16A_"
    well_56 = "FORGE_NS_Ph3_coarse_point_data_56_32_"
    well_58 = "FORGE_NS_Ph3_coarse_point_data_58_32_"
    well_78 = "FORGE_NS_Ph3_coarse_point_data_78_32_"
    well_78B = "FORGE_NS_Ph3_coarse_point_data_78B_32_"

    (
        data_pressure_16A,
        data_temper_16A,
        data_dispi_16A,
        data_dispj_16A,
        data_dispk_16A,
    ) = ([], [], [], [], [])
    data_pressure_56, data_temper_56, data_dispi_56, data_dispj_56, data_dispk_56 = (
        [],
        [],
        [],
        [],
        [],
    )
    data_pressure_58, data_temper_58, data_dispi_58, data_dispj_58, data_dispk_58 = (
        [],
        [],
        [],
        [],
        [],
    )
    data_pressure_78, data_temper_78, data_dispi_78, data_dispj_78, data_dispk_78 = (
        [],
        [],
        [],
        [],
        [],
    )
    (
        data_pressure_78B,
        data_temper_78B,
        data_dispi_78B,
        data_dispj_78B,
        data_dispk_78B,
    ) = ([], [], [], [], [])

    for i in range(1, num_file + 1):
        string = str(i)
        str_16A = well_16A + string.zfill(4) + ".csv"
        str_56 = well_56 + string.zfill(4) + ".csv"
        str_58 = well_58 + string.zfill(4) + ".csv"
        str_78 = well_78 + string.zfill(4) + ".csv"
        str_78B = well_78B + string.zfill(4) + ".csv"

        pressure_16A = np.array(pd.read_csv(folder + str_16A, usecols=["pressure"]))
        temper_16A = np.array(pd.read_csv(folder + str_16A, usecols=["temperature"]))
        dispi_16A = np.array(pd.read_csv(folder + str_16A, usecols=["disp_i"]))
        dispj_16A = np.array(pd.read_csv(folder + str_16A, usecols=["disp_j"]))
        dispk_16A = np.array(pd.read_csv(folder + str_16A, usecols=["disp_k"]))

        pressure_56 = np.array(pd.read_csv(folder + str_56, usecols=["pressure"]))
        temper_56 = np.array(pd.read_csv(folder + str_56, usecols=["temperature"]))
        dispi_56 = np.array(pd.read_csv(folder + str_56, usecols=["disp_i"]))
        dispj_56 = np.array(pd.read_csv(folder + str_56, usecols=["disp_j"]))
        dispk_56 = np.array(pd.read_csv(folder + str_56, usecols=["disp_k"]))

        pressure_58 = np.array(pd.read_csv(folder + str_58, usecols=["pressure"]))
        temper_58 = np.array(pd.read_csv(folder + str_58, usecols=["temperature"]))
        dispi_58 = np.array(pd.read_csv(folder + str_58, usecols=["disp_i"]))
        dispj_58 = np.array(pd.read_csv(folder + str_58, usecols=["disp_j"]))
        dispk_58 = np.array(pd.read_csv(folder + str_58, usecols=["disp_k"]))

        pressure_78 = np.array(pd.read_csv(folder + str_78, usecols=["pressure"]))
        temper_78 = np.array(pd.read_csv(folder + str_78, usecols=["temperature"]))
        dispi_78 = np.array(pd.read_csv(folder + str_78, usecols=["disp_i"]))
        dispj_78 = np.array(pd.read_csv(folder + str_78, usecols=["disp_j"]))
        dispk_78 = np.array(pd.read_csv(folder + str_78, usecols=["disp_k"]))

        pressure_78B = np.array(pd.read_csv(folder + str_78B, usecols=["pressure"]))
        temper_78B = np.array(pd.read_csv(folder + str_78B, usecols=["temperature"]))
        dispi_78B = np.array(pd.read_csv(folder + str_78B, usecols=["disp_i"]))
        dispj_78B = np.array(pd.read_csv(folder + str_78B, usecols=["disp_j"]))
        dispk_78B = np.array(pd.read_csv(folder + str_78B, usecols=["disp_k"]))

        data_pressure_16A.append(pressure_16A), data_temper_16A.append(temper_16A)
        data_dispi_16A.append(dispi_16A), data_dispj_16A.append(
            dispj_16A
        ), data_dispk_16A.append(dispk_16A)

        data_pressure_56.append(pressure_56), data_temper_56.append(temper_56)
        data_dispi_56.append(dispi_56), data_dispj_56.append(
            dispj_56
        ), data_dispk_56.append(dispk_56)

        data_pressure_58.append(pressure_58), data_temper_58.append(temper_58)
        data_dispi_58.append(dispi_58), data_dispj_58.append(
            dispj_58
        ), data_dispk_58.append(dispk_58)

        data_pressure_78.append(pressure_78), data_temper_78.append(temper_78)
        data_dispi_78.append(dispi_78), data_dispj_78.append(
            dispj_78
        ), data_dispk_78.append(dispk_78)

        data_pressure_78B.append(pressure_78B), data_temper_78B.append(temper_78B)
        data_dispi_78B.append(dispi_78B), data_dispj_78B.append(
            dispj_78B
        ), data_dispk_78B.append(dispk_78B)

    data_pressure_16A = np.array(data_pressure_16A).reshape(-1, 1)
    data_temper_16A = np.array(data_temper_16A).reshape(-1, 1)
    data_dispi_16A = np.array(data_dispi_16A).reshape(-1, 1)
    data_dispj_16A = np.array(data_dispj_16A).reshape(-1, 1)
    data_dispk_16A = np.array(data_dispk_16A).reshape(-1, 1)

    data_pressure_56 = np.array(data_pressure_56).reshape(-1, 1)
    data_temper_56 = np.array(data_temper_56).reshape(-1, 1)
    data_dispi_56 = np.array(data_dispi_56).reshape(-1, 1)
    data_dispj_56 = np.array(data_dispj_56).reshape(-1, 1)
    data_dispk_56 = np.array(data_dispk_56).reshape(-1, 1)

    data_pressure_58 = np.array(data_pressure_58).reshape(-1, 1)
    data_temper_58 = np.array(data_temper_58).reshape(-1, 1)
    data_dispi_58 = np.array(data_dispi_58).reshape(-1, 1)
    data_dispj_58 = np.array(data_dispj_58).reshape(-1, 1)
    data_dispk_58 = np.array(data_dispk_58).reshape(-1, 1)

    data_pressure_78 = np.array(data_pressure_78).reshape(-1, 1)
    data_temper_78 = np.array(data_temper_78).reshape(-1, 1)
    data_dispi_78 = np.array(data_dispi_78).reshape(-1, 1)
    data_dispj_78 = np.array(data_dispj_78).reshape(-1, 1)
    data_dispk_78 = np.array(data_dispk_78).reshape(-1, 1)

    data_pressure_78B = np.array(data_pressure_78B).reshape(-1, 1)
    data_temper_78B = np.array(data_temper_78B).reshape(-1, 1)
    data_dispi_78B = np.array(data_dispi_78B).reshape(-1, 1)
    data_dispj_78B = np.array(data_dispj_78B).reshape(-1, 1)
    data_dispk_78B = np.array(data_dispk_78B).reshape(-1, 1)

    pressure = np.concatenate(
        (
            data_pressure_16A,
            data_pressure_56,
            data_pressure_58,
            data_pressure_78,
            data_pressure_78B,
        ),
        axis=0,
    )
    temper = np.concatenate(
        (
            data_temper_16A,
            data_temper_56,
            data_temper_58,
            data_temper_78,
            data_temper_78B,
        ),
        axis=0,
    )
    dispi = np.concatenate(
        (data_dispi_16A, data_dispi_56, data_dispi_58, data_dispi_78, data_dispi_78B),
        axis=0,
    )
    dispj = np.concatenate(
        (data_dispj_16A, data_dispj_56, data_dispj_58, data_dispj_78, data_dispj_78B),
        axis=0,
    )
    dispk = np.concatenate(
        (data_dispk_16A, data_dispk_56, data_dispk_58, data_dispk_78, data_dispk_78B),
        axis=0,
    )
    data = np.concatenate((pressure, temper, dispi, dispj, dispk), axis=0)

    return data


## Forward modeling function
def Forward(K_log):
    K_Perm = K_log[0]
    K_Cond = K_log[1]

    K_Perm = np.power(10, K_Perm)
    K_Cond = np.power(10, K_Cond)

    K_Perm = np.format_float_scientific(K_Perm)
    K_Cond = float(K_Cond)

    K_Perm_str = (
        "Materials/permeability_granite/permeability='"
        + str(K_Perm)
        + " 0 0  0 "
        + str(K_Perm)
        + " 0  0 0 "
        + str(K_Perm)
        + "'"
    )

    K_Cond_str = (
        "Materials/thermal_conductivity_granitoid/dry_thermal_conductivity='"
        + str(K_Cond)
        + " 0 0  0 "
        + str(K_Cond)
        + " 0  0 0 "
        + str(K_Cond)
        + "'"
    )

    cli_arg = K_Perm_str + " " + K_Cond_str

    # run simulations
    run_command = (
        "mpiexec -n"
        + " "
        + str(n_cores)
        + " "
        + falcon_run
        + " "
        + "-i"
        + " "
        + falcon_input
        + " "
        + cli_arg
        + " "
        + "--n-threads=2 --timing"
    )
    os.system(run_command)
    simul = Read_data(folder=folder_simul, num_file=num_file)

    return simul


## Delete data produced by previous simulations
def remove_data(folder):
    filePath = folder
    name = os.listdir(filePath)
    for i in name:
        path = "./{}".format(i)
        if "point_data" in i:
            os.remove(path)


## Assume known error matrix R
obs_true = Read_data(folder=folder_ref, num_file=num_file)
np.save(data_f + "/Ref_Data.npy", obs_true)
nobs = len(obs_true)
std_pressure = obs_true[0] * 0.01  # 1% std error
std_temper = obs_true[int(nobs / 5)] * 0.01  # 1% std error
std_dispi = obs_true[int(2 * nobs / 5)] * 0.01  # 1% std error
std_dispj = obs_true[int(3 * nobs / 5)] * 0.01  # 1% std error
std_dispk = obs_true[int(4 * nobs / 5)] * 0.01  # 1% std error
std_pressure = np.abs(std_pressure)
std_temper = np.abs(std_temper)
std_dispi = np.abs(std_dispi)
std_dispj = np.abs(std_dispj)
std_dispk = np.abs(std_dispk)

err_pressure = std_pressure * np.random.randn(int(nobs / 5), 1)
err_temper = std_temper * np.random.randn(int(nobs / 5), 1)
err_dispi = std_dispi * np.random.randn(int(nobs / 5), 1)
err_dispj = std_dispj * np.random.randn(int(nobs / 5), 1)
err_dispk = std_dispk * np.random.randn(int(nobs / 5), 1)
err = np.concatenate(
    (err_pressure, err_temper, err_dispi, err_dispj, err_dispk), axis=0
)
obs = obs_true + err

invR = np.eye(nobs)
for p in range(int(nobs / 5)):
    invR[p, p] = 1 / (std_pressure**2)
for t in range(int(nobs / 5), int(2 * nobs / 5)):
    invR[t, t] = 1 / (std_temper**2)
for i in range(int(2 * nobs / 5), int(3 * nobs / 5)):
    invR[i, i] = 1 / (std_dispi**2)
for j in range(int(3 * nobs / 5), int(4 * nobs / 5)):
    invR[j, j] = 1 / (std_dispj**2)
for k in range(int(4 * nobs / 5), nobs):
    invR[k, k] = 1 / (std_dispk**2)

## Initialization
K_Perm = par.K_Perm
K_Cond = par.K_Cond
K_init = np.vstack((K_Perm, K_Cond))  # initial parameters

std_Perm = 2
std_Cond = 0.05
std_Par = np.vstack((std_Perm, std_Cond))
Sigma = np.eye(nK)
invSigma = np.eye(nK)
for i in range(nK):
    Sigma[i, i] = std_Par[i] ** 2
    invSigma[i, i] = 1 / Sigma[i, i]

precision = par.precision
alpha = par.alpha
K_cur = np.copy(K_init)
Para = np.zeros([max_iter + 1, nK])

## Run inversion
Time_start = time.time()
for i in range(max_iter):
    print("###### Iteration %d ######" % (i + 1))
    remove_data(folder="./")
    simul_K_cur = Forward(K_cur)

    Para[i, 0] = K_cur[0][0]
    Para[i, 1:nK] = K_cur[1:nK].squeeze()
    np.save(data_f + "/Simul_Data_Iter_" + str(i) + ".npy", simul_K_cur)
    np.save(data_f + "/Parameters.npy", Para)

    J_cur = np.zeros([nobs, nK])
    for j in range(nK):
        zerovec = np.zeros([nK, 1])
        zerovec[j] = 1.0
        mag = np.dot(K_cur.T, zerovec)
        absmag = np.dot(abs(K_cur.T), abs(zerovec))
        if mag >= 0:
            signmag = 1.0
        else:
            signmag = -1.0

        delta = (
            signmag
            * np.sqrt(precision)
            * (max(abs(mag), absmag))
            / ((np.linalg.norm(zerovec) + np.finfo(float).eps) ** 2)
        )
        if delta == 0:
            delta = np.sqrt(precision)

        remove_data(folder="./")
        simul_K_delta = Forward(K_cur + zerovec * delta)
        J_cur[:, j : j + 1] = (simul_K_delta - simul_K_cur) / delta

    Jk_cur = np.dot(J_cur, K_cur)
    solve_a = np.dot(np.dot(J_cur.T, invR), J_cur) + invSigma
    solve_b = -np.dot(invSigma, K_cur) + np.dot(
        np.dot(J_cur.T, invR), (obs - simul_K_cur)
    )
    dk = np.linalg.solve(solve_a, solve_b)
    K_cur = np.copy(K_cur + alpha * dk)

## Final results
remove_data(folder="./")
simul_K_cur = Forward(K_cur)

Para[max_iter, 0] = K_cur[0][0]
Para[max_iter, 1:nK] = K_cur[1:nK].squeeze()
np.save(data_f + "/Simul_Data_Iter_" + str(max_iter) + ".npy", simul_K_cur)
np.save(data_f + "/Parameters.npy", Para)

Time_end = time.time()
time_elapsed = Time_end - Time_start
print(
    "Time elapsed {:.0f}hr {:.0f}m {:.0f}s".format(
        (time_elapsed // 60) // 60, (time_elapsed // 60) % 60, time_elapsed % 60
    )
)

Problem Statement
Input File
Results
References

Theory

Usage

Development

Effective Permeability and Thermal Conductivity Calibration Example using the Utah FORGE Native State Model

Problem Statement

Input File

Transient Simulation

Results

References
