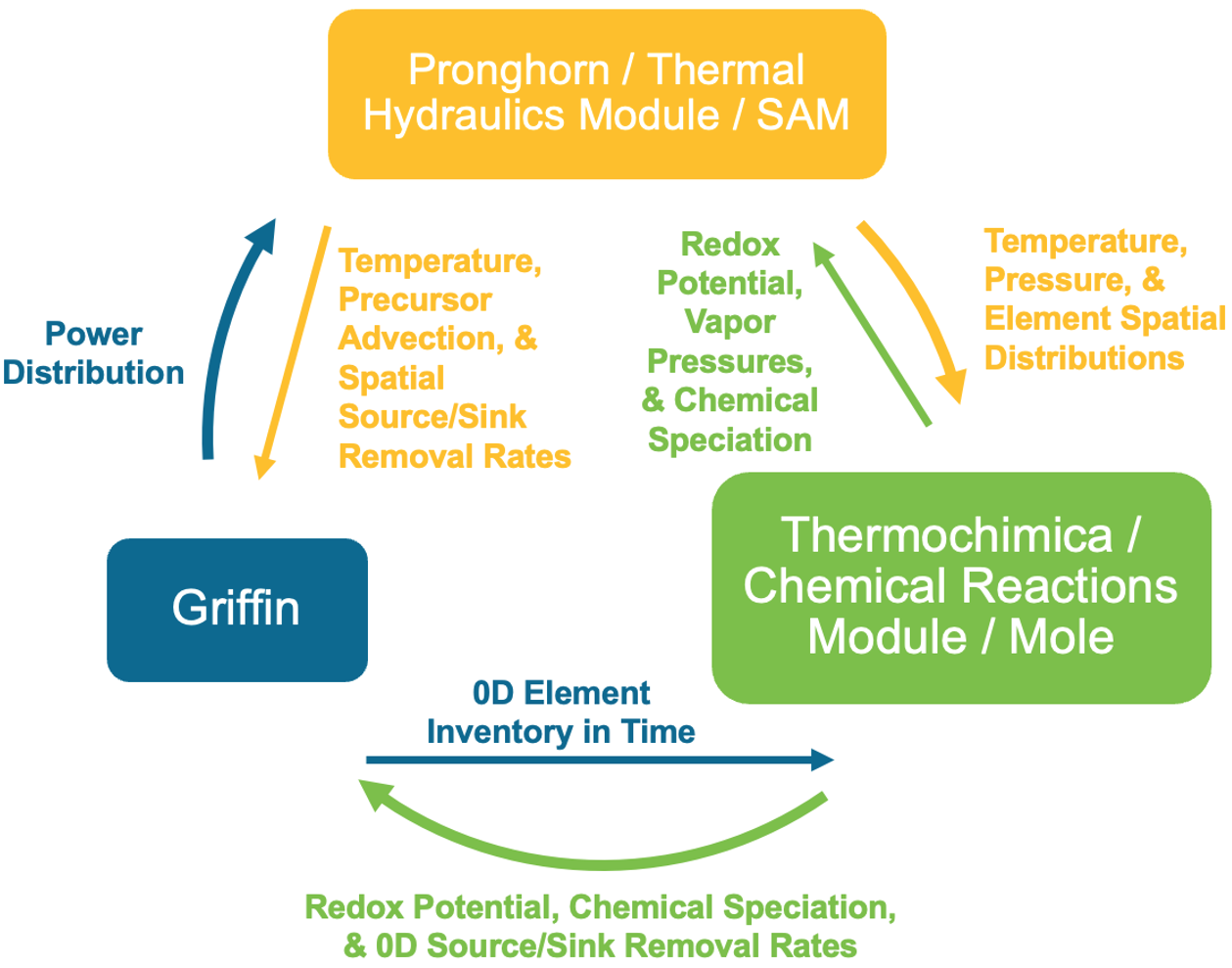

MSFR Spatially-resolved thermochemistry model using Thermochimica

Mesh

First the Mesh block is discussed. Here the mesh is loaded from a restart file steady/restart/run_ns_coupled_restart. This allows for the Griffin+Pronghorn steady-state computational domain and thermal hydraulic solution (i.e. Pressure and Temperature) to be loaded in for use in this follow on or sub application.

[Mesh]
  coord_type = 'RZ'
  [restart]
    type = FileMeshGenerator
    use_for_exodus_restart = true
    file = '../steady/restart/run_neutronics_out_ns0_restart.e'
  []
  [extraction]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'y>1.3'
    new_sideset_name = 'extraction'
    included_boundaries = 'reflector_wall'
    replace = true
    input = 'restart'
  []
[]

GlobalParams

The GlobalParams block is used to set up the general information required for the problem that will be used throughout the input file. Here the elements used in the thermochemical solution are listed which include the base fuel salt elements (i.e. F, Li, U, Th) corrosion elements (i.e., Ni) and fission/activation product elements (i.e. Nd, Ce, La, Cs, Xe, I, Kr, Ne).

[GlobalParams]
  #elements = 'F Li U Th Ni Nd Ce La Cs Xe I Kr Ne'
  elements = 'F Li U Th Ni Nd Ce La Cs I'

  #output_phases = 'MSFL gas_ideal Ni_Solid_FCC(s) U_Solid-A(s)'
  output_phases = 'MSFL gas_ideal'
  #output_phases = 'ALL'

  #output_species = 'MSFL:UF3 MSFL:U3+//I MSFL:U2F8 MSFL:U2//I MSFL:U[VII]//F MSFL:U[VII]//I MSFL:U[VI]//F MSFL:U[VI]//I  MSFL:NiF2 MSFL:Ni//I gas_ideal:CsI gas_ideal:CsF gas_ideal:I gas_ideal:I2 gas_ideal:I2Ni gas_ideal:ILi gas_ideal:Xe gas_ideal:Kr gas_ideal:Ne'
  output_species = 'ALL'
  #output_species = 'ALL'

  output_element_potentials = 'ALL'
  #output_vapor_pressures = 'vp:gas_ideal:CsI vp:gas_ideal:CsF vp:gas_ideal:I vp:gas_ideal:I2 vp:gas_ideal:I2Ni vp:gas_ideal:ILi'
  output_vapor_pressures = 'ALL'
[]

Then output_phases are selected. The option to select All is present, however this will likely generate several empty phases that exist in the MSTDB database but are not stable in the solution. This may be helpful for a first run to determine the names of phases that are present. Here the MSFL, gas_ideal, Ni_Solid_FCC(s), and U_solid-A(s) phases are chosen although U_solid-A(s) will not be present since the amount of uranium fuel present given the temperature and pressure is completely dissolved in the fuel salt as anticipated.

Next output_species can be selected which specifies the species within the phases that should be returned to the user. Here various ion pairs in the MSFL phase are selected, along with some key radionuclide species in the ideal_gas phase.

Next the output_element_potentials produces the chemical potentials of all elements in the solution so the fluorine or iodine potential can be visualized throughout the reactor given the temperature, pressure, and element field.

Lastly, if a stable ideal_gas phase is not present, the output_vapor_pressures can also be selected which will determine the vapor pressures of elements in the liquid MSFL phase given there is a liquid-gas interface present.

It should be noted that this block creates AuxVariables of these inputs and ouputs defined here and can be manipulated and exported to an exodus file for viewing.

Chemical Composition

Next, the ChemicalComposition block is used to set up the Thermochimica calculation and is described in more detail here. First the modified MSTDB V2.0 with noble gas data file is specified, and the temperature, pressure, and mass unites as chosen.

[ChemicalComposition]
  [salt]
    # Note: you must download the latest version of this file from MSTDB-TC
    thermofile = MSTDTC_Noble_metal_gases.dat
    # thermofile = MSTDB-TC_V3.0_Fluorides_No_Functions_8-2.dat
    tunit = K
    punit = Pa
    munit = moles
    output_species_unit = moles
    temperature = tfuel_nod
    pressure = pressure_nod
    reinitialization_type = nodal
  []
[]

Next, the auxiliary variables of the temperature and pressure are specified as tfuel_nod and pressure_nod respectively. It should be noted that the element Auxiliary variables were already declared in the GlobalParams block. Lastly, a reinitialization_type is specified to use cached Thermochimica solutions to speed up calculations.

Auxiliary Variables

The AuxiliaryVariables block is used to set up any additional auxiliary variables that are needed for the calculation. Here we set up the temperature tfuel and pressure pressure of the fuel salt. These are CONSTANT Monomials corresponding to MOOSE Finite Volume variables which are initialized by the initial_from_file_var command from the exodus restart file defined in the Mesh block.

[AuxVariables]
  [tfuel]
    order = CONSTANT
    family = MONOMIAL
    #initial_condition = 936.00
    initial_from_file_var = T_fluid
  []
  [tfuel_nod]
    order = FIRST
    family = Lagrange
  []
  [pressure]
    order = CONSTANT
    family = MONOMIAL
    #initial_condition = 1.3042
    initial_from_file_var = pressure
  []
  [pressure_nod]
    order = FIRST
    family = Lagrange
  []
[]

Currently, the implementation of Thermochimica in MOOSE computes nodal values, so these finite volume variables must be converted to nodal variables which are the tfuel_nod and pressure_nod variables respectively. These variables are then used in the ChemicalComposition block.

Auxiliary Kernels

Correspondingly, the AuxiliaryKernels block sets up functors which will operate on the auxiliary variables. In this case, since a conversion from the finite volume variables to nodal variables is required, the ProjectionAux is used to perform this transformation. This is executed on Initial so that the nodal version of the variables are ready for the Thermochimica calculation.

[AuxKernels]
  [ProjAuxT]
    type = ProjectionAux
    v = tfuel
    variable = tfuel_nod
    execute_on = INITIAL
  []
  [ProjAuxP]
    type = ProjectionAux
    v = pressure
    variable = pressure_nod
    execute_on = INITIAL
  []
[]

Initial Conditions

Next, the Initial Conditions block sets up the initial conditions for various Auxiliary variables. In this case, the element variables are set through a FunctionIC which calculates a homogenous molar distribution from a depletion calculation and will be discussed shortly.

[ICs]
  [F]
    type = FunctionIC
    variable = F
    function = FSumSet
  []
  [Li]
    type = FunctionIC
    variable = Li
    function = LiSumSet
  []
  [U]
    type = FunctionIC
    variable = U
    function = USumSet
  []
  [Th]
    type = FunctionIC
    variable = Th
    function = ThSumSet
  []
  [Ni]
    type = ConstantIC
    variable = Ni
    #value = 7.1e-03
    value = 1
  []
  #[Xe]
  #  type = FunctionIC
  #  variable = Xe
  #  function = XeSumSet
  #[]
  [Nd]
    type = FunctionIC
    variable = Nd
    function = NdSumSet
  []
  [Ce]
    type = FunctionIC
    variable = Ce
    function = CeSumSet
  []
  [La]
    type = FunctionIC
    variable = La
    function = LaSumSet
  []
  [Cs]
    type = FunctionIC
    variable = Cs
    function = CsSumSet
  []
  [I]
    type = FunctionIC
    variable = I
    function = ISumSet
  []
  #[Kr]
  #  type = FunctionIC
  #  variable = Kr
  #  function = KrSumSet
  #[]
  #[Ne]
  #  type = FunctionIC
  #  variable = Ne
  #  function = NeSumSet
  #[]
[]

Problem

The Problem block is used here to tell MOOSE that a finite element solve is not required, since a MOOSE-wrapped application via UserObject is being used instead. Additionally, the allow_initial_conditions_with_restart argument is used to allow for reading in the temperature and pressure variables from the multiphysics restart file, while initializing other variables from the input file.

[Problem]
  solve = false
  allow_initial_conditions_with_restart = true
[]

Postprocessors

Next, the largest block of the input, the Postprocessors block is used to calculate the homogenous element distributions from a previous depletion calculation in a CSV file. Additionally, various total elements or species of interest can be calculated here.

Here each nuclide density in is read from a VectorPostProcessor named reader (discussed in the VectorPostprocessors block) at a specific burnup index. In order to visualize the depletion-driven, spatially-resolved thermochemical effect, the user can replace the index = 0 value with a later index point to model how the solution changes throughout depletion.

Admittedly, this is a clunky method of passing information, and current efforts are streamlining nuclide, element, and species accounting for MSR analyses within the MOOSE framework. This will allow for a more user friendly interface between online Griffin-depletion coupling with Thermochimica + Pronghorn for depletion-driven, spatially-resolved thermochemistry modeling and simulation. Therefore, this model will likely be updated in the near term with a more efficient streamlined version.

[Postprocessors]
  [total_ideal_gas]
    type = NodalSum
    variable = gas_ideal
    block = 'fuel pump hx'
  []
  [total_F]
    type = NodalSum
    variable = F
    block = 'fuel pump hx'
  []
  [total_Li]
    type = NodalSum
    variable = Li
    block = 'fuel pump hx'
  []
  [total_U]
    type = NodalSum
    variable = U
    block = 'fuel pump hx'
  []
  [total_Th]
    type = NodalSum
    variable = Th
    block = 'fuel pump hx'
  []
  [total_Nd]
    type = NodalSum
    variable = Nd
    block = 'fuel pump hx'
  []
  [total_Ce]
    type = NodalSum
    variable = Ce
    block = 'fuel pump hx'
  []
  [total_La]
    type = NodalSum
    variable = La
    block = 'fuel pump hx'
  []
  [total_Cs]
    type = NodalSum
    variable = Cs
    block = 'fuel pump hx'
  []
  [total_I]
    type = NodalSum
    variable = I
    block = 'fuel pump hx'
  []
  #[total_Kr]
  #  type = NodalSum
  #  variable = Kr
  #  block = 'fuel pump hx'
  #[]
  # [total_Ne]
  #   type = NodalSum
  #   variable = Ne
  #   block = 'fuel pump hx'
  # []
  # [total_I_gas]
  #   type = NodalSum
  #   variable = gas_ideal:I
  #   block = 'fuel pump hx'
  # []
  # [total_I2]
  #   type = NodalSum
  #   variable = gas_ideal:I2
  #   block = 'fuel pump hx'
  # []
  # [total_I2Ni]
  #   type = NodalSum
  #   variable = gas_ideal:I2Ni
  #   block = 'fuel pump hx'
  # []
  # [total_ILi]
  #   type = NodalSum
  #   variable = gas_ideal:ILi
  #   block = 'fuel pump hx'
  # []
  # [total_CsI]
  #   type = NodalSum
  #   variable = gas_ideal:CsI
  #   block = 'fuel pump hx'
  # []
  # [total_CsF]
  #   type = NodalSum
  #   variable = gas_ideal:CsF
  #   block = 'fuel pump hx'
  # []
  # [total_UF3]
  #   type = NodalSum
  #   variable = MSFL:UF3
  #   block = 'fuel pump hx'
  # []
  # [total_U3I]
  #   type = NodalSum
  #   variable = MSFL:U3+//I
  #   block = 'fuel pump hx'
  # []
  # [total_U2F8]
  #   type = NodalSum
  #   variable = MSFL:U2F8
  #   block = 'fuel pump hx'
  # []
  # [total_U2I]
  #   type = NodalSum
  #   variable = MSFL:U2//I
  #   block = 'fuel pump hx'
  # []
  # [total_UVIIF]
  #   type = NodalSum
  #   variable = 'MSFL:U[VII]//F'
  #   block = 'fuel pump hx'
  # []
  # [total_UVIII]
  #   type = NodalSum
  #   variable = 'MSFL:U[VII]//I'
  #   block = 'fuel pump hx'
  # []
  # [total_UVIF]
  #   type = NodalSum
  #   variable = 'MSFL:U[VI]//F'
  #   block = 'fuel pump hx'
  # []
  # [total_UVII]
  #   type = NodalSum
  #   variable = 'MSFL:U[VI]//I'
  #   block = 'fuel pump hx'
  # []

  ###########################################
  # POSTPROCESSING DEPLETION STEPS
  ###########################################
  #Initializing From Depletion
  #U
  [U230]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U230
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [U231]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U230
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [U232]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U232
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [U233]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U233
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [U234]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U234
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [U235]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U235
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [U235M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U235M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [U236]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = U236
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Th
  [Th226]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH226
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th227]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH227
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th228]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH228
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th229]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH229
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th230]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH230
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th231]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH231
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th232]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH232
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th233]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH233
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Th234]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = TH234
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Nd
  #Nd
  [Nd140]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND140
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd141]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND141
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd142]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND142
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd143]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND143
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd144]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND144
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd145]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND145
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd146]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND146
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd147]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND147
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd148]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND148
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd149]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND149
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd150]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND150
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd151]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND151
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd152]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND152
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd153]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND153
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd154]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND154
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd155]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND155
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd156]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND156
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd157]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND157
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd158]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND158
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd159]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND159
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd160]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND160
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Nd161]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = ND161
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Ce
  [Ce137]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE137
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce138]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE138
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce139]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE139
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce139M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE139M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce140]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE140
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce141]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE141
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce142]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE142
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce143]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE143
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce144]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE144
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce145]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE145
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce146]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE146
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce147]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE147
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce148]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE148
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce149]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE149
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce150]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE150
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce151]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE151
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce152]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE152
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce153]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE153
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce154]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE154
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce155]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE155
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce156]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE156
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Ce157]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CE157
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #La
  [La133]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA133
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La135]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA135
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La137]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA137
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La138]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA138
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La139]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA139
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La140]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA140
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La141]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA141
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La142]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA142
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La143]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA143
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La144]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA144
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La145]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA145
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La146]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA146
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La146M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA146M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La147]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA147
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La148]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA148
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La149]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA149
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La150]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA150
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La151]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA151
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La152]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA152
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La153]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA153
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La154]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA154
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [La155]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LA155
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Cs
  [Cs129]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS129
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs131]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS131
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs132]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS132
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs133]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS133
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs134]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS134
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs134M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS134M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs135]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS135
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs135M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS135M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs136]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS136
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs136M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS136M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs137]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS137
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs138]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS138
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs138M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS138M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs139]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS139
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs140]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS140
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs141]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS141
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs142]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS142
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs143]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS143
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs144]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS144
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs145]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS145
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs146]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS146
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs147]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS147
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs148]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS148
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs149]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS149
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs150]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS150
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Cs151]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = CS151
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #I
  [I121]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I121
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I123]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I123
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I125]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I125
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I126]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I126
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I127]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I127
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I128]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I128
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I129]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I129
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I130]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I130
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I130M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I130M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I131]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I131
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I132]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I132
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I132M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I132M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I133]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I133
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I133M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I133M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I134]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I134
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I134M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I134M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I135]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I135
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I136]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I136
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I137]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I137
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I138]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I138
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I139]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I139
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I140]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I140
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I141]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I141
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I142]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I142
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I143]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I143
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I144]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I144
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [I145]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = I145
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Rb
  [Rb81]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB81
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb83]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB83
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb84]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB84
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb85]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB85
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb86]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB86
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb86M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB86M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb87]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB87
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb88]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB88
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb89]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB89
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb90]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB90
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb91]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB91
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb92]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB92
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb93]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB93
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb94]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB94
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb95]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB95
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb96]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB96
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb97]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB97
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb98]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB98
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb99]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB99
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb100]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB100
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb101]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB101
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Rb102]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = RB102
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Kr
  [Kr78]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR78
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr79]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR79
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr79M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR79M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr80]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR80
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr81]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR81
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr81M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR81M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr82]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR82
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr83]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR83
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr83M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR83M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr84]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR84
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr85]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR85
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr85M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR85M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr86]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR86
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr87]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR87
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr88]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR88
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr89]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR89
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr90]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR90
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr91]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR91
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr92]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR92
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr93]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR93
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr94]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR94
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr95]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR95
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr96]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR96
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr97]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR97
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr98]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR98
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr99]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR99
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Kr100]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = KR100
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Ne
  [Ne20]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = NE20
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #F
  [F19]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = F19
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Li
  [Li6]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LI6
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Li7]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LI7
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Li8]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = LI8
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  #Xe
  [Xe126]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE126
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe128]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE128
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe129]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE129
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe129M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE129M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe130]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE130
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe131]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE131
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe131M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE131M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe132]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE132
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe133]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE133
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe133M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE133M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe134]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE134
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe134M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE134M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe135]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE135
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe135M]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE135M
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe136]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE136
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe137]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE137
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe138]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE138
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe139]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE139
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe140]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE140
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe141]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE141
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe142]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE142
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe143]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE143
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe144]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE144
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe145]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE145
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe146]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE146
    index = 0
    force_preic = True
    execute_on = INITIAL
  []
  [Xe147]
    type = VectorPostprocessorComponent
    vectorpostprocessor = reader
    vector_name = XE147
    index = 0
    force_preic = True
    execute_on = INITIAL
  []

  [TotVolume]
    type = VolumePostprocessor
    block = 'fuel pump hx'
    force_preic = True
    execute_on = INITIAL
  []
  [NumNodes]
    type = NumNodes
    force_preic = True
    execute_on = INITIAL
  []
[]

Functions

Next, the Functions block sums the nuclide densities and then converts to molar densities for the Thermochimica calculation. These homogenous and constant functions are then used to initialize the Element distributions in the ICs block.

It should be noted that this is assuming the fuel salt is a homogenous well mixed solution. More detailed models could be used to incorporate the feedback of density changes due to temperature from the thermal hydraulics model, and explicit nuclide species tracking due to mass transfer throughout the loop. Nuclide distributions can be correspondingly summed into element distributions while retaining the spatial distribution calculated by the thermal hydraulics model. Future models uploaded to the VTB will incorporate these more detailed aspects of chemical species tracking in MSRs.

[Functions]
  [USumSet]
    type = ParsedFunction
    expression = '(U230 + U231 + U232 + U233 + U234 + U235 + U235M + U236)*TotVolume/NumNodes*1.6605e6'
    #expression = '(U232 + U233 + U234 + U235 + U236 + U237 + U238)*TotVolume*1.6605e6'
    symbol_names = 'U230 U231 U232 U233 U234 U235 U235M U236 TotVolume NumNodes'
    symbol_values = 'U230 U231 U232 U233 U234 U235 U235M U236 TotVolume NumNodes'
  []
  [ThSumSet]
    type = ParsedFunction
    expression = '(Th226 + Th227 + Th228 + Th229 + Th230 + Th231 + Th232 + Th233 + Th234)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'Th226 Th227 Th228 Th229 Th230 Th231 Th232 Th233 Th234 TotVolume NumNodes'
    symbol_values = 'Th226 Th227 Th228 Th229 Th230 Th231 Th232 Th233 Th234 TotVolume NumNodes'
  []
  [NdSumSet]
    type = ParsedFunction
    expression = '(Nd140 + Nd141 + Nd142 + Nd143 + Nd144 + Nd145 + Nd146 + Nd147 + Nd148 + Nd149 + Nd150 + Nd151 + Nd152 + Nd153 + Nd154 + Nd155 + Nd156 + Nd157 + Nd158 + Nd159 + Nd160 + Nd161)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'Nd140 Nd141 Nd142 Nd143 Nd144 Nd145 Nd146 Nd147 Nd148 Nd149 Nd150 Nd151 Nd152 Nd153 Nd154 Nd155 Nd156 Nd157 Nd158 Nd159 Nd160 Nd161 TotVolume NumNodes'
    symbol_values = 'Nd140 Nd141 Nd142 Nd143 Nd144 Nd145 Nd146 Nd147 Nd148 Nd149 Nd150 Nd151 Nd152 Nd153 Nd154 Nd155 Nd156 Nd157 Nd158 Nd159 Nd160 Nd161 TotVolume NumNodes'
  []
  [CeSumSet]
    type = ParsedFunction
    expression = '(Ce137 + Ce138 + Ce139 + Ce139M + Ce140 + Ce141 + Ce142 + Ce143 + Ce144 + Ce145 + Ce146 + Ce147 + Ce148 + Ce149 + Ce150 + Ce151 + Ce152 + Ce153 + Ce154 + Ce155 + Ce156 + Ce157)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'Ce137 Ce138 Ce139 Ce139M Ce140 Ce141 Ce142 Ce143 Ce144 Ce145 Ce146 Ce147 Ce148 Ce149 Ce150 Ce151 Ce152 Ce153 Ce154 Ce155 Ce156 Ce157 TotVolume NumNodes'
    symbol_values = 'Ce137 Ce138 Ce139 Ce139M Ce140 Ce141 Ce142 Ce143 Ce144 Ce145 Ce146 Ce147 Ce148 Ce149 Ce150 Ce151 Ce152 Ce153 Ce154 Ce155 Ce156 Ce157 TotVolume NumNodes'
  []
  [LaSumSet]
    type = ParsedFunction
    expression = '(La133 + La135 + La137 + La138 + La139 + La140 + La141 + La142 + La143 + La144 + La145 + La146 + La146M + La147 + La148 + La149 + La150 + La151 + La152 + La153 + La154 + La155)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'La133 La135 La137 La138 La139 La140 La141 La142 La143 La144 La145 La146 La146M La147 La148 La149 La150 La151 La152 La153 La154 La155 TotVolume NumNodes'
    symbol_values = 'La133 La135 La137 La138 La139 La140 La141 La142 La143 La144 La145 La146 La146M La147 La148 La149 La150 La151 La152 La153 La154 La155 TotVolume NumNodes'
  []
  [CsSumSet]
    type = ParsedFunction
    expression = '(Cs129 + Cs131 + Cs132 + Cs133 + Cs134 + Cs134M + Cs135 + Cs135M + Cs136 + Cs136M + Cs137 + Cs138 + Cs139 + Cs140 + Cs141 + Cs142 + Cs143 + Cs144 + Cs145 + Cs146 + Cs147 + Cs148 + Cs149 + Cs150 + Cs151)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'Cs129 Cs131 Cs132 Cs133 Cs134 Cs134M Cs135 Cs135M Cs136 Cs136M Cs137 Cs138 Cs139 Cs140 Cs141 Cs142 Cs143 Cs144 Cs145 Cs146 Cs147 Cs148 Cs149 Cs150 Cs151 TotVolume NumNodes'
    symbol_values = 'Cs129 Cs131 Cs132 Cs133 Cs134 Cs134M Cs135 Cs135M Cs136 Cs136M Cs137 Cs138 Cs139 Cs140 Cs141 Cs142 Cs143 Cs144 Cs145 Cs146 Cs147 Cs148 Cs149 Cs150 Cs151 TotVolume NumNodes'
  []
  [ISumSet]
    type = ParsedFunction
    expression = '(I121 + I123 + I125 + I126 + I127 + I128 + I129 + I130 + I130M + I131 + I132 + I132M + I133 + I133M + I134 + I134M + I135 + I136 + I137 + I138 + I139 + I140 + I141 + I142 + I143 + I144 + I145)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'I121 I123 I125 I126 I127 I128 I129 I130 I130M I131 I132 I132M I133 I133M I134 I134M I135 I136 I137 I138 I139 I140 I141 I142 I143 I144 I145 TotVolume NumNodes'
    symbol_values = 'I121 I123 I125 I126 I127 I128 I129 I130 I130M I131 I132 I132M I133 I133M I134 I134M I135 I136 I137 I138 I139 I140 I141 I142 I143 I144 I145 TotVolume NumNodes'
  []
  [RbSumSet]
    type = ParsedFunction
    expression = '(Rb81 + Rb83 + Rb84 + Rb85 + Rb86 + Rb86M + Rb87 + Rb88 + Rb89 + Rb90 + Rb91 + Rb92 + Rb93 + Rb94 + Rb95 + Rb96 + Rb97 + Rb98 + Rb99 + Rb100 + Rb101 + Rb102)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'Rb81 Rb83 Rb84 Rb85 Rb86 Rb86M Rb87 Rb88 Rb89 Rb90 Rb91 Rb92 Rb93 Rb94 Rb95 Rb96 Rb97 Rb98 Rb99 Rb100 Rb101 Rb102 TotVolume NumNodes'
    symbol_values = 'Rb81 Rb83 Rb84 Rb85 Rb86 Rb86M Rb87 Rb88 Rb89 Rb90 Rb91 Rb92 Rb93 Rb94 Rb95 Rb96 Rb97 Rb98 Rb99 Rb100 Rb101 Rb102 TotVolume NumNodes'
  []
  [KrSumSet]
    type = ParsedFunction
    expression = '(Kr78 + Kr79 + Kr79M + Kr80 + Kr81 + Kr81M + Kr82 + Kr83 + Kr83M + Kr84 + Kr85 + Kr85M + Kr86 + Kr87 + Kr88 + Kr89 + Kr90 + Kr91 + Kr92 + Kr93 + Kr94 + Kr95 + Kr96 + Kr97 + Kr98 + Kr99 + Kr100)*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'Kr78 Kr79 Kr79M Kr80 Kr81 Kr81M Kr82 Kr83 Kr83M Kr84 Kr85 Kr85M Kr86 Kr87 Kr88 Kr89 Kr90 Kr91 Kr92 Kr93 Kr94 Kr95 Kr96 Kr97 Kr98 Kr99 Kr100 TotVolume NumNodes'
    symbol_values = 'Kr78 Kr79 Kr79M Kr80 Kr81 Kr81M Kr82 Kr83 Kr83M Kr84 Kr85 Kr85M Kr86 Kr87 Kr88 Kr89 Kr90 Kr91 Kr92 Kr93 Kr94 Kr95 Kr96 Kr97 Kr98 Kr99 Kr100 TotVolume NumNodes'
  []
  [NeSumSet]
    type = ParsedFunction
    expression = 'Ne20*TotVolume/NumNodes*1.6605e6'
    symbol_names = 'Ne20 TotVolume NumNodes'
    symbol_values = 'Ne20 TotVolume NumNodes'
  []
  [FSumSet]
    type = ParsedFunction
    expression = 'F19*TotVolume/NumNodes*1.6605e6'
    #expression = 'F19*TotVolume/NumNodes*1.6605e6*1.0001'
    symbol_names = 'F19 TotVolume NumNodes'
    symbol_values = 'F19 TotVolume NumNodes'
  []
  [LiSumSet]
    type = ParsedFunction
    #expression = '(Li6 + Li7 + Li8)*TotVolume/NumNodes*1.6605e6'
    expression = '(Li6 + Li7 + Li8)*TotVolume/NumNodes*1.6605e6*1.0008'
    symbol_names = 'Li6 Li7 Li8 TotVolume NumNodes'
    symbol_values = 'Li6 Li7 Li8 TotVolume NumNodes'
  []
  [XeSumSet]
    type = ParsedFunction
    expression = '(Xe126 + Xe128 + Xe129 + Xe129M + Xe130 + Xe131 + Xe131M + Xe132 + Xe133 + Xe133M + Xe134 + Xe134M +  Xe135 + Xe135M + Xe136 + Xe137 + Xe138 + Xe139 + Xe140 + Xe141 + Xe142 + Xe143 + Xe144 + Xe145 + Xe146 + Xe147)*TotVolume/NumNodes*1.6605e6*10'
    symbol_names = 'Xe126 Xe128 Xe129 Xe129M Xe130 Xe131 Xe131M Xe132 Xe133 Xe133M Xe134 Xe134M Xe135 Xe135M Xe136 Xe137 Xe138 Xe139 Xe140 Xe141 Xe142 Xe143 Xe144 Xe145 Xe146 Xe147 TotVolume NumNodes'
    symbol_values = 'Xe126 Xe128 Xe129 Xe129M Xe130 Xe131 Xe131M Xe132 Xe133 Xe133M Xe134 Xe134M Xe135 Xe135M Xe136 Xe137 Xe138 Xe139 Xe140 Xe141 Xe142 Xe143 Xe144 Xe145 Xe146 Xe147 TotVolume NumNodes'
  []
[]

Vector Postprocessors

Lastly, the Vector Postprocessors block is used to read in the CSV file previously calculated by Griffin-depletion run_dep_out_in-core_number_densities.csv. This is executed with a force_preic since this "Vector Postprocessor" should be run even before initial coniditions are executed to correctly perform the summation and conversion of nuclide densities to element molar densities. The user could provide any CSV file generated from other micro depletion calculations here instead.

[VectorPostprocessors]
  [reader]
    type = CSVReaderVectorPostprocessor
    csv_file = run_dep_out_in-core_number_densities.csv
    force_preic = True
  []
[]
