Steady state fields

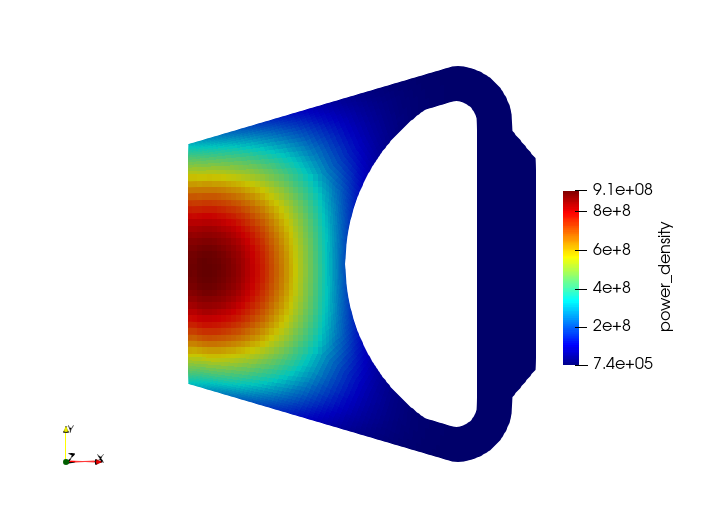

The power density at steady state is shown in Figure 1.

Figure 1: Power density at steady state

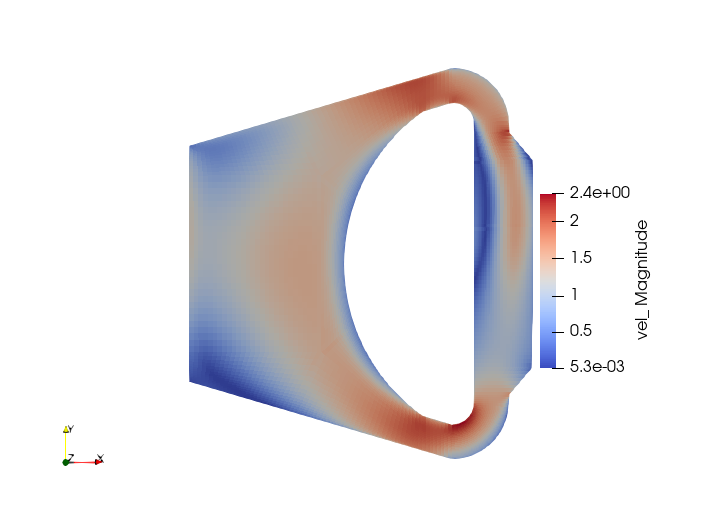

The velocity fields at steady state is shown in Figure 2.

Figure 2: Velocity field magnitude at steady state

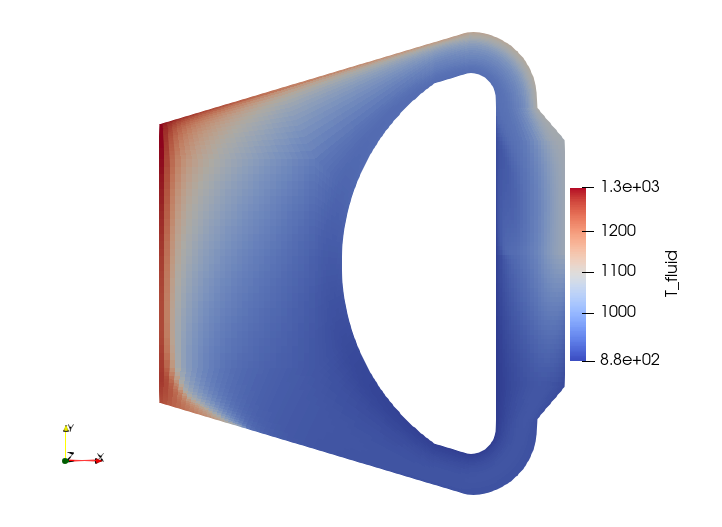

The temperature fields at steady state is shown in Figure 3.

Figure 3: Temperature field at steady state

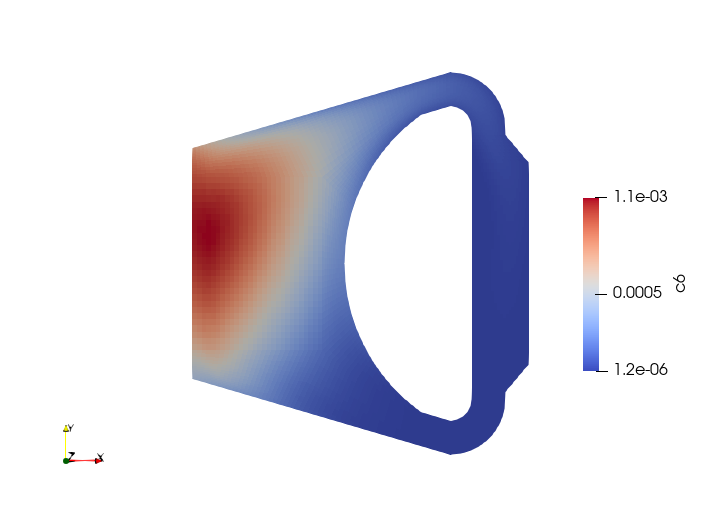

The distributions of the precursor family concentration with the shortest lifetime at steady state is shown in Figure 4.

Figure 4: Shortest-lived precursor density at steady state
