Running the Input File

SAM can be run in Linux, Unix, and MacOS. Due to its dependence on MOOSE, SAM is not compatible with Windows. SAM can be run from the shell prompt as shown below

/projects/SAM/sam-opt -i mhtgr.i

Results

There are three types of output files:

1. MHTGR_csv.csv: this is a csv file that writes the user-specified scalar and vector variables to a comma-separated-values file. The data can be imported to Excel for further processing or in Python using the csv module, Pandas, or other methods.

2. MHTGR_checkpoint_cp: this is a sub-folder that save snapshots of the simulation data including all meshes, solutions. Users can restart the run from where it ended using the file in the checkpoint folder.

3. MHTGR_out.displaced.e: this is a ExodusII file that has all mesh and solution data. Users can use Paraview to open this .e file to visualize, plot, and analyze the data.

Figure 1 shows the Paraview output for the primary loop. Figure 2 shows the coolant temperature profile during normal operation

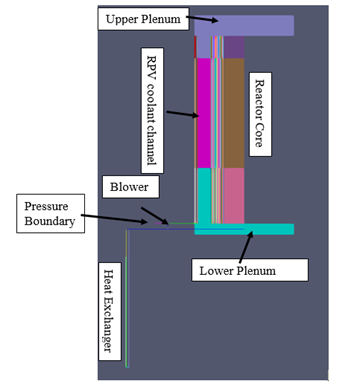

Figure 1: SAM model for the MHTGR primary loop

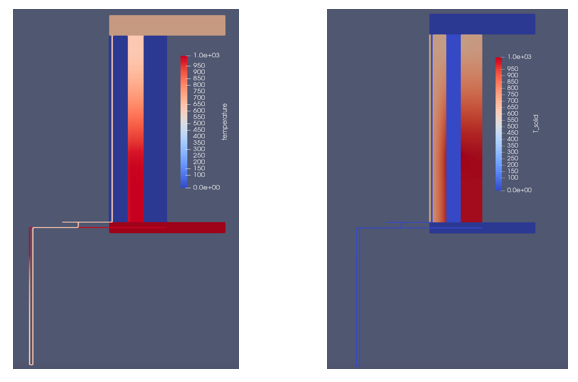

Figure 2: Temperature profiles of helium coolant (left) and heat structure (right) during normal operation
