LEU Fuel Pulse
Contact: Adam Zabriskie, [email protected]
Model link: LEU Fuel Pulse Model
Model Description
This model represents a greatly simplified version of the Transient Reactor Test Facility (TREAT). The model explores the effect on pulse feedback mechanisms from microscale heterogeneity represented by hypothetical 20 m LEU fuel grains. This model couples the heat equation with the neutron governing equation for temperature feedback during a short pulse. The pulse is produced by inserting a reactivity of 4.56 % k/k. The model's simplified geometry consists of a homogeneous cube of TREAT-like fuel surrounded by a cube shell reflector. The simplified geometry has no cladding, coolant channels, or other structures (Zabriskie, 2019). To reduce computation costs, symmetric boundaries are applied to a 1/8th quadrant of the simplified reactor, which is shown in Figure 1. Outer boundaries on the reflector have vacuum and adiabatic boundary conditions for neutron and heat transport.

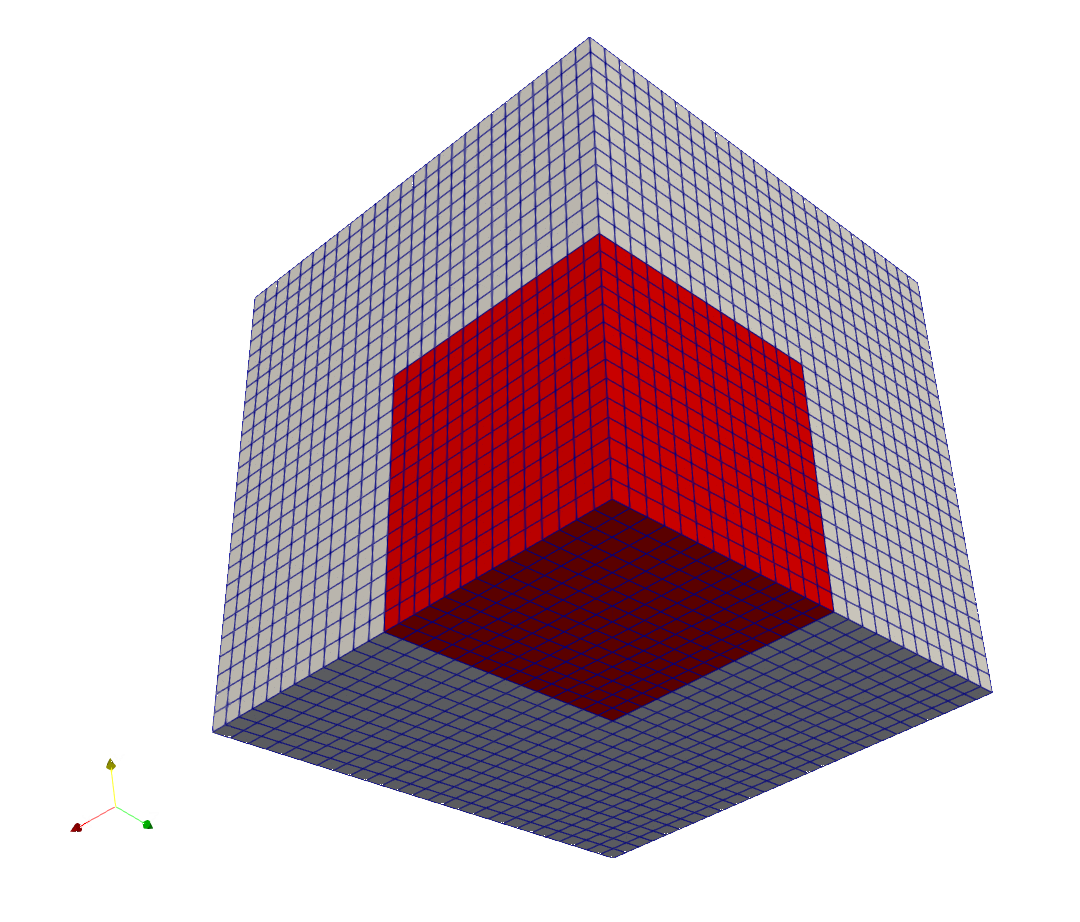

Figure 1: TREAT model octant
The dimensions of the macro-scale simulation model are given in Table 1, and the fuel grain characteristics are given in Table 2.
Table 1: Reflected cube reactor dimensions.
| Characteristic | Value (cm) |
|---|---|
| Reactor side length | |
| Reflector thickness | |
| Total side length | |
| Core mesh element cube length | |
| Reflector mesh element cube length |
Table 2: 20 m radius LEU fuel grain characteristics.
| Characteristic | Value (m) |
|---|---|
| Fuel grain radius | |
| Outer boundary radius | |
| Moderator transition thickness | |
| Moderator shell total thickness | |
| Moderator shell boundary thickness | |
| Fuel grain mesh element | |
| Moderator transition mesh element | |
| Moderator regular mesh element |
The neutronics analysis is performed on a mesh characterized by centimeter-sized elements, while grain treatment is on the micrometer element scale where heat conduction problems are solved on microscopic domains encompassing a single fuel grain and a proportional amount of graphite. This model makes use of the Griffin code for neutron transport and the MOOSE heat transfer module for heat transport and radiation. Serpent 2 was used to prepare cross section libraries (Zabriskie, 2019), (Zabriskie et al., 2019).
The particles are spaced cm apart in a regular grid lattice, and are spaced half that distance when next to a boundary. There are particles in each octant of the full reactor.
The power density, calculated from the sampled flux at each location, is transferred to a single microscale simulation.
The MOOSE MultiApp system handles the multiscale and information transfer needs of the simulation. The macroscale simulation provides the average temperature at each microscale simulation location as an outer boundary condition. With the sampled flux at each location and this outer boundary condition, the thermal solution of each microscale grain provides an average moderator shell temperature and fuel grain temperature to the locations in the macroscale simulation. These average temperatures then adjust the cross section, providing temperature feedback.
Input Files
There are four input files for this model.
Transient Pulse Initial Conditions
This input file sets the initial conditions from which the transient pulse starts.
commentnote
Some code blocks appearing in this file also appear in other files. For brevity, these common blocks are only shown in this first input file, but they will be mentioned in each input file that they appear.
Mesh
This block creates the mesh used for the simplified reactor.
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
TransportSystems
This block sets up the neutron transport governing equation in the diffusion approximation form to be used in the simulation.
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
AuxVariables
This block sets up the auxilliary variables that will be calculated and tracked throughout the runtime of the simulation.
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
AuxKernels
This block defines the equations used to calculate auxilliary values for use in the simulation.
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
Postprocessors
This block processes simulation solution data for output.
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
Materials
This block sets up the material properties for use in the governing equations. The files leu_20r_is_6g_d.xml and leu_macro_6g.xml contain the cross sections.
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
Preconditioner
This block describes the preconditioner used by the solver.
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
Executioner
This block describes the simulation solution approach.
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
Adjoint initial conditions
This input file provides the values needed to calculate the point kinetics equation parameters.
This input file is also almost identical to the previous input file, with a few alterations:
In the
Meshblock, a different name is used for the mesh.In the
TransportSystemsblock, the inputfor_adjointis set totrue.In the
AuxVariablesblock,[Boron_Conc]sub-block,initial_conditionis set to 2.0.
Microscale Particles
This input file describes a microscale particle heat solution. This input is replicated at many locations in the macroscale simulation.
Mesh
This block sets the meshes for the fission damage layer and fuel grain.
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
Variables
This block sets the temperature variable of the governing equation.
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
Kernels
This block defines the heat conduction governing equation.
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
AuxVariables
This block sets up the power density and integrated power auxiliary variables.
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
AuxKernels
This block calculates needed auxiliary values during the simulation.
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
Postprocessors
This block calculates outputs from solution data.
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
Materials
This block contains material properties used in the governing equation.
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
Preconditioning
This block is identical to the [Preconditioning] block in the Transient Pulse Initial Conditions file.
Executioner
This block describes the simulation solution approach.
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
Main Input File
This is the controlling input file that must be run. All other input files are controlled by the MultiApp system in the main input file.
Mesh
This block is almost identical to the Mesh block in the Transient Pulse Initial Conditions file, with a different name used for the mesh.
MultiApps
This block defines the MOOSE MultiApp system. The file refcube_sub_micro.txt is a list of coordinates for the positions of each of the 125 fuel grains.
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
Transfers
This block defines the passing of solution data between MultiApp simulations.
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
TransportSystems
This block is almost identical to the TransportSystems block in the Transient Pulse Initial conditions file, with the exception being that equation_type is set to transient.
Variables
This block sets the temperature variable of the governing equation.
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
Kernels
This block defines the heat conduction governing equation.
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
Functions
This block is used to insert reactivity to start the pulse from the initial conditions.
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
AuxVariables
This block sets up the power density, integrated power, and other auxilliary variables
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
AuxKernels
This block defines the equations used to calculate auxilliary values for use in the simulation.
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
Postprocessors
This block calculates outputs from solution data.
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
UserObjects
The Terminator user object calculates when the simulation concludes.
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
Materials
This block contains material properties used in the governing equation.
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
Preconditioning
This block is identical to the [Preconditioning] block in the Transient Pulse Initial Conditions file.
Executioner
This block describes the simulation solution approach.
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
Run Command
Use this command to run the main input file.
mpirun -np 48 /path/to/griffin-opt -i refcube.i
Output Files
When the main input file is run, many output files will be generated.
Most of these have the format out~refcube_micro_<number> as either CSV (.csv) or Exodus (.e) files. These files are output by the main input file. These files contain the postprocessor values specified in the [Postprocessor] block for each of the fuel grains. The main input file will also output a CSV file containing the PKE parameters, called out~refcube_pke_params.csv.
Each of the four input files will output a CSV file and an Exodus file in the format <input_file_name>_out.csv or <input_file_name>_exodus.e. These files will contain the postprocessor values specified in the corresponding [Postprocessor] block.
References
- Adam Zabriskie, Sebastian Schunert, Daniel Schwen, Javier Ortensi, Benjamin Baker, Yaqi Wang, Vincent Laboure, Mark DeHart, and Wade Marcum.
A coupled multiscale approach to treat leu feedback modeling using a binary-collision monte-carlo–informed heat source.
Nuclear Science and Engineering, 193(4):368–387, 2019.
URL: https://doi.org/10.1080/00295639.2018.1528802, arXiv:https://doi.org/10.1080/00295639.2018.1528802, doi:10.1080/00295639.2018.1528802.[BibTeX]
@article{doi:10.1080/00295639.2018.1528802, author = "Zabriskie, Adam and Schunert, Sebastian and Schwen, Daniel and Ortensi, Javier and Baker, Benjamin and Wang, Yaqi and Laboure, Vincent and DeHart, Mark and Marcum, Wade", title = "A Coupled Multiscale Approach to TREAT LEU Feedback Modeling Using a Binary-Collision Monte-Carlo–Informed Heat Source", journal = "Nuclear Science and Engineering", volume = "193", number = "4", pages = "368-387", year = "2019", publisher = "Taylor \& Francis", doi = "10.1080/00295639.2018.1528802", URL = "https://doi.org/10.1080/00295639.2018.1528802", eprint = "https://doi.org/10.1080/00295639.2018.1528802" } - Adam X. Zabriskie.
Multi-Scale, Multi-Physics Reactor Pulse Simulation Method with Macroscopic and Microscopic Feedback Effects.
PhD thesis, Oregon State University, Corvallis OR, 2019.[BibTeX]
@phdthesis{zabriskie2019, author = "Zabriskie, Adam X.", title = "Multi-Scale, Multi-Physics Reactor Pulse Simulation Method with Macroscopic and Microscopic Feedback Effects", publisher = "Oregon State University Nuclear Engineering Department", address = "Corvallis OR", school = "Oregon State University", year = "2019" }
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/init_refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Transient Pulse Initial Conditions
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
[init_mesh]
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = init_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = eigenvalue
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = FluxRxnIntegral
block = 10
coupled_flux_groups = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
cross_section = kappa_sigma_fission
execute_on = linear
[]
[PowerScaling]
# 100 kW for entire TREAT
type = PowerModulateFactor
execute_on = linear
power_pp = UnscaledTotalPower
rated_power = 12500.0
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temperature
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temperature temperature Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temperature'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temperature / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = Eigenvalue
free_power_iterations = 4
l_max_its = 100
l_tol = 1e-4
nl_abs_tol = 1e-8
nl_max_its = 200
nl_rel_tol = 1e-7
[]
[Outputs]
csv = true
file_base = out~init_refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/ht_20r_leu_fl.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Microscale Particles
# SubApp
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# 20r LEU with fragment damage layer
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
coord_type = RSPHERICAL
[leu_mesh]
type = CartesianMeshGenerator # Remember in cm
dim = 1
dx = '0.0020 0.0014 0.0020 0.011875711758' # cm
# radius particle, damage layer, transition graphite, b_r - dam_lay - 2a_r
ix = '10 7 10 40' # number of elements
[]
[set_damlay_id]
type = SubdomainBoundingBoxGenerator
input = leu_mesh
block_id = 11 # Damage Layer id
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0034 0.0001 0.0001' # x should be a_r
[]
[set_grain_id]
type = SubdomainBoundingBoxGenerator
input = set_damlay_id
block_id = 10 # Fuel grain id is now 10
bottom_left = '-0.0001 -0.0001 -0.0001'
top_right = '0.0020 0.0001 0.0001' # x should be a_r
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
order = FIRST
family = LAGRANGE
initial_condition = 300.0 # K
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource_fg]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 10
coef = 508.59714978 # Scales to energy in grain
[]
[HeatSource_dl]
type = CoupledForce
v = PowerDensity
variable = temperature
block = 11
coef = 34.7291950039 # Scales to energy in damage layer
[]
[]
# Boundary conditions are all adiabatic or symmetric which are the same.
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[PowerDensity]
order = CONSTANT
family = MONOMIAL
[]
[IntegralPower]
order = CONSTANT
family = MONOMIAL
[InitialCondition]
type = ConstantIC
value = 0.0
[]
[]
[]
[AuxKernels]
[PowerIntegrator]
type = VariableTimeIntegrationAux
variable = IntegralPower #J/cm^3
variable_to_integrate = PowerDensity
execute_on = timestep_end
order = 2
[]
[SetPowerDensity]
type = SetAuxByPostprocessor
execute_on = 'timestep_begin timestep_end'
postproc_value = local_power_density # Not scaled
variable = PowerDensity
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[local_power_density]
type = Receiver
[]
[TotalPower]
type = ElementIntegralVariablePostprocessor
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
variable = IntegralPower
[]
[avg_graphtemp]
type = ElementAverageValue
block = '0 11'
variable = temperature
[]
[avg_graintemp]
type = ElementAverageValue
block = 10
variable = temperature
[]
[avg_gr_rhocp]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'heat_capacity'
[]
[avg_gr_kth]
type = ElementAverageMaterialProperty
block = '0 11'
mat_prop = 'thermal_conductivity'
[]
[avg_fg_rhocp]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'heat_capacity'
[]
[avg_fg_kth]
type = ElementAverageMaterialProperty
block = 10
mat_prop = 'thermal_conductivity'
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
# Pure Graphite
[graph_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014' # W/cm K
[]
[graph_rho_cp]
type = ParsedMaterial
block = '0 11' # Irradiation does not affect rho * cp
constant_names = 'rho_gr'
constant_expressions = '0.0018' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))' # J/cm3 K
[]
# Fission Damaged Graphite
[damlay_kth]
type = GenericConstantMaterial
block = 11 # Damage layer of graphite
prop_names = 'thermal_conductivity'
prop_values = '0.01046' # W/cm K
[]
# Fuel Grain UO2
[grain_kth]
type = ParsedMaterial
block = 10
constant_names = 'beta p_vol sigma kap3x'
constant_expressions = '1.0 0.05 1.5 1.0'
coupled_variables = 'temperature' # Variable
property_name = 'thermal_conductivity' # Property name
expression = 'lt := temperature / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temperature) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temperature) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temperature - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temperature - 900.0) / 80.0)); fresh * kap1d * kap1p * kap2p * kap3x * kap4r'
# Divided fresh by 100 to get it into cm
[]
[grain_rho_cp]
type = ParsedMaterial
block = 10
constant_names = 'rho_fg'
constant_expressions = '0.010963' # kg/cm3
coupled_variables = 'temperature' # Variable
property_name = 'heat_capacity' # Property name
expression = 'lt := temperature / 1000.0; fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); rho_fg * fink_cp / 267.2 * 1000.0' # J/cm3 K
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
type = SMP
full = true
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
petsc_options = '-snes_ksp_ew -snes_converged_reason'
[]
[]
# ==================================================================================
# Executioners and Outputs
# ==================================================================================
[Executioner]
type = Transient
# Solver parameters
l_tol = 1e-3
l_max_its = 100
nl_max_its = 200
nl_abs_tol = 1e-8
nl_rel_tol = 1e-8
# Transient parameters
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
[]
[Outputs]
time_step_interval = 1
csv = true
exodus = true
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
(htgr/leu_pulse/refcube.i)
# ==================================================================================
# Model Description
# Application: Griffin
# Idaho National Lab (INL), Idaho Falls, October 17, 2022
# Author: Adam Zabriskie, INL
# ==================================================================================
# TREAT Griffin Main Input File
# Main App
# ==================================================================================
# This model has been built based on [1]
# If using or referring to this model, please cite as explained in
# https://mooseframework.inl.gov/virtual_test_bed/citing.html
# ----------------------------------------------------------------------------------
# [1] Zabriskie, A. X. (2019). Multi-Scale, Multi-Physics Reactor Pulse Simulation
# Method with Macroscopic and Microscopic Feedback Effects (Unpublished
# doctoral dissertation). Oregon State University, Corvallis, Oregon.
# ==================================================================================
# ==================================================================================
# Optional Debugging block
# ==================================================================================
[Debug]
# show_actions = true #True prints out actions
# show_material_props = true #True prints material properties
# show_parser = true
# show_top_residuals = 3 #Number to print
# check_boundary_coverage = true
# print_block_volume = true
# show_neutronics_material_coverage = true
# show_petsc_options = true
# show_var_residual_norms = true
[]
# ==================================================================================
# Geometry and Mesh
# ==================================================================================
[Mesh]
[ref_mesh]
# Simple Reflected Cube Reactor
# Start at zero, half core length reflector thickness; 1/8th symmetric
# Element size: reflector 5.08 cm and core 4.827616834 cm
# 14 in half-core, 12 in reflector
type = CartesianMeshGenerator
dim = 3
dx = '67.58663568 60.96'
dy = '67.58663568 60.96'
dz = '67.58663568 60.96'
ix = '14 12'
iy = '14 12'
iz = '14 12'
[]
[set_core_id]
type = SubdomainBoundingBoxGenerator
block_id = 10
input = ref_mesh
bottom_left = '0.0 0.0 0.0'
top_right = '67.58663568 67.58663568 67.58663568'
[]
[]
# ==================================================================================
# MultiApps and Transfers
# ==================================================================================
[MultiApps]
[initial_solve]
type = FullSolveMultiApp
execute_on = initial
input_files = 'init_refcube.i'
positions = '0 0 0'
[]
[init_adj]
type = FullSolveMultiApp
execute_on = initial
input_files = 'adj_refcube.i'
positions = '0 0 0'
[]
[micro]
type = TransientMultiApp
execute_on = timestep_end
input_files = 'ht_20r_leu_fl.i'
max_procs_per_app = 1
positions_file = 'refcube_sub_micro.txt'
[]
[]
[Transfers]
#Below are communication for adjoint IQS for PKE
#Below are communication for Multiscale with micro-subs
[copy_flux]
type = TransportSystemVariableTransfer
execute_on = initial
from_transport_system = diffing
from_multi_app = initial_solve
to_transport_system = diffing
[]
[copy_pp]
# Scales everything to the initial power.
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = UnscaledTotalPower
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = UnscaledTotalPower
[]
[copy_sf]
# Scales factor
type = MultiAppPostprocessorTransfer
execute_on = initial
from_postprocessor = PowerScaling
from_multi_app = initial_solve
reduction_type = maximum
to_postprocessor = PowerScaling
[]
[copy_adjoint_vars]
type = MultiAppCopyTransfer
execute_on = initial
from_multi_app = init_adj
source_variable = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
variable = 'adjoint_flux_g0 adjoint_flux_g1 adjoint_flux_g2 adjoint_flux_g3 adjoint_flux_g4 adjoint_flux_g5'
[]
[powden_down]
type = MultiAppVariableValueSamplePostprocessorTransfer
to_multi_app = micro
postprocessor = local_power_density
source_variable = PowerDensity
[]
[modtemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graphtemp
power = 2
variable = temp_ms
[]
[graintemp_up]
type = MultiAppPostprocessorInterpolationTransfer
from_multi_app = micro
num_points = 6
postprocessor = avg_graintemp
power = 2
variable = temp_fg
[]
[]
# ==================================================================================
# Transport Systems
# ==================================================================================
[TransportSystems]
# In 3D, back = 0, bottom = 1, right = 2, top = 3, left = 4, front = 5
# back is -z, bottom is -y, right is +x
#Boundary Conditions#
G = 6
ReflectingBoundary = '0 1 4'
VacuumBoundary = '2 3 5'
equation_type = transient
for_adjoint = false
particle = neutron
[diffing]
family = LAGRANGE
n_delay_groups = 6
order = FIRST
scheme = CFEM-Diffusion
[]
[]
# ==================================================================================
# Variables and Kernels
# ==================================================================================
[Variables]
[temperature]
family = LAGRANGE
initial_condition = 300.0
order = FIRST
scaling = 1e-8
[]
[]
[Kernels]
[HeatConduction]
type = HeatConduction
variable = temperature
[]
[HeatStorage]
type = HeatCapacityConductionTimeDerivative
variable = temperature
[]
[HeatSource]
block = 10
type = CoupledForce
v = PowerDensity
variable = temperature
[]
[]
# ==================================================================================
# Functions
# ==================================================================================
[Functions]
[boron_state]
type = PiecewiseLinear
x = '0.0 0.005 30'
y = '1.89489259748 2.0 2.0'
[]
[]
# ==================================================================================
# Auxilliary Variables and Auxilliary Kernels
# ==================================================================================
[AuxVariables]
[Boron_Conc]
family = MONOMIAL
initial_condition = 1.89489259748
order = CONSTANT
[]
[PowerDensity]
block = '10'
family = MONOMIAL
order = CONSTANT
[]
[IntegralPower]
block = 10
family = MONOMIAL
initial_condition = 0.0
order = CONSTANT
[]
[avg_coretemp]
block = 0
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_fg]
#Fuel Grain
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[temp_ms]
#Moderator Shell
block = 10
family = LAGRANGE
initial_condition = 300.0
order = FIRST
[]
[]
[AuxKernels]
[pulse_boron]
type = FunctionAux
execute_on = timestep_end
function = boron_state
variable = Boron_Conc
[]
[PowerDensityCalc]
type = VectorReactionRate
block = '10'
cross_section = kappa_sigma_fission
dummies = UnscaledTotalPower
execute_on = 'initial linear'
scalar_flux = 'sflux_g0 sflux_g1 sflux_g2 sflux_g3 sflux_g4 sflux_g5'
scale_factor = PowerScaling
variable = PowerDensity
[]
[Powerintegrator]
type = VariableTimeIntegrationAux
block = 10
execute_on = timestep_end
variable = IntegralPower
variable_to_integrate = PowerDensity
[]
[Set_coreT]
type = SetAuxByPostprocessor
block = 0
execute_on = 'linear timestep_end'
postproc_value = avg_coretemp
variable = avg_coretemp
[]
[]
# ==================================================================================
# Postprocessor Values
# ==================================================================================
[Postprocessors]
[UnscaledTotalPower]
type = Receiver
outputs = none
[]
[PowerScaling]
type = Receiver
outputs = none
[]
[avg_coretemp]
type = ElementAverageValue
block = 10
execute_on = linear
outputs = all
variable = temp_ms
[]
[avg_refltemp]
type = ElementAverageValue
block = 0
execute_on = linear
outputs = all
variable = temperature
[]
[max_tempms]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_ms
[]
[max_tempfg]
type = ElementExtremeValue
block = '10'
outputs = all
value_type = max
variable = temp_fg
[]
[avg_ms_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_ms
[]
[avg_fg_temp]
type = ElementAverageValue
block = 10
outputs = all
variable = temp_fg
[]
[avg_powerden]
type = ElementAverageValue
block = 10
execute_on = timestep_end
outputs = all
variable = PowerDensity
[]
[peak_avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = avg_powerden
value_type = max
[]
[powden_ratio]
type = PostprocessorRatio
denominator = peak_avgPD
execute_on = timestep_end
numerator = avg_powerden
[]
[der1_avgPD]
type = ElementAverageTimeDerivative
block = 10
execute_on = timestep_end
variable = PowerDensity
[]
[peak_der1avgPD]
type = TimeExtremeValue
execute_on = timestep_end
postprocessor = der1_avgPD
value_type = max
[]
[der1PD_ratio]
type = PostprocessorRatio
denominator = peak_der1avgPD
execute_on = timestep_end
numerator = der1_avgPD
[]
[ScaledTotalPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = linear
variable = PowerDensity
[]
[IntegratedPower]
type = ElementIntegralVariablePostprocessor
block = 10
execute_on = timestep_end
variable = IntegralPower
[]
[delta_time]
type = TimestepSize
[]
[nl_steps]
type = NumNonlinearIterations
[]
[lin_steps]
type = NumLinearIterations
[]
[Eq_TREAT_Power]
type = ScalePostprocessor
scaling_factor = 2469860.77609
value = avg_powerden
[]
[]
# ==================================================================================
# User Object
# ==================================================================================
[UserObjects]
[der_pulse_end]
type = Terminator
execute_on = timestep_end
expression = '(powden_ratio < 0.25) & (abs(der1PD_ratio) < 0.04)'
[]
[]
# ==================================================================================
# Materials
# ==================================================================================
[Materials]
[neut_mix]
type = CoupledFeedbackNeutronicsMaterial
block = 10
densities = '0.998448391539 0.00155160846058'
grid_names = 'Tfuel Tmod Rod'
grid_variables = 'temp_fg temp_ms Boron_Conc'
isotopes = 'pseudo1 pseudo2'
library_file = 'cross_sections/leu_20r_is_6g_d.xml'
library_name = leu_20r_is_6g_d
material_id = 1
plus = true
[]
[kth]
# Volume weighted harmonic mean
# Divided fg_kth by 100 to get it into cm
type = ParsedMaterial
coupled_variables = 'temp_fg'
block = 10
constant_expressions = '3.35103216383e-08 1.31125888571e-07 2.14325144175e-05 0.3014 0.01046 1.0 0.05 1.5 1.0'
constant_names = 'vol_fg vol_fl vol_gr gr_kth fl_kth beta p_vol sigma kap3x'
property_name = 'thermal_conductivity'
expression = 'lt := temp_fg / 1000.0; fresh := (100.0 / (6.548 + 23.533 * lt) + 6400.0 * exp(-16.35 / lt) / pow(lt, 5.0/2.0)) / 100.0; kap1d := (1.09 / pow(beta, 3.265) + 0.0643 * sqrt(temp_fg) / sqrt(beta)) * atan(1.0 / (1.09 / pow(beta, 3.265) + sqrt(temp_fg) * 0.0643 / sqrt(beta))); kap1p := 1.0 + 0.019 * beta / ((3.0 - 0.019 * beta) * (1.0 + exp(-(temp_fg - 1200.0) / 100.0))); kap2p := (1.0 - p_vol) / (1.0 + (sigma - 1.0) * p_vol); kap4r := 1.0 - 0.2 / (1.0 + exp((temp_fg - 900.0) / 80.0)); fg_kth := fresh * kap1d * kap1p * kap2p * kap3x * kap4r; (vol_fg + vol_fl + vol_gr) / (vol_fg / fg_kth + vol_fl / fl_kth + vol_gr / gr_kth)'
[]
[rho_cp]
# Volume weighted arithmetic mean (Irradiation has no effect)
type = ParsedMaterial
coupled_variables = 'temp_fg temp_ms'
block = 10
constant_expressions = '3.35103216383e-08 2.1563640306e-05 0.0018 0.010963'
constant_names = 'vol_fg vol_gr rho_gr rho_fg'
property_name = 'heat_capacity'
expression = 'lt := temp_fg / 1000.0; gr_rhocp := rho_gr / (11.07 * pow(temp_ms, -1.644) + 0.0003688 * pow(temp_ms, 0.02191)); fink_cp := 52.1743 + 87.951 * lt - 84.2411 * pow(lt, 2) + 31.542 * pow(lt, 3) - 2.6334 * pow(lt, 4) - 0.71391 * pow(lt, -2); fg_rhocp := rho_fg * fink_cp / 267.2 * 1000.0; (vol_fg * fg_rhocp + vol_gr * gr_rhocp) / (vol_fg + vol_gr)'
[]
[neut_refl]
type = CoupledFeedbackNeutronicsMaterial
block = 0
densities = '1'
grid_names = 'Trefl Tcore Rod'
grid_variables = 'temperature avg_coretemp Boron_Conc'
isotopes = 'pseudo'
library_file = 'cross_sections/leu_macro_6g.xml'
library_name = leu_macro_6g
material_id = 2
plus = true
[]
[ref_kth]
type = GenericConstantMaterial
block = 0
prop_names = 'thermal_conductivity'
prop_values = '0.3014'
[]
[ref_rho_cp]
type = ParsedMaterial
coupled_variables = 'temperature'
block = '0'
constant_expressions = '0.0018'
constant_names = 'rho_gr'
property_name = 'heat_capacity'
expression = 'rho_gr / (11.07 * pow(temperature, -1.644) + 0.0003688 * pow(temperature, 0.02191))'
[]
[]
# ==================================================================================
# Preconditioners
# ==================================================================================
[Preconditioning]
[SMP_full]
#petsc_options = '-snes_ksp_ew -snes_converged_reason -ksp_monitor_true_residual'
type = SMP
full = true
petsc_options = '-snes_ksp_ew -snes_converged_reason'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart -pc_hypre_boomeramg_max_iter -pc_hypre_boomeramg_tol'
petsc_options_value = 'hypre boomeramg 101 20 1.0e-6'
solve_type = 'PJFNK'
[]
[]
# ==================================================================================
# Executioner and Outputs
# ==================================================================================
[Executioner]
type = IQS
do_iqs_transient = false
pke_param_csv = true
# Time evolution parameters
dtmin = 1e-7
start_time = 0.0
end_time = 10.0
[TimeStepper]
type = ConstantDT
dt = 0.005
growth_factor = 1.5
[]
# Solver parameters
l_max_its = 100
l_tol = 1e-3
nl_abs_tol = 1e-7
nl_max_its = 200
nl_rel_tol = 1e-7
# Multiphysics iteration parameters
fixed_point_abs_tol = 1e-7
fixed_point_max_its = 10
fixed_point_rel_tol = 1e-7
[]
[Outputs]
file_base = out~refcube
time_step_interval = 1
[console]
type = Console
output_linear = true
output_nonlinear = true
[]
[exodus]
type = Exodus
[]
[csv]
type = CSV
hide = 'lin_steps nl_steps'
[]
[]
