General Pebble Bed Reactor with Stochastic Analyses

Contact: Zachary M. Prince, [email protected]

Purpose and Background

This 200MWth General Pebble Bed Reactor (GPBR200) model is the latest iteration of a series of pebble-bed high-temperature gas reactor (HTGR) models developed at Idaho National Laboratory (INL) using MOOSE-based applications. These models are primarily meant as a testing ground for multiphysics, optimization, and stochastic methods for PBRs, some also serving as verification benchmarks. An in-depth description of the latest iteration can be found in Prince et al. (2024). It is recommended to read this paper before continuing in the exposition here.

The purpose of this exposition is to show how to perform multiphysics simulations of PBRs and stochastic analyses of reactors, in general, with MOOSE-based applications. This is done by presenting and explaining the inputs that perform:

Equilibrium-core neutronics and depletion using Griffin Wang et al. (2025)
Thermal-hydraulics simulation using weakly-compressible finite-volume fluids and finite-volume heat conduction with Pronghorn Novak et al. (2021)
Pebble and particle thermomechanics with Bison Williamson et al. (2021)
Multi-scale physics coupling using MOOSE MultiApps Giudicelli et al. (2024)
Surrogate modeling and sensitivity analysis using the MOOSE stochastic tools module Slaughter et al. (2023)

Brief Geometry and Property Description

The GPBR200 model is 2D axisymmetric geometry shown in Figure 1. The mesh shown was generated using a custom MOOSE MeshGenerator, not currently available publicly. The relevant properties of the model are shown in Table 1. Note that these are "nominal" property values, where some of them will be varied as part of the stochastic analyses.

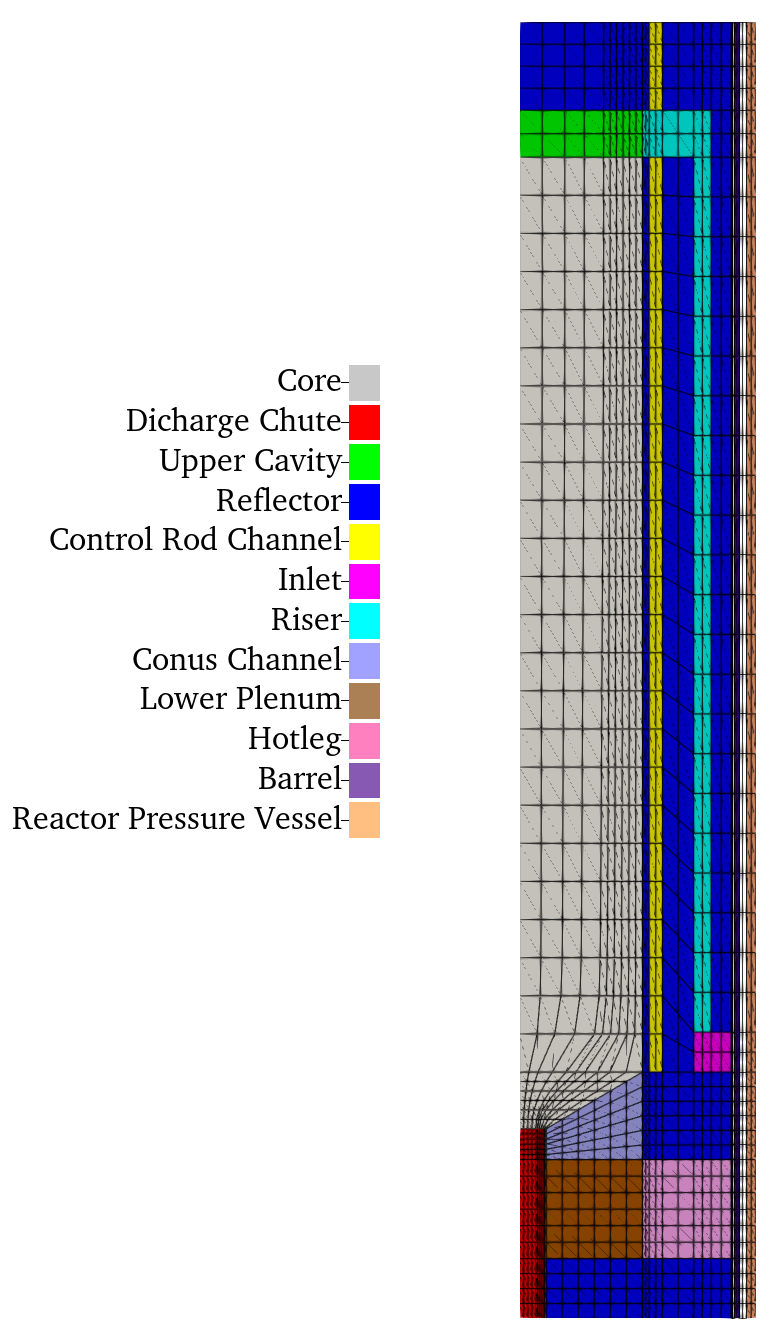

Figure 1: Geometric diagram of GPBR200 model.

Table 1: Nominal properties of GPBR200 model.

Property	Value	Unit
Power	200	MW
Core radius	1.2	m
Core height	8.93	m
Pebble diameter	6	cm
TRISO filling factor	9.34	%
Fuel kernel composition	UCO	–
Fuel kernel diameter	0.425	mm
Fuel enrichment	15.5	%wt
Discharge rate	1.5	pebbles/min
Discharge limit	147.6	MWd/kg
He mass flow rate	64.3	kg/s
He inlet temperature	260	°C
He outlet pressure	5.8	MPa
RCCS temperature	70	°C

Outline

The remainder of this model description dives deeply into the inputs and a presentation of results, which are mostly showcased in Prince et al. (2024).
