PlaneDeletionGenerator

Removes elements lying 'above' the plane (in the direction of the normal).

Description

Allows for deletion of elements that lie on one side of a plane. The plane can be specified via a point and a vector that is normal to the plane. All elements whose centroids lie "above" (in the direction of the normal vector) the plane will be removed from the mesh.

An optional new_boundary parameter can also be specified which will make any newly-created free-surfaces have that boundary ID.

Example


[MeshGenerators]
  [generated]
    type = GeneratedMeshGenerator
    dim = 3
    nx = 4
    ny = 4
    nz = 4
  []
  [deleter]
    type = PlaneDeletionGenerator
    point = '0.5 0.5 0'
    normal = '-1 1 0'
    input = generated
    new_boundary = 6
  []
[]

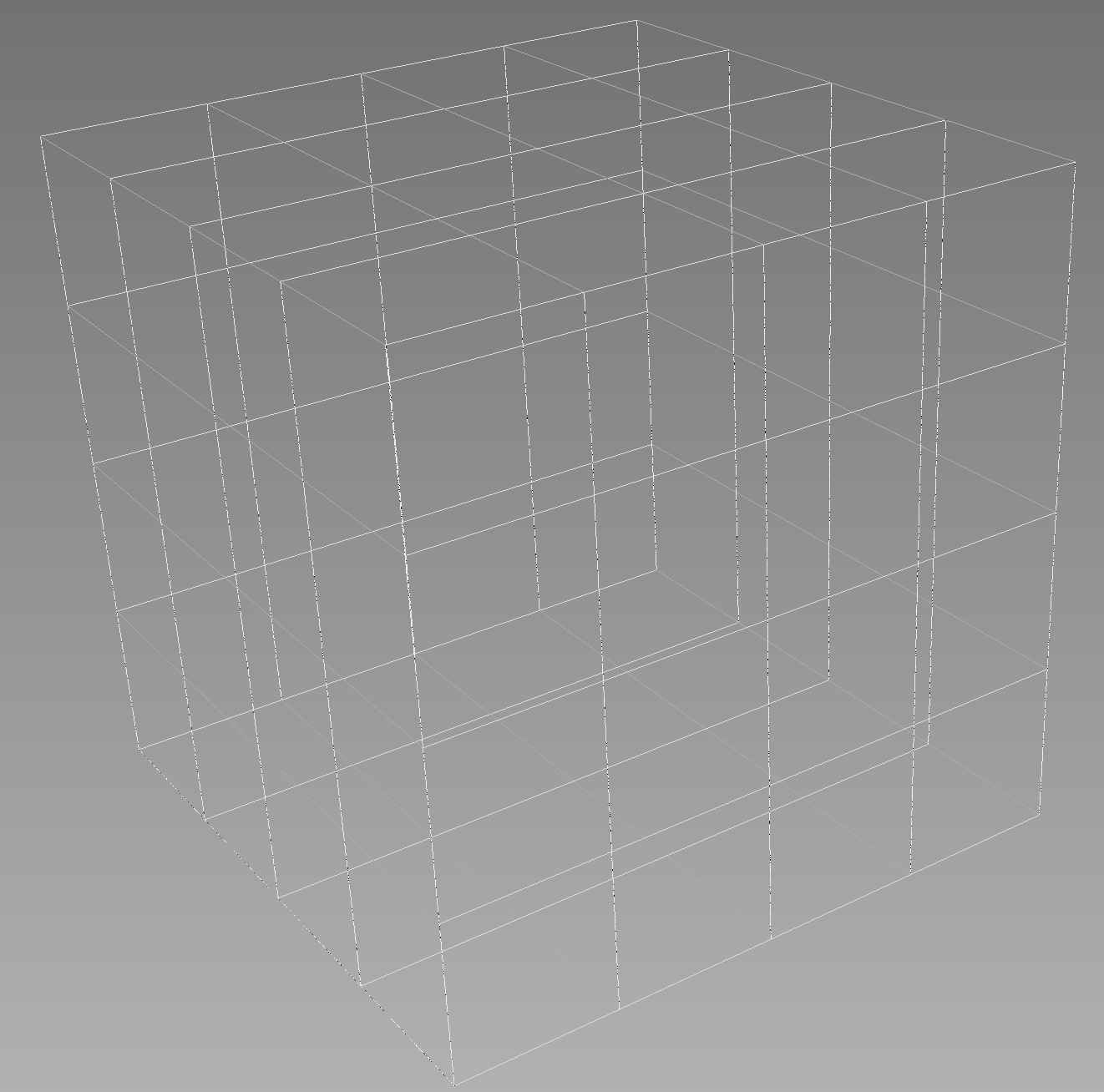

The Original Mesh

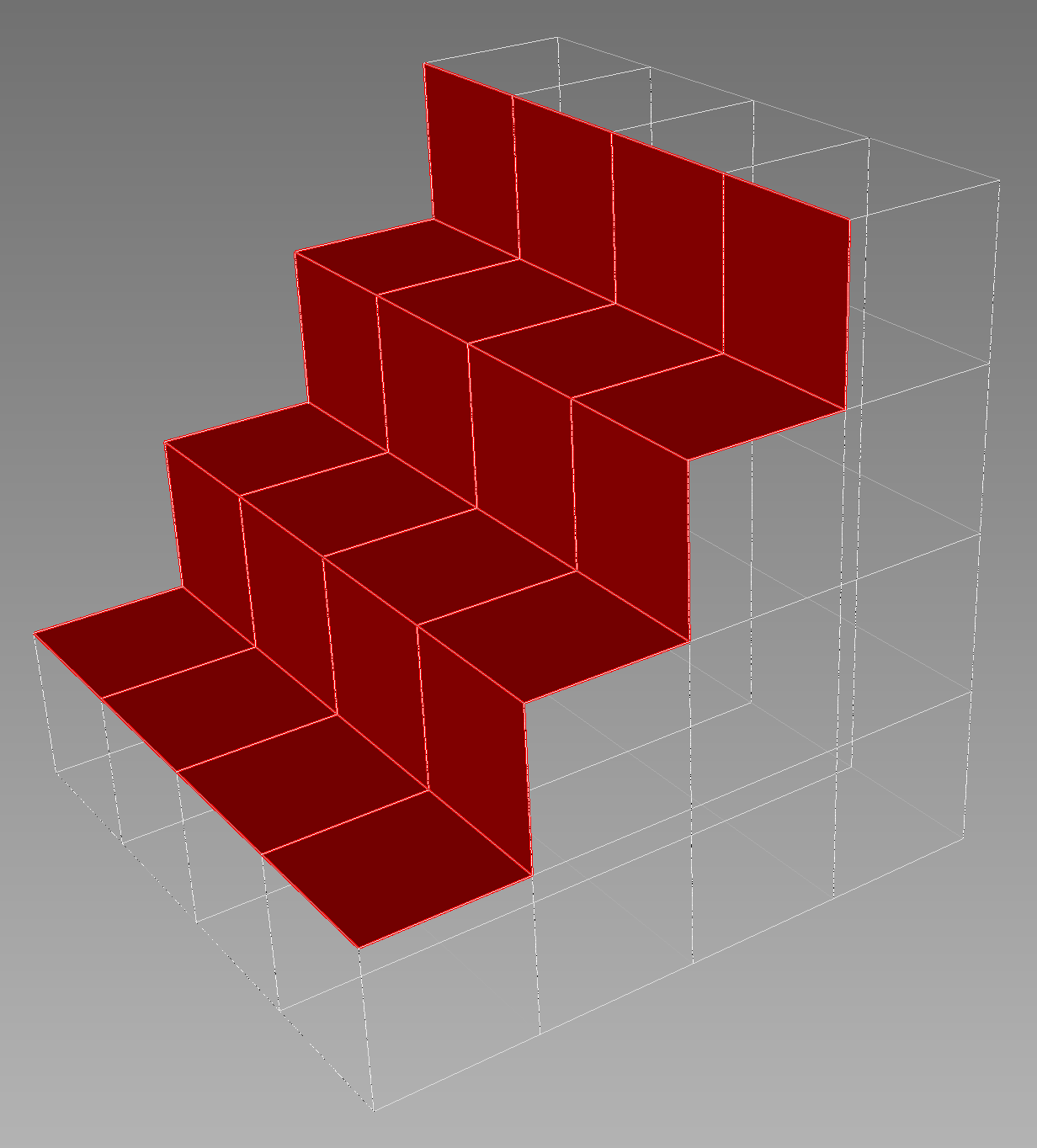

With the elements removed (and showing the new boundary)

Input Parameters

inputThe mesh we want to modify
C++ Type:MeshGeneratorName
Options:
Description:The mesh we want to modify
normalThe normal that defines the plane
C++ Type:libMesh::VectorValue
Options:
Description:The normal that defines the plane
pointThe point that defines the plane
C++ Type:libMesh::Point
Options:
Description:The point that defines the plane

Required Parameters

new_boundaryoptional boundary name to assign to the cut surface
C++ Type:BoundaryName
Options:
Description:optional boundary name to assign to the cut surface

Optional Parameters

control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector
Options:
Description:Adds user-defined labels for accessing object parameters via control logic.
enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Options:
Description:Set the enabled status of the MooseObject.

Advanced Parameters

Input Files

test/tests/meshgenerators/plane_deletion/plane_deletion.i

test/tests/meshgenerators/plane_deletion/plane_deletion.i

[Mesh]
  [deleter]
    type = PlaneDeletionGenerator
    point = '0.5 0.5 0'
    normal = '-1 0 0'
    input = generated
    new_boundary = 6
  []
  [generated]
    type = GeneratedMeshGenerator
    dim = 3
    nx = 4
    ny = 4
    nz = 4
  []
[]

[Variables]
  [u]
  []
[]

[Kernels]
  [diff]
    type = Diffusion
    variable = u
  []
[]

[BCs]
  [left]
    type = DirichletBC
    variable = u
    boundary = 'left'
    value = 0
  []
  [right]
    type = DirichletBC
    variable = u
    boundary = 'right'
    value = 1
  []
[]

[Executioner]
  type = Steady
  solve_type = PJFNK
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]
