ElementQualityAux

Generates a field containing the quality metric for each element. Useful for visualizing mesh quality.

Description

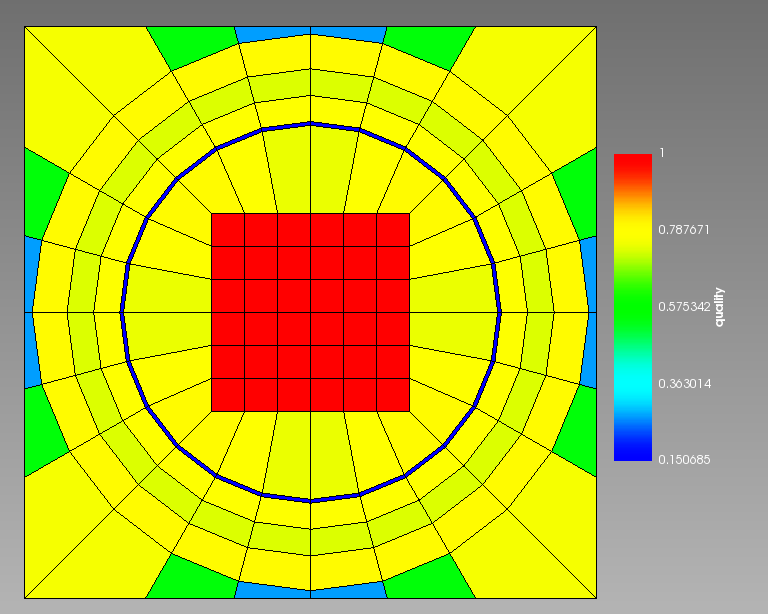

Computes per-element quality metrics and puts the value in a field. An example is shown below using the SHAPE metric on an unstructured mesh. In this case "perfectly" shaped elements have a value of 1.0 and as the quality degrades so does the value of the shape metric.

The SHAPE metric is a good one to use for quads and tris. You can see the list of all possible metrics below in the documentation for the metric parameter.

Input Parameters

metricThe quality metric to use.
C++ Type:MooseEnum
Options:ASPECT_RATIO SKEW SHEAR SHAPE MAX_ANGLE MIN_ANGLE CONDITION DISTORTION TAPER WARP STRETCH DIAGONAL ASPECT_RATIO_BETA ASPECT_RATIO_GAMMA SIZE JACOBIAN
Description:The quality metric to use.
variableThe name of the variable that this object applies to
C++ Type:AuxVariableName
Options:
Description:The name of the variable that this object applies to

Required Parameters

blockThe list of block ids (SubdomainID) that this object will be applied
C++ Type:std::vector
Options:
Description:The list of block ids (SubdomainID) that this object will be applied
boundaryThe list of boundary IDs from the mesh where this boundary condition applies
C++ Type:std::vector
Options:
Description:The list of boundary IDs from the mesh where this boundary condition applies
execute_onLINEAR TIMESTEP_ENDThe list of flag(s) indicating when this object should be executed, the available options include NONE, INITIAL, LINEAR, NONLINEAR, TIMESTEP_END, TIMESTEP_BEGIN, FINAL, CUSTOM, PRE_DISPLACE.
Default:LINEAR TIMESTEP_END
C++ Type:ExecFlagEnum
Options:NONE INITIAL LINEAR NONLINEAR TIMESTEP_END TIMESTEP_BEGIN FINAL CUSTOM PRE_DISPLACE
Description:The list of flag(s) indicating when this object should be executed, the available options include NONE, INITIAL, LINEAR, NONLINEAR, TIMESTEP_END, TIMESTEP_BEGIN, FINAL, CUSTOM, PRE_DISPLACE.

Optional Parameters

control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector
Options:
Description:Adds user-defined labels for accessing object parameters via control logic.
enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Options:
Description:Set the enabled status of the MooseObject.
seed0The seed for the master random number generator
Default:0
C++ Type:unsigned int
Options:
Description:The seed for the master random number generator
use_displaced_meshFalseWhether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.
Default:False
C++ Type:bool
Options:
Description:Whether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.

Advanced Parameters

Input Files

test/tests/auxkernels/element_quality_aux/element_quality_aux.i

test/tests/auxkernels/element_quality_aux/element_quality_aux.i

[Mesh]
  type = FileMesh
  file = mesh.e
[]

[Variables]
  [u]
  []
[]

[Kernels]
  [diff]
    type = Diffusion
    variable = u
  []
[]

[BCs]
  [left]
    type = DirichletBC
    variable = u
    boundary = 'left'
    value = 0
  []
  [right]
    type = DirichletBC
    variable = u
    boundary = 'right'
    value = 1
  []
[]

[Executioner]
  type = Steady
  solve_type = PJFNK
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]

[AuxVariables]
  [quality]
    family = MONOMIAL
    order = CONSTANT
  []
[]

[AuxKernels]
  [qa]
    type = ElementQualityAux
    variable = quality
    metric = SHAPE
  []
[]
