PorousFlowHysteresisOrder
This Material is used in simulations involving hysteresis.
This Material computes the "order" for simulations involving hysteretic capillary-pressure and/or relative-permeability functions. It also records the liquid saturation at each turning point. The meaning of "order" is illustrated in Figure 1. The order and the turning points may be recorded into AuxVariables using a PorousFlowPropertyAux.
Since the hysteretic capillary-pressure and relative-permeability functions are only defined up to third order, the order computed by PorousFlowHysteresisOrder never exceeds 3 (hard coded in PorousFlowConstants.h).

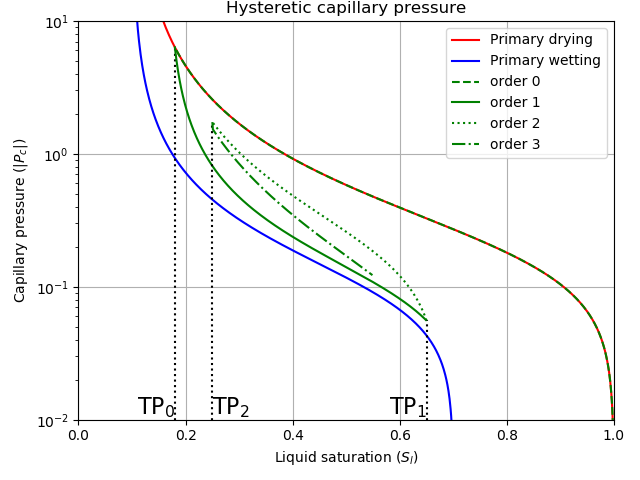

Figure 1: An illustration of hysteresis order. The liquid-saturation turning points are marked as TP.
Input Parameters
- at_nodesFalseEvaluate Material properties at nodes instead of quadpoints
Default:False
C++ Type:bool
Controllable:No
Description:Evaluate Material properties at nodes instead of quadpoints
- blockThe list of blocks (ids or names) that this object will be applied
C++ Type:std::vector<SubdomainName>
Controllable:No
Description:The list of blocks (ids or names) that this object will be applied
- boundaryThe list of boundaries (ids or names) from the mesh where this boundary condition applies
C++ Type:std::vector<BoundaryName>
Controllable:No
Description:The list of boundaries (ids or names) from the mesh where this boundary condition applies
- computeTrueWhen false, MOOSE will not call compute methods on this material. The user must call computeProperties() after retrieving the MaterialBase via MaterialBasePropertyInterface::getMaterialBase(). Non-computed MaterialBases are not sorted for dependencies.
Default:True
C++ Type:bool
Controllable:No
Description:When false, MOOSE will not call compute methods on this material. The user must call computeProperties() after retrieving the MaterialBase via MaterialBasePropertyInterface::getMaterialBase(). Non-computed MaterialBases are not sorted for dependencies.
- constant_onNONEWhen ELEMENT, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps.When SUBDOMAIN, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps. Evaluations on element qps will be skipped
Default:NONE
C++ Type:MooseEnum
Options:NONE, ELEMENT, SUBDOMAIN
Controllable:No
Description:When ELEMENT, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps.When SUBDOMAIN, MOOSE will only call computeQpProperties() for the 0th quadrature point, and then copy that value to the other qps. Evaluations on element qps will be skipped
- declare_suffixAn optional suffix parameter that can be appended to any declared properties. The suffix will be prepended with a '_' character.
C++ Type:MaterialPropertyName
Controllable:No
Description:An optional suffix parameter that can be appended to any declared properties. The suffix will be prepended with a '_' character.
- initial_order0The initial order. 0 means the simulation will begin on the primary drying curve. 1 means the simulation will begin on the first-order wetting curve. 2 means the simulation will begin on the second-order drying curve, etc.
Default:0
C++ Type:unsigned int
Controllable:No
Description:The initial order. 0 means the simulation will begin on the primary drying curve. 1 means the simulation will begin on the first-order wetting curve. 2 means the simulation will begin on the second-order drying curve, etc.
- liquid_phase0The phase number of the liquid phase
Default:0
C++ Type:unsigned int
Controllable:No
Description:The phase number of the liquid phase
- previous_turning_pointsThe turning points (liquid saturation values) at occured prior to the simulation. There must be exactly initial_order of these values. The first value is the liquid saturation at the transition from primary-drying to first-order-wetting; the second value is the liquid saturation at the transition from first-order-wetting to second-order-drying; and so on. You must ensure that your initial saturation field is commensurate with the previous_turning_points.
C++ Type:std::vector<double>
Controllable:No
Description:The turning points (liquid saturation values) at occured prior to the simulation. There must be exactly initial_order of these values. The first value is the liquid saturation at the transition from primary-drying to first-order-wetting; the second value is the liquid saturation at the transition from first-order-wetting to second-order-drying; and so on. You must ensure that your initial saturation field is commensurate with the previous_turning_points.
- prop_getter_suffixAn optional suffix parameter that can be appended to any attempt to retrieve/get material properties. The suffix will be prepended with a '_' character.
C++ Type:MaterialPropertyName
Controllable:No
Description:An optional suffix parameter that can be appended to any attempt to retrieve/get material properties. The suffix will be prepended with a '_' character.
Optional Parameters
- control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector<std::string>
Controllable:No
Description:Adds user-defined labels for accessing object parameters via control logic.
- enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Controllable:Yes
Description:Set the enabled status of the MooseObject.
- implicitTrueDetermines whether this object is calculated using an implicit or explicit form
Default:True
C++ Type:bool
Controllable:No
Description:Determines whether this object is calculated using an implicit or explicit form
- seed0The seed for the master random number generator
Default:0
C++ Type:unsigned int
Controllable:No
Description:The seed for the master random number generator
- use_displaced_meshFalseWhether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.
Default:False
C++ Type:bool
Controllable:No
Description:Whether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.
Advanced Parameters
- output_propertiesList of material properties, from this material, to output (outputs must also be defined to an output type)
C++ Type:std::vector<std::string>
Controllable:No
Description:List of material properties, from this material, to output (outputs must also be defined to an output type)
- outputsnone Vector of output names were you would like to restrict the output of variables(s) associated with this object
Default:none
C++ Type:std::vector<OutputName>
Controllable:No
Description:Vector of output names were you would like to restrict the output of variables(s) associated with this object
Outputs Parameters
Input Files
- (modules/porous_flow/test/tests/hysteresis/hys_pc_03.i)
- (modules/porous_flow/test/tests/hysteresis/1phase_3rd.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePS_relperm_2.i)
- (modules/porous_flow/test/tests/hysteresis/except13.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_09.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePP_jac.i)
- (modules/porous_flow/test/tests/hysteresis/hys_pc_1.i)
- (modules/porous_flow/test/tests/hysteresis/1phase.i)
- (modules/porous_flow/test/tests/hysteresis/except01.i)
- (modules/porous_flow/test/tests/hysteresis/except05.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePS_jac.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_01.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_03.i)
- (modules/porous_flow/test/tests/hysteresis/hys_pc_3.i)
- (modules/porous_flow/test/tests/hysteresis/except07.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePS_2.i)
- (modules/porous_flow/test/tests/hysteresis/except09.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePS_relperm.i)
- (modules/porous_flow/test/tests/hysteresis/except12.i)
- (modules/porous_flow/test/tests/hysteresis/hys_pc_2.i)
- (modules/porous_flow/test/tests/hysteresis/except08.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePP_2.i)
- (modules/porous_flow/test/tests/hysteresis/except11.i)
- (modules/porous_flow/test/tests/hysteresis/1phase_relperm_2.i)
- (modules/porous_flow/test/tests/hysteresis/1phase_relperm.i)
- (modules/porous_flow/test/tests/hysteresis/hys_sat_01.i)
- (modules/porous_flow/test/tests/hysteresis/except06.i)
- (modules/porous_flow/test/tests/hysteresis/except10.i)
- (modules/porous_flow/test/tests/hysteresis/hys_sat_02.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePS.i)
- (modules/porous_flow/test/tests/hysteresis/except04.i)
- (modules/porous_flow/test/tests/hysteresis/except15.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_07.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_06.i)
- (modules/porous_flow/test/tests/hysteresis/hys_pc_01.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_05.i)
- (modules/porous_flow/test/tests/hysteresis/except14.i)
- (modules/porous_flow/test/tests/hysteresis/except02.i)
- (modules/porous_flow/test/tests/hysteresis/2phasePP.i)
- (modules/porous_flow/test/tests/hysteresis/except03.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_08.i)
- (modules/porous_flow/test/tests/hysteresis/relperm_jac.i)
- (modules/porous_flow/test/tests/hysteresis/vary_sat_1.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_02.i)
- (modules/porous_flow/test/tests/hysteresis/except16.i)
- (modules/porous_flow/test/tests/hysteresis/hys_pc_02.i)
- (modules/porous_flow/test/tests/hysteresis/hys_order_04.i)
- (modules/porous_flow/test/tests/hysteresis/relperm_jac_1.i)
- (modules/porous_flow/test/tests/hysteresis/hys_sat_03.i)
