- extrusion_vectorThe direction and length of the extrusion
C++ Type:libMesh::VectorValue<double>
Description:The direction and length of the extrusion
- inputthe mesh we want to extrude
C++ Type:MeshGeneratorName
Description:the mesh we want to extrude
MeshExtruderGenerator
Takes a 1D or 2D mesh and extrudes the entire structure along the specified axis increasing the dimensionality of the mesh.
Overview
The mesh extruder generator is a tool for increasing the dimensionality of a lower dimension mesh (1D or 2D). Each element is converted to one or more copies of its corresponding higher dimensional element along the specified axis. The Mesh Extruder can also add in the extra sidesets resulting from increasing the dimensionality of the original mesh. Existing sidesets are extruded.
Visual Example
Input 2D Mesh

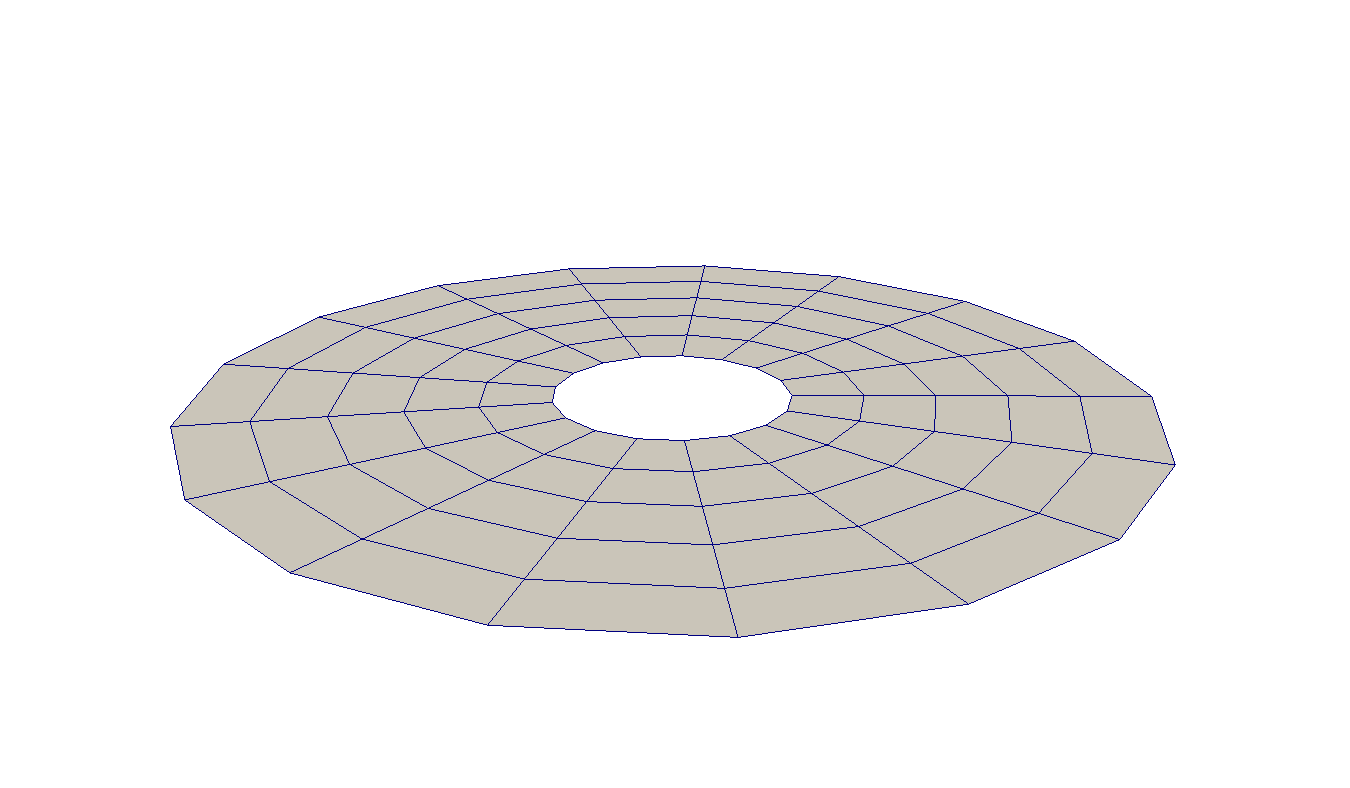

2D mesh consisting of a ring of QUAD4 elements.
Output of MeshExtruderGenerator

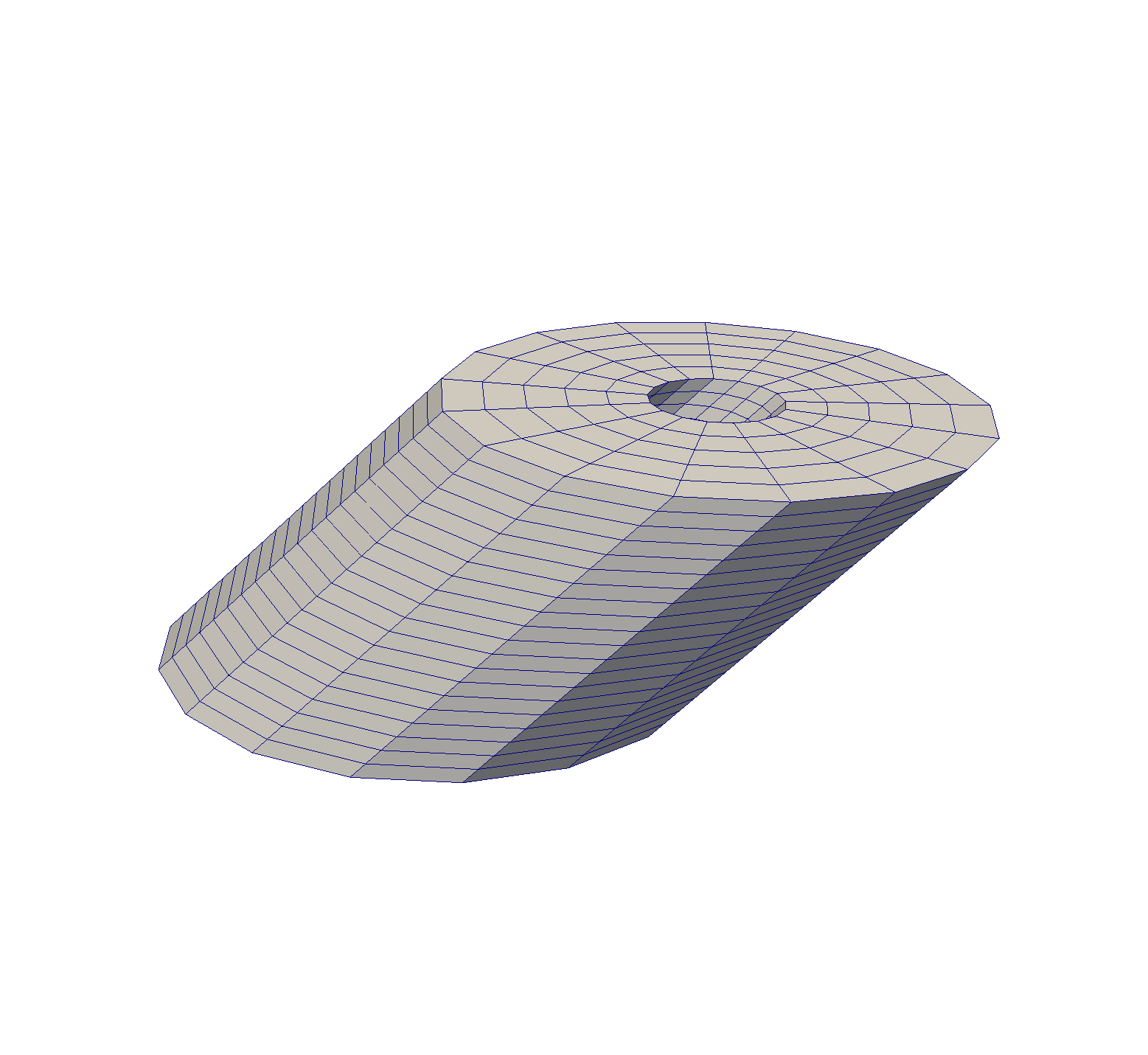

Resulting mesh after extrusion along the vector (1, 1, 0).
Input Parameters
- bottom_sidesetThe boundary that will be applied to the bottom of the extruded mesh
C++ Type:std::vector<BoundaryName>
Options:
Description:The boundary that will be applied to the bottom of the extruded mesh
- existing_subdomainsThe subdomains that will be remapped for specific layers
C++ Type:std::vector<unsigned short>
Options:
Description:The subdomains that will be remapped for specific layers
- layersThe layers where the "existing_subdomain" will be remapped to new ids
C++ Type:std::vector<unsigned int>
Options:
Description:The layers where the "existing_subdomain" will be remapped to new ids
- new_idsThe list of new ids, This list should be either length "existing_subdomains" or "existing_subdomains" * layers
C++ Type:std::vector<unsigned int>
Options:
Description:The list of new ids, This list should be either length "existing_subdomains" or "existing_subdomains" * layers
- num_layers1The number of layers in the extruded mesh
Default:1
C++ Type:unsigned int
Options:
Description:The number of layers in the extruded mesh
- show_infoFalseWhether or not to show mesh info after generating the mesh (bounding box, element types, sidesets, nodesets, subdomains, etc)
Default:False
C++ Type:bool
Options:
Description:Whether or not to show mesh info after generating the mesh (bounding box, element types, sidesets, nodesets, subdomains, etc)
- top_sidesetThe boundary that will be to the top of the extruded mesh
C++ Type:std::vector<BoundaryName>
Options:
Description:The boundary that will be to the top of the extruded mesh
Optional Parameters
- control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector<std::string>
Options:
Description:Adds user-defined labels for accessing object parameters via control logic.
- enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Options:
Description:Set the enabled status of the MooseObject.
Advanced Parameters
Input Files
- (modules/porous_flow/examples/tutorial/03.i)
- (modules/porous_flow/examples/tutorial/04.i)
- (modules/porous_flow/examples/tutorial/11.i)
- (test/tests/mesh_modifiers/mesh_extruder/gen_extrude.i)
- (modules/porous_flow/examples/tutorial/08_KT.i)
- (test/tests/meshgenerators/mesh_extruder_generator/extrude_remap_layer2.i)
- (modules/porous_flow/examples/tutorial/00.i)
- (modules/porous_flow/examples/tutorial/05_tabulated.i)
- (test/tests/mesh_modifiers/mesh_extruder/extruder_quad.i)
- (modules/porous_flow/examples/tutorial/06_KT.i)
- (modules/porous_flow/examples/tutorial/10.i)
- (test/tests/mesh_modifiers/mesh_extruder/extruder_angle.i)
- (test/tests/meshgenerators/mesh_extruder_generator/extrude_remap_layer1.i)
- (modules/porous_flow/examples/tutorial/08.i)
- (test/tests/userobjects/nearest_point_layered_average/nearest_radius_layered_average.i)
- (modules/porous_flow/examples/tutorial/05.i)
- (test/tests/mesh_modifiers/mesh_extruder/extrude_remap_layer2.i)
- (test/tests/mesh_modifiers/mesh_extruder/extruder_tri.i)
- (test/tests/meshgenerators/mesh_extruder_generator/extrude_angle.i)
- (modules/porous_flow/examples/tutorial/07.i)
- (modules/porous_flow/examples/tutorial/01.i)
- (modules/combined/examples/stochastic/graphite_ring_thermomechanics.i)
- (modules/porous_flow/test/tests/thm_rehbinder/fixed_outer.i)
- (modules/tensor_mechanics/tutorials/basics/part_3_1.i)
- (modules/tensor_mechanics/test/tests/action/material_output_order.i)
- (test/tests/mesh_modifiers/mesh_extruder/extrude_remap_layer1.i)
- (modules/tensor_mechanics/test/tests/torque/ad_torque_small.i)
- (modules/porous_flow/test/tests/thm_rehbinder/free_outer.i)
- (modules/tensor_mechanics/test/tests/torque/torque_small.i)
- (test/tests/mesh/mesh_only/mesh_only.i)
- (modules/porous_flow/examples/tutorial/06.i)
- (test/tests/meshgenerators/mesh_extruder_generator/gen_extrude.i)
- (test/tests/meshgenerators/mesh_extruder_generator/extrude_quad.i)
(modules/porous_flow/examples/tutorial/03.i)
# Darcy flow with heat advection and conduction
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
[]
[temperature]
initial_condition = 293
scaling = 1E-8
[]
[]
[PorousFlowBasicTHM]
porepressure = porepressure
temperature = temperature
coupling_type = ThermoHydro
gravity = '0 0 0'
fp = the_simple_fluid
[]
[BCs]
[constant_injection_porepressure]
type = DirichletBC
variable = porepressure
value = 1E6
boundary = injection_area
[]
[constant_injection_temperature]
type = DirichletBC
variable = temperature
value = 313
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
thermal_expansion = 0.0002
cp = 4194
cv = 4186
porepressure_coefficient = 0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[biot_modulus]
type = PorousFlowConstantBiotModulus
biot_coefficient = 0.8
solid_bulk_compliance = 2E-7
fluid_bulk_modulus = 1E7
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[thermal_expansion]
type = PorousFlowConstantThermalExpansionCoefficient
biot_coefficient = 0.8
drained_coefficient = 0.003
fluid_coefficient = 0.0002
[]
[rock_internal_energy]
type = PorousFlowMatrixInternalEnergy
density = 2500.0
specific_heat_capacity = 1200.0
[]
[thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '10 0 0 0 10 0 0 0 10'
block = 'caps aquifer'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-10
[]
[Outputs]
exodus = true
[]

(modules/porous_flow/examples/tutorial/04.i)
# Darcy flow with heat advection and conduction, and elasticity
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
PorousFlowDictator = dictator
biot_coefficient = 1.0
[]
[Variables]
[porepressure]
[]
[temperature]
initial_condition = 293
scaling = 1E-8
[]
[disp_x]
scaling = 1E-10
[]
[disp_y]
scaling = 1E-10
[]
[disp_z]
scaling = 1E-10
[]
[]
[PorousFlowBasicTHM]
porepressure = porepressure
temperature = temperature
coupling_type = ThermoHydroMechanical
gravity = '0 0 0'
fp = the_simple_fluid
eigenstrain_names = thermal_contribution
use_displaced_mesh = false
[]
[BCs]
[constant_injection_porepressure]
type = DirichletBC
variable = porepressure
value = 1E6
boundary = injection_area
[]
[constant_injection_temperature]
type = DirichletBC
variable = temperature
value = 313
boundary = injection_area
[]
[roller_tmax]
type = DirichletBC
variable = disp_x
value = 0
boundary = dmax
[]
[roller_tmin]
type = DirichletBC
variable = disp_y
value = 0
boundary = dmin
[]
[roller_top_bottom]
type = DirichletBC
variable = disp_z
value = 0
boundary = 'top bottom'
[]
[cavity_pressure_x]
type = Pressure
boundary = injection_area
variable = disp_x
component = 0
factor = 1E6
use_displaced_mesh = false
[]
[cavity_pressure_y]
type = Pressure
boundary = injection_area
variable = disp_y
component = 1
factor = 1E6
use_displaced_mesh = false
[]
[]
[AuxVariables]
[stress_rr]
family = MONOMIAL
order = CONSTANT
[]
[stress_pp]
family = MONOMIAL
order = CONSTANT
[]
[]
[AuxKernels]
[stress_rr]
type = RankTwoScalarAux
rank_two_tensor = stress
variable = stress_rr
scalar_type = RadialStress
point1 = '0 0 0'
point2 = '0 0 1'
[]
[stress_pp]
type = RankTwoScalarAux
rank_two_tensor = stress
variable = stress_pp
scalar_type = HoopStress
point1 = '0 0 0'
point2 = '0 0 1'
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
thermal_expansion = 0.0002
cp = 4194
cv = 4186
porepressure_coefficient = 0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[biot_modulus]
type = PorousFlowConstantBiotModulus
solid_bulk_compliance = 2E-7
fluid_bulk_modulus = 1E7
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[thermal_expansion]
type = PorousFlowConstantThermalExpansionCoefficient
drained_coefficient = 0.003
fluid_coefficient = 0.0002
[]
[rock_internal_energy]
type = PorousFlowMatrixInternalEnergy
density = 2500.0
specific_heat_capacity = 1200.0
[]
[thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '10 0 0 0 10 0 0 0 10'
block = 'caps aquifer'
[]
[elasticity_tensor]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 5E9
poissons_ratio = 0.0
[]
[strain]
type = ComputeSmallStrain
eigenstrain_names = thermal_contribution
[]
[thermal_contribution]
type = ComputeThermalExpansionEigenstrain
temperature = temperature
thermal_expansion_coeff = 0.001 # this is the linear thermal expansion coefficient
eigenstrain_name = thermal_contribution
stress_free_temperature = 293
[]
[stress]
type = ComputeLinearElasticStress
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-15
nl_rel_tol = 1E-14
[]
[Outputs]
exodus = true
[]
(modules/porous_flow/examples/tutorial/11.i)
# Two-phase borehole injection problem
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
input = annular
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[UserObjects]
[dictator]
type = PorousFlowDictator
porous_flow_vars = 'pwater pgas T disp_x disp_y'
number_fluid_phases = 2
number_fluid_components = 2
[]
[pc]
type = PorousFlowCapillaryPressureVG
alpha = 1E-6
m = 0.6
[]
[]
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
gravity = '0 0 0'
biot_coefficient = 1.0
PorousFlowDictator = dictator
[]
[Variables]
[pwater]
initial_condition = 20E6
[]
[pgas]
initial_condition = 20.1E6
[]
[T]
initial_condition = 330
scaling = 1E-5
[]
[disp_x]
scaling = 1E-5
[]
[disp_y]
scaling = 1E-5
[]
[]
[Kernels]
[mass_water_dot]
type = PorousFlowMassTimeDerivative
fluid_component = 0
use_displaced_mesh = false
variable = pwater
[]
[flux_water]
type = PorousFlowAdvectiveFlux
fluid_component = 0
use_displaced_mesh = false
variable = pwater
[]
[vol_strain_rate_water]
type = PorousFlowMassVolumetricExpansion
fluid_component = 0
use_displaced_mesh = false
variable = pwater
[]
[mass_co2_dot]
type = PorousFlowMassTimeDerivative
fluid_component = 1
use_displaced_mesh = false
variable = pgas
[]
[flux_co2]
type = PorousFlowAdvectiveFlux
fluid_component = 1
use_displaced_mesh = false
variable = pgas
[]
[vol_strain_rate_co2]
type = PorousFlowMassVolumetricExpansion
fluid_component = 1
use_displaced_mesh = false
variable = pgas
[]
[energy_dot]
type = PorousFlowEnergyTimeDerivative
use_displaced_mesh = false
variable = T
[]
[advection]
type = PorousFlowHeatAdvection
use_displaced_mesh = false
variable = T
[]
[conduction]
type = PorousFlowHeatConduction
use_displaced_mesh = false
variable = T
[]
[vol_strain_rate_heat]
type = PorousFlowHeatVolumetricExpansion
use_displaced_mesh = false
variable = T
[]
[grad_stress_x]
type = StressDivergenceTensors
temperature = T
variable = disp_x
eigenstrain_names = thermal_contribution
use_displaced_mesh = false
component = 0
[]
[poro_x]
type = PorousFlowEffectiveStressCoupling
variable = disp_x
use_displaced_mesh = false
component = 0
[]
[grad_stress_y]
type = StressDivergenceTensors
temperature = T
variable = disp_y
eigenstrain_names = thermal_contribution
use_displaced_mesh = false
component = 1
[]
[poro_y]
type = PorousFlowEffectiveStressCoupling
variable = disp_y
use_displaced_mesh = false
component = 1
[]
[]
[AuxVariables]
[disp_z]
[]
[effective_fluid_pressure]
family = MONOMIAL
order = CONSTANT
[]
[mass_frac_phase0_species0]
initial_condition = 1 # all water in phase=0
[]
[mass_frac_phase1_species0]
initial_condition = 0 # no water in phase=1
[]
[sgas]
family = MONOMIAL
order = CONSTANT
[]
[swater]
family = MONOMIAL
order = CONSTANT
[]
[stress_rr]
family = MONOMIAL
order = CONSTANT
[]
[stress_tt]
family = MONOMIAL
order = CONSTANT
[]
[stress_zz]
family = MONOMIAL
order = CONSTANT
[]
[porosity]
family = MONOMIAL
order = CONSTANT
[]
[]
[AuxKernels]
[effective_fluid_pressure]
type = ParsedAux
args = 'pwater pgas swater sgas'
function = 'pwater * swater + pgas * sgas'
variable = effective_fluid_pressure
[]
[swater]
type = PorousFlowPropertyAux
variable = swater
property = saturation
phase = 0
execute_on = timestep_end
[]
[sgas]
type = PorousFlowPropertyAux
variable = sgas
property = saturation
phase = 1
execute_on = timestep_end
[]
[stress_rr]
type = RankTwoScalarAux
variable = stress_rr
rank_two_tensor = stress
scalar_type = RadialStress
point1 = '0 0 0'
point2 = '0 0 1'
execute_on = timestep_end
[]
[stress_tt]
type = RankTwoScalarAux
variable = stress_tt
rank_two_tensor = stress
scalar_type = HoopStress
point1 = '0 0 0'
point2 = '0 0 1'
execute_on = timestep_end
[]
[stress_zz]
type = RankTwoAux
variable = stress_zz
rank_two_tensor = stress
index_i = 2
index_j = 2
execute_on = timestep_end
[]
[porosity]
type = PorousFlowPropertyAux
variable = porosity
property = porosity
execute_on = timestep_end
[]
[]
[BCs]
[roller_tmax]
type = DirichletBC
variable = disp_x
value = 0
boundary = dmax
[]
[roller_tmin]
type = DirichletBC
variable = disp_y
value = 0
boundary = dmin
[]
[pinned_top_bottom_x]
type = DirichletBC
variable = disp_x
value = 0
boundary = 'top bottom'
[]
[pinned_top_bottom_y]
type = DirichletBC
variable = disp_y
value = 0
boundary = 'top bottom'
[]
[cavity_pressure_x]
type = Pressure
boundary = injection_area
variable = disp_x
component = 0
postprocessor = constrained_effective_fluid_pressure_at_wellbore
use_displaced_mesh = false
[]
[cavity_pressure_y]
type = Pressure
boundary = injection_area
variable = disp_y
component = 1
postprocessor = constrained_effective_fluid_pressure_at_wellbore
use_displaced_mesh = false
[]
[cold_co2]
type = DirichletBC
boundary = injection_area
variable = T
value = 290 # injection temperature
use_displaced_mesh = false
[]
[constant_co2_injection]
type = PorousFlowSink
boundary = injection_area
variable = pgas
fluid_phase = 1
flux_function = -1E-4
use_displaced_mesh = false
[]
[outer_water_removal]
type = PorousFlowPiecewiseLinearSink
boundary = rmax
variable = pwater
fluid_phase = 0
pt_vals = '0 1E9'
multipliers = '0 1E8'
PT_shift = 20E6
use_mobility = true
use_relperm = true
use_displaced_mesh = false
[]
[outer_co2_removal]
type = PorousFlowPiecewiseLinearSink
boundary = rmax
variable = pgas
fluid_phase = 1
pt_vals = '0 1E9'
multipliers = '0 1E8'
PT_shift = 20.1E6
use_mobility = true
use_relperm = true
use_displaced_mesh = false
[]
[]
[Modules]
[FluidProperties]
[true_water]
type = Water97FluidProperties
[]
[tabulated_water]
type = TabulatedFluidProperties
fp = true_water
temperature_min = 275
pressure_max = 1E8
interpolated_properties = 'density viscosity enthalpy internal_energy'
fluid_property_file = water97_tabulated_11.csv
[]
[true_co2]
type = CO2FluidProperties
[]
[tabulated_co2]
type = TabulatedFluidProperties
fp = true_co2
temperature_min = 275
pressure_max = 1E8
interpolated_properties = 'density viscosity enthalpy internal_energy'
fluid_property_file = co2_tabulated_11.csv
[]
[]
[]
[Materials]
[temperature]
type = PorousFlowTemperature
temperature = T
[]
[saturation_calculator]
type = PorousFlow2PhasePP
phase0_porepressure = pwater
phase1_porepressure = pgas
capillary_pressure = pc
[]
[massfrac]
type = PorousFlowMassFraction
mass_fraction_vars = 'mass_frac_phase0_species0 mass_frac_phase1_species0'
[]
[water]
type = PorousFlowSingleComponentFluid
fp = tabulated_water
phase = 0
[]
[co2]
type = PorousFlowSingleComponentFluid
fp = tabulated_co2
phase = 1
[]
[relperm_water]
type = PorousFlowRelativePermeabilityCorey
n = 4
s_res = 0.1
sum_s_res = 0.2
phase = 0
[]
[relperm_co2]
type = PorousFlowRelativePermeabilityBC
nw_phase = true
lambda = 2
s_res = 0.1
sum_s_res = 0.2
phase = 1
[]
[porosity_mat]
type = PorousFlowPorosity
fluid = true
mechanical = true
thermal = true
porosity_zero = 0.1
reference_temperature = 330
reference_porepressure = 20E6
thermal_expansion_coeff = 15E-6 # volumetric
solid_bulk = 8E9 # unimportant since biot = 1
[]
[permeability_aquifer]
type = PorousFlowPermeabilityKozenyCarman
block = aquifer
poroperm_function = kozeny_carman_phi0
phi0 = 0.1
n = 2
m = 2
k0 = 1E-12
[]
[permeability_caps]
type = PorousFlowPermeabilityKozenyCarman
block = caps
poroperm_function = kozeny_carman_phi0
phi0 = 0.1
n = 2
m = 2
k0 = 1E-15
k_anisotropy = '1 0 0 0 1 0 0 0 0.1'
[]
[rock_thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '2 0 0 0 2 0 0 0 2'
[]
[rock_internal_energy]
type = PorousFlowMatrixInternalEnergy
specific_heat_capacity = 1100
density = 2300
[]
[elasticity_tensor]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 5E9
poissons_ratio = 0.0
[]
[strain]
type = ComputeSmallStrain
eigenstrain_names = 'thermal_contribution initial_stress'
[]
[thermal_contribution]
type = ComputeThermalExpansionEigenstrain
temperature = T
thermal_expansion_coeff = 5E-6 # this is the linear thermal expansion coefficient
eigenstrain_name = thermal_contribution
stress_free_temperature = 330
[]
[initial_strain]
type = ComputeEigenstrainFromInitialStress
initial_stress = '20E6 0 0 0 20E6 0 0 0 20E6'
eigenstrain_name = initial_stress
[]
[stress]
type = ComputeLinearElasticStress
[]
[effective_fluid_pressure_mat]
type = PorousFlowEffectiveFluidPressure
[]
[volumetric_strain]
type = PorousFlowVolumetricStrain
[]
[]
[Postprocessors]
[effective_fluid_pressure_at_wellbore]
type = PointValue
variable = effective_fluid_pressure
point = '1 0 0'
execute_on = timestep_begin
use_displaced_mesh = false
[]
[constrained_effective_fluid_pressure_at_wellbore]
type = FunctionValuePostprocessor
function = constrain_effective_fluid_pressure
execute_on = timestep_begin
[]
[]
[Functions]
[constrain_effective_fluid_pressure]
type = ParsedFunction
vars = effective_fluid_pressure_at_wellbore
vals = effective_fluid_pressure_at_wellbore
value = 'max(effective_fluid_pressure_at_wellbore, 20E6)'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E3
[TimeStepper]
type = IterationAdaptiveDT
dt = 1E3
growth_factor = 1.2
optimal_iterations = 10
[]
nl_abs_tol = 1E-7
[]
[Outputs]
exodus = true
[]
(test/tests/mesh_modifiers/mesh_extruder/gen_extrude.i)
[Mesh]
[gen]
type = GeneratedMeshGenerator
dim = 2
nx = 6
ny = 6
nz = 0
zmin = 0
zmax = 0
elem_type = QUAD4
[]
[extrude]
type = MeshExtruderGenerator
input = gen
num_layers = 6
extrusion_vector = '1 0 1'
bottom_sideset = '10'
top_sideset = '20'
[]
[]
[Variables]
[u]
order = FIRST
family = LAGRANGE
[]
[]
[Kernels]
[diff]
type = Diffusion
variable = u
[]
[]
[BCs]
[bottom]
type = DirichletBC
variable = u
boundary = 10
value = 0
[]
[top]
type = DirichletBC
variable = u
boundary = 20
value = 1
[]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
file_base = out_gen
exodus = true
[]
(modules/porous_flow/examples/tutorial/08_KT.i)
# Unsaturated Darcy-Richards flow
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
input = annular
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
[]
[]
[PorousFlowUnsaturated]
porepressure = porepressure
coupling_type = Hydro
gravity = '0 0 0'
fp = the_simple_fluid
relative_permeability_exponent = 3
relative_permeability_type = Corey
residual_saturation = 0.1
van_genuchten_alpha = 1E-6
van_genuchten_m = 0.6
stabilization = KT
flux_limiter_type = None
[]
[BCs]
[production]
type = PorousFlowSink
variable = porepressure
fluid_phase = 0
flux_function = 1E-2
use_relperm = true
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E5
dt = 1E5
nl_rel_tol = 1E-14
[]
[Outputs]
exodus = true
[]
(test/tests/meshgenerators/mesh_extruder_generator/extrude_remap_layer2.i)
[Mesh]
[./fmg]
type = FileMeshGenerator
file = multiblock.e
[]
[./extrude]
type = MeshExtruderGenerator
input = fmg
num_layers = 6
extrusion_vector = '0 0 2'
bottom_sideset = 'new_bottom'
top_sideset = 'new_top'
# Remap layers
existing_subdomains = '1 2 5'
layers = '1 3 5'
new_ids = '10 12 15' # Repeat this remapping for each layer
[]
[]
[Variables]
[./u]
order = FIRST
family = LAGRANGE
[../]
[]
[Kernels]
[./diff]
type = Diffusion
variable = u
[../]
[]
[BCs]
[./bottom]
type = DirichletBC
variable = u
boundary = 'new_bottom'
value = 0
[../]
[./top]
type = DirichletBC
variable = u
boundary = 'new_top'
value = 1
[../]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
exodus = true
[]
(modules/porous_flow/examples/tutorial/00.i)
# Creates the mesh for the remainder of the tutorial
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[Variables]
[dummy_var]
[]
[]
[Kernels]
[dummy_diffusion]
type = Diffusion
variable = dummy_var
[]
[]
[Executioner]
type = Steady
[]
[Outputs]
file_base = 3D_mesh
exodus = true
[]
(modules/porous_flow/examples/tutorial/05_tabulated.i)
# Darcy flow with heat advection and conduction, using Water97 properties
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
initial_condition = 1E6
[]
[temperature]
initial_condition = 313
scaling = 1E-8
[]
[]
[PorousFlowBasicTHM]
porepressure = porepressure
temperature = temperature
coupling_type = ThermoHydro
gravity = '0 0 0'
fp = tabulated_water
[]
[BCs]
[constant_injection_porepressure]
type = DirichletBC
variable = porepressure
value = 2E6
boundary = injection_area
[]
[constant_injection_temperature]
type = DirichletBC
variable = temperature
value = 333
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[true_water]
type = Water97FluidProperties
[]
[tabulated_water]
type = TabulatedFluidProperties
fp = true_water
temperature_min = 275
interpolated_properties = 'density viscosity enthalpy internal_energy'
fluid_property_file = water97_tabulated.csv
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[biot_modulus]
type = PorousFlowConstantBiotModulus
biot_coefficient = 0.8
solid_bulk_compliance = 2E-7
fluid_bulk_modulus = 1E7
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[thermal_expansion]
type = PorousFlowConstantThermalExpansionCoefficient
biot_coefficient = 0.8
drained_coefficient = 0.003
fluid_coefficient = 0.0002
[]
[rock_internal_energy]
type = PorousFlowMatrixInternalEnergy
density = 2500.0
specific_heat_capacity = 1200.0
[]
[thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '10 0 0 0 10 0 0 0 10'
block = 'caps aquifer'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-10
[]
[Outputs]
exodus = true
[]
(test/tests/mesh_modifiers/mesh_extruder/extruder_quad.i)
[Mesh]
[file]
type = FileMeshGenerator
file = chimney_quad.e
[]
[extrude]
type = MeshExtruderGenerator
input = file
num_layers = 20
extrusion_vector = '0 1e-2 0'
bottom_sideset = 'new_bottom'
top_sideset = 'new_top'
[]
[]
[Variables]
[u]
order = FIRST
family = LAGRANGE
[]
[]
[Kernels]
[diff]
type = Diffusion
variable = u
[]
[]
[BCs]
[bottom]
type = DirichletBC
variable = u
boundary = 'new_bottom'
value = 0
[]
[top]
type = DirichletBC
variable = u
boundary = 'new_top'
value = 1
[]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
file_base = out_quad
exodus = true
[]
(modules/porous_flow/examples/tutorial/06_KT.i)
# Darcy flow with a tracer
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
[]
[tracer_concentration]
[]
[]
[ICs]
[tracer_concentration]
type = FunctionIC
function = '0.5*if(x*x+y*y<1.01,1,0)'
variable = tracer_concentration
[]
[]
[PorousFlowFullySaturated]
porepressure = porepressure
coupling_type = Hydro
gravity = '0 0 0'
fp = the_simple_fluid
mass_fraction_vars = tracer_concentration
stabilization = KT
flux_limiter_type = superbee
[]
[BCs]
[constant_injection_porepressure]
type = DirichletBC
variable = porepressure
value = 1E6
boundary = injection_area
[]
[constant_outer_porepressure]
type = DirichletBC
variable = porepressure
value = 0
boundary = rmax
[]
[injected_tracer]
type = DirichletBC
variable = tracer_concentration
value = 0.5
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_rel_tol = 1E-14
[]
[Outputs]
exodus = true
[]
(modules/porous_flow/examples/tutorial/10.i)
# Unsaturated Darcy-Richards flow without using an Action
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
input = annular
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[UserObjects]
[dictator]
type = PorousFlowDictator
porous_flow_vars = pp
number_fluid_phases = 1
number_fluid_components = 1
[]
[pc]
type = PorousFlowCapillaryPressureVG
alpha = 1E-6
m = 0.6
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[pp]
[]
[]
[Kernels]
[time_derivative]
type = PorousFlowMassTimeDerivative
variable = pp
[]
[flux]
type = PorousFlowAdvectiveFlux
variable = pp
gravity = '0 0 0'
[]
[]
[AuxVariables]
[sat]
family = MONOMIAL
order = CONSTANT
[]
[]
[AuxKernels]
[saturation]
type = PorousFlowPropertyAux
variable = sat
property = saturation
[]
[]
[BCs]
[production]
type = PorousFlowSink
variable = pp
fluid_phase = 0
flux_function = 1E-2
use_relperm = true
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[saturation_calculator]
type = PorousFlow1PhaseP
porepressure = pp
capillary_pressure = pc
[]
[temperature]
type = PorousFlowTemperature
temperature = 293
[]
[massfrac]
type = PorousFlowMassFraction
[]
[simple_fluid]
type = PorousFlowSingleComponentFluid
fp = the_simple_fluid
phase = 0
[]
[relperm]
type = PorousFlowRelativePermeabilityCorey
n = 3
s_res = 0.1
sum_s_res = 0.1
phase = 0
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-7
[]
[Outputs]
exodus = true
[]
(test/tests/mesh_modifiers/mesh_extruder/extruder_angle.i)
[Mesh]
[file]
type = FileMeshGenerator
file = chimney_quad.e
[]
[extrude]
type = MeshExtruderGenerator
input = file
num_layers = 20
extrusion_vector = '1e-2 1e-2 0'
bottom_sideset = '10'
top_sideset = '20'
[]
[]
[Variables]
[u]
order = FIRST
family = LAGRANGE
[]
[]
[Kernels]
[diff]
type = Diffusion
variable = u
[]
[]
[BCs]
[bottom]
type = DirichletBC
variable = u
boundary = 10
value = 0
[]
[top]
type = DirichletBC
variable = u
boundary = 20
value = 1
[]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
file_base = out_quad_angle
exodus = true
[]
(test/tests/meshgenerators/mesh_extruder_generator/extrude_remap_layer1.i)
[Mesh]
[./fmg]
type = FileMeshGenerator
file = multiblock.e
[]
[./extrude]
type = MeshExtruderGenerator
input = fmg
num_layers = 6
extrusion_vector = '0 0 2'
bottom_sideset = 'new_bottom'
top_sideset = 'new_top'
# Remap layers
existing_subdomains = '1 2 5'
layers = '1 3 5'
new_ids = '10 12 15
30 32 35
50 52 55'
[../]
[]
[Variables]
[./u]
order = FIRST
family = LAGRANGE
[../]
[]
[Kernels]
[./diff]
type = Diffusion
variable = u
[../]
[]
[BCs]
[./bottom]
type = DirichletBC
variable = u
boundary = 'new_bottom'
value = 0
[../]
[./top]
type = DirichletBC
variable = u
boundary = 'new_top'
value = 1
[../]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
exodus = true
[]
(modules/porous_flow/examples/tutorial/08.i)
# Unsaturated Darcy-Richards flow
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
input = annular
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
[]
[]
[PorousFlowUnsaturated]
porepressure = porepressure
coupling_type = Hydro
gravity = '0 0 0'
fp = the_simple_fluid
relative_permeability_exponent = 3
relative_permeability_type = Corey
residual_saturation = 0.1
van_genuchten_alpha = 1E-6
van_genuchten_m = 0.6
[]
[BCs]
[production]
type = PorousFlowSink
variable = porepressure
fluid_phase = 0
flux_function = 1E-2
use_relperm = true
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-7
[]
[Outputs]
exodus = true
[]
(test/tests/userobjects/nearest_point_layered_average/nearest_radius_layered_average.i)
# This input tests the NearestRadiusLayeredAverage object by taking the average
# of layered rings and using the variable u(x,y,x) = r + z, where r sqrt(x^2 + y^2)
# Given a ring of inner and outer radii r1 and r2, respectively, and of height z1 and z2,
# the analytical solution is given by:
# avg(r1,r2,z1,z2) = 2/3 * (r1^2 + r1*r2 + r2^2) / (r1 + r2) + (z1 + z2) / 2
# Convergence to these values as num_sectors is increased is verified.
[Mesh]
[./ccmg]
type = ConcentricCircleMeshGenerator
num_sectors = 8
radii = '0.1 0.2 0.3 0.4 0.5'
rings = '2 2 2 2 2'
has_outer_square = false
preserve_volumes = true
smoothing_max_it = 3
[]
[./extruder]
type = MeshExtruderGenerator
input = ccmg
extrusion_vector = '0 0 1'
num_layers = 4
[]
[]
[Variables]
[./u]
[../]
[]
[AuxVariables]
[./ring_average]
order = CONSTANT
family = MONOMIAL
[../]
[]
[Kernels]
[./reac]
type = Reaction
variable = u
[../]
[./forcing]
type = BodyForce
variable = u
function = func
[../]
[]
[Functions]
[func]
type = ParsedFunction
value = 'sqrt(x * x + y * y) + z'
[]
[]
[AuxKernels]
[./np_layered_average]
type = SpatialUserObjectAux
variable = ring_average
execute_on = timestep_end
user_object = nrla
[../]
[]
[UserObjects]
[./nrla]
type = NearestRadiusLayeredAverage
direction = z
num_layers = 2
points = '0.05 0 0
0.15 0 0
0.25 0 0
0.35 0 0
0.45 0 0'
variable = u
[../]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type'
petsc_options_value = 'hypre boomeramg'
[]
[Outputs]
exodus = true
[]
(modules/porous_flow/examples/tutorial/05.i)
# Darcy flow with heat advection and conduction, using Water97 properties
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
initial_condition = 1E6
[]
[temperature]
initial_condition = 313
scaling = 1E-8
[]
[]
[PorousFlowBasicTHM]
porepressure = porepressure
temperature = temperature
coupling_type = ThermoHydro
gravity = '0 0 0'
fp = the_simple_fluid
[]
[BCs]
[constant_injection_porepressure]
type = DirichletBC
variable = porepressure
value = 2E6
boundary = injection_area
[]
[constant_injection_temperature]
type = DirichletBC
variable = temperature
value = 333
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = Water97FluidProperties
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[biot_modulus]
type = PorousFlowConstantBiotModulus
biot_coefficient = 0.8
solid_bulk_compliance = 2E-7
fluid_bulk_modulus = 1E7
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[thermal_expansion]
type = PorousFlowConstantThermalExpansionCoefficient
biot_coefficient = 0.8
drained_coefficient = 0.003
fluid_coefficient = 0.0002
[]
[rock_internal_energy]
type = PorousFlowMatrixInternalEnergy
density = 2500.0
specific_heat_capacity = 1200.0
[]
[thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '10 0 0 0 10 0 0 0 10'
block = 'caps aquifer'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-10
[]
[Outputs]
exodus = true
[]
(test/tests/mesh_modifiers/mesh_extruder/extrude_remap_layer2.i)
[Mesh]
[file]
type = FileMeshGenerator
file = multiblock.e
[]
[extrude]
type = MeshExtruderGenerator
input = file
num_layers = 6
extrusion_vector = '0 0 2'
bottom_sideset = 'new_bottom'
top_sideset = 'new_top'
# Remap layers
existing_subdomains = '1 2 5'
layers = '1 3 5'
new_ids = '10 12 15' # Repeat this remapping for each layer
[]
[]
[Variables]
[u]
order = FIRST
family = LAGRANGE
[]
[]
[Kernels]
[diff]
type = Diffusion
variable = u
[]
[]
[BCs]
[bottom]
type = DirichletBC
variable = u
boundary = 'new_bottom'
value = 0
[]
[top]
type = DirichletBC
variable = u
boundary = 'new_top'
value = 1
[]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
exodus = true
[]
(test/tests/mesh_modifiers/mesh_extruder/extruder_tri.i)
[Mesh]
[file]
type = FileMeshGenerator
file = ellipse_tri.e
[]
[extrude]
type = MeshExtruderGenerator
input = file
num_layers = 20
extrusion_vector = '0 0 5'
bottom_sideset = '2'
top_sideset = '4'
[]
[]
[Variables]
active = 'u'
[u]
order = FIRST
family = LAGRANGE
[]
[]
[Kernels]
active = 'diff'
[diff]
type = Diffusion
variable = u
[]
[]
[BCs]
[bottom]
type = DirichletBC
variable = u
boundary = 2
value = 0
[]
[top]
type = DirichletBC
variable = u
boundary = 4
value = 1
[]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
file_base = out_tri
exodus = true
[]
[Debug]
show_actions = true
[]
(test/tests/meshgenerators/mesh_extruder_generator/extrude_angle.i)
[Mesh]
[./fmg]
type = FileMeshGenerator
file = chimney_quad.e
[]
[./extrude]
type = MeshExtruderGenerator
input = fmg
num_layers = 20
extrusion_vector = '1e-2 1e-2 0'
bottom_sideset = '10'
top_sideset = '20'
[]
[]
[Variables]
[./u]
order = FIRST
family = LAGRANGE
[../]
[]
[Kernels]
[./diff]
type = Diffusion
variable = u
[../]
[]
[BCs]
[./bottom]
type = DirichletBC
variable = u
boundary = 10
value = 0
[../]
[./top]
type = DirichletBC
variable = u
boundary = 20
value = 1
[../]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
file_base = out_quad_angle
exodus = true
[]
(modules/porous_flow/examples/tutorial/07.i)
# Darcy flow with a tracer that precipitates causing mineralisation and porosity changes and permeability changes
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
input = annular
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
[]
[tracer_concentration]
[]
[]
[PorousFlowFullySaturated]
porepressure = porepressure
coupling_type = Hydro
gravity = '0 0 0'
fp = the_simple_fluid
mass_fraction_vars = tracer_concentration
number_aqueous_kinetic = 1
temperature = 283.0
stabilization = none # Note to reader: try this with other stabilization and compare the results
[]
[AuxVariables]
[eqm_k]
initial_condition = 0.1
[]
[mineral_conc]
family = MONOMIAL
order = CONSTANT
[]
[initial_and_reference_conc]
initial_condition = 0
[]
[porosity]
family = MONOMIAL
order = CONSTANT
[]
[permeability]
family = MONOMIAL
order = CONSTANT
[]
[]
[AuxKernels]
[mineral_conc]
type = PorousFlowPropertyAux
property = mineral_concentration
mineral_species = 0
variable = mineral_conc
[]
[porosity]
type = PorousFlowPropertyAux
property = porosity
variable = porosity
[]
[permeability]
type = PorousFlowPropertyAux
property = permeability
column = 0
row = 0
variable = permeability
[]
[]
[Kernels]
[precipitation_dissolution]
type = PorousFlowPreDis
mineral_density = 1000.0
stoichiometry = 1
variable = tracer_concentration
[]
[]
[BCs]
[constant_injection_of_tracer]
type = PorousFlowSink
variable = tracer_concentration
flux_function = -5E-3
boundary = injection_area
[]
[constant_outer_porepressure]
type = DirichletBC
variable = porepressure
value = 0
boundary = rmax
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
[]
[]
[]
[Materials]
[porosity_mat]
type = PorousFlowPorosity
porosity_zero = 0.1
chemical = true
initial_mineral_concentrations = initial_and_reference_conc
reference_chemistry = initial_and_reference_conc
[]
[permeability_aquifer]
type = PorousFlowPermeabilityKozenyCarman
block = aquifer
k0 = 1E-14
m = 2
n = 3
phi0 = 0.1
poroperm_function = kozeny_carman_phi0
[]
[permeability_caps]
type = PorousFlowPermeabilityKozenyCarman
block = caps
k0 = 1E-15
k_anisotropy = '1 0 0 0 1 0 0 0 0.1'
m = 2
n = 3
phi0 = 0.1
poroperm_function = kozeny_carman_phi0
[]
[precipitation_dissolution_mat]
type = PorousFlowAqueousPreDisChemistry
reference_temperature = 283.0
activation_energy = 1 # irrelevant because T=Tref
equilibrium_constants = eqm_k # equilibrium tracer concentration
kinetic_rate_constant = 1E-8
molar_volume = 1
num_reactions = 1
primary_activity_coefficients = 1
primary_concentrations = tracer_concentration
reactions = 1
specific_reactive_surface_area = 1
[]
[mineral_concentration]
type = PorousFlowAqueousPreDisMineral
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-10
[]
[Outputs]
exodus = true
[]
(modules/porous_flow/examples/tutorial/01.i)
# Darcy flow
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
[]
[]
[PorousFlowBasicTHM]
porepressure = porepressure
coupling_type = Hydro
gravity = '0 0 0'
fp = the_simple_fluid
[]
[BCs]
[constant_injection_porepressure]
type = DirichletBC
variable = porepressure
value = 1E6
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[biot_modulus]
type = PorousFlowConstantBiotModulus
biot_coefficient = 0.8
solid_bulk_compliance = 2E-7
fluid_bulk_modulus = 1E7
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_abs_tol = 1E-13
[]
[Outputs]
exodus = true
[]
(modules/combined/examples/stochastic/graphite_ring_thermomechanics.i)
# Generate 1/4 of a 2-ring disk and extrude it by half to obtain
# 1/8 of a 3D tube. Mirror boundary conditions will exist on the
# cut portions.
[Mesh]
[disk]
type = ConcentricCircleMeshGenerator
num_sectors = 10
radii = '1.0 1.1 1.2'
rings = '1 1 1'
has_outer_square = false
preserve_volumes = false
portion = top_right
[]
[ring]
type = BlockDeletionGenerator
input = disk
block = 1
new_boundary = 'inner'
[]
[cylinder]
type = MeshExtruderGenerator
input = ring
extrusion_vector = '0 0 1.5'
num_layers = 15
bottom_sideset = 'back'
top_sideset = 'front'
[]
[]
[Variables]
[T]
initial_condition = 300
[]
[disp_x]
[]
[disp_y]
[]
[disp_z]
[]
[]
[Kernels]
[hc]
type = HeatConduction
variable = T
[]
[TensorMechanics]
displacements = 'disp_x disp_y disp_z'
[]
[]
[BCs]
[temp_inner]
type = FunctionNeumannBC
variable = T
boundary = 'inner'
function = surface_source
[]
[temp_front]
type = ConvectiveHeatFluxBC
variable = T
boundary = 'front'
T_infinity = 300
heat_transfer_coefficient = 10
[]
[temp_outer]
type = ConvectiveHeatFluxBC
variable = T
boundary = 'outer'
T_infinity = 300
heat_transfer_coefficient = 10
[]
# mirror boundary conditions.
[disp_x]
type = DirichletBC
variable = disp_x
boundary = 'left'
value = 0.0
[]
[disp_y]
type = DirichletBC
variable = disp_y
boundary = 'bottom'
value = 0.0
[]
[disp_z]
type = DirichletBC
variable = disp_z
boundary = 'back'
value = 0.0
[]
[]
[Materials]
[cond_inner]
type = GenericConstantMaterial
block = 2
prop_names = thermal_conductivity
prop_values = 25
[]
[cond_outer]
type = GenericConstantMaterial
block = 3
prop_names = thermal_conductivity
prop_values = 100
[]
[elasticity_tensor_inner]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 2.1e5
poissons_ratio = 0.3
block = 2
[]
[elasticity_tensor_outer]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 3.1e5
poissons_ratio = 0.2
block = 3
[]
[thermal_strain_inner]
type = ComputeThermalExpansionEigenstrain
thermal_expansion_coeff = 2e-6
temperature = T
stress_free_temperature = 300
eigenstrain_name = eigenstrain_inner
block = 2
[]
[thermal_strain_outer]
type = ComputeThermalExpansionEigenstrain
thermal_expansion_coeff = 1e-6
temperature = T
stress_free_temperature = 300
eigenstrain_name = eigenstrain_outer
block = 3
[]
[strain_inner] #We use small deformation mechanics
type = ComputeSmallStrain
displacements = 'disp_x disp_y disp_z'
eigenstrain_names = 'eigenstrain_inner'
block = 2
[]
[strain_outer] #We use small deformation mechanics
type = ComputeSmallStrain
displacements = 'disp_x disp_y disp_z'
eigenstrain_names = 'eigenstrain_outer'
block = 3
[]
[stress] #We use linear elasticity
type = ComputeLinearElasticStress
[]
[]
[Functions]
[surface_source]
type = ParsedFunction
value = 'Q_t*pi/2.0/3.0 * cos(pi/3.0*z)'
vars = 'Q_t'
vals = heat_source
[]
[]
[Executioner]
type = Steady
#Preconditioned JFNK (default)
solve_type = 'PJFNK'
petsc_options_iname = '-pc_type -pc_hypre_type -ksp_gmres_restart'
petsc_options_value = 'hypre boomeramg 101'
l_max_its = 30
nl_max_its = 100
nl_abs_tol = 1e-9
l_tol = 1e-04
[]
[Preconditioning]
[SMP]
type = SMP
full = true
[]
[]
[Controls]
[stochastic]
type = SamplerReceiver
[]
[]
[VectorPostprocessors]
[temp_center]
type = LineValueSampler
variable = T
start_point = '1 0 0'
end_point = '1.2 0 0'
num_points = 11
sort_by = 'x'
[]
[temp_end]
type = LineValueSampler
variable = T
start_point = '1 0 1.5'
end_point = '1.2 0 1.5'
num_points = 11
sort_by = 'x'
[]
[dispx_center]
type = LineValueSampler
variable = disp_x
start_point = '1 0 0'
end_point = '1.2 0 0'
num_points = 11
sort_by = 'x'
[]
[dispx_end]
type = LineValueSampler
variable = disp_x
start_point = '1 0 1.5'
end_point = '1.2 0 1.5'
num_points = 11
sort_by = 'x'
[]
[dispz_end]
type = LineValueSampler
variable = disp_z
start_point = '1 0 1.5'
end_point = '1.2 0 1.5'
num_points = 11
sort_by = 'x'
[]
[]
[Postprocessors]
[heat_source]
type = FunctionValuePostprocessor
function = 1
scale_factor = 10000
execute_on = linear
[]
[temp_center_inner]
type = PointValue
variable = T
point = '1 0 0'
[]
[temp_center_outer]
type = PointValue
variable = T
point = '1.2 0 0'
[]
[temp_end_inner]
type = PointValue
variable = T
point = '1 0 1.5'
[]
[temp_end_outer]
type = PointValue
variable = T
point = '1.2 0 1.5'
[]
[dispx_center_inner]
type = PointValue
variable = disp_x
point = '1 0 0'
[]
[dispx_center_outer]
type = PointValue
variable = disp_x
point = '1.2 0 0'
[]
[dispx_end_inner]
type = PointValue
variable = disp_x
point = '1 0 1.5'
[]
[dispx_end_outer]
type = PointValue
variable = disp_x
point = '1.2 0 1.5'
[]
[dispz_inner]
type = PointValue
variable = disp_z
point = '1 0 1.5'
[]
[dispz_outer]
type = PointValue
variable = disp_z
point = '1.2 0 1.5'
[]
[]
[Outputs]
exodus = false
csv = false
[]
(modules/porous_flow/test/tests/thm_rehbinder/fixed_outer.i)
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 40
nt = 16
rmin = 0.1
rmax = 1
dmin = 0.0
dmax = 90
growth_r = 1.1
[]
[make3D]
input = annular
type = MeshExtruderGenerator
bottom_sideset = bottom
top_sideset = top
extrusion_vector = '0 0 1'
num_layers = 1
[]
[]
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
PorousFlowDictator = dictator
biot_coefficient = 1.0
[]
[Variables]
[disp_x]
[]
[disp_y]
[]
[disp_z]
[]
[porepressure]
[]
[temperature]
[]
[]
[BCs]
[plane_strain]
type = DirichletBC
variable = disp_z
value = 0
boundary = 'top bottom'
[]
[ymin]
type = DirichletBC
variable = disp_y
value = 0
boundary = dmin
[]
[xmin]
type = DirichletBC
variable = disp_x
value = 0
boundary = dmax
[]
[cavity_temperature]
type = DirichletBC
variable = temperature
value = 1000
boundary = rmin
[]
[cavity_porepressure]
type = DirichletBC
variable = porepressure
value = 1E6
boundary = rmin
[]
[cavity_zero_effective_stress_x]
type = Pressure
component = 0
variable = disp_x
function = 1E6
boundary = rmin
use_displaced_mesh = false
[]
[cavity_zero_effective_stress_y]
type = Pressure
component = 1
variable = disp_y
function = 1E6
boundary = rmin
use_displaced_mesh = false
[]
[outer_temperature]
type = DirichletBC
variable = temperature
value = 0
boundary = rmax
[]
[outer_pressure]
type = DirichletBC
variable = porepressure
value = 0
boundary = rmax
[]
[fixed_outer_x]
type = DirichletBC
variable = disp_x
value = 0
boundary = rmax
[]
[fixed_outer_y]
type = DirichletBC
variable = disp_y
value = 0
boundary = rmax
[]
[]
[AuxVariables]
[stress_rr]
family = MONOMIAL
order = CONSTANT
[]
[stress_pp]
family = MONOMIAL
order = CONSTANT
[]
[]
[AuxKernels]
[stress_rr]
type = RankTwoScalarAux
rank_two_tensor = stress
variable = stress_rr
scalar_type = RadialStress
point1 = '0 0 0'
point2 = '0 0 1'
[]
[stress_pp]
type = RankTwoScalarAux
rank_two_tensor = stress
variable = stress_pp
scalar_type = HoopStress
point1 = '0 0 0'
point2 = '0 0 1'
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
thermal_expansion = 0.0
bulk_modulus = 1E12
viscosity = 1.0E-3
density0 = 1000.0
cv = 1000.0
cp = 1000.0
porepressure_coefficient = 0.0
[]
[]
[]
[PorousFlowBasicTHM]
coupling_type = ThermoHydroMechanical
multiply_by_density = false
add_stress_aux = true
porepressure = porepressure
temperature = temperature
eigenstrain_names = thermal_contribution
gravity = '0 0 0'
fp = the_simple_fluid
[]
[Materials]
[elasticity_tensor]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 1E10
poissons_ratio = 0.2
[]
[strain]
type = ComputeSmallStrain
eigenstrain_names = thermal_contribution
[]
[thermal_contribution]
type = ComputeThermalExpansionEigenstrain
temperature = temperature
thermal_expansion_coeff = 1E-6
eigenstrain_name = thermal_contribution
stress_free_temperature = 0.0
[]
[stress]
type = ComputeLinearElasticStress
[]
[porosity]
type = PorousFlowPorosityConst # only the initial value of this is ever used
porosity = 0.1
[]
[biot_modulus]
type = PorousFlowConstantBiotModulus
solid_bulk_compliance = 1E-10
fluid_bulk_modulus = 1E12
[]
[permeability]
type = PorousFlowPermeabilityConst
permeability = '1E-12 0 0 0 1E-12 0 0 0 1E-12'
[]
[thermal_expansion]
type = PorousFlowConstantThermalExpansionCoefficient
fluid_coefficient = 1E-6
drained_coefficient = 1E-6
[]
[thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '1E6 0 0 0 1E6 0 0 0 1E6'
[]
[]
[VectorPostprocessors]
[P]
type = LineValueSampler
start_point = '0.1 0 0'
end_point = '1.0 0 0'
num_points = 10
sort_by = x
variable = porepressure
[]
[T]
type = LineValueSampler
start_point = '0.1 0 0'
end_point = '1.0 0 0'
num_points = 10
sort_by = x
variable = temperature
[]
[U]
type = LineValueSampler
start_point = '0.1 0 0'
end_point = '1.0 0 0'
num_points = 10
sort_by = x
variable = disp_x
[]
[]
[Preconditioning]
[andy]
type = SMP
full = true
petsc_options_iname = '-ksp_type -pc_type -sub_pc_type -snes_rtol'
petsc_options_value = 'gmres asm lu 1E-8'
[]
[]
[Executioner]
type = Steady
solve_type = Newton
[]
[Outputs]
file_base = fixed_outer
execute_on = timestep_end
csv = true
[]
(modules/tensor_mechanics/tutorials/basics/part_3_1.i)
#Tensor Mechanics tutorial: the basics
#Step 3, part 1
#3D simulation of uniaxial tension with J2 plasticity
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
[]
[Mesh]
[file_mesh]
type = FileMeshGenerator
file = necking_quad4.e
[]
[extrude]
type = MeshExtruderGenerator
extrusion_vector = '0 0 0.5'
num_layers = 2
bottom_sideset = 'back'
top_sideset = 'front'
input = file_mesh
[]
uniform_refine = 0
second_order = true
[]
[Modules/TensorMechanics/Master]
[./block1]
strain = FINITE
add_variables = true
generate_output = 'stress_yy strain_yy'
[../]
[]
[Materials]
[./elasticity_tensor]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 2.1e5
poissons_ratio = 0.3
[../]
[./stress]
type = ComputeMultiPlasticityStress
ep_plastic_tolerance = 1e-9
plastic_models = J2
[../]
[]
[UserObjects]
[./hardening]
type = TensorMechanicsHardeningCubic
value_0 = 2.4e2
value_residual = 3.0e2
internal_0 = 0
internal_limit = 0.005
[../]
[./J2]
type = TensorMechanicsPlasticJ2
yield_strength = hardening
yield_function_tolerance = 1E-3
internal_constraint_tolerance = 1E-9
[../]
[]
[BCs]
[./left]
type = DirichletBC
variable = disp_x #change the variable to reflect the new displacement names
boundary = 1
value = 0.0
[../]
[./back]
type = DirichletBC
variable = disp_z #change the variable to reflect the new displacement names
boundary = back
value = 0.0
[../]
[./bottom]
type = DirichletBC
variable = disp_y #change the variable to reflect the new displacement names
boundary = 3
value = 0.0
[../]
[./top]
type = FunctionDirichletBC
variable = disp_y #change the variable to reflect the new displacement names
boundary = 4
function = '0.0007*t'
[../]
[]
[Preconditioning]
[./SMP]
type = SMP
full = true
[../]
[]
[Executioner]
type = Transient
dt = 0.25
end_time = 16
solve_type = 'PJFNK'
petsc_options = '-snes_ksp_ew'
petsc_options_iname = '-pc_type -sub_pc_type -pc_asm_overlap -ksp_gmres_restart'
petsc_options_value = 'asm lu 1 101'
[]
[Postprocessors]
[./ave_stress_bottom]
type = SideAverageValue
variable = stress_yy
boundary = 3
[../]
[./ave_strain_bottom]
type = SideAverageValue
variable = strain_yy
boundary = 3
[../]
[]
[Outputs]
exodus = true
perf_graph = true
csv = true
print_linear_residuals = false
[]
(modules/tensor_mechanics/test/tests/action/material_output_order.i)
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
origin = '0 0 2'
direction = '0 0 1'
polar_moment_of_inertia = pmi
factor = t
[]
[Mesh]
[ring]
type = AnnularMeshGenerator
nr = 1
nt = 30
rmin = 0.95
rmax = 1
[]
[extrude]
type = MeshExtruderGenerator
input = ring
extrusion_vector = '0 0 2'
bottom_sideset = 'bottom'
top_sideset = 'top'
num_layers = 5
[]
[]
[AuxVariables]
[alpha_var]
[]
[shear_stress_var]
order = CONSTANT
family = MONOMIAL
[]
[]
[AuxKernels]
[alpha]
type = RotationAngle
variable = alpha_var
[]
[shear_stress]
type = ParsedAux
variable = shear_stress_var
args = 'stress_yz stress_xz'
function = 'sqrt(stress_yz^2 + stress_xz^2)'
[]
[]
[BCs]
# fix bottom
[fix_x]
type = DirichletBC
boundary = bottom
variable = disp_x
value = 0
[]
[fix_y]
type = DirichletBC
boundary = bottom
variable = disp_y
value = 0
[]
[fix_z]
type = DirichletBC
boundary = bottom
variable = disp_z
value = 0
[]
# twist top
[twist_x]
type = Torque
boundary = top
variable = disp_x
[]
[twist_y]
type = Torque
boundary = top
variable = disp_y
[]
[twist_z]
type = Torque
boundary = top
variable = disp_z
[]
[]
[Modules/TensorMechanics/Master]
[all]
add_variables = true
strain = SMALL
generate_output = 'vonmises_stress stress_yz stress_xz'
[]
[]
[Postprocessors]
[pmi]
type = PolarMomentOfInertia
boundary = top
# execute_on = 'INITIAL NONLINEAR'
execute_on = 'INITIAL'
[]
[alpha]
type = SideAverageValue
variable = alpha_var
boundary = top
[]
[shear_stress]
type = ElementAverageValue
variable = shear_stress_var
[]
[]
[Materials]
[stress]
type = ComputeLinearElasticStress
[]
[elastic]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 0.3
shear_modulus = 100
[]
[]
[Executioner]
# type = Steady
type = Transient
num_steps = 1
solve_type = PJFNK
petsc_options_iname = '-pctype'
petsc_options_value = 'lu'
nl_max_its = 150
[]
[Outputs]
exodus = true
print_linear_residuals = false
perf_graph = true
[]
(test/tests/mesh_modifiers/mesh_extruder/extrude_remap_layer1.i)
[Mesh]
[file]
type = FileMeshGenerator
file = multiblock.e
[]
[extrude]
type = MeshExtruderGenerator
input = file
num_layers = 6
extrusion_vector = '0 0 2'
bottom_sideset = 'new_bottom'
top_sideset = 'new_top'
# Remap layers
existing_subdomains = '1 2 5'
layers = '1 3 5'
new_ids = '10 12 15
30 32 35
50 52 55'
[]
[]
[Variables]
[u]
order = FIRST
family = LAGRANGE
[]
[]
[Kernels]
[diff]
type = Diffusion
variable = u
[]
[]
[BCs]
[bottom]
type = DirichletBC
variable = u
boundary = 'new_bottom'
value = 0
[]
[top]
type = DirichletBC
variable = u
boundary = 'new_top'
value = 1
[]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
exodus = true
[]
(modules/tensor_mechanics/test/tests/torque/ad_torque_small.i)
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
origin = '0 0 2'
direction = '0 0 1'
polar_moment_of_inertia = pmi
factor = t
[]
[Mesh]
[ring]
type = AnnularMeshGenerator
nr = 1
nt = 30
rmin = 0.95
rmax = 1
[]
[extrude]
type = MeshExtruderGenerator
input = ring
extrusion_vector = '0 0 2'
bottom_sideset = 'bottom'
top_sideset = 'top'
num_layers = 5
[]
[]
[AuxVariables]
[alpha_var]
[]
[shear_stress_var]
order = CONSTANT
family = MONOMIAL
[]
[]
[AuxKernels]
[alpha]
type = RotationAngle
variable = alpha_var
[]
[shear_stress]
type = ParsedAux
variable = shear_stress_var
args = 'stress_yz stress_xz'
function = 'sqrt(stress_yz^2 + stress_xz^2)'
[]
[]
[BCs]
# fix bottom
[fix_x]
type = DirichletBC
boundary = bottom
variable = disp_x
value = 0
[]
[fix_y]
type = DirichletBC
boundary = bottom
variable = disp_y
value = 0
[]
[fix_z]
type = DirichletBC
boundary = bottom
variable = disp_z
value = 0
[]
# twist top
[twist_x]
type = ADTorque
boundary = top
variable = disp_x
[]
[twist_y]
type = ADTorque
boundary = top
variable = disp_y
[]
[twist_z]
type = ADTorque
boundary = top
variable = disp_z
[]
[]
[Modules/TensorMechanics/Master]
[all]
add_variables = true
strain = SMALL
use_automatic_differentiation = true
generate_output = 'vonmises_stress stress_yz stress_xz'
[]
[]
[Postprocessors]
[pmi]
type = PolarMomentOfInertia
boundary = top
# execute_on = 'INITIAL NONLINEAR'
execute_on = 'INITIAL'
[]
[alpha]
type = SideAverageValue
variable = alpha_var
boundary = top
[]
[shear_stress]
type = ElementAverageValue
variable = shear_stress_var
[]
[]
[Materials]
[stress]
type = ADComputeLinearElasticStress
[]
[elastic]
type = ADComputeIsotropicElasticityTensor
youngs_modulus = 0.3
shear_modulus = 100
[]
[]
[Executioner]
# type = Steady
type = Transient
num_steps = 1
solve_type = NEWTON
petsc_options_iname = '-pctype'
petsc_options_value = 'lu'
nl_max_its = 150
[]
[Outputs]
exodus = true
print_linear_residuals = false
perf_graph = true
[]
(modules/porous_flow/test/tests/thm_rehbinder/free_outer.i)
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 40
nt = 16
rmin = 0.1
rmax = 1
dmin = 0.0
dmax = 90
growth_r = 1.1
[]
[make3D]
input = annular
type = MeshExtruderGenerator
bottom_sideset = bottom
top_sideset = top
extrusion_vector = '0 0 1'
num_layers = 1
[]
[]
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
PorousFlowDictator = dictator
biot_coefficient = 1.0
[]
[Variables]
[disp_x]
[]
[disp_y]
[]
[disp_z]
[]
[porepressure]
[]
[temperature]
[]
[]
[BCs]
# sideset 1 = outer
# sideset 2 = cavity
# sideset 3 = ymin
# sideset 4 = xmin
[plane_strain]
type = DirichletBC
variable = disp_z
value = 0
boundary = 'top bottom'
[]
[ymin]
type = DirichletBC
variable = disp_y
value = 0
boundary = dmin
[]
[xmin]
type = DirichletBC
variable = disp_x
value = 0
boundary = dmax
[]
[cavity_temperature]
type = DirichletBC
variable = temperature
value = 1000
boundary = rmin
[]
[cavity_porepressure]
type = DirichletBC
variable = porepressure
value = 1E6
boundary = rmin
[]
[cavity_zero_effective_stress_x]
type = Pressure
component = 0
variable = disp_x
function = 1E6
boundary = rmin
use_displaced_mesh = false
[]
[cavity_zero_effective_stress_y]
type = Pressure
component = 1
variable = disp_y
function = 1E6
boundary = rmin
use_displaced_mesh = false
[]
[outer_temperature]
type = DirichletBC
variable = temperature
value = 0
boundary = rmax
[]
[outer_pressure]
type = DirichletBC
variable = porepressure
value = 0
boundary = rmax
[]
[]
[AuxVariables]
[stress_rr]
family = MONOMIAL
order = CONSTANT
[]
[stress_pp]
family = MONOMIAL
order = CONSTANT
[]
[]
[AuxKernels]
[stress_rr]
type = RankTwoScalarAux
rank_two_tensor = stress
variable = stress_rr
scalar_type = RadialStress
point1 = '0 0 0'
point2 = '0 0 1'
[]
[stress_pp]
type = RankTwoScalarAux
rank_two_tensor = stress
variable = stress_pp
scalar_type = HoopStress
point1 = '0 0 0'
point2 = '0 0 1'
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
thermal_expansion = 0.0
bulk_modulus = 1E12
viscosity = 1.0E-3
density0 = 1000.0
cv = 1000.0
cp = 1000.0
porepressure_coefficient = 0.0
[]
[]
[]
[PorousFlowBasicTHM]
coupling_type = ThermoHydroMechanical
multiply_by_density = false
add_stress_aux = true
porepressure = porepressure
temperature = temperature
eigenstrain_names = thermal_contribution
gravity = '0 0 0'
fp = the_simple_fluid
[]
[Materials]
[elasticity_tensor]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 1E10
poissons_ratio = 0.2
[]
[strain]
type = ComputeSmallStrain
eigenstrain_names = thermal_contribution
[]
[thermal_contribution]
type = ComputeThermalExpansionEigenstrain
temperature = temperature
thermal_expansion_coeff = 1E-6
eigenstrain_name = thermal_contribution
stress_free_temperature = 0.0
[]
[stress]
type = ComputeLinearElasticStress
[]
[porosity]
type = PorousFlowPorosityConst # only the initial value of this is ever used
porosity = 0.1
[]
[biot_modulus]
type = PorousFlowConstantBiotModulus
solid_bulk_compliance = 1E-10
fluid_bulk_modulus = 1E12
[]
[permeability]
type = PorousFlowPermeabilityConst
permeability = '1E-12 0 0 0 1E-12 0 0 0 1E-12'
[]
[thermal_expansion]
type = PorousFlowConstantThermalExpansionCoefficient
fluid_coefficient = 1E-6
drained_coefficient = 1E-6
[]
[thermal_conductivity]
type = PorousFlowThermalConductivityIdeal
dry_thermal_conductivity = '1E6 0 0 0 1E6 0 0 0 1E6'
[]
[]
[VectorPostprocessors]
[P]
type = LineValueSampler
start_point = '0.1 0 0'
end_point = '1.0 0 0'
num_points = 10
sort_by = x
variable = porepressure
[]
[T]
type = LineValueSampler
start_point = '0.1 0 0'
end_point = '1.0 0 0'
num_points = 10
sort_by = x
variable = temperature
[]
[U]
type = LineValueSampler
start_point = '0.1 0 0'
end_point = '1.0 0 0'
num_points = 10
sort_by = x
variable = disp_x
[]
[]
[Preconditioning]
[andy]
type = SMP
full = true
petsc_options_iname = '-ksp_type -pc_type -sub_pc_type -snes_rtol'
petsc_options_value = 'gmres asm lu 1E-8'
[]
[]
[Executioner]
type = Steady
solve_type = Newton
[]
[Outputs]
file_base = free_outer
execute_on = timestep_end
csv = true
[]
(modules/tensor_mechanics/test/tests/torque/torque_small.i)
[GlobalParams]
displacements = 'disp_x disp_y disp_z'
origin = '0 0 2'
direction = '0 0 1'
polar_moment_of_inertia = pmi
factor = t
[]
[Mesh]
[ring]
type = AnnularMeshGenerator
nr = 1
nt = 30
rmin = 0.95
rmax = 1
[]
[extrude]
type = MeshExtruderGenerator
input = ring
extrusion_vector = '0 0 2'
bottom_sideset = 'bottom'
top_sideset = 'top'
num_layers = 5
[]
[]
[AuxVariables]
[alpha_var]
[]
[shear_stress_var]
order = CONSTANT
family = MONOMIAL
[]
[]
[AuxKernels]
[alpha]
type = RotationAngle
variable = alpha_var
[]
[shear_stress]
type = ParsedAux
variable = shear_stress_var
args = 'stress_yz stress_xz'
function = 'sqrt(stress_yz^2 + stress_xz^2)'
[]
[]
[BCs]
# fix bottom
[fix_x]
type = DirichletBC
boundary = bottom
variable = disp_x
value = 0
[]
[fix_y]
type = DirichletBC
boundary = bottom
variable = disp_y
value = 0
[]
[fix_z]
type = DirichletBC
boundary = bottom
variable = disp_z
value = 0
[]
# twist top
[twist_x]
type = Torque
boundary = top
variable = disp_x
[]
[twist_y]
type = Torque
boundary = top
variable = disp_y
[]
[twist_z]
type = Torque
boundary = top
variable = disp_z
[]
[]
[Modules/TensorMechanics/Master]
[all]
add_variables = true
strain = SMALL
generate_output = 'vonmises_stress stress_yz stress_xz'
[]
[]
[Postprocessors]
[pmi]
type = PolarMomentOfInertia
boundary = top
# execute_on = 'INITIAL NONLINEAR'
execute_on = 'INITIAL'
[]
[alpha]
type = SideAverageValue
variable = alpha_var
boundary = top
[]
[shear_stress]
type = ElementAverageValue
variable = shear_stress_var
[]
[]
[Materials]
[stress]
type = ComputeLinearElasticStress
[]
[elastic]
type = ComputeIsotropicElasticityTensor
youngs_modulus = 0.3
shear_modulus = 100
[]
[]
[Executioner]
# type = Steady
type = Transient
num_steps = 1
solve_type = PJFNK
petsc_options_iname = '-pctype'
petsc_options_value = 'lu'
nl_max_its = 150
[]
[Outputs]
exodus = true
print_linear_residuals = false
perf_graph = true
[]
(test/tests/mesh/mesh_only/mesh_only.i)
[Mesh]
uniform_refine = 1
[file]
type = FileMeshGenerator
file = chimney_quad.e
[]
[./extrude]
input = file
type = MeshExtruderGenerator
num_layers = 20
extrusion_vector = '0 1e-2 0'
bottom_sideset = '2'
top_sideset = '4'
[../]
[]
# This input file is intended to be run with the "--mesh-only" option so
# no other sections are required
(modules/porous_flow/examples/tutorial/06.i)
# Darcy flow with a tracer
[Mesh]
[annular]
type = AnnularMeshGenerator
nr = 10
rmin = 1.0
rmax = 10
growth_r = 1.4
nt = 4
dmin = 0
dmax = 90
[]
[make3D]
type = MeshExtruderGenerator
extrusion_vector = '0 0 12'
num_layers = 3
bottom_sideset = 'bottom'
top_sideset = 'top'
input = annular
[]
[shift_down]
type = TransformGenerator
transform = TRANSLATE
vector_value = '0 0 -6'
input = make3D
[]
[aquifer]
type = SubdomainBoundingBoxGenerator
block_id = 1
bottom_left = '0 0 -2'
top_right = '10 10 2'
input = shift_down
[]
[injection_area]
type = ParsedGenerateSideset
combinatorial_geometry = 'x*x+y*y<1.01'
included_subdomain_ids = 1
new_sideset_name = 'injection_area'
input = 'aquifer'
[]
[rename]
type = RenameBlockGenerator
old_block_id = '0 1'
new_block_name = 'caps aquifer'
input = 'injection_area'
[]
[]
[GlobalParams]
PorousFlowDictator = dictator
[]
[Variables]
[porepressure]
[]
[tracer_concentration]
[]
[]
[ICs]
[tracer_concentration]
type = FunctionIC
function = '0.5*if(x*x+y*y<1.01,1,0)'
variable = tracer_concentration
[]
[]
[PorousFlowFullySaturated]
porepressure = porepressure
coupling_type = Hydro
gravity = '0 0 0'
fp = the_simple_fluid
mass_fraction_vars = tracer_concentration
stabilization = none # Note to reader: 06_KT.i uses KT stabilization - compare the results
[]
[BCs]
[constant_injection_porepressure]
type = DirichletBC
variable = porepressure
value = 1E6
boundary = injection_area
[]
[constant_outer_porepressure]
type = DirichletBC
variable = porepressure
value = 0
boundary = rmax
[]
[injected_tracer]
type = DirichletBC
variable = tracer_concentration
value = 0.5
boundary = injection_area
[]
[]
[Modules]
[FluidProperties]
[the_simple_fluid]
type = SimpleFluidProperties
bulk_modulus = 2E9
viscosity = 1.0E-3
density0 = 1000.0
[]
[]
[]
[Materials]
[porosity]
type = PorousFlowPorosity
porosity_zero = 0.1
[]
[permeability_aquifer]
type = PorousFlowPermeabilityConst
block = aquifer
permeability = '1E-14 0 0 0 1E-14 0 0 0 1E-14'
[]
[permeability_caps]
type = PorousFlowPermeabilityConst
block = caps
permeability = '1E-15 0 0 0 1E-15 0 0 0 1E-16'
[]
[]
[Preconditioning]
active = basic
[basic]
type = SMP
full = true
petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
petsc_options_value = ' asm lu NONZERO 2'
[]
[preferred_but_might_not_be_installed]
type = SMP
full = true
petsc_options_iname = '-pc_type -pc_factor_mat_solver_package'
petsc_options_value = ' lu mumps'
[]
[]
[Executioner]
type = Transient
solve_type = Newton
end_time = 1E6
dt = 1E5
nl_rel_tol = 1E-14
[]
[Outputs]
exodus = true
[]
(test/tests/meshgenerators/mesh_extruder_generator/gen_extrude.i)
[Mesh]
[./gmg]
type = GeneratedMeshGenerator
dim = 2
nx = 6
ny = 6
nz = 0
zmin = 0
zmax = 0
elem_type = QUAD4
[]
[./extrude]
type = MeshExtruderGenerator
input = gmg
num_layers = 6
extrusion_vector = '1 0 1'
bottom_sideset = 'new_front'
top_sideset = 'new_back'
[]
[]
[Variables]
[./u]
order = FIRST
family = LAGRANGE
[../]
[]
[Kernels]
[./diff]
type = Diffusion
variable = u
[../]
[]
[BCs]
[./first]
type = DirichletBC
variable = u
boundary = 'new_front'
value = 0
[../]
[./second]
type = DirichletBC
variable = u
boundary = 'new_back'
value = 1
[../]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
exodus = true
[]
(test/tests/meshgenerators/mesh_extruder_generator/extrude_quad.i)
[Mesh]
[./fmg]
type = FileMeshGenerator
file = chimney_quad.e
[]
[./extrude]
type = MeshExtruderGenerator
input = fmg
num_layers = 20
extrusion_vector = '0 1e-2 0'
bottom_sideset = 'new_bottom'
top_sideset = 'new_top'
[]
[]
[Variables]
[./u]
order = FIRST
family = LAGRANGE
[../]
[]
[Kernels]
[./diff]
type = Diffusion
variable = u
[../]
[]
[BCs]
[./bottom]
type = DirichletBC
variable = u
boundary = 'new_bottom'
value = 0
[../]
[./top]
type = DirichletBC
variable = u
boundary = 'new_top'
value = 1
[../]
[]
[Executioner]
type = Steady
solve_type = 'PJFNK'
[]
[Outputs]
file_base = out_quad
exodus = true
[]
