NearestNodeDistanceAux

The NearestNodeDistanceAux uses the geometric search system to find the shortest distance from a node where the AuxVariable is defined to a node on a different boundary. Normally, this object is used to find distances between two boundaries but can be used to find the distance from all nodes in one body to some boundary.

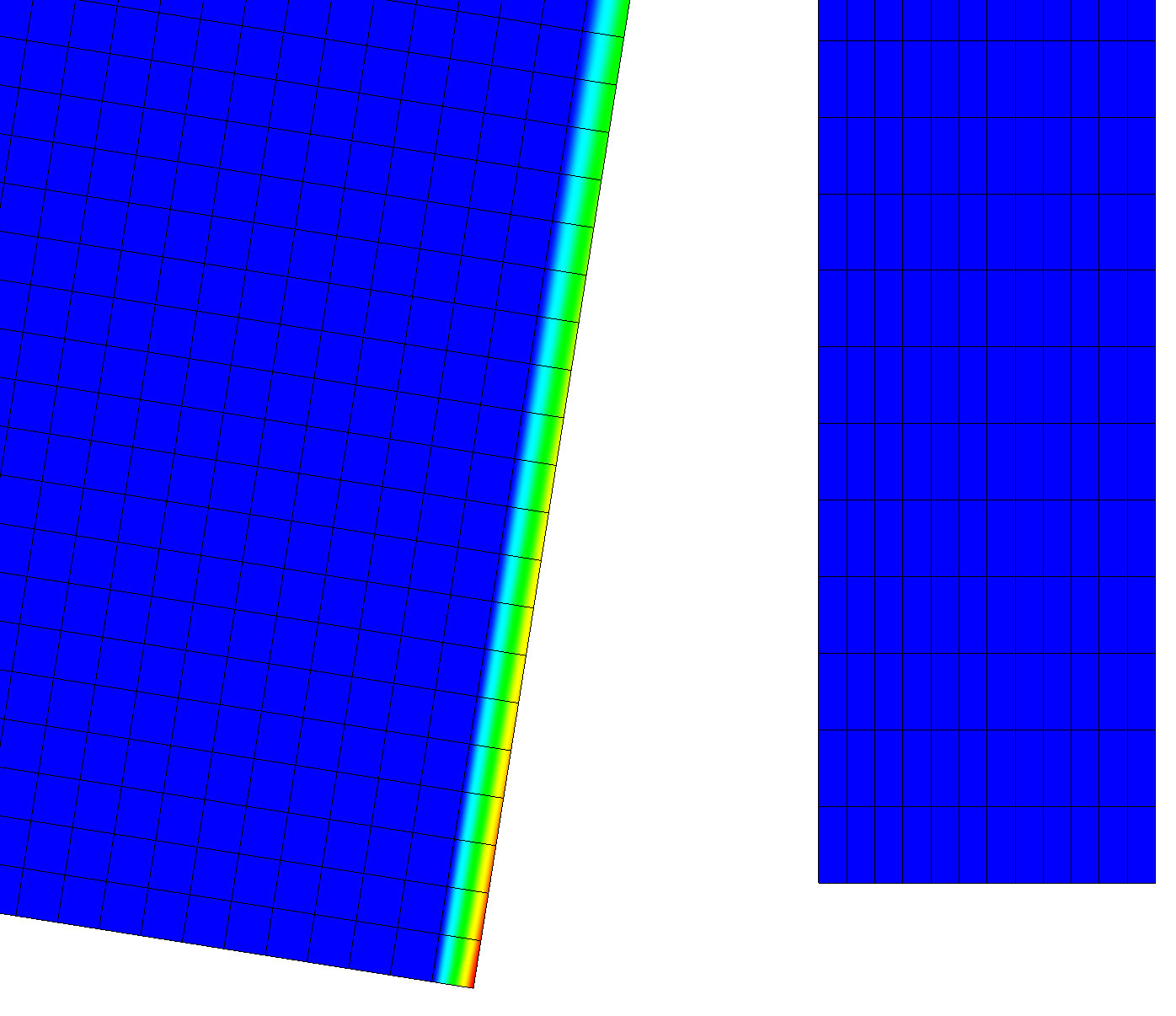

Distance to nearest node on opposite boundary is shown.

Description and Syntax

Stores the distance between a block and boundary or between two boundaries.

Input Parameters

paired_boundaryThe boundary to find the distance to.
C++ Type:BoundaryName
Options:
Description:The boundary to find the distance to.
variableThe name of the variable that this object applies to
C++ Type:AuxVariableName
Options:
Description:The name of the variable that this object applies to

Required Parameters

blockThe list of block ids (SubdomainID) that this object will be applied
C++ Type:std::vector<SubdomainName>
Options:
Description:The list of block ids (SubdomainID) that this object will be applied
boundaryThe list of boundary IDs from the mesh where this boundary condition applies
C++ Type:std::vector<BoundaryName>
Options:
Description:The list of boundary IDs from the mesh where this boundary condition applies
check_boundary_restrictedTrueWhether to check for multiple element sides on the boundary in the case of a boundary restricted, element aux variable. Setting this to false will allow contribution to a single element's elemental value(s) from multiple boundary sides on the same element (example: when the restricted boundary exists on two or more sides of an element, such as at a corner of a mesh
Default:True
C++ Type:bool
Options:
Description:Whether to check for multiple element sides on the boundary in the case of a boundary restricted, element aux variable. Setting this to false will allow contribution to a single element's elemental value(s) from multiple boundary sides on the same element (example: when the restricted boundary exists on two or more sides of an element, such as at a corner of a mesh
execute_onLINEAR TIMESTEP_ENDThe list of flag(s) indicating when this object should be executed, the available options include NONE, INITIAL, LINEAR, NONLINEAR, TIMESTEP_END, TIMESTEP_BEGIN, FINAL, CUSTOM, PRE_DISPLACE.
Default:LINEAR TIMESTEP_END
C++ Type:ExecFlagEnum
Options:NONE, INITIAL, LINEAR, NONLINEAR, TIMESTEP_END, TIMESTEP_BEGIN, FINAL, CUSTOM, PRE_DISPLACE
Description:The list of flag(s) indicating when this object should be executed, the available options include NONE, INITIAL, LINEAR, NONLINEAR, TIMESTEP_END, TIMESTEP_BEGIN, FINAL, CUSTOM, PRE_DISPLACE.

Optional Parameters

control_tagsAdds user-defined labels for accessing object parameters via control logic.
C++ Type:std::vector<std::string>
Options:
Description:Adds user-defined labels for accessing object parameters via control logic.
enableTrueSet the enabled status of the MooseObject.
Default:True
C++ Type:bool
Options:
Description:Set the enabled status of the MooseObject.
seed0The seed for the master random number generator
Default:0
C++ Type:unsigned int
Options:
Description:The seed for the master random number generator
use_displaced_meshTrueWhether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.
Default:True
C++ Type:bool
Options:
Description:Whether or not this object should use the displaced mesh for computation. Note that in the case this is true but no displacements are provided in the Mesh block the undisplaced mesh will still be used.

Advanced Parameters

Input Files

(test/tests/variables/block_aux_kernel/block_aux_kernel_test.i)
(test/tests/geomsearch/fake_block_to_boundary/fake_block_to_boundary.i)
(test/tests/geomsearch/quadrature_nearest_node_locator/quadrature_nearest_node_locator.i)
(test/tests/geomsearch/quadrature_nearest_node_locator/qnnl_ad.i)
(test/tests/geomsearch/nearest_node_locator/nearest_node_locator.i)
(test/tests/geomsearch/nearest_node_locator/adapt.i)

(test/tests/variables/block_aux_kernel/block_aux_kernel_test.i)

###########################################################
# This is a simple test of the AuxVariable System.
# A single discretized explicit variable is added to the
# system which is independent of the nonlinear variables
# being solved for by the solver.
#
# @Requirement F5.10
###########################################################


[Mesh]
  file = gap_test.e
  # This test uses the geometric search system, which does not currently work
  # in parallel with DistributedMesh enabled.  For more information, see #2121.
  parallel_type = replicated
[]

[Variables]
  active = 'u'

  [./u]
    order = FIRST
    family = LAGRANGE
  [../]
[]

[AuxVariables]
  [./distance]
    order = FIRST
    family = LAGRANGE
  [../]

  [./disp_x]
    order = FIRST
    family = LAGRANGE
  [../]

  [./disp_y]
    order = FIRST
    family = LAGRANGE
  [../]

  [./disp_z]
    order = FIRST
    family = LAGRANGE
  [../]
[]

[Kernels]
  active = 'diff u_time'

  [./diff]
    type = Diffusion
    variable = u
  [../]

  [./u_time]
    type = TimeDerivative
    variable = u
  [../]
[]

[AuxKernels]
  [./x]
    type = FunctionAux
    variable = disp_x
    function = 0
    block = 1
  [../]

  [./y]
    type = FunctionAux
    variable = disp_y
    function = 0
    block = 1
  [../]

  [./z]
    type = FunctionAux
    variable = disp_z
    function = t
    block = 1
  [../]
  [./gap_distance]
    type = NearestNodeDistanceAux
    variable = distance
    boundary = 2
    paired_boundary = 3
  [../]

  [./gap_distance2]
    type = NearestNodeDistanceAux
    variable = distance
    boundary = 3
    paired_boundary = 2
  [../]
[]

[BCs]
  active = 'block1_left block1_right block2_left block2_right'

  [./block1_left]
    type = DirichletBC
    variable = u
    boundary = 1
    value = 0
  [../]

  [./block1_right]
    type = DirichletBC
    variable = u
    boundary = 2
    value = 1
  [../]

  [./block2_left]
    type = DirichletBC
    variable = u
    boundary = 3
    value = 0
  [../]

  [./block2_right]
    type = DirichletBC
    variable = u
    boundary = 4
    value = 1
  [../]
[]

[Executioner]
  type = Transient

  solve_type = 'PJFNK'

  dt = 1.0
  num_steps = 8
[]

[Outputs]
  file_base = out
  exodus = true
[]

(test/tests/geomsearch/fake_block_to_boundary/fake_block_to_boundary.i)

[Mesh]
  type = FileMesh
  file = fake_geom_search.e
  dim = 2
[]

[Variables]
  [./u]
  [../]
[]

[AuxVariables]
  [./distance_to_left_nodes]
  [../]
  [./penetration_to_left]
  [../]
[]

[Kernels]
  [./diff]
    type = Diffusion
    variable = u
  [../]
[]

[AuxKernels]
  [./nodal_distance_aux]
    type = NearestNodeDistanceAux
    variable = distance_to_left_nodes
    boundary = 100
    paired_boundary = left
  [../]
  [./penetration_aux]
    type = PenetrationAux
    variable = penetration_to_left
    boundary = 100
    paired_boundary = left
  [../]
[]

[BCs]
  [./left]
    type = DirichletBC
    variable = u
    boundary = left
    value = 0
  [../]
  [./right]
    type = DirichletBC
    variable = u
    boundary = right
    value = 1
  [../]
[]

[Executioner]
  type = Steady
  solve_type = PJFNK
  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Outputs]
  exodus = true
[]

(test/tests/geomsearch/quadrature_nearest_node_locator/quadrature_nearest_node_locator.i)

[Mesh]
  file = 2dcontact_collide.e
[]

[Variables]
  [./u]
    order = FIRST
    family = LAGRANGE
  [../]
[]

[AuxVariables]
  [./distance]
    order = CONSTANT
    family = MONOMIAL
  [../]
[]

[Kernels]
  [./diff]
    type = Diffusion
    variable = u
  [../]
[]

[AuxKernels]
  [./distance]
    type = NearestNodeDistanceAux
    variable = distance
    boundary = 2
    paired_boundary = 3
  [../]
[]

[BCs]
  [./block1_left]
    type = DirichletBC
    variable = u
    boundary = 1
    value = 0
  [../]
  [./block1_right]
    type = DirichletBC
    variable = u
    boundary = 2
    value = 1
  [../]
  [./block2_left]
    type = DirichletBC
    variable = u
    boundary = 3
    value = 0
  [../]
  [./block2_right]
    type = DirichletBC
    variable = u
    boundary = 4
    value = 1
  [../]
[]

[Executioner]
  type = Steady

  solve_type = 'PJFNK'

[]

[Outputs]
  exodus = true
[]

(test/tests/geomsearch/quadrature_nearest_node_locator/qnnl_ad.i)

[Mesh]
  file = 2dcontact_collide.e
  displacements = 'disp_x disp_y'
[]

[Variables]
  [./u]
    order = FIRST
    family = LAGRANGE
  [../]
[]

[AuxVariables]
  [./distance]
    order = CONSTANT
    family = MONOMIAL
  [../]
  [disp_x][]
  [disp_y][]
[]

[Kernels]
  [./diff]
    type = ADDiffusion
    variable = u
    use_displaced_mesh = true
  [../]
[]

[AuxKernels]
  [./distance]
    type = NearestNodeDistanceAux
    variable = distance
    boundary = 2
    paired_boundary = 3
  [../]
[]

[BCs]
  [./block1_left]
    type = DirichletBC
    variable = u
    boundary = 1
    value = 0
  [../]
  [./block1_right]
    type = DirichletBC
    variable = u
    boundary = 2
    value = 1
  [../]
  [./block2_left]
    type = DirichletBC
    variable = u
    boundary = 3
    value = 0
  [../]
  [./block2_right]
    type = DirichletBC
    variable = u
    boundary = 4
    value = 1
  [../]
[]

[Executioner]
  type = Steady

  solve_type = 'PJFNK'

[]

[Outputs]
  exodus = true
  file_base = qnnl_ad
[]

(test/tests/geomsearch/nearest_node_locator/nearest_node_locator.i)

###########################################################
# This is a test of the Geometric Search System. This test
# uses the nearest node locator through the
# NearestNodeDistanceAux Auxilary Kernel to record the
# distance to the nearest nodes along paired
# boundaries.
#
# @Requirement F6.50
###########################################################

[Mesh]
  file = 2dcontact_collide.e
[]

[Variables]
  [./u]
    order = FIRST
    family = LAGRANGE
  [../]
[]

[AuxVariables]
  [./distance]
  [../]
[]

[Kernels]
  [./diff]
    type = Diffusion
    variable = u
  [../]
[]

[AuxKernels]
  [./distance]
    type = NearestNodeDistanceAux
    variable = distance
    boundary = 2
    paired_boundary = 3
  [../]
[]

[BCs]
  [./block1_left]
    type = DirichletBC
    variable = u
    boundary = 1
    value = 0
  [../]
  [./block1_right]
    type = DirichletBC
    variable = u
    boundary = 2
    value = 1
  [../]
  [./block2_left]
    type = DirichletBC
    variable = u
    boundary = 3
    value = 0
  [../]
  [./block2_right]
    type = DirichletBC
    variable = u
    boundary = 4
    value = 1
  [../]
[]

[Executioner]
  type = Steady

  solve_type = 'PJFNK'

[]

[Outputs]
  exodus = true
   [./pgraph]
    type = PerfGraphOutput
    heaviest_branch = true
    heaviest_sections = 5
    level = 2
  [../]
[]

(test/tests/geomsearch/nearest_node_locator/adapt.i)

[Mesh]
  file = 2dcontact_collide.e
[]

[Variables]
  [./u]
    order = FIRST
    family = LAGRANGE
  [../]
[]

[AuxVariables]
  [./distance]
  [../]
[]

[Kernels]
  [./diff]
    type = Diffusion
    variable = u
  [../]
  [./conv]
    type = Convection
    variable = u
    velocity = '1 0 0'
  [../]
[]

[AuxKernels]
  [./zero]
    type = ConstantAux
    variable = distance
  [../]
  [./distance]
    type = NearestNodeDistanceAux
    variable = distance
    boundary = 2
    paired_boundary = 3
  [../]
[]

[BCs]
  [./block1_left]
    type = DirichletBC
    variable = u
    boundary = 1
    value = 0
  [../]
  [./block1_right]
    type = DirichletBC
    variable = u
    boundary = 2
    value = 1
  [../]
  [./block2_left]
    type = DirichletBC
    variable = u
    boundary = 3
    value = 0
  [../]
  [./block2_right]
    type = DirichletBC
    variable = u
    boundary = 4
    value = 1
  [../]
[]

[Executioner]
  type = Transient
  num_steps = 3
  dt = 1

  solve_type = 'PJFNK'

  petsc_options_iname = '-pc_type -pc_hypre_type'
  petsc_options_value = 'hypre boomeramg'
[]

[Adaptivity]
  marker = uniform
  [./Markers]
    [./uniform]
      type = UniformMarker
      mark = refine
    [../]
  [../]
[]

[Outputs]
  exodus = true
[]
