Capillary pressure test descriptions
The details of the capillary pressure curve implementations can be found in here.
Brooks-Corey

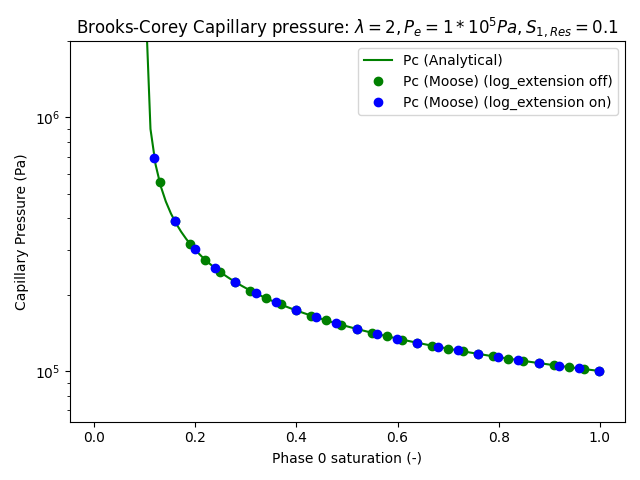

Figure 1: Brooks-Corey Capillary Pressure test cases.
There are two test cases for Brooks-Corey including the log-extension turning on, and log-extension turning off at low saturation.
The input file for log-extension off test:
# Test Brooks-Corey capillary pressure curve by varying saturation over the mesh
# lambda = 2, sat_lr = 0.1, log_extension = false
[Mesh<<<{"href": "../../../../syntax/Mesh/index.html"}>>>]
type = GeneratedMesh
dim = 1
nx = 500
[]
[GlobalParams<<<{"href": "../../../../syntax/GlobalParams/index.html"}>>>]
PorousFlowDictator = dictator
[]
[Variables<<<{"href": "../../../../syntax/Variables/index.html"}>>>]
[p0]
initial_condition<<<{"description": "Specifies a constant initial condition for this variable"}>>> = 1e6
[]
[s1]
[]
[]
[AuxVariables<<<{"href": "../../../../syntax/AuxVariables/index.html"}>>>]
[s0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[s1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[]
[AuxKernels<<<{"href": "../../../../syntax/AuxKernels/index.html"}>>>]
[s0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s0aux
[]
[s1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s1aux
[]
[p0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p0aux
[]
[p1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p1aux
[]
[]
[Functions<<<{"href": "../../../../syntax/Functions/index.html"}>>>]
[s1]
type = ParsedFunction<<<{"description": "Function created by parsing a string", "href": "../../../../source/functions/MooseParsedFunction.html"}>>>
expression<<<{"description": "The user defined function."}>>> = x
[]
[]
[ICs<<<{"href": "../../../../syntax/ICs/index.html"}>>>]
[s1]
type = FunctionIC<<<{"description": "An initial condition that uses a normal function of x, y, z to produce values (and optionally gradients) for a field variable.", "href": "../../../../source/ics/FunctionIC.html"}>>>
variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = s1
function<<<{"description": "The initial condition function."}>>> = s1
[]
[]
[Kernels<<<{"href": "../../../../syntax/Kernels/index.html"}>>>]
[p0]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = p0
[]
[s1]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
[]
[]
[UserObjects<<<{"href": "../../../../syntax/UserObjects/index.html"}>>>]
[dictator]
type = PorousFlowDictator<<<{"description": "Holds information on the PorousFlow variable names", "href": "../../../../source/userobjects/PorousFlowDictator.html"}>>>
porous_flow_vars<<<{"description": "List of primary variables that are used in the PorousFlow simulation. Jacobian entries involving derivatives wrt these variables will be computed. In single-phase models you will just have one (eg 'pressure'), in two-phase models you will have two (eg 'p_water p_gas', or 'p_water s_water'), etc."}>>> = 'p0 s1'
number_fluid_phases<<<{"description": "The number of fluid phases in the simulation"}>>> = 2
number_fluid_components<<<{"description": "The number of fluid components in the simulation"}>>> = 2
[]
[pc]
type = PorousFlowCapillaryPressureBC<<<{"description": "Brooks-Corey capillary pressure", "href": "../../../../source/userobjects/PorousFlowCapillaryPressureBC.html"}>>>
lambda<<<{"description": "Brooks-Corey exponent lambda"}>>> = 2
log_extension<<<{"description": "Use a logarithmic extension for low saturation to avoid capillary pressure going to infinity. Default is true. Set to false if your capillary pressure depends on spatially-dependent variables other than saturation, as the log-extension C++ code for this case has yet to be implemented"}>>> = false
pe<<<{"description": "Brooks-Corey entry pressure. Must be positive"}>>> = 1e5
sat_lr<<<{"description": "Liquid residual saturation. Must be between 0 and 1. Default is 0"}>>> = 0.1
[]
[]
[Materials<<<{"href": "../../../../syntax/Materials/index.html"}>>>]
[temperature]
type = PorousFlowTemperature<<<{"description": "Material to provide temperature at the quadpoints or nodes and derivatives of it with respect to the PorousFlow variables", "href": "../../../../source/materials/PorousFlowTemperature.html"}>>>
[]
[ppss]
type = PorousFlow2PhasePS<<<{"description": "This Material calculates the 2 porepressures and the 2 saturations in a 2-phase situation, and derivatives of these with respect to the PorousFlowVariables.", "href": "../../../../source/materials/PorousFlow2PhasePS.html"}>>>
phase0_porepressure<<<{"description": "Variable that is the porepressure of phase 0 (the liquid phase)"}>>> = p0
phase1_saturation<<<{"description": "Variable that is the saturation of phase 1 (the gas phase)"}>>> = s1
capillary_pressure<<<{"description": "Name of the UserObject defining the capillary pressure"}>>> = pc
[]
[kr0]
type = PorousFlowRelativePermeabilityVG<<<{"description": "This Material calculates relative permeability of a phase using the van Genuchten model", "href": "../../../../source/materials/PorousFlowRelativePermeabilityVG.html"}>>>
phase<<<{"description": "The phase number"}>>> = 0
m<<<{"description": "The van Genuchten exponent of the phase"}>>> = 0.5
[]
[kr1]
type = PorousFlowRelativePermeabilityCorey<<<{"description": "This Material calculates relative permeability of the fluid phase, using the simple Corey model ((S-S_res)/(1-sum(S_res)))^n", "href": "../../../../source/materials/PorousFlowRelativePermeabilityCorey.html"}>>>
phase<<<{"description": "The phase number"}>>> = 1
n<<<{"description": "The Corey exponent of the phase."}>>> = 2
[]
[]
[VectorPostprocessors<<<{"href": "../../../../syntax/VectorPostprocessors/index.html"}>>>]
[vpp]
type = LineValueSampler<<<{"description": "Samples variable(s) along a specified line", "href": "../../../../source/vectorpostprocessors/LineValueSampler.html"}>>>
variable<<<{"description": "The names of the variables that this VectorPostprocessor operates on"}>>> = 's0aux s1aux p0aux p1aux'
start_point<<<{"description": "The beginning of the line"}>>> = '0 0 0'
end_point<<<{"description": "The ending of the line"}>>> = '1 0 0'
num_points<<<{"description": "The number of points to sample along the line"}>>> = 500
sort_by<<<{"description": "What to sort the samples by"}>>> = id
[]
[]
[Executioner<<<{"href": "../../../../syntax/Executioner/index.html"}>>>]
type = Steady
solve_type = NEWTON
nl_abs_tol = 1e-6
[]
[BCs<<<{"href": "../../../../syntax/BCs/index.html"}>>>]
[sleft]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 0
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = left
[]
[sright]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 1
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = right
[]
[]
[Outputs<<<{"href": "../../../../syntax/Outputs/index.html"}>>>]
csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
[]The input file for log-extension on test:
# Test Brooks-Corey capillary pressure curve by varying saturation over the mesh
# lambda = 2, sat_lr = 0.1, log_extension = true
[Mesh<<<{"href": "../../../../syntax/Mesh/index.html"}>>>]
type = GeneratedMesh
dim = 1
nx = 500
[]
[GlobalParams<<<{"href": "../../../../syntax/GlobalParams/index.html"}>>>]
PorousFlowDictator = dictator
[]
[Variables<<<{"href": "../../../../syntax/Variables/index.html"}>>>]
[p0]
initial_condition<<<{"description": "Specifies a constant initial condition for this variable"}>>> = 1e6
[]
[s1]
[]
[]
[AuxVariables<<<{"href": "../../../../syntax/AuxVariables/index.html"}>>>]
[s0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[s1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[]
[AuxKernels<<<{"href": "../../../../syntax/AuxKernels/index.html"}>>>]
[s0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s0aux
[]
[s1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s1aux
[]
[p0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p0aux
[]
[p1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p1aux
[]
[]
[Functions<<<{"href": "../../../../syntax/Functions/index.html"}>>>]
[s1]
type = ParsedFunction<<<{"description": "Function created by parsing a string", "href": "../../../../source/functions/MooseParsedFunction.html"}>>>
expression<<<{"description": "The user defined function."}>>> = x
[]
[]
[ICs<<<{"href": "../../../../syntax/ICs/index.html"}>>>]
[s1]
type = FunctionIC<<<{"description": "An initial condition that uses a normal function of x, y, z to produce values (and optionally gradients) for a field variable.", "href": "../../../../source/ics/FunctionIC.html"}>>>
variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = s1
function<<<{"description": "The initial condition function."}>>> = s1
[]
[]
[Kernels<<<{"href": "../../../../syntax/Kernels/index.html"}>>>]
[p0]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = p0
[]
[s1]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
[]
[]
[UserObjects<<<{"href": "../../../../syntax/UserObjects/index.html"}>>>]
[dictator]
type = PorousFlowDictator<<<{"description": "Holds information on the PorousFlow variable names", "href": "../../../../source/userobjects/PorousFlowDictator.html"}>>>
porous_flow_vars<<<{"description": "List of primary variables that are used in the PorousFlow simulation. Jacobian entries involving derivatives wrt these variables will be computed. In single-phase models you will just have one (eg 'pressure'), in two-phase models you will have two (eg 'p_water p_gas', or 'p_water s_water'), etc."}>>> = 'p0 s1'
number_fluid_phases<<<{"description": "The number of fluid phases in the simulation"}>>> = 2
number_fluid_components<<<{"description": "The number of fluid components in the simulation"}>>> = 2
[]
[pc]
type = PorousFlowCapillaryPressureBC<<<{"description": "Brooks-Corey capillary pressure", "href": "../../../../source/userobjects/PorousFlowCapillaryPressureBC.html"}>>>
lambda<<<{"description": "Brooks-Corey exponent lambda"}>>> = 2
log_extension<<<{"description": "Use a logarithmic extension for low saturation to avoid capillary pressure going to infinity. Default is true. Set to false if your capillary pressure depends on spatially-dependent variables other than saturation, as the log-extension C++ code for this case has yet to be implemented"}>>> = true
pe<<<{"description": "Brooks-Corey entry pressure. Must be positive"}>>> = 1e5
sat_lr<<<{"description": "Liquid residual saturation. Must be between 0 and 1. Default is 0"}>>> = 0.1
[]
[]
[Materials<<<{"href": "../../../../syntax/Materials/index.html"}>>>]
[temperature]
type = PorousFlowTemperature<<<{"description": "Material to provide temperature at the quadpoints or nodes and derivatives of it with respect to the PorousFlow variables", "href": "../../../../source/materials/PorousFlowTemperature.html"}>>>
[]
[ppss]
type = PorousFlow2PhasePS<<<{"description": "This Material calculates the 2 porepressures and the 2 saturations in a 2-phase situation, and derivatives of these with respect to the PorousFlowVariables.", "href": "../../../../source/materials/PorousFlow2PhasePS.html"}>>>
phase0_porepressure<<<{"description": "Variable that is the porepressure of phase 0 (the liquid phase)"}>>> = p0
phase1_saturation<<<{"description": "Variable that is the saturation of phase 1 (the gas phase)"}>>> = s1
capillary_pressure<<<{"description": "Name of the UserObject defining the capillary pressure"}>>> = pc
[]
[kr0]
type = PorousFlowRelativePermeabilityVG<<<{"description": "This Material calculates relative permeability of a phase using the van Genuchten model", "href": "../../../../source/materials/PorousFlowRelativePermeabilityVG.html"}>>>
phase<<<{"description": "The phase number"}>>> = 0
m<<<{"description": "The van Genuchten exponent of the phase"}>>> = 0.5
[]
[kr1]
type = PorousFlowRelativePermeabilityCorey<<<{"description": "This Material calculates relative permeability of the fluid phase, using the simple Corey model ((S-S_res)/(1-sum(S_res)))^n", "href": "../../../../source/materials/PorousFlowRelativePermeabilityCorey.html"}>>>
phase<<<{"description": "The phase number"}>>> = 1
n<<<{"description": "The Corey exponent of the phase."}>>> = 2
[]
[]
[VectorPostprocessors<<<{"href": "../../../../syntax/VectorPostprocessors/index.html"}>>>]
[vpp]
type = LineValueSampler<<<{"description": "Samples variable(s) along a specified line", "href": "../../../../source/vectorpostprocessors/LineValueSampler.html"}>>>
variable<<<{"description": "The names of the variables that this VectorPostprocessor operates on"}>>> = 's0aux s1aux p0aux p1aux'
start_point<<<{"description": "The beginning of the line"}>>> = '0 0 0'
end_point<<<{"description": "The ending of the line"}>>> = '1 0 0'
num_points<<<{"description": "The number of points to sample along the line"}>>> = 500
sort_by<<<{"description": "What to sort the samples by"}>>> = id
[]
[]
[Executioner<<<{"href": "../../../../syntax/Executioner/index.html"}>>>]
type = Steady
solve_type = NEWTON
nl_abs_tol = 1e-6
[]
[BCs<<<{"href": "../../../../syntax/BCs/index.html"}>>>]
[sleft]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 0
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = left
[]
[sright]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 1
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = right
[]
[]
[Outputs<<<{"href": "../../../../syntax/Outputs/index.html"}>>>]
csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
[]van Genuchten

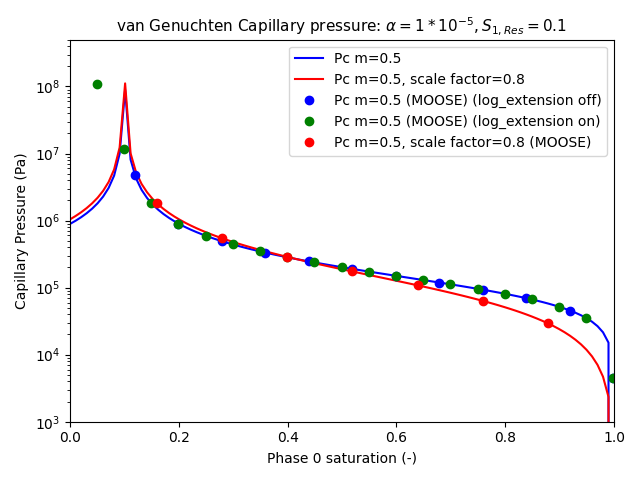

Figure 2: van Genuchten Capillary Pressure test cases.
There are three test cases for van Genuchten including the log-extension turning on, log-extension turning off at low saturation, and changing the scale factor.
The input file for log-extension off test:
# Test van Genuchten relative permeability curve by varying saturation over the mesh
# van Genuchten exponent m = 0.5 for both phases
# No residual saturation in either phase
[Mesh<<<{"href": "../../../../syntax/Mesh/index.html"}>>>]
type = GeneratedMesh
dim = 1
nx = 500
[]
[GlobalParams<<<{"href": "../../../../syntax/GlobalParams/index.html"}>>>]
PorousFlowDictator = dictator
[]
[Variables<<<{"href": "../../../../syntax/Variables/index.html"}>>>]
[p0]
initial_condition<<<{"description": "Specifies a constant initial condition for this variable"}>>> = 1e6
[]
[s1]
[]
[]
[AuxVariables<<<{"href": "../../../../syntax/AuxVariables/index.html"}>>>]
[s0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[s1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[]
[AuxKernels<<<{"href": "../../../../syntax/AuxKernels/index.html"}>>>]
[s0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s0aux
[]
[s1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s1aux
[]
[p0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p0aux
[]
[p1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p1aux
[]
[]
[Functions<<<{"href": "../../../../syntax/Functions/index.html"}>>>]
[s1]
type = ParsedFunction<<<{"description": "Function created by parsing a string", "href": "../../../../source/functions/MooseParsedFunction.html"}>>>
expression<<<{"description": "The user defined function."}>>> = x
[]
[]
[ICs<<<{"href": "../../../../syntax/ICs/index.html"}>>>]
[s1]
type = FunctionIC<<<{"description": "An initial condition that uses a normal function of x, y, z to produce values (and optionally gradients) for a field variable.", "href": "../../../../source/ics/FunctionIC.html"}>>>
variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = s1
function<<<{"description": "The initial condition function."}>>> = s1
[]
[]
[Kernels<<<{"href": "../../../../syntax/Kernels/index.html"}>>>]
[p0]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = p0
[]
[s1]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
[]
[]
[UserObjects<<<{"href": "../../../../syntax/UserObjects/index.html"}>>>]
[dictator]
type = PorousFlowDictator<<<{"description": "Holds information on the PorousFlow variable names", "href": "../../../../source/userobjects/PorousFlowDictator.html"}>>>
porous_flow_vars<<<{"description": "List of primary variables that are used in the PorousFlow simulation. Jacobian entries involving derivatives wrt these variables will be computed. In single-phase models you will just have one (eg 'pressure'), in two-phase models you will have two (eg 'p_water p_gas', or 'p_water s_water'), etc."}>>> = 'p0 s1'
number_fluid_phases<<<{"description": "The number of fluid phases in the simulation"}>>> = 2
number_fluid_components<<<{"description": "The number of fluid components in the simulation"}>>> = 2
[]
[pc]
type = PorousFlowCapillaryPressureVG<<<{"description": "van Genuchten capillary pressure", "href": "../../../../source/userobjects/PorousFlowCapillaryPressureVG.html"}>>>
alpha<<<{"description": "van Genuchten parameter alpha. Must be positive"}>>> = 1e-5
m<<<{"description": "van Genuchten exponent m. Must be between 0 and 1, and optimally should be set to >0.5"}>>> = 0.5
sat_lr<<<{"description": "Liquid residual saturation. Must be between 0 and 1. Default is 0"}>>> = 0.1
log_extension<<<{"description": "Use a logarithmic extension for low saturation to avoid capillary pressure going to infinity. Default is true. Set to false if your capillary pressure depends on spatially-dependent variables other than saturation, as the log-extension C++ code for this case has yet to be implemented"}>>> = false
[]
[]
[Materials<<<{"href": "../../../../syntax/Materials/index.html"}>>>]
[temperature]
type = PorousFlowTemperature<<<{"description": "Material to provide temperature at the quadpoints or nodes and derivatives of it with respect to the PorousFlow variables", "href": "../../../../source/materials/PorousFlowTemperature.html"}>>>
[]
[ppss]
type = PorousFlow2PhasePS<<<{"description": "This Material calculates the 2 porepressures and the 2 saturations in a 2-phase situation, and derivatives of these with respect to the PorousFlowVariables.", "href": "../../../../source/materials/PorousFlow2PhasePS.html"}>>>
phase0_porepressure<<<{"description": "Variable that is the porepressure of phase 0 (the liquid phase)"}>>> = p0
phase1_saturation<<<{"description": "Variable that is the saturation of phase 1 (the gas phase)"}>>> = s1
capillary_pressure<<<{"description": "Name of the UserObject defining the capillary pressure"}>>> = pc
[]
[kr0]
type = PorousFlowRelativePermeabilityVG<<<{"description": "This Material calculates relative permeability of a phase using the van Genuchten model", "href": "../../../../source/materials/PorousFlowRelativePermeabilityVG.html"}>>>
phase<<<{"description": "The phase number"}>>> = 0
m<<<{"description": "The van Genuchten exponent of the phase"}>>> = 0.5
[]
[kr1]
type = PorousFlowRelativePermeabilityCorey<<<{"description": "This Material calculates relative permeability of the fluid phase, using the simple Corey model ((S-S_res)/(1-sum(S_res)))^n", "href": "../../../../source/materials/PorousFlowRelativePermeabilityCorey.html"}>>>
phase<<<{"description": "The phase number"}>>> = 1
n<<<{"description": "The Corey exponent of the phase."}>>> = 2
[]
[]
[VectorPostprocessors<<<{"href": "../../../../syntax/VectorPostprocessors/index.html"}>>>]
[vpp]
type = LineValueSampler<<<{"description": "Samples variable(s) along a specified line", "href": "../../../../source/vectorpostprocessors/LineValueSampler.html"}>>>
variable<<<{"description": "The names of the variables that this VectorPostprocessor operates on"}>>> = 's0aux s1aux p0aux p1aux'
start_point<<<{"description": "The beginning of the line"}>>> = '0 0 0'
end_point<<<{"description": "The ending of the line"}>>> = '1 0 0'
num_points<<<{"description": "The number of points to sample along the line"}>>> = 500
sort_by<<<{"description": "What to sort the samples by"}>>> = id
[]
[]
[Executioner<<<{"href": "../../../../syntax/Executioner/index.html"}>>>]
type = Steady
solve_type = NEWTON
nl_abs_tol = 1e-6
[]
[BCs<<<{"href": "../../../../syntax/BCs/index.html"}>>>]
[sleft]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 0
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = left
[]
[sright]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 1
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = right
[]
[]
[Outputs<<<{"href": "../../../../syntax/Outputs/index.html"}>>>]
csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
[]The input file for log-extension on test:
# Test van Genuchten relative permeability curve by varying saturation over the mesh
# van Genuchten exponent m = 0.5 for both phases
# No residual saturation in either phase
[Mesh<<<{"href": "../../../../syntax/Mesh/index.html"}>>>]
type = GeneratedMesh
dim = 1
nx = 500
[]
[GlobalParams<<<{"href": "../../../../syntax/GlobalParams/index.html"}>>>]
PorousFlowDictator = dictator
[]
[Variables<<<{"href": "../../../../syntax/Variables/index.html"}>>>]
[p0]
initial_condition<<<{"description": "Specifies a constant initial condition for this variable"}>>> = 1e6
[]
[s1]
[]
[]
[AuxVariables<<<{"href": "../../../../syntax/AuxVariables/index.html"}>>>]
[s0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[s1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[]
[AuxKernels<<<{"href": "../../../../syntax/AuxKernels/index.html"}>>>]
[s0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s0aux
[]
[s1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s1aux
[]
[p0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p0aux
[]
[p1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p1aux
[]
[]
[Functions<<<{"href": "../../../../syntax/Functions/index.html"}>>>]
[s1]
type = ParsedFunction<<<{"description": "Function created by parsing a string", "href": "../../../../source/functions/MooseParsedFunction.html"}>>>
expression<<<{"description": "The user defined function."}>>> = x
[]
[]
[ICs<<<{"href": "../../../../syntax/ICs/index.html"}>>>]
[s1]
type = FunctionIC<<<{"description": "An initial condition that uses a normal function of x, y, z to produce values (and optionally gradients) for a field variable.", "href": "../../../../source/ics/FunctionIC.html"}>>>
variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = s1
function<<<{"description": "The initial condition function."}>>> = s1
[]
[]
[Kernels<<<{"href": "../../../../syntax/Kernels/index.html"}>>>]
[p0]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = p0
[]
[s1]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
[]
[]
[UserObjects<<<{"href": "../../../../syntax/UserObjects/index.html"}>>>]
[dictator]
type = PorousFlowDictator<<<{"description": "Holds information on the PorousFlow variable names", "href": "../../../../source/userobjects/PorousFlowDictator.html"}>>>
porous_flow_vars<<<{"description": "List of primary variables that are used in the PorousFlow simulation. Jacobian entries involving derivatives wrt these variables will be computed. In single-phase models you will just have one (eg 'pressure'), in two-phase models you will have two (eg 'p_water p_gas', or 'p_water s_water'), etc."}>>> = 'p0 s1'
number_fluid_phases<<<{"description": "The number of fluid phases in the simulation"}>>> = 2
number_fluid_components<<<{"description": "The number of fluid components in the simulation"}>>> = 2
[]
[pc]
type = PorousFlowCapillaryPressureVG<<<{"description": "van Genuchten capillary pressure", "href": "../../../../source/userobjects/PorousFlowCapillaryPressureVG.html"}>>>
alpha<<<{"description": "van Genuchten parameter alpha. Must be positive"}>>> = 1e-5
m<<<{"description": "van Genuchten exponent m. Must be between 0 and 1, and optimally should be set to >0.5"}>>> = 0.5
sat_lr<<<{"description": "Liquid residual saturation. Must be between 0 and 1. Default is 0"}>>> = 0.1
log_extension<<<{"description": "Use a logarithmic extension for low saturation to avoid capillary pressure going to infinity. Default is true. Set to false if your capillary pressure depends on spatially-dependent variables other than saturation, as the log-extension C++ code for this case has yet to be implemented"}>>> = true
[]
[]
[Materials<<<{"href": "../../../../syntax/Materials/index.html"}>>>]
[temperature]
type = PorousFlowTemperature<<<{"description": "Material to provide temperature at the quadpoints or nodes and derivatives of it with respect to the PorousFlow variables", "href": "../../../../source/materials/PorousFlowTemperature.html"}>>>
[]
[ppss]
type = PorousFlow2PhasePS<<<{"description": "This Material calculates the 2 porepressures and the 2 saturations in a 2-phase situation, and derivatives of these with respect to the PorousFlowVariables.", "href": "../../../../source/materials/PorousFlow2PhasePS.html"}>>>
phase0_porepressure<<<{"description": "Variable that is the porepressure of phase 0 (the liquid phase)"}>>> = p0
phase1_saturation<<<{"description": "Variable that is the saturation of phase 1 (the gas phase)"}>>> = s1
capillary_pressure<<<{"description": "Name of the UserObject defining the capillary pressure"}>>> = pc
[]
[kr0]
type = PorousFlowRelativePermeabilityVG<<<{"description": "This Material calculates relative permeability of a phase using the van Genuchten model", "href": "../../../../source/materials/PorousFlowRelativePermeabilityVG.html"}>>>
phase<<<{"description": "The phase number"}>>> = 0
m<<<{"description": "The van Genuchten exponent of the phase"}>>> = 0.5
[]
[kr1]
type = PorousFlowRelativePermeabilityCorey<<<{"description": "This Material calculates relative permeability of the fluid phase, using the simple Corey model ((S-S_res)/(1-sum(S_res)))^n", "href": "../../../../source/materials/PorousFlowRelativePermeabilityCorey.html"}>>>
phase<<<{"description": "The phase number"}>>> = 1
n<<<{"description": "The Corey exponent of the phase."}>>> = 2
[]
[]
[VectorPostprocessors<<<{"href": "../../../../syntax/VectorPostprocessors/index.html"}>>>]
[vpp]
type = LineValueSampler<<<{"description": "Samples variable(s) along a specified line", "href": "../../../../source/vectorpostprocessors/LineValueSampler.html"}>>>
variable<<<{"description": "The names of the variables that this VectorPostprocessor operates on"}>>> = 's0aux s1aux p0aux p1aux'
start_point<<<{"description": "The beginning of the line"}>>> = '0 0 0'
end_point<<<{"description": "The ending of the line"}>>> = '1 0 0'
num_points<<<{"description": "The number of points to sample along the line"}>>> = 500
sort_by<<<{"description": "What to sort the samples by"}>>> = id
[]
[]
[Executioner<<<{"href": "../../../../syntax/Executioner/index.html"}>>>]
type = Steady
solve_type = NEWTON
nl_abs_tol = 1e-6
[]
[BCs<<<{"href": "../../../../syntax/BCs/index.html"}>>>]
[sleft]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 0
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = left
[]
[sright]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 1
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = right
[]
[]
[Outputs<<<{"href": "../../../../syntax/Outputs/index.html"}>>>]
csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
[]The input file for applied-scaling test:
# Test van Genuchten relative permeability curve by varying saturation over the mesh
# van Genuchten exponent m = 0.5 for both phases
# No residual saturation in either phase
[Mesh<<<{"href": "../../../../syntax/Mesh/index.html"}>>>]
type = GeneratedMesh
dim = 1
nx = 500
[]
[GlobalParams<<<{"href": "../../../../syntax/GlobalParams/index.html"}>>>]
PorousFlowDictator = dictator
[]
[Variables<<<{"href": "../../../../syntax/Variables/index.html"}>>>]
[p0]
initial_condition<<<{"description": "Specifies a constant initial condition for this variable"}>>> = 1e6
[]
[s1]
[]
[]
[AuxVariables<<<{"href": "../../../../syntax/AuxVariables/index.html"}>>>]
[s0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[s1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p0aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[p1aux]
family<<<{"description": "Specifies the family of FE shape functions to use for this variable"}>>> = MONOMIAL
order<<<{"description": "Specifies the order of the FE shape function to use for this variable (additional orders not listed are allowed)"}>>> = CONSTANT
[]
[]
[AuxKernels<<<{"href": "../../../../syntax/AuxKernels/index.html"}>>>]
[s0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s0aux
[]
[s1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = saturation
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = s1aux
[]
[p0]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 0
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p0aux
[]
[p1]
type = PorousFlowPropertyAux<<<{"description": "AuxKernel to provide access to properties evaluated at quadpoints. Note that elemental AuxVariables must be used, so that these properties are integrated over each element.", "href": "../../../../source/auxkernels/PorousFlowPropertyAux.html"}>>>
property<<<{"description": "The fluid property that this auxillary kernel is to calculate"}>>> = pressure
phase<<<{"description": "The index of the phase this auxillary kernel acts on"}>>> = 1
variable<<<{"description": "The name of the variable that this object applies to"}>>> = p1aux
[]
[]
[Functions<<<{"href": "../../../../syntax/Functions/index.html"}>>>]
[s1]
type = ParsedFunction<<<{"description": "Function created by parsing a string", "href": "../../../../source/functions/MooseParsedFunction.html"}>>>
expression<<<{"description": "The user defined function."}>>> = x
[]
[]
[ICs<<<{"href": "../../../../syntax/ICs/index.html"}>>>]
[s1]
type = FunctionIC<<<{"description": "An initial condition that uses a normal function of x, y, z to produce values (and optionally gradients) for a field variable.", "href": "../../../../source/ics/FunctionIC.html"}>>>
variable<<<{"description": "The variable this initial condition is supposed to provide values for."}>>> = s1
function<<<{"description": "The initial condition function."}>>> = s1
[]
[]
[Kernels<<<{"href": "../../../../syntax/Kernels/index.html"}>>>]
[p0]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = p0
[]
[s1]
type = Diffusion<<<{"description": "The Laplacian operator ($-\\nabla \\cdot \\nabla u$), with the weak form of $(\\nabla \\phi_i, \\nabla u_h)$.", "href": "../../../../source/kernels/Diffusion.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
[]
[]
[UserObjects<<<{"href": "../../../../syntax/UserObjects/index.html"}>>>]
[dictator]
type = PorousFlowDictator<<<{"description": "Holds information on the PorousFlow variable names", "href": "../../../../source/userobjects/PorousFlowDictator.html"}>>>
porous_flow_vars<<<{"description": "List of primary variables that are used in the PorousFlow simulation. Jacobian entries involving derivatives wrt these variables will be computed. In single-phase models you will just have one (eg 'pressure'), in two-phase models you will have two (eg 'p_water p_gas', or 'p_water s_water'), etc."}>>> = 'p0 s1'
number_fluid_phases<<<{"description": "The number of fluid phases in the simulation"}>>> = 2
number_fluid_components<<<{"description": "The number of fluid components in the simulation"}>>> = 2
[]
[pc]
type = PorousFlowCapillaryPressureVG<<<{"description": "van Genuchten capillary pressure", "href": "../../../../source/userobjects/PorousFlowCapillaryPressureVG.html"}>>>
alpha<<<{"description": "van Genuchten parameter alpha. Must be positive"}>>> = 1e-5
m<<<{"description": "van Genuchten exponent m. Must be between 0 and 1, and optimally should be set to >0.5"}>>> = 0.5
sat_lr<<<{"description": "Liquid residual saturation. Must be between 0 and 1. Default is 0"}>>> = 0.1
s_scale<<<{"description": "CapillaryPressure = f(Seff * s_scale) - f(s_scale), where f is the van Genuchten expression. Setting s_scale<1 is unusual but sometimes helps fully saturated, 2-phase PP simulations converge as the zero derivative (1/f'(S=1)=0) is removed"}>>> = 0.8
log_extension<<<{"description": "Use a logarithmic extension for low saturation to avoid capillary pressure going to infinity. Default is true. Set to false if your capillary pressure depends on spatially-dependent variables other than saturation, as the log-extension C++ code for this case has yet to be implemented"}>>> = false
[]
[]
[Materials<<<{"href": "../../../../syntax/Materials/index.html"}>>>]
[temperature]
type = PorousFlowTemperature<<<{"description": "Material to provide temperature at the quadpoints or nodes and derivatives of it with respect to the PorousFlow variables", "href": "../../../../source/materials/PorousFlowTemperature.html"}>>>
[]
[ppss]
type = PorousFlow2PhasePS<<<{"description": "This Material calculates the 2 porepressures and the 2 saturations in a 2-phase situation, and derivatives of these with respect to the PorousFlowVariables.", "href": "../../../../source/materials/PorousFlow2PhasePS.html"}>>>
phase0_porepressure<<<{"description": "Variable that is the porepressure of phase 0 (the liquid phase)"}>>> = p0
phase1_saturation<<<{"description": "Variable that is the saturation of phase 1 (the gas phase)"}>>> = s1
capillary_pressure<<<{"description": "Name of the UserObject defining the capillary pressure"}>>> = pc
[]
[kr0]
type = PorousFlowRelativePermeabilityVG<<<{"description": "This Material calculates relative permeability of a phase using the van Genuchten model", "href": "../../../../source/materials/PorousFlowRelativePermeabilityVG.html"}>>>
phase<<<{"description": "The phase number"}>>> = 0
m<<<{"description": "The van Genuchten exponent of the phase"}>>> = 0.5
[]
[kr1]
type = PorousFlowRelativePermeabilityCorey<<<{"description": "This Material calculates relative permeability of the fluid phase, using the simple Corey model ((S-S_res)/(1-sum(S_res)))^n", "href": "../../../../source/materials/PorousFlowRelativePermeabilityCorey.html"}>>>
phase<<<{"description": "The phase number"}>>> = 1
n<<<{"description": "The Corey exponent of the phase."}>>> = 2
[]
[]
[VectorPostprocessors<<<{"href": "../../../../syntax/VectorPostprocessors/index.html"}>>>]
[vpp]
type = LineValueSampler<<<{"description": "Samples variable(s) along a specified line", "href": "../../../../source/vectorpostprocessors/LineValueSampler.html"}>>>
variable<<<{"description": "The names of the variables that this VectorPostprocessor operates on"}>>> = 's0aux s1aux p0aux p1aux'
start_point<<<{"description": "The beginning of the line"}>>> = '0 0 0'
end_point<<<{"description": "The ending of the line"}>>> = '1 0 0'
num_points<<<{"description": "The number of points to sample along the line"}>>> = 500
sort_by<<<{"description": "What to sort the samples by"}>>> = id
[]
[]
[Executioner<<<{"href": "../../../../syntax/Executioner/index.html"}>>>]
type = Steady
solve_type = NEWTON
nl_abs_tol = 1e-6
[]
[BCs<<<{"href": "../../../../syntax/BCs/index.html"}>>>]
[sleft]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 0
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = left
[]
[sright]
type = DirichletBC<<<{"description": "Imposes the essential boundary condition $u=g$, where $g$ is a constant, controllable value.", "href": "../../../../source/bcs/DirichletBC.html"}>>>
variable<<<{"description": "The name of the variable that this residual object operates on"}>>> = s1
value<<<{"description": "Value of the BC"}>>> = 1
boundary<<<{"description": "The list of boundary IDs from the mesh where this object applies"}>>> = right
[]
[]
[Outputs<<<{"href": "../../../../syntax/Outputs/index.html"}>>>]
csv<<<{"description": "Output the scalar variable and postprocessors to a *.csv file using the default CSV output."}>>> = true
execute_on<<<{"description": "The list of flag(s) indicating when this object should be executed. For a description of each flag, see https://mooseframework.inl.gov/source/interfaces/SetupInterface.html."}>>> = timestep_end
[]
