Aquifer thermal energy storage

The material in this page is based on Sheldon et al. (2021).

Introduction

Aquifer Thermal Energy Storage (ATES) systems use resident groundwater in a subsurface aquifer to store heat energy (Fleuchaus et al., 2018). The basic premise of ATES is:

Water is produced from an aquifer;
The thermal energy from some external source (e.g. excess renewable energy or industrial waste heat) is transferred to the water;
The hot water is re-injected into the aquifer, where it is stored until it is needed;
When needed, the hot water is produced, and the energy extracted.

This process can be reversed to enable cooling. The duration of an ATES cycle can range from hours to months, depending on the intended use of the energy; for example, storing excess solar energy during the day and extracting it for use at night (daily cycle); or, the very common case of storing excess heat energy in the warmer months and extracting it for use in the colder months (annual cycle). As such, ATES systems can be used to address energy storage challenges that arise from the intermittent nature of renewable energy and other sources.

There are many ATES systems in operation currently. Their viability depends crucially on the recovery efficiency, $var element = document.getElementById("moose-equation-8fc99aa3-c925-47c6-8b73-2a1cca23675c");katex.render("R", element, {displayMode:false,throwOnError:false});$ , which is the ratio of heat energy extracted to heat energy injected, because it is impossible to extract all of the injected heat from an ATES system due to heat losses caused by conduction and convection. $var element = document.getElementById("moose-equation-a5c6ac41-e21b-4573-8c90-49108be4d26e");katex.render("R", element, {displayMode:false,throwOnError:false});$ is

$var element = document.getElementById("moose-equation-45914b1d-800f-4649-8320-677a0502ccfe");katex.render("R = \\frac{\\overline{h}_{\\mathrm{p}} - h_{\\mathrm{amb}}}{h_{\\mathrm{i}} - h_{\\mathrm{amb}}} \\approx \\frac{\\overline{T}_{\\mathrm{p}} - T_{\\mathrm{amb}}}{T_{\\mathrm{i}} - T_{\\mathrm{amb}}} \\ ,", element, {displayMode:true,throwOnError:false});$

where $var element = document.getElementById("moose-equation-6e2e0f14-2373-43c5-a4cf-a908a697e837");katex.render("h", element, {displayMode:false,throwOnError:false});$ denotes enthalpy and $var element = document.getElementById("moose-equation-0aa4ee0a-91b8-4a58-9e14-964c348d729e");katex.render("T", element, {displayMode:false,throwOnError:false});$ temperature. The subscript "p" indicates "produced" (retrieved from the aquifer), "amb" indicates "ambient", and "i" indicates "injected". For instance, if the ambient aquifer temperature is $var element = document.getElementById("moose-equation-13faa8e2-7d50-441d-9200-aa6af70ece7e");katex.render("T_{\\mathrm{amb}} = 20^{\\circ}", element, {displayMode:false,throwOnError:false});$ C, the injection temperature is $var element = document.getElementById("moose-equation-18fd3446-e6d5-4b82-8eec-0840c61a6b7d");katex.render("T_{i} = 150^{\\circ}", element, {displayMode:false,throwOnError:false});$ C and $var element = document.getElementById("moose-equation-30c5f379-20cf-4fb4-865d-0b5ceb1ebbbf");katex.render("R=0.9", element, {displayMode:false,throwOnError:false});$ , then the average produced temperature is $var element = document.getElementById("moose-equation-715473f2-3b28-4979-8393-6b44812f775a");katex.render("\\overline{T}_{\\mathrm{p}} \\approx 137^{\\circ}", element, {displayMode:false,throwOnError:false});$ C.

$var element = document.getElementById("moose-equation-4efaf849-300d-4bdf-b49e-c785ab1e8a53");katex.render("R", element, {displayMode:false,throwOnError:false});$ has been measured at ATES sites, and estimated using numerical modelling. Numerical models can provide accurate estimates of $var element = document.getElementById("moose-equation-a8089f45-9b2d-41f8-a4bb-cf9c47019903");katex.render("R", element, {displayMode:false,throwOnError:false});$ as a function of operational parameters, such as the injection temperature and rate, and aquifer parameters such as the permeability, thickness and depth. Such estimates are useful for rapid screening of potential ATES sites, indicating which sites might or might not be viable.

The purpose of this page is to describe a MOOSE model of an ATES system, with the goal of predicting $var element = document.getElementById("moose-equation-ee8b4f43-a32e-4fdf-8c16-7ca53627453b");katex.render("R", element, {displayMode:false,throwOnError:false});$ , and present a few results. For significantly more background discussion, discussion of the modelling approach and results, the reader is referred to Sheldon et al. (2021).

Model setup

The model simulates an ATES system comprising a single injection-production well penetrating a horizontal aquifer 20 m thick. Five injection-production cycles are simulated, with each cycle comprising 91 days each of injection, storage, production and rest. The injection temperature is 90 $var element = document.getElementById("moose-equation-f8496c82-ea13-44a0-90d0-ebd7e2e5dc9b");katex.render("^{\\circ}\\mathrm{C}", element, {displayMode:false,throwOnError:false});$ , and the injected fluid mass is 10 $var element = document.getElementById("moose-equation-88795bdf-0d39-4753-801f-47b53eaec38b");katex.render("^8\\,", element, {displayMode:false,throwOnError:false});$ kg.

The single-well system has radial symmetry, hence it may be simulated using "RZ" coordinates:

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = 0
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_height}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = 0
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_height}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'bottom top'
    merge_boundaries_with_same_name<<<{"description": "If the input meshes have boundaries with the same name (but different IDs), merge them"}>>> = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = 0
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_height}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_top cap_top'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = 0
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_height}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator<<<{"description": "Uses a parsed expression (`combinatorial_geometry`) to determine if an element (via its centroid) is inside the region defined by the expression and assigns a new block ID.", "href": "../../source/meshgenerators/ParsedSubdomainMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = aq_and_cap_all
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id<<<{"description": "Subdomain id to set for inside of the combinatorial"}>>> = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator<<<{"description": "Uses a parsed expression (`combinatorial_geometry`) to determine if an element (via its centroid) is inside the region defined by the expression and assigns a new block ID.", "href": "../../source/meshgenerators/ParsedSubdomainMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = aquifer
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'y >= ${half_aq_thickness}'
    block_id<<<{"description": "Subdomain id to set for inside of the combinatorial"}>>> = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator<<<{"description": "Uses a parsed expression (`combinatorial_geometry`) to determine if an element (via its centroid) is inside the region defined by the expression and assigns a new block ID.", "href": "../../source/meshgenerators/ParsedSubdomainMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = top_cap
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'y <= -${half_aq_thickness}'
    block_id<<<{"description": "Subdomain id to set for inside of the combinatorial"}>>> = 3
  []
  [injection_area]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains<<<{"description": "A set of subdomain names or ids whose sides will be included in the new sidesets. A side is only added if the subdomain id of the corresponding element is in this set."}>>> = 1
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'injection_area'
    input<<<{"description": "The mesh we want to modify"}>>> = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator<<<{"description": "Changes the block IDs and/or block names for a given set of blocks defined by either block ID or block name. The changes are independent of ordering. The merging of blocks is supported.", "href": "../../source/meshgenerators/RenameBlockGenerator.html"}>>>
    old_block<<<{"description": "Elements with these block ID(s)/name(s) will be given the new block information specified in 'new_block'"}>>> = '1 2 3'
    new_block<<<{"description": "The new block ID(s)/name(s) to be given by the elements defined in 'old_block'."}>>> = 'aquifer caps caps'
    input<<<{"description": "The mesh we want to modify"}>>> = 'injection_area'
  []
[]

which means gravity acts along what is usually thought of as the "y" direction:

[GlobalParams<<<{"href": "../../syntax/GlobalParams/index.html"}>>>]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

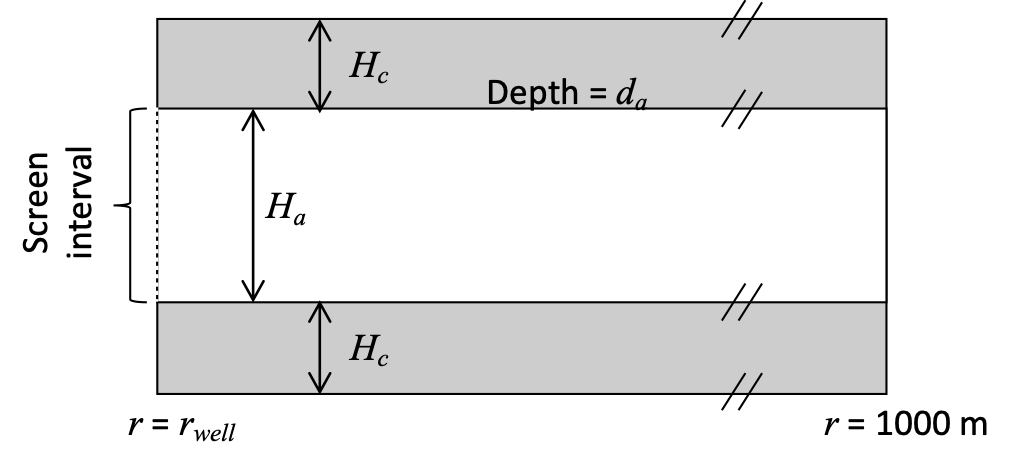

The geometry is shown in Figure 1.

Figure 1: Geometry on a radial slice of the ATES model.

In this example, the mesh is created by using a combination of MOOSE MeshGenerators, however, for accurate prediction of $var element = document.getElementById("moose-equation-6e5ee468-443b-4ded-85f2-ce9b34fd8af7");katex.render("R", element, {displayMode:false,throwOnError:false});$ , readers are encouraged to use a more sophisticated approach involving greater refinement of the mesh close to the well screen, such as the one outlined in Sheldon et al. (2021).

[Mesh<<<{"href": "../../syntax/Mesh/index.html"}>>>]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = 0
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_height}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = 0
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r_fine}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${bh_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${fine_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r_fine}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_height}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'bottom top'
    merge_boundaries_with_same_name<<<{"description": "If the input meshes have boundaries with the same name (but different IDs), merge them"}>>> = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = 0
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_top}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = ${half_height}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_top cap_top'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_aq_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_aq}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = 0
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator<<<{"description": "Create a line, square, or cube mesh with uniformly spaced or biased elements.", "href": "../../source/meshgenerators/GeneratedMeshGenerator.html"}>>>
    dim<<<{"description": "The dimension of the mesh to be generated"}>>> = 2
    nx<<<{"description": "Number of elements in the X direction"}>>> = ${num_r}
    xmin<<<{"description": "Lower X Coordinate of the generated mesh"}>>> = ${fine_r}
    xmax<<<{"description": "Upper X Coordinate of the generated mesh"}>>> = ${max_r}
    bias_x<<<{"description": "The amount by which to grow (or shrink) the cells in the x-direction."}>>> = ${bias_r}
    bias_y<<<{"description": "The amount by which to grow (or shrink) the cells in the y-direction."}>>> = ${bias_y_cap_bottom}
    ny<<<{"description": "Number of elements in the Y direction"}>>> = ${num_y_cap}
    ymin<<<{"description": "Lower Y Coordinate of the generated mesh"}>>> = -${half_height}
    ymax<<<{"description": "Upper Y Coordinate of the generated mesh"}>>> = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator<<<{"description": "Allows multiple mesh files to be stitched together to form a single mesh.", "href": "../../source/meshgenerators/StitchedMeshGenerator.html"}>>>
    inputs<<<{"description": "The input MeshGenerators."}>>> = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids<<<{"description": "Whether or not to clear the stitched boundary IDs"}>>> = true
    stitch_boundaries_pairs<<<{"description": "Pairs of boundaries to be stitched together between the 1st mesh in inputs and each consecutive mesh"}>>> = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator<<<{"description": "Uses a parsed expression (`combinatorial_geometry`) to determine if an element (via its centroid) is inside the region defined by the expression and assigns a new block ID.", "href": "../../source/meshgenerators/ParsedSubdomainMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = aq_and_cap_all
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id<<<{"description": "Subdomain id to set for inside of the combinatorial"}>>> = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator<<<{"description": "Uses a parsed expression (`combinatorial_geometry`) to determine if an element (via its centroid) is inside the region defined by the expression and assigns a new block ID.", "href": "../../source/meshgenerators/ParsedSubdomainMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = aquifer
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'y >= ${half_aq_thickness}'
    block_id<<<{"description": "Subdomain id to set for inside of the combinatorial"}>>> = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator<<<{"description": "Uses a parsed expression (`combinatorial_geometry`) to determine if an element (via its centroid) is inside the region defined by the expression and assigns a new block ID.", "href": "../../source/meshgenerators/ParsedSubdomainMeshGenerator.html"}>>>
    input<<<{"description": "The mesh we want to modify"}>>> = top_cap
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'y <= -${half_aq_thickness}'
    block_id<<<{"description": "Subdomain id to set for inside of the combinatorial"}>>> = 3
  []
  [injection_area]
    type = ParsedGenerateSideset<<<{"description": "A MeshGenerator that adds element sides to a sideset if the centroid of the side satisfies the `combinatorial_geometry` expression.", "href": "../../source/meshgenerators/ParsedGenerateSideset.html"}>>>
    combinatorial_geometry<<<{"description": "Function expression encoding a combinatorial geometry"}>>> = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains<<<{"description": "A set of subdomain names or ids whose sides will be included in the new sidesets. A side is only added if the subdomain id of the corresponding element is in this set."}>>> = 1
    new_sideset_name<<<{"description": "The name of the new sideset"}>>> = 'injection_area'
    input<<<{"description": "The mesh we want to modify"}>>> = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator<<<{"description": "Changes the block IDs and/or block names for a given set of blocks defined by either block ID or block name. The changes are independent of ordering. The merging of blocks is supported.", "href": "../../source/meshgenerators/RenameBlockGenerator.html"}>>>
    old_block<<<{"description": "Elements with these block ID(s)/name(s) will be given the new block information specified in 'new_block'"}>>> = '1 2 3'
    new_block<<<{"description": "The new block ID(s)/name(s) to be given by the elements defined in 'old_block'."}>>> = 'aquifer caps caps'
    input<<<{"description": "The mesh we want to modify"}>>> = 'injection_area'
  []
[]

The core physics is handled by the PorousFlowFullySaturated Action, and Kuzmin-Turek stabilization is used to minimise numerical diffusion of the temperature front which impacts computation of $var element = document.getElementById("moose-equation-f746b372-8642-4874-8db8-4d412ee54d5b");katex.render("R", element, {displayMode:false,throwOnError:false});$ :

[PorousFlowFullySaturated<<<{"href": "../../syntax/PorousFlowFullySaturated/index.html"}>>>]
  coupling_type<<<{"description": "The type of simulation.  For simulations involving Mechanical deformations, you will need to supply the correct Biot coefficient.  For simulations involving Thermal flows, you will need an associated ConstantThermalExpansionCoefficient Material"}>>> = ThermoHydro
  porepressure<<<{"description": "The name of the porepressure variable"}>>> = porepressure
  temperature<<<{"description": "For isothermal simulations, this is the temperature at which fluid properties (and stress-free strains) are evaluated at.  Otherwise, this is the name of the temperature variable.  Units = Kelvin"}>>> = temperature
  fp<<<{"description": "The name of the user object for fluid properties. Only needed if fluid_properties_type = PorousFlowSingleComponentFluid"}>>> = tabulated_water
  stabilization<<<{"description": "Numerical stabilization used.  'Full' means full upwinding.  'KT' means FEM-TVD stabilization of Kuzmin-Turek"}>>> = KT
  flux_limiter_type<<<{"description": "Type of flux limiter to use if stabilization=KT.  'None' means that no antidiffusion will be added in the Kuzmin-Turek scheme"}>>> = ${flux_limiter}
  use_displaced_mesh<<<{"description": "Use displaced mesh computations in mechanical kernels"}>>> = false
  temperature_unit<<<{"description": "The unit of the temperature variable"}>>> = Celsius
  pressure_unit<<<{"description": "The unit of the pressure variable used everywhere in the input file except for in the FluidProperties-module objects.  This can be set to the non-default value only for fluid_properties_type = PorousFlowSingleComponentFluid"}>>> = Pa
  time_unit<<<{"description": "The unit of time used everywhere in the input file except for in the FluidProperties-module objects.  This can be set to the non-default value only for fluid_properties_type = PorousFlowSingleComponentFluid"}>>> = days
[]

The porepressure and temperature are fixed at the extremities of the model:

  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []

The injection and production of heat from the borehole are the most complicated aspect of this input file. The boundary conditions corresponding to injection are fixed temperature and constant rate of fluid flux:

  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []

These boundary conditions are not always active. They are controlled using

  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []

with the conditional_function being:

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []

The boundary conditions corresponding to production are a withdrawal of fluid mass using a PorousFlowSink along with its corresponding withdrawal of heat energy (with the use_enthalpy flag set to true):

  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

These are controlled using similar Controls as the injection phase. Notice the save_in for the heat withdrawal. This records the rate of heat leaving each node. To find the total rate of heat loss (with units J.day $var element = document.getElementById("moose-equation-b5059ae7-1730-46f6-b19e-ba23ffc3a283");katex.render("^{-1}", element, {displayMode:false,throwOnError:false});$ ), a NodalSum is used:

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []

This may be multiplied by the time-step size to find the total heat withdrawn (with units J) in each time-step

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []

which in turn can be used to calculate $var element = document.getElementById("moose-equation-0d3fd30e-20fa-4634-b8d2-78204a56ad37");katex.render("R", element, {displayMode:false,throwOnError:false});$ for each cycle.

Results

Figure 2 shows the evolution of temperature for the first cycle in this example. Notice the buoyancy-driven convection, which causes hot water to rise to the top of the aquifer: this is the prime reason why not all the heat energy can be extracted. In subsequent cycles, the aquifer temperature starts slightly hotter than ambient, so recovery efficiency gradually increases with cycle, as shown in Table 1.

Figure 2: Evolution of the temperature during injection of 90 $var element = document.getElementById("moose-equation-3f74ff53-9d87-4391-979b-e69662803148");katex.render("^{\\circ}", element, {displayMode:false,throwOnError:false});$ C water into an aquifer of thickness 20m (indicated by the white horizontal lines) for a annual cycle length

Table 1: Recovery efficiency

Cycle 1	Cycle 2	Cycle 3	Cycle 4	Cycle 5
0.65	0.70	0.72	0.76	0.78

References

P. Fleuchaus, B. Godschalk, I. Stober, and P. Blum. Worldwide application of aquifer thermal energy storage – A review. Renewable and Sustainable Energy Reviews, 94(June):861–876, 2018. URL: https://doi.org/10.1016/j.rser.2018.06.057, doi:10.1016/j.rser.2018.06.057.

@article{fleuchaus2018,
    author = "Fleuchaus, P. and Godschalk, B. and Stober, I. and Blum, P.",
    doi = "10.1016/j.rser.2018.06.057",
    issn = "18790690",
    journal = "Renewable and Sustainable Energy Reviews",
    keywords = "Geothermal energy,Heating and cooling,Renewable energy,Seasonal thermal energy storage,Underground thermal energy storage",
    number = "June",
    pages = "861--876",
    publisher = "Elsevier Ltd",
    title = "{Worldwide application of aquifer thermal energy storage – A review}",
    url = "https://doi.org/10.1016/j.rser.2018.06.057",
    volume = "94",
    year = "2018"
}

H. A. Sheldon, A. Wilkins, and C. P. Green. Recovery efficiency in high-temperature aquifer thermal energy storage systems. Geothermics, 1234:1234–1234, 2021. doi:1234.

@article{sheldon2021,
    author = "Sheldon, H. A. and Wilkins, A. and Green, C. P.",
    year = "2021",
    pages = "1234--1234",
    title = "Recovery efficiency in high-temperature aquifer thermal energy storage systems",
    volume = "1234",
    journal = "Geothermics",
    doi = "1234"
}

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

(moose/modules/porous_flow/examples/ates/ates.i)

# Simulation designed to assess the recovery efficiency of a single-well ATES system
# Using KT stabilisation
# Boundary conditions: fixed porepressure and temperature at top, bottom and far end of model.

#####################################
flux_limiter = minmod # minmod, vanleer, mc, superbee, none
# depth of top of aquifer (m)
depth = 400

inject_fluid_mass = 1E8 # kg
produce_fluid_mass = ${inject_fluid_mass} # kg
inject_temp = 90 # degC

inject_time = 91 # days
store_time = 91 # days
produce_time = 91 # days
rest_time = 91 # days
num_cycles = 5 # Currently needs to be <= 10

cycle_length = '${fparse inject_time + store_time + produce_time + rest_time}'

end_simulation = '${fparse cycle_length * num_cycles}'

# Note: I have setup 10 cycles but you can set num_cycles less than 10.
start_injection1 = 0
start_injection2 = ${cycle_length}
start_injection3 = '${fparse cycle_length * 2}'
start_injection4 = '${fparse cycle_length * 3}'
start_injection5 = '${fparse cycle_length * 4}'
start_injection6 = '${fparse cycle_length * 5}'
start_injection7 = '${fparse cycle_length * 6}'
start_injection8 = '${fparse cycle_length * 7}'
start_injection9 = '${fparse cycle_length * 8}'
start_injection10 = '${fparse cycle_length * 9}'

end_injection1 = '${fparse start_injection1 + inject_time}'
end_injection2 = '${fparse start_injection2 + inject_time}'
end_injection3 = '${fparse start_injection3 + inject_time}'
end_injection4 = '${fparse start_injection4 + inject_time}'
end_injection5 = '${fparse start_injection5 + inject_time}'
end_injection6 = '${fparse start_injection6 + inject_time}'
end_injection7 = '${fparse start_injection7 + inject_time}'
end_injection8 = '${fparse start_injection8 + inject_time}'
end_injection9 = '${fparse start_injection9 + inject_time}'
end_injection10 = '${fparse start_injection10 + inject_time}'

start_production1 = '${fparse end_injection1 + store_time}'
start_production2 = '${fparse end_injection2 + store_time}'
start_production3 = '${fparse end_injection3 + store_time}'
start_production4 = '${fparse end_injection4 + store_time}'
start_production5 = '${fparse end_injection5 + store_time}'
start_production6 = '${fparse end_injection6 + store_time}'
start_production7 = '${fparse end_injection7 + store_time}'
start_production8 = '${fparse end_injection8 + store_time}'
start_production9 = '${fparse end_injection9 + store_time}'
start_production10 = '${fparse end_injection10 + store_time}'

end_production1 = '${fparse start_production1 + produce_time}'
end_production2 = '${fparse start_production2 + produce_time}'
end_production3 = '${fparse start_production3 + produce_time}'
end_production4 = '${fparse start_production4 + produce_time}'
end_production5 = '${fparse start_production5 + produce_time}'
end_production6 = '${fparse start_production6 + produce_time}'
end_production7 = '${fparse start_production7 + produce_time}'
end_production8 = '${fparse start_production8 + produce_time}'
end_production9 = '${fparse start_production9 + produce_time}'
end_production10 = '${fparse start_production10 + produce_time}'

synctimes = '${start_injection1} ${end_injection1} ${start_production1} ${end_production1}
             ${start_injection2} ${end_injection2} ${start_production2} ${end_production2}
             ${start_injection3} ${end_injection3} ${start_production3} ${end_production3}
             ${start_injection4} ${end_injection4} ${start_production4} ${end_production4}
             ${start_injection5} ${end_injection5} ${start_production5} ${end_production5}
             ${start_injection6} ${end_injection6} ${start_production6} ${end_production6}
             ${start_injection7} ${end_injection7} ${start_production7} ${end_production7}
             ${start_injection8} ${end_injection8} ${start_production8} ${end_production8}
             ${start_injection9} ${end_injection9} ${start_production9} ${end_production9}
             ${start_injection10} ${end_injection10} ${start_production10} ${end_production10}'

#####################################
# Geometry in RZ coordinates
# borehole radius (m)
bh_r = 0.1
# model radius (m)
max_r = 1000
# aquifer thickness (m)
aq_thickness = 20
# cap thickness (m)
cap_thickness = 40
# injection region top and bottom (m).  Note, the mesh is created with the aquifer in y = (-0.5 * aq_thickness, 0.5 * aq_thickness), irrespective of depth (depth only sets the insitu porepressure and temperature)
screen_top = '${fparse 0.5 * aq_thickness}'
screen_bottom = '${fparse -0.5 * aq_thickness}'

# number of elements in radial direction
num_r = 25
# number of elements across half height of aquifer
num_y_aq = 10
# number of elements across height of cap
num_y_cap = 8

# mesh bias in radial direction
bias_r = 1.22
# mesh bias in vertical direction in aquifer top
bias_y_aq_top = 0.9
# mesh bias in vertical direction in cap top
bias_y_cap_top = 1.3
# mesh bias in vertical direction in aquifer bottom
bias_y_aq_bottom = '${fparse 1.0 / bias_y_aq_top}'
# mesh bias in vertical direction in cap bottom
bias_y_cap_bottom = '${fparse 1.0 / bias_y_cap_top}'
depth_centre = '${fparse depth + aq_thickness/2}'

#####################################
# temperature at ground surface (degC)
temp0 = 20
# Vertical geothermal gradient (K/m).  A positive number means temperature increases downwards.
geothermal_gradient = 20E-3

#####################################
# Gravity
gravity = -9.81

#####################################
half_aq_thickness = '${fparse aq_thickness * 0.5}'
half_height = '${fparse half_aq_thickness + cap_thickness}'
approx_screen_length = '${fparse screen_top - screen_bottom}'

# Thermal radius (note this is not strictly correct, it should use the bulk specific heat
#  capacity as defined below, but it doesn't matter here because this is purely for
#  defining the region of refined mesh)
th_r = '${fparse sqrt(inject_fluid_mass / 1000 * 4.12e6 / (approx_screen_length * 3.1416 * aq_specific_heat_cap * aq_density))}'
# radius of fine mesh
fine_r = '${fparse th_r * 2}'
bias_r_fine = 1
num_r_fine = '${fparse int(fine_r/1)}'

######################################
# aquifer properties
aq_porosity = 0.25
aq_hor_perm = 1E-11 # m^2
aq_ver_perm = 2E-12 # m^2
aq_density = 2650 # kg/m^3
aq_specific_heat_cap = 800 # J/Kg/K
aq_hor_thermal_cond = 3 # W/m/K
aq_ver_thermal_cond = 3 # W/m/K
aq_disp_parallel = 0 # m
aq_disp_perp = 0 # m
# Bulk volumetric heat capacity of aquifer:
aq_vol_cp = '${fparse aq_specific_heat_cap * aq_density * (1 - aq_porosity) + 4180 * 1000 * aq_porosity}'
# Thermal radius (correct version using bulk cp):
R_th = '${fparse sqrt(inject_fluid_mass * 4180 / (approx_screen_length * 3.1416 * aq_vol_cp))}'
aq_lambda_eff_hor = '${fparse aq_hor_thermal_cond + 0.3 * aq_disp_parallel * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_lambda_eff_ver = '${fparse aq_ver_thermal_cond + 0.3 * aq_disp_perp * R_th * aq_vol_cp / (inject_time * 60 * 60 * 24)}'
aq_hor_dry_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_dry_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
aq_hor_wet_thermal_cond = '${fparse aq_lambda_eff_hor * 60 * 60 * 24}' # J/day/m/K
aq_ver_wet_thermal_cond = '${fparse aq_lambda_eff_ver * 60 * 60 * 24}' # J/day/m/K
# cap-rock properties
cap_porosity = 0.25
cap_hor_perm = 1E-16 # m^2
cap_ver_perm = 1E-17 # m^2
cap_density = 2650 # kg/m^3
cap_specific_heat_cap = 800 # J/kg/K
cap_hor_thermal_cond = 3 # W/m/K
cap_ver_thermal_cond = 3 # W/m/K
cap_hor_dry_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_dry_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_hor_wet_thermal_cond = '${fparse cap_hor_thermal_cond * 60 * 60 * 24}' # J/day/m/K
cap_ver_wet_thermal_cond = '${fparse cap_ver_thermal_cond * 60 * 60 * 24}' # J/day/m/K

######################################

[Mesh]
  coord_type = RZ
  [aq_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_top_fine cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom_fine]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r_fine}
    xmin = ${bh_r}
    xmax = ${fine_r}
    bias_x = ${bias_r_fine}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom_fine cap_bottom_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
    merge_boundaries_with_same_name = false
  []
  [aq_and_cap_fine]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom_fine aq_and_cap_top_fine'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_top}
    ny = ${num_y_aq}
    ymin = 0
    ymax = ${half_aq_thickness}
  []
  [cap_top]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_top}
    ny = ${num_y_cap}
    ymax = ${half_height}
    ymin = ${half_aq_thickness}
  []
  [aq_and_cap_top]
    type = StitchedMeshGenerator
    inputs = 'aq_top cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []
  [aq_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_aq_bottom}
    ny = ${num_y_aq}
    ymax = 0
    ymin = -${half_aq_thickness}
  []
  [cap_bottom]
    type = GeneratedMeshGenerator
    dim = 2
    nx = ${num_r}
    xmin = ${fine_r}
    xmax = ${max_r}
    bias_x = ${bias_r}
    bias_y = ${bias_y_cap_bottom}
    ny = ${num_y_cap}
    ymin = -${half_height}
    ymax = -${half_aq_thickness}
  []
  [aq_and_cap_bottom]
    type = StitchedMeshGenerator
    inputs = 'aq_bottom cap_bottom'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'bottom top'
  []
  [aq_and_cap]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_bottom aq_and_cap_top'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'top bottom'
  []

  [aq_and_cap_all]
    type = StitchedMeshGenerator
    inputs = 'aq_and_cap_fine aq_and_cap'
    clear_stitched_boundary_ids = true
    stitch_boundaries_pairs = 'right left'
  []

  [aquifer]
    type = ParsedSubdomainMeshGenerator
    input = aq_and_cap_all
    combinatorial_geometry = 'y >= -${half_aq_thickness} & y <= ${half_aq_thickness}'
    block_id = 1
  []
  [top_cap]
    type = ParsedSubdomainMeshGenerator
    input = aquifer
    combinatorial_geometry = 'y >= ${half_aq_thickness}'
    block_id = 2
  []
  [bottom_cap]
    type = ParsedSubdomainMeshGenerator
    input = top_cap
    combinatorial_geometry = 'y <= -${half_aq_thickness}'
    block_id = 3
  []
  [injection_area]
    type = ParsedGenerateSideset
    combinatorial_geometry = 'x<=${bh_r}*1.000001 & y >= ${screen_bottom} & y <= ${screen_top}'
    included_subdomains = 1
    new_sideset_name = 'injection_area'
    input = 'bottom_cap'
  []
  [rename]
    type = RenameBlockGenerator
    old_block = '1 2 3'
    new_block = 'aquifer caps caps'
    input = 'injection_area'
  []
[]

[GlobalParams]
  PorousFlowDictator = dictator
  gravity = '0 ${gravity} 0'
[]

[Variables]
  [porepressure]
  []
  [temperature]
    scaling = 1E-5
  []
[]

[PorousFlowFullySaturated]
  coupling_type = ThermoHydro
  porepressure = porepressure
  temperature = temperature
  fp = tabulated_water
  stabilization = KT
  flux_limiter_type = ${flux_limiter}
  use_displaced_mesh = false
  temperature_unit = Celsius
  pressure_unit = Pa
  time_unit = days
[]

[ICs]
  [porepressure]
    type = FunctionIC
    variable = porepressure
    function = insitu_pressure
  []
  [temperature]
    type = FunctionIC
    variable = temperature
    function = insitu_temperature
  []
[]

[BCs]
  [outer_boundary_porepressure]
    type = FunctionDirichletBC
    preset = true
    variable = porepressure
    function = insitu_pressure
    boundary = 'bottom right top'
  []
  [outer_boundary_temperature]
    type = FunctionDirichletBC
    preset = true
    variable = temperature
    function = insitu_temperature
    boundary = 'bottom right top'
  []
  [inject_heat]
    type = FunctionDirichletBC
    variable = temperature
    function = ${inject_temp}
    boundary = 'injection_area'
  []
  [inject_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = injection_rate_value
  []
  [produce_heat]
    type = PorousFlowSink
    variable = temperature
    boundary = injection_area
    flux_function = production_rate_value
    fluid_phase = 0
    use_enthalpy = true
    save_in = heat_flux_out
  []
  [produce_fluid]
    type = PorousFlowSink
    variable = porepressure
    boundary = injection_area
    flux_function = production_rate_value
  []
[]

[Controls]
  [inject_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::inject_heat BCs::inject_fluid'
    conditional_function = inject
    implicit = false
    execute_on = 'initial timestep_begin'
  []
  [produce_on]
    type = ConditionalFunctionEnableControl
    enable_objects = 'BCs::produce_heat BCs::produce_fluid'
    conditional_function = produce
    implicit = false
    execute_on = 'initial timestep_begin'
  []
[]

[Functions]
  [insitu_pressure]
    type = ParsedFunction
    expression = '(y - ${depth_centre}) * 1000 * ${gravity} + 1E5' # approx insitu pressure in Pa
  []
  [insitu_temperature]
    type = ParsedFunction
    expression = '${temp0} + (${depth_centre} - y) * ${geothermal_gradient}'
  []

  [inject]
    type = ParsedFunction
    expression = 'if(t >= ${start_injection1} & t < ${end_injection1}, 1,
             if(t >= ${start_injection2} & t < ${end_injection2}, 1,
             if(t >= ${start_injection3} & t < ${end_injection3}, 1,
             if(t >= ${start_injection4} & t < ${end_injection4}, 1,
             if(t >= ${start_injection5} & t < ${end_injection5}, 1,
             if(t >= ${start_injection6} & t < ${end_injection6}, 1,
             if(t >= ${start_injection7} & t < ${end_injection7}, 1,
             if(t >= ${start_injection8} & t < ${end_injection8}, 1,
             if(t >= ${start_injection9} & t < ${end_injection9}, 1,
             if(t >= ${start_injection10} & t < ${end_injection10}, 1, 0))))))))))'
  []
  [produce]
    type = ParsedFunction
    expression = 'if(t >= ${start_production1} & t < ${end_production1}, 1,
             if(t >= ${start_production2} & t < ${end_production2}, 1,
             if(t >= ${start_production3} & t < ${end_production3}, 1,
             if(t >= ${start_production4} & t < ${end_production4}, 1,
             if(t >= ${start_production5} & t < ${end_production5}, 1,
             if(t >= ${start_production6} & t < ${end_production6}, 1,
             if(t >= ${start_production7} & t < ${end_production7}, 1,
             if(t >= ${start_production8} & t < ${end_production8}, 1,
             if(t >= ${start_production9} & t < ${end_production9}, 1,
             if(t >= ${start_production10} & t < ${end_production10}, 1, 0))))))))))'
  []

  [injection_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '-${inject_fluid_mass}/(true_screen_area * ${inject_time})'
  []
  [production_rate_value]
    type = ParsedFunction
    symbol_names = true_screen_area
    symbol_values = true_screen_area
    expression = '${produce_fluid_mass}/(true_screen_area * ${produce_time})'
  []

  [heat_out_in_timestep]
    type = ParsedFunction
    symbol_names = 'dt heat_out'
    symbol_values = 'dt heat_out_fromBC'
    expression = 'dt*heat_out'
  []
  [produced_T_time_integrated]
    type = ParsedFunction
    symbol_names = 'dt produced_T'
    symbol_values = 'dt produced_T'
    expression = 'dt*produced_T / ${produce_time}'
  []
[]

[AuxVariables]
  [density]
    family = MONOMIAL
    order = CONSTANT
  []
  [porosity]
    family = MONOMIAL
    order = CONSTANT
  []
  [heat_flux_out]
    outputs = none
  []
[]

[AuxKernels]
  [density]
    type = PorousFlowPropertyAux
    variable = density
    property = density
  []
  [porosity]
    type = PorousFlowPropertyAux
    variable = porosity
    property = porosity
  []
[]

[FluidProperties]
  [true_water]
    type = Water97FluidProperties
  []
  [tabulated_water]
    type = TabulatedFluidProperties
    fp = true_water
    temperature_min = 275 # K
    temperature_max = 600
    interpolated_properties = 'density viscosity enthalpy internal_energy'
    fluid_property_output_file = water97_tabulated_modified.csv
    # Comment out the fp parameter and uncomment below to use the newly generated tabulation
    # fluid_property_file = water97_tabulated_modified.csv
  []
[]

[Materials]
  [porosity_aq]
    type = PorousFlowPorosityConst
    porosity = ${aq_porosity}
    block = aquifer
  []
  [porosity_caps]
    type = PorousFlowPorosityConst
    porosity = ${cap_porosity}
    block = caps
  []

  [permeability_aquifer]
    type = PorousFlowPermeabilityConst
    block = aquifer
    permeability = '${aq_hor_perm} 0 0   0 ${aq_ver_perm} 0   0 0 0'
  []
  [permeability_caps]
    type = PorousFlowPermeabilityConst
    block = caps
    permeability = '${cap_hor_perm} 0 0   0 ${cap_ver_perm} 0   0 0 0'
  []

  [aq_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = aquifer
    density = ${aq_density}
    specific_heat_capacity = ${aq_specific_heat_cap}
  []
  [caps_internal_energy]
    type = PorousFlowMatrixInternalEnergy
    block = caps
    density = ${cap_density}
    specific_heat_capacity = ${cap_specific_heat_cap}
  []

  [aq_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = aquifer
    dry_thermal_conductivity = '${aq_hor_dry_thermal_cond} 0 0  0 ${aq_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${aq_hor_wet_thermal_cond} 0 0  0 ${aq_ver_wet_thermal_cond} 0  0 0 0'
  []
  [caps_thermal_conductivity]
    type = PorousFlowThermalConductivityIdeal
    block = caps
    dry_thermal_conductivity = '${cap_hor_dry_thermal_cond} 0 0  0 ${cap_ver_dry_thermal_cond} 0  0 0 0'
    wet_thermal_conductivity = '${cap_hor_wet_thermal_cond} 0 0  0 ${cap_ver_wet_thermal_cond} 0  0 0 0'
  []
[]

[Postprocessors]
  [true_screen_area] # this accounts for meshes that do not match screen_top and screen_bottom exactly
    type = AreaPostprocessor
    boundary = injection_area
    execute_on = 'initial'
    outputs = 'none'
  []
  [dt]
    type = TimestepSize
  []

  [heat_out_fromBC]
    type = NodalSum
    variable = heat_flux_out
    boundary = injection_area
    execute_on = 'initial timestep_end'
    outputs = 'none'
  []
  [heat_out_per_timestep]
    type = FunctionValuePostprocessor
    function = heat_out_in_timestep
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [heat_out_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = heat_out_per_timestep
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
  [produced_T]
    type = SideAverageValue
    boundary = injection_area
    variable = temperature
    execute_on = 'initial timestep_end'
    outputs = 'csv console'
  []
  [produced_T_time_integrated]
    type = FunctionValuePostprocessor
    function = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'none'
  []
  [produced_T_cumulative]
    type = CumulativeValuePostprocessor
    postprocessor = produced_T_time_integrated
    execute_on = 'timestep_end'
    outputs = 'csv console'
  []
[]

[Preconditioning]
  [basic]
    type = SMP
    full = true
    petsc_options = '-ksp_diagonal_scale -ksp_diagonal_scale_fix'
    petsc_options_iname = '-pc_type -sub_pc_type -sub_pc_factor_shift_type -pc_asm_overlap'
    petsc_options_value = ' asm      lu           NONZERO                   2'
  []
[]

[Executioner]
  type = Transient
  solve_type = Newton
  end_time = ${end_simulation}
  timestep_tolerance = 1e-5

  [TimeStepper]
    type = IterationAdaptiveDT
    dt = 1e-3
    growth_factor = 2
  []

  dtmax = 1
  dtmin = 1e-5
  # rough calc for fluid, |R| ~ V*k*1E6 ~ V*1E-5
  # rough calc for heat, |R| ~ V*(lam*1E-3 + h*1E-5)  ~ V*(1E3 + 1E-2)
  # so scale heat by 1E-7 and go for nl_abs_tol = 1E-4, which should give a max error of
  # ~1Pa and ~0.1K in the first metre around the borehole
  nl_abs_tol = 1E-4
  nl_rel_tol = 1E-5
[]

[Outputs]
  sync_times = ${synctimes}
  [ex]
    type = Exodus
    time_step_interval = 20
  []
  [csv]
    type = CSV
    execute_postprocessors_on = 'initial timestep_end'
  []
[]

Introduction
Model setup
Results
References

Theory

Usage

Development

Aquifer thermal energy storage

Introduction

Model setup

Results

References
