Low-Mach Compressible Flow

The low-Mach governing equations are obtained by filtering acoustic waves from the fully compressible Navier–Stokes equations. The pressure is decomposed into a spatially uniform, leading-order thermodynamic component and a first-order hydrodynamic component that appears in the momentum equation (Tomboulides et al., 1997). The low-Mach formulation is applicable to low-speed flows with significant density variations, such as reactive flows and natural convection, where thermal expansion must be captured while acoustic waves are neglected.

Problem description

The lowMach case is adopted from Tomboulides et al. (Tomboulides and Orzag, 1998). The problem is a nontrivial, quasi-two-dimensional verification problem derived from the following one-dimensional system:

(1)

Here, is the temperature, is the -component of velocity, is the thermal diffusivity, is the Reynolds number, is the Prandtl number, is the volumetric heat source, is the kinematic viscosity, is the hydrodynamic pressure, is the density, and is the spatial coordinate.

Computational domain

The problem is solved on the domain and . Periodic boundary conditions are applied in the and directions.

Analytical solution

The volumetric heat source introduced by Tomboulides et al. (Tomboulides and Orzag, 1998) is

(2)

The exact solution of the system is the smooth step profile

(3)

where is a user-specified parameter that controls the sharpness of the solution profile. Dirichlet boundary conditions are imposed at and using the analytical solution.

Verification results

Two simulations are performed using a polynomial order of seven; the second simulation enables characteristic subcycling for the fluid and temperature solvers. Errors are evaluated at . Figure 1 and Figure 2 present the volume-integrated error norms for the two cases. The results demonstrate spectral convergence for the -velocity, hydrodynamic pressure, and temperature fields, thereby verifying the accuracy of the low-Mach solver.

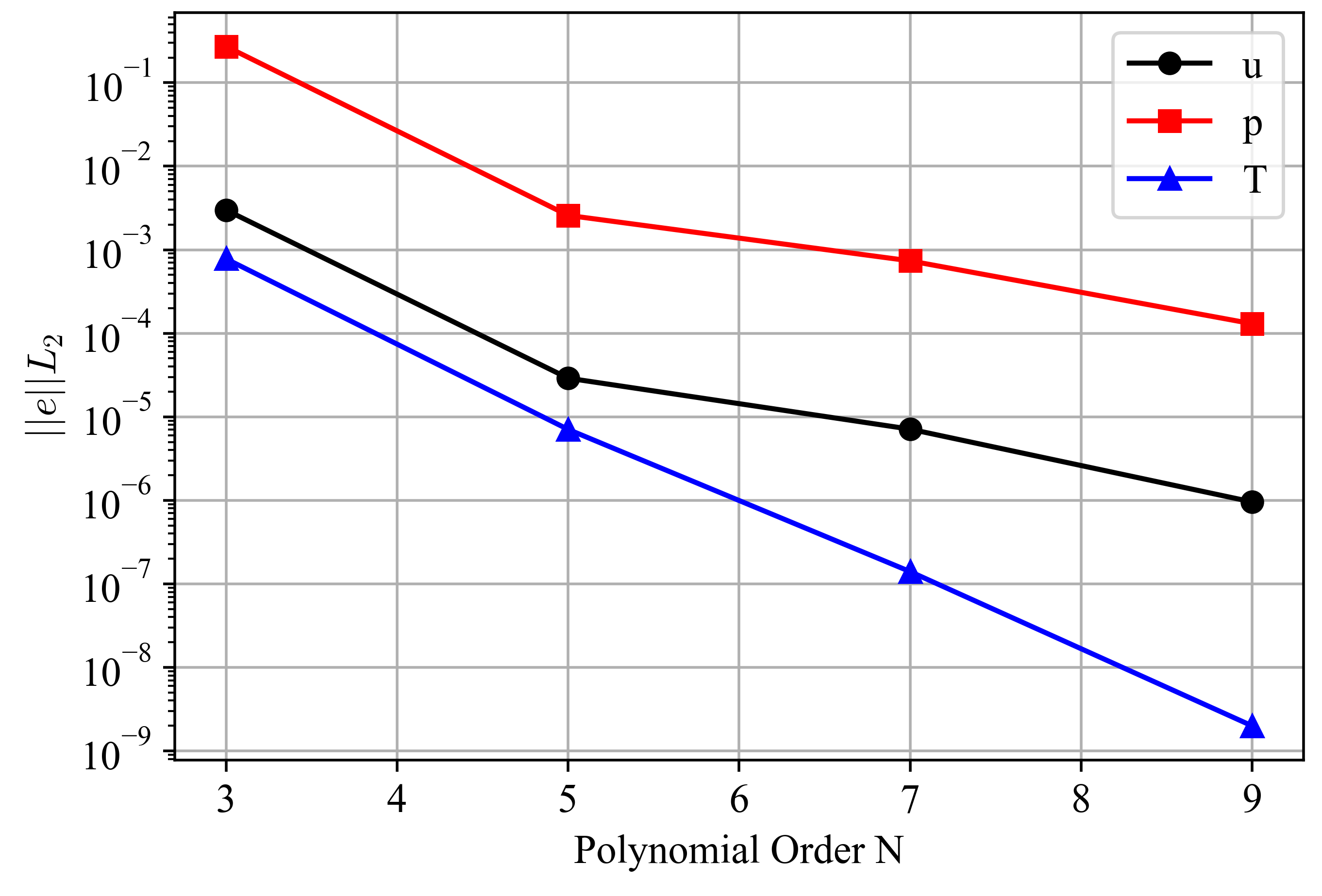

Volume-integrated error norms for velocity, pressure, and temperature without characteristic subcycling.

Figure 1: Volume-integrated error norms for the lowMach case without characteristic subcycling.

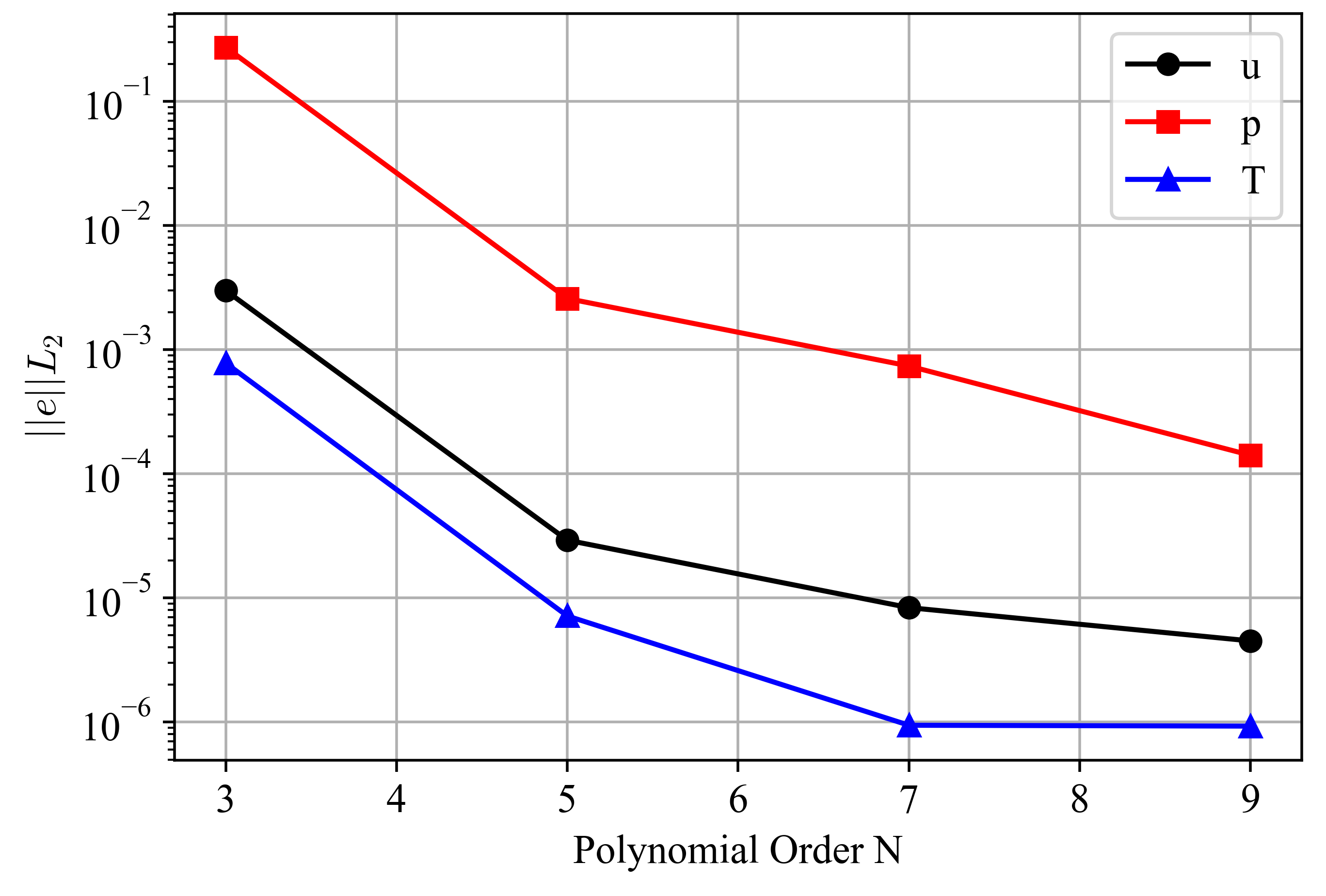

Volume-integrated error norms for velocity, pressure, and temperature with characteristic subcycling.

Figure 2: Volume-integrated error norms for the lowMach case with characteristic subcycling.

References

  1. AG Tomboulides, JCY Lee, and Steven A Orszag. Numerical simulation of low mach number reactive flows. Journal of Scientific Computing, 12(2):139–167, 1997.[Export]
  2. Ananias G Tomboulides and Steven A Orzag. A quasi-two-dimensional benchmark problem for low mach number compressible codes. Journal of Computational Physics, 146(2):691–706, 1998.[Export]
